TREK
SKU: 5259749

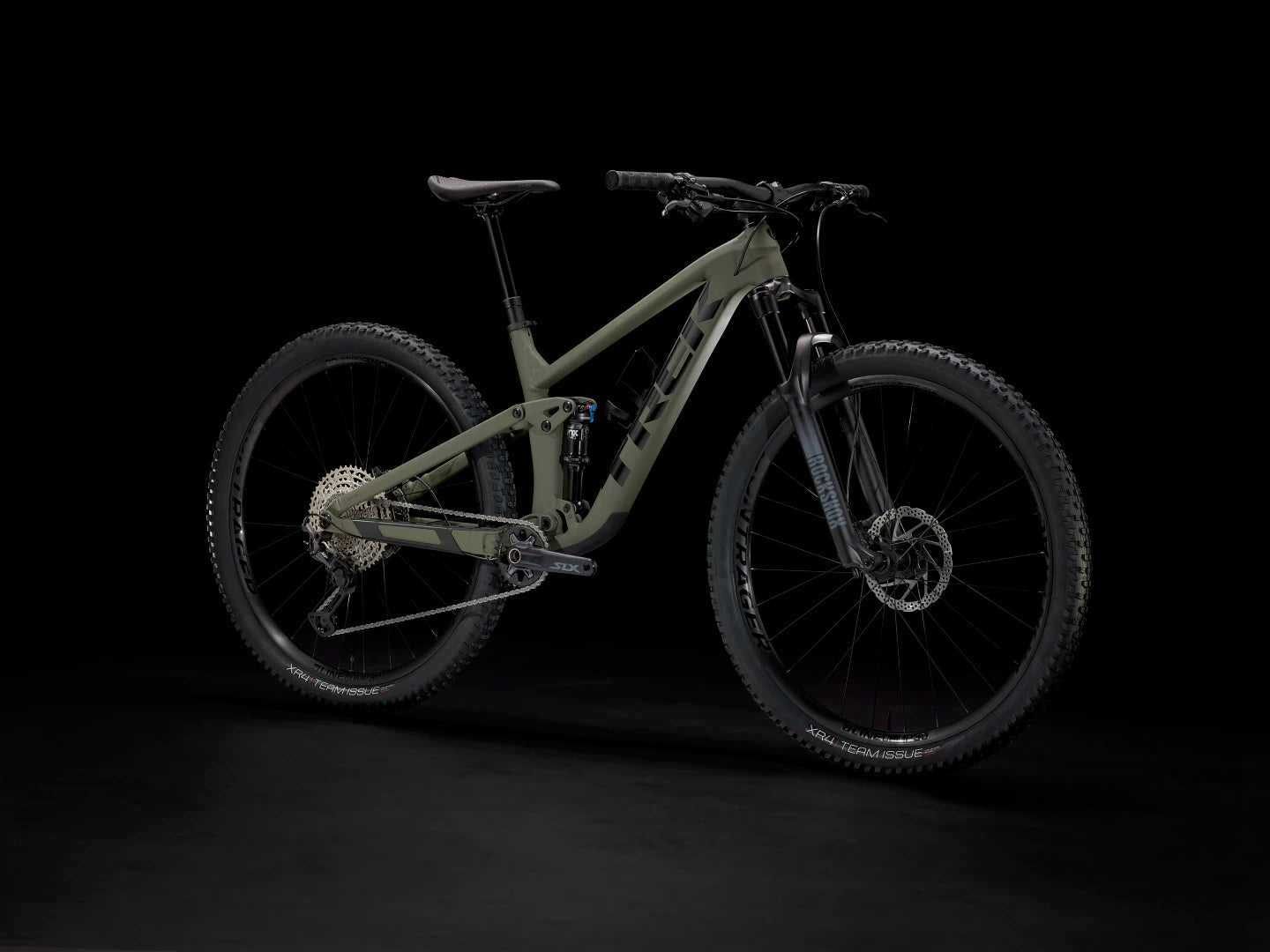

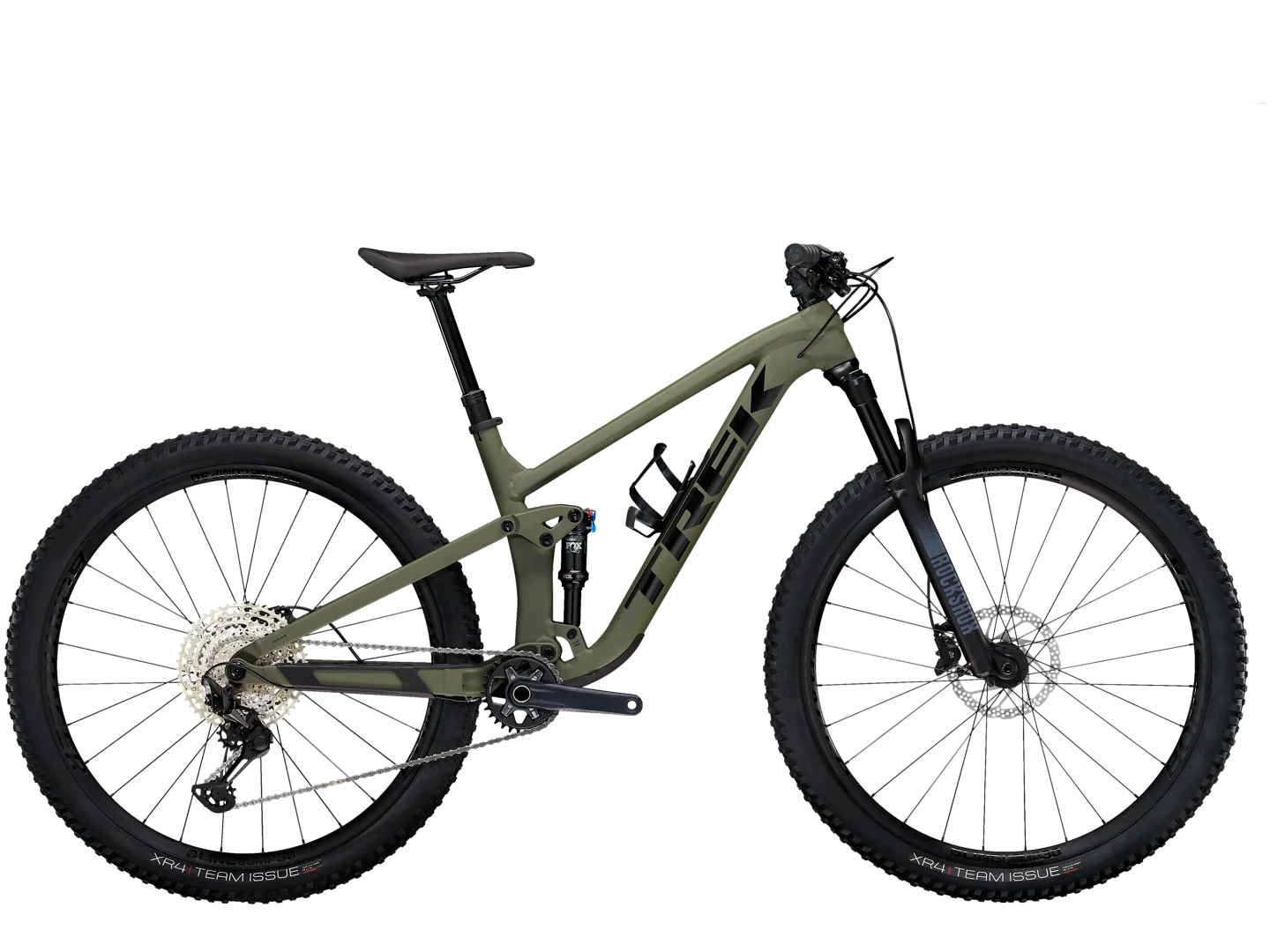

TREK Top Fuel 7 Gen 3

Sale price110,000 ฿
Color: Matte OliveGrey
Size: S
Top Fuel 7 Gen 3
Size Rider Height Inseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"
M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"
ML

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"
L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"
XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"
0.0

The Top Fuel 7 is a full-suspension mountain bike that combines the speed of a cross-country bike with the go-for-it gusto of a trail bike. It's efficient up climbs and fast on sprints, but it's not afraid of letting loose when you want to get rowdy.



FRAMESET

Frame
: Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
Fork
: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel

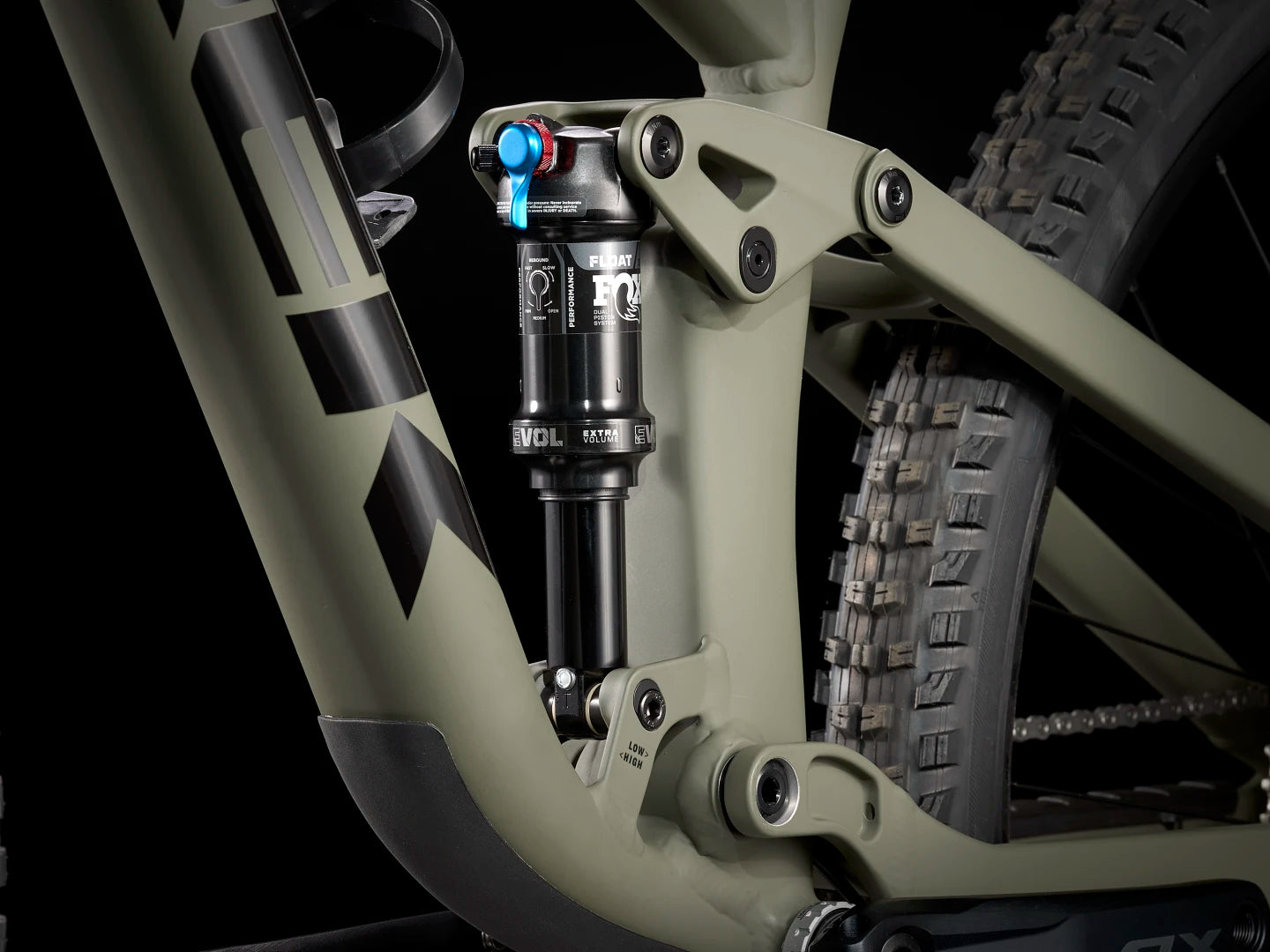

Shock
: Fox Performance Float DPS, 3-position damper, 185 mm x 50 mm
Max compatible fork travel
: 130mm (541mm axle-to-crown)

WHEELS

Wheel front
: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
*Wheel rear
: Size: S, M, ML, L, XL, XXL
Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29"
Size: S, M, ML, L, XL, XXL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
Skewer rear
: Bontrager Switch thru-axle, removable lever

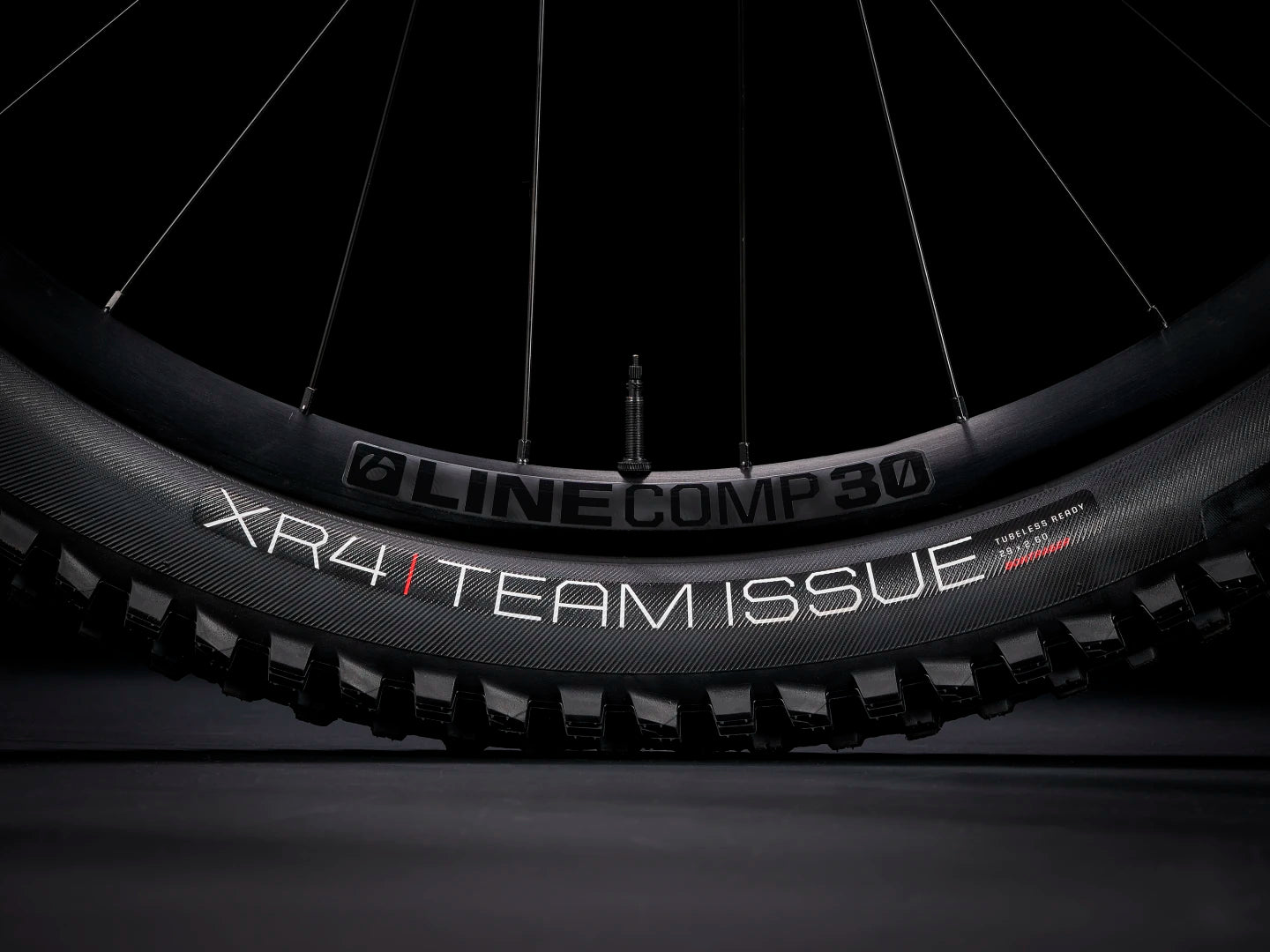

Tyre
: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.40"
Tyre part
: Bontrager TLR sealant, 180 ml/6 oz
Rim strip
: Bontrager TLR
Max tyre size
: Frame: 29x2.50", Fork: See manufacturer

DRIVETRAIN

Shifter
: Shimano SLX M7100, 12-speed

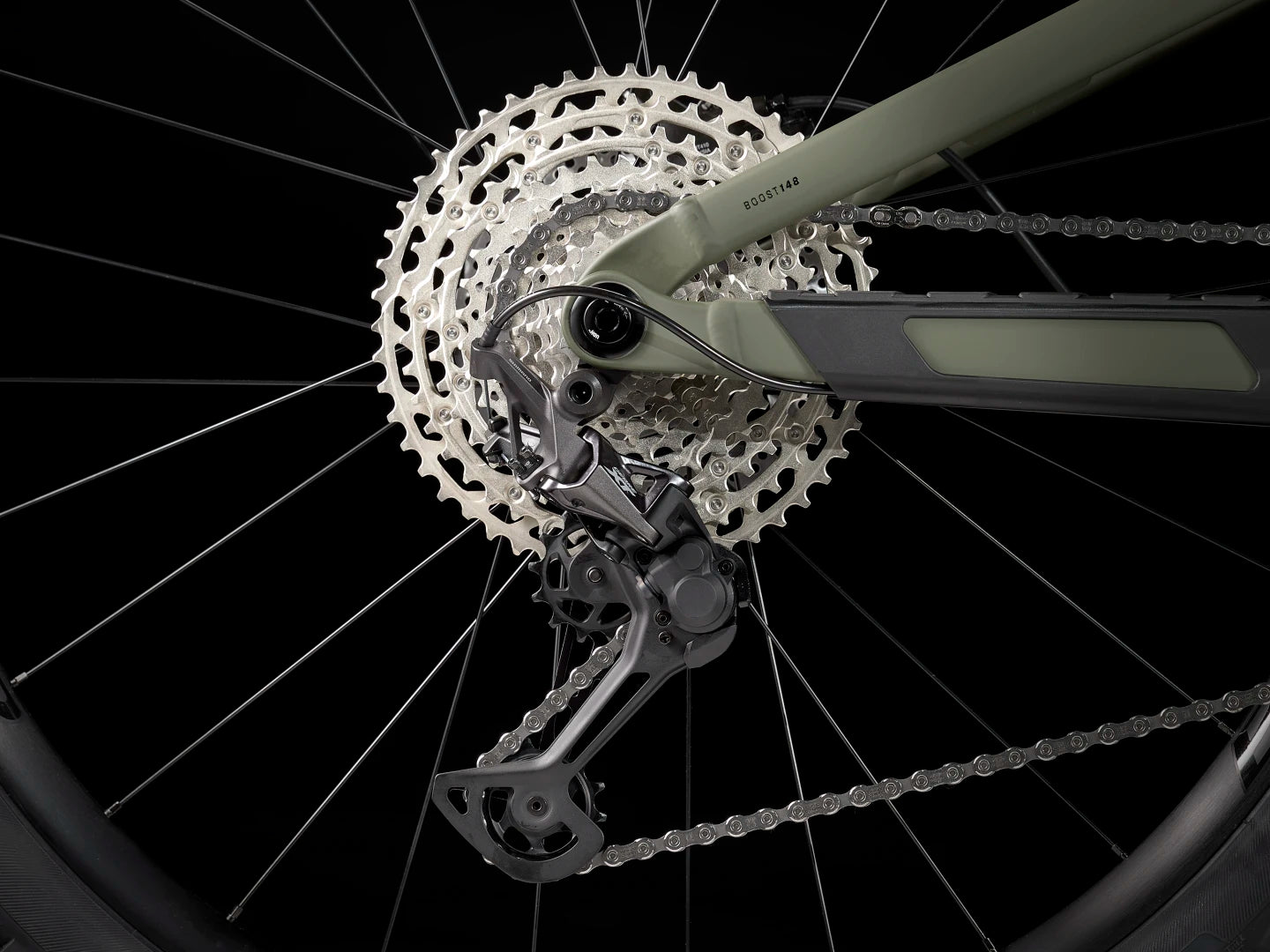

Rear derailleur
: Shimano XT M8100, long cage

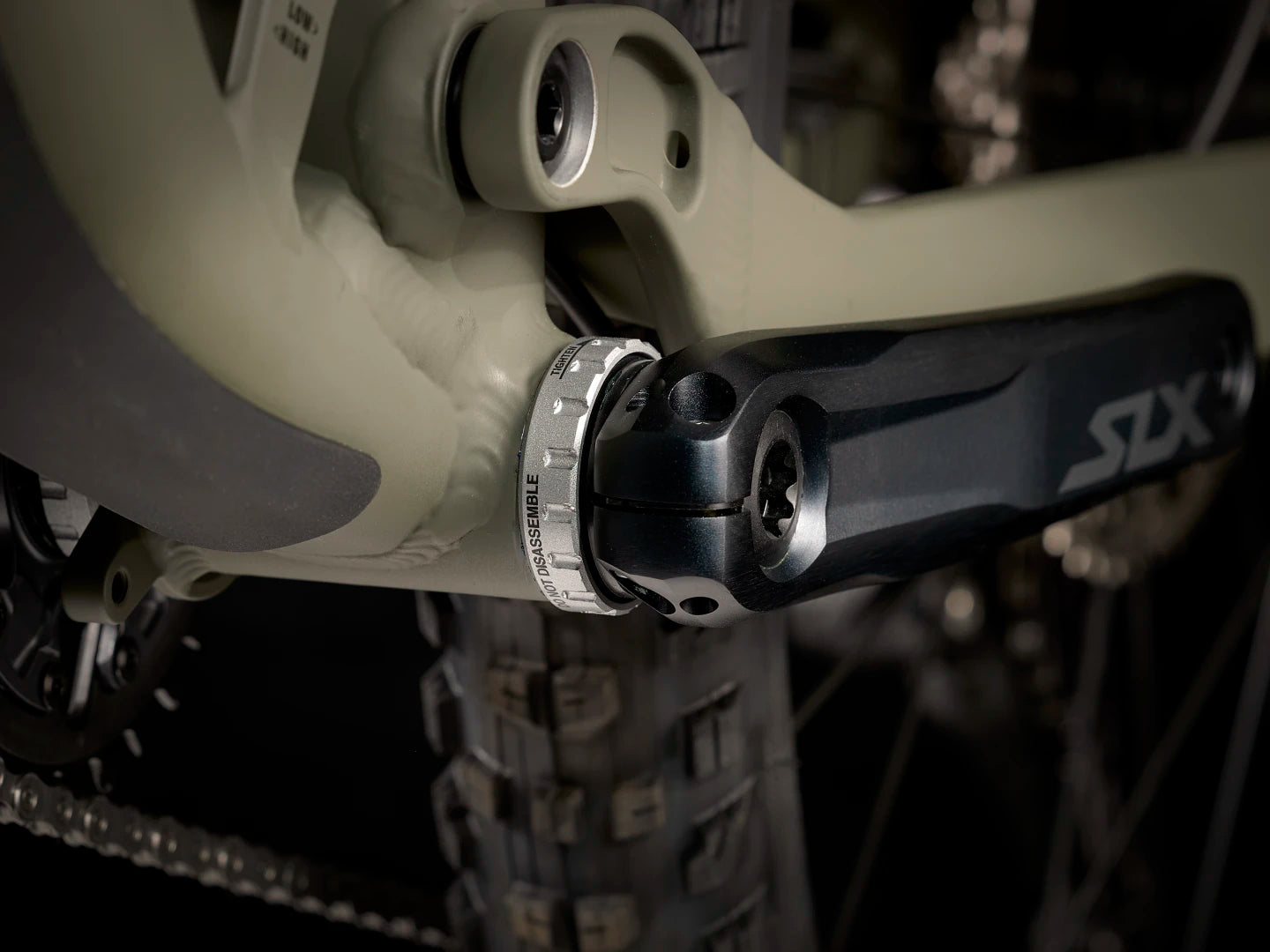

*Crank
: Size: S, M, ML, L
Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Size: XL, XXL
Shimano Deore M6120, 30T ring, 55 mm chainline, 175 mm length
*Bottom bracket
: Size: S, M, ML, L, XL, XXL
Shimano BB-MT501 BSA
Size: S, M, ML, L, XL, XXL
Shimano SM-BB52, 73 mm, threaded external bearing
Cassette
: Shimano Deore M6100, 10-51, 12-speed
Chain
: Shimano Deore M6100, 12-speed
Max. chainring size
: 1x: 36T round, 34T oval, min 28T

COMPENENTS

Saddle
: Bontrager Arvada, steel rails, 138 mm width
*Seatpost
: Size: S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Size: M, ML
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Size: L, XL, XXL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar
: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Grips
: Bontrager XR Trail Comp, nylon lock-on
Stem
: Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Head set
: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom

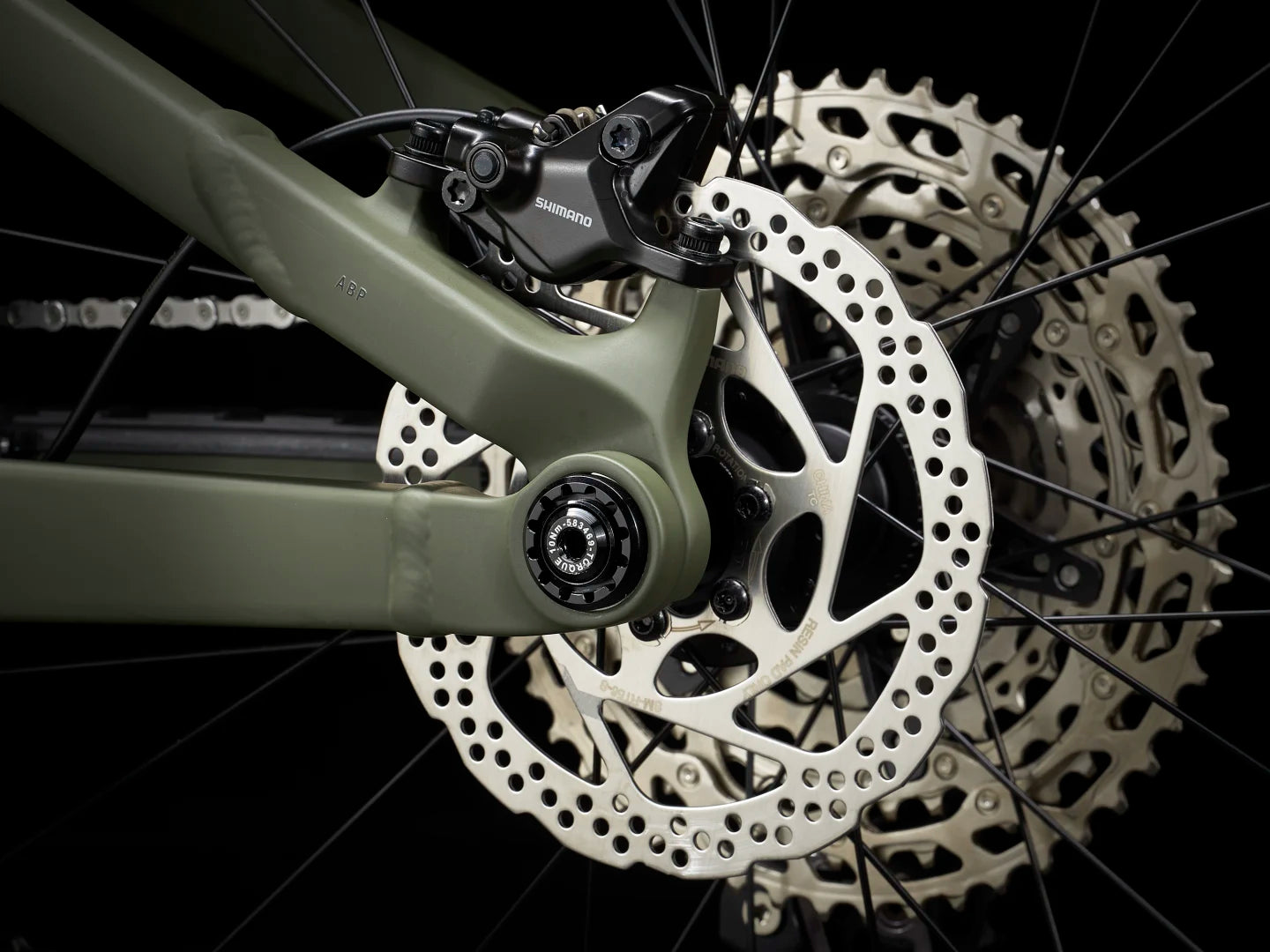

*Brake
: Size: S, M, ML, L, XL, XXL
Shimano hydraulic disc, MT4100 lever, MT410 calliper
Size: S, M, ML, L, XL, XXL
TRP Slate EVO hydraulic disc
*Brake rotor
: Size: S, M, ML, L, XL, XXL
Shimano RT56, 6-bolt, 180 mm
Size: S, M, ML, L, XL, XXL
Shimano RT56, 6-bolt, 160 mm
Size: S, M, ML, L, XL, XXL
TRP, 6-bolt, 180 mm
Rotor size
: Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer

ACCESSORIES

Bag : Bontrager BITS Internal Frame Storage Bag

WEIGHT

Weight
: M - 14.83 kg / 32.7 lb
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Why you'll love it

  1. This bike’s killer suspension set-up is both efficient and ready to party

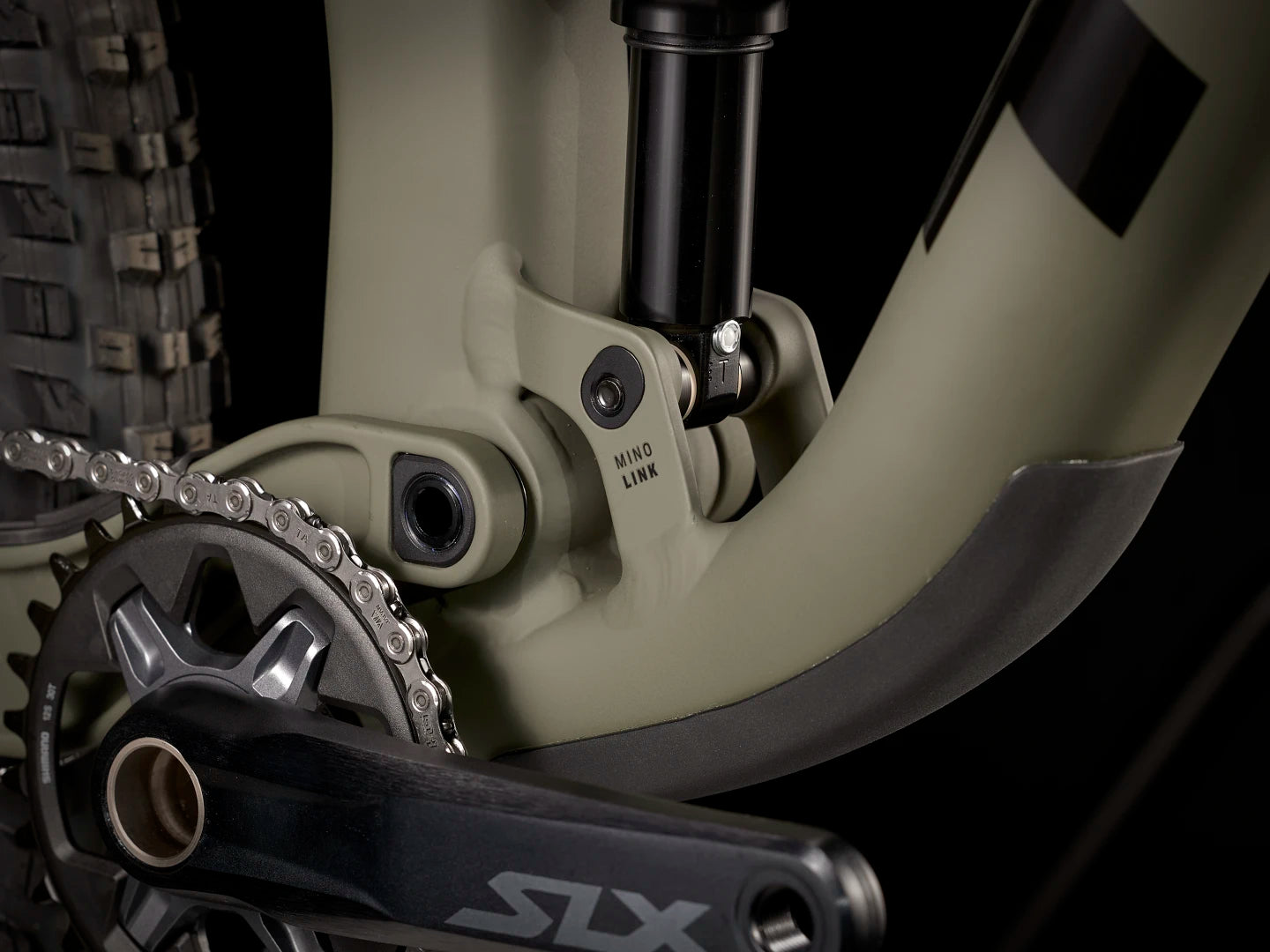

  2. Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
  3. A sleek internal storage compartment gives you a versatile spot to stow tools and gear
  4. New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Quick and in control

120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

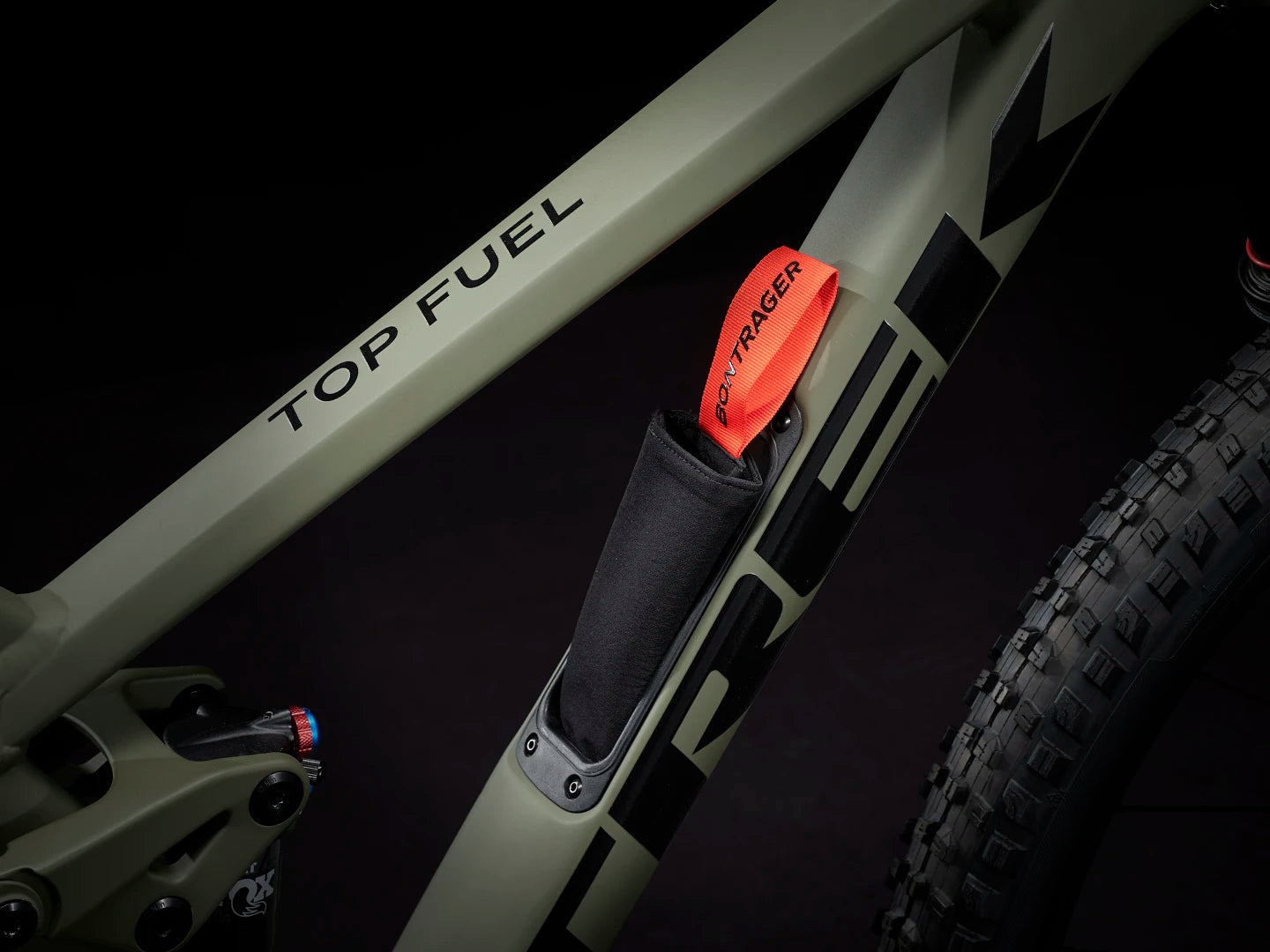

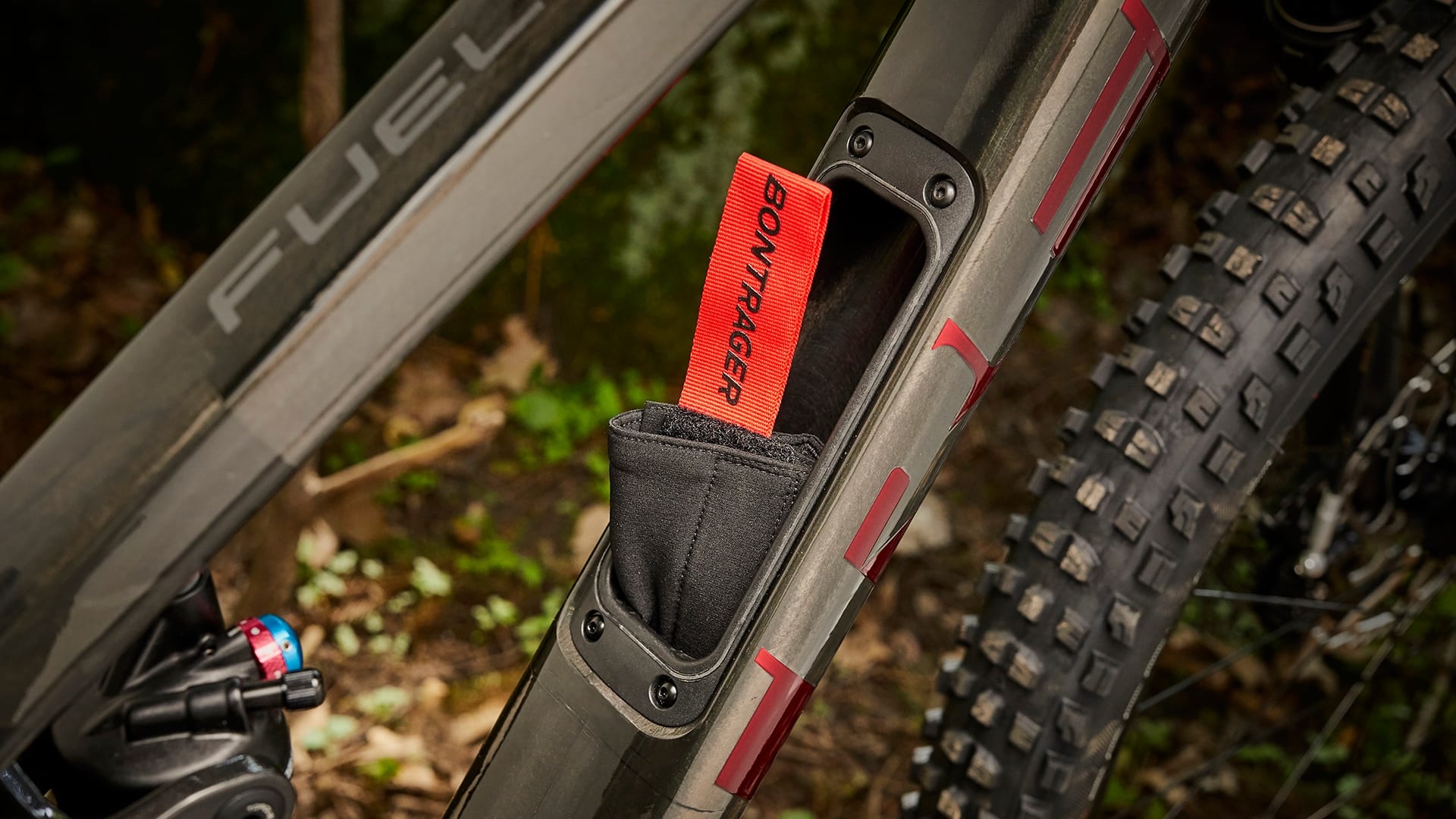

Internal Storage

Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

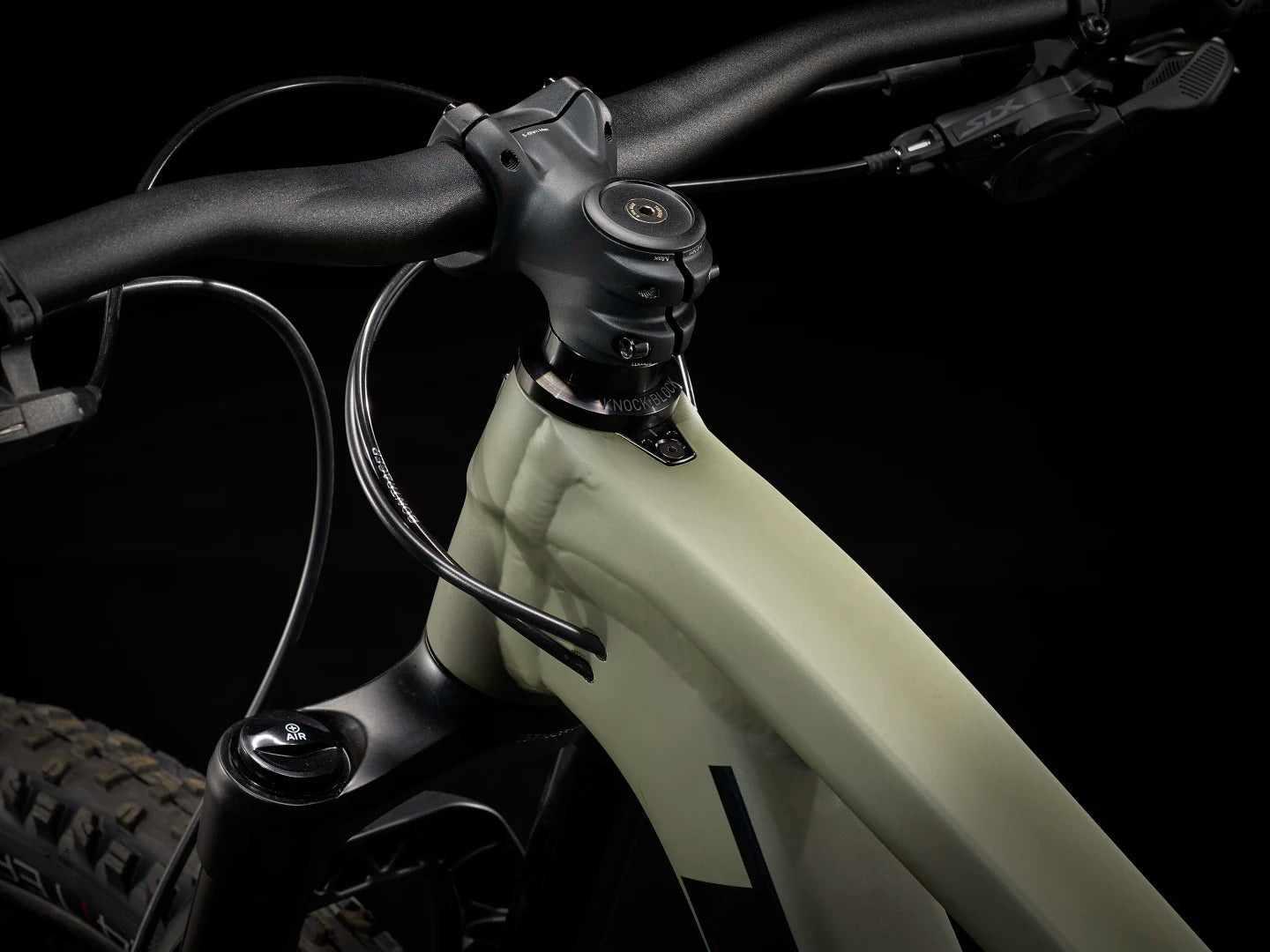

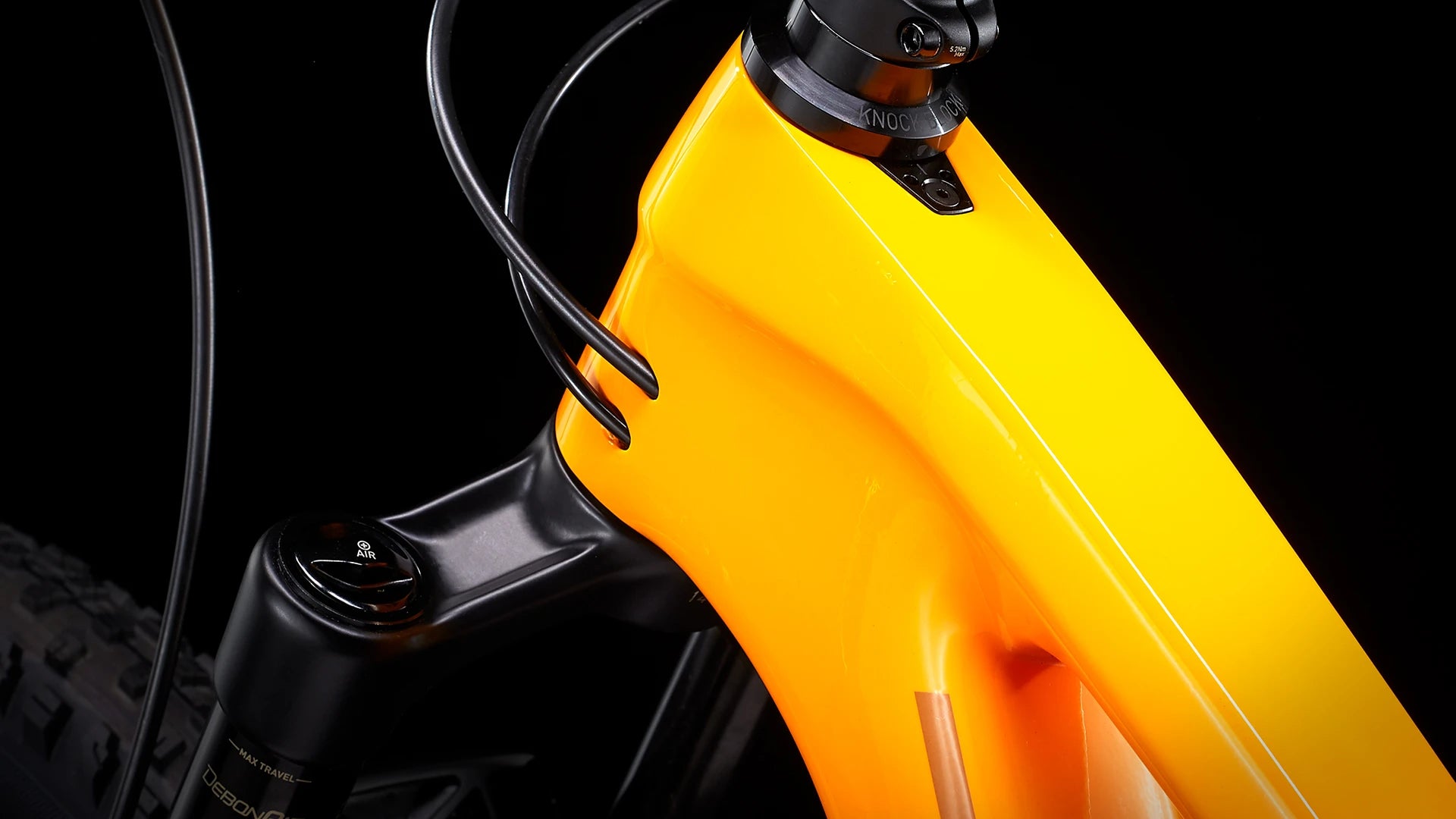

Hassle-free routing

Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.

Will my bike have a curved top tube?

Smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don't have the same issues with standover height.

Shimano XT

Shimano XT is the original mountain bike groupset and trusted by generations of mountain bikers around the world. Whatever the trail, wherever you ride, XT is your solution for mountain biking today. Reliable shifting. Superior braking. Intuitive maintenance. XT is the high performance workhorse you can count on.

It's right for you if...

You want a full-suspension mountain bike that’s fast on flats and rolling terrain, but has enough travel to get wild on the trail. You want a solid build spec at a price that won't break your bike bank.

The tech you get

A lightweight aluminium frame with internal storage, 120 mm RockShox 35 Gold fork, 120 mm of rear travel with FOX Performance Float DPS shock with a 3-position damper and a wide-range Shimano Deore/XT drivetrain. Plus, Bontrager Line Comp 30 wheels that are already completely tubeless-ready, including sealant, hydraulic disc brakes and a dropper post.

The final word

Top Fuel 7 is an awesome and affordable bike that's a blast to whip around on and easier on the wallet. It's fast and fun and perfect for riders who want to test their mettle on all types of trails.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
