SKU: 5260669

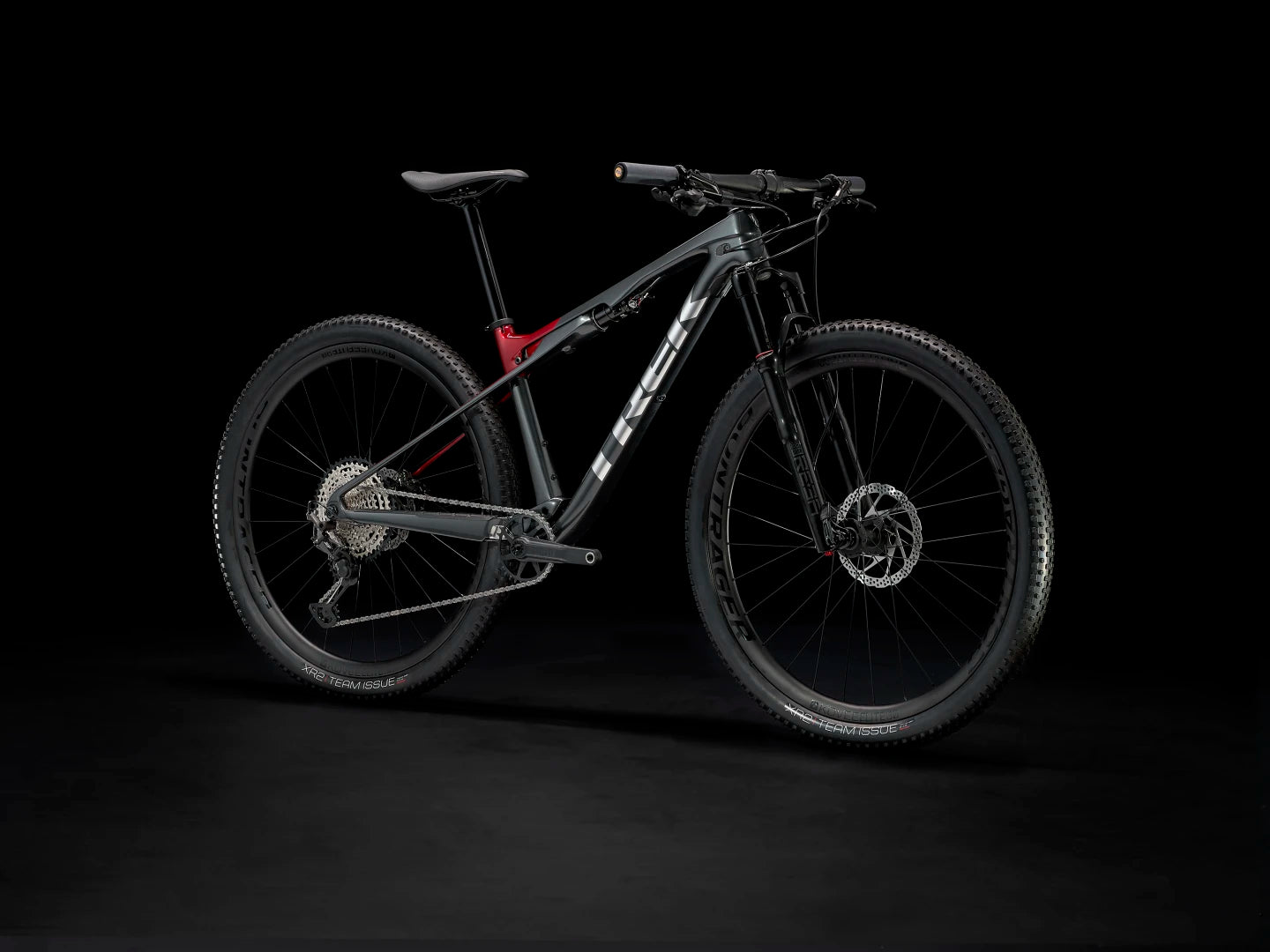

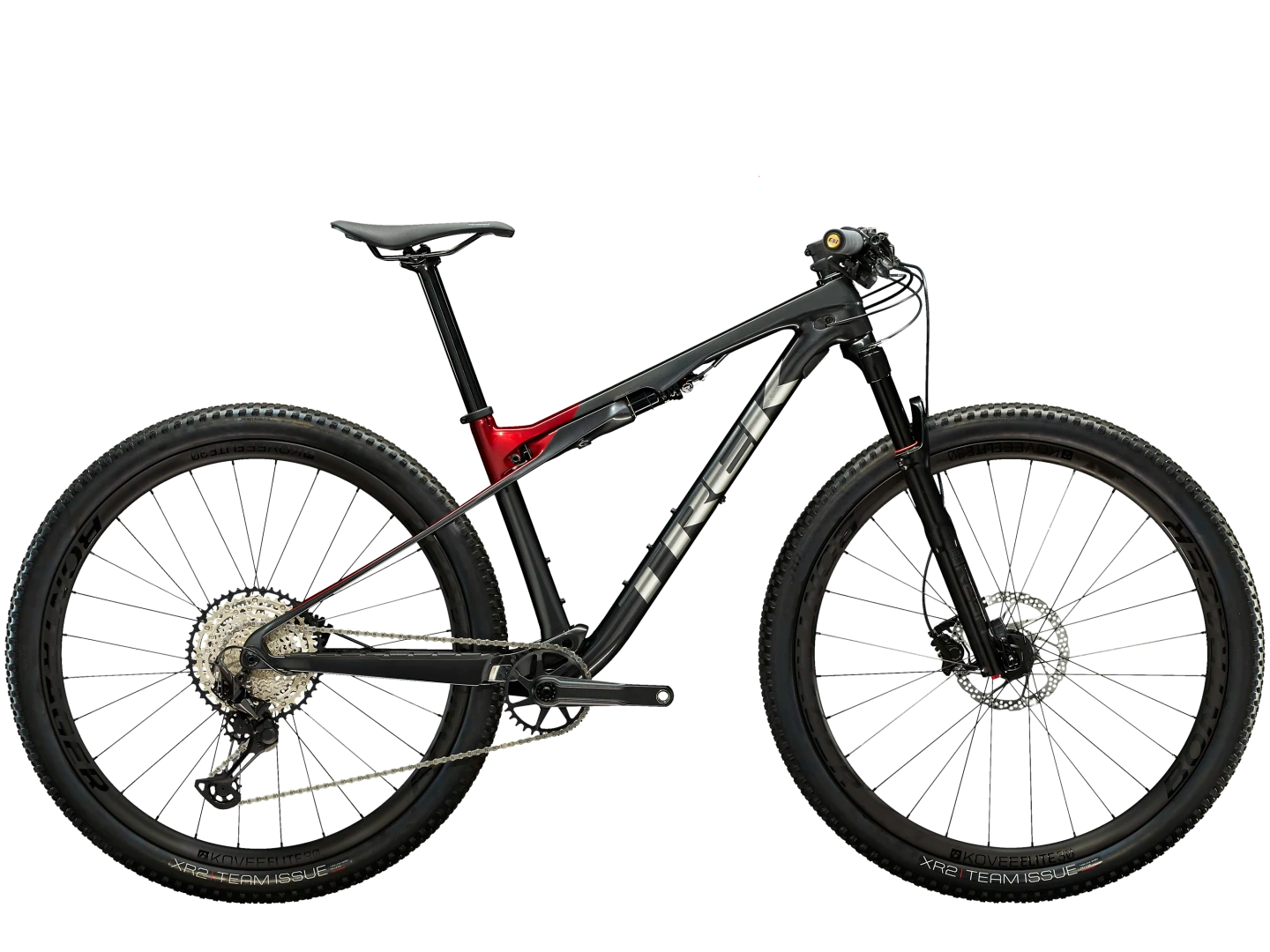

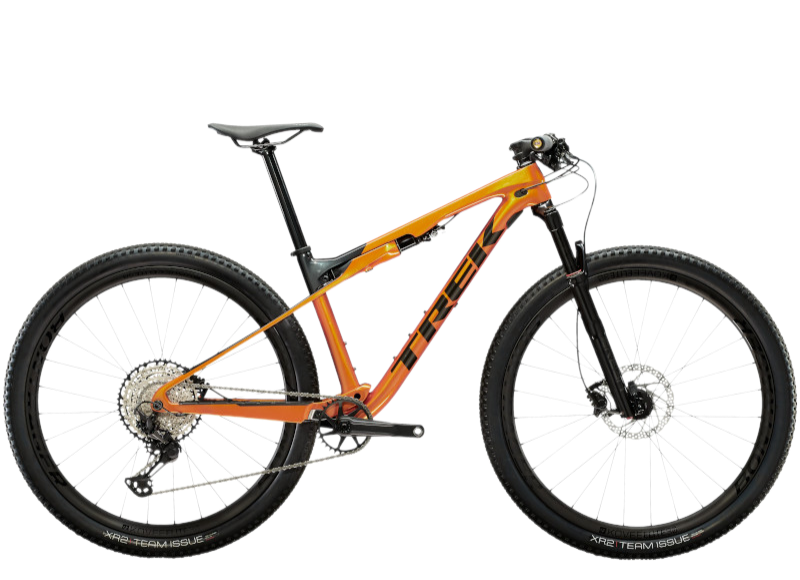

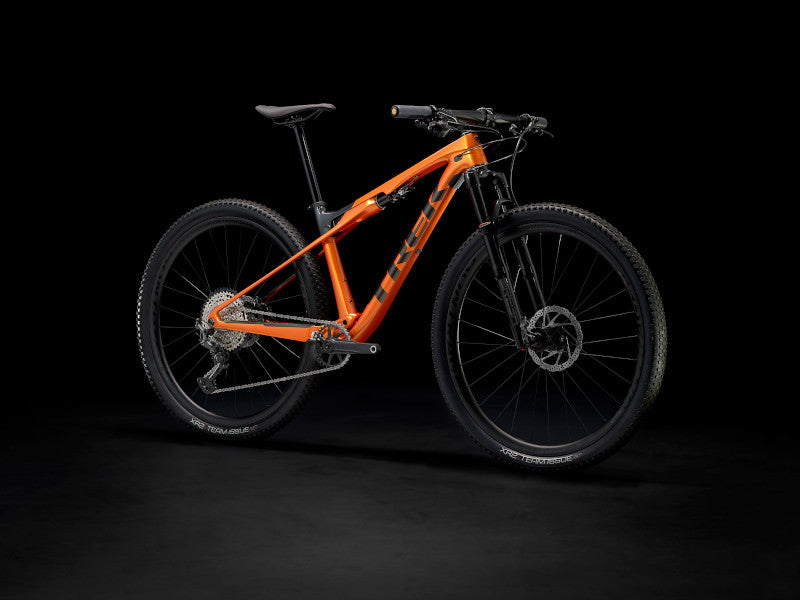

TREK Supercaliber 9.7 Gen 1

Sale price179,500 ฿
Color: Lithium Grey/Crimson
SIZE: ML
SUPERCALIBER 9.7 GEN1
Size Rider Height Inseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

ML

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"


With Supercaliber 9.7 you no longer have to choose between hardtail and full-suspension on race day. Every element of this bike is developed for fast capability, from the efficient IsoStrut shock to weight-saving pivotless seat stays that cut down on trial chatter. A lightweight parts spec completes this XC-crushing machine.

FRAMESET

Frame
: OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Fork
: RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel

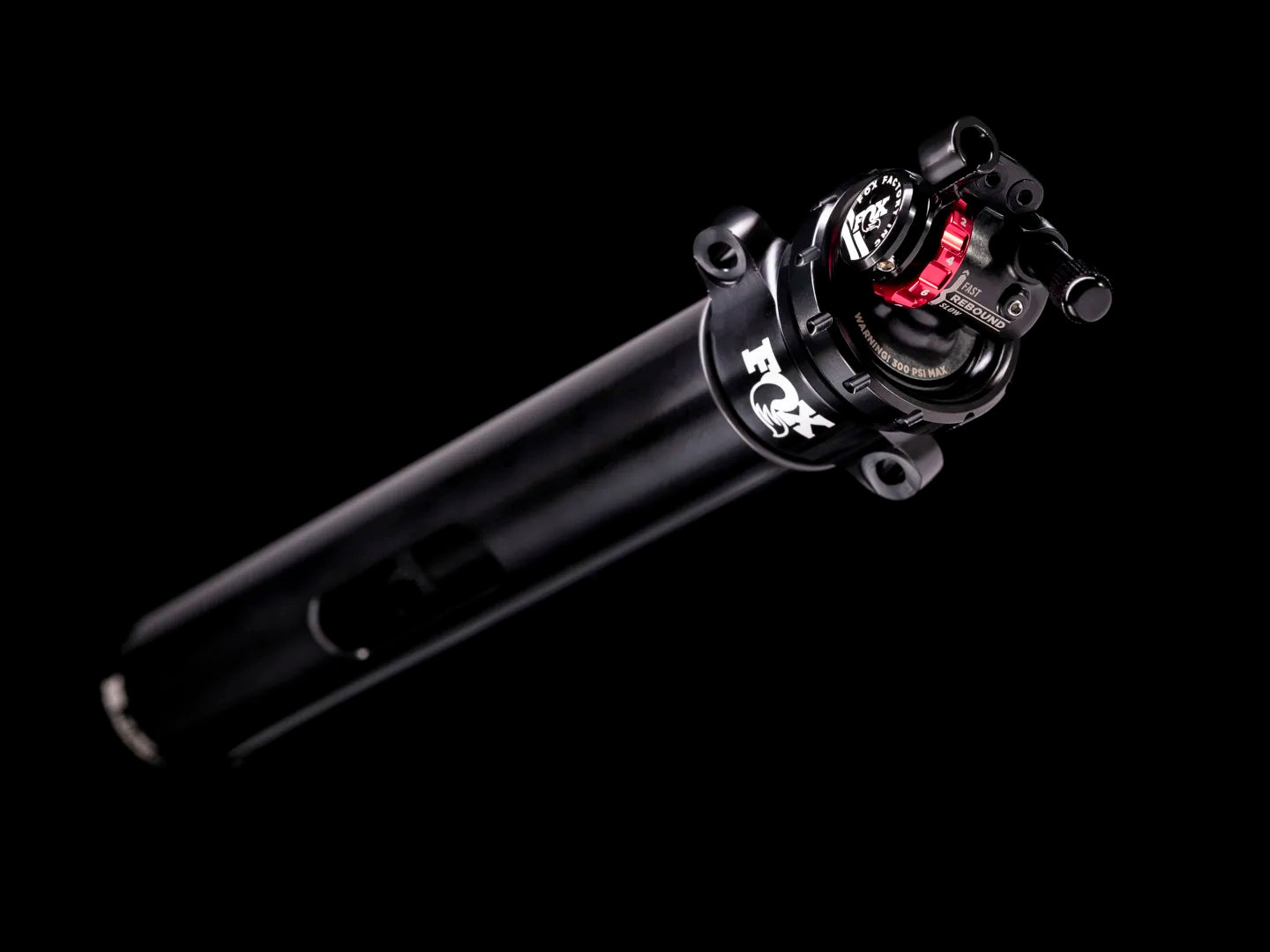

Shock
: Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235mm x 32.5mm

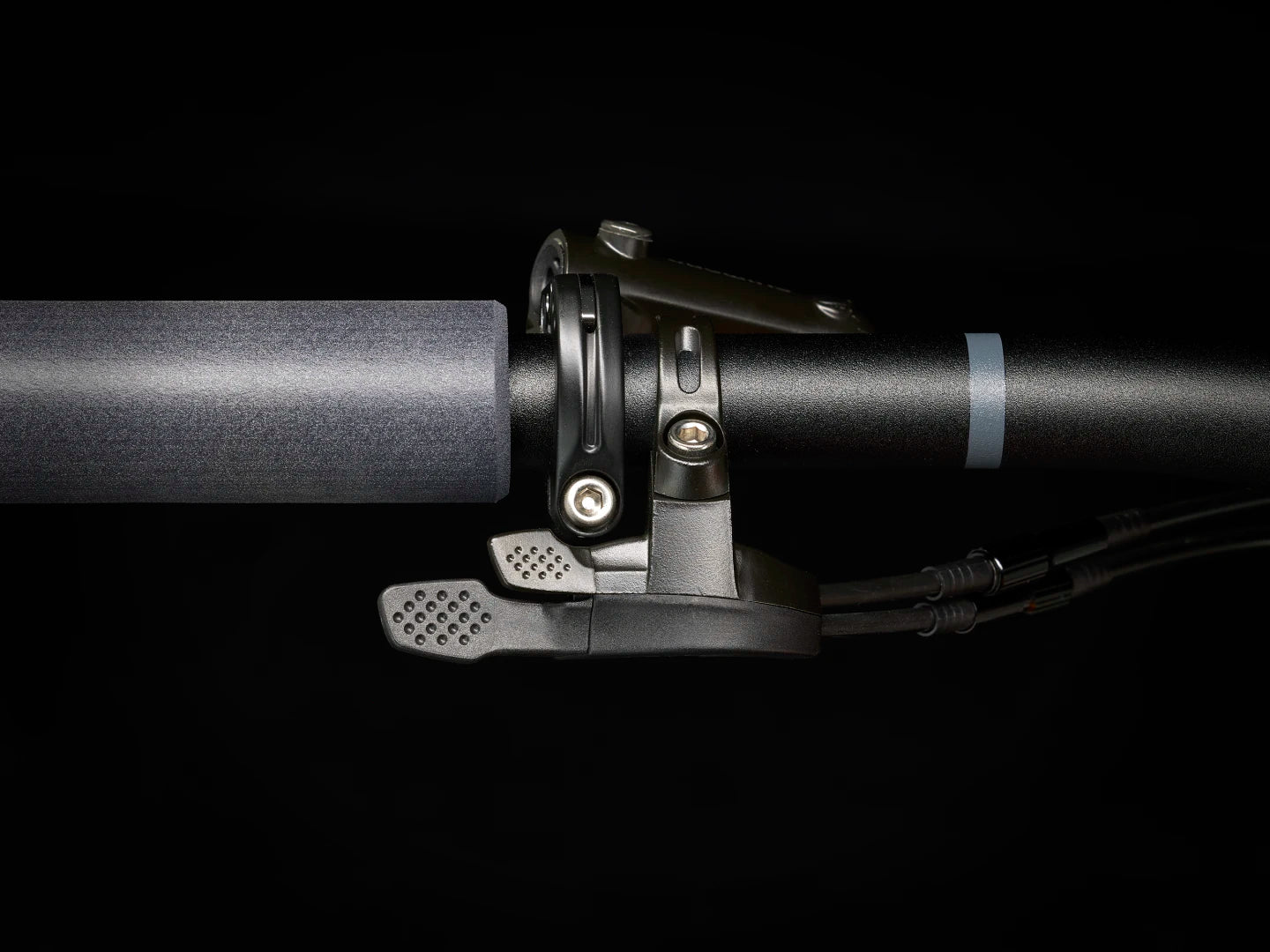

Suspension lever
: Fox 2-position dual lockout lever
Max compatible fork travel
: 120mm (531mm axle-to-crown)

WHEELS

Wheel front
: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost 110, 15mm thru axle, 29''
Wheel rear
: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano Microspline freehub, 6-bolt, Boost148, 12mm thru axle, 29''
Hub rear
: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear
: Bontrager Switch thru axle, removable lever
Rim
: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready

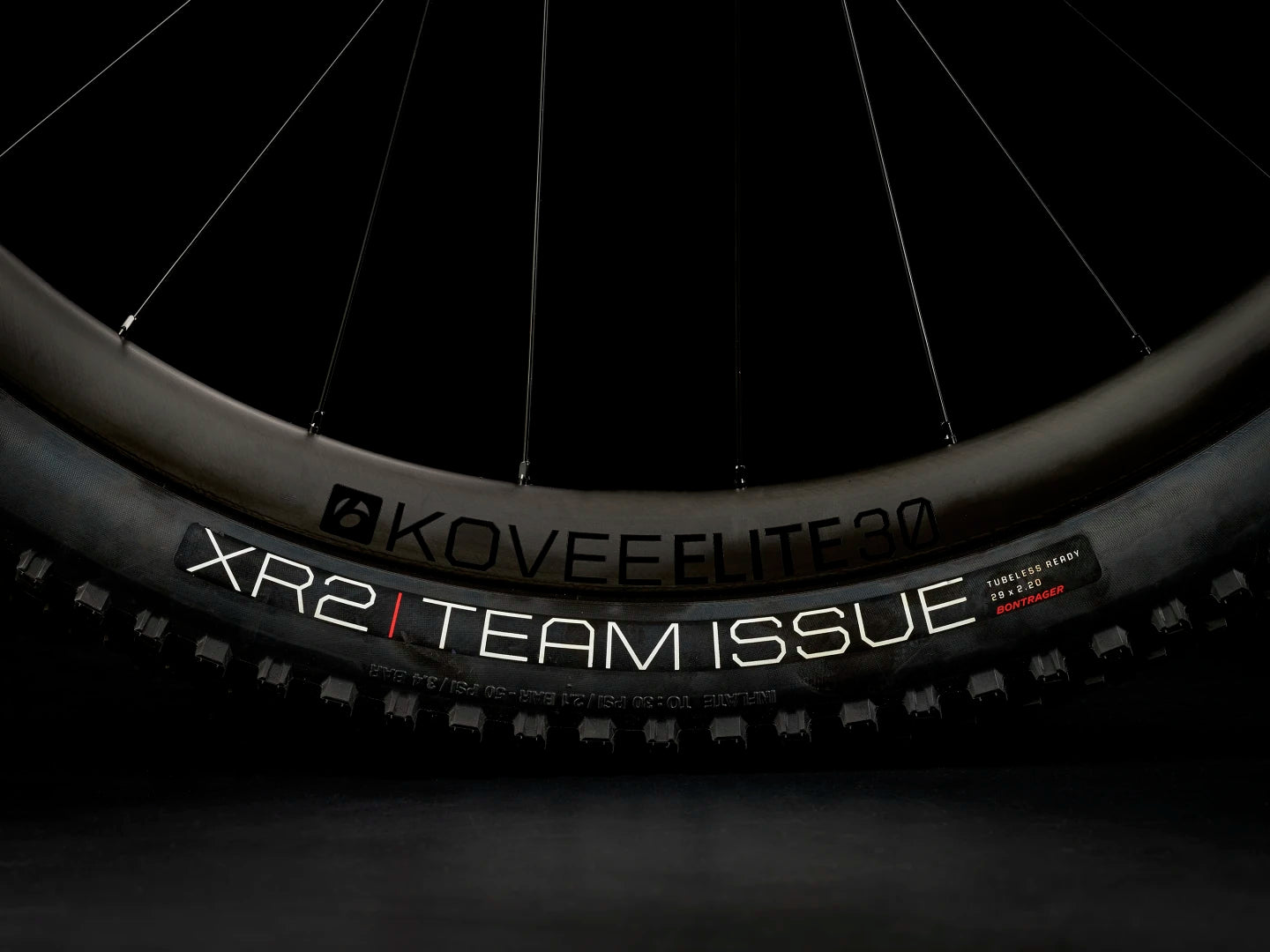

Tire
: Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Tire part
: Bontrager TLR sealant, 6oz
Rim strip
: Bontrager TLR
Max tire size
: Frame: 29x2.20", Fork: See manufacturer

DRIBVETRAIN

Shifter
: Shimano SLX M7100, 12 speed

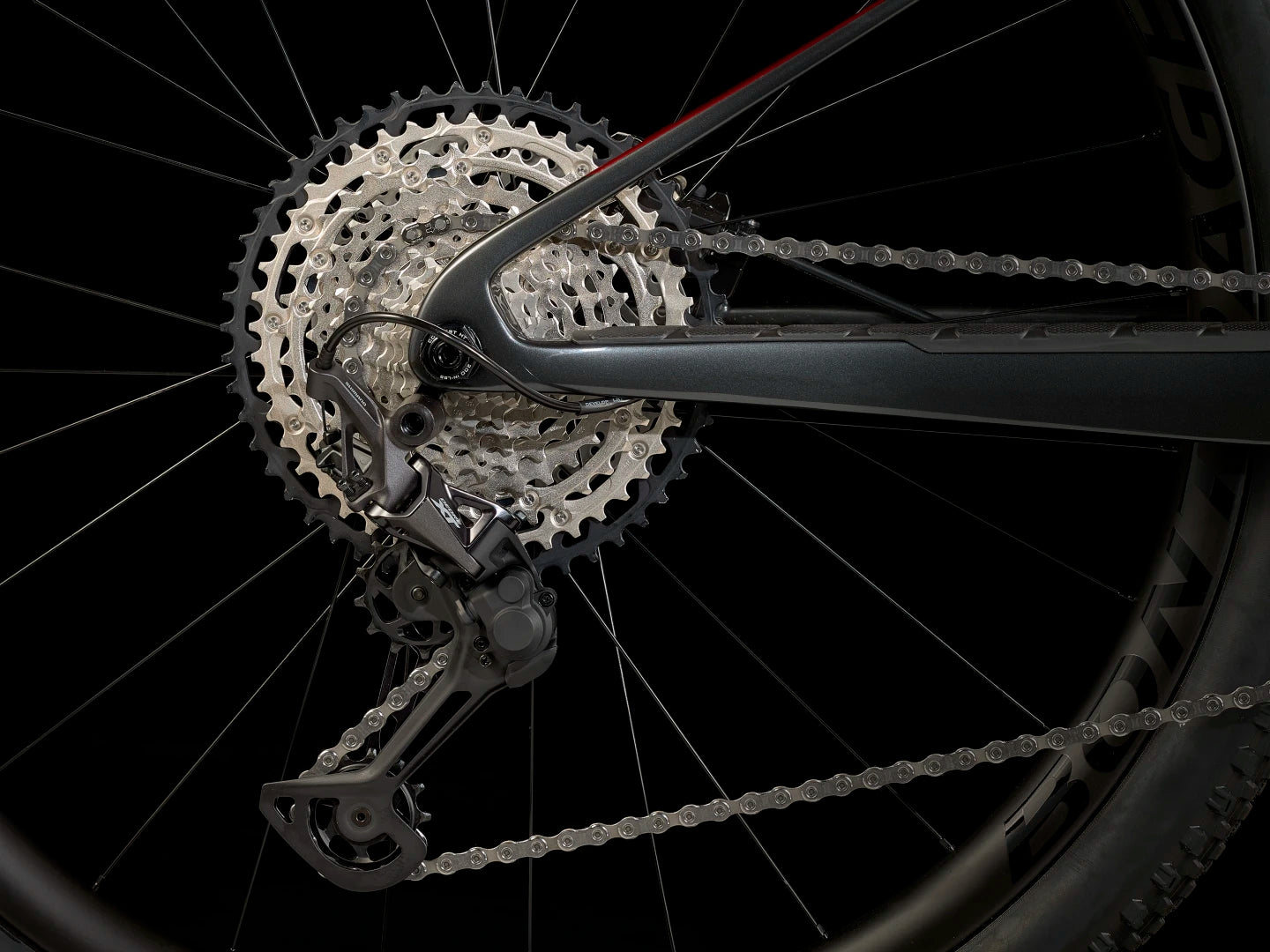

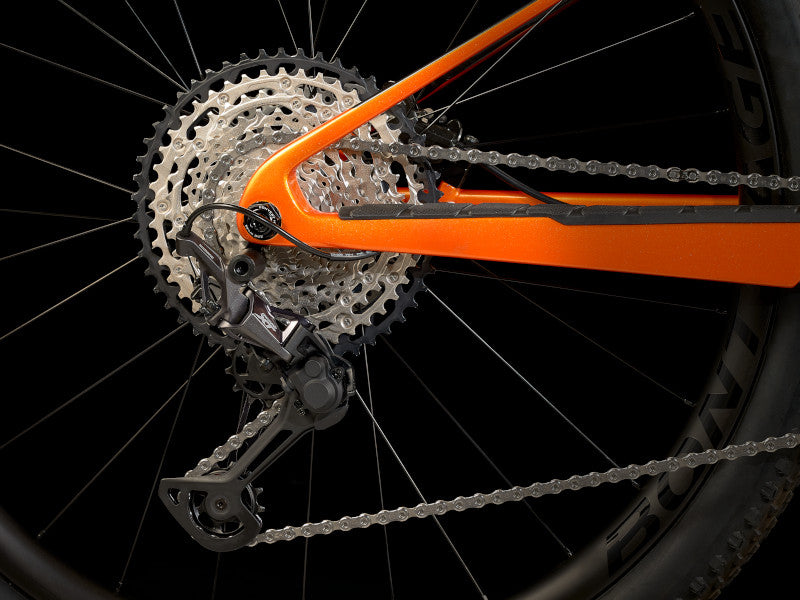

Rear derailleur
: Shimano XT M8100, long cage

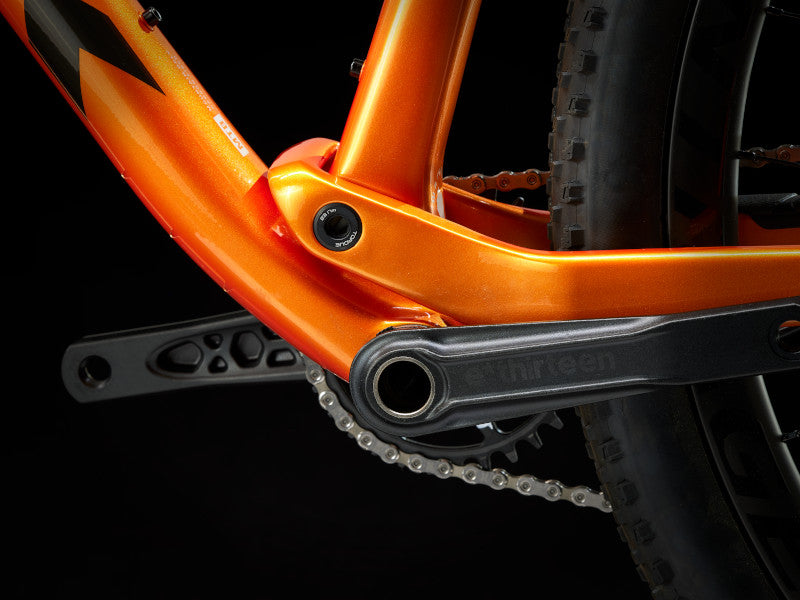

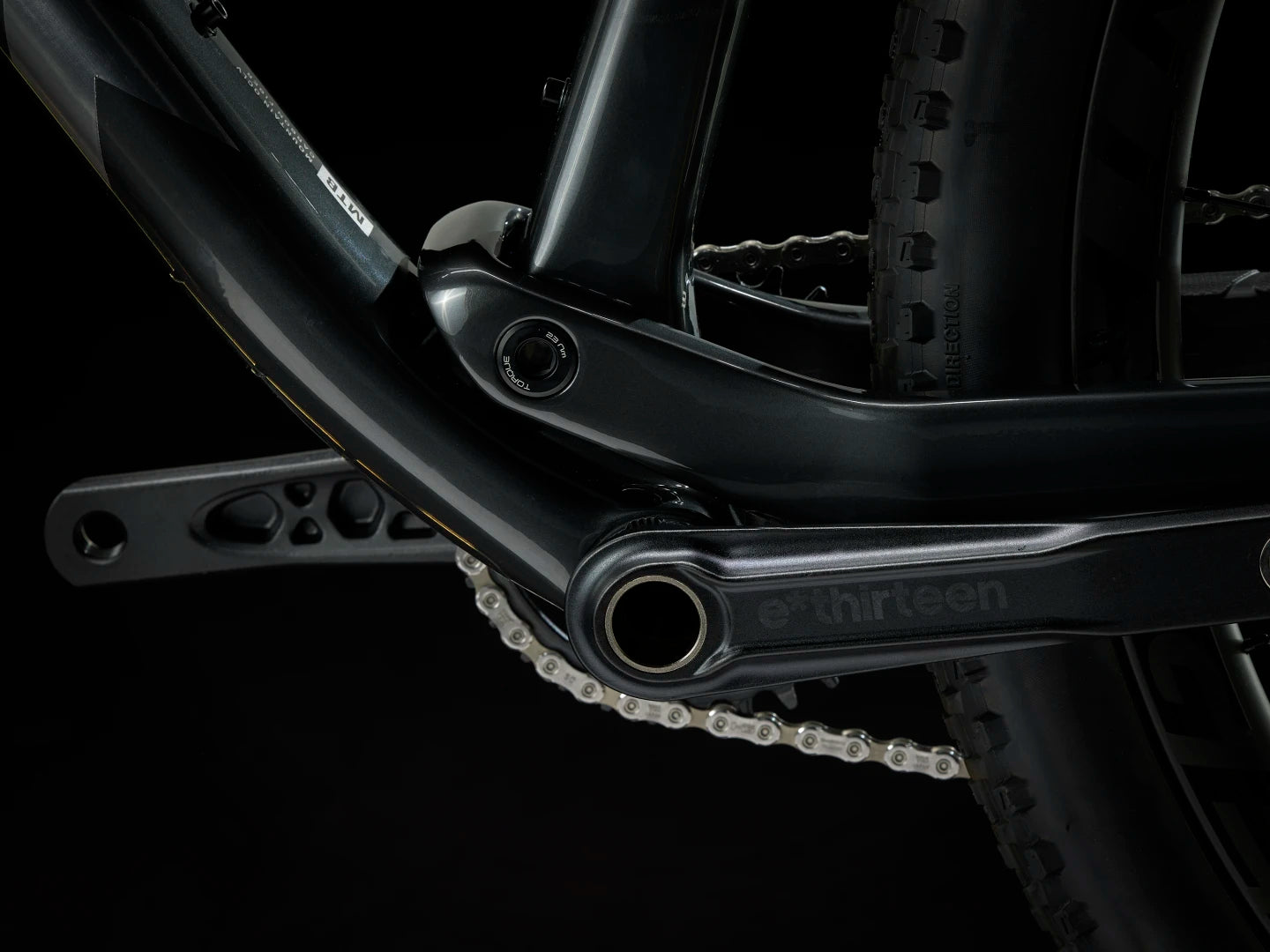

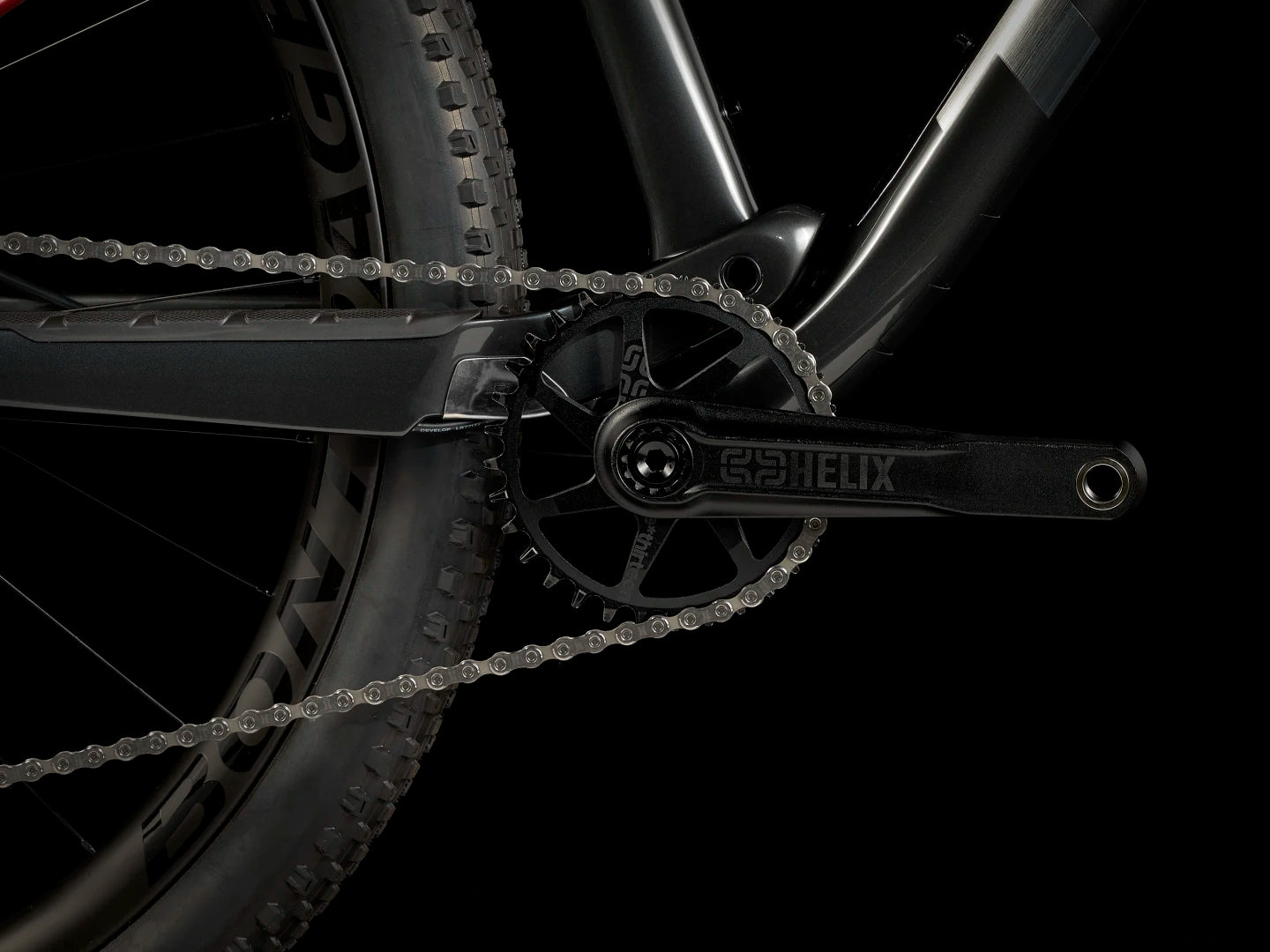

*Crank
: Size: S, M

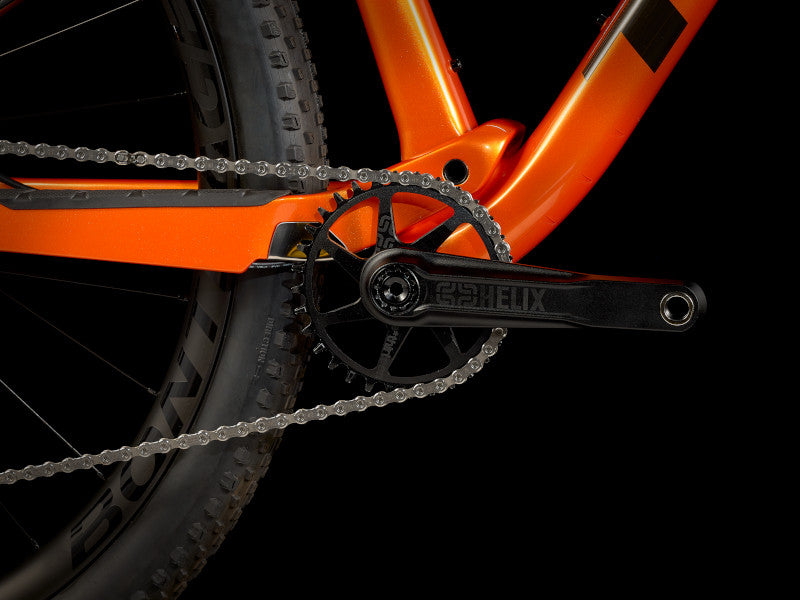

E*thirteen Helix, 32T alloy ring, 52mm chainline, 170mm length
Size: ML, L, XL
E*thirteen Helix, 32T alloy ring, 52mm chainline, 175mm length
Bottom bracket
: Shimano MT500, 92mm, PressFit
Cassette
: Shimano SLX M7100, 10-51T, 12 speed
Chain
: Shimano SLX M7100, 12 speed
Max chainring size
: 1x: 36T

CONPENENTS

Saddle
: Bontrager Verse Elite, austenite rails, 145mm width
*Seatpost
: Size: S
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 330mm length
Size: M, ML, L, XL
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
*Handlebar
: Size: S, M, ML
Bontrager Kovee Elite, alloy, 35mm, 5mm rise, 720mm width
Size: L, XL
Bontrager Line, alloy, 35mm, 15mm rise, 750mm width
Grips
: ESI Chunky
*Stem
: Size: S
Bontrager Elite, 35mm clamp, 13 degree, 60mm length
Size: M, ML
Bontrager Elite, 35mm clamp, 13 degree, 70mm length
Size: L, XL
Bontrager Elite, 35mm clamp, 13 degree, 80mm length
Headset Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake
: Shimano hydraulic disc, MT501 lever, MT500 caliper
*Brake rotor
: Size: S, M, ML, L, XL
Shimano RT56, 6-bolt, 180mm
Size: S, M, ML, L, XL
Shimano RT56, 6-bolt, 160mm
Rotor size
: Max brake rotor sizes - Frame: 160mm, Fork: see fork manufacturer

WEIGHT

Weight
: M - 11.52 kg / 25.41 lbs
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Why you'll love it

- The Supercaliber has proven its performance on the World Cup circuit, offering speed, advanced technology, and high performance with a weight comparable to a hardtail bike.

- The renowned IsoStrut technology provides a smoother and more precise ride, enhancing control and comfort.

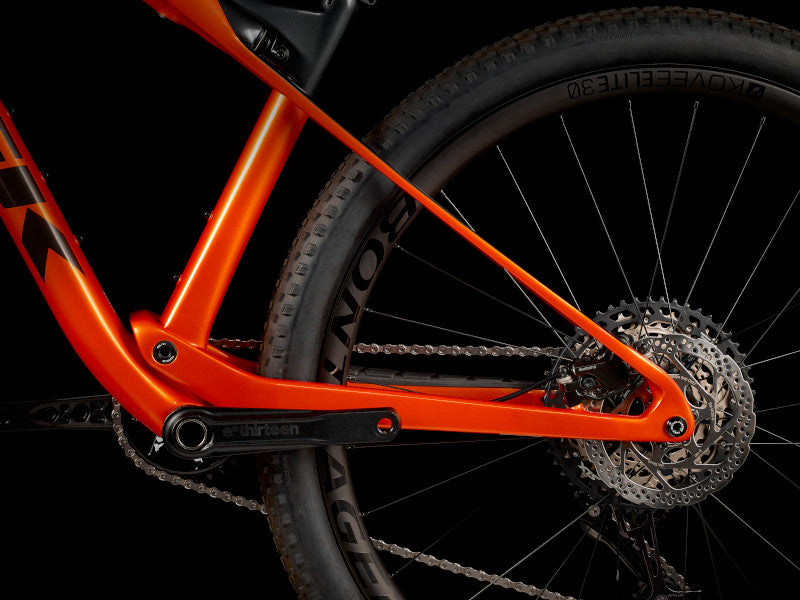

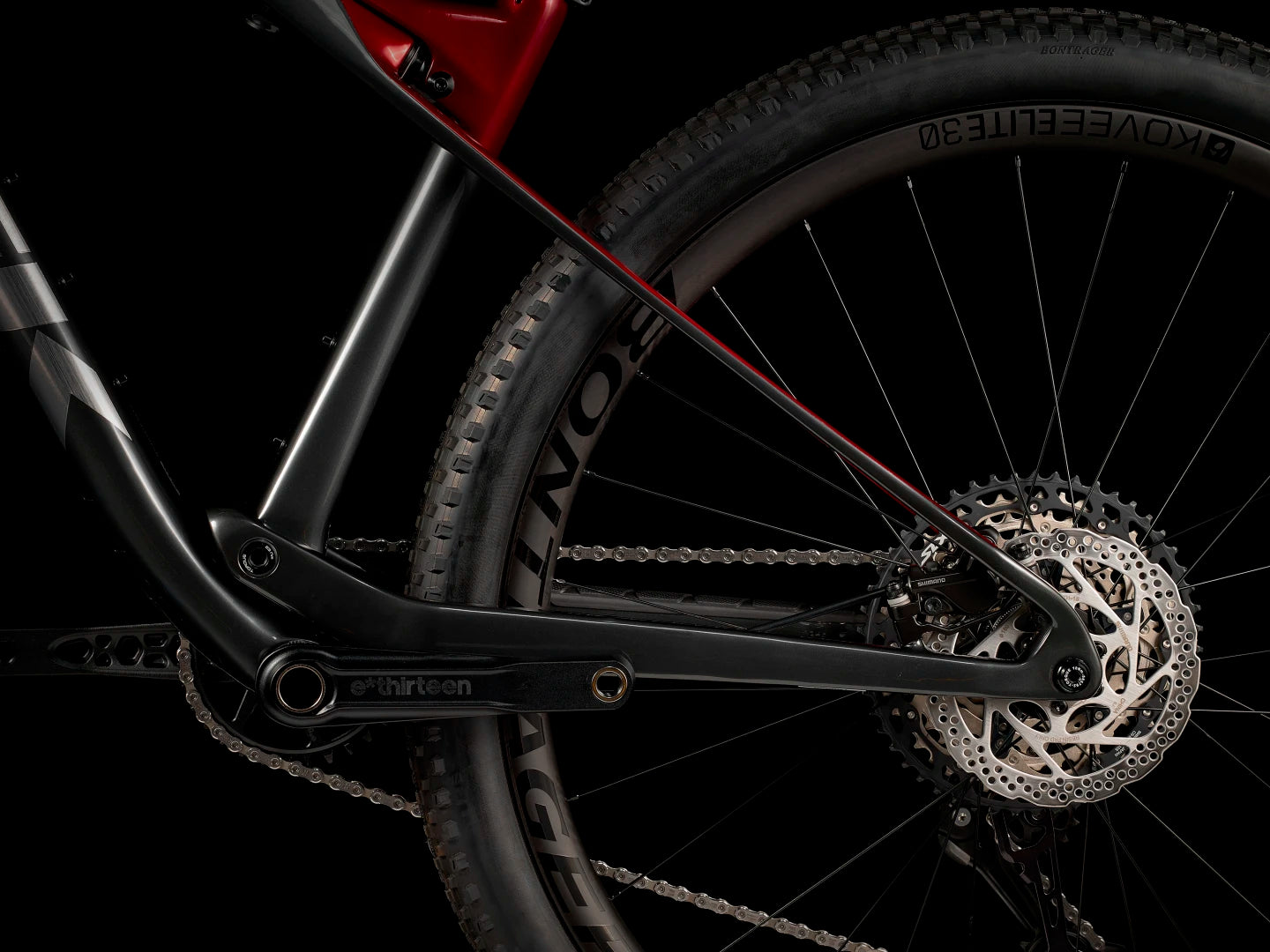

- Pivotless seat stays, with no pivot points, do not add extra weight to the frame and offer exceptional flexibility to absorb shocks.

- The Supercaliber is the ultimate choice for any racecourse, eliminating the need to choose between a hardtail or full-suspension bike.

Nothing else like it

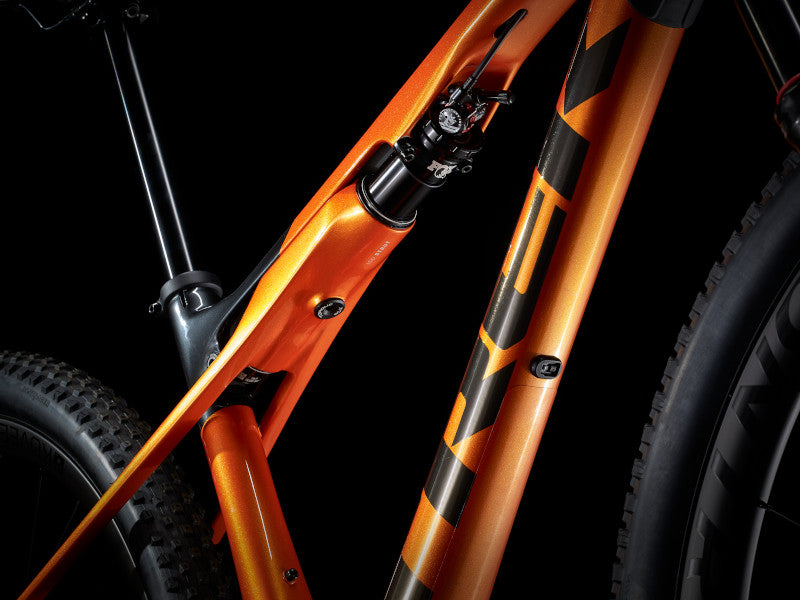

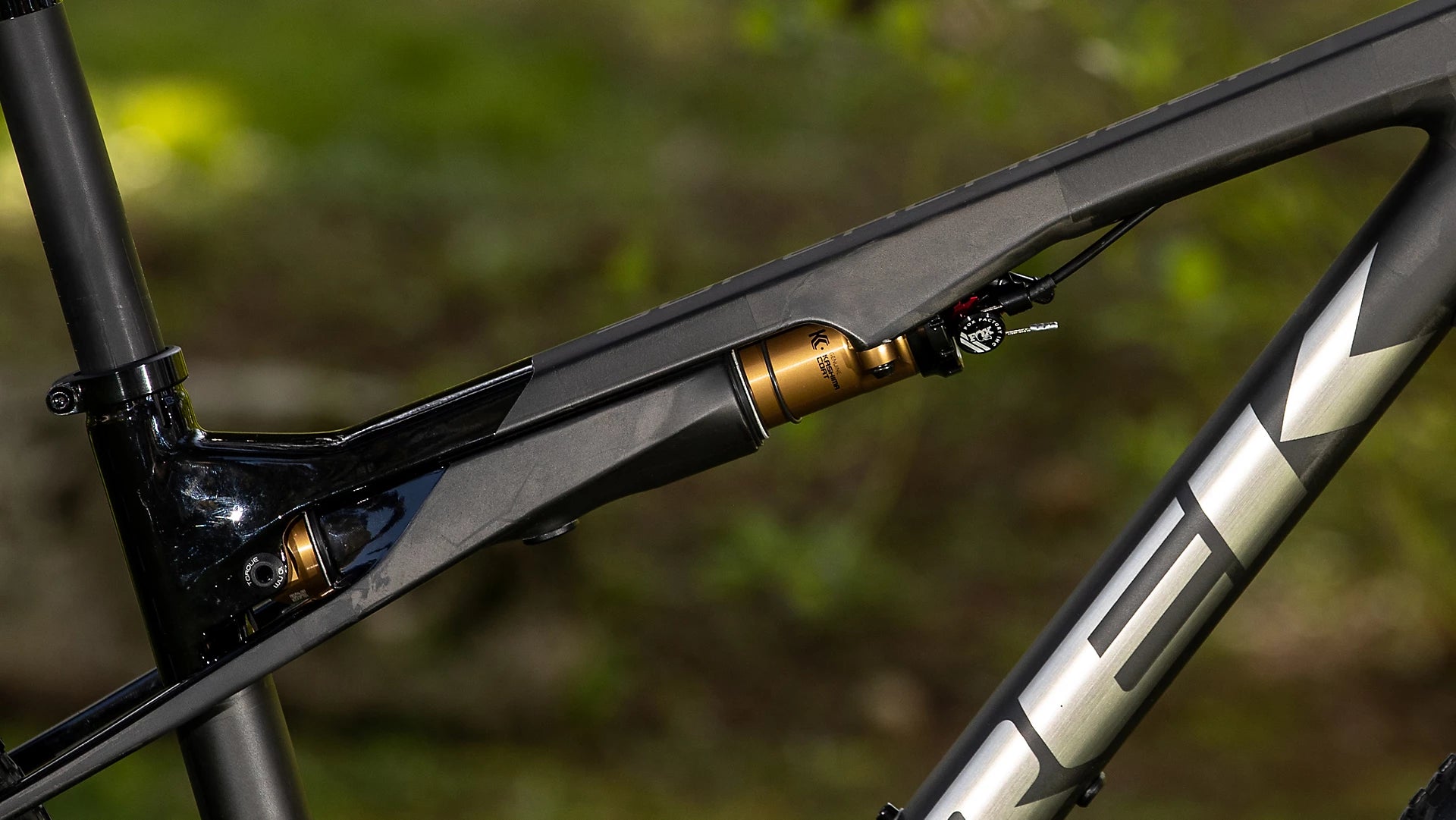

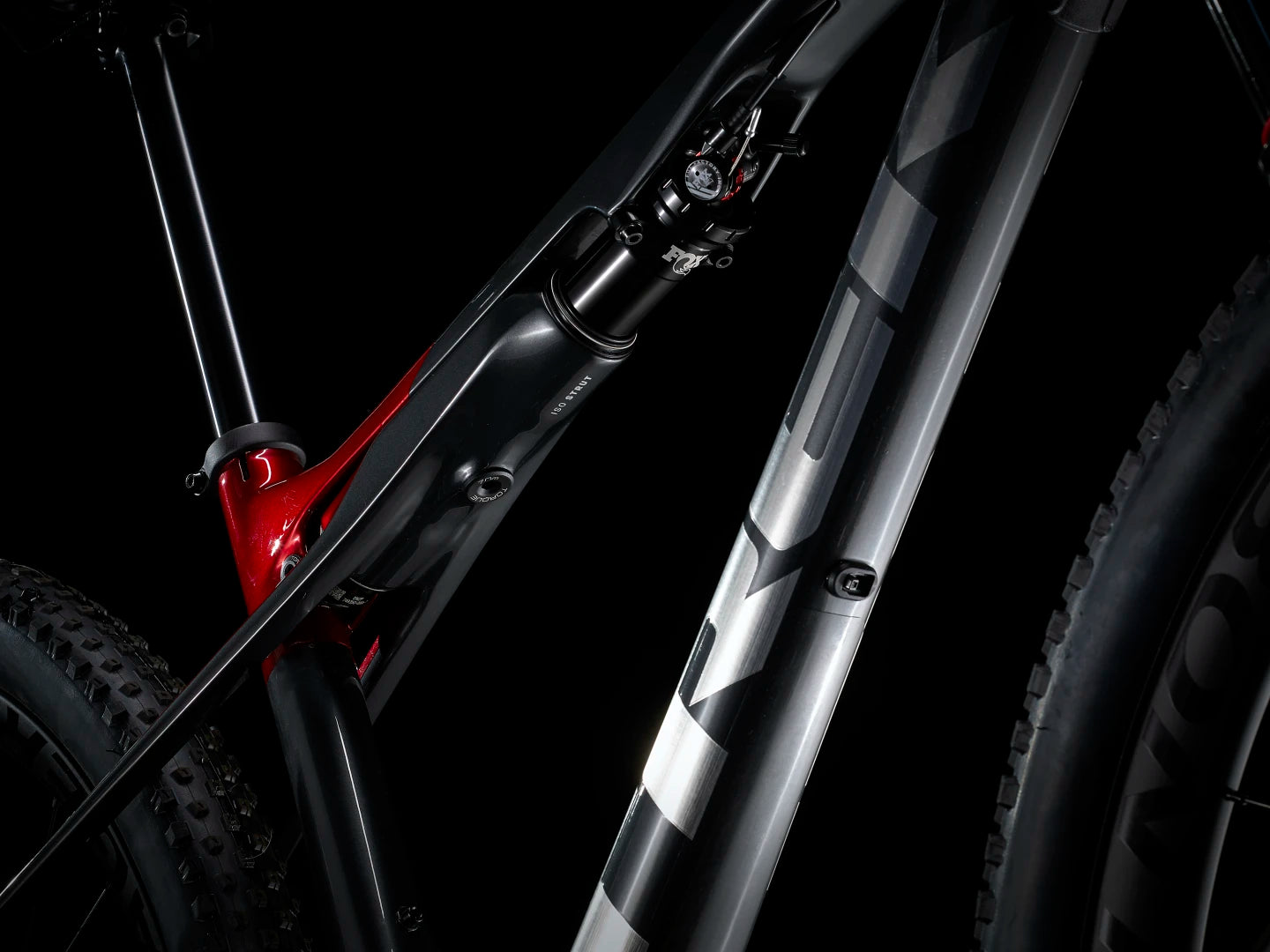

The Supercaliber frame features a cutting-edge design with the IsoStrut system integrated into the top tube, offering the benefits of suspension without adding weight and with easier maintenance. The IsoStrut connects the main frame to specially designed seat stays that flex vertically, providing a total rear wheel travel of 60mm. The Supercaliber excels in speed, precise handling, and rider comfort, reducing fatigue and allowing the rider to maintain control from start to finish.

OCLV Mountain Carbon

TREK's OCLV Mountain Carbon is specifically engineered for TREK mountain bikes, delivering exceptional riding performance. When combined with TREK's proprietary technologies, the result is maximum efficiency—ultra-lightweight, highly responsive stiffness, and robust enough to handle significant rear wheel travel. This combination ensures an optimal balance of lightness, strength, and quick responsiveness, perfect for tackling challenging terrains.

Lightweight trail performance

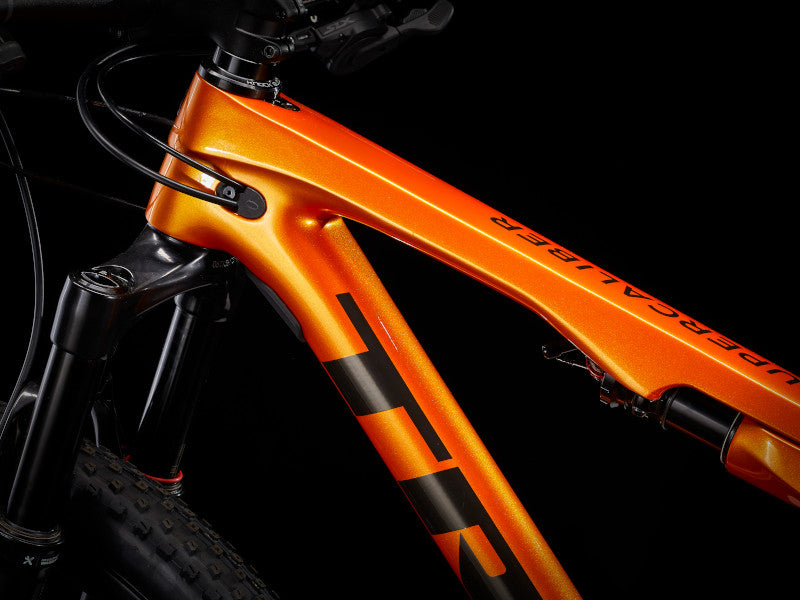

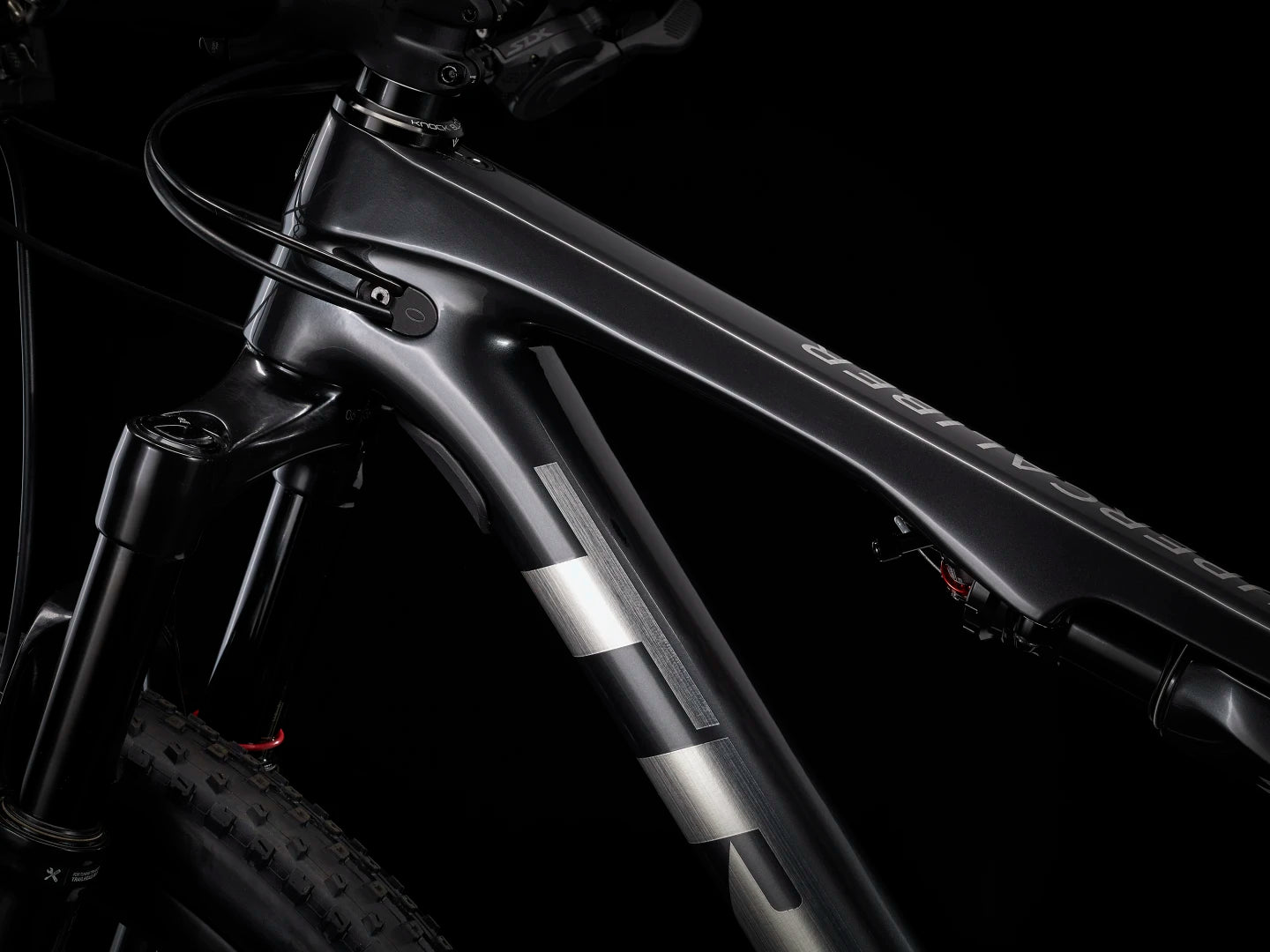

Every carbon mountain bike model from Trek is crafted with OCLV Mountain Carbon, known for its lightness and stiffness. The straight downtube design enhances stiffness and ensures precise control. The Knock Block system limits handlebar rotation, preventing the bars from turning too far and hitting the frame in case of unexpected impacts. The frame also features internal cable routing, making maintenance easier and extending the lifespan of the cables. The result is a highly efficient, ultra-lightweight carbon frame that delivers top-tier performance and durability.

It's right for you if...

You're looking for the ultimate cross-country mountain bike designed for competitive performance, featuring a unique frame technology with IsoStrut suspension integrated into the top tube. This bike excels in speed and offers confidence on rough and challenging terrain, whether during training or on race day.

The tech you get

The frame features an ultra-lightweight OCLV Mountain Carbon, with an integrated 60mm Fox IsoStrut shock built into the top tube, a unique design exclusive to the Supercaliber model. It includes a 100mm RockShox Recon Gold front suspension, a Shimano SLX/Deore 1x12 speed drivetrain, and Bontrager Kovee Comp 23mm tubeless-ready wheels with a 108-tooth rear hub for precise and consistent power transfer.

The final word

The Supercaliber 9.7 is fully equipped with power, high performance, exceptional responsiveness, and the advanced IsoStrut integrated suspension technology. This model represents the pinnacle of cross-country mountain bikes, designed for true competitive performance with high-end specs, and it offers the flexibility to upgrade even further at any time.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
