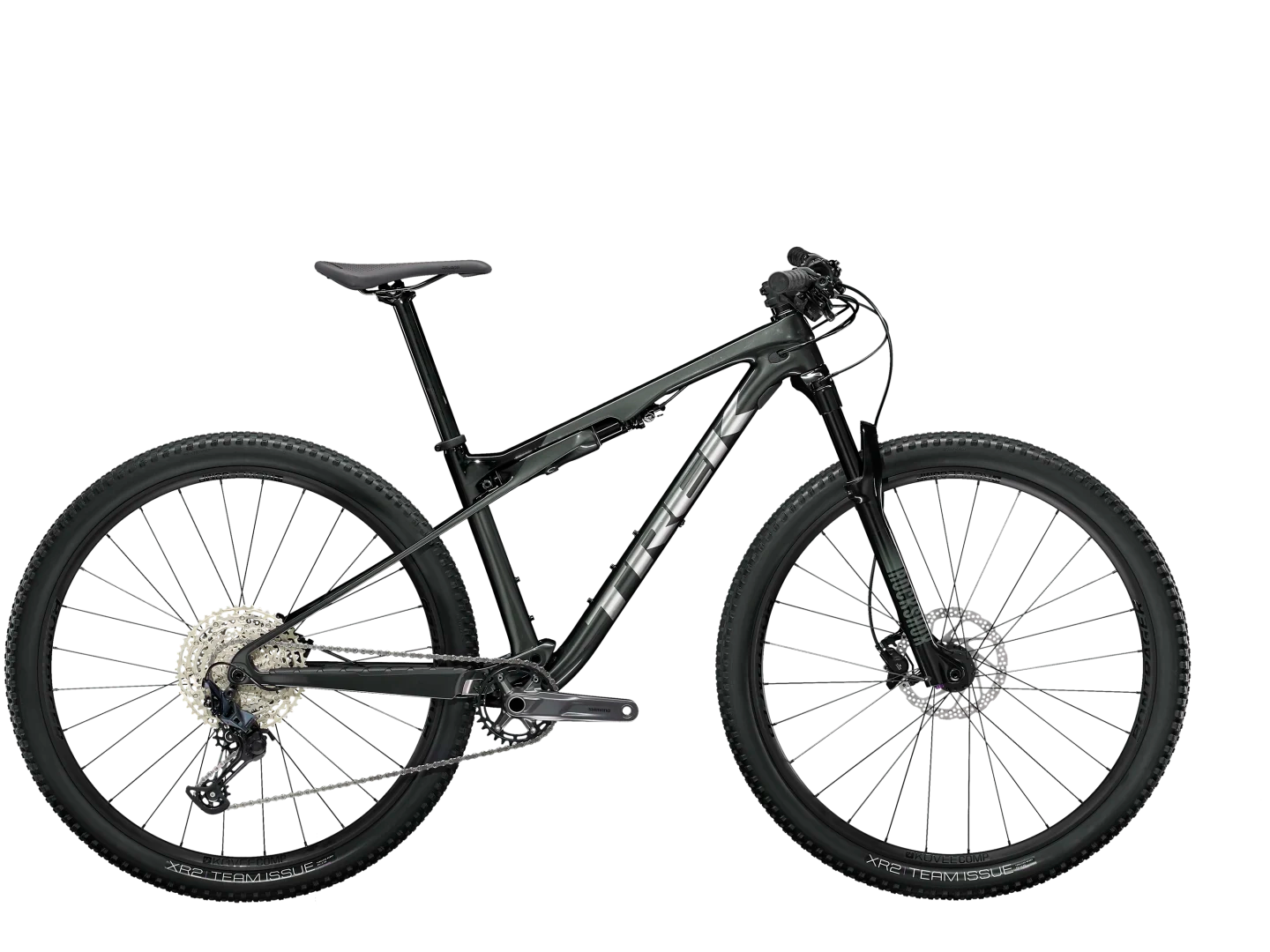

TREK Supercaliber 9.6 Gen 1
TREK Supercaliber 9.6 Gen 1
TREK Supercaliber 9.6 Gen 1
TREK

TREK Supercaliber 9.6 Gen 1

Sale price142,000.00 ฿
0.0

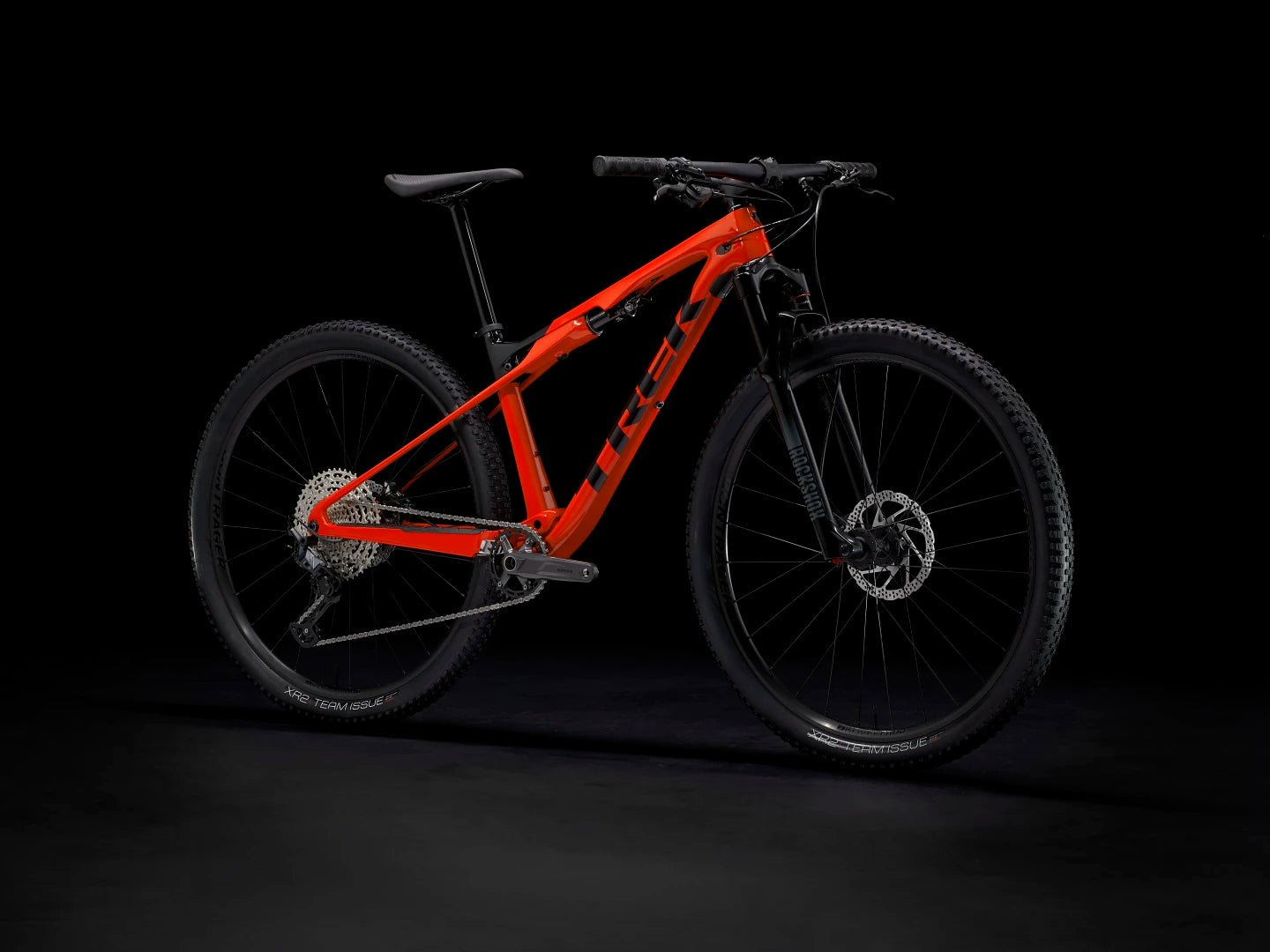

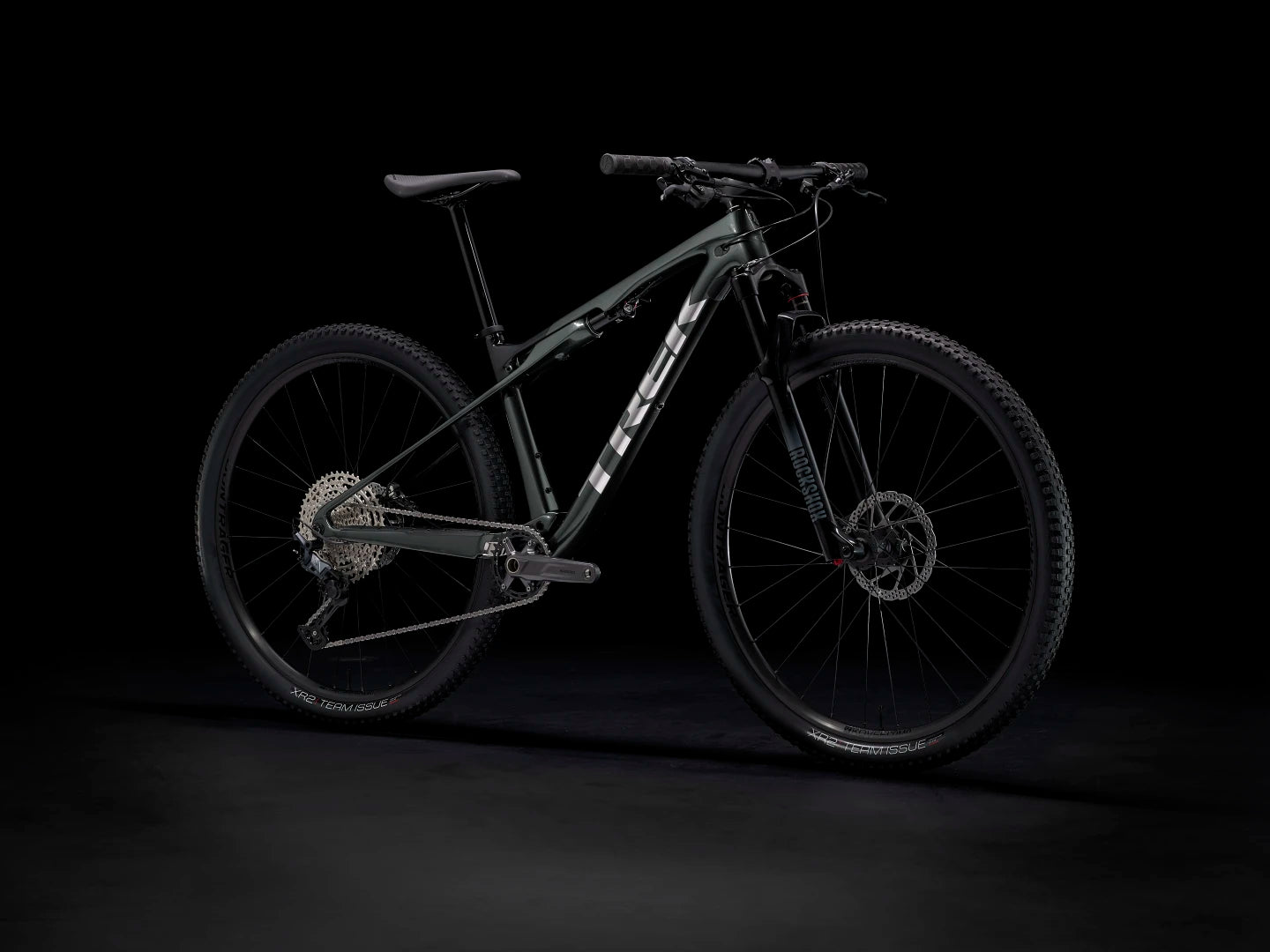

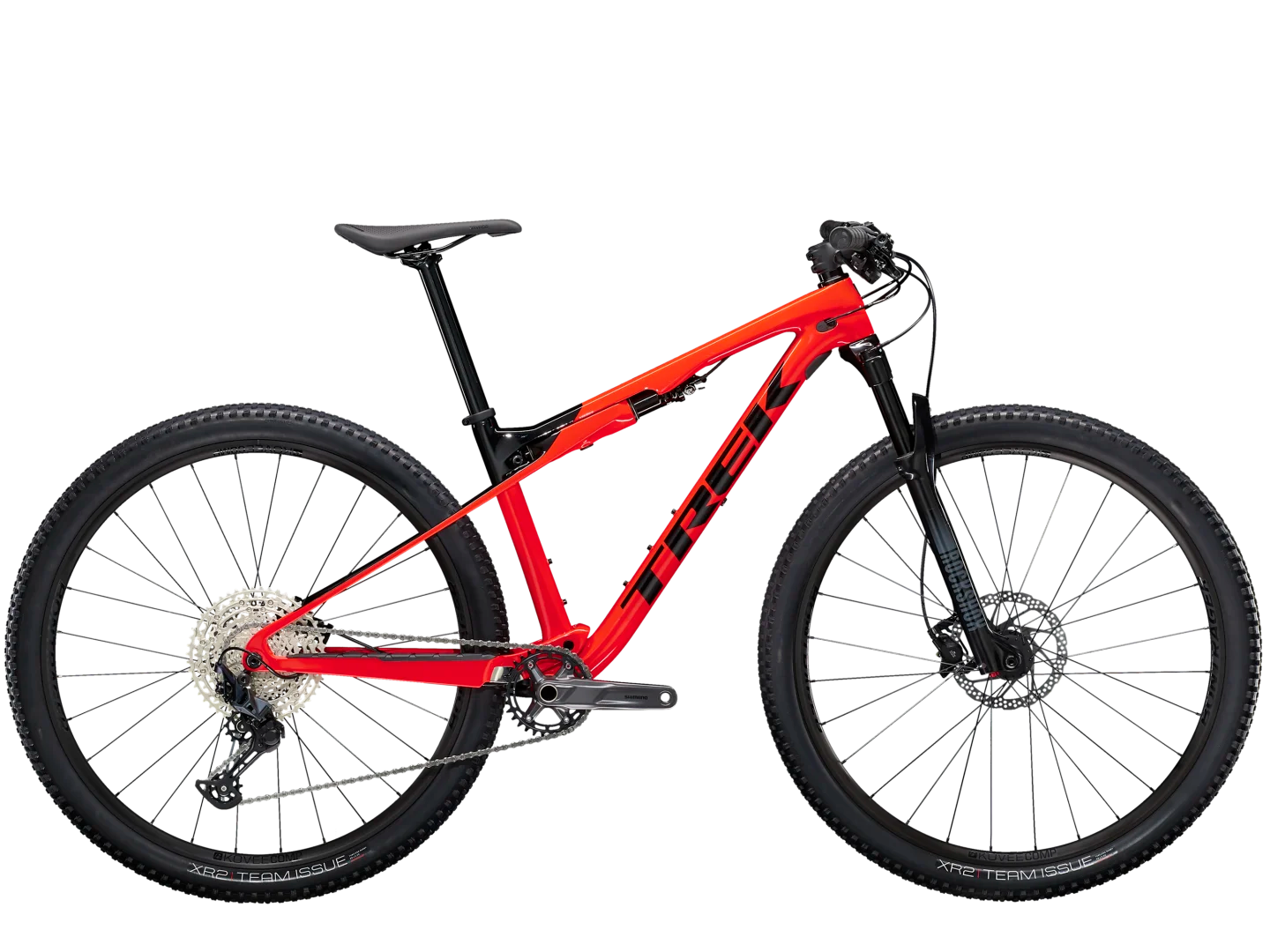

Supercaliber 9.6 is a carbon cross country race bike developed for fast capability, from the efficient IsoStrut shock to weight-saving pivotless seat stays that cut down on trial chatter. No more choosing between hardtail and full-suspension on race day!



Color: LITHIUM GREY/TREK BLACK
SIZE: ML

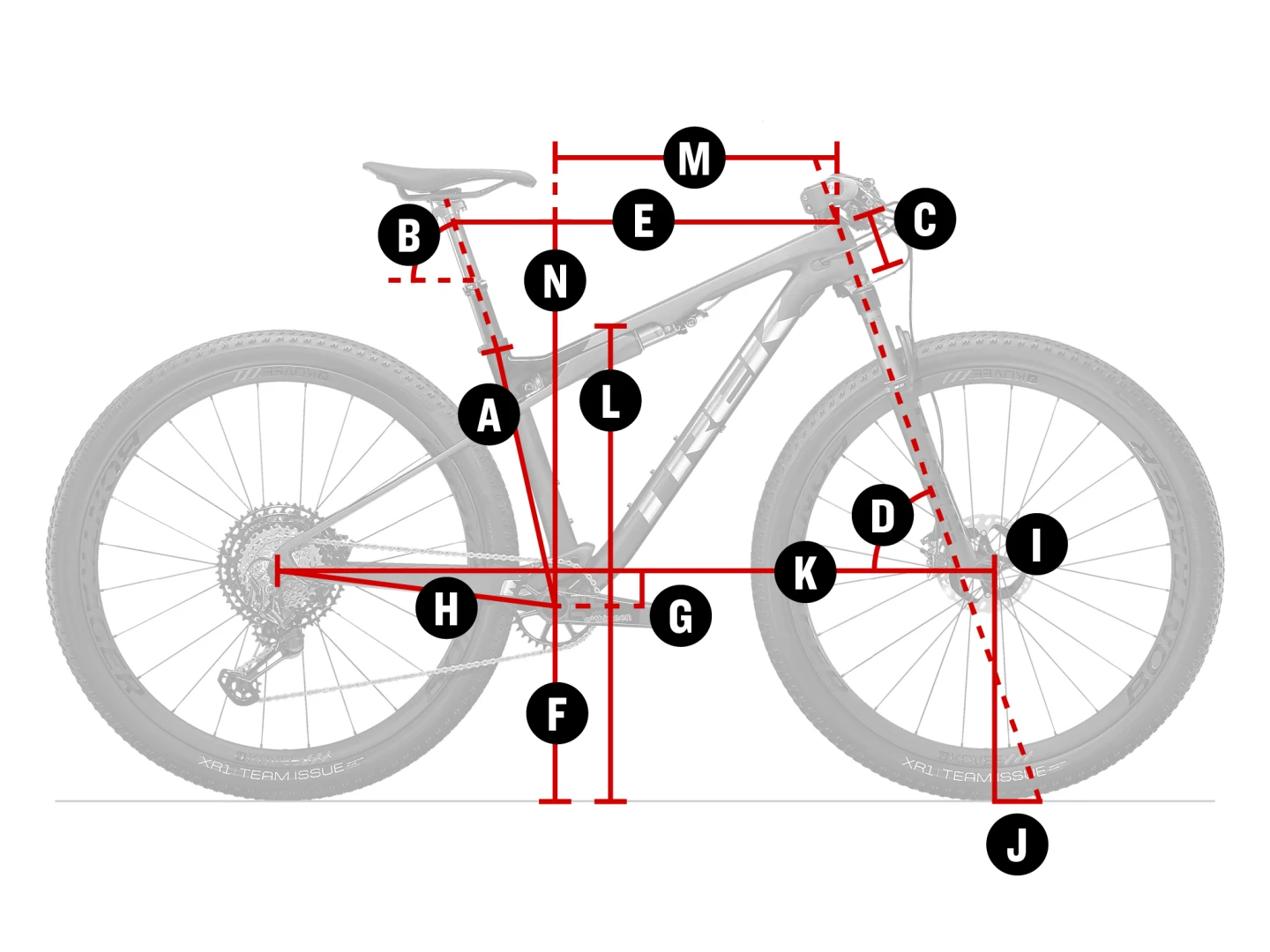

Supercaliber 9.6 Gen 1
Size Rider Height Inseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"
M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"
ML

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"
L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"
FRAMESET

Frame : OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Fork : RockShox Recon Gold RL, DebonAir spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
Shock : Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm

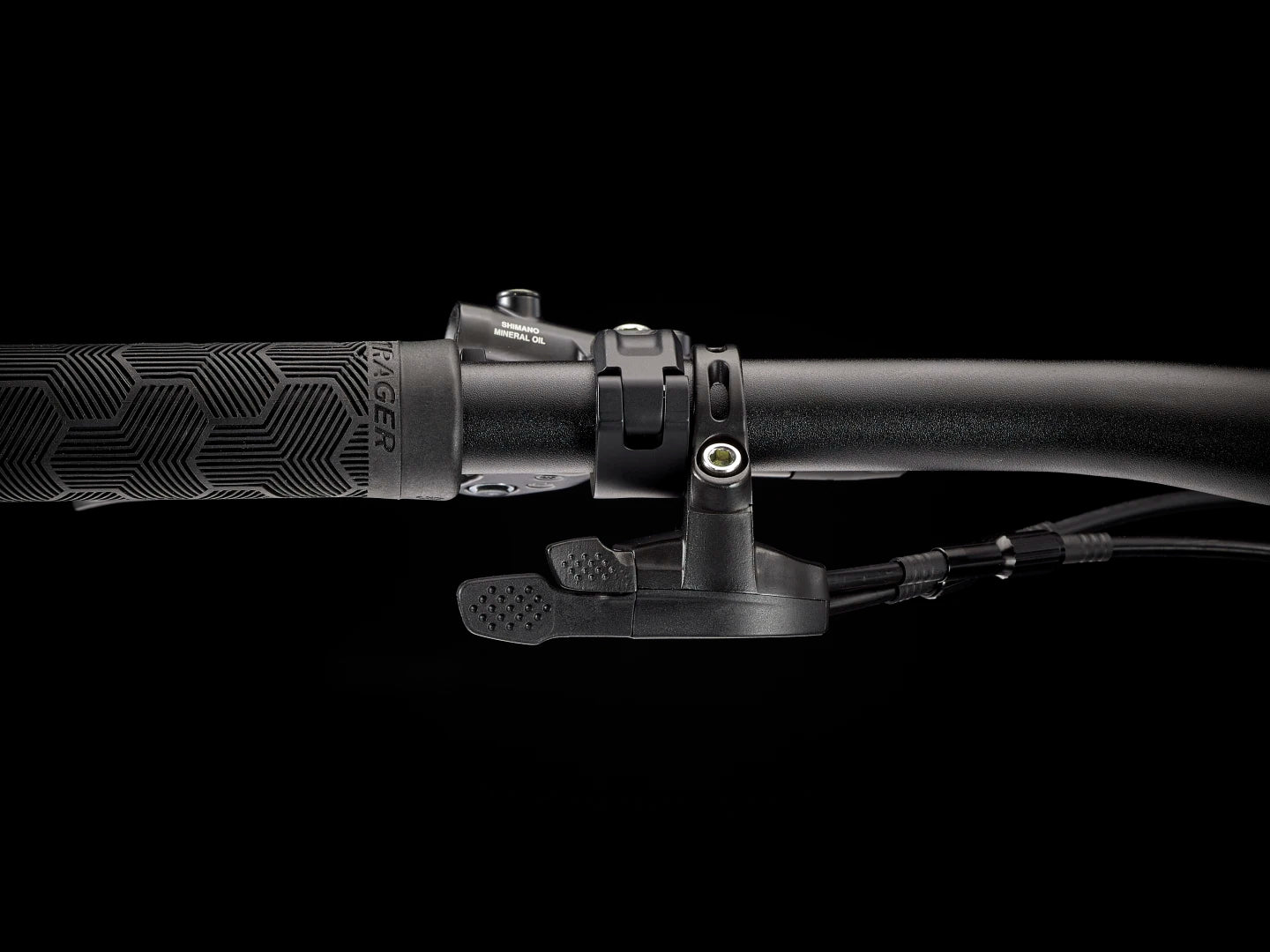

Suspension lever : Fox 2-position dual lockout lever
Max compatible fork travel : 120mm (531mm axle-to-crown)

WHEELS

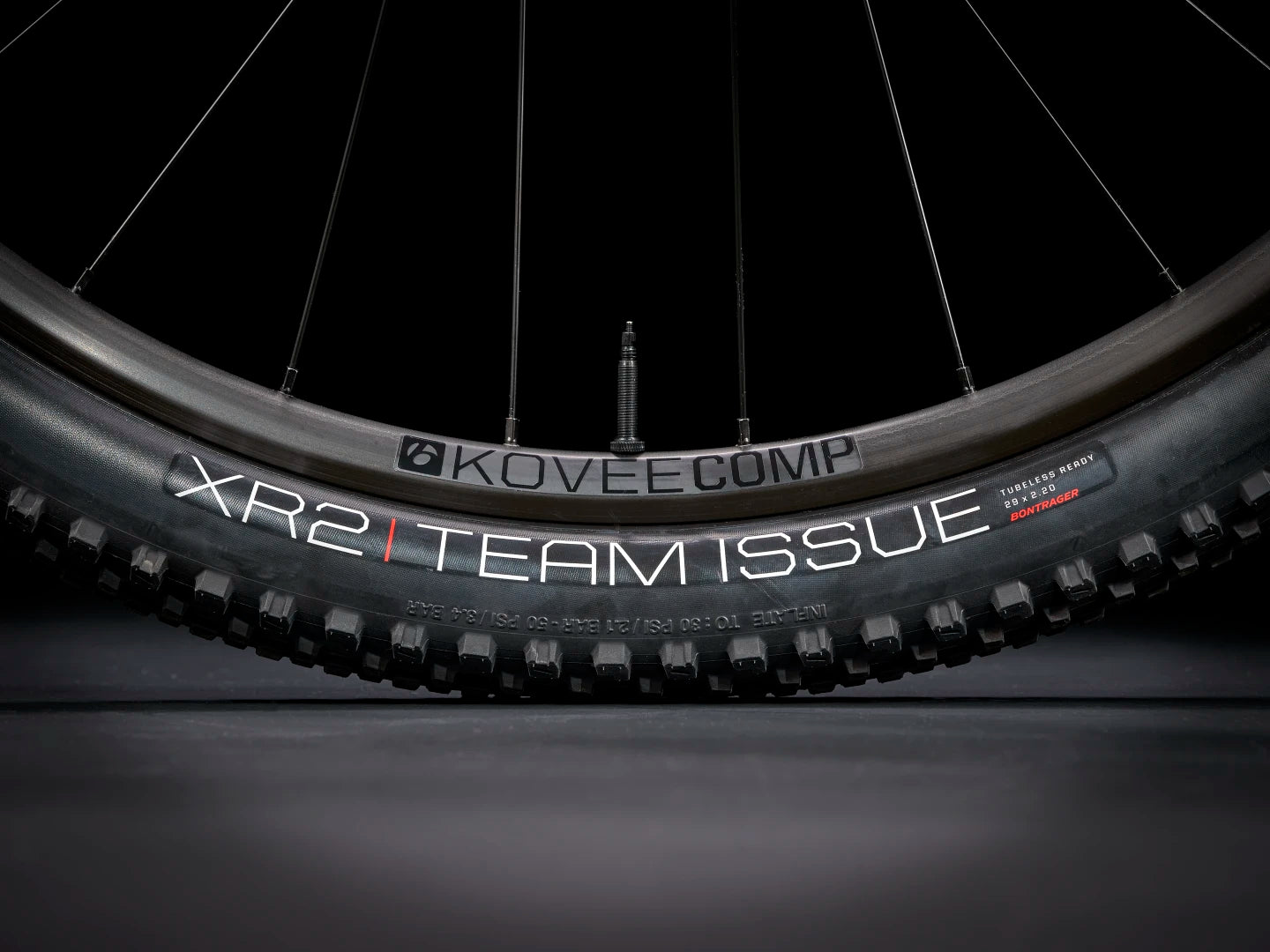

Wheel front : Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel rear : Bontrager Kovee Comp 23, Tubeless Ready, Shimano Microspline freehub, Rapid Drive 108, Boost148, 29"
Skewer rear : Bontrager Switch thru-axle, removable lever
Tyre : Bontrager XR2 Team Issue, Tubeless-Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.20"
Tyre part : Bontrager TLR sealant, 180 ml/6 oz
Rim strip : Bontrager TLR
Max tyre size : Frame: 29x2.20", Fork: See manufacturer

DRIVETRAIN

Shifter : Shimano Deore M6100, 12-speed

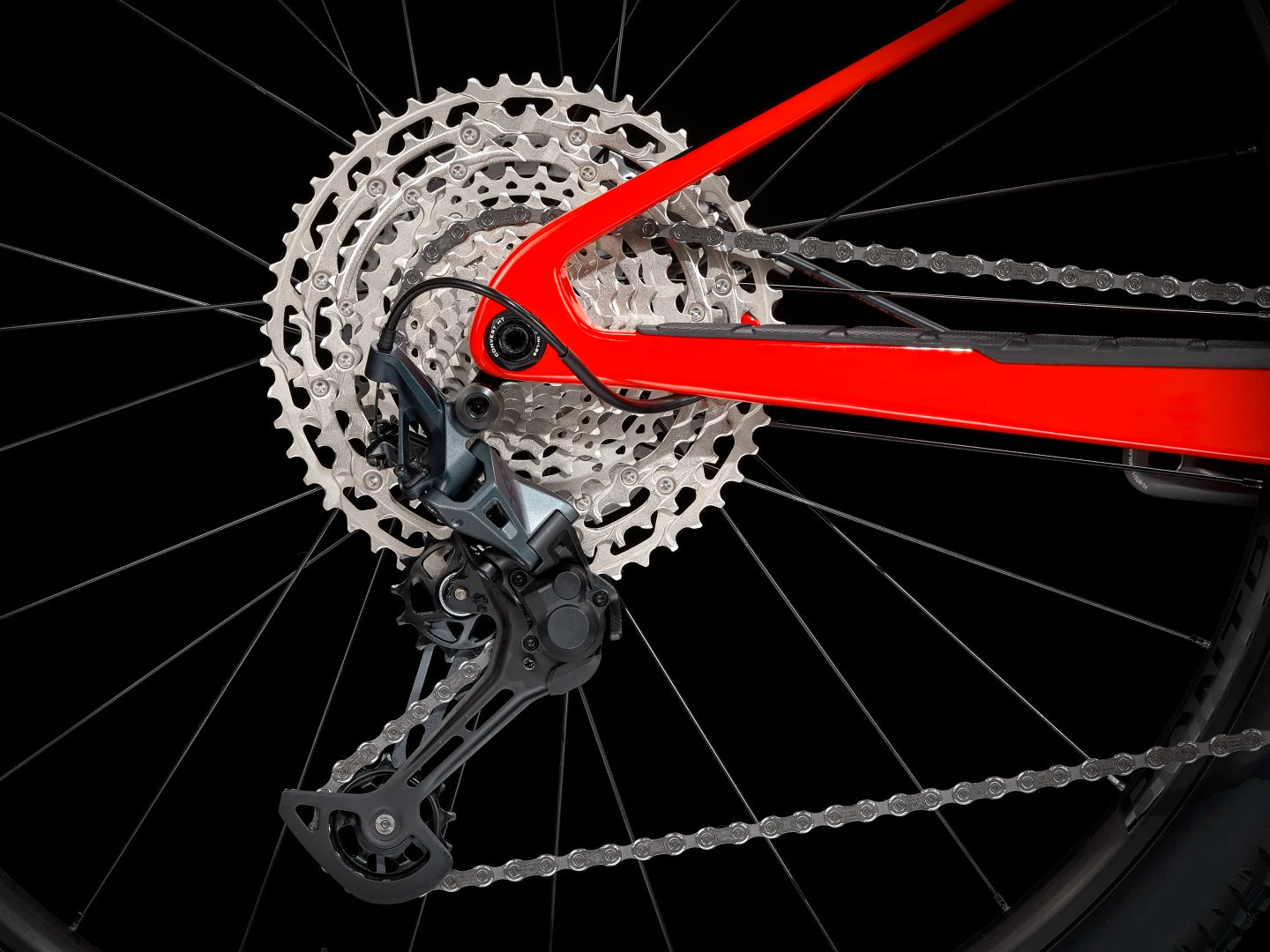

Rear derailleur : Shimano SLX M7100, long cage
*Crank
: Size: S, M

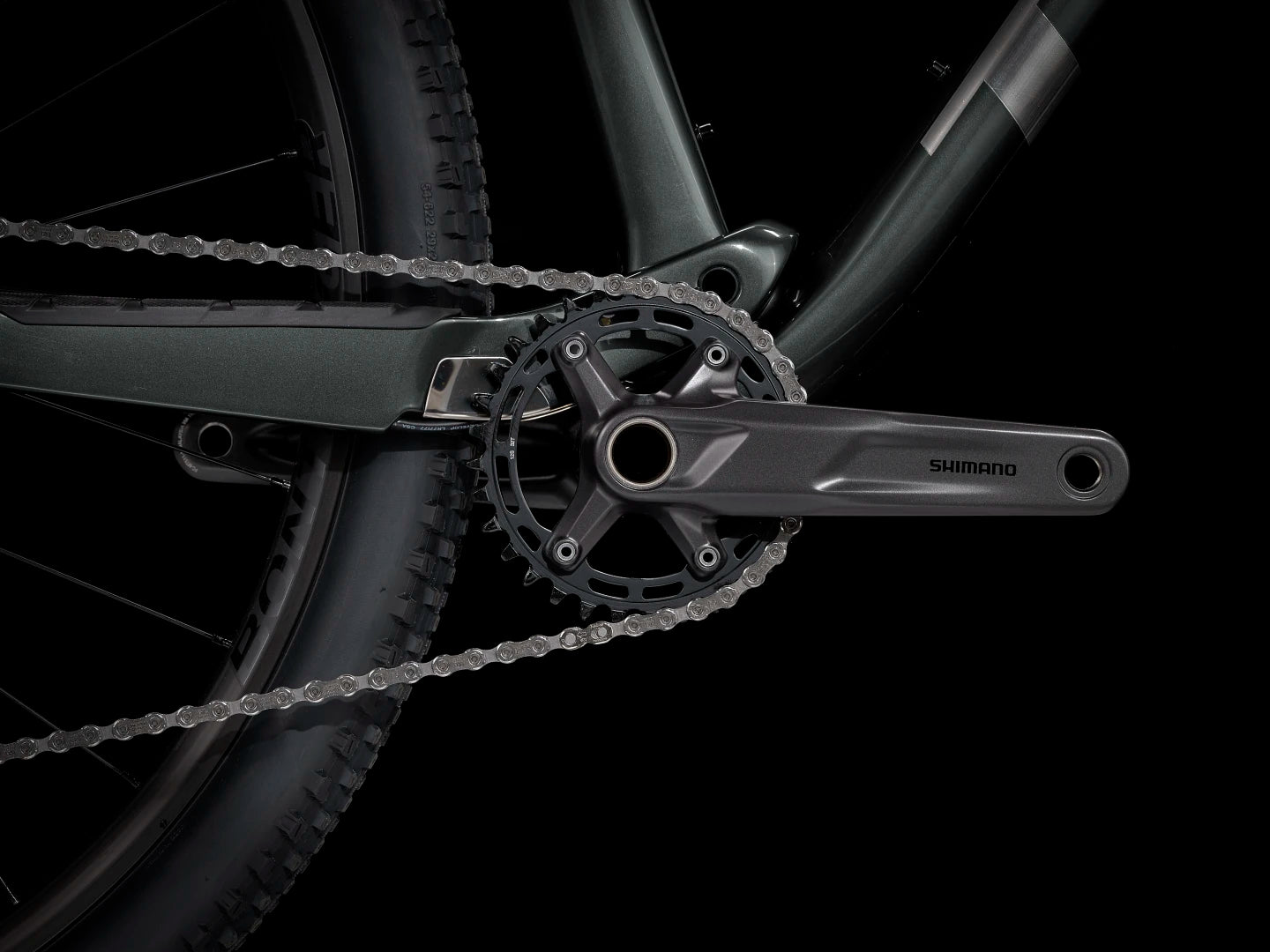

Shimano MT511, 32T steel ring, 52 mm chainline, 170 mm length
Size: ML, L, XL, XXL
Shimano MT511, 32T steel ring, 52 mm chainline, 175 mm length

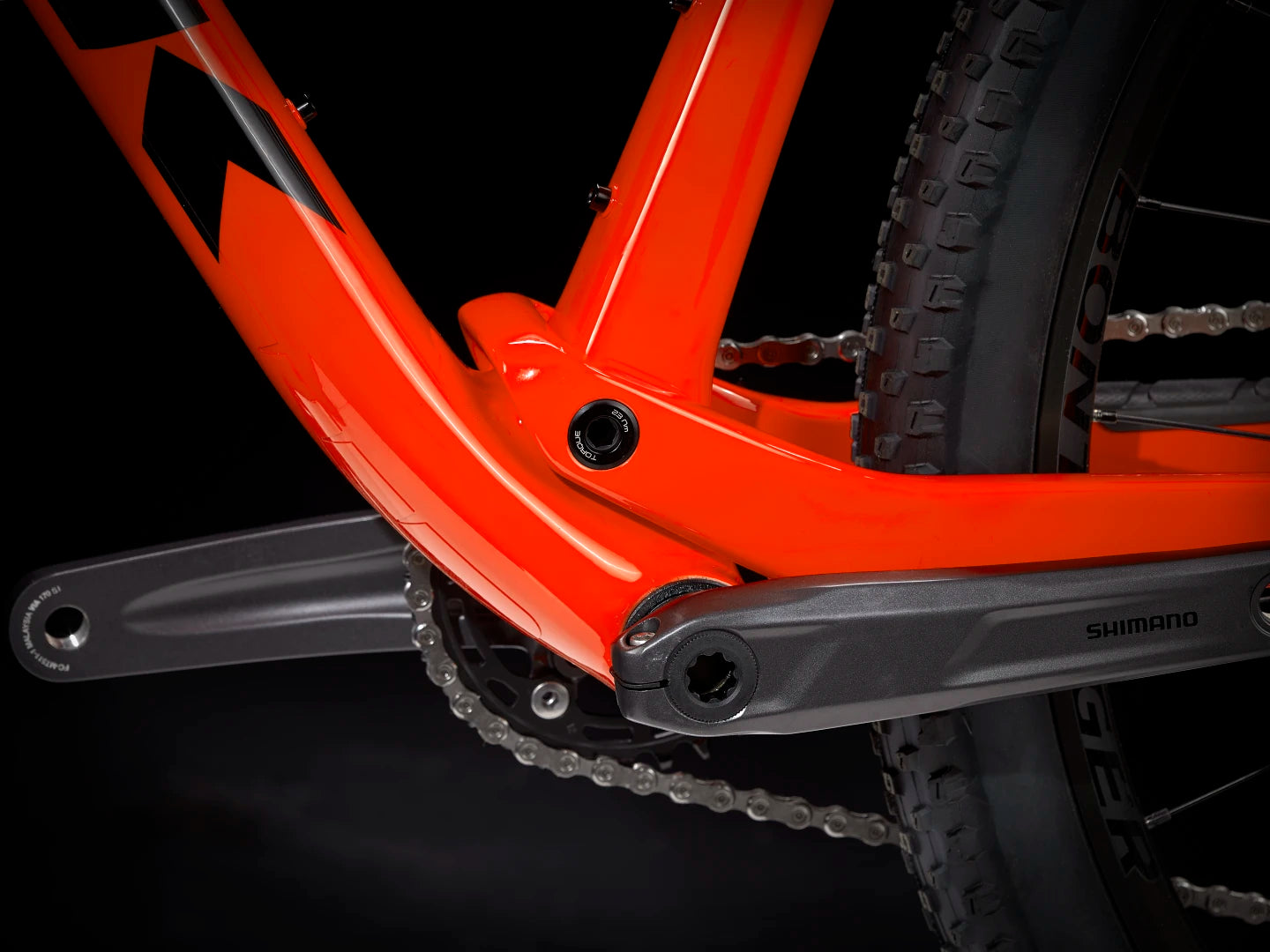

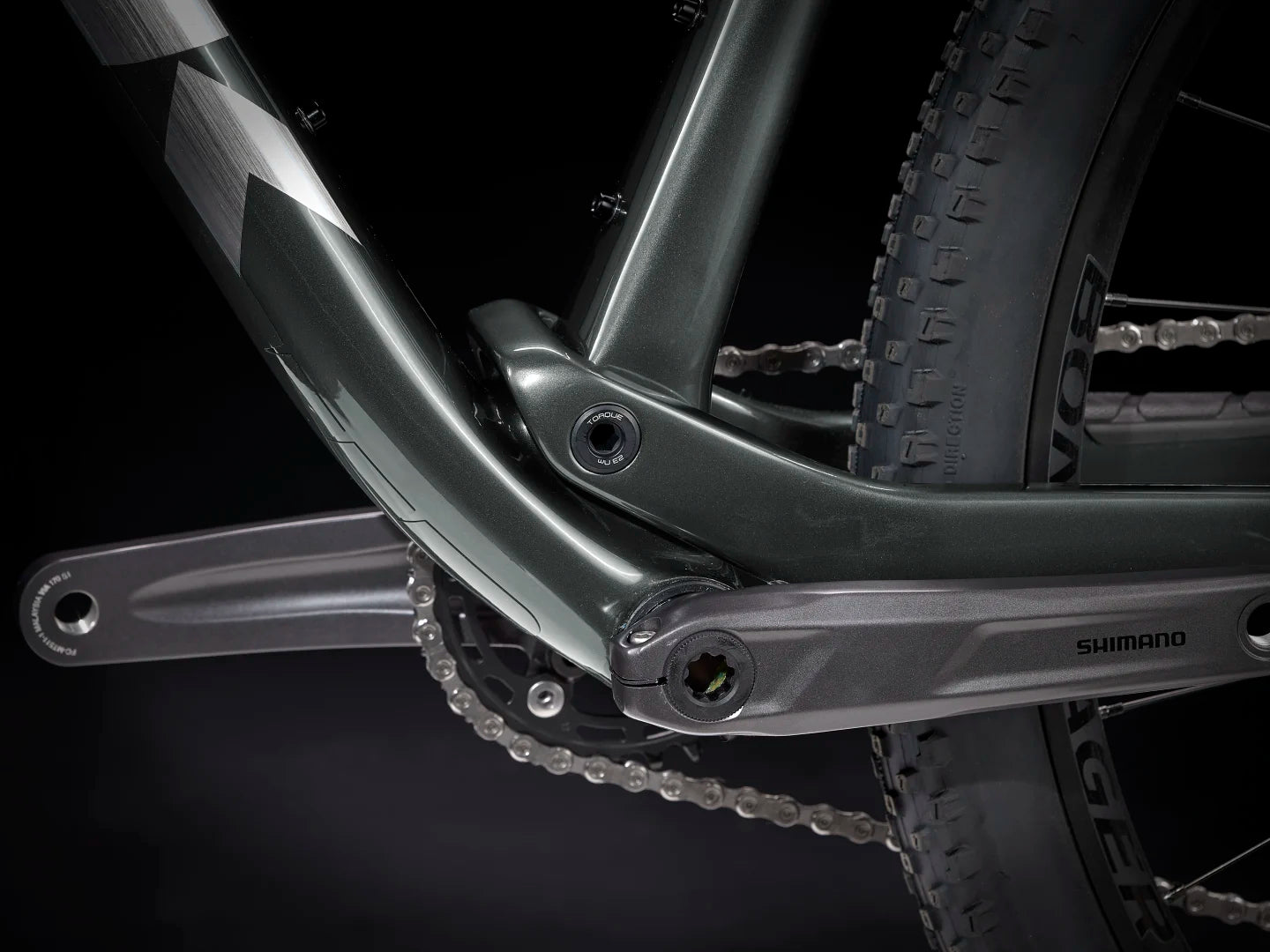

Bottom bracket : Shimano MT500, 92 mm, PressFit
Cassette : Shimano Deore M6100, 10-51, 12-speed
Chain : Shimano Deore M6100, 12-speed
Max. chainring size : 1x: 36T

COMPENENTS

Saddle : Bontrager Arvada, steel rails, 138 mm width
*Seatpost : Size: S
Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330mm length
Size: M, ML, L, XL, XXL
Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length
*Handlebar : Size: S, M, ML, L, XL
Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
Size: XXL
Bontrager Kovee Elite, alloy, 35 mm, 5 mm rise, 720 mm width
Grips : Bontrager XR Trail Comp, nylon lock-on
*Stem : Size: S
Bontrager Rhythm Comp, 31.8mm, 0-degree, 60 mm length
Size: M, ML
Bontrager Rhythm Comp, 31.8 mm, 0-degree, 70 mm length
Size: L, XL
Bontrager Rhythm Comp, 31.8mm, 0-degree, 80 mm length
Size: XXL
Bontrager Kovee Pro, 35 mm, Blendr-compatible, 13-degree, 90 mm length
Head set : Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake : Shimano hydraulic disc, MT4100 lever, MT410 calliper
*Brake rotor : Size: S, M, ML, L, XL, XXL
Shimano RT56, 6-bolt, 180 mm
Size: S, M, ML, L, XL, XXL
Shimano RT56, 6-bolt, 160 mm
Rotor size : Max brake rotor sizes - Frame: 160mm, Fork: see fork manufacturer

WEIGHT

Weight : M - 12.25 kg / 27.01 lbs
Weight limit : This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

 Why you'll love it

  1. The Supercaliber is a World Cup-worthy bike that’s quick, capable of soaring through techy terrain and nearly as light as a hardtail
  2. Our exclusive IsoStrut shock provides tunable, damped suspension for a smooth and efficient ride

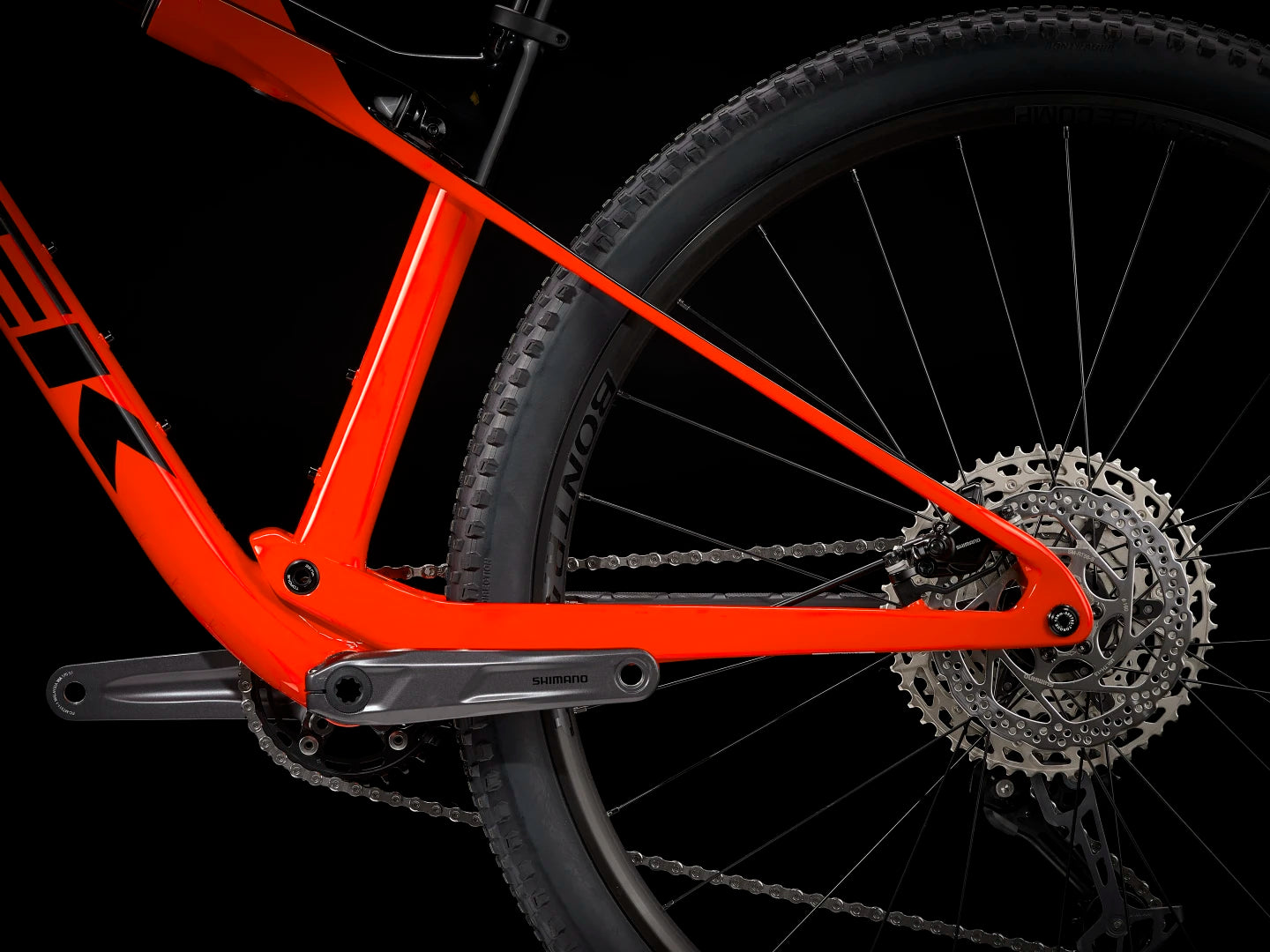

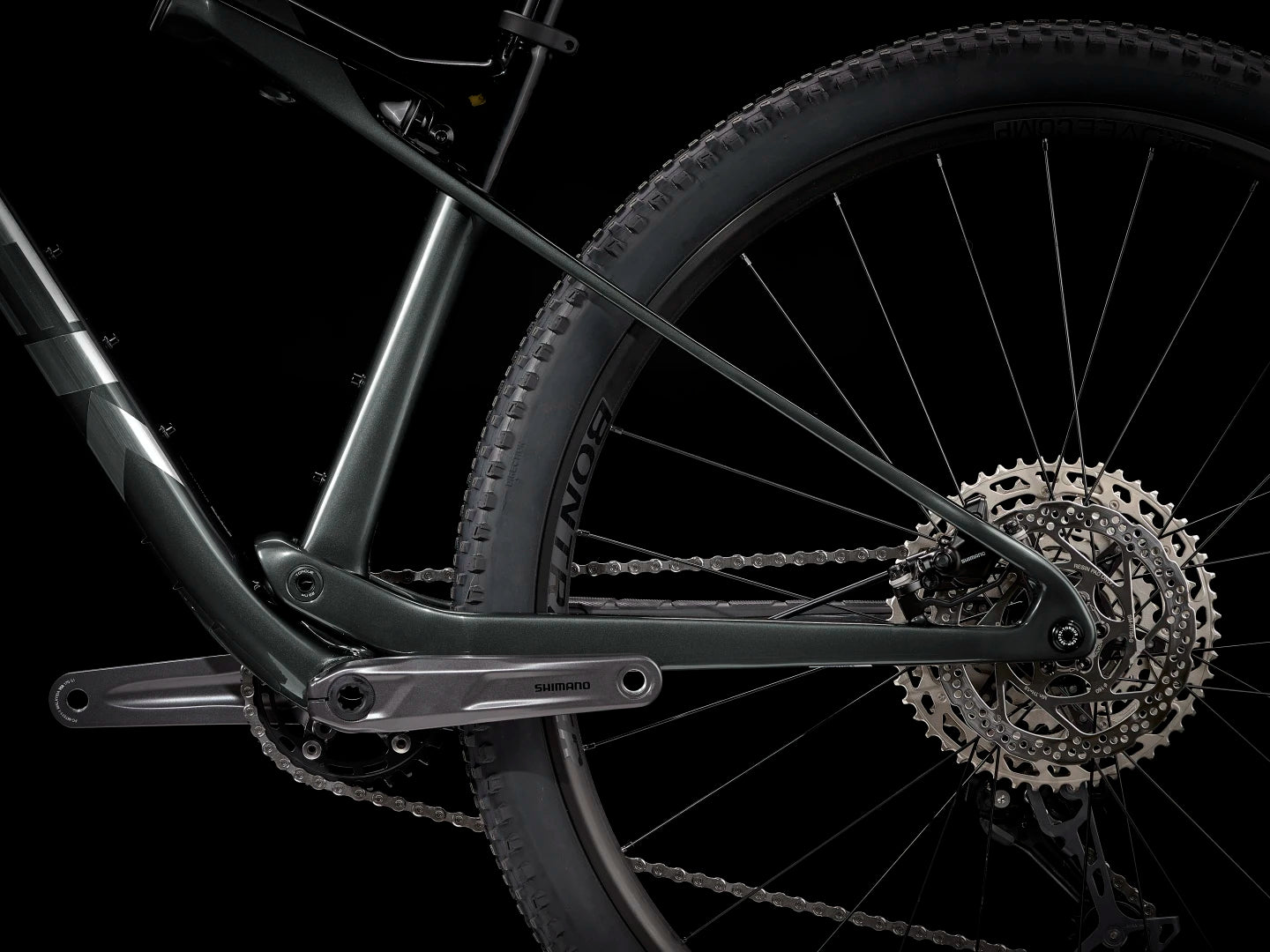

  3. Pivotless seat stays save on weight and actively bend to help soak up trail chatter
  4. You'll never again have to wonder, "What's faster for this course, full suspension or hardtail?"

Nothing else like it

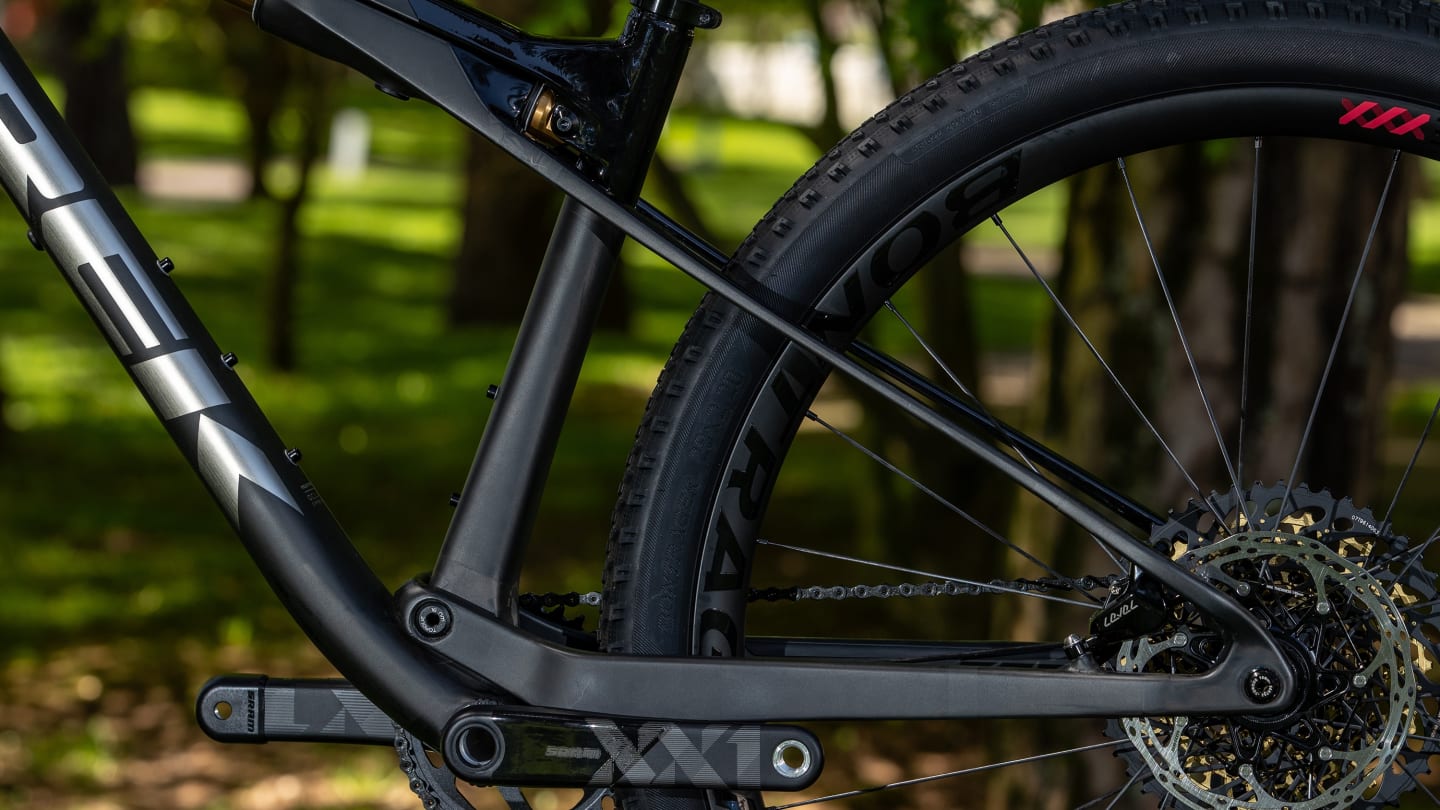

The Supercaliber frame features a cutting-edge design with the IsoStrut system integrated into the top tube, offering the benefits of suspension without adding weight and with easier maintenance. The IsoStrut connects the main frame to specially designed seat stays that flex vertically, providing a total rear wheel travel of 60mm. The Supercaliber excels in speed, precise handling, and rider comfort, reducing fatigue and allowing the rider to maintain control from start to finish.

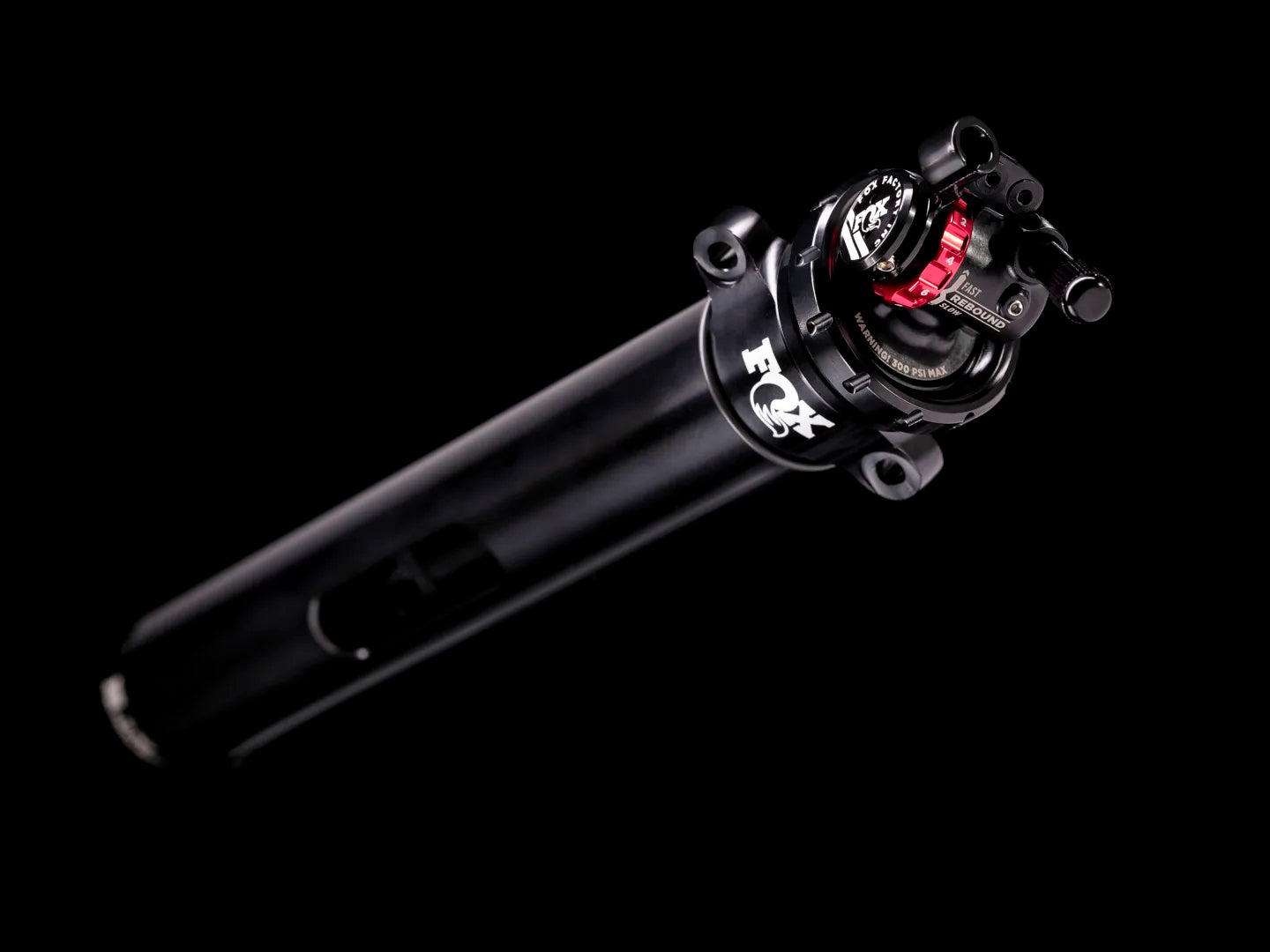

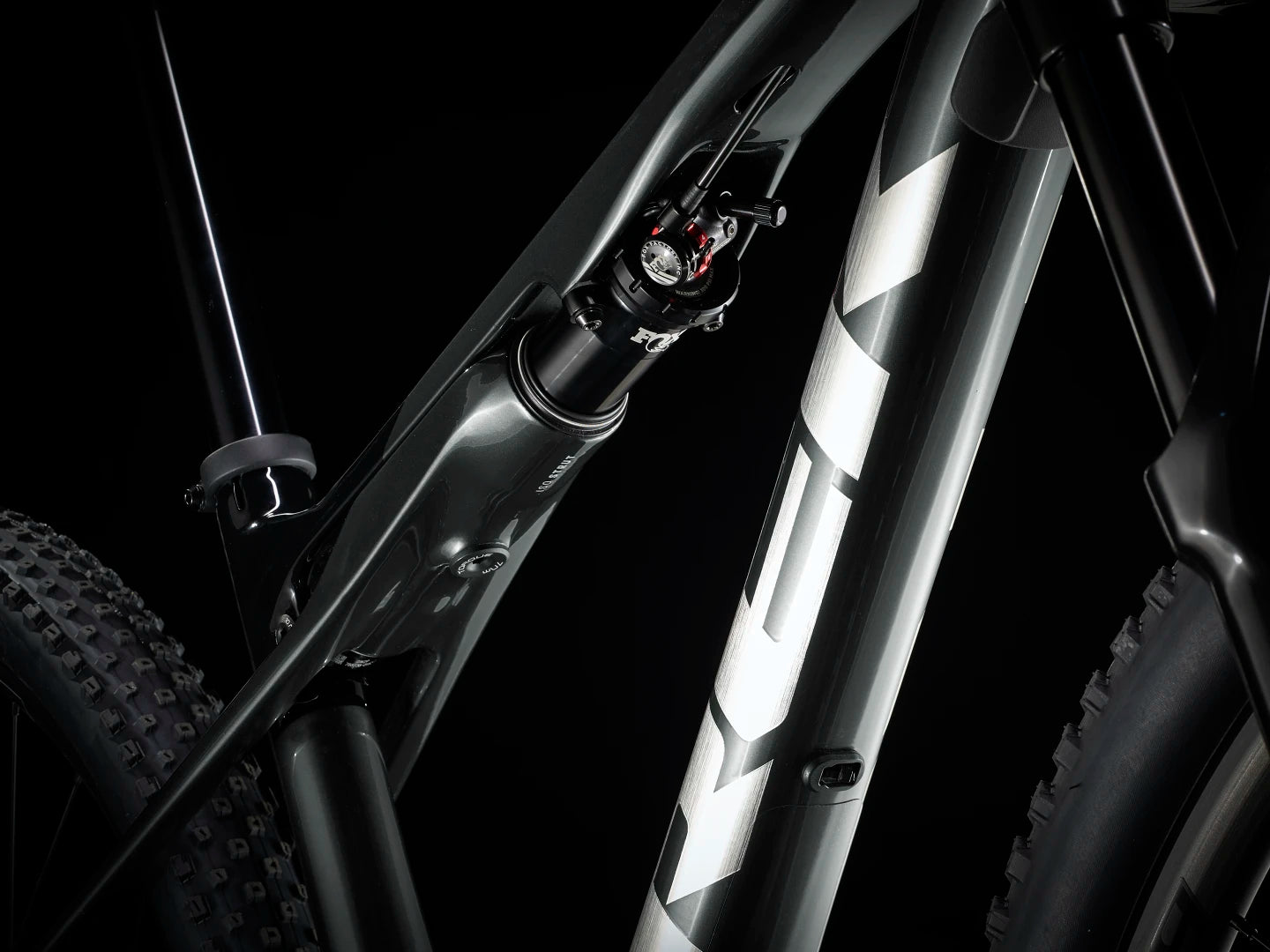

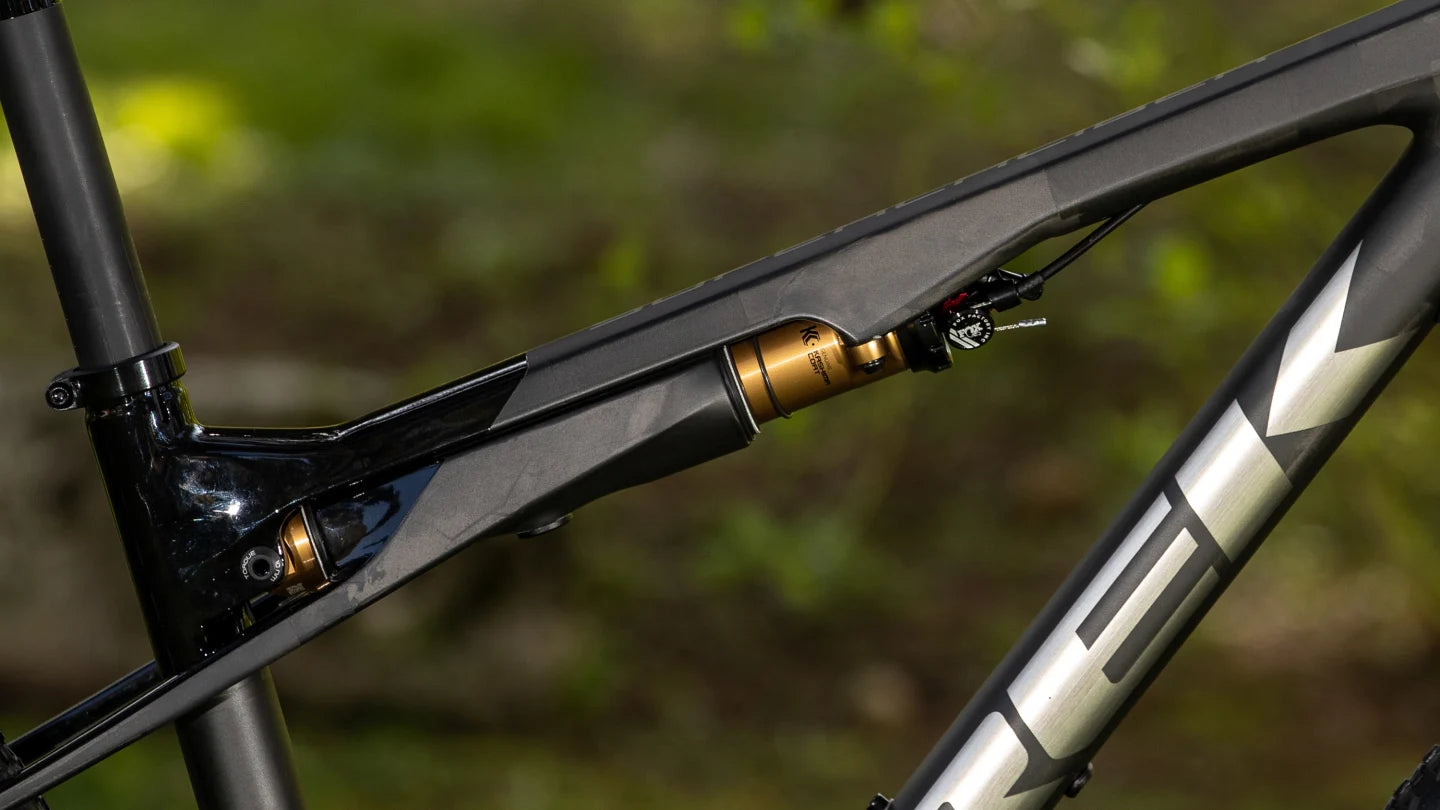

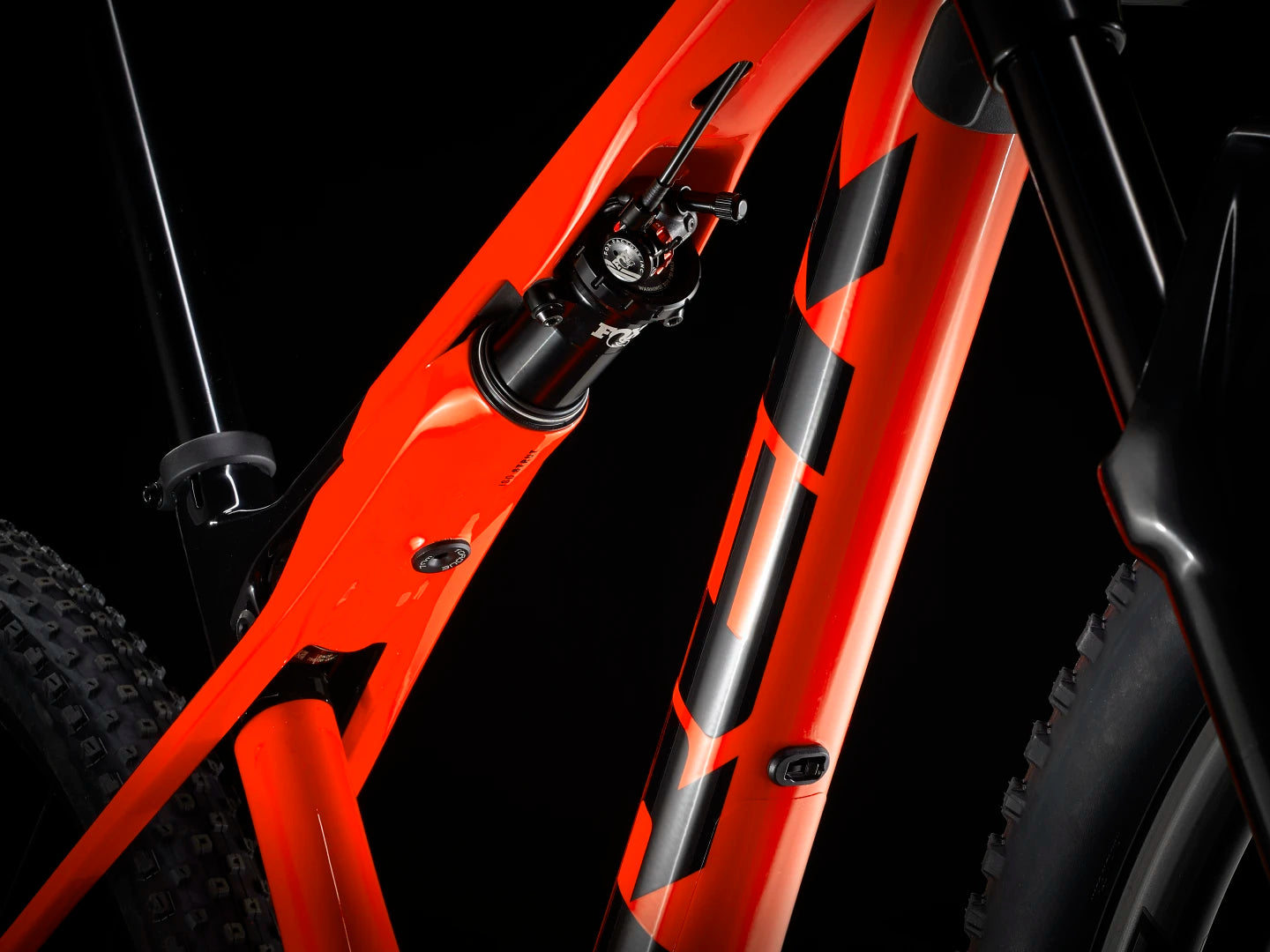

IsoStrut

IsoStrut integrated suspension gives you just enough travel to stay in control. It's fully tunable like a standard rear shock, but without the weight penalty of a full suspension bike.

OCLV Mountain Carbon

Trek's mountain-specific carbon is engineered to withstand the extreme demands of off-road racing. Advanced analysis allows our designers to create a frame with the best blend of light weight, responsiveness and just enough compliance in the seat stays to eliminate the need for a heavy rear pivot system.

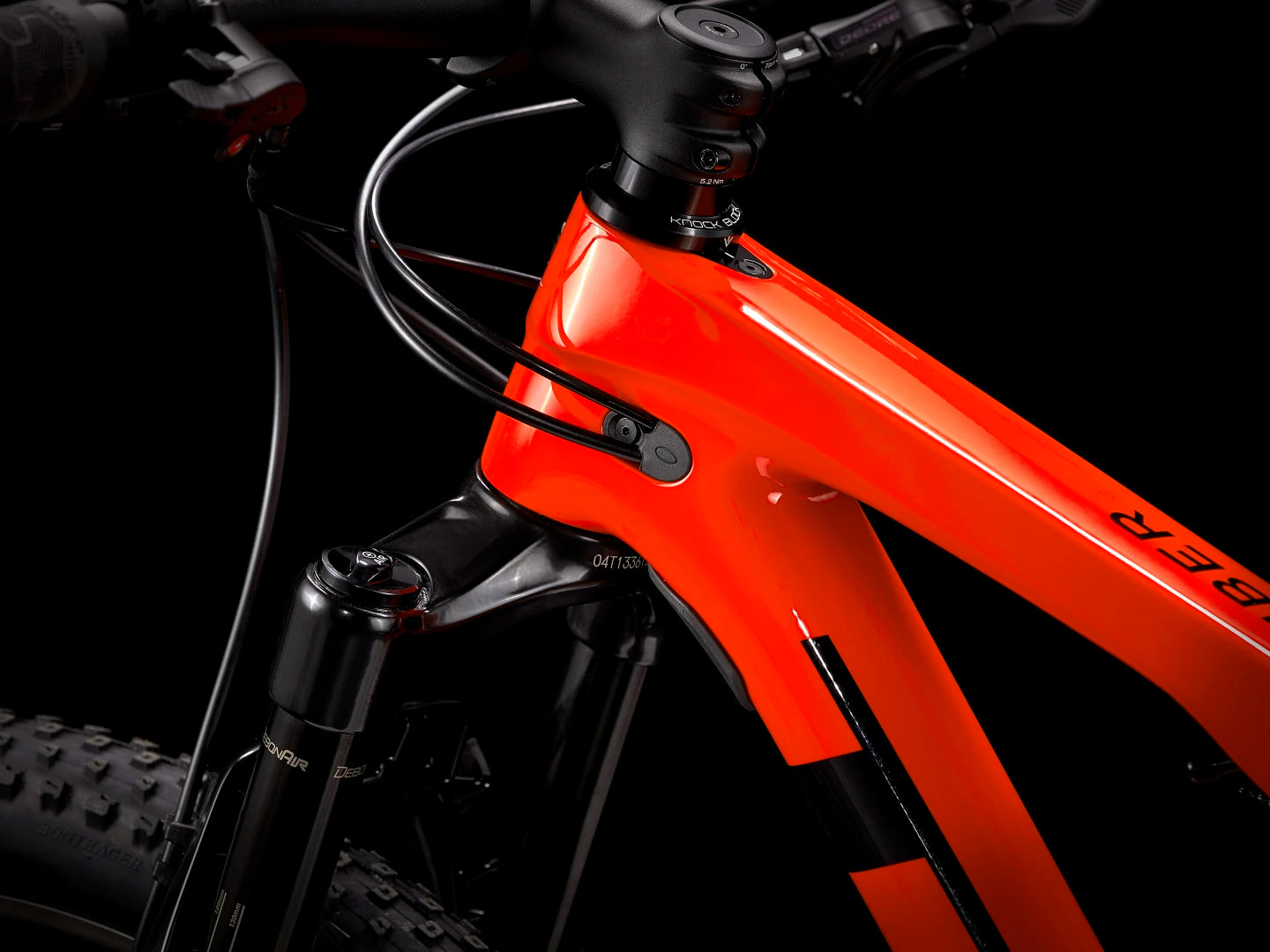

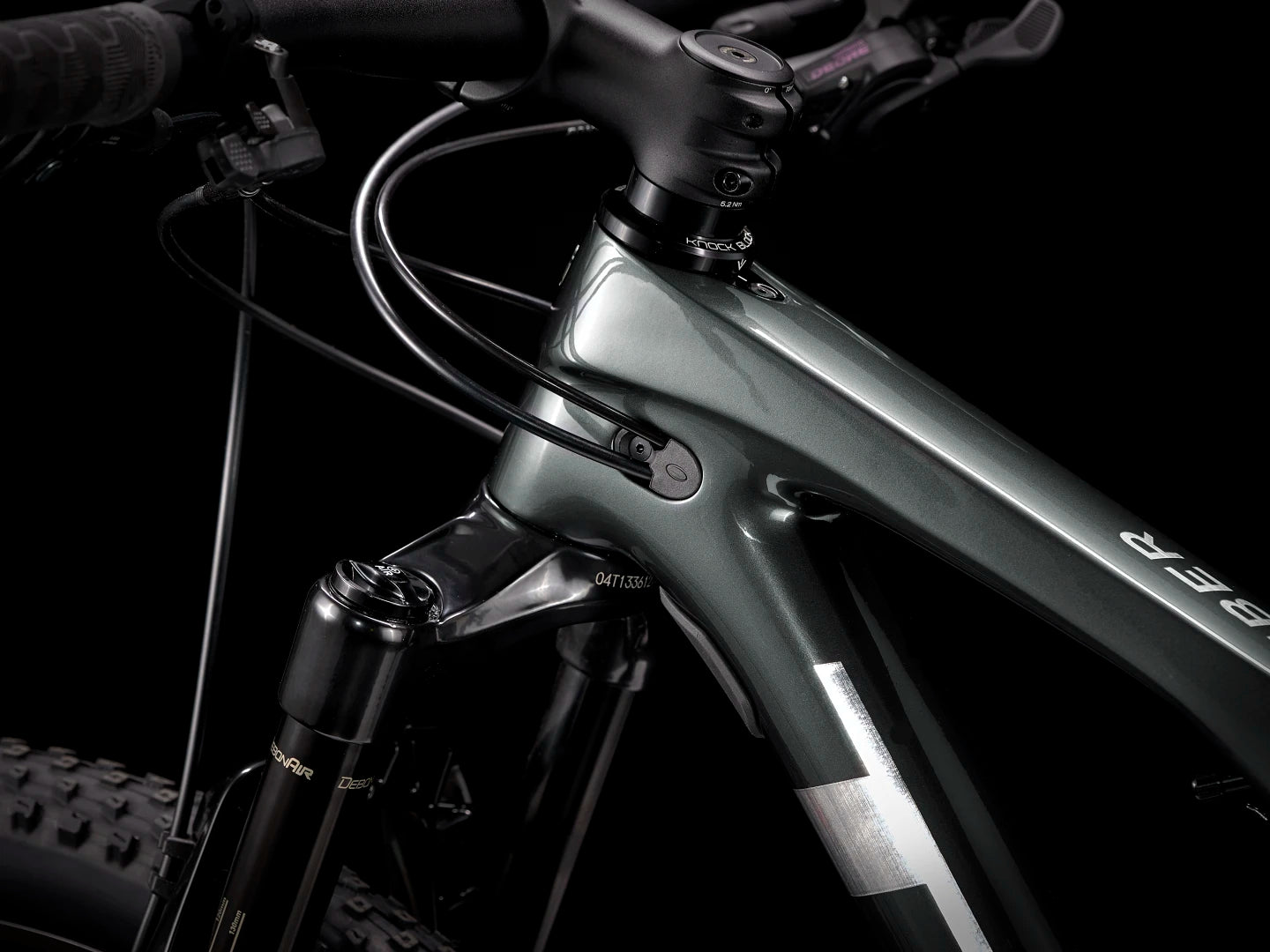

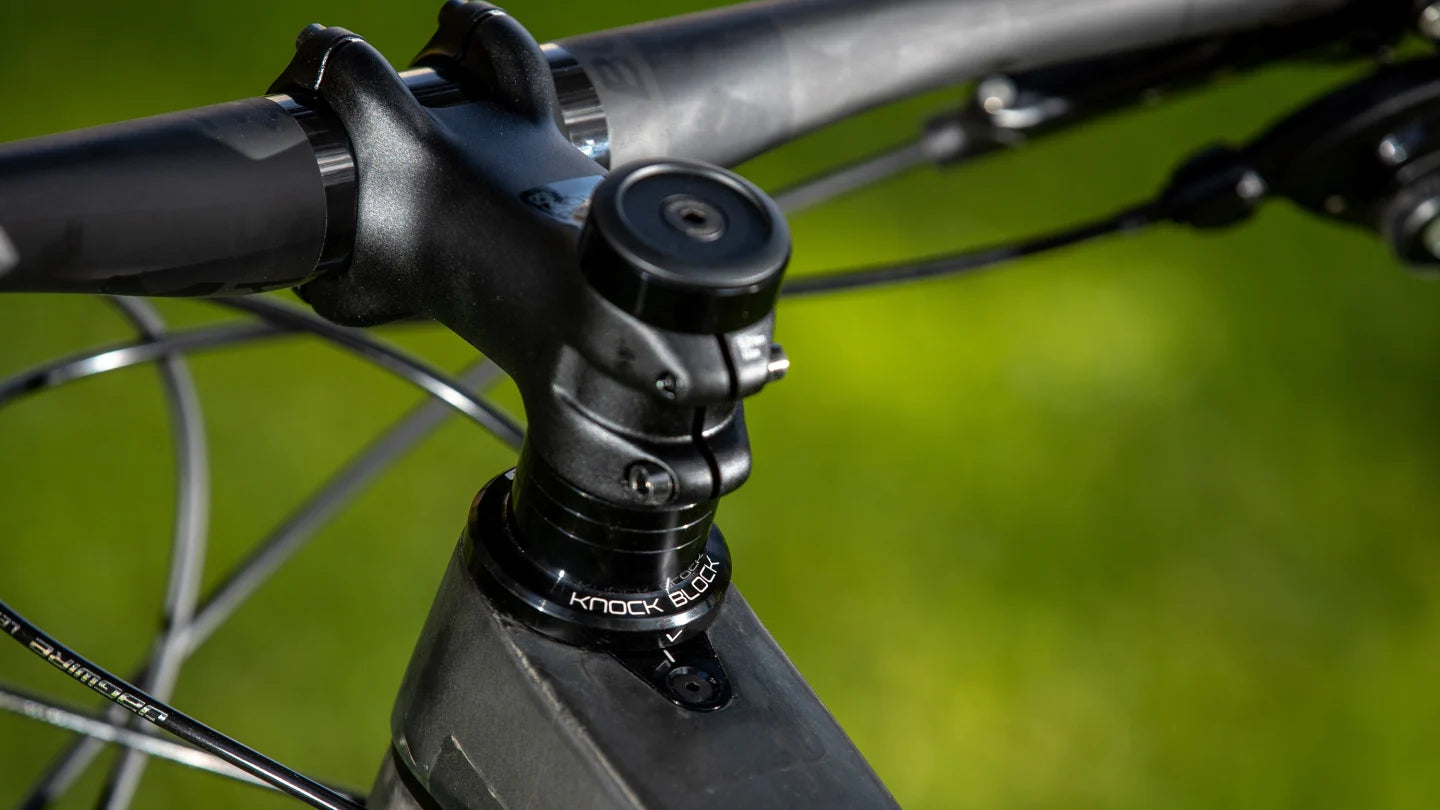

Straight Shot w/Knock Block

Trek's Straight Shot frame design optimises the stiffness-to-weight ratio for a more responsive ride. You'll be able to push harder and stay more planted on your line when the going gets rough.

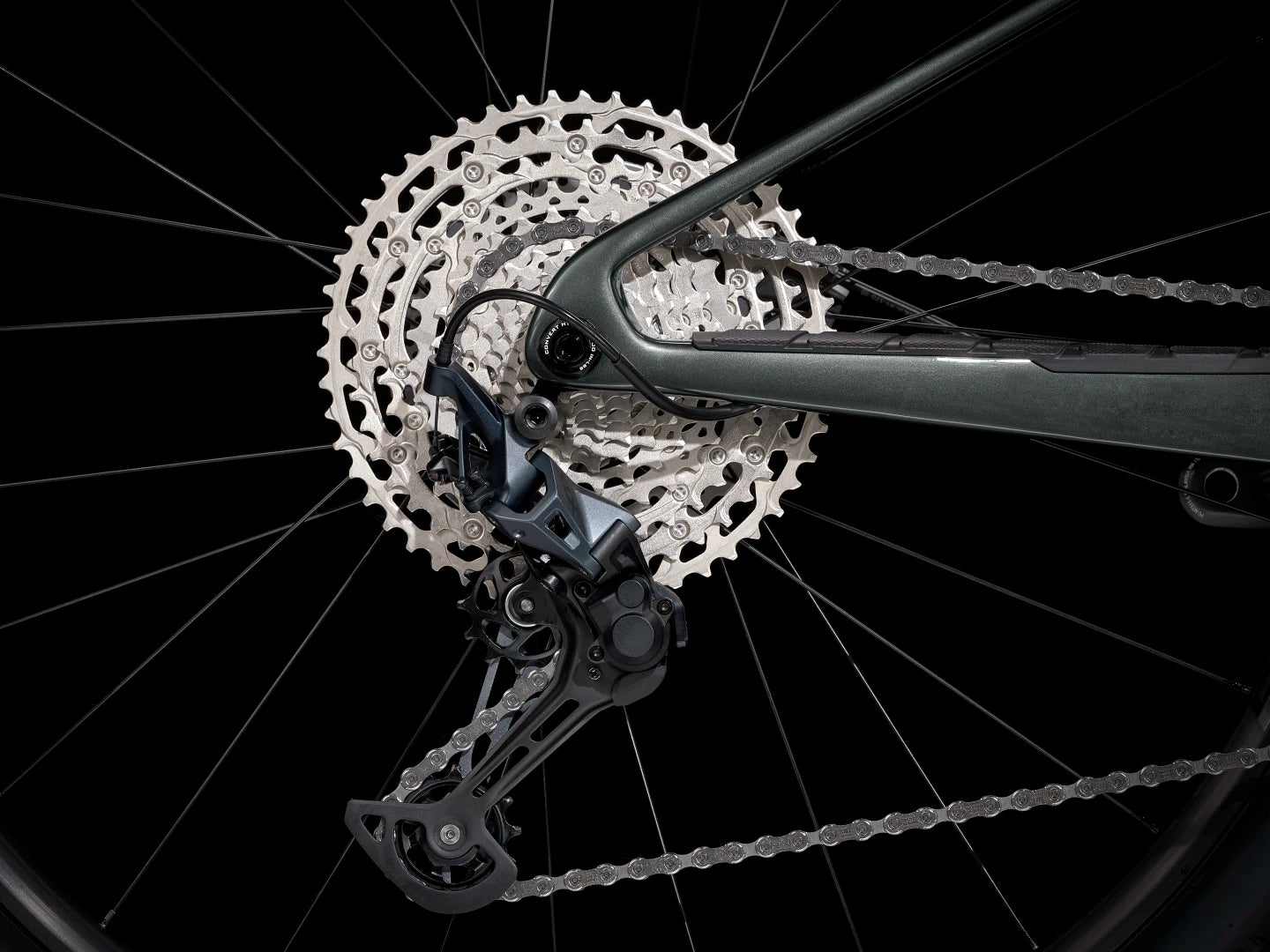

Shimano Deore

Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

You almost forgot your pedals

This bike doesn’t come with pedals because you'll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control and efficiency.

It's right for you if...

You want the incredible performance of our best cross country race platform, and prioritise getting Supercaliber's awesome frame and integrated suspension tech over having the blingiest parts.

The tech you get

An ultra-lightweight, full OCLV Mountain Carbon frame with 60 mm of travel, a 100 mm RockShox Recon Gold fork and Trek's exclusive lightweight IsoStrut FOX Performance shock designed specifically for Supercaliber. Plus, a Shimano SLX/Deore 1x12 drivetrain, and Bontrager Kovee Comp 23 tubeless-ready wheels with a 108-tooth rear hub for instant engagement.

The final word

The Supercaliber 9.6 is fast, capable and efficient, and features IsoStrut – our game-changing integrated suspension technology. The most affordable model in the line-up gives you a solid parts spec that you can upgrade over time.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
