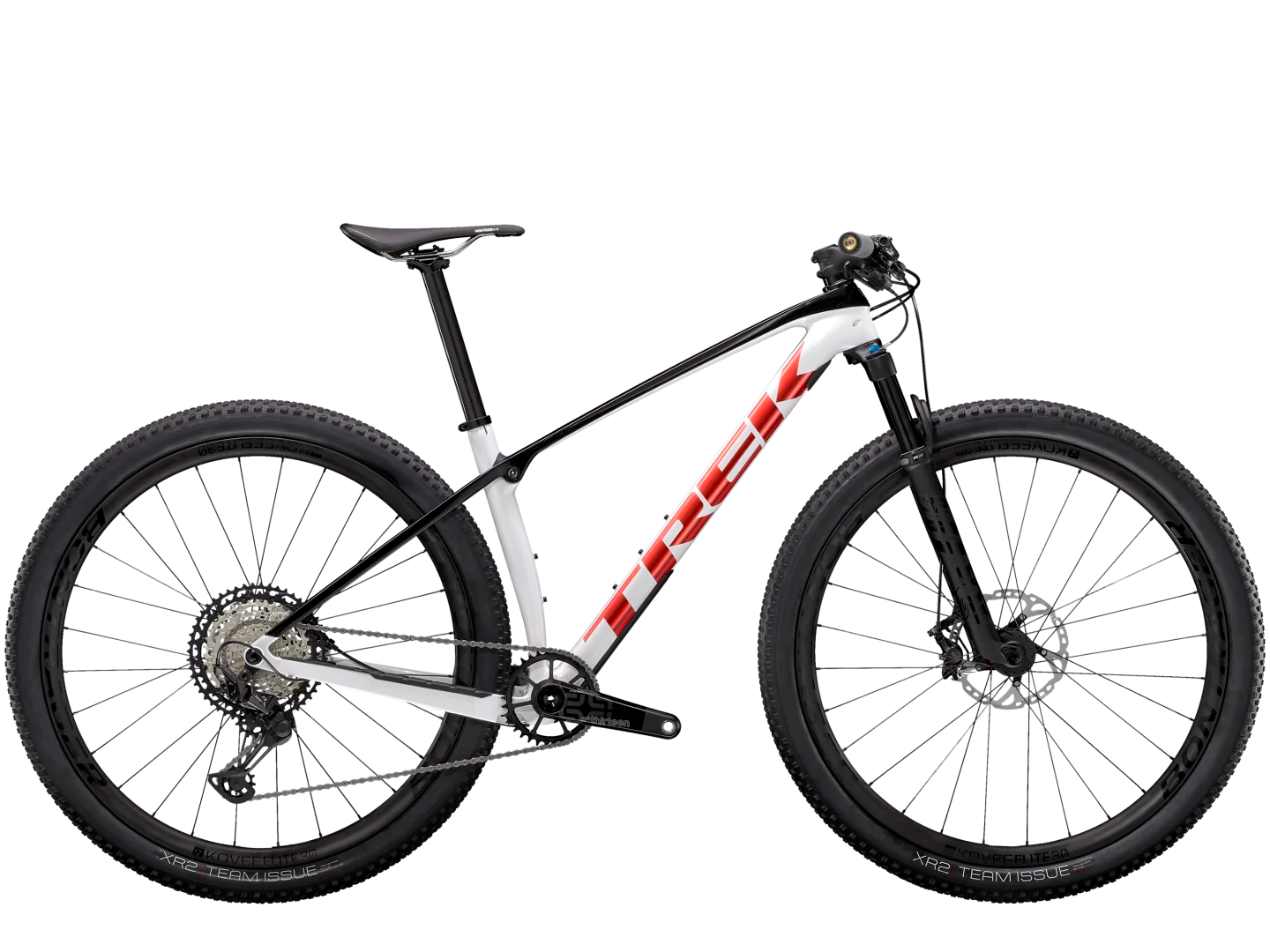

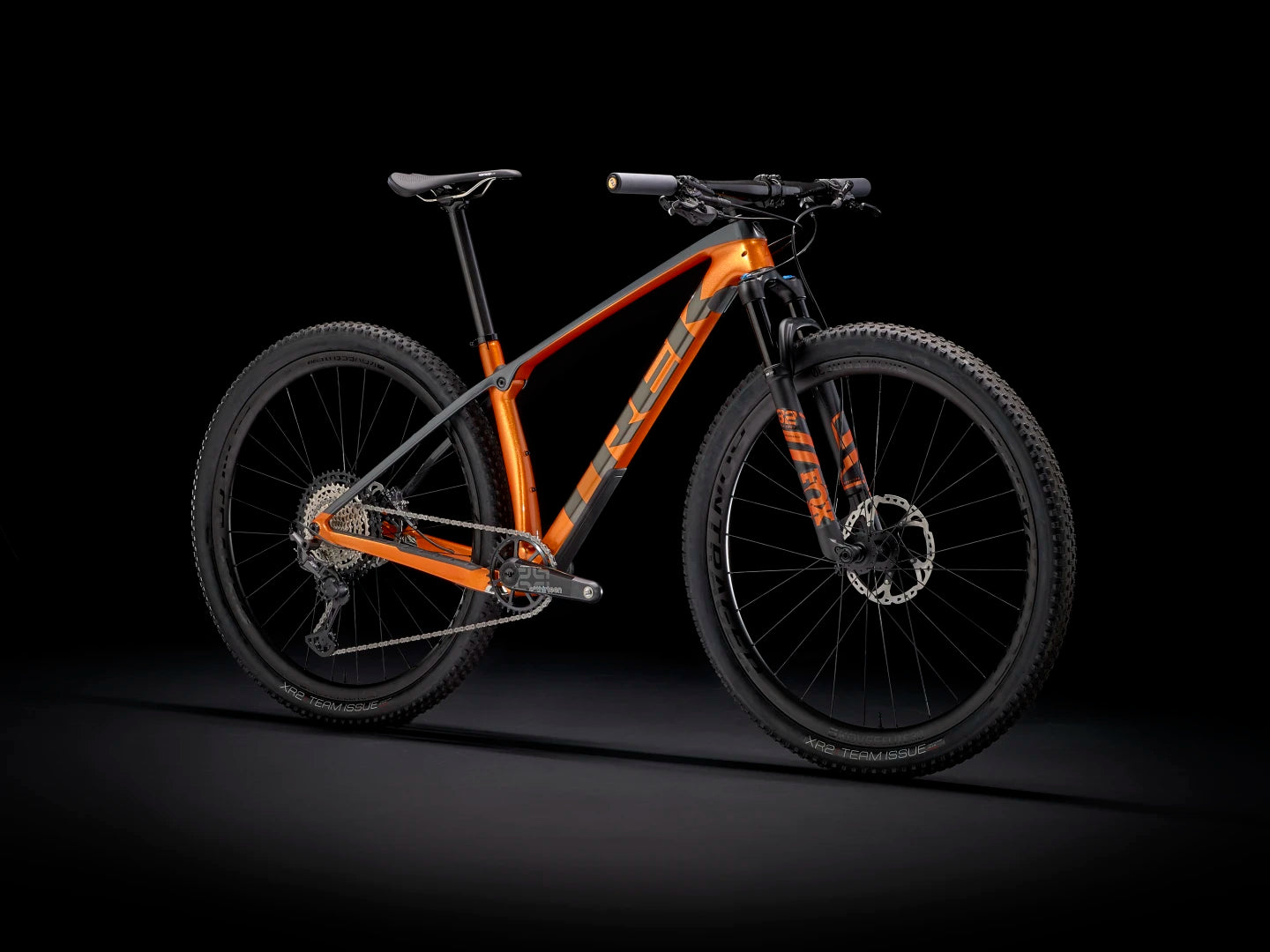

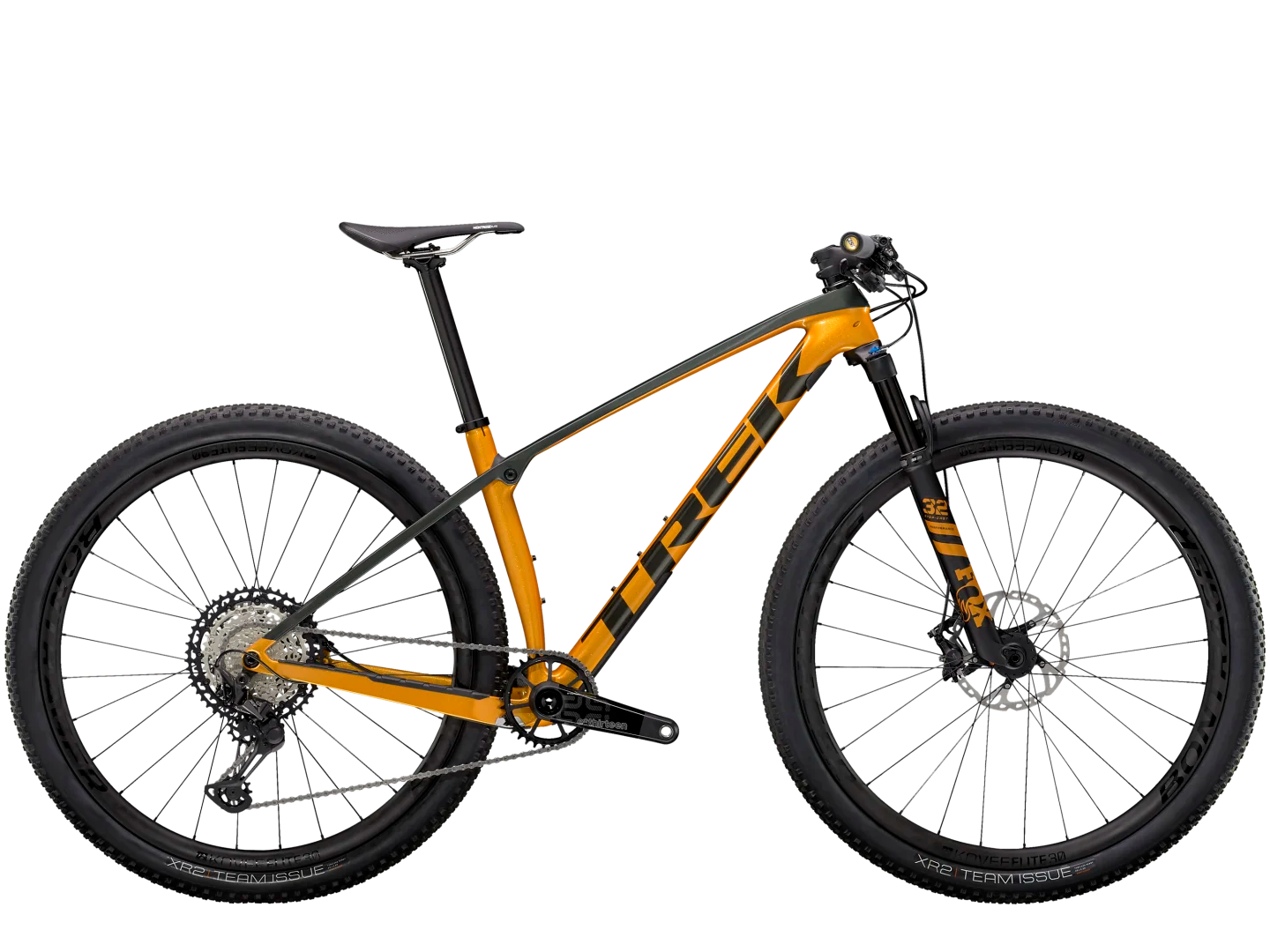

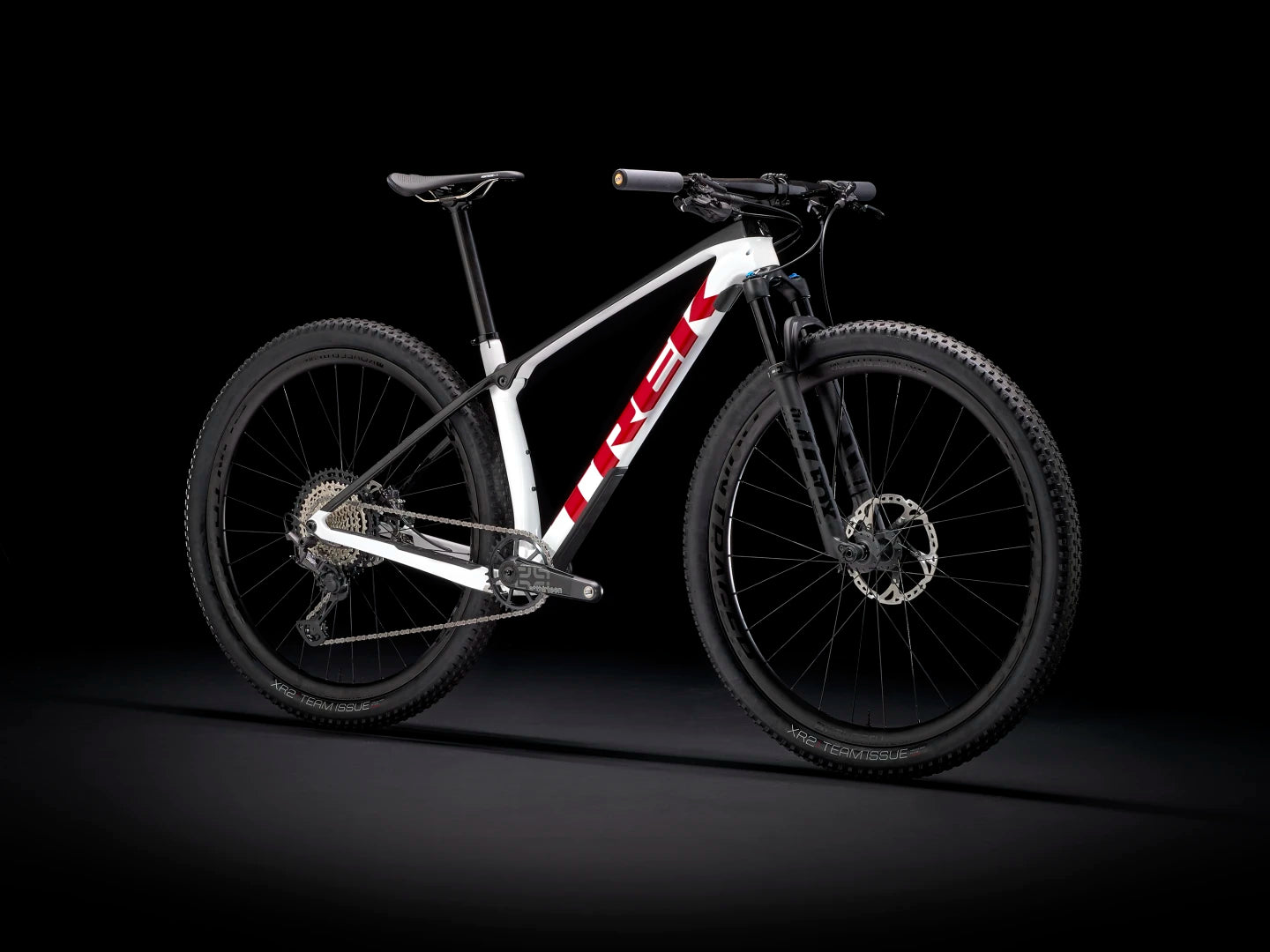

TREK Procaliber 9.8

Name: TREK Procaliber 9.8
Brand: TREK
SKU: 1048660
Price: 163000.0 THB
Availability: OutOfStock

163,000.00 ฿

0.0

Procaliber 9.8 is the champion of the family. It’s a cross country hardtail made for riders who race to win, with a carbon IsoSpeed frame that soaks up trail chatter without sacrificing efficiency, a lightweight FOX fork that charges down technical descents and a smooth Shimano XT drive train.

Color:

Factory Orange/Lithium Grey

SIZE:

S (29" WHEEL)

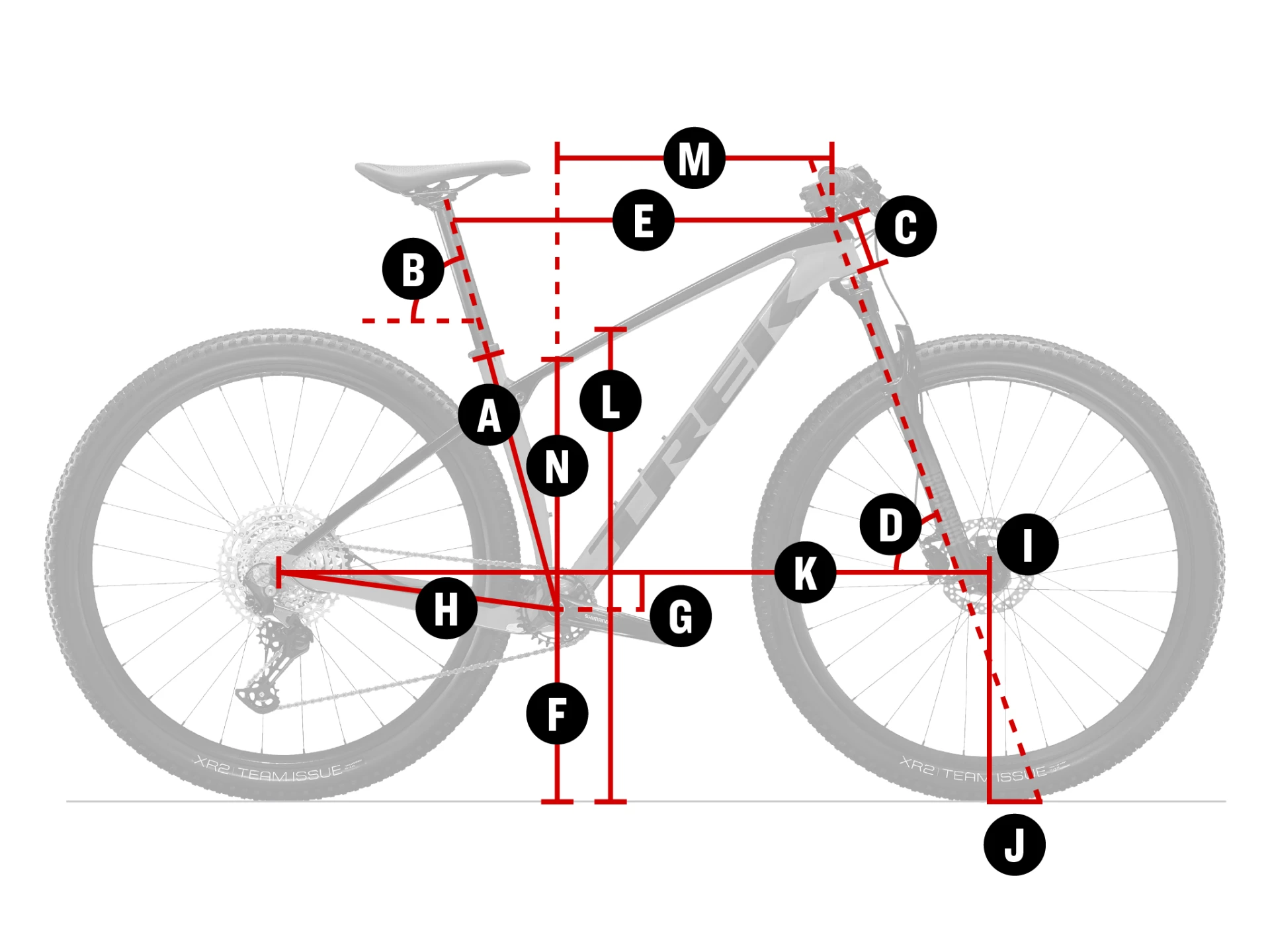

PROCALIBER 9.8

Size

Rider Height

Inseam

S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

ML

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

S (29" WHEEL) M (29" WHEEL) ML (29" WHEEL)

Variant

FRAMESET

Frame

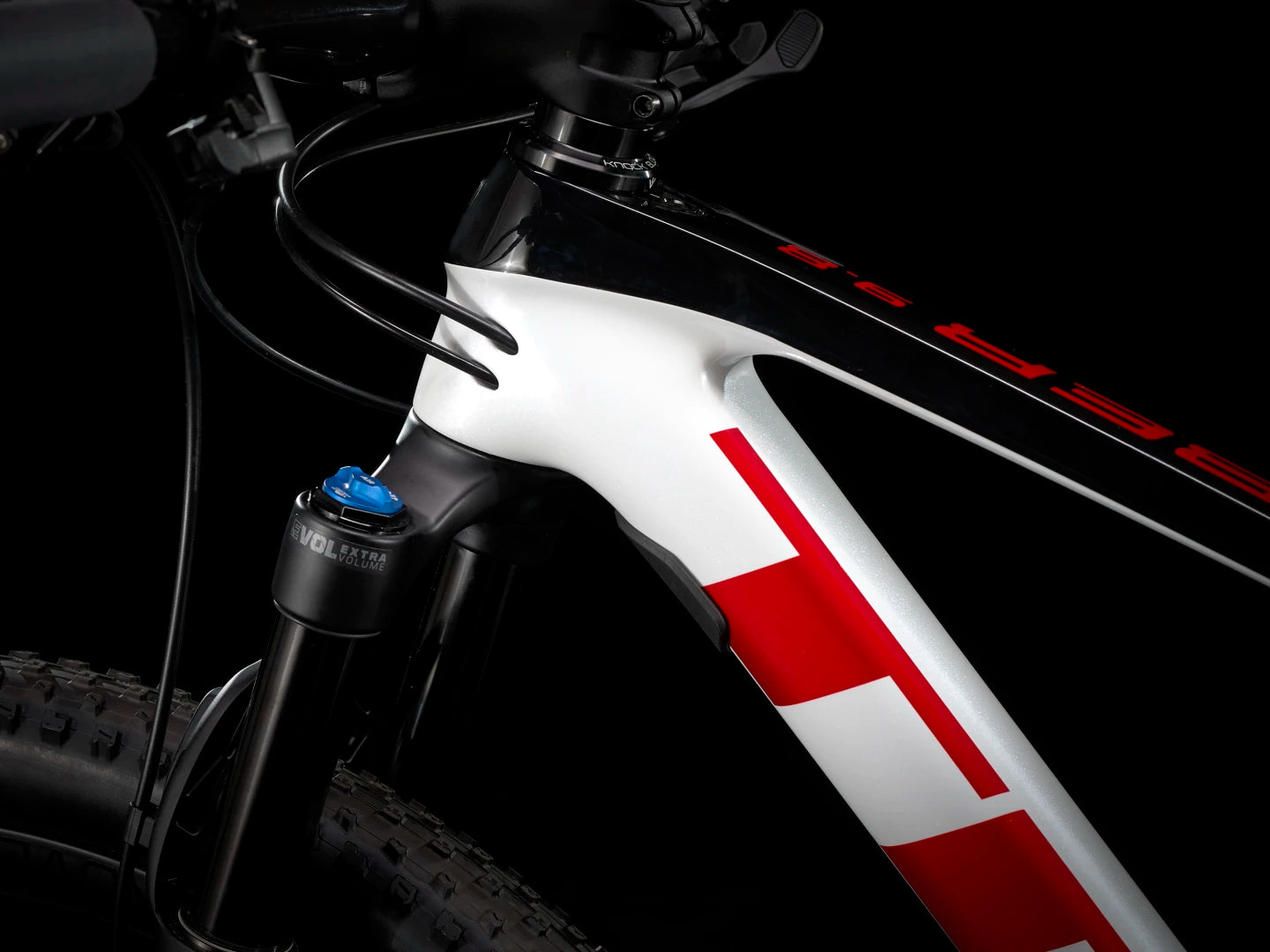

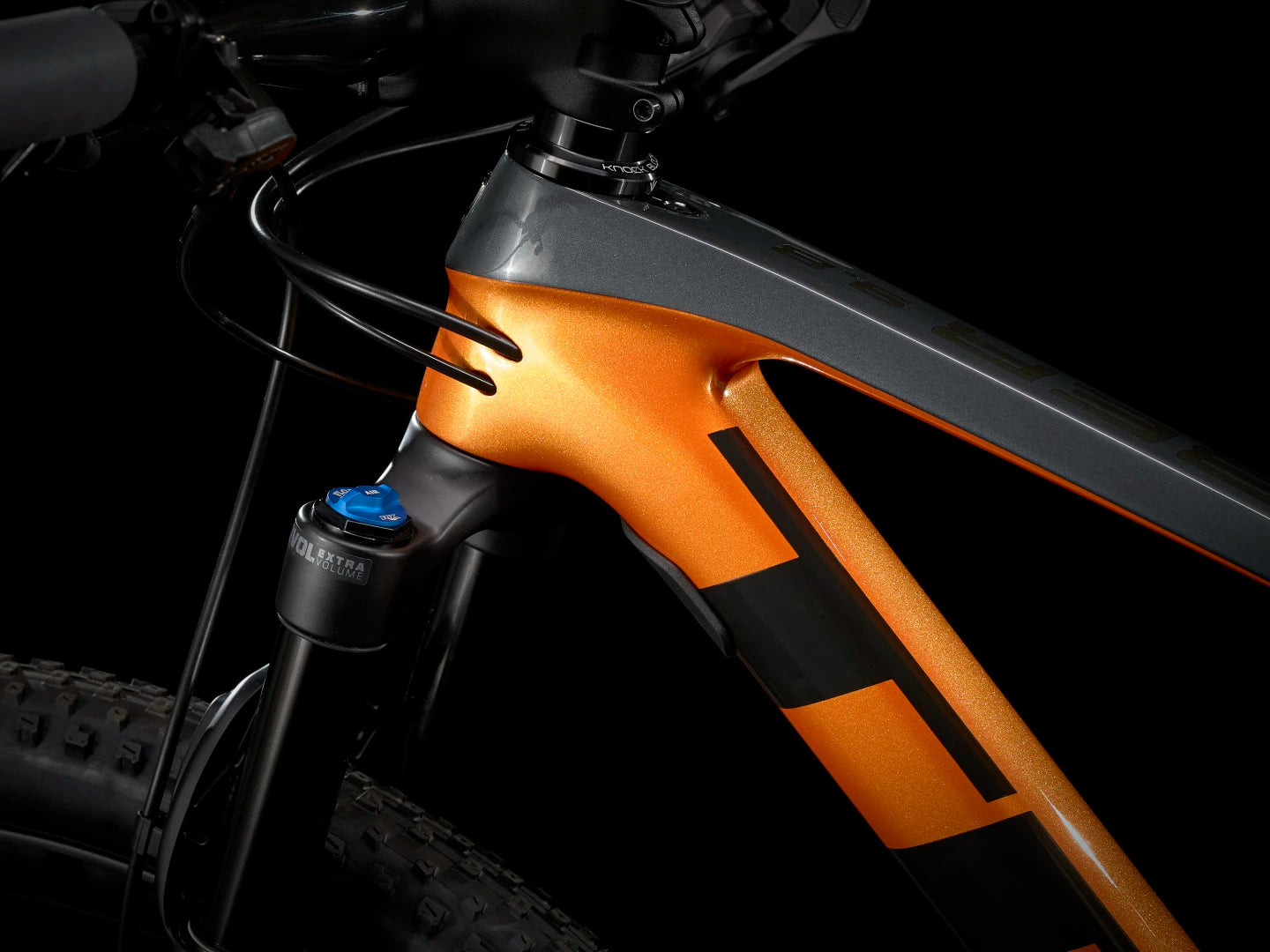

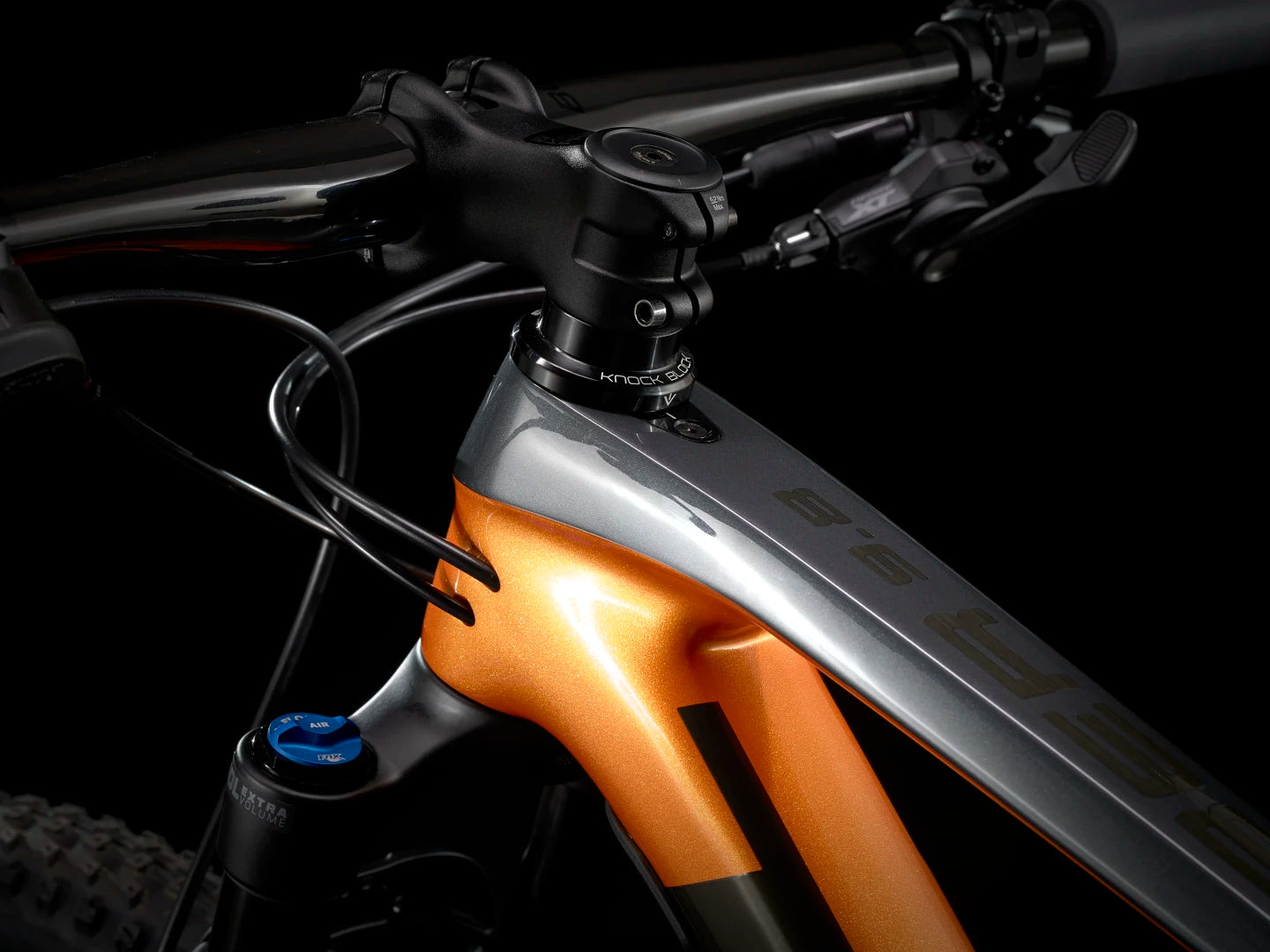

: OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148
Fork
: Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel
Max compatible fork travel
: 120mm (533mm axle-to-crown)

WHEELS

Wheel front
: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost 110, 15 mm thru axle, 29"
Wheel rear
: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 54, Microspline, 6-bolt, Boost148, 12 mm thru axle, 29"
*Hub rear
: Size: S , M , ML , L , XL , XXL
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Size: S , M , ML , L , XL , XXL
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rim

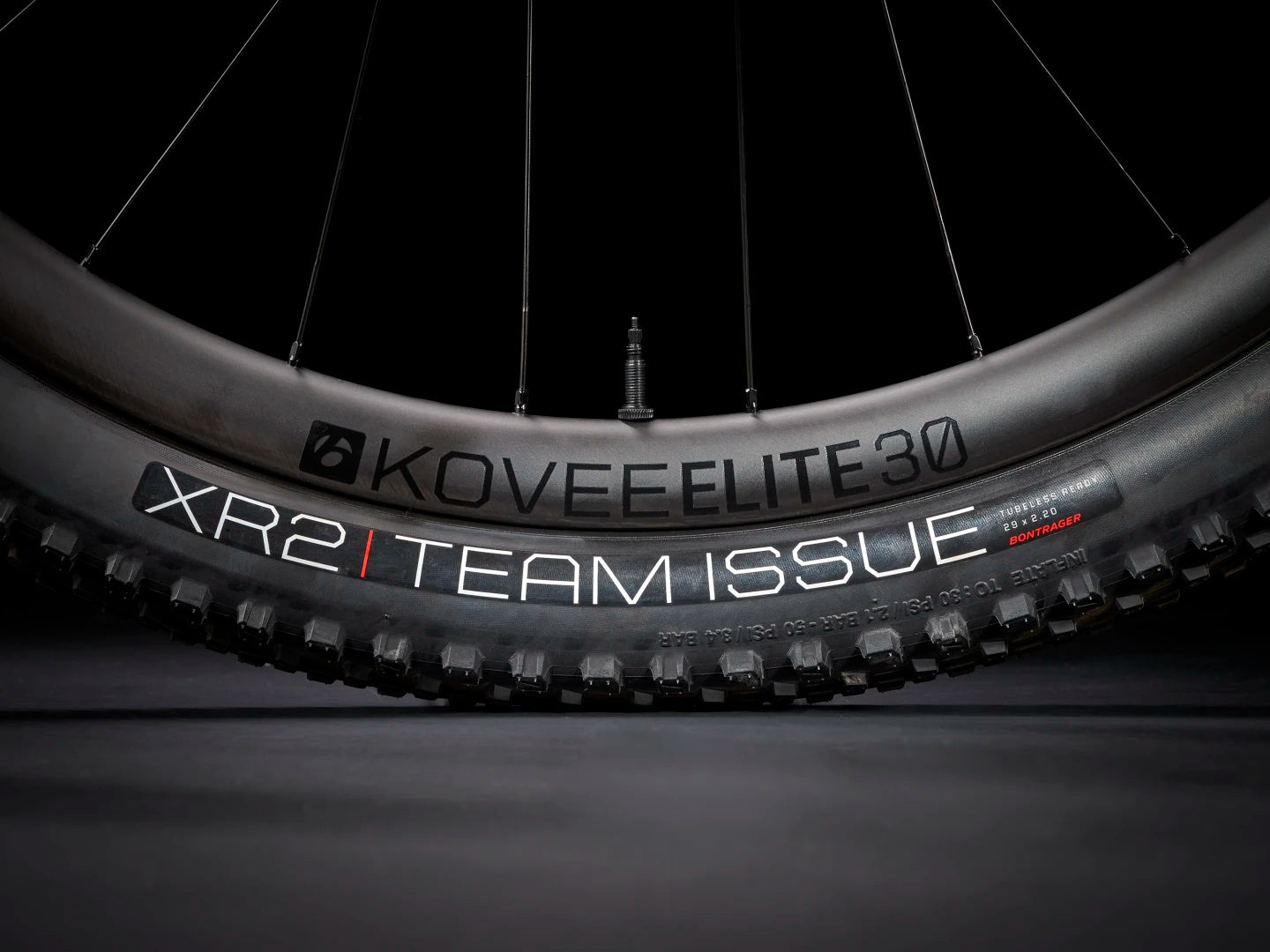

: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless-Ready
Tyre
: Bontrager XR2 Team Issue, Tubeless-Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.20"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip
: Bontrager TLR
Max tyre size
: Frame: 29x2.40", Fork: See manufacturer

DRIVETRAIN

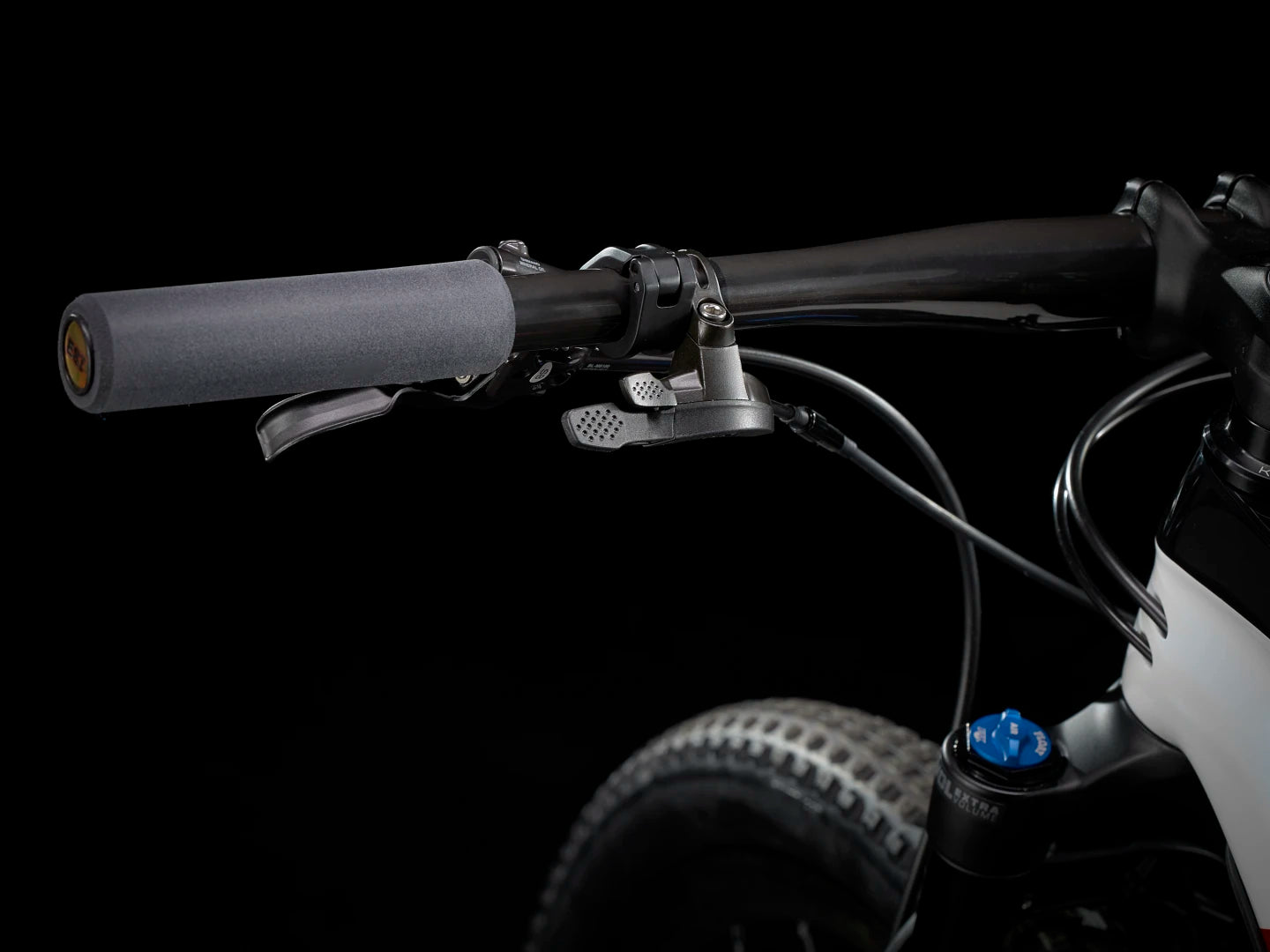

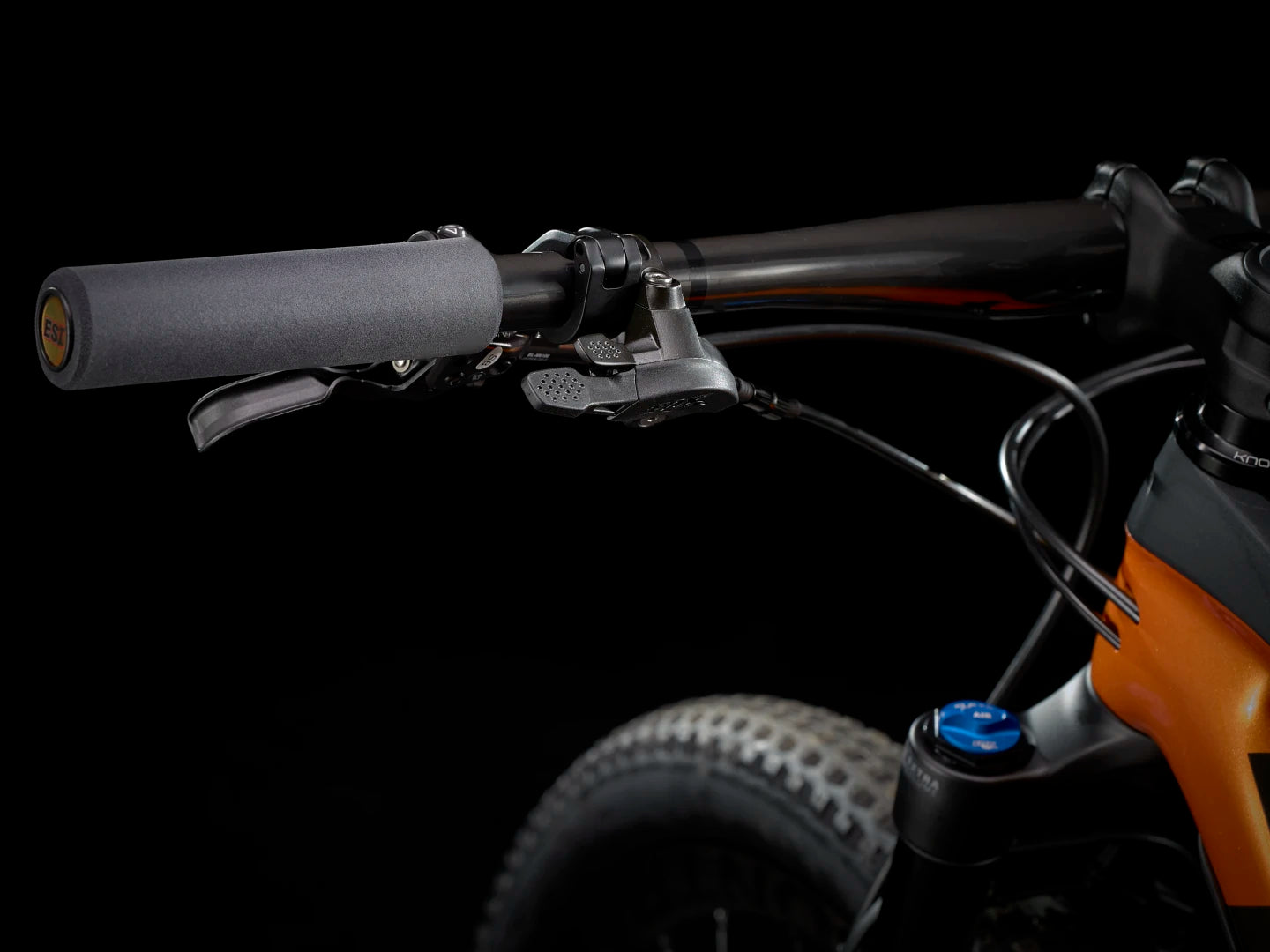

Shifter
: Shimano XT M8100, 12-speed

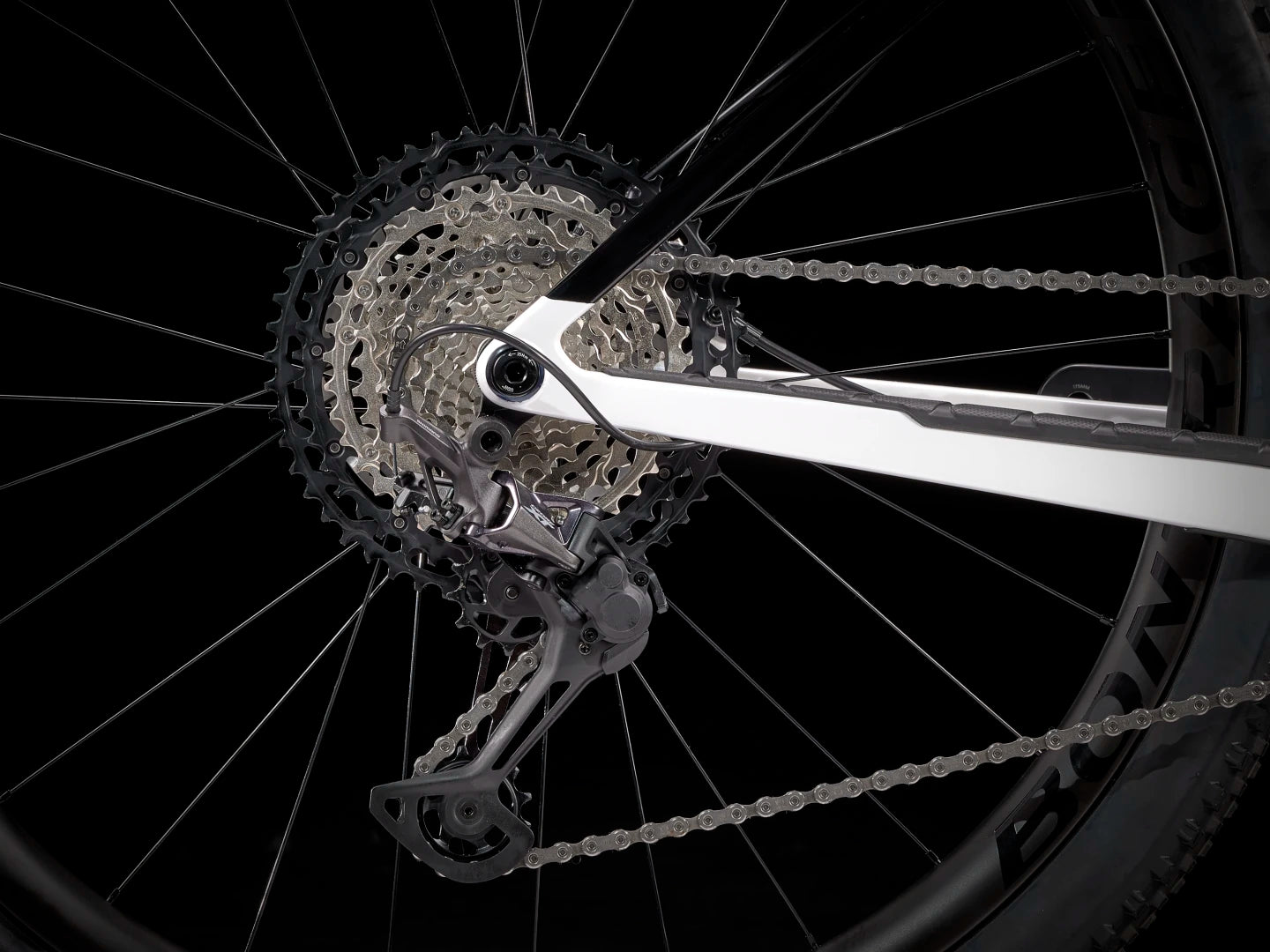

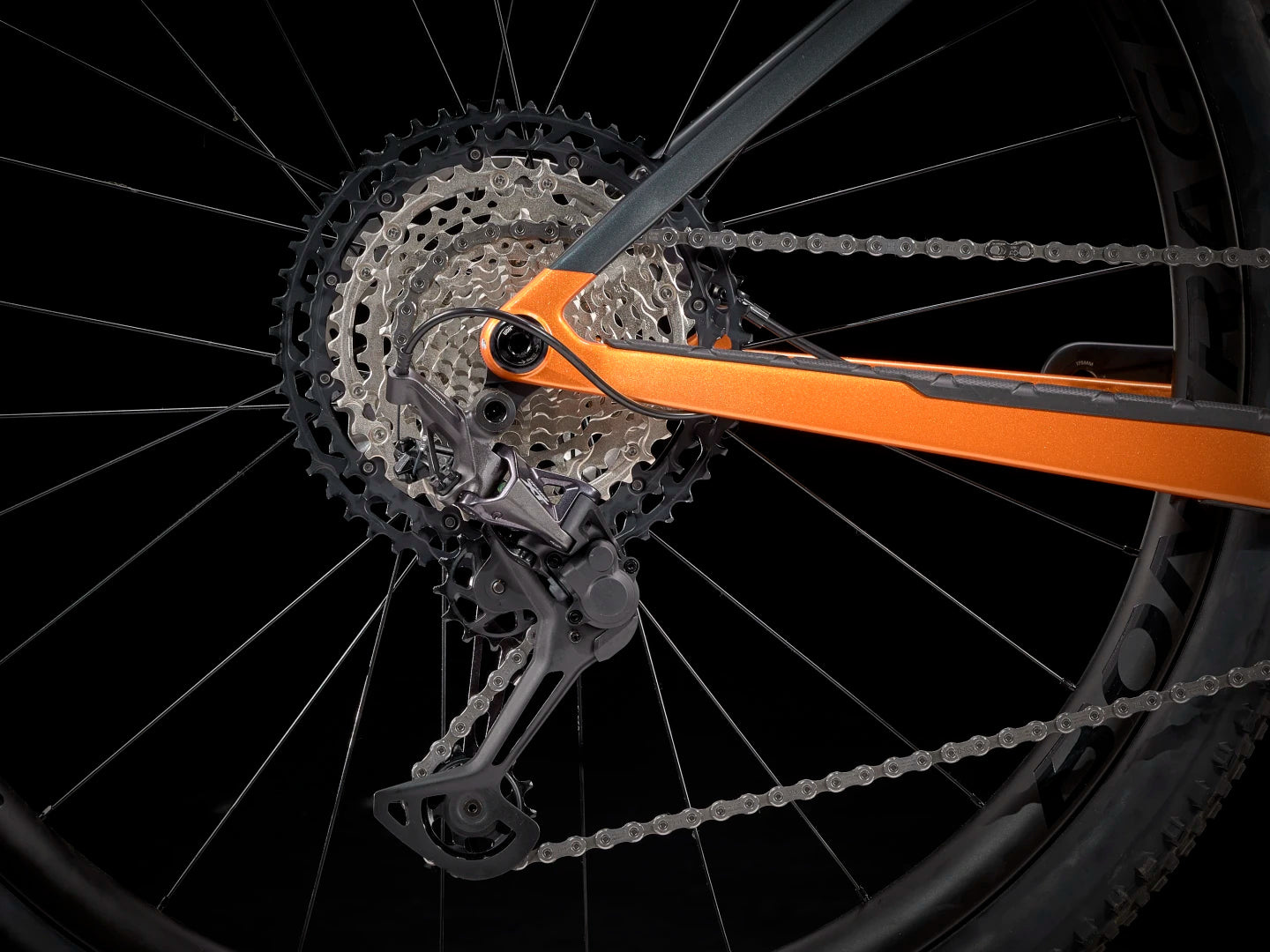

Rear derailleur
: Shimano XT M8100, long cage

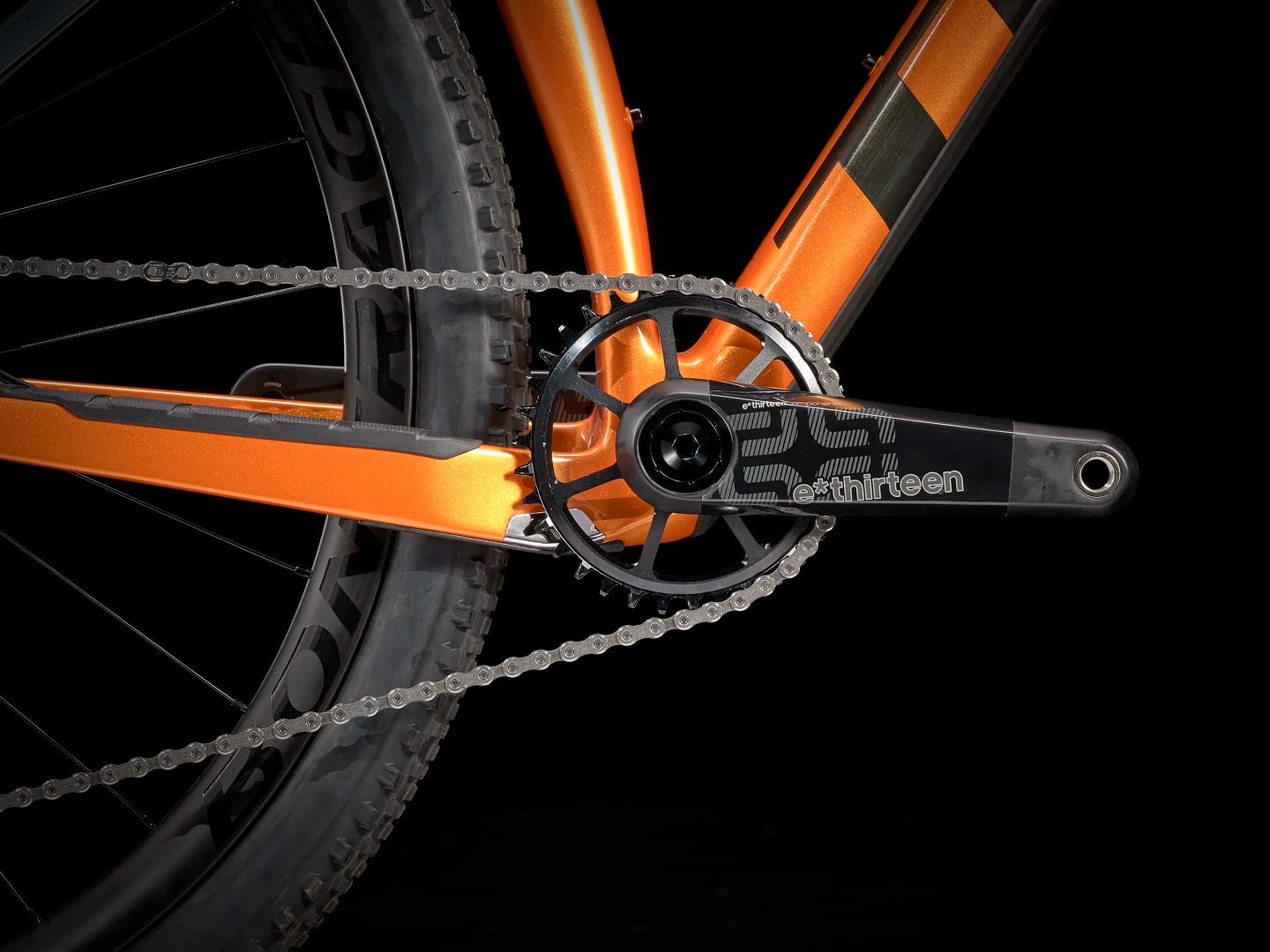

*Crank
: Size: S
E*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chain line, 170 mm length
Size: M , ML , L , XL , XXL
E*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chain line, 175 mm length
Bottom bracket
: E*thirteen BB20-92
Cassette
: Shimano XT M8100, 10-51, 12-speed
Chain
: Shimano XT M8100, 12-speed
Max. chainring size
: 1x: 36T, min 30T

COMPONENTS

Saddle
: Bontrager Montrose Elite, titanium rails, 138 mm width
*Seatpost
: Size: S
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
Size: M , ML , L , XL , XXL
Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length

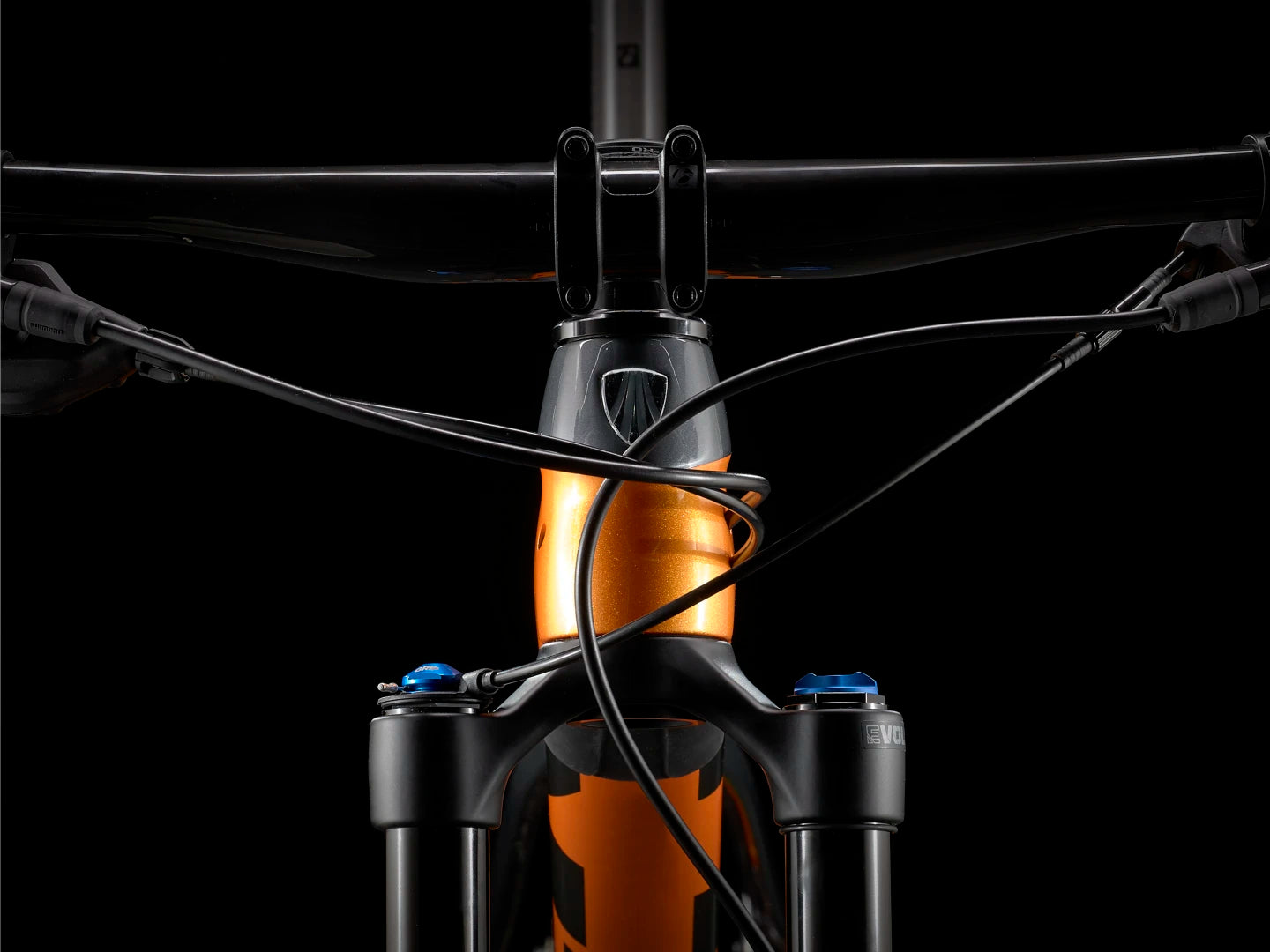

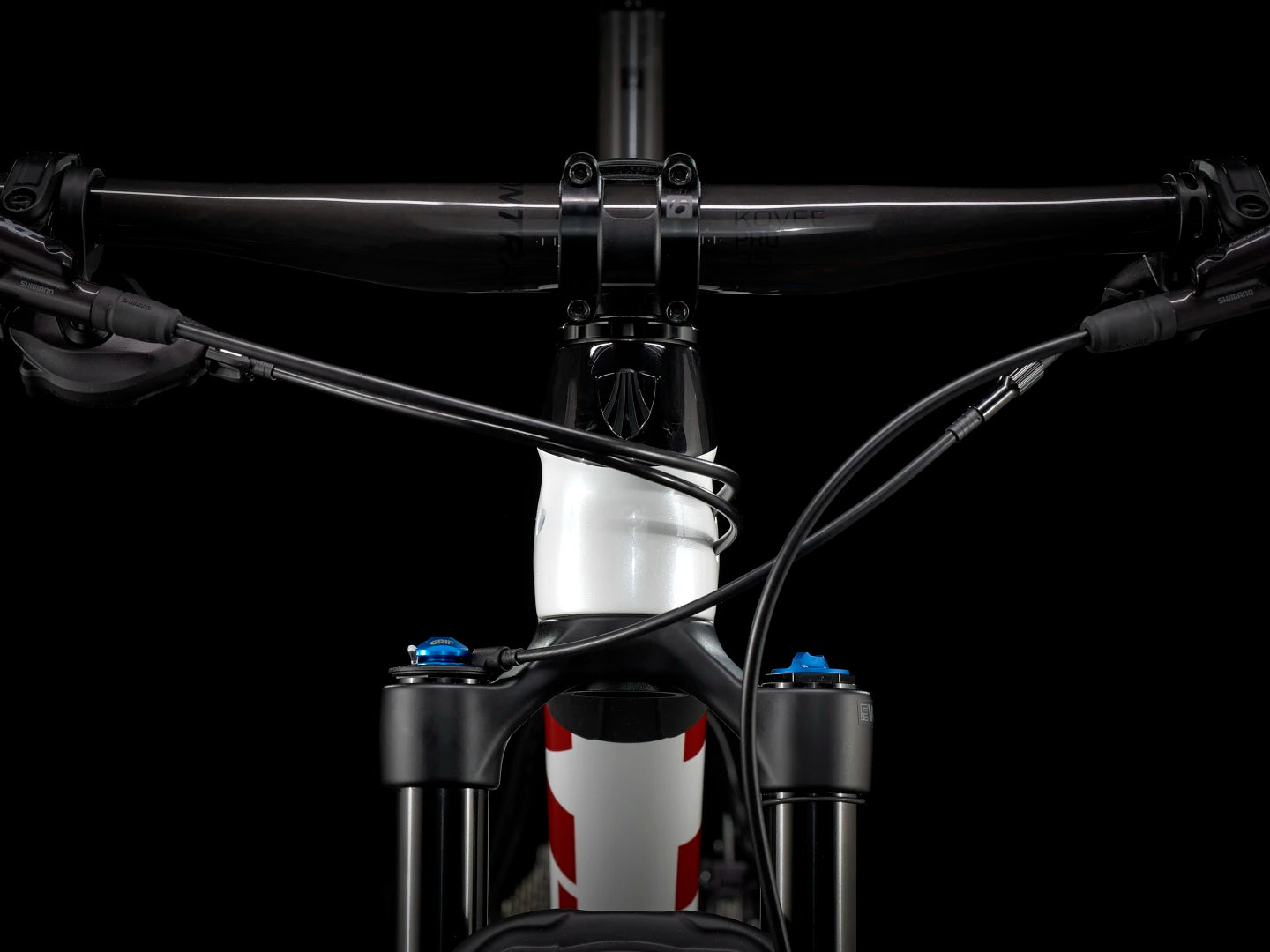

*Handlebar
: Size: S , M , ML
Bontrager Kovee Pro, OCLV Carbon, 35 mm, 5 mm rise, 720 mm width
Size: L , XL , XXL
Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
Grips
: ESI Chunky

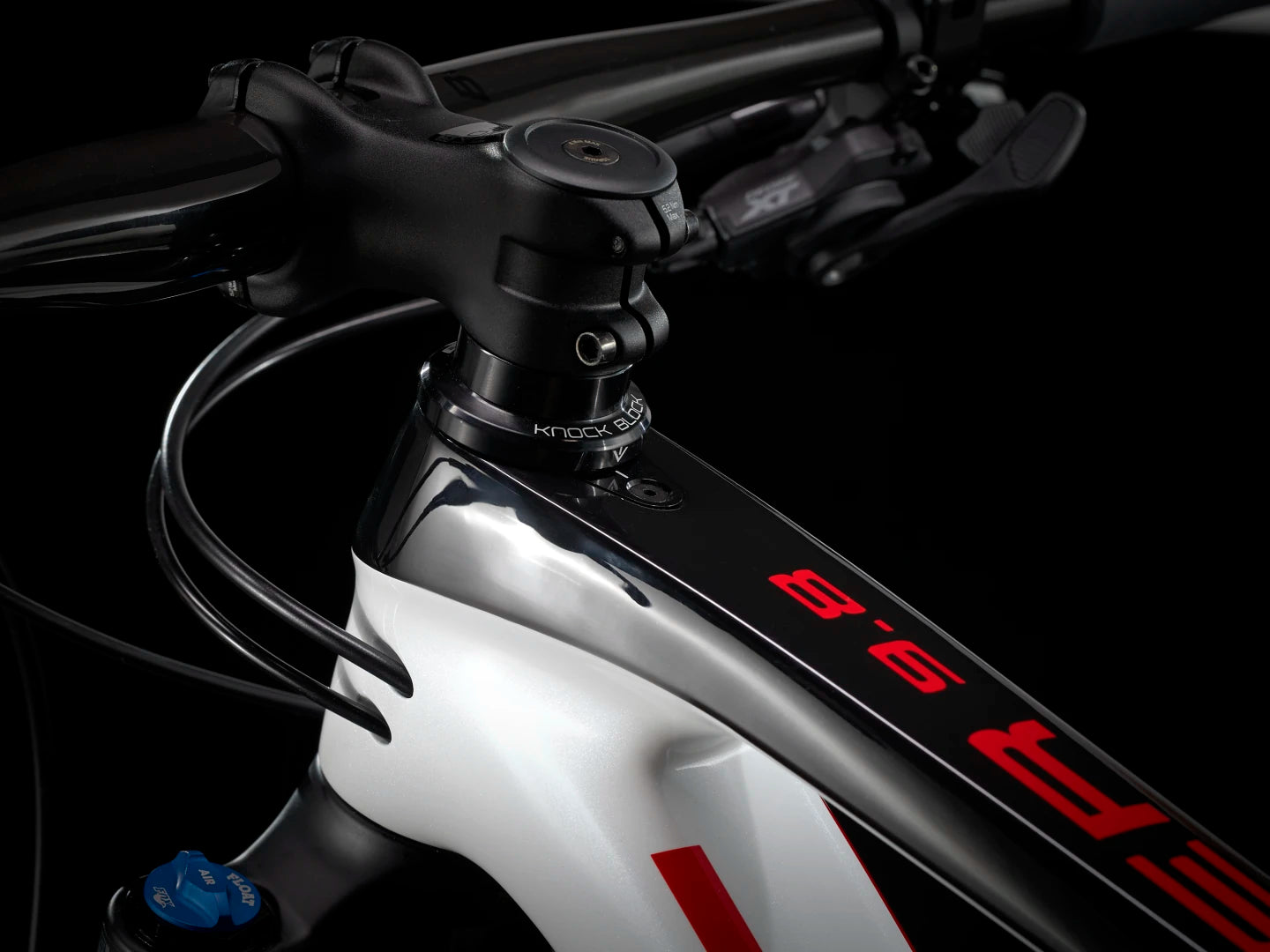

*Stem
: Size: S
Bontrager Kovee Pro, 35 mm, Blendr-compatible, 13-degree, 60 mm length
Size: M , ML
Bontrager Kovee Pro, 35 mm, Blendr-compatible, 13-degree, 70 mm length
Size: L , XL
Bontrager Kovee Pro, 35 mm, Blendr-compatible, 13-degree, 80 mm length
Size: XXL
Bontrager Kovee Pro, 35 mm, Blendr-compatible, 13-degree, 90 mm length

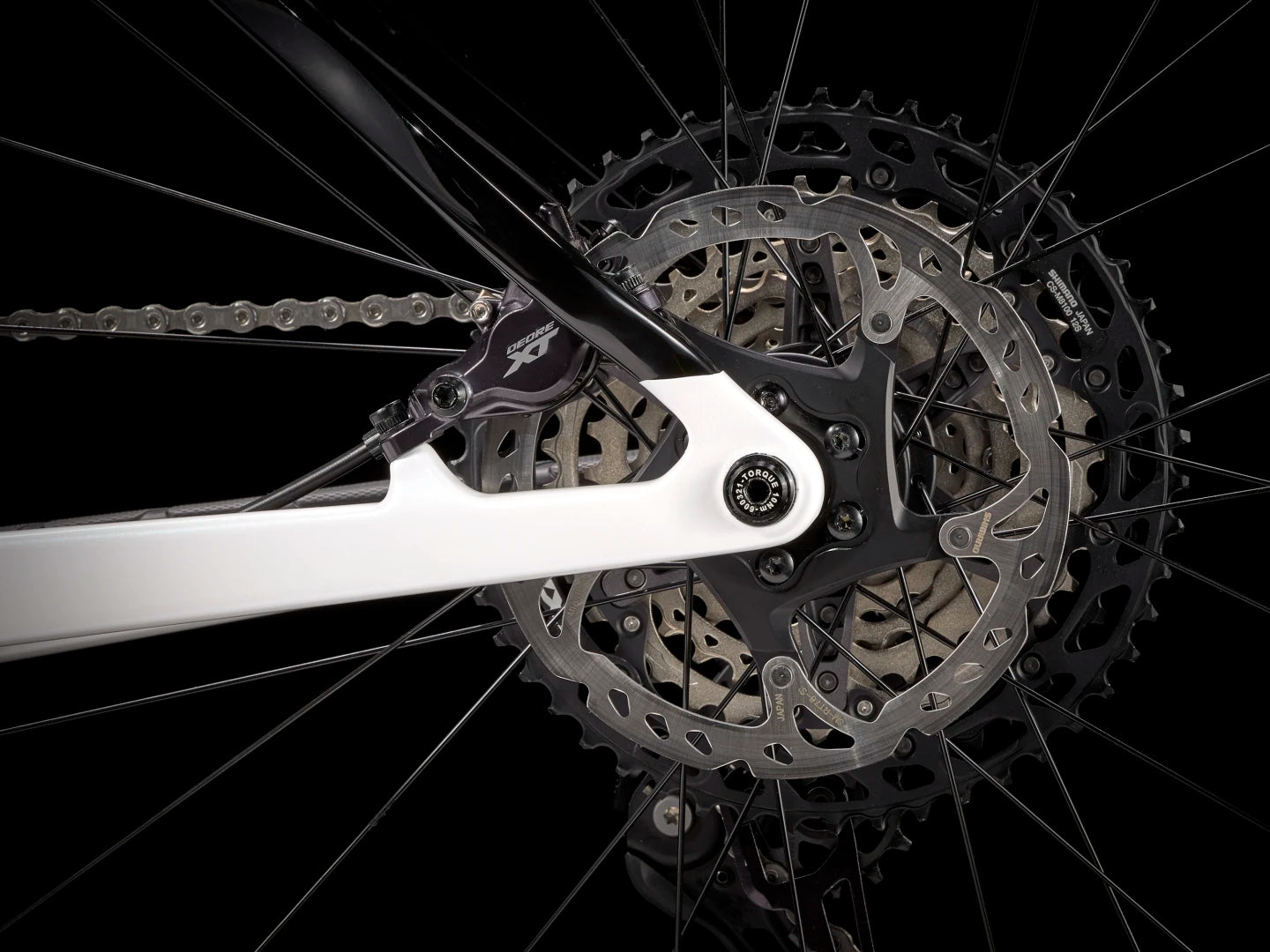

Brake
: Shimano Deore XT M8100 hydraulic disc

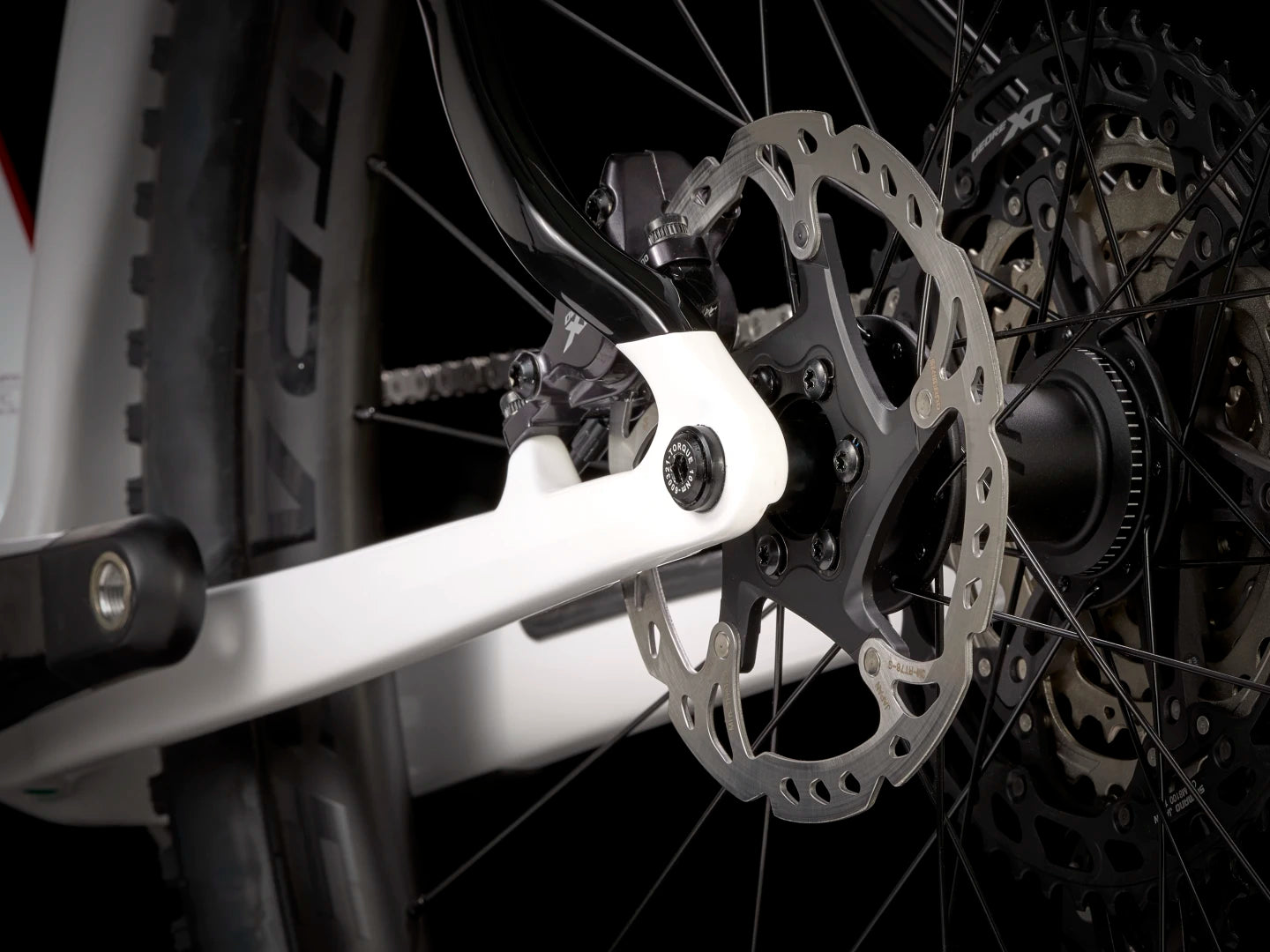

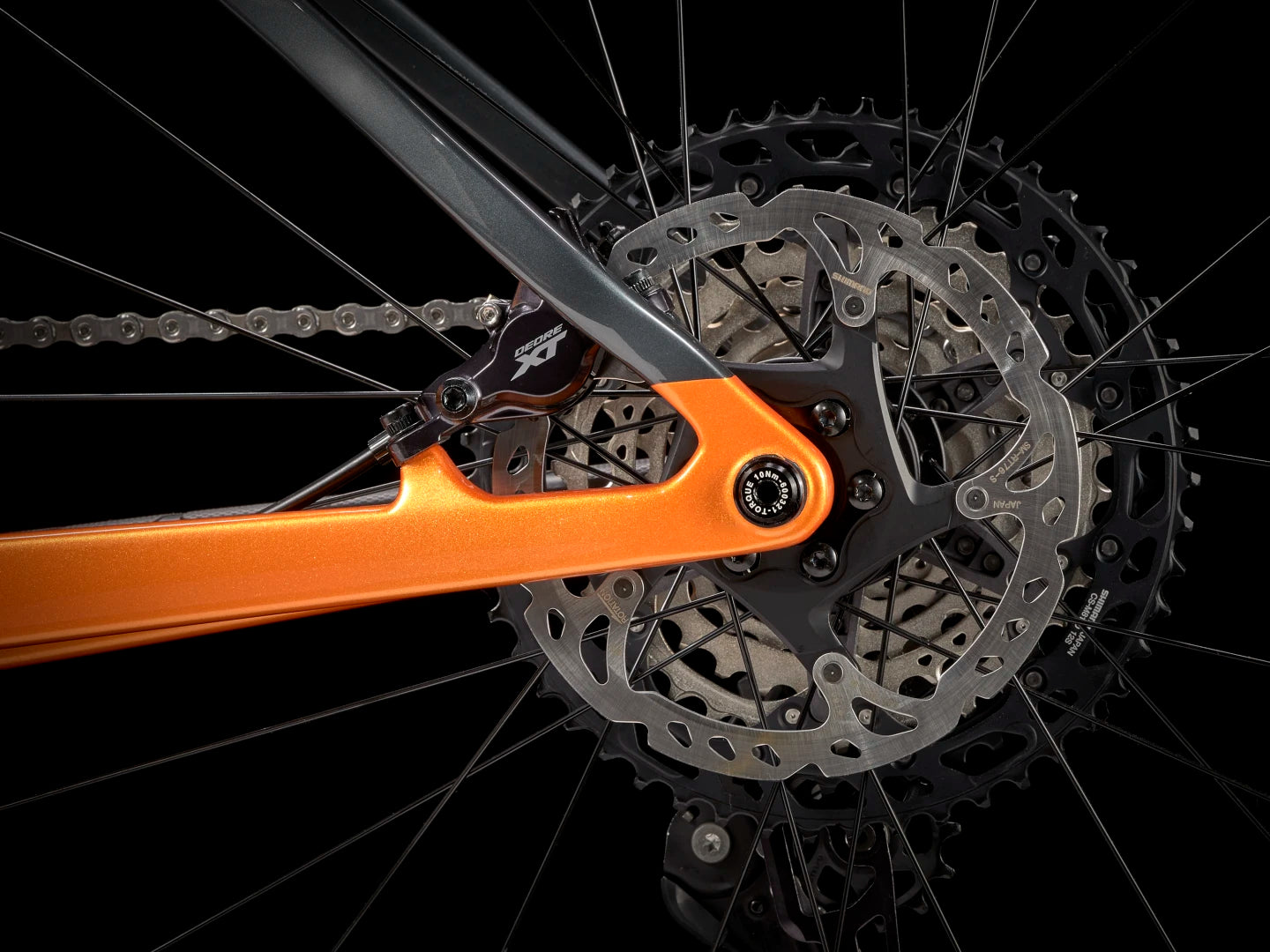

*Brake rotor
: Size: S , M , ML , L , XL , XXL
Shimano RT76, 6-bolt, 160 mm
Size: S , M , ML , L , XL , XXL
Shimano RT76, 6-bolt, 180 mm
Rotor size
: Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer

WEIGHT

Weight
: M - 10.05 kg / 22.15 lbs (with TLR sealant, no tubes)
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

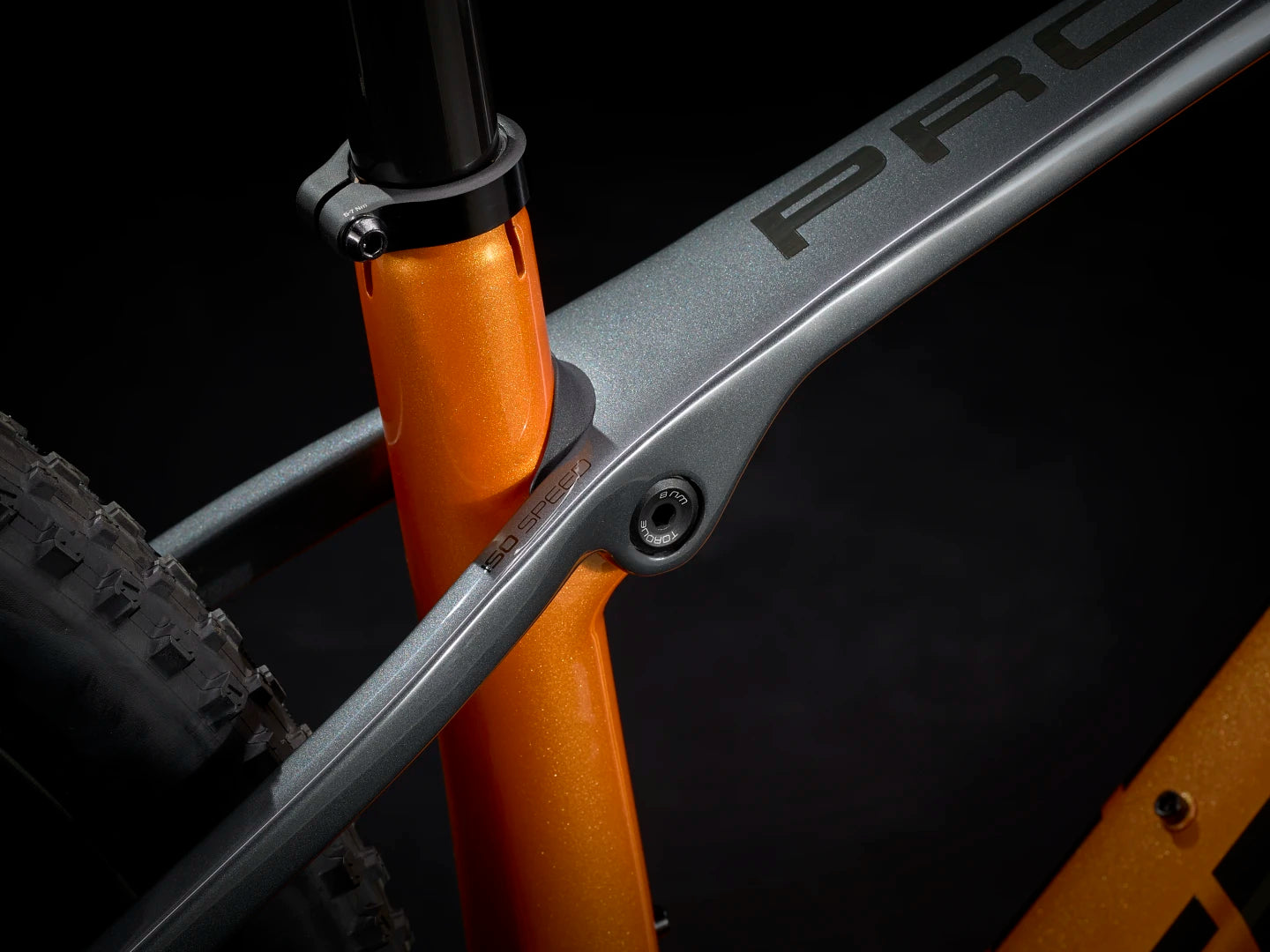

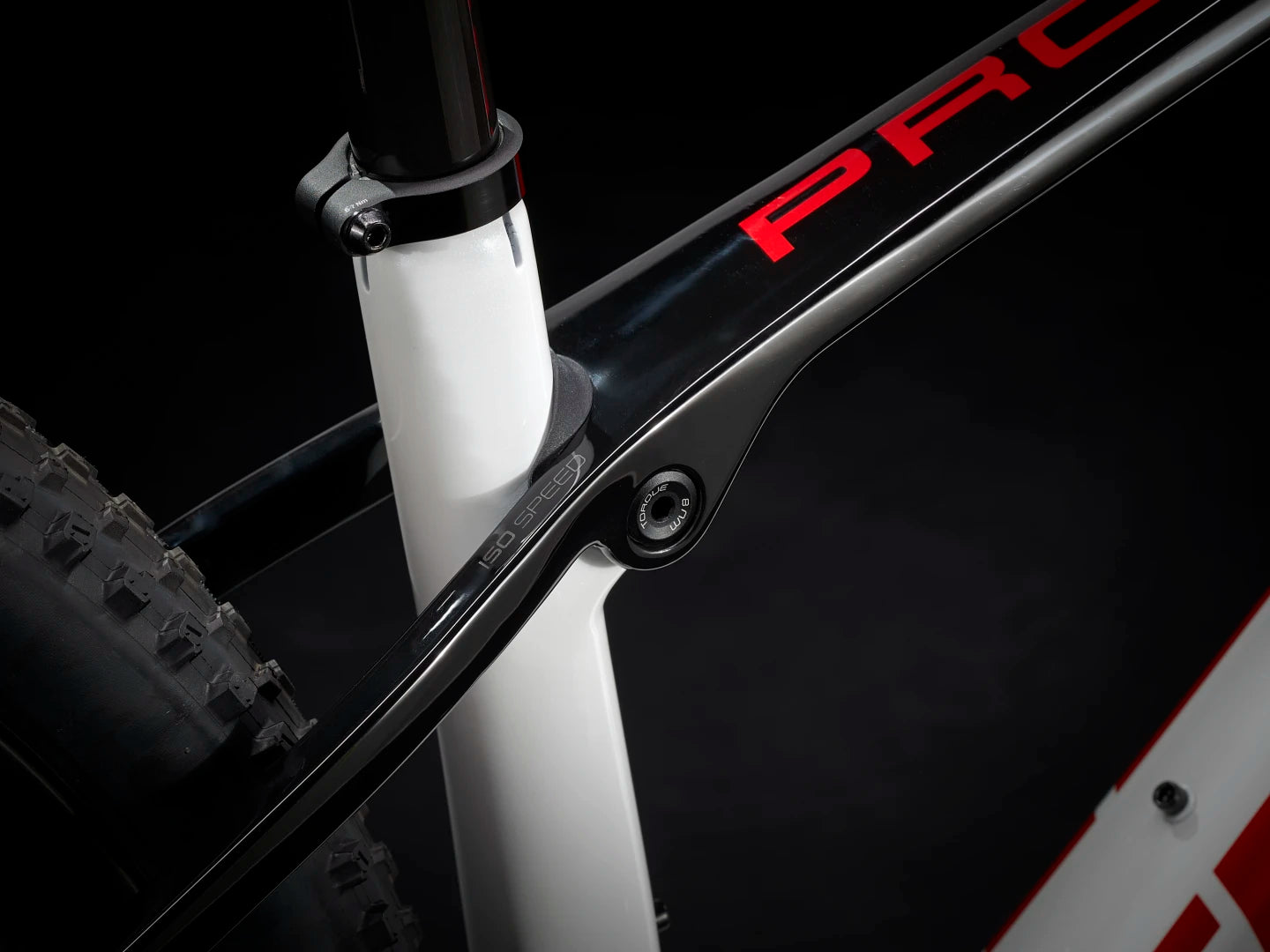

IsoSpeed smooth

The Isospeed system helps to reduce the small vibrations transmitted to your body, allowing you to maintain your physical strength for longer without compromising power transfer.

OCLV Mountain Carbon

TREK's OCLV Mountain Carbon is specifically engineered for TREK mountain bikes, delivering exceptional riding performance. When combined with TREK's proprietary technologies, the result is maximum efficiency—ultra-lightweight, highly responsive stiffness, and robust enough to handle significant rear wheel travel. This combination ensures an optimal balance of lightness, strength, and quick responsiveness, perfect for tackling challenging terrains.

Straight Shot downtube

The Straight Shot downtube design provides exceptional stiffness without adding weight, ensuring precise control. Whether navigating rough terrain or climbing steep inclines, the frame is always ready to deliver optimal performance.

It's right for you if...

You have an unrelenting drive to claim the top spot on the podium, and you need a bike with unparalleled speed to get you there.

The tech you get

The lightweight and stiff carbon frame enhances your ride with the IsoSpeed decoupler system for smoother shock absorption, paired with a FOX shock featuring a remote lockout for added control. The Shimano XT drivetrain offers smooth and precise shifting, while the lightweight and stiff carbon crankset ensures efficient power transfer. Complemented by carbon handlebars and seatpost, the wide Bontrager Kovee Elite 30 carbon wheels deliver exceptional speed, and the Rapid Drive hubs provide quick and responsive engagement.

The final word

Every component is engineered for high speed, from the ultra-stiff carbon frame with IsoSpeed shock absorption to the high-performance parts. This makes it the dream bike for XC racers, offering the perfect blend of speed, responsiveness, and control.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

ขอสงวนสิทธิ์ในการเปลี่ยนแปลงแก้ไข ข้อมูลรายละเอียดของสินค้า อุปกรณ์ สเปคสินค้า โมเดล สี และวัสดุ บนเว็บไซท์นี้ ซึ่งอ้างอิงจากเว็บไซท์และโรงงานผู้ผลิตต้นทาง และรายละเอียดของราคา ซึ่งอาจมีการเปลี่ยนแปลงได้ตลอดเวลาโดยไม่ต้องแจ้งล่วงหน้า และหากเกิดข้อผิดพลาดจากการลงข้อมูลบนเว็บไซท์นี้ ให้อ้างอิงสเปคสินค้าจริงและเว็บไซท์ของผู้ผลิตต้นทาง รวมถึงข้อมูลราคาอัพเดทของบริษัท โปรไบค์ จำกัด เท่านั้น

น้ำหนักของจักรยานและเฟรมอ้างอิงจากขั้นตอนก่อนทำสีเฟรมในขั้นตอนผลิตจริง ซึ่งน้ำหนักจะเปลี่ยนแปลงไปหลังการผลิตเสร็จสิ้น
