TREK Procaliber 9.5

Name: TREK Procaliber 9.5
Brand: TREK
SKU: 5260249
Price: 75000.0 THB
Availability: OutOfStock

75,000.00 ฿

0.0

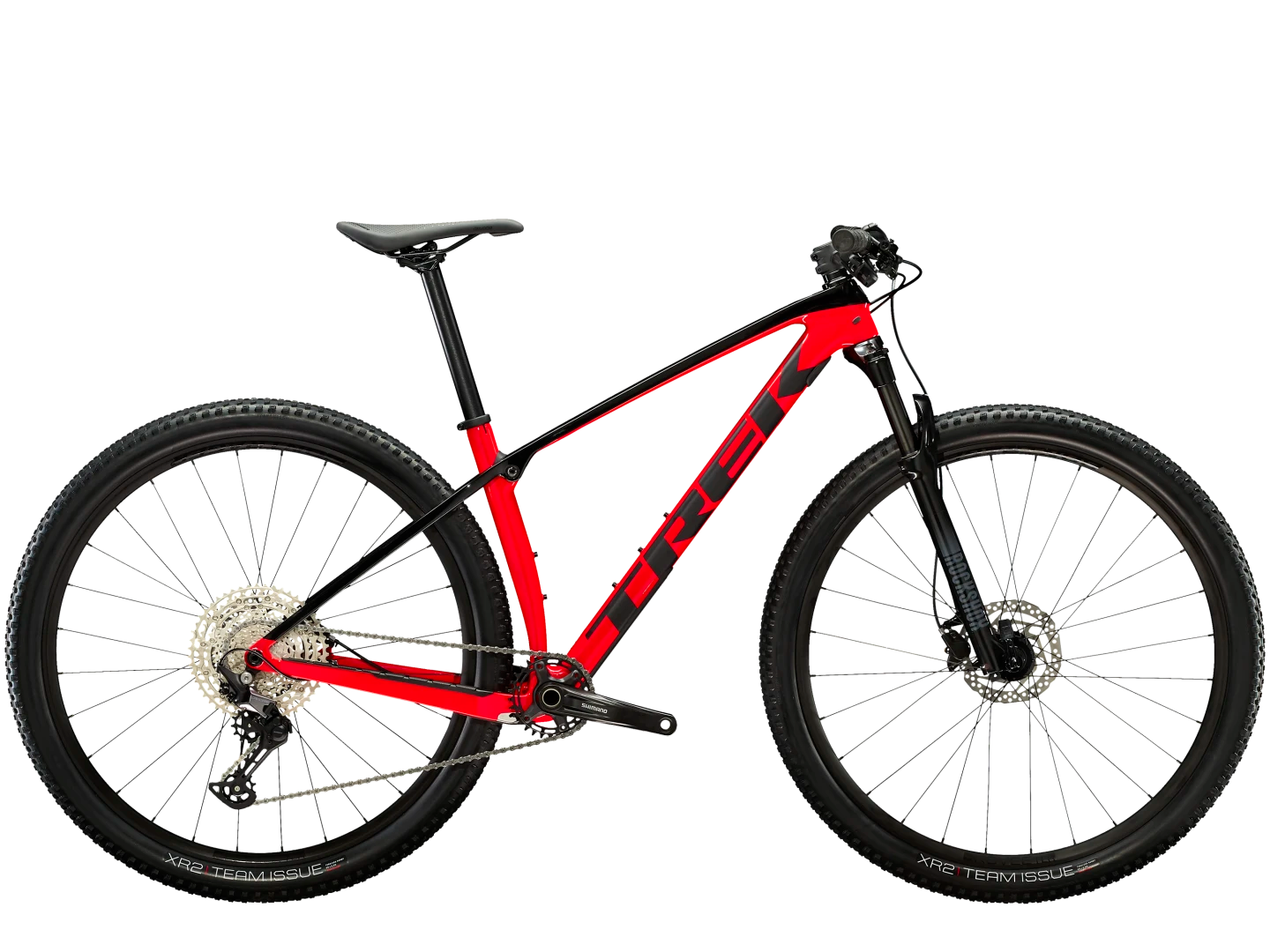

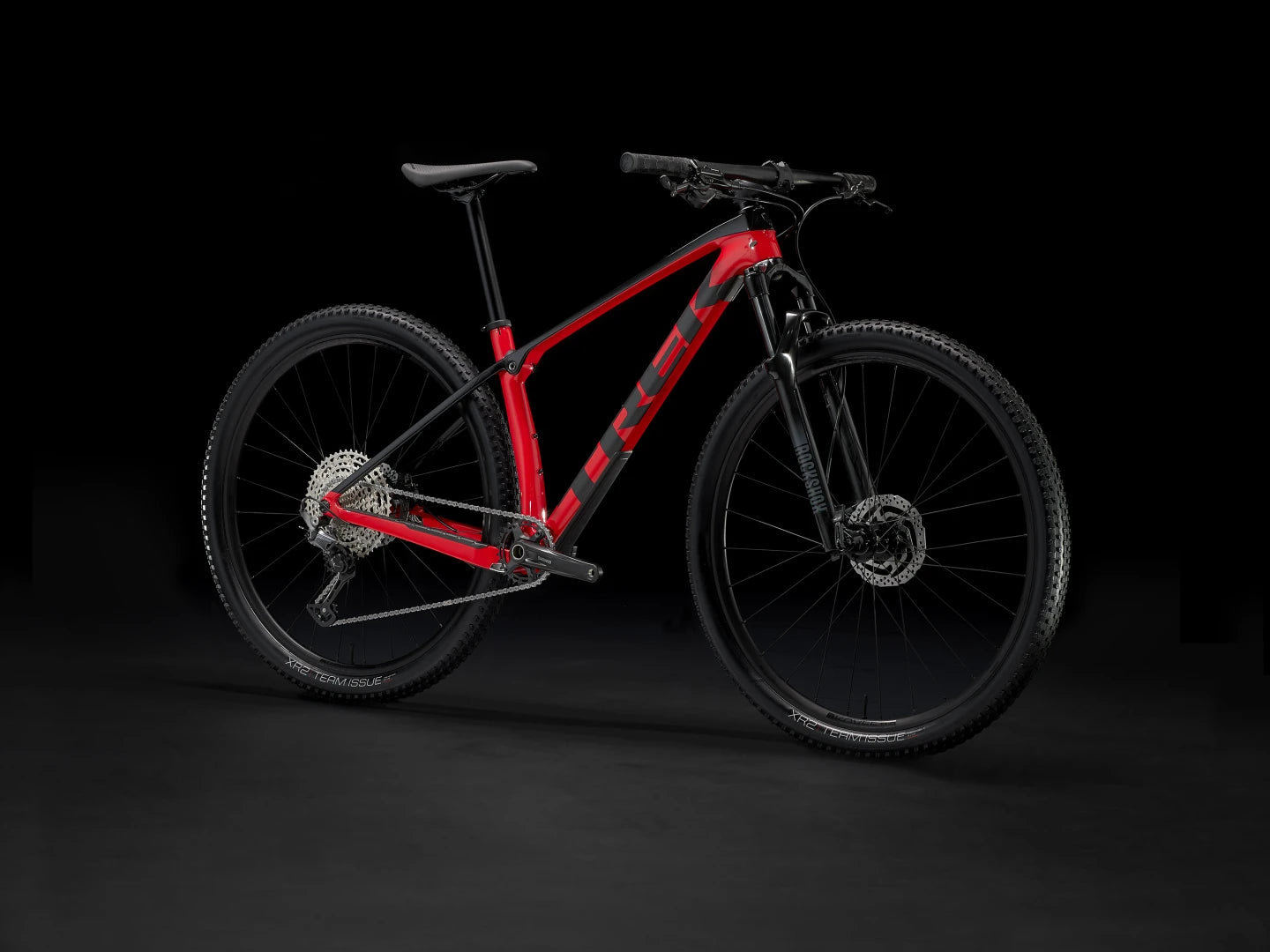

Procaliber 9.5 is a lightweight carbon hardtail with the unique advantage of our trail-smoothing IsoSpeed decoupler. It's the most affordable carbon model in the Procaliber mountain bike family, and it's built for speed and efficiency on singletrack with a wide-range Shimano Deore 1x12 drivetrain, RockShox Judy SL fork, and speedy 29er wheels.

Color:

Radioactive Red /Trek Black

SIZE:

XL

Procaliber 9.5

Size

Rider Height

Inseam

S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

ML

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

2XL

195 - 203 cm

6'5" - 6'8"

91 - 97 cm

36" - 38"

XL

Variant

FRAMESET

Frame
: OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148

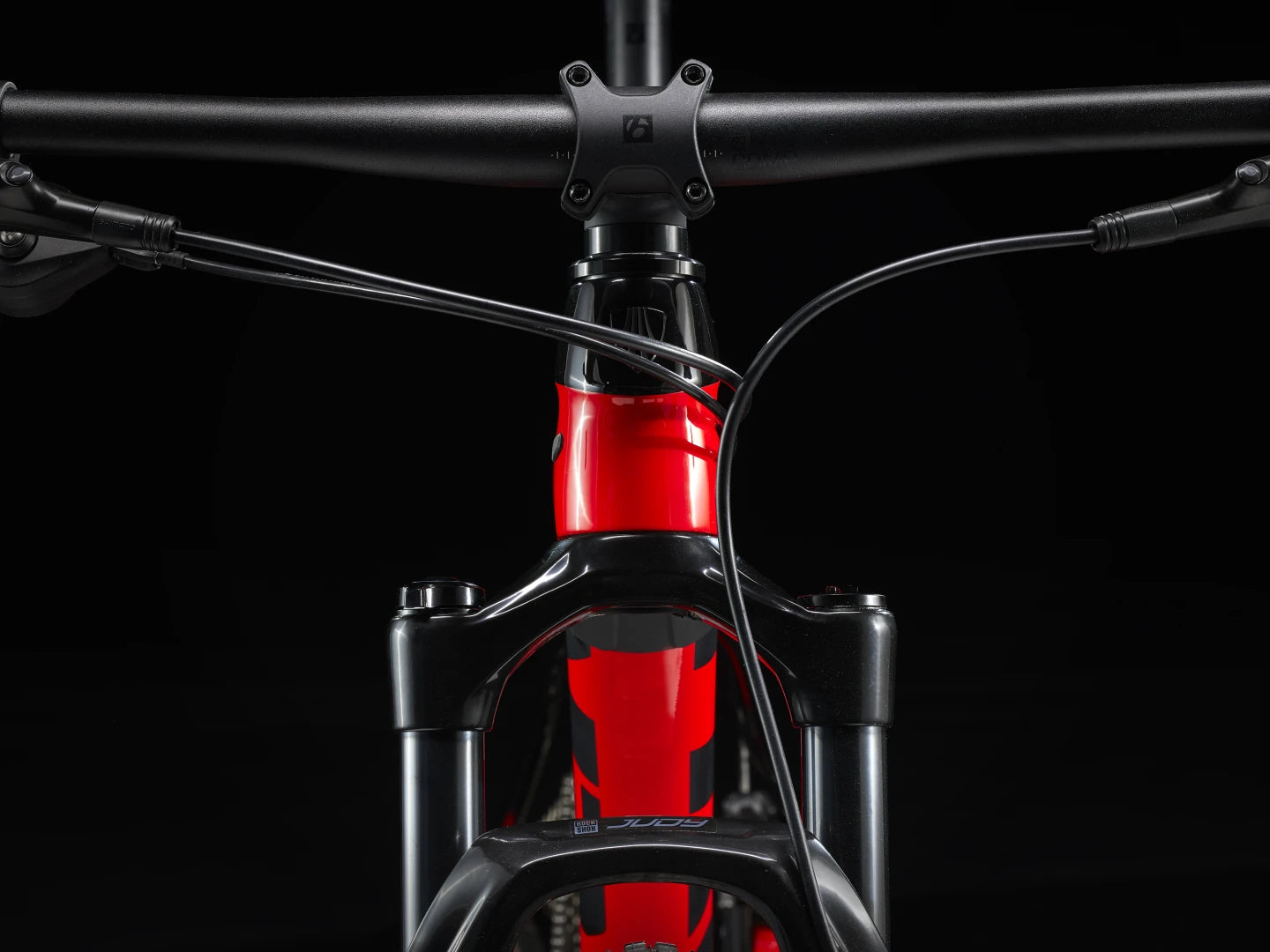

Fork
: RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
Max compatible fork travel
: 120mm (533mm axle-to-crown)

WHEELS

Wheel front
: Bontrager Kovee TLR rim/DC-611 Boost hub, 28H, 15 Gauge Spokes, Black/Black, 29''
Wheel rear
: Bontrager Kovee TLR rim/MST148A Boost hub, 29'', 28H, 15 Gauge Spokes, Micro Spline Freehub, Black rim graphics, spokes, and nipples
Hub front
: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear
: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear
: Bontrager Switch thru axle, removable lever
Rim
: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve

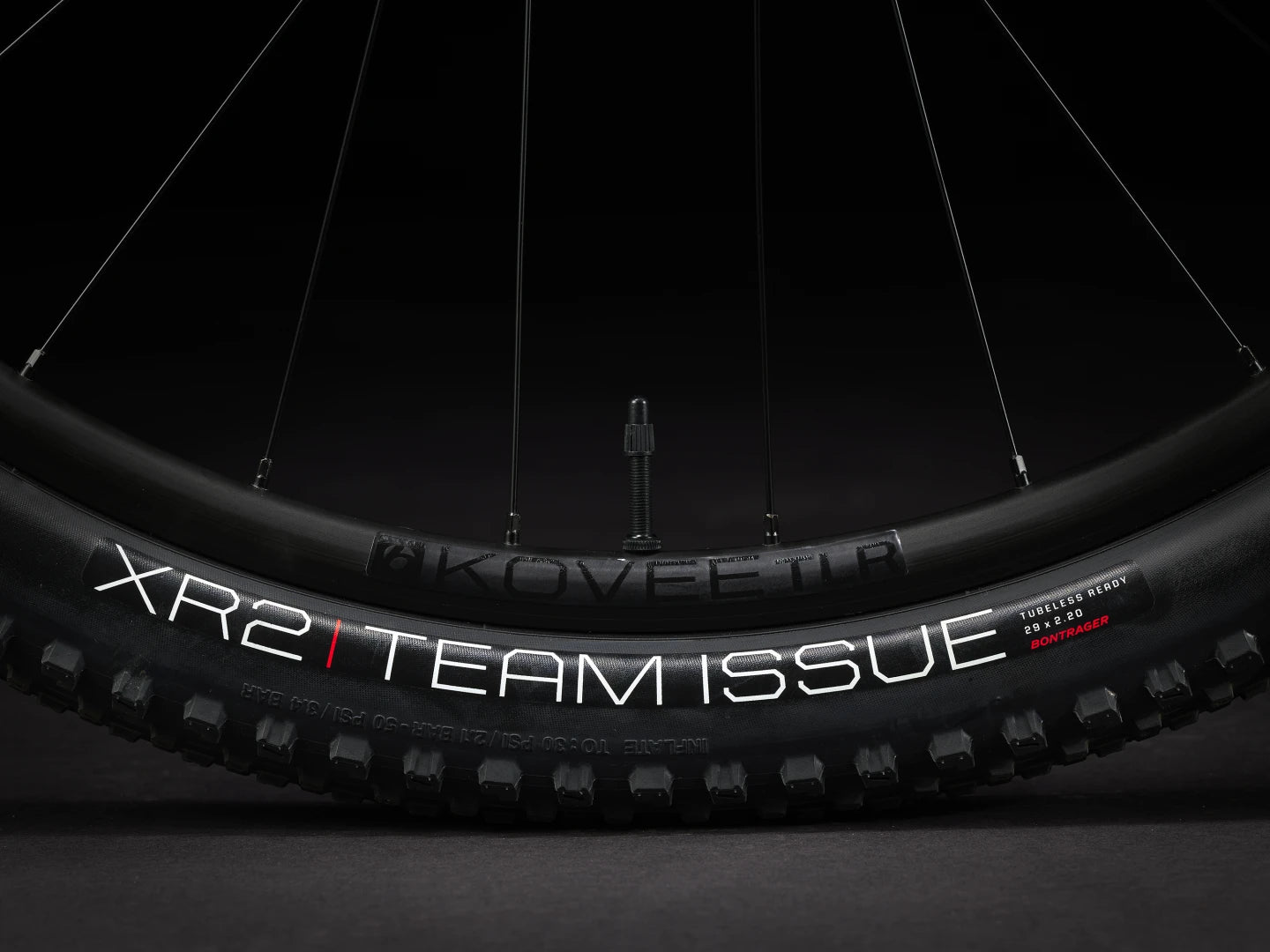

Tire
: Size: S, M, ML, L, XL
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Size: S, M, ML, L, XL
Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20''
Tire part
: Bontrager TLR sealant, 6oz
Rim strip
: Bontrager TLR
Max tire size
: Frame: 29x2.40", Fork: See manufacturer

DRIVETRAIN

Shifter
: Shimano Deore M6100, 12 speed

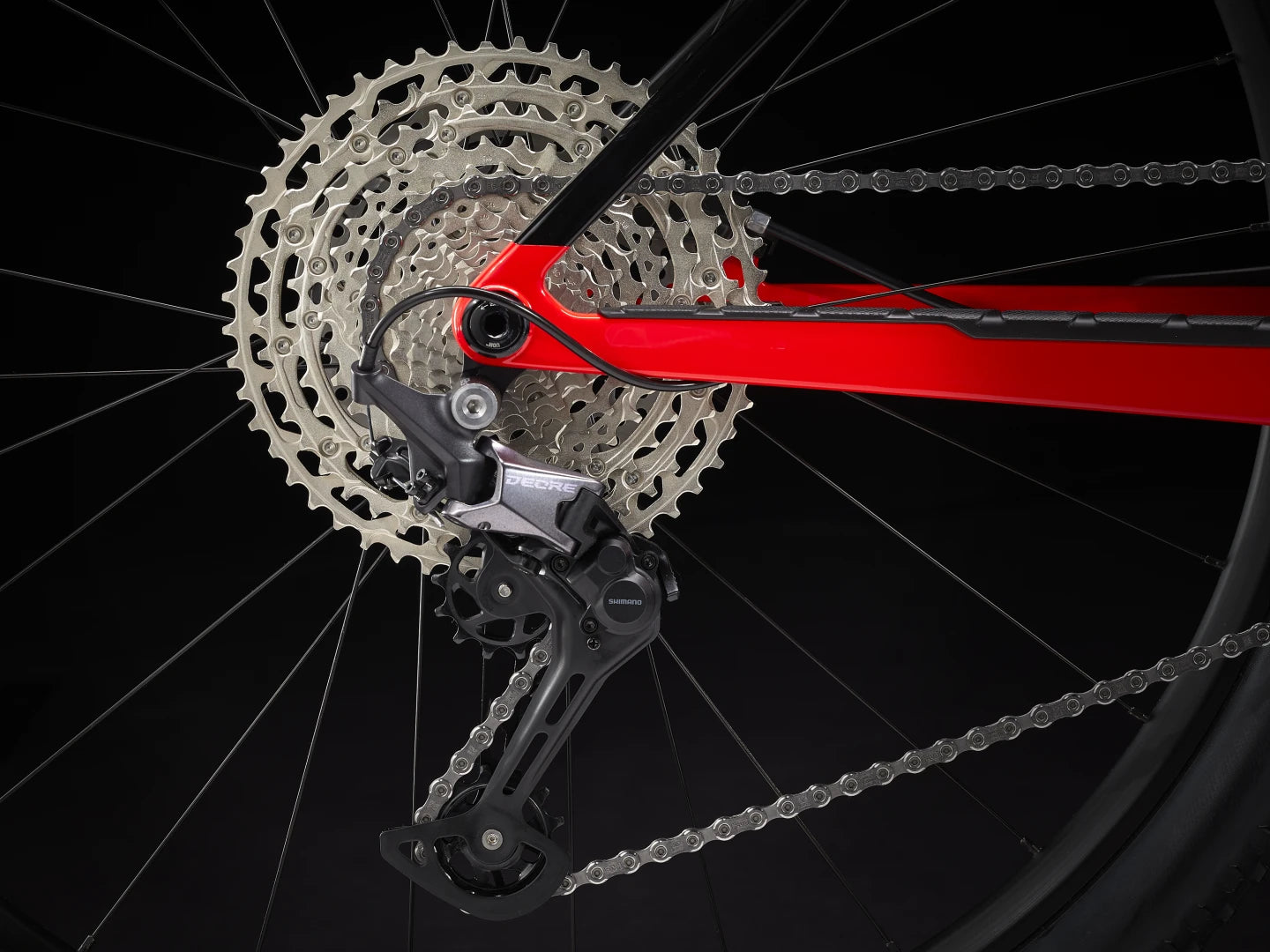

Rear derailleur
: Shimano Deore M6100, long cage
Crank
: Size: S, M
Shimano MT511, 30T steel ring, 52mm chainline, 170mm length
Size: ML, L, XL
Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
Bottom bracket
: Shimano MT500, 92mm, PressFit
Cassette
: Shimano Deore M6100, 10-51, 12 speed
Chain Shimano Deore M6100, 12 speed
Max chainring size 1x: 36T, min 30T

COMPONENTS

Saddle
: Size: S, M, ML, L, XL
Bontrager Arvada, steel rails, 138mm width
Size: S, M, ML, L, XL
Bontrager Verse Comp, steel rails, 145mm width
Seatpost
: Size: S
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: M
Bontrager alloy, 31.6mm, 12mm offset, 360mm length
Size: ML, L, XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Handlebar
: Size: S, M, ML
Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width
Size: L, XL
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width

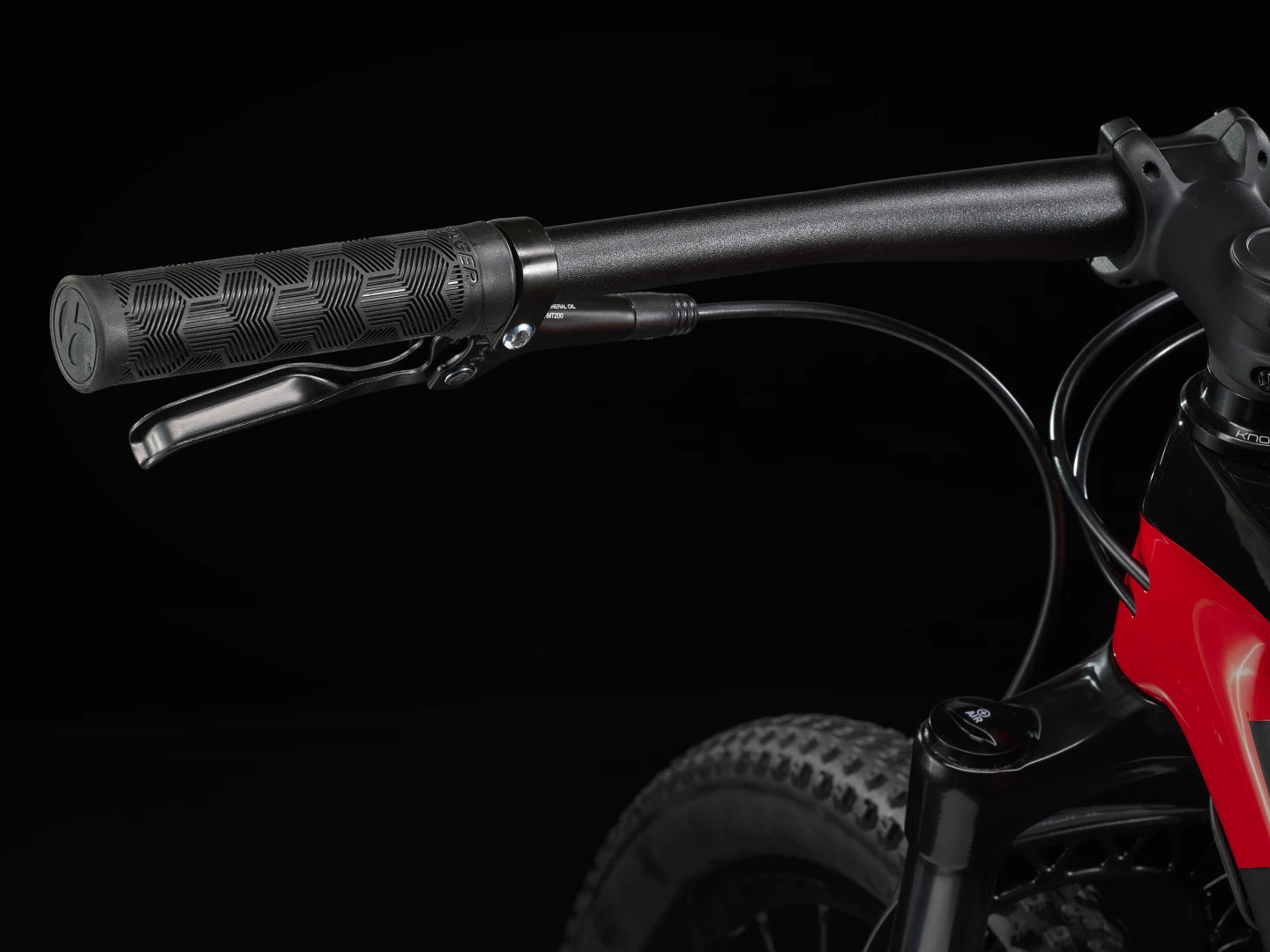

Grips
: Bontrager XR Trail Comp, nylon lock-on
Stem
: Size: S, M
Bontrager Rhythm Comp, 31.8mm, 0 degree, 60mm length
Size: M, ML
Bontrager Rhythm Comp, 31.8mm, 0 degree, 70mm length
Size: L, XL
Bontrager Rhythm Comp, 31.8mm, 0 degree, 80mm length

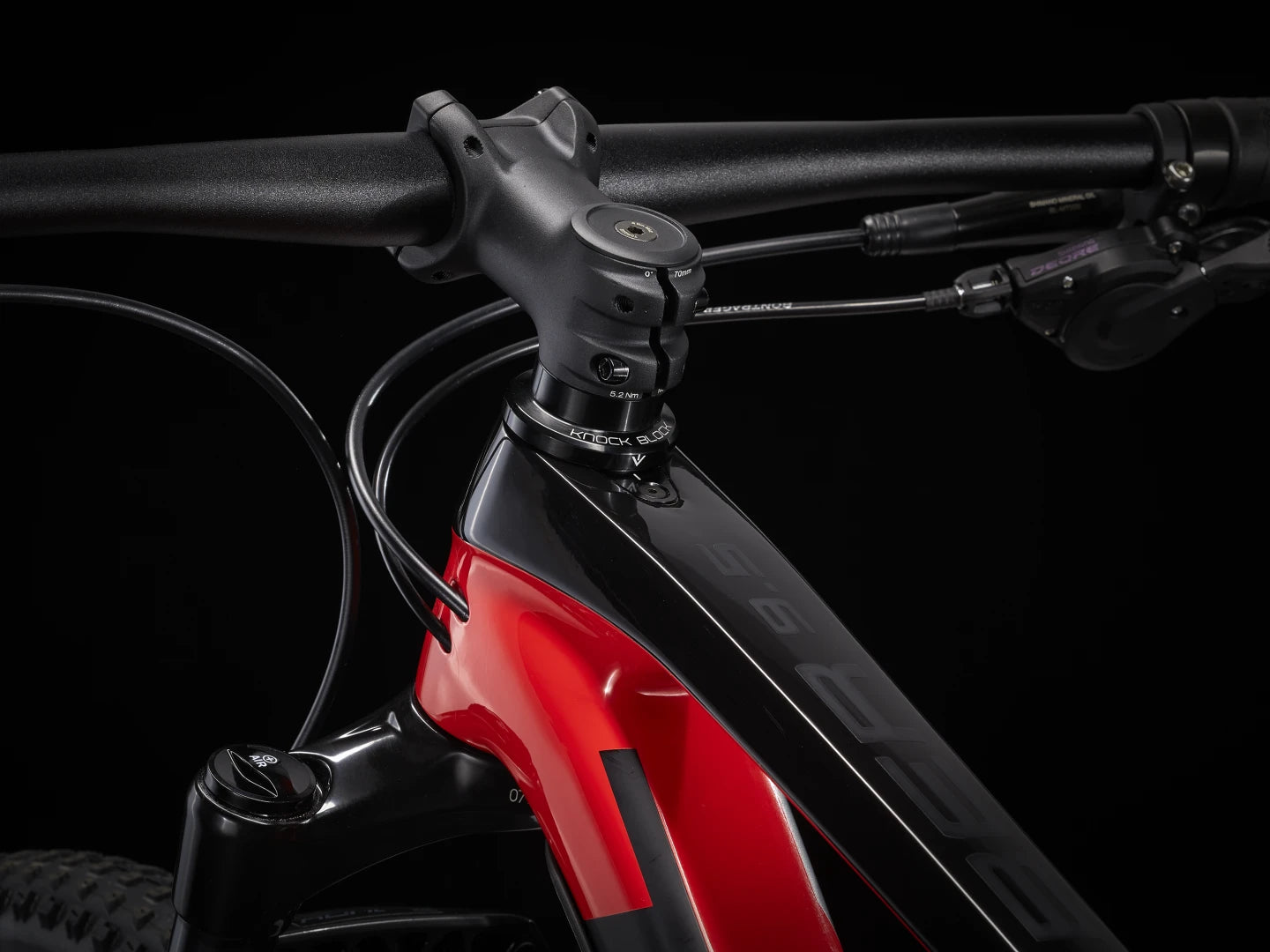

Headset
: Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom

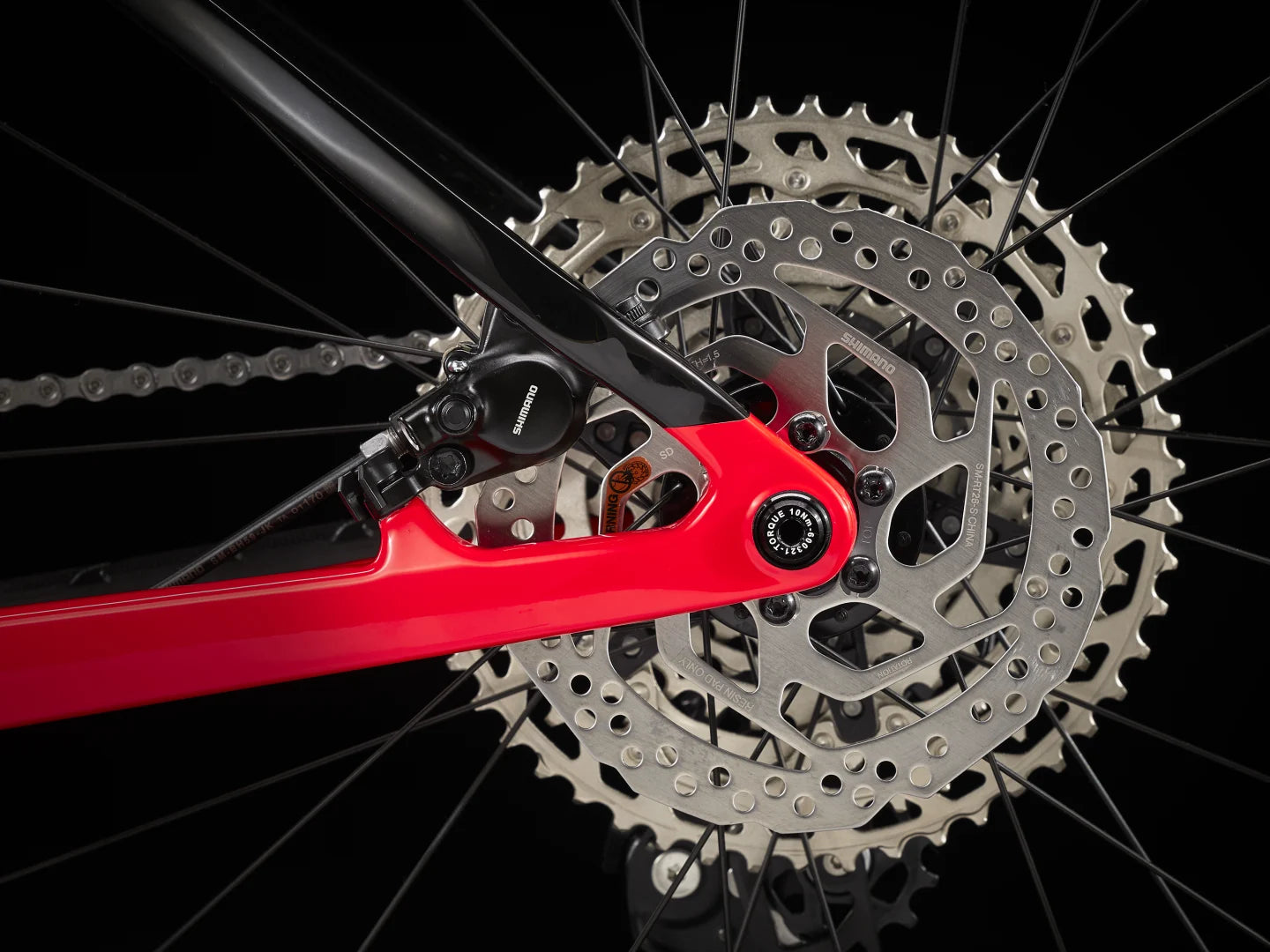

Brake
: Shimano MT200 hydraulic disc
Brake rotor
: Size: S, M, ML, L, XL
Shimano RT26, 6-bolt,160mm
Size: L, XL
Shimano RT26, 6-bolt,180mm
Brake Set
: Shimano MT200 hydraulic disc
Rotor size
: Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer

WEIGHT

Weight
: M - 12.36 kg / 27.25 lbs (with TLR sealant, no tubes)
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Why you'll love it

You're getting into a carbon race bike at an awesome price
The IsoSpeed decoupler and carbon frame makes it ride smoother than any other hardtail, so your body doesn't get beat up by trail chatter
You get a Straight Shot downtube for extra-stiff, responsive handling without added weight, and a Knock Block headset that protects against spinning bars and fork crowns
The RockShox fork's Solo Air spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring

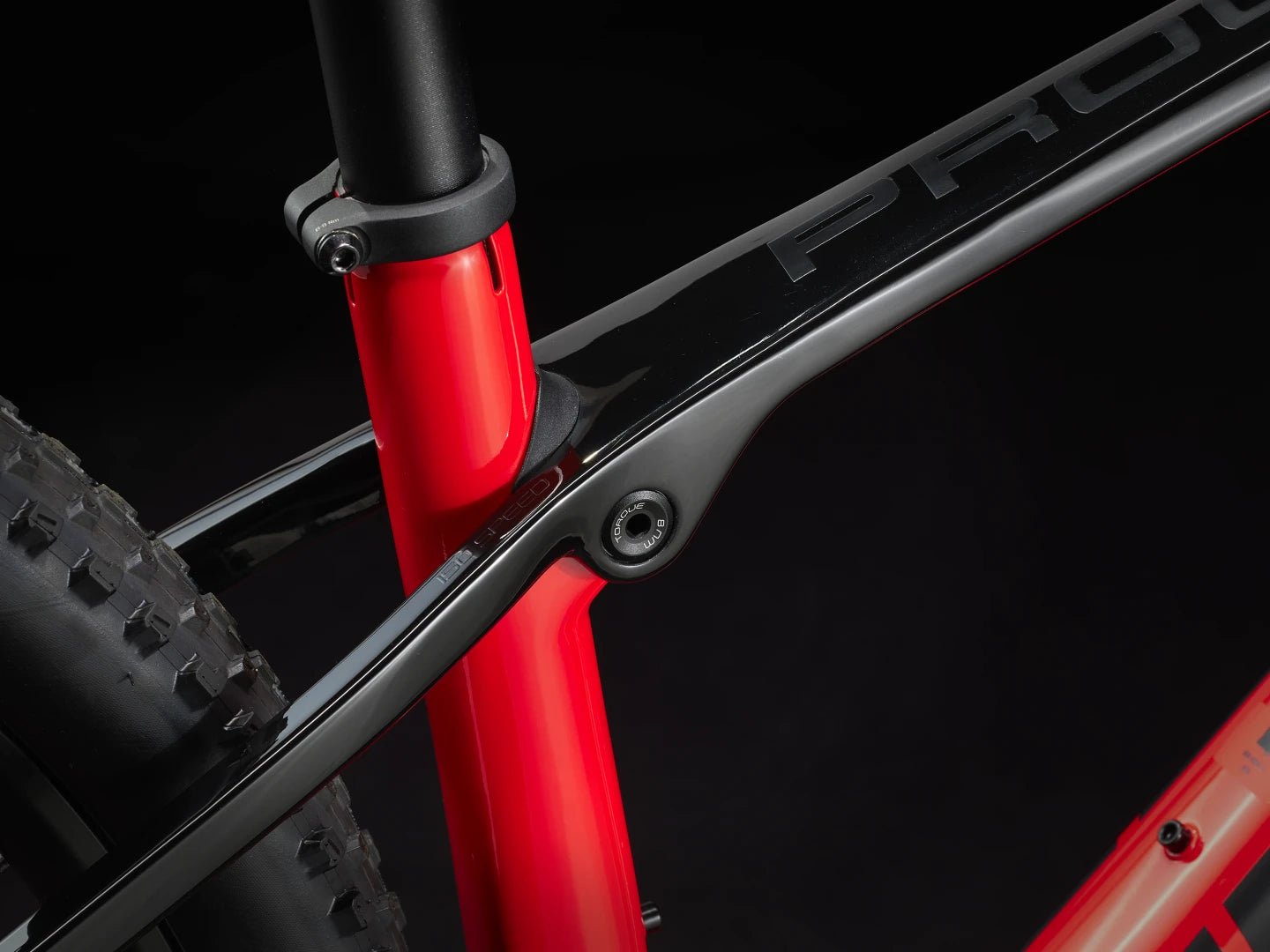

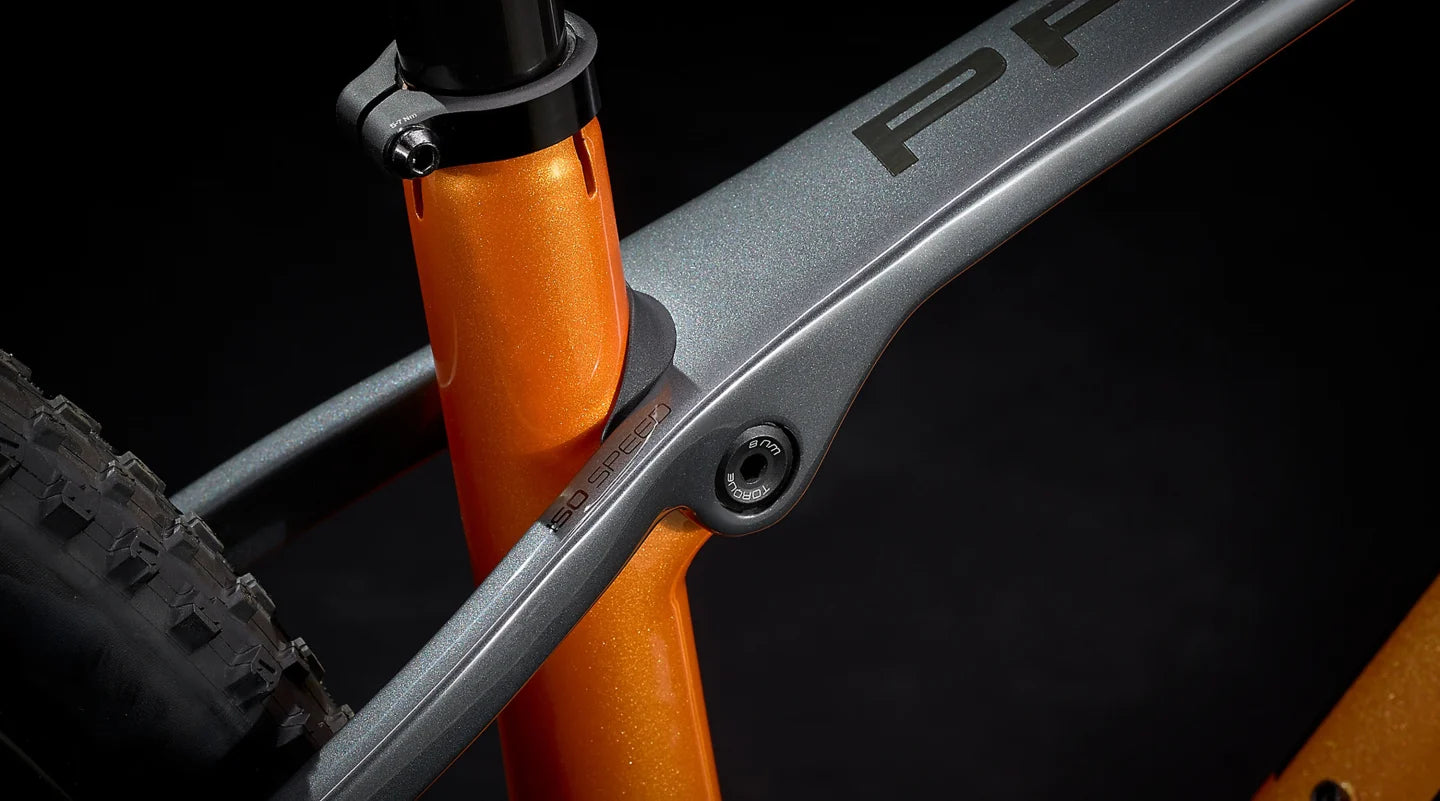

IsoSpeed smooth

IsoSpeed takes the edge off body-beating small bumps and trail chatter so you can stay stronger longer, without giving up any pedaling efficiency.

OCLV Mountain Carbon

Trek's mountain-specific carbon fibre is tougher carbon, with unique materials and lay-up procedures, Trek's advanced engineering, and a higher standard of testing.

Straight Shot downtube

The Straight Shot downtube design provides exceptional stiffness without adding weight, ensuring precise control. Whether navigating rough terrain or climbing steep inclines, the frame is always ready to deliver optimal performance.

Shimano Deore

Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

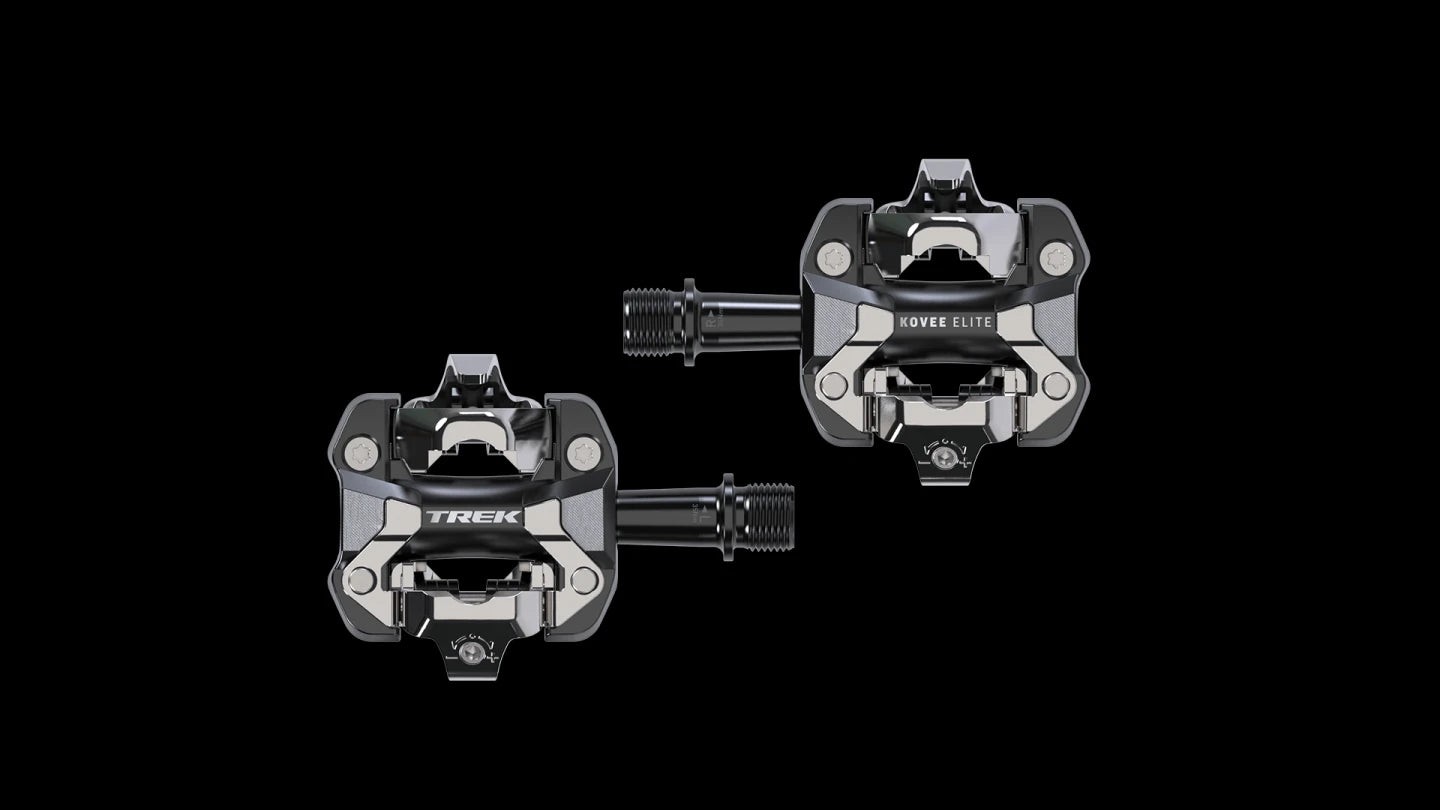

You almost forgot your pedals

This bike doesn’t come with pedals because you'll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control and efficiency.

It's right for you if...

You love riding singletrack. You’ve entered several XC races, enjoyed every single one, and want to give racing a serious go. You’re looking for a solid carbon race bike at an affordable price.

The tech you get

A light and stiff carbon frame with trail-smoothing IsoSpeed, a 100mm RockShox Judy SL fork with Solo Air spring and a TurnKey lockout, a smooth-shifting Shimano Deore 1x12 drivetrain, powerful Shimano hydraulic disc brakes, and fast, tubeless-ready 29" wheels.

The final word

Procaliber 9.5 gives you the advantages of a carbon race bike with IsoSpeed at a wallet-friendly price, and it gives you solid tech where it matters most.
