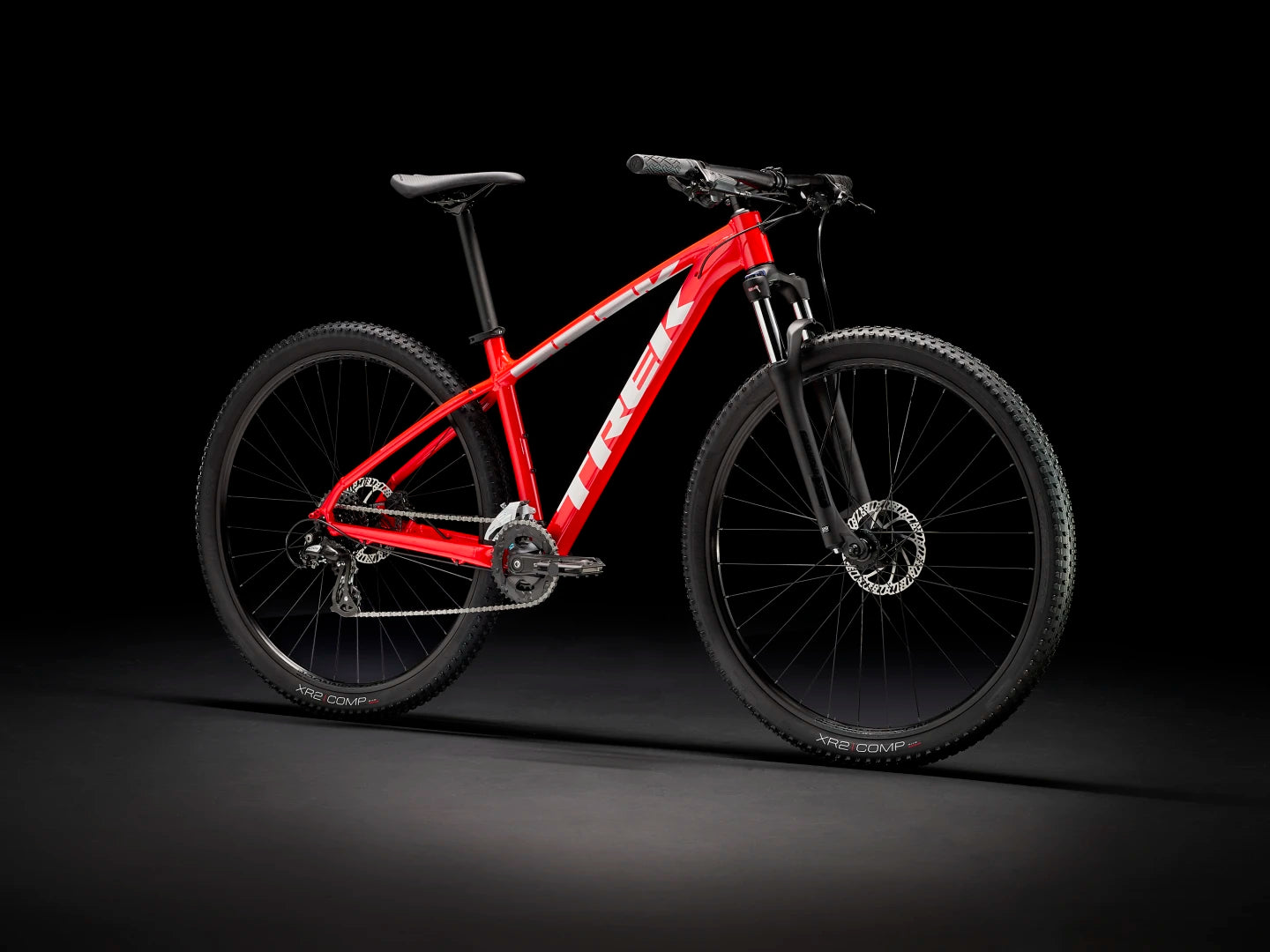

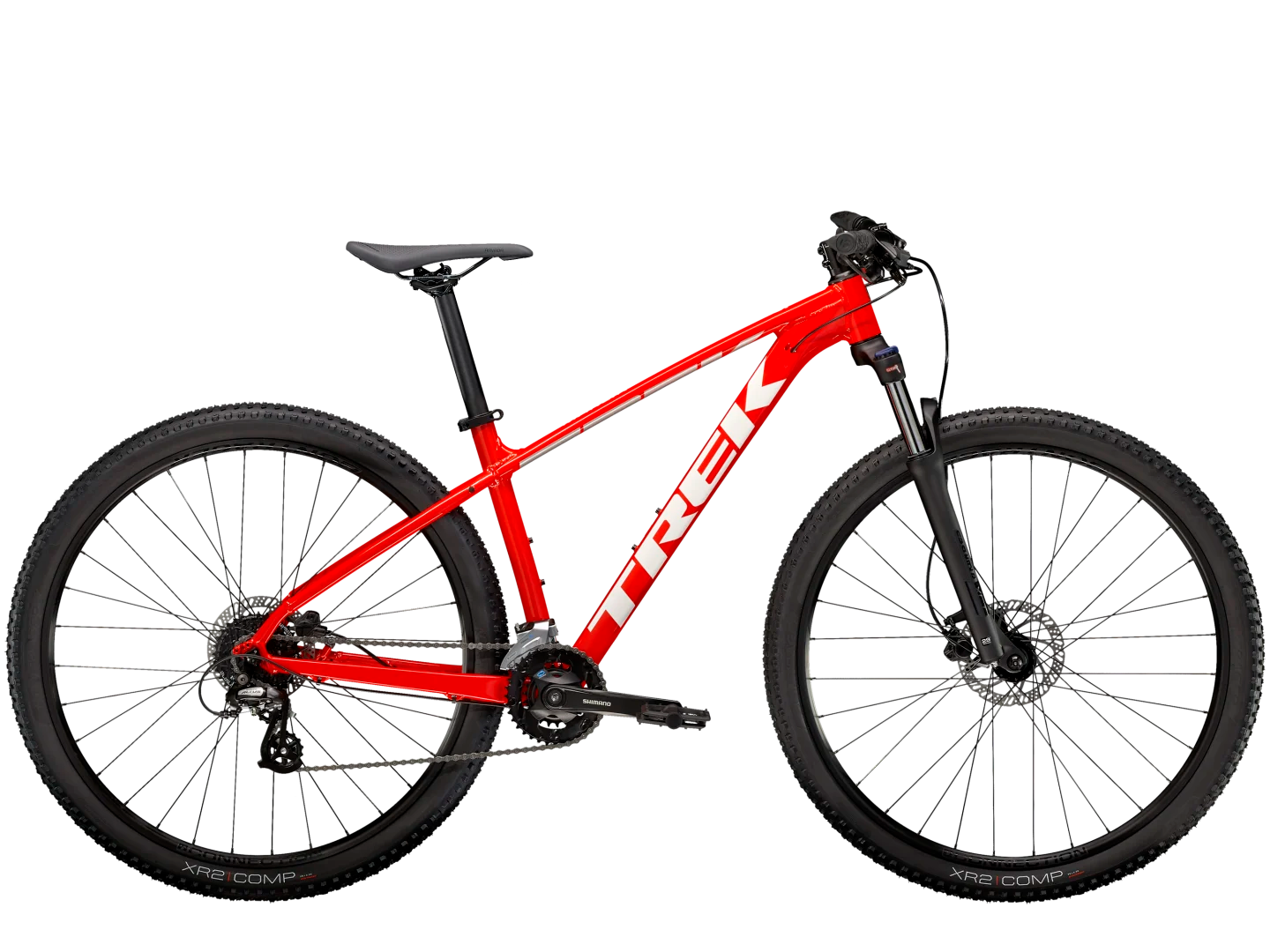

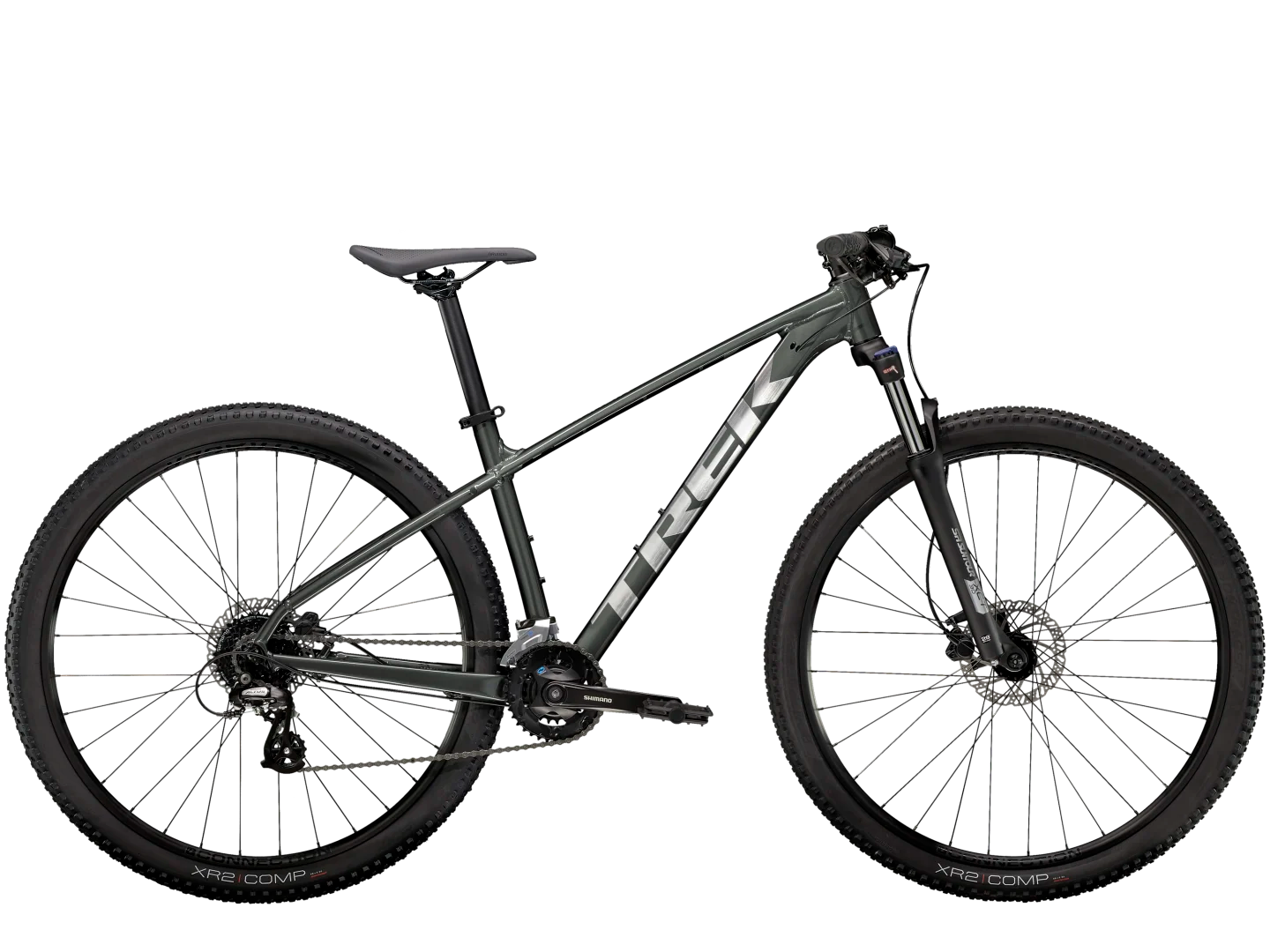

TREK Marlin 5 Gen 2

Name: TREK Marlin 5 Gen 2
Brand: TREK
SKU: 5255591
Price: 16900.0 THB
Availability: OutOfStock

16,900 ฿

19,900 ฿

Save 3,000 ฿

Color:

Radioactive Red

Size:

XXL 23" (29" wheel)

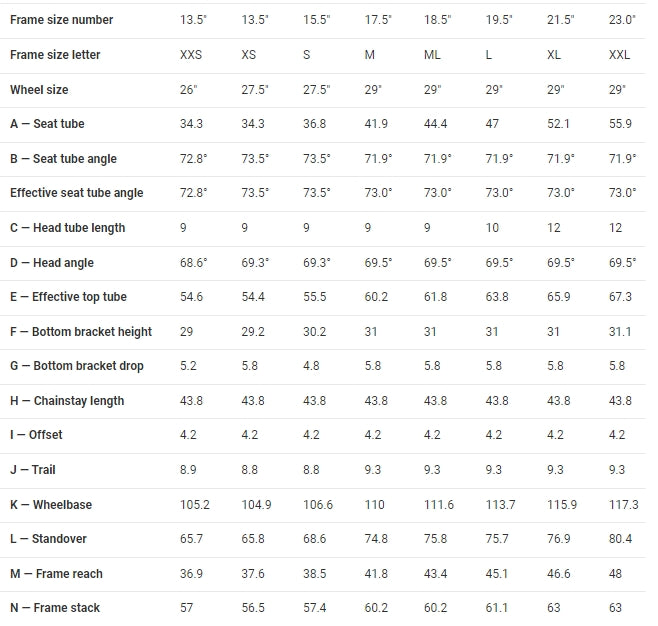

MARLIN 5 GEN2

Size

Rider Height

Inseam

2XS

135 - 145 cm

4'5" - 4'9"

64 - 68 cm

25" - 27"

XS

145 - 155 cm

4'9" - 5'1"

69 - 73 cm

27" - 29"

S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

ML

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

XXS 13.5" (26" wheel) XS 13.5" (27.5" wheel) S 15.5" (27.5" wheel) M 17.5 (29" wheel) ML 18.5" (29" wheel) L 19.5" (29" wheel) XL 21.5" (29" wheel) XXL 23" (29" wheel)

Variant

0.0

Quantity:

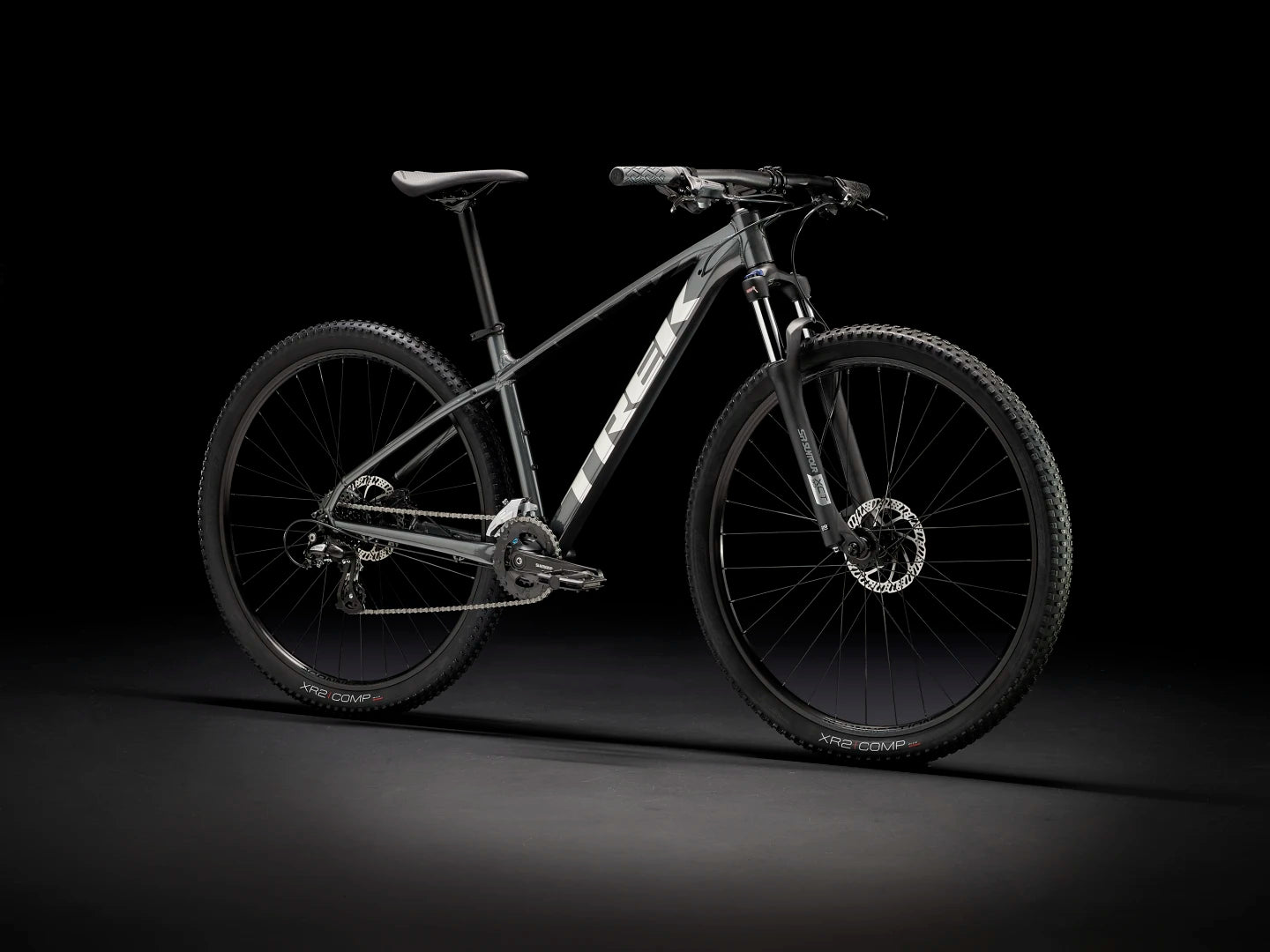

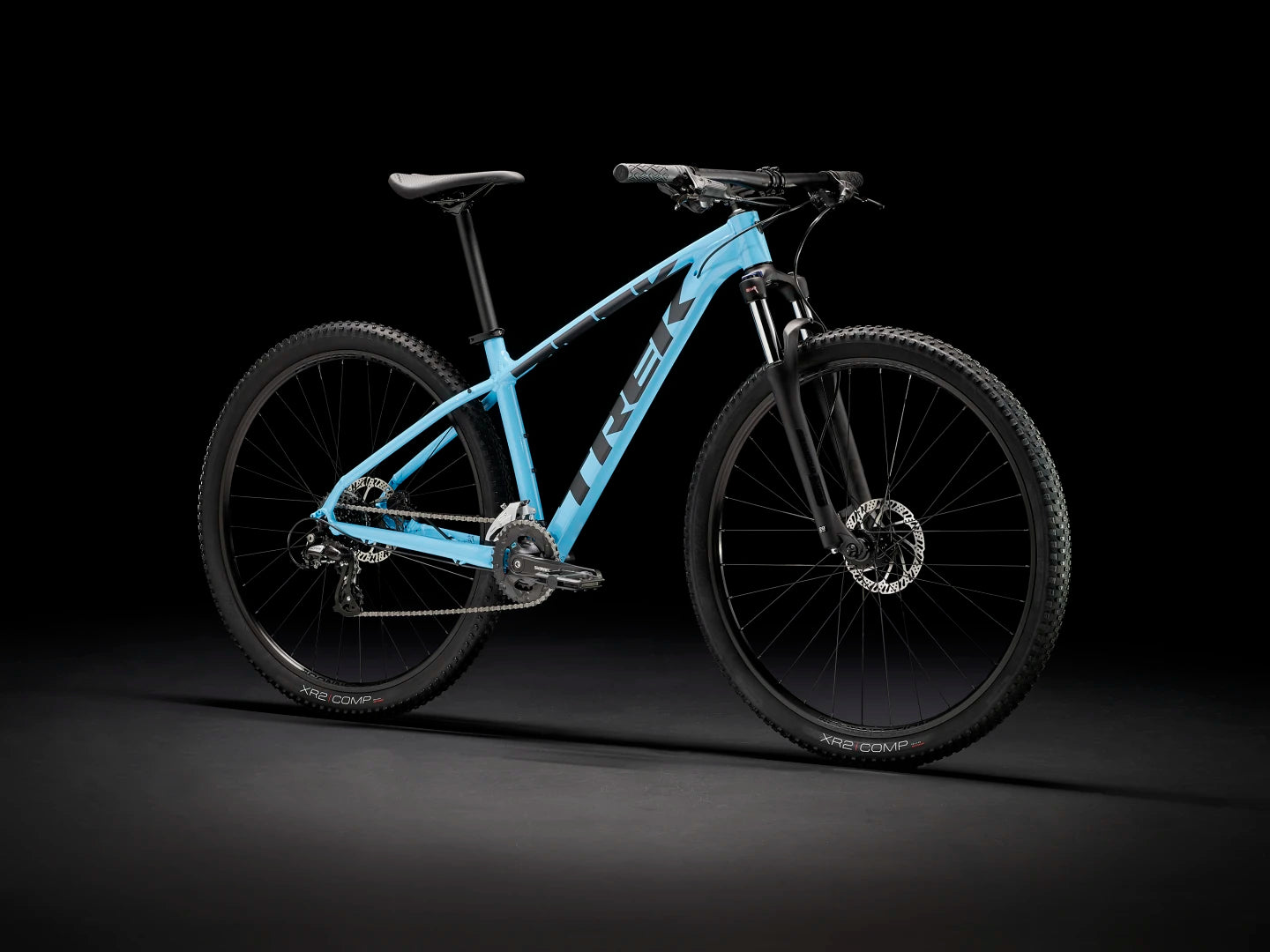

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

TREK TREK Marlin 5 Gen 2

16,900 ฿

19,900 ฿

FRAMESET

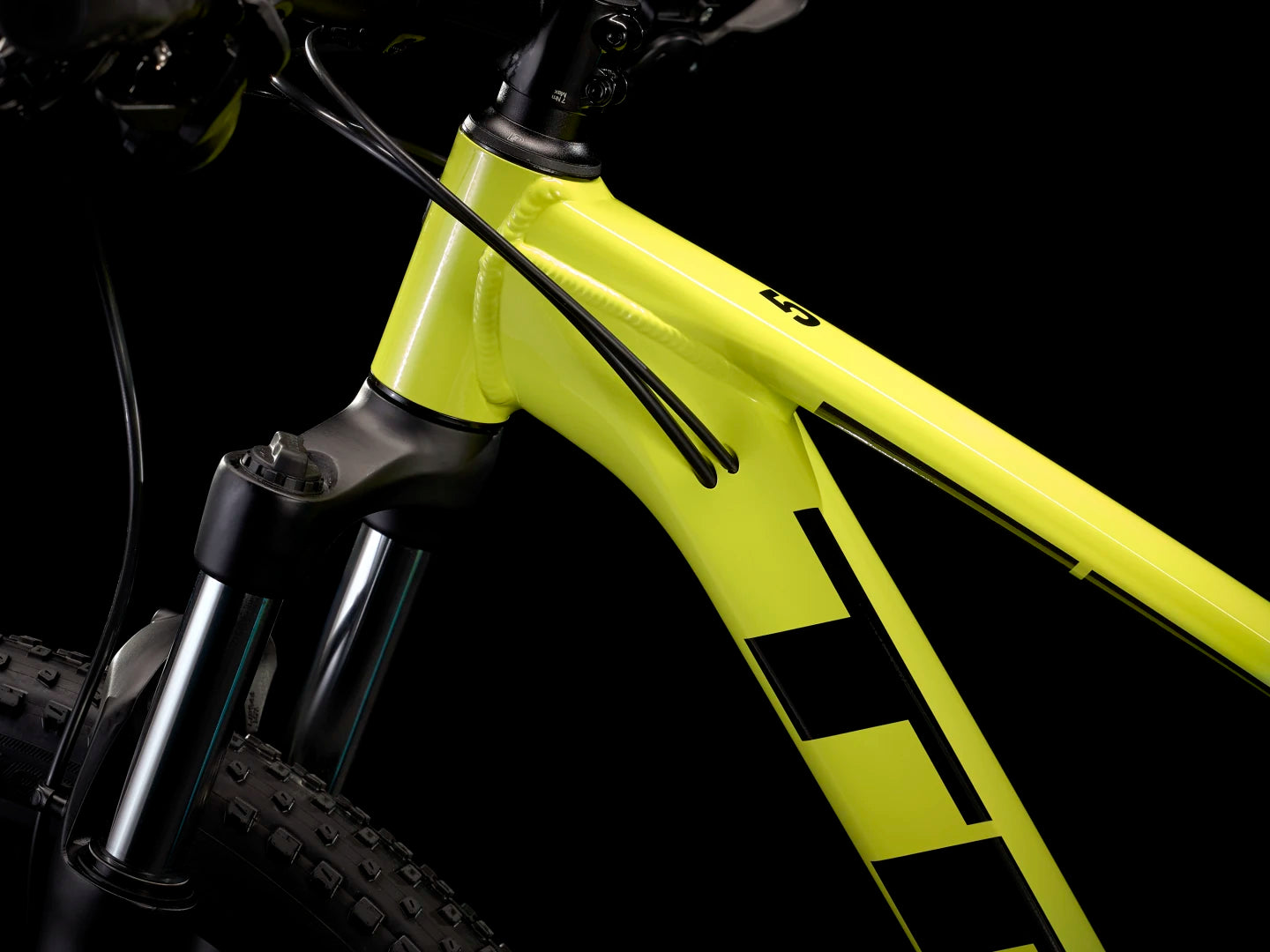

Frame

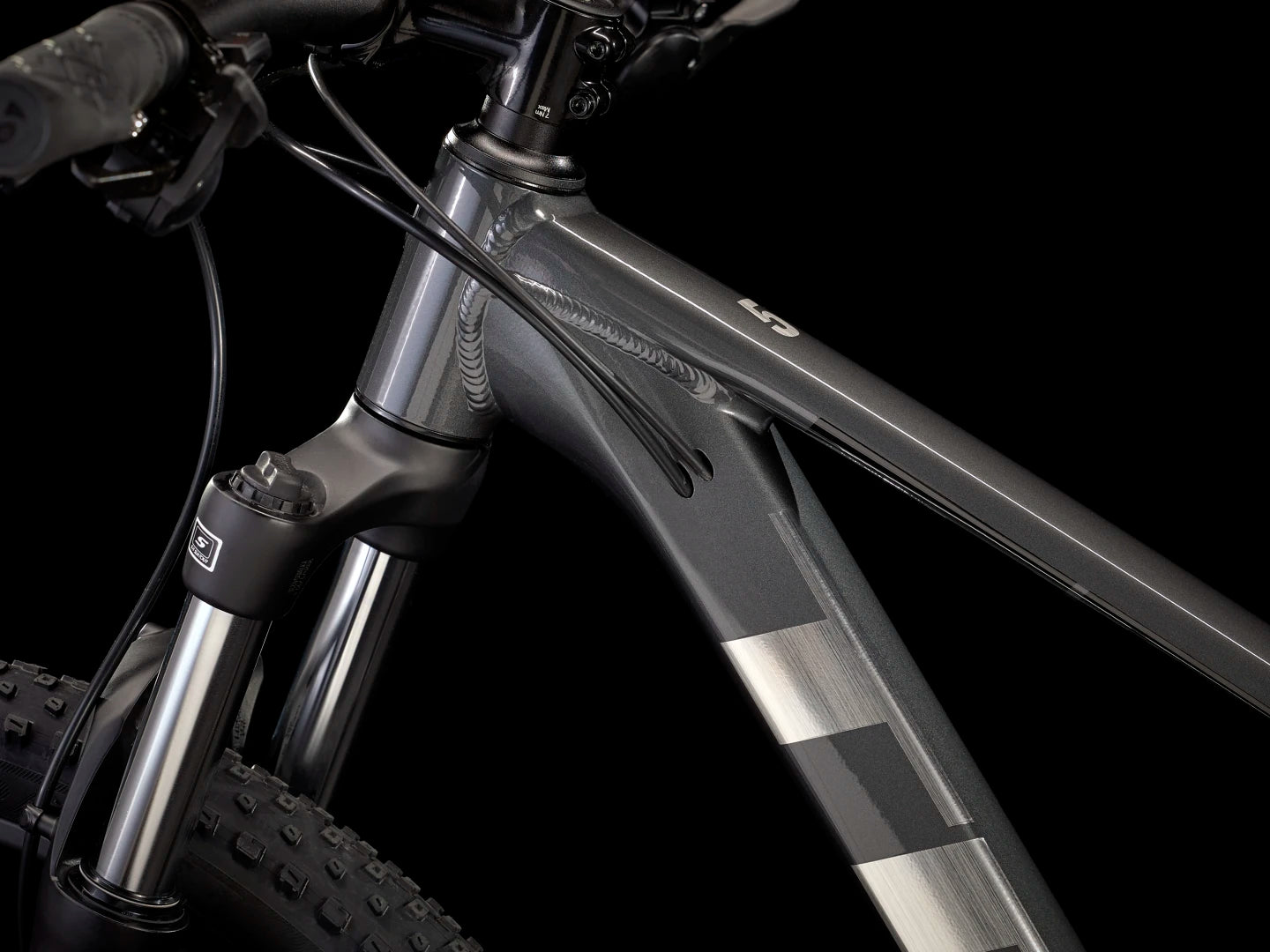

: Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

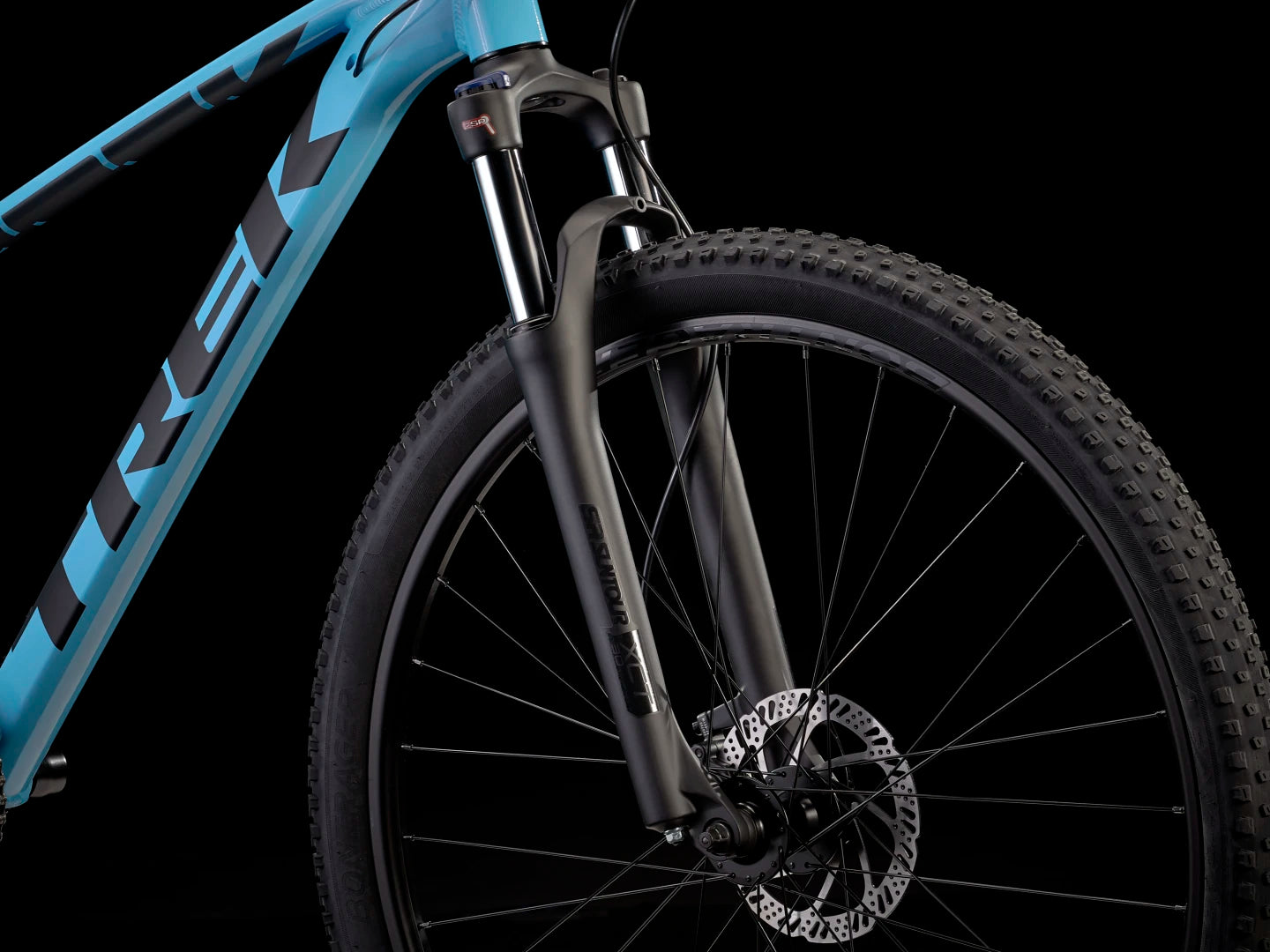

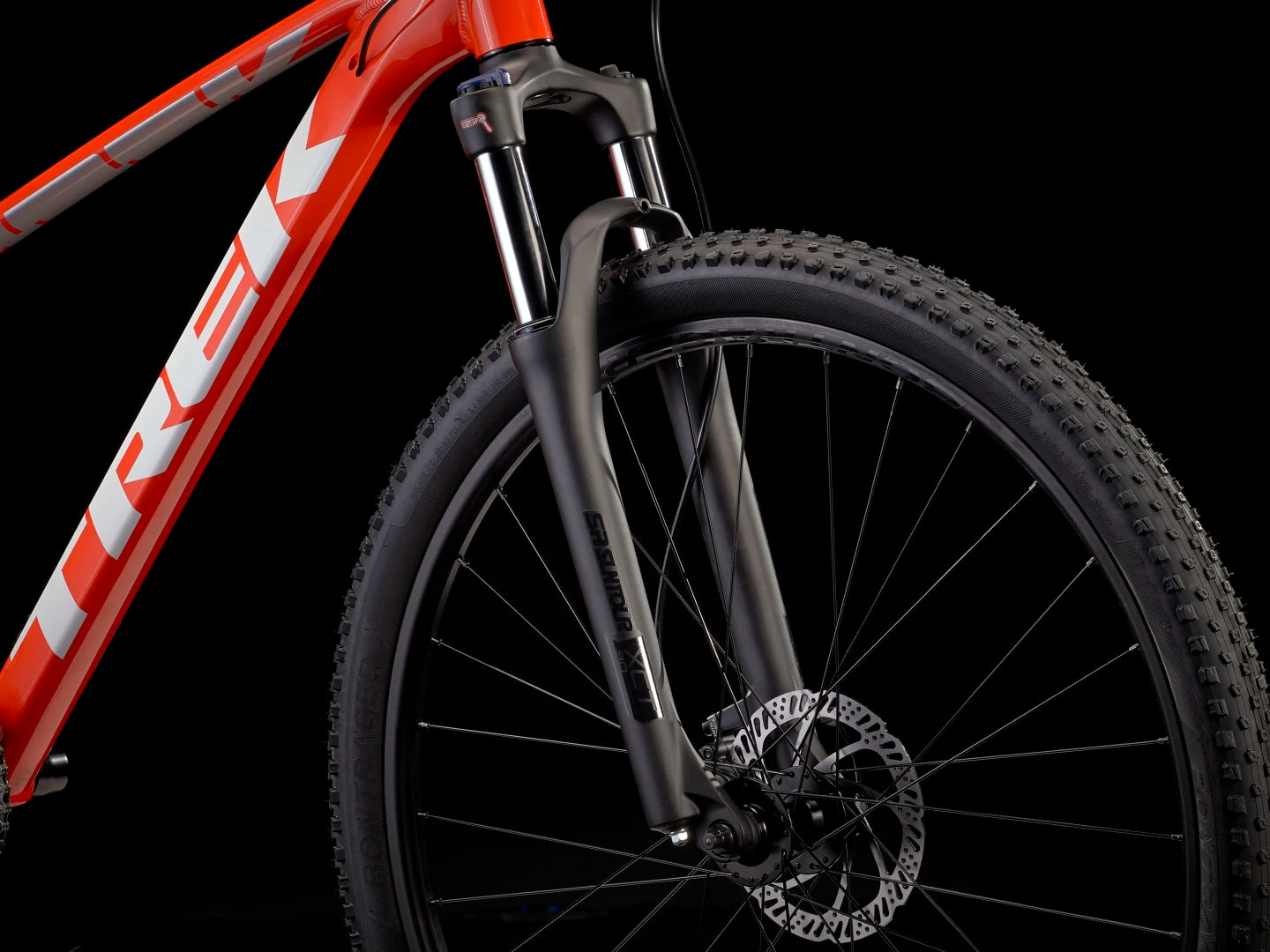

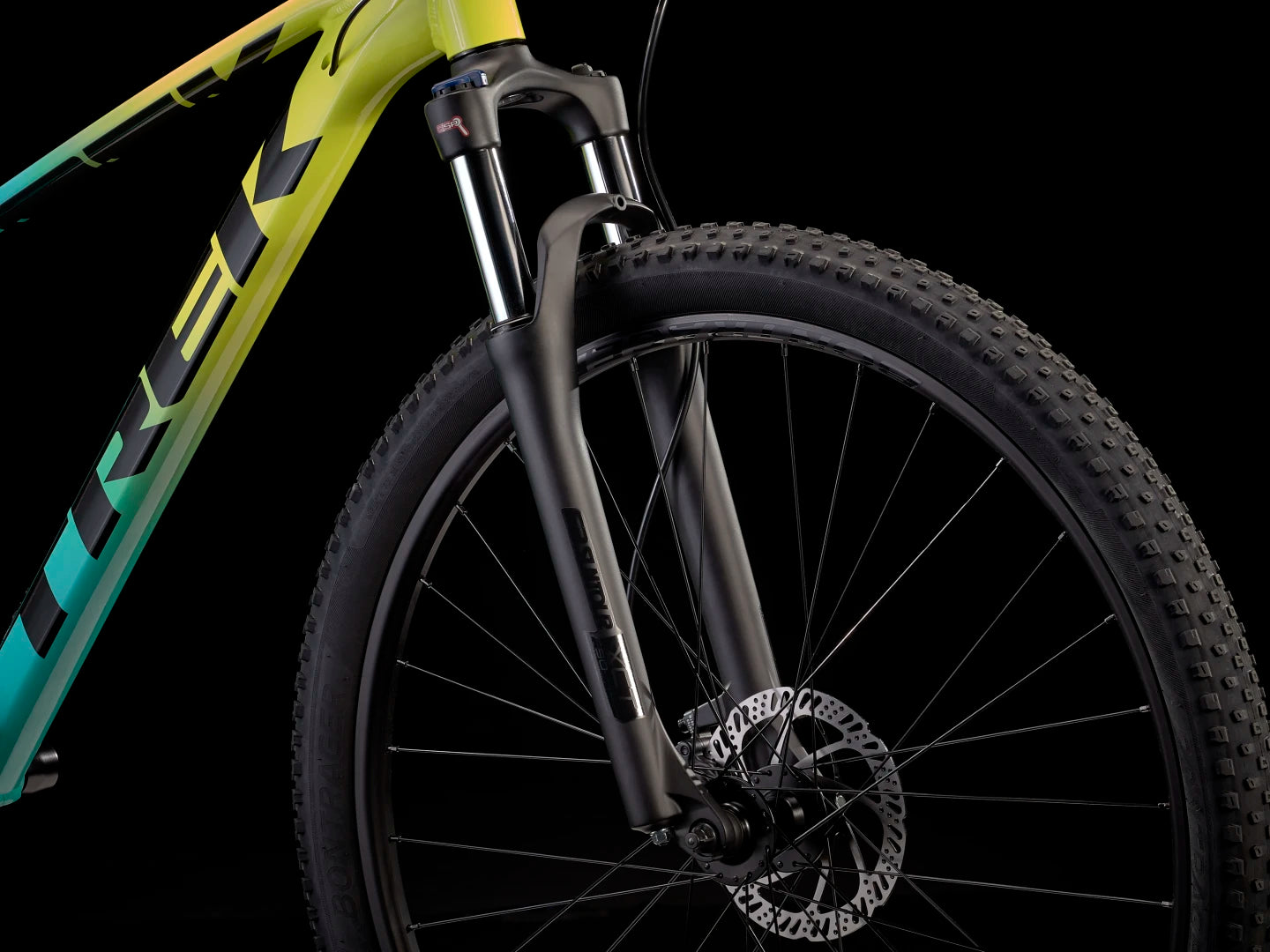

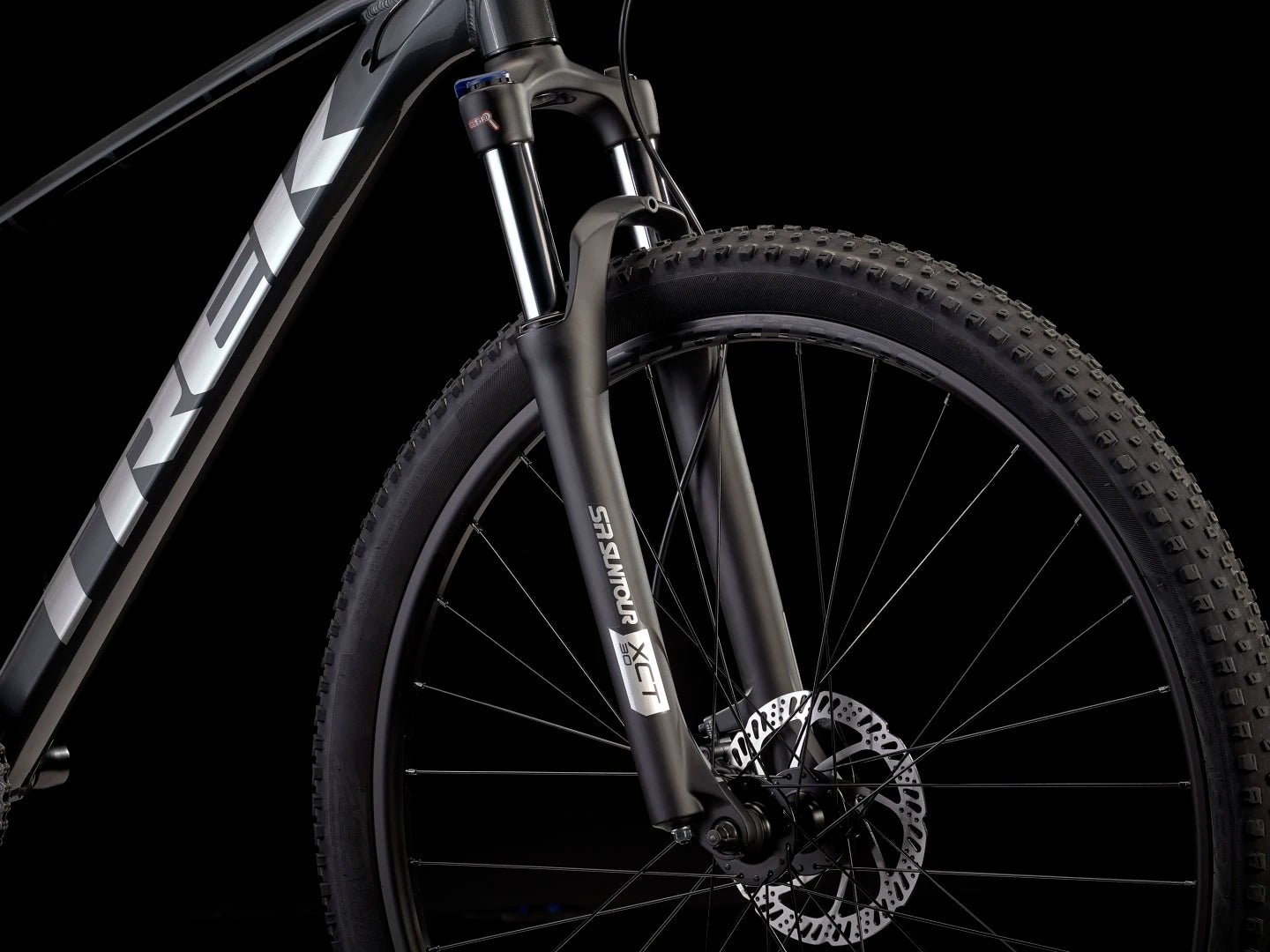

*Fork
: Size: XXS
SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: XS
SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 80mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: S , M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, lockout, preload, 100mm QR, 100mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 100mm QR, 100mm travel

WHEELS

Hub front
: Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
*Rim
: Size: XXS
Bontrager Connection, alloy, double-wall, 32-hole, 20mm width, schrader valve
Size: XS , S , M , ML , L , XL , XXL
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes 14g stainless steel

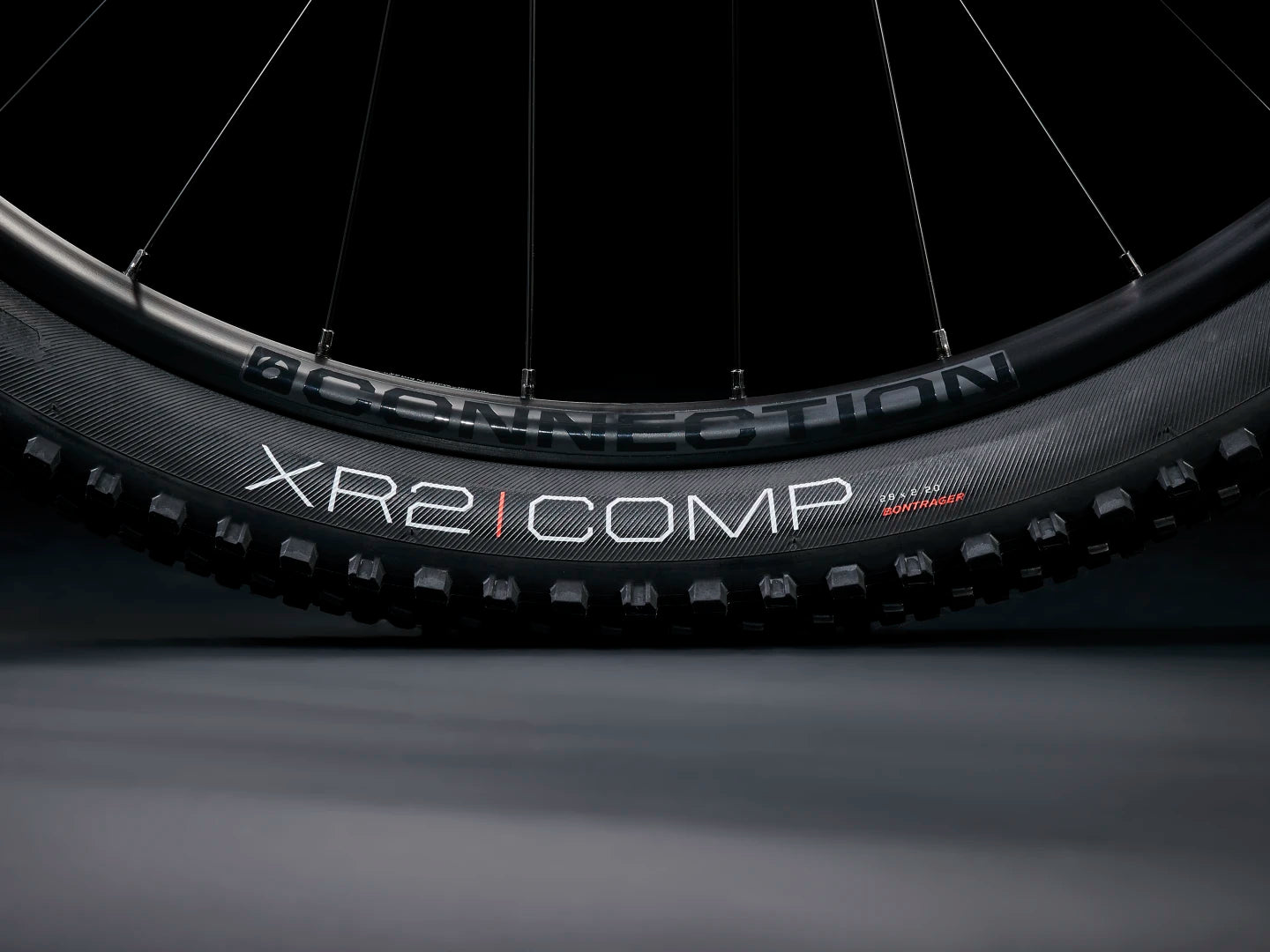

*Tire
: Size: XXS
Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''
Size: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''

DRIVETRAIN

Shifter
: Shimano Altus M315, 8 speed
Front derailleur
: Shimano Altus M315, 34.9mm clamp, top swing, dual pull

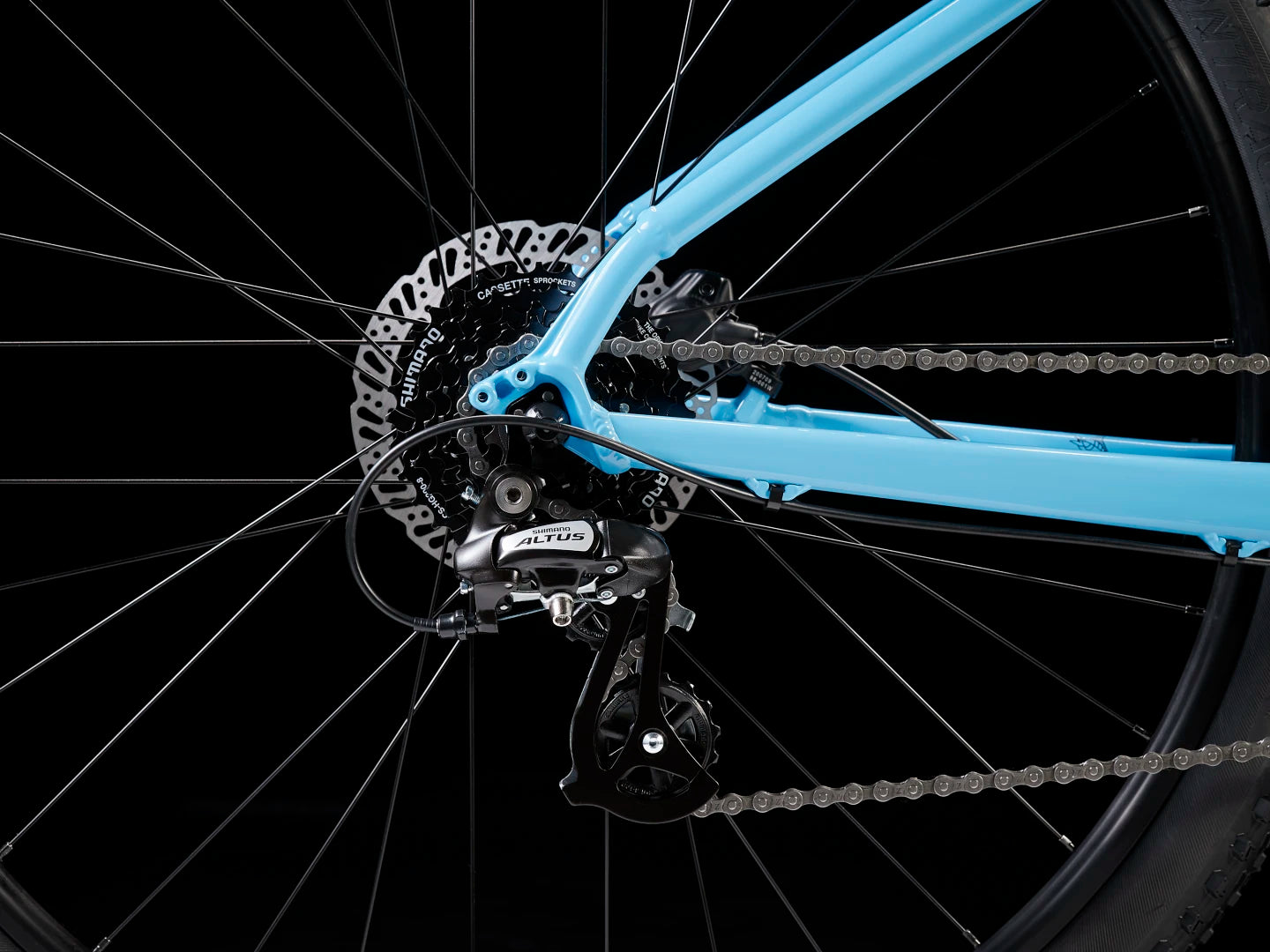

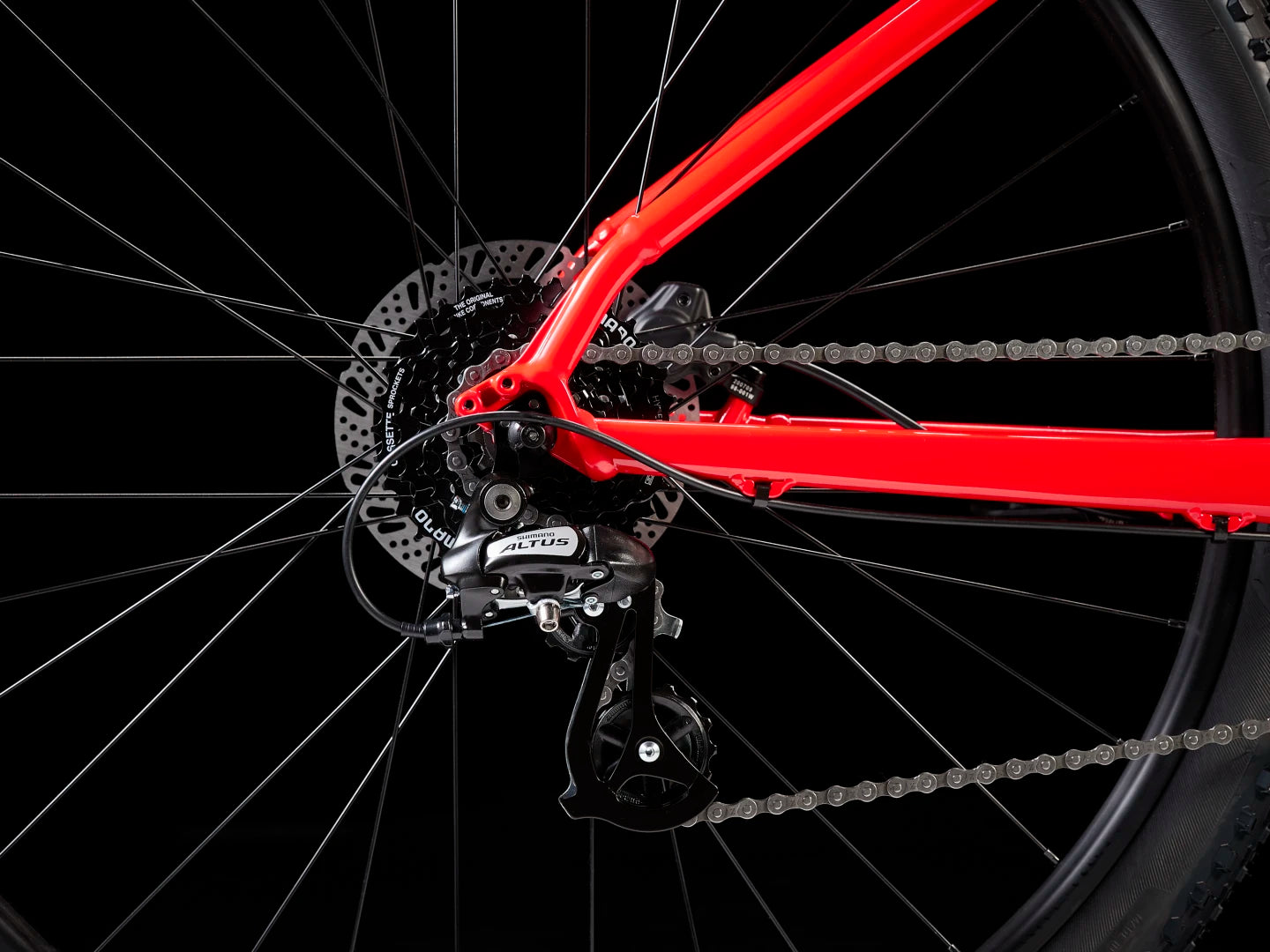

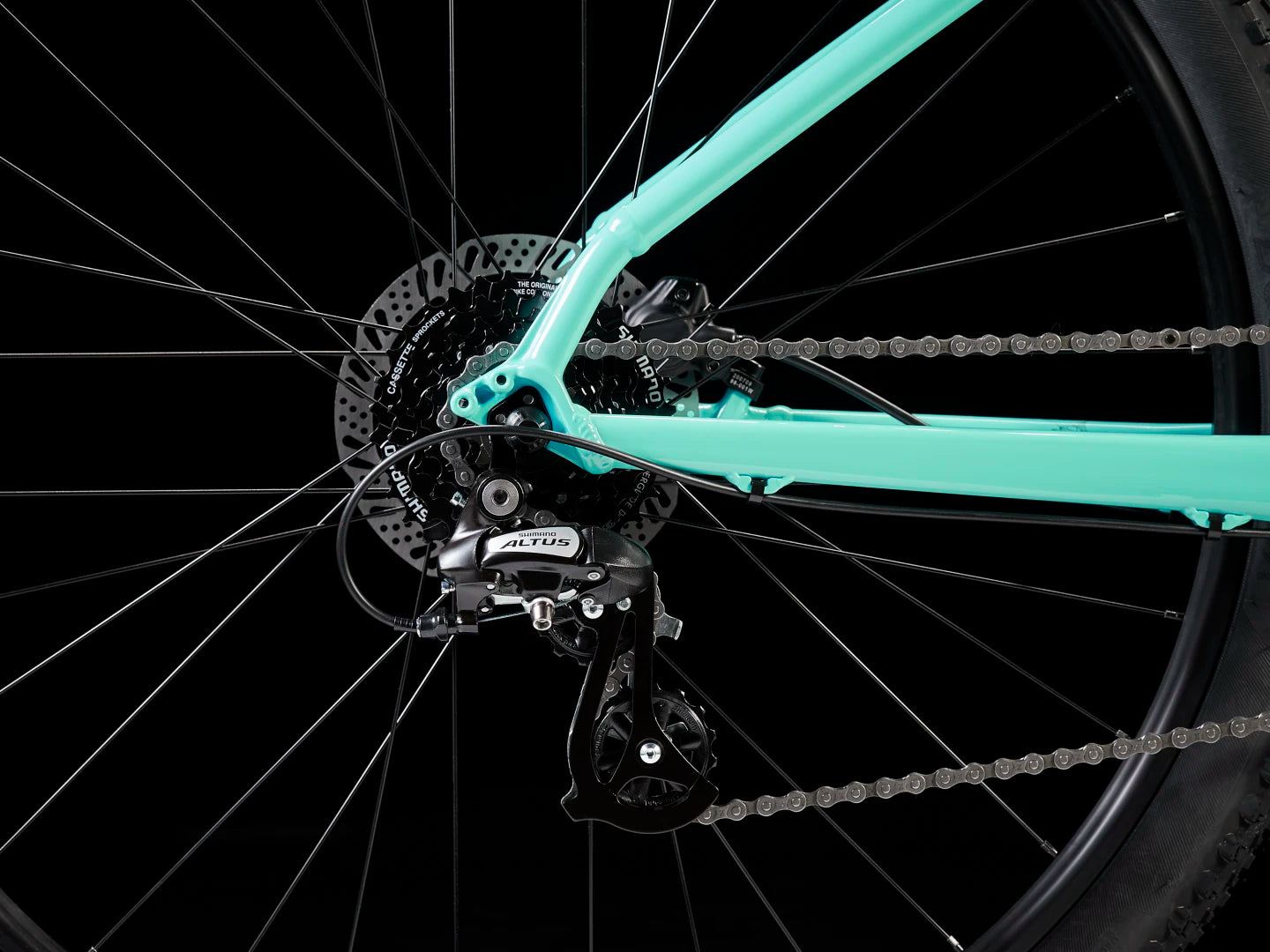

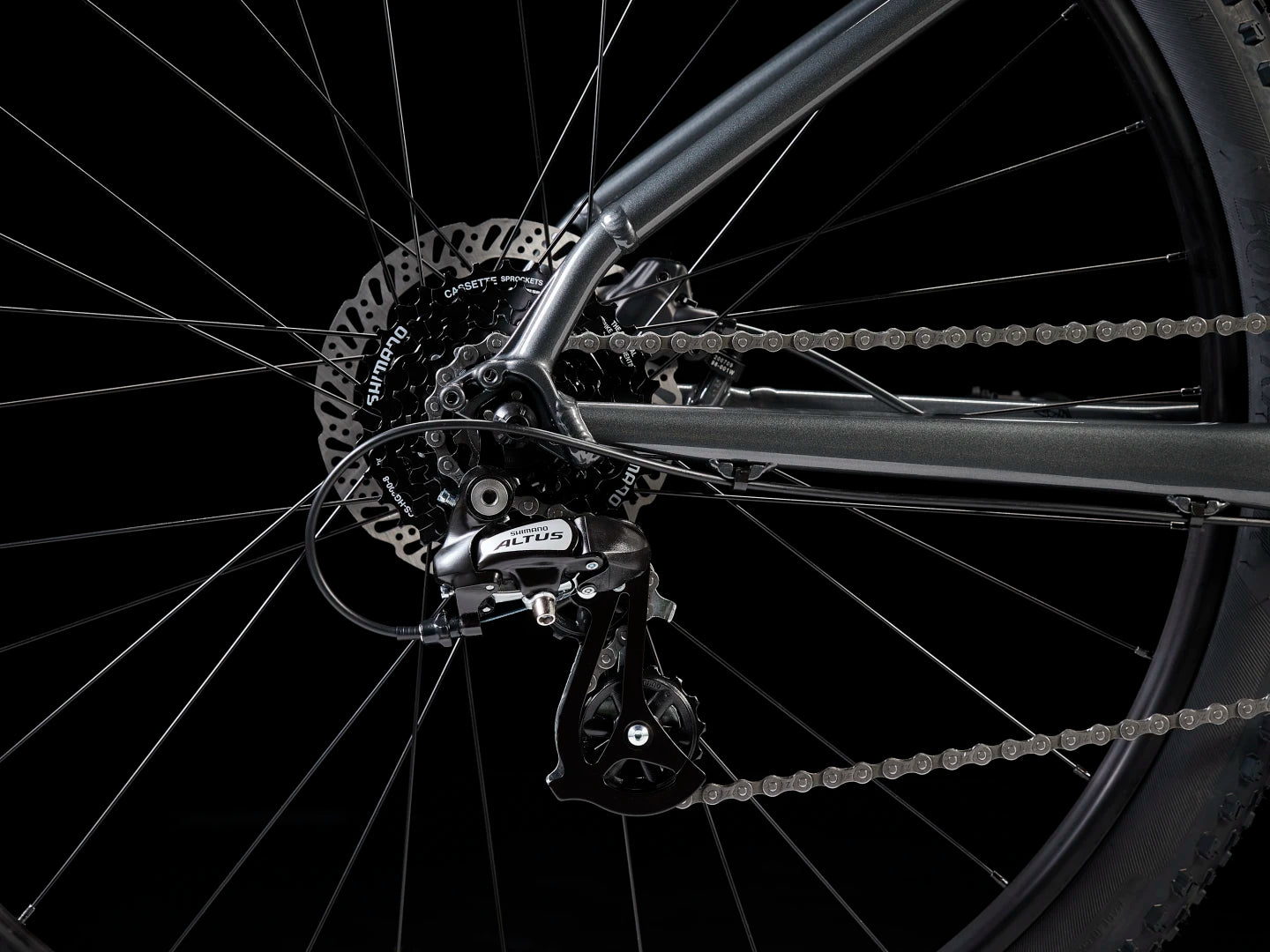

Rear derailleur
: Shimano Altus M310

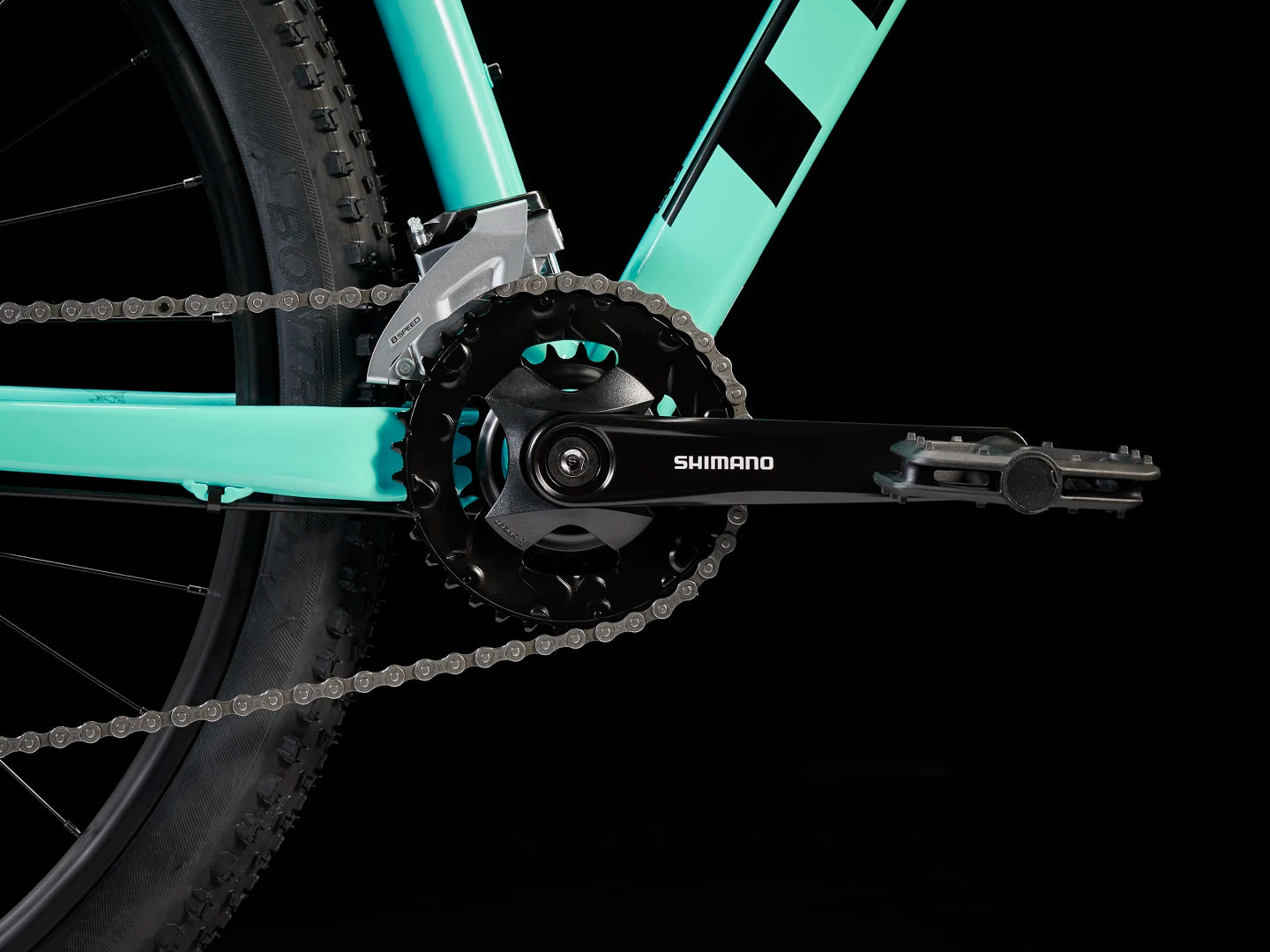

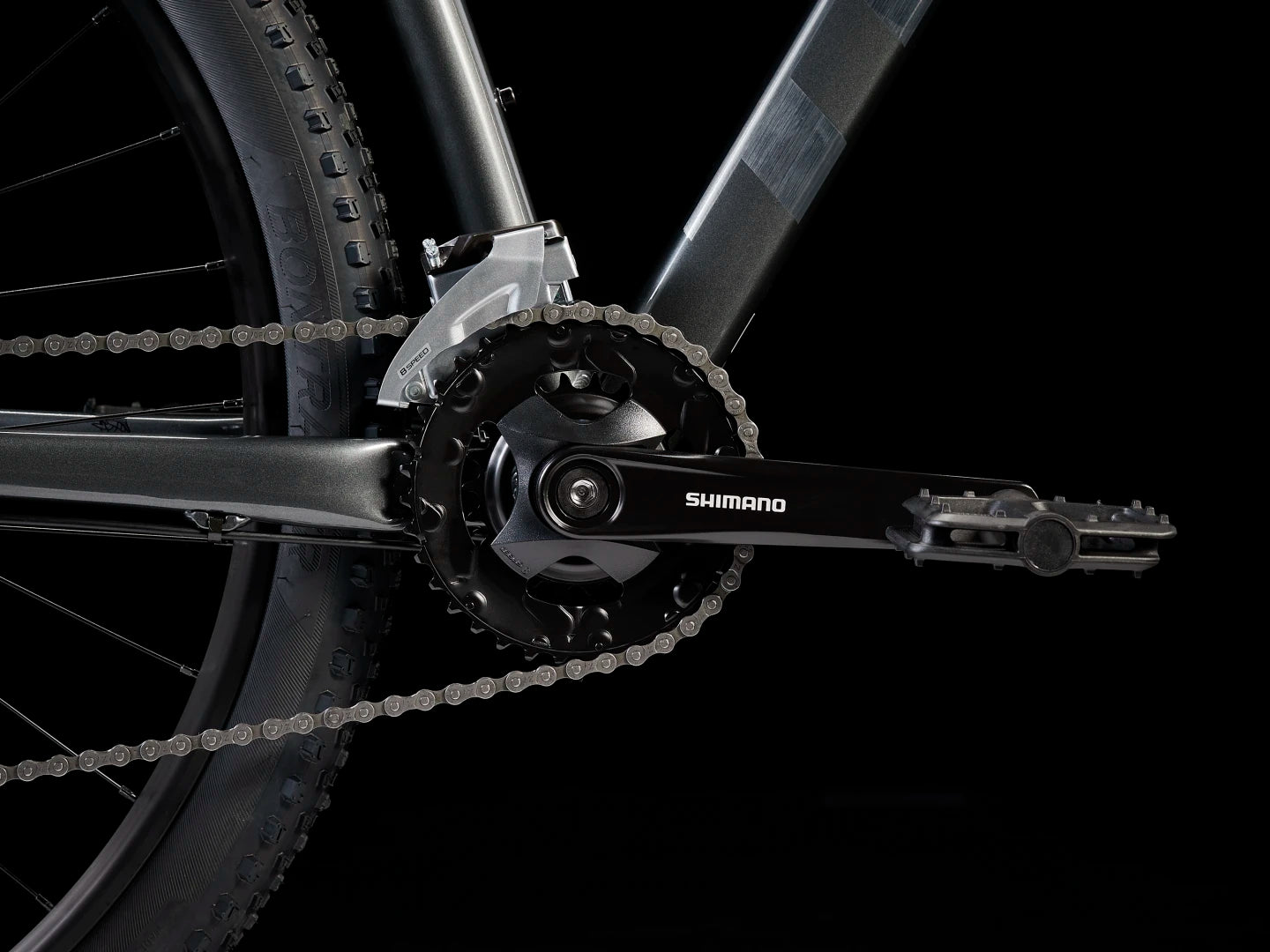

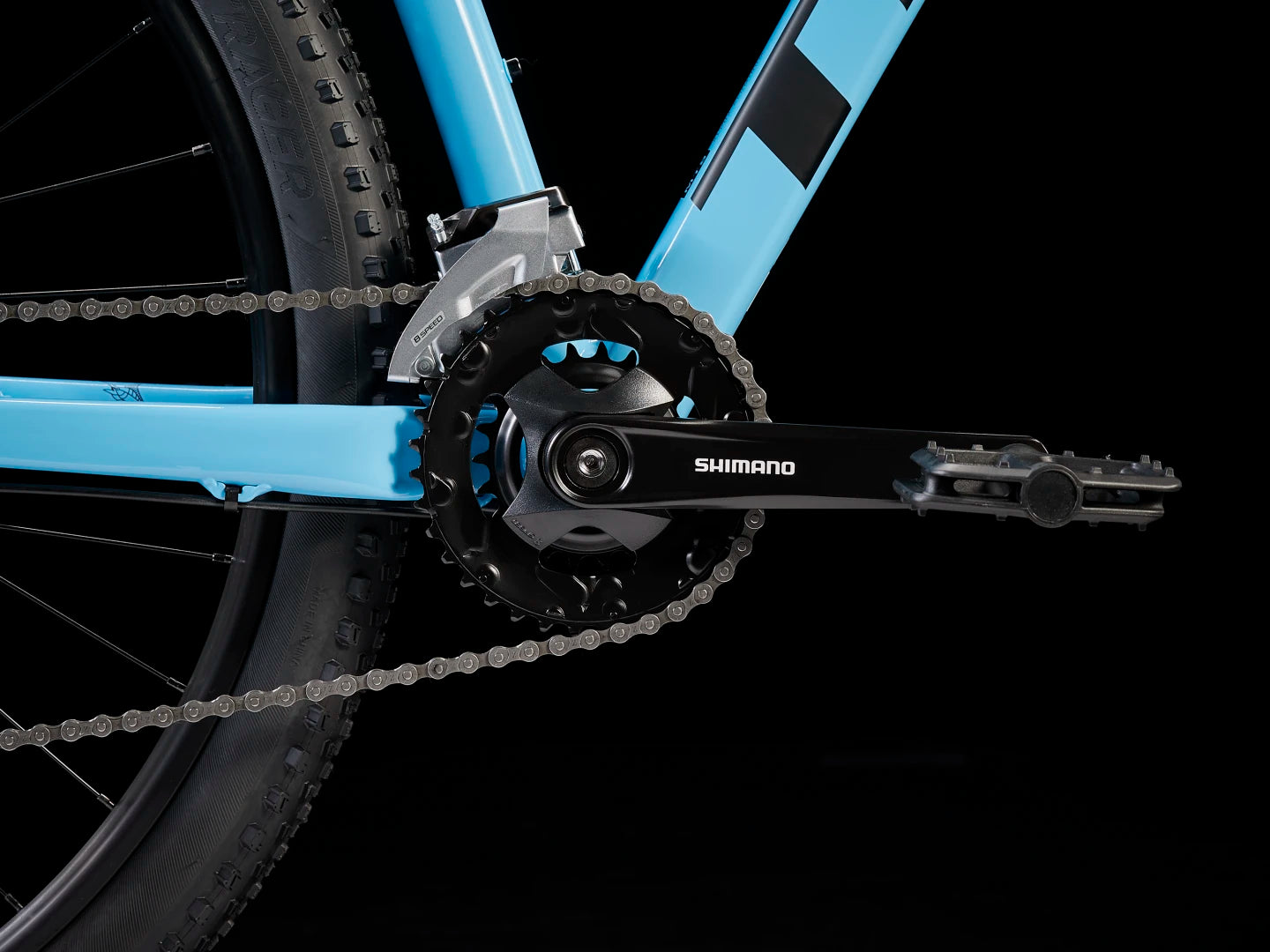

*Crank
: Size: XXS
Prowheel TM-CY10, 36/22, 160mm length
Size: XS , S , M
Shimano M315, 36/22, 170mm length
Size: ML , L , XL , XXL
Shimano M315, 36/22, 175mm length
Bottom bracket
: VP BC73, 73mm, threaded cartridge
Cassette
: Shimano HG200, 12-32, 8 speed
Chain
: KMC Z8.3, 8 speed
Pedal
: VP-536 nylon platform

Components

Saddle
: Bontrager Arvada, steel rails, 138mm width
*Seatpost
: Size: XXS
Bontrager alloy, 31.6mm, 12mm offset, 300mm length
Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length

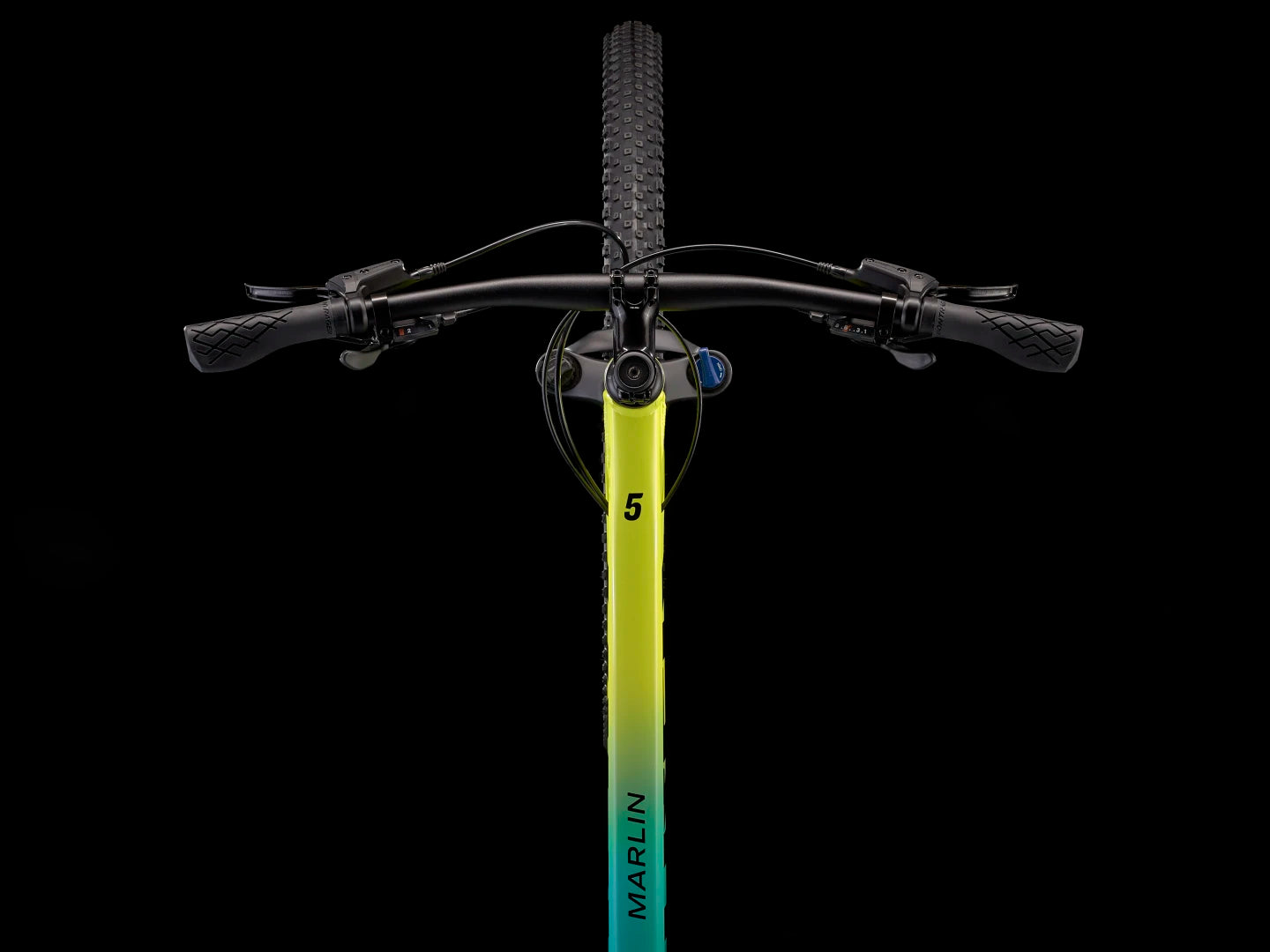

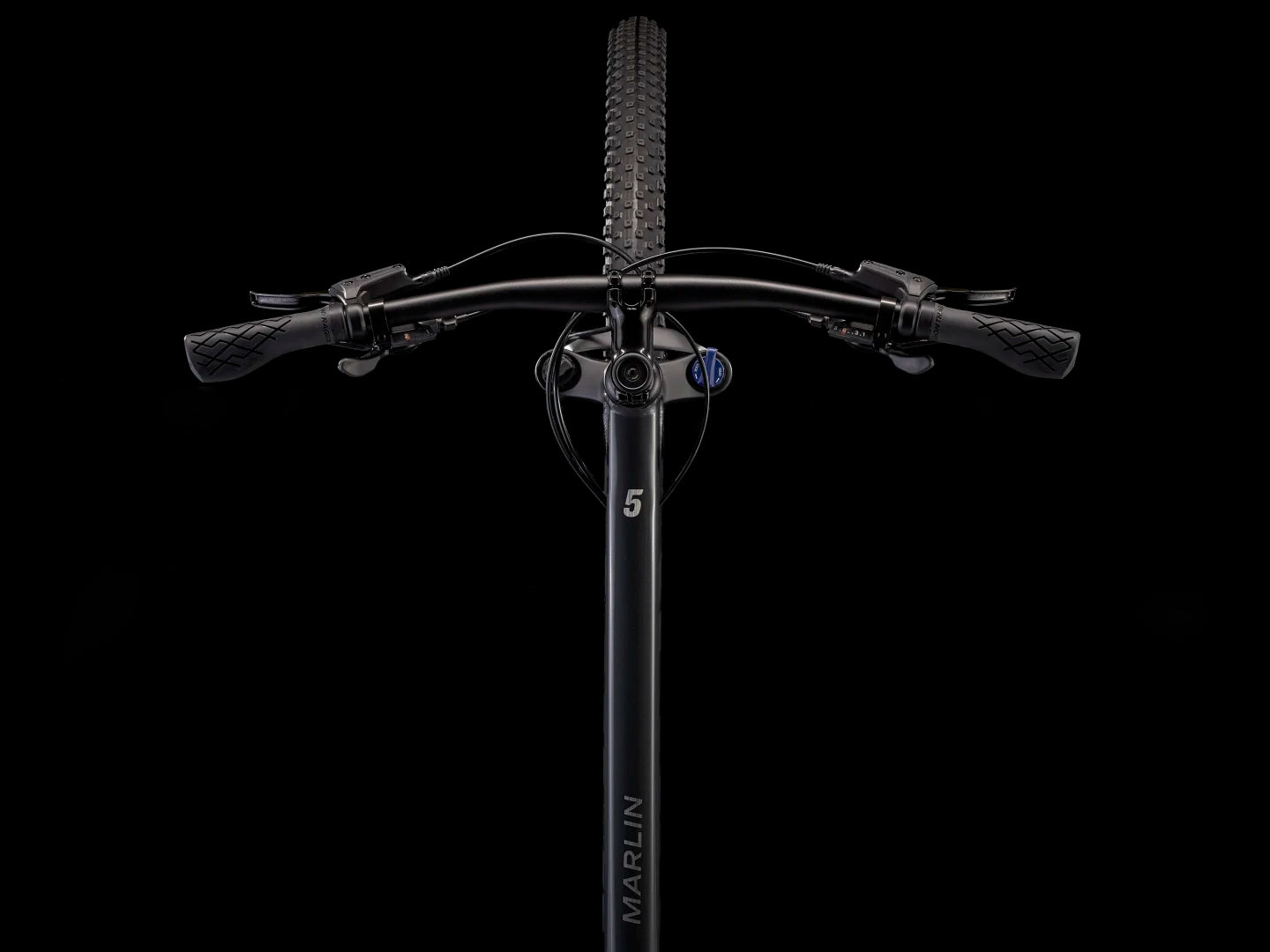

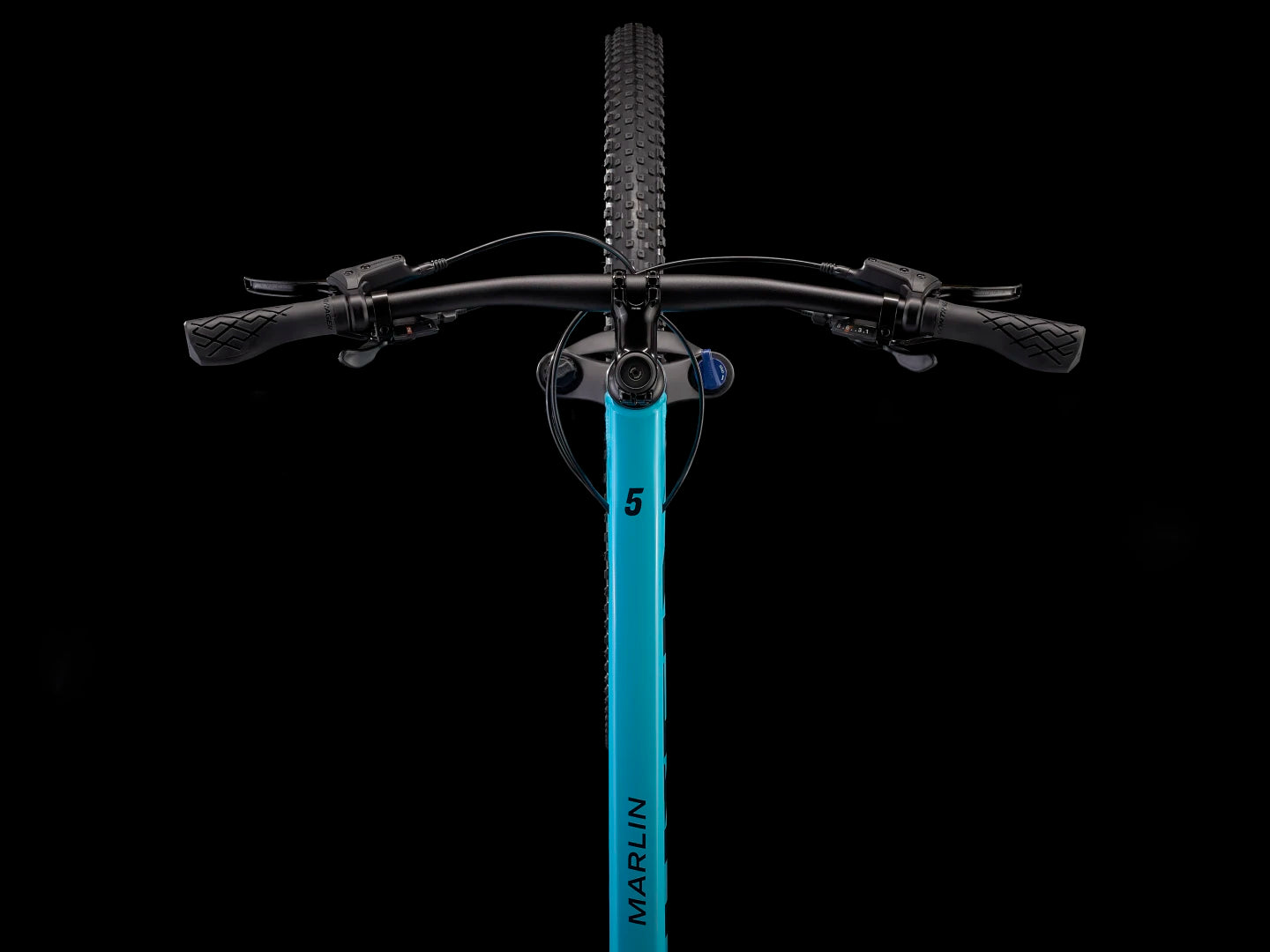

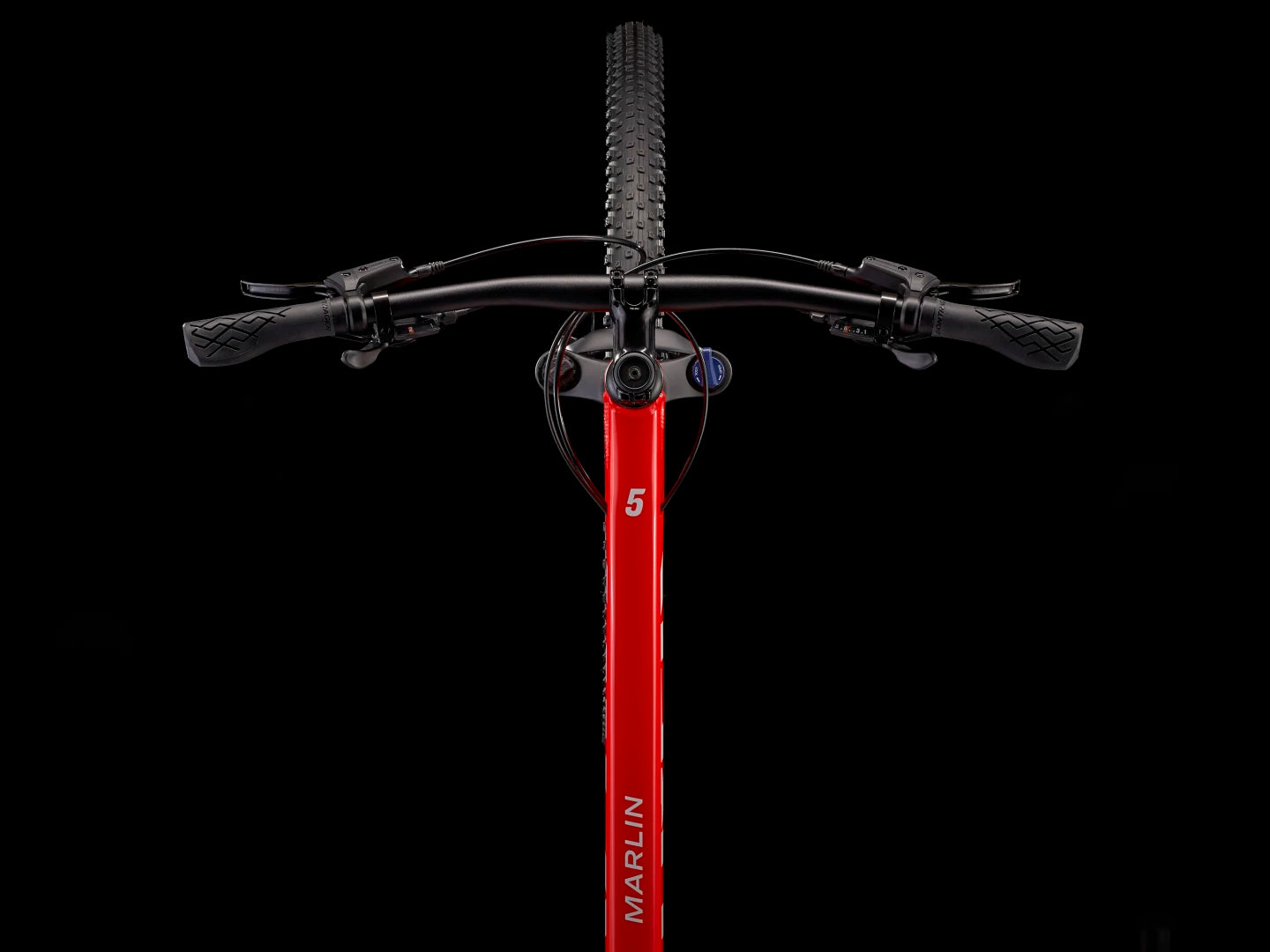

*Handlebar
: Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips
: Bontrager XR Endurance Comp, lock-on
*Stem
: Size: XXS
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
Size: XS
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: S
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: M
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: ML , L
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: XL , XXL
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset
: Semi-integrated, 1-1/8''

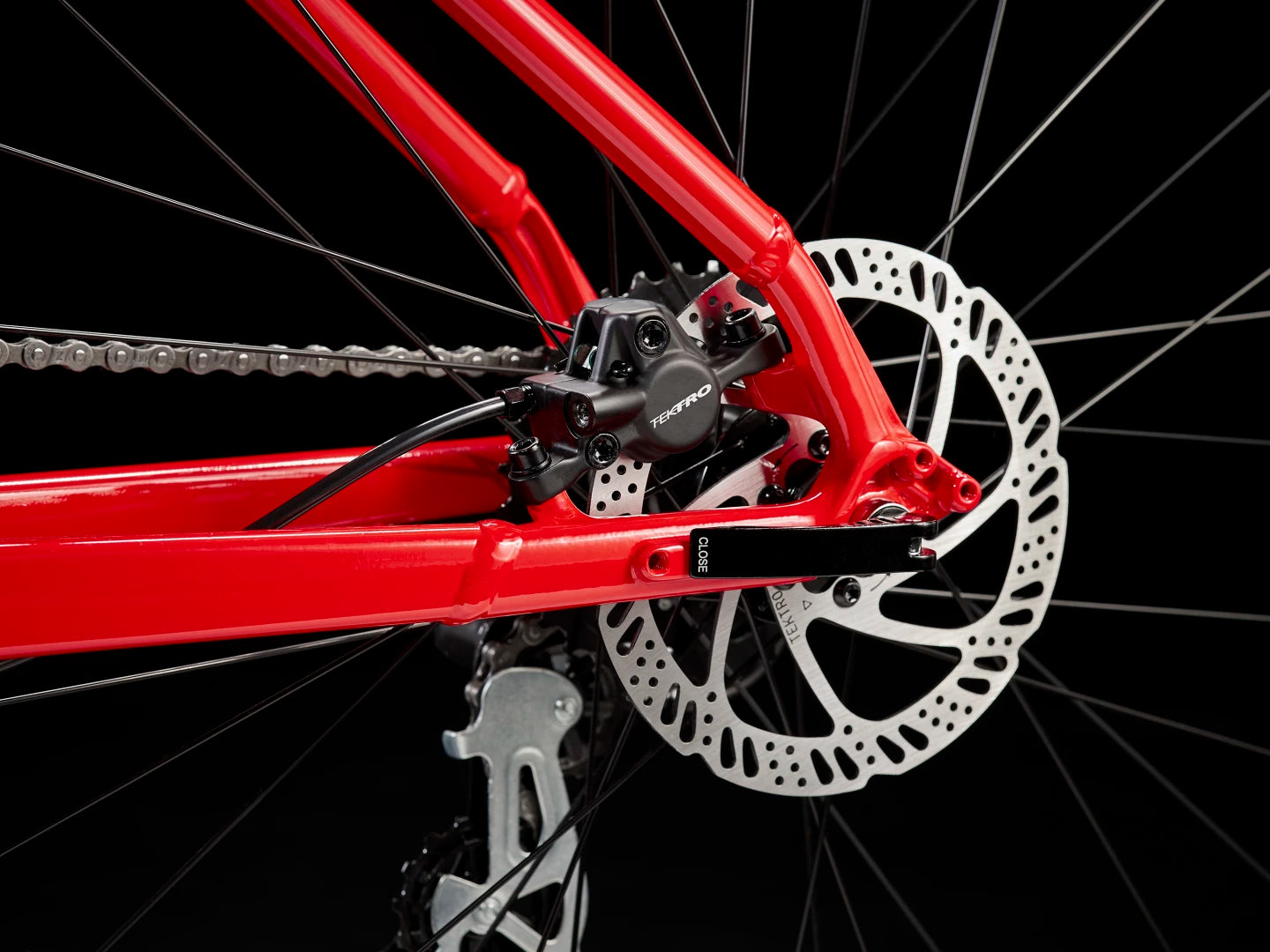

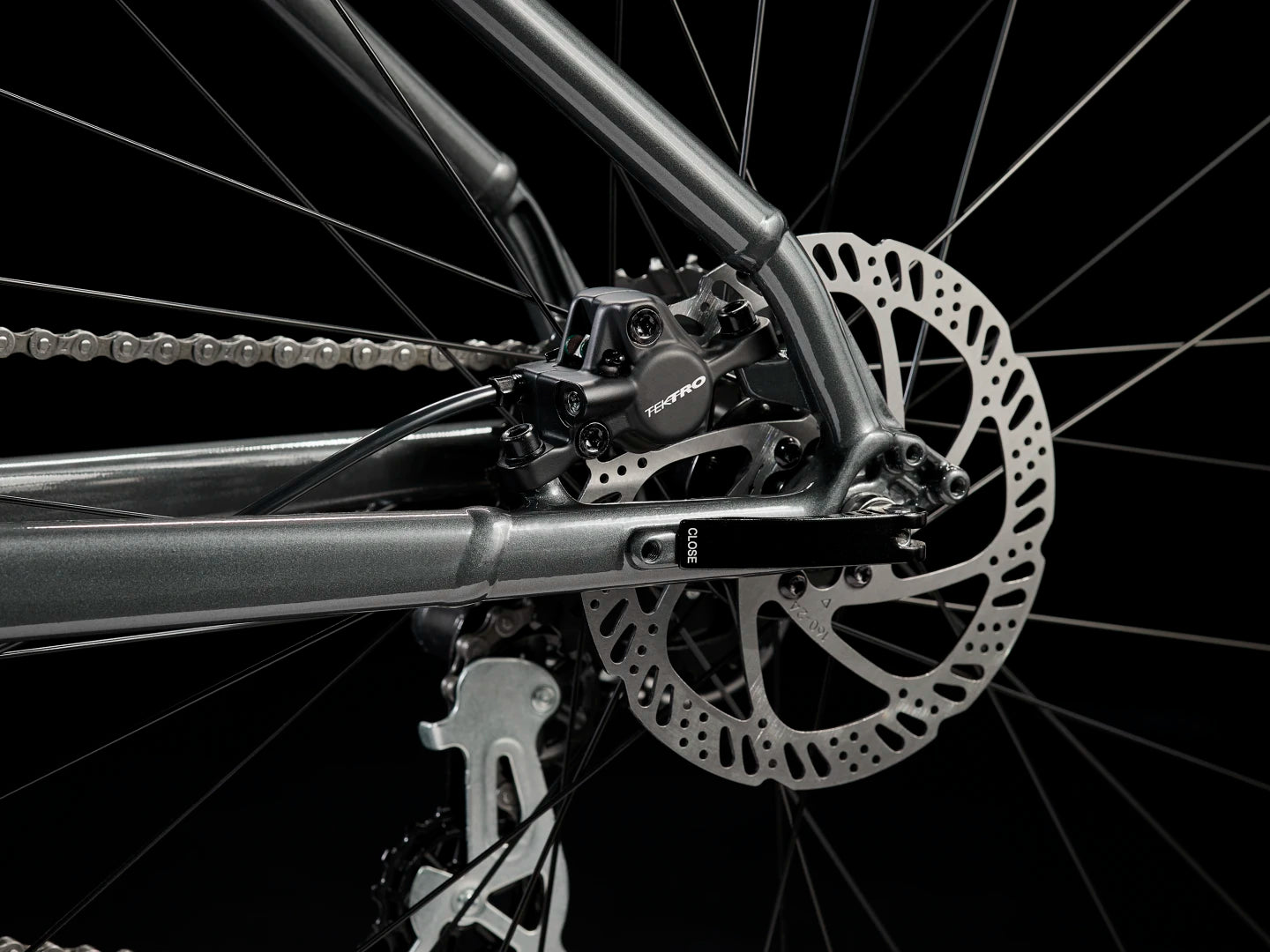

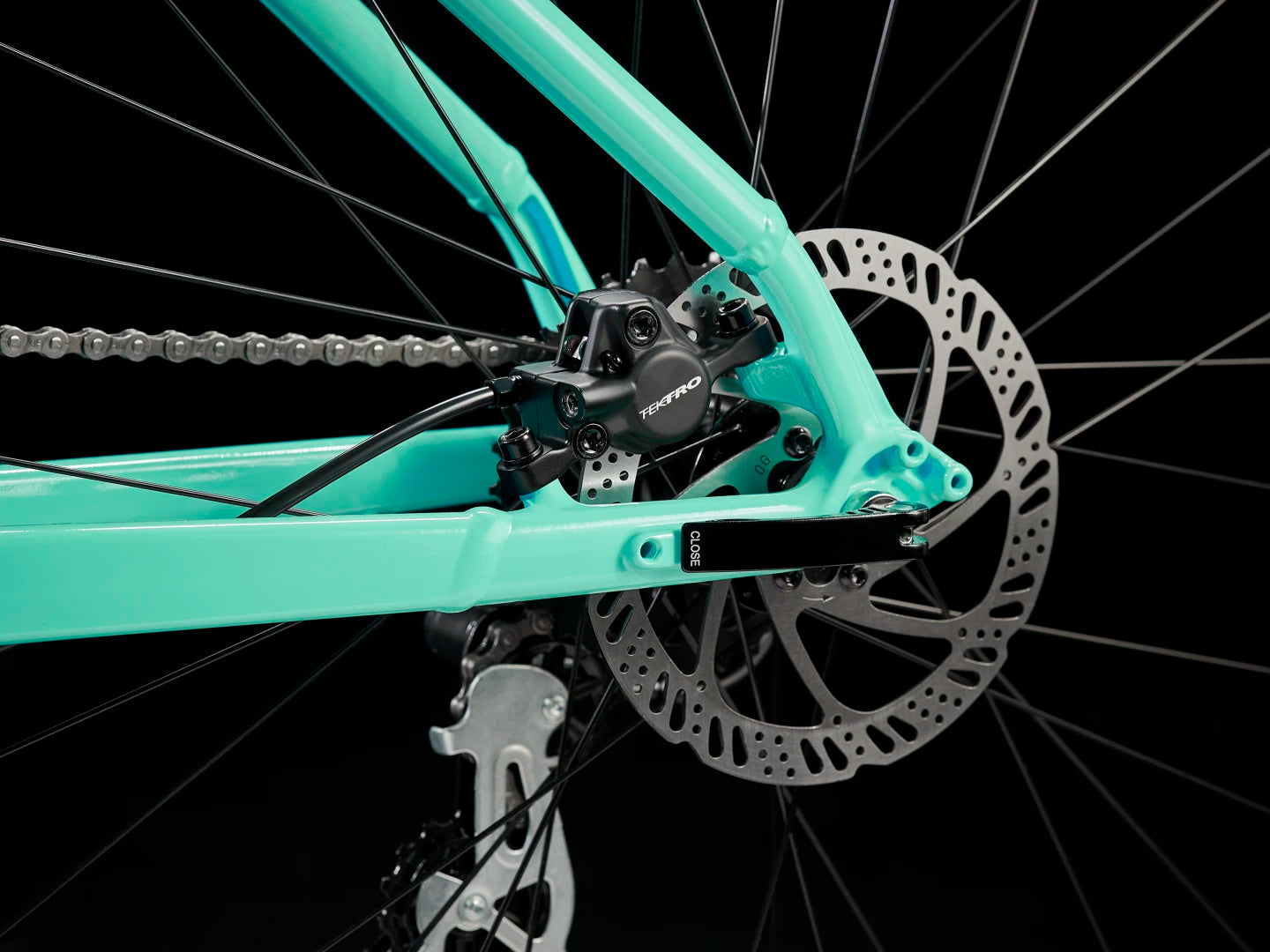

*Brake
: Size: XXS , XS , S
Tektro HD-M276 hydraulic disc, short reach lever
Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc

Weight

Weight
: M - 30.80 lbs / 13.9725 kg
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Why you'll love it

It's a real mountain bike that's also perfectly suited to daily commutes, rides around campus or just getting from A to B on any surface
Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount

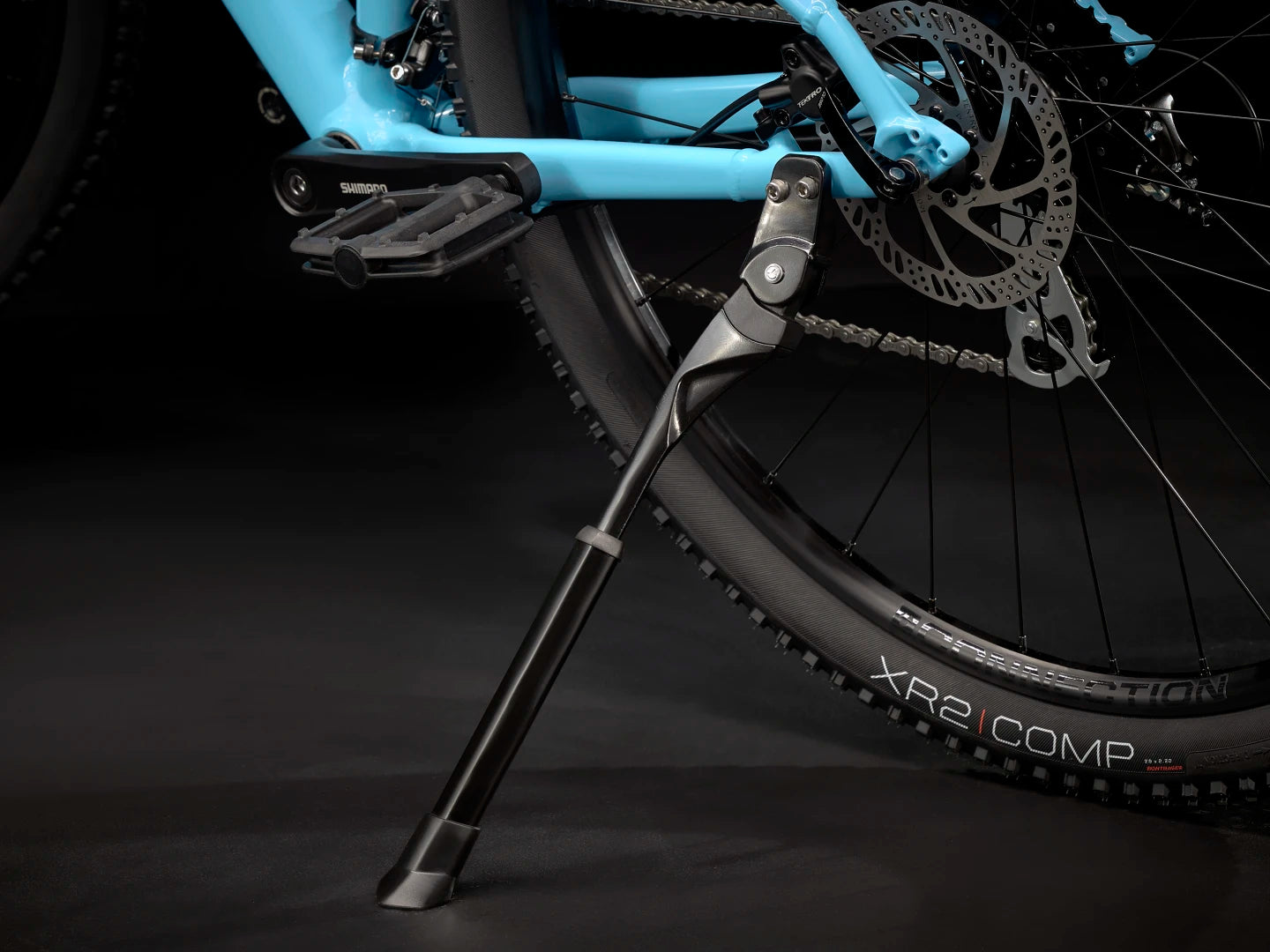

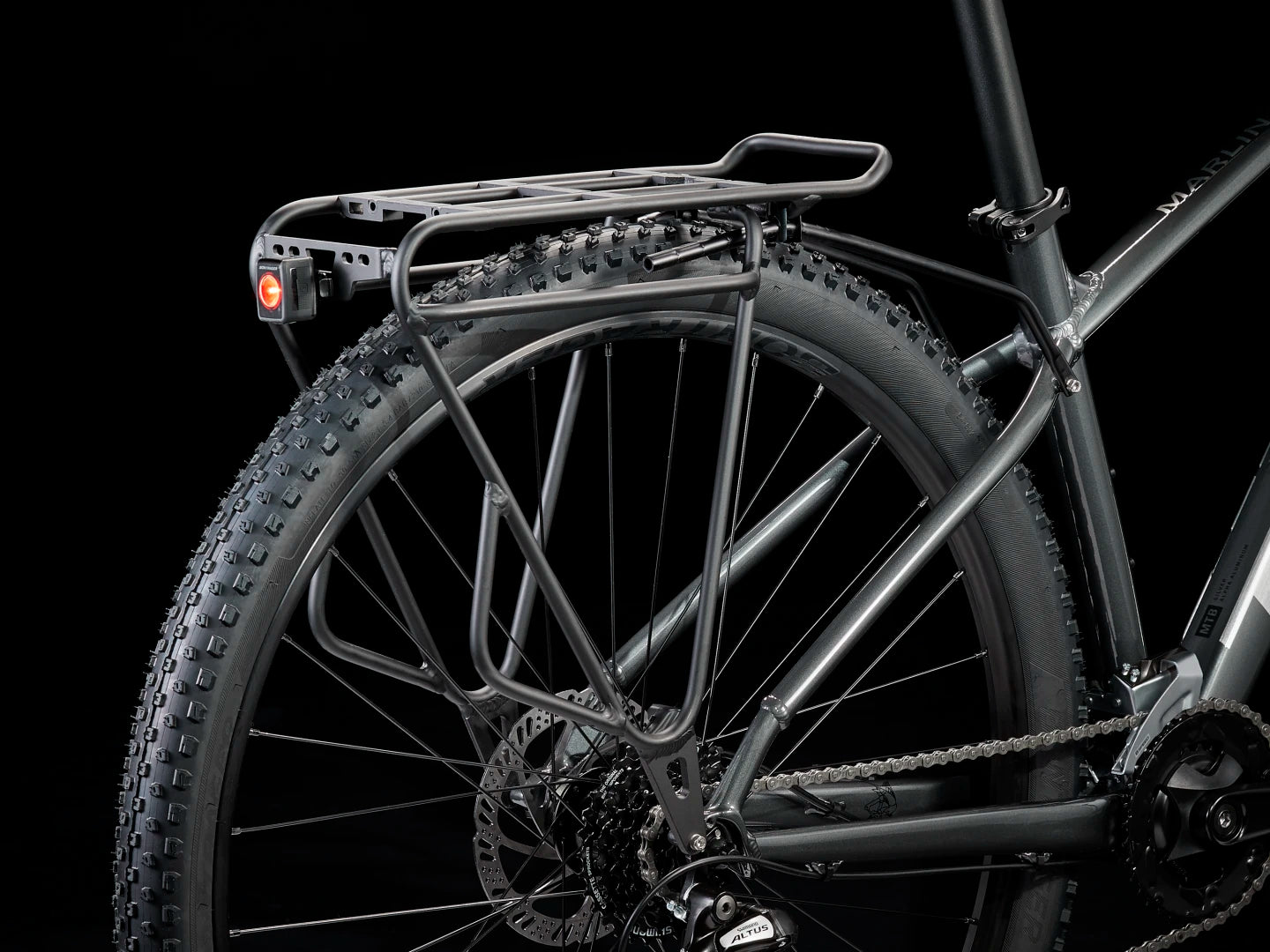

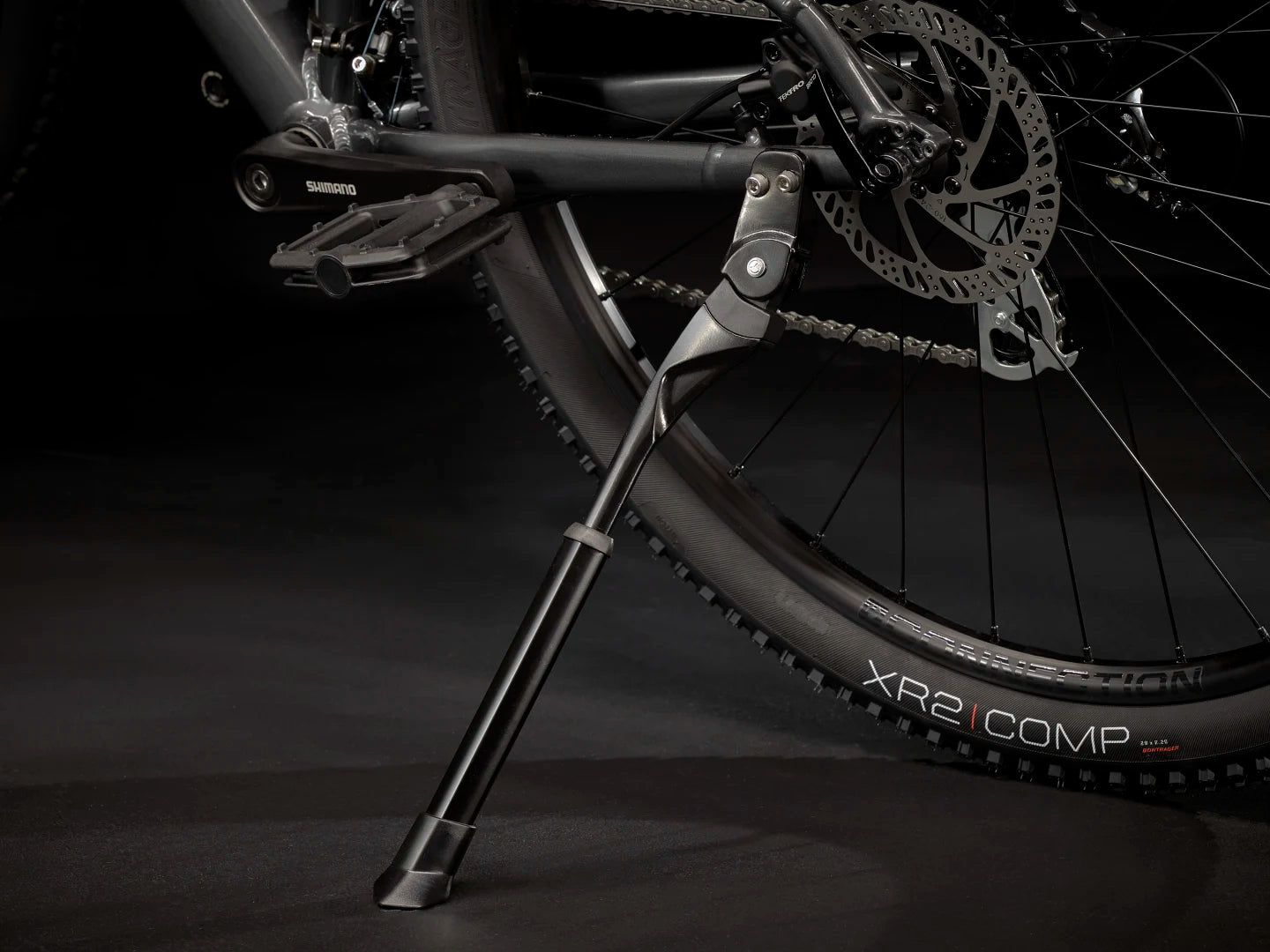

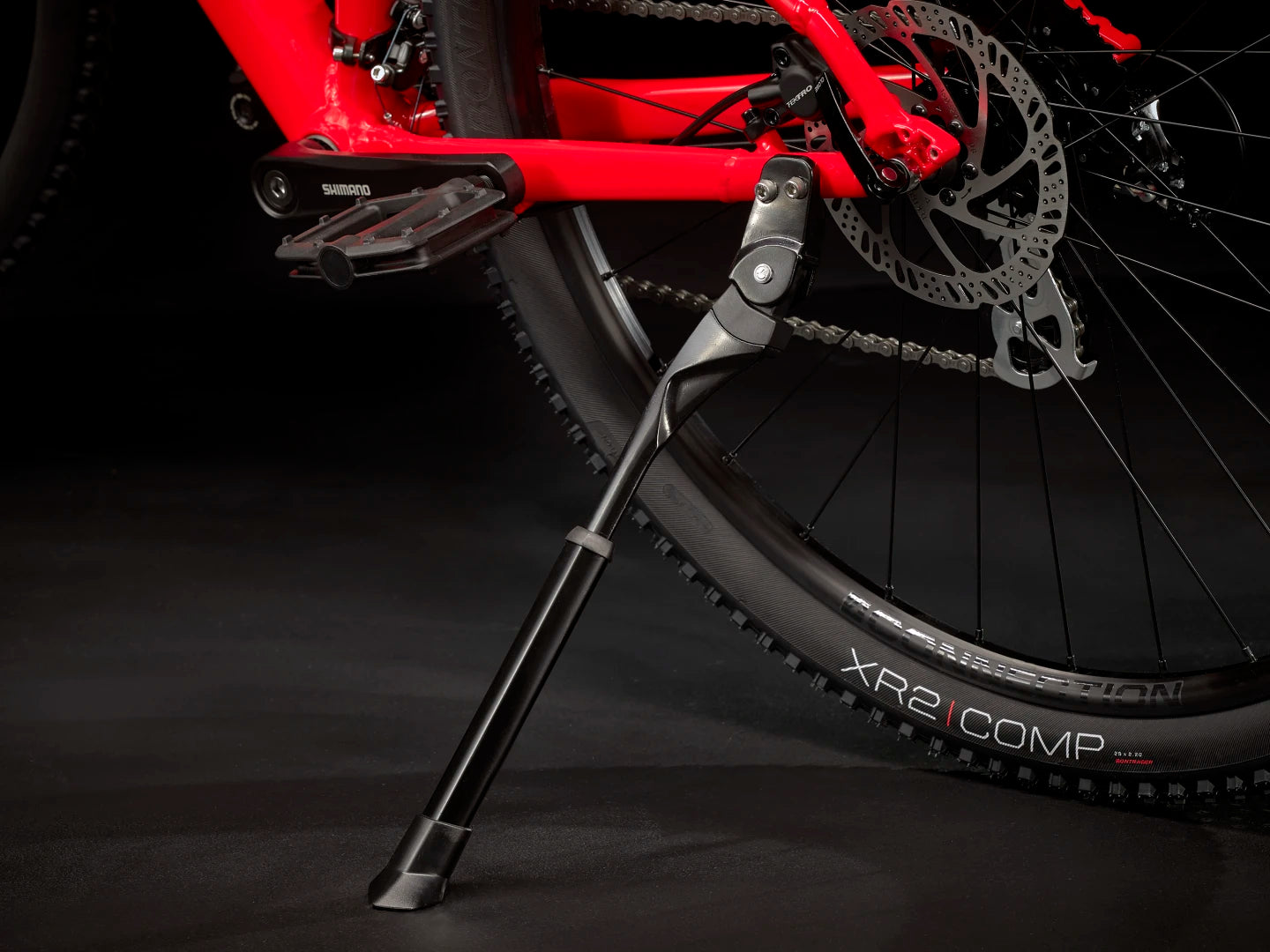

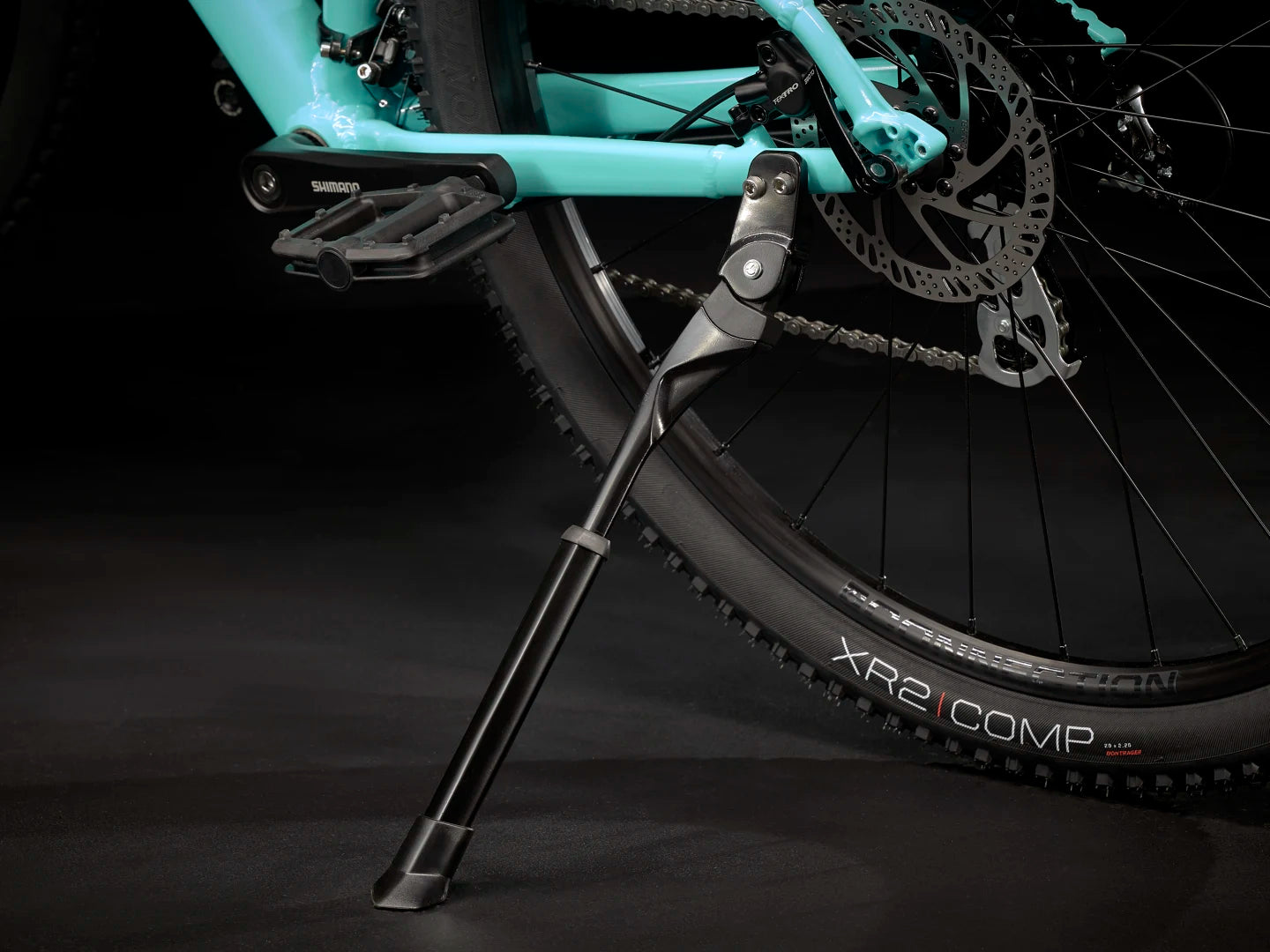

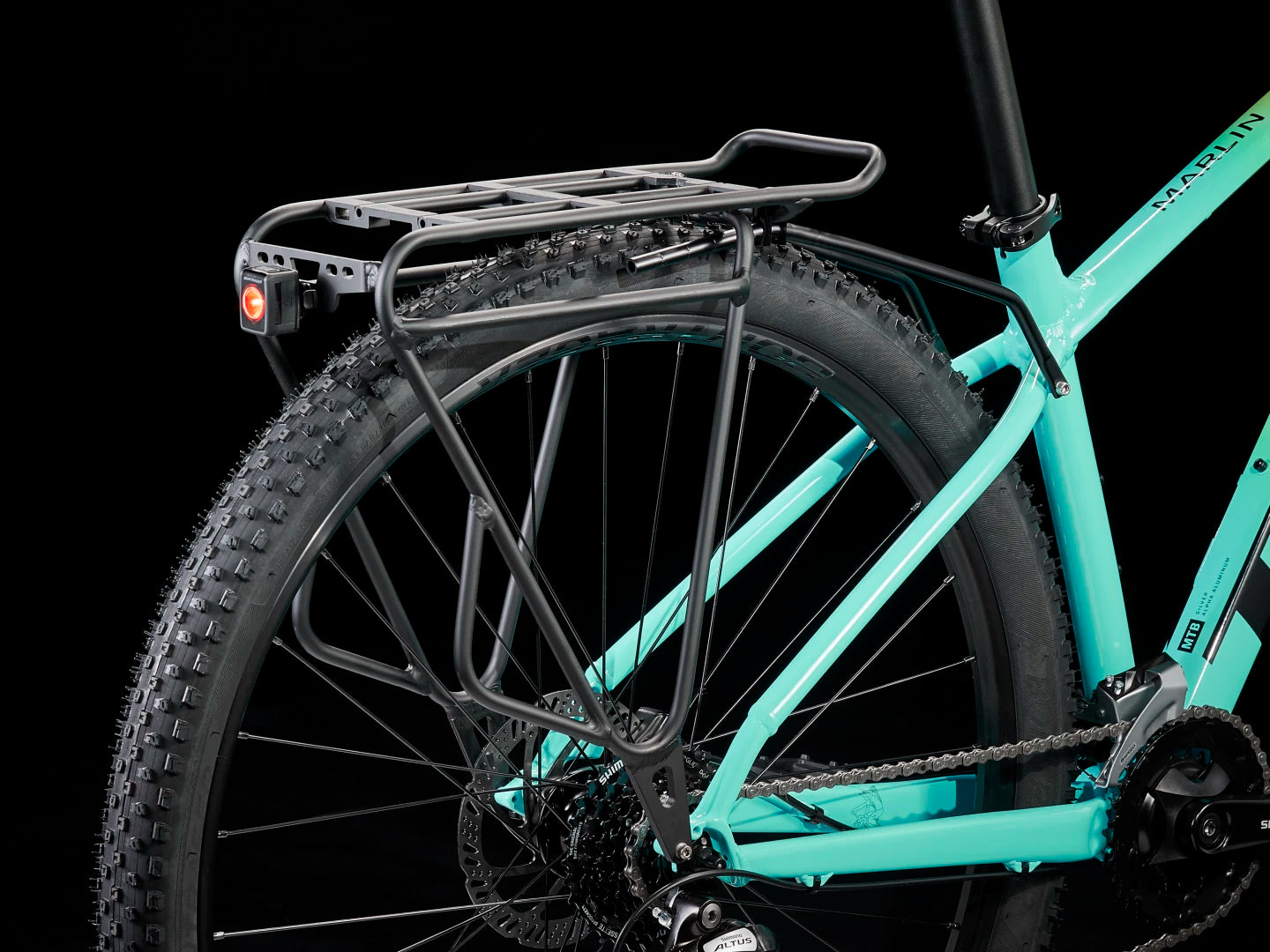

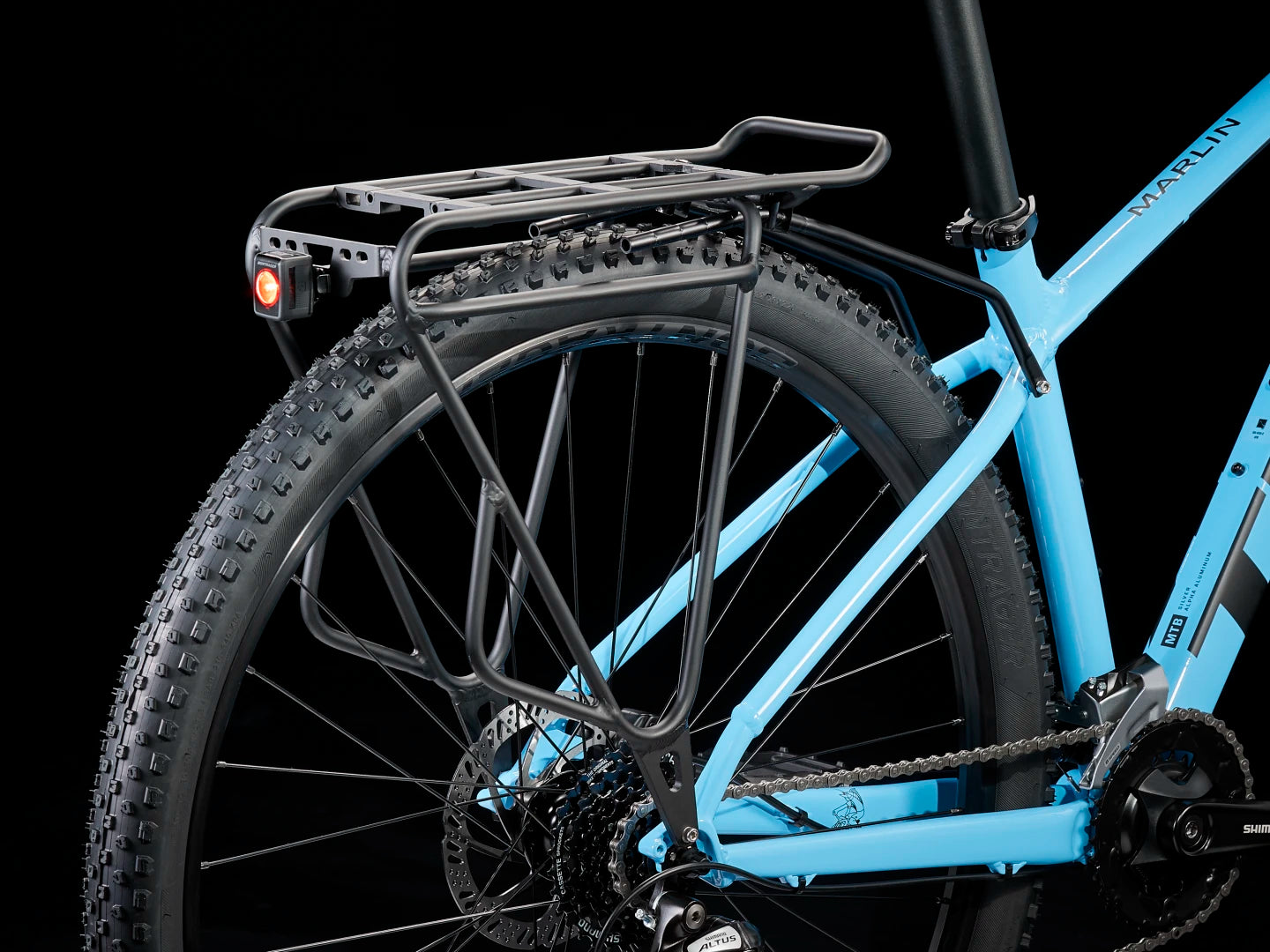

Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
Like every Trek, it's backed by a lifetime warranty

High tech, high value

มาร์ลินเป็นจักรยานที่สวยและขี่ได้สนุก อัดแน่นด้วยคุณสมบัติเด่นๆที่มีครบในจักรยานระดับสูง เช่นเฟรมที่สวยและร้อยเคเบิลซ่อนเรียบร้อย ยืดอายุการใช้งานและปกป้องสายเคเบิลไว้จากสิ่งแวดล้อมภายนอก

Fit for every rider

จักรยานที่ขี่ง่ายสำหรับทุกคน มาร์ลินมี 7 ขนาดของเฟรม ให้เลือกตามระดับความสูงของร่างกาย การประกอบล้อแบบสมาร์ท วีล ไซส์เพื่อความเร็วสูงสุดตามความถนัดและสรีระ ในเฟรมเล็กนั้นใช้มือเบรกช่วงสั้นและแฮนด์แคบเพื่อความถนัดสูงสุดของนักขี่จักรยานร่างเล็ก

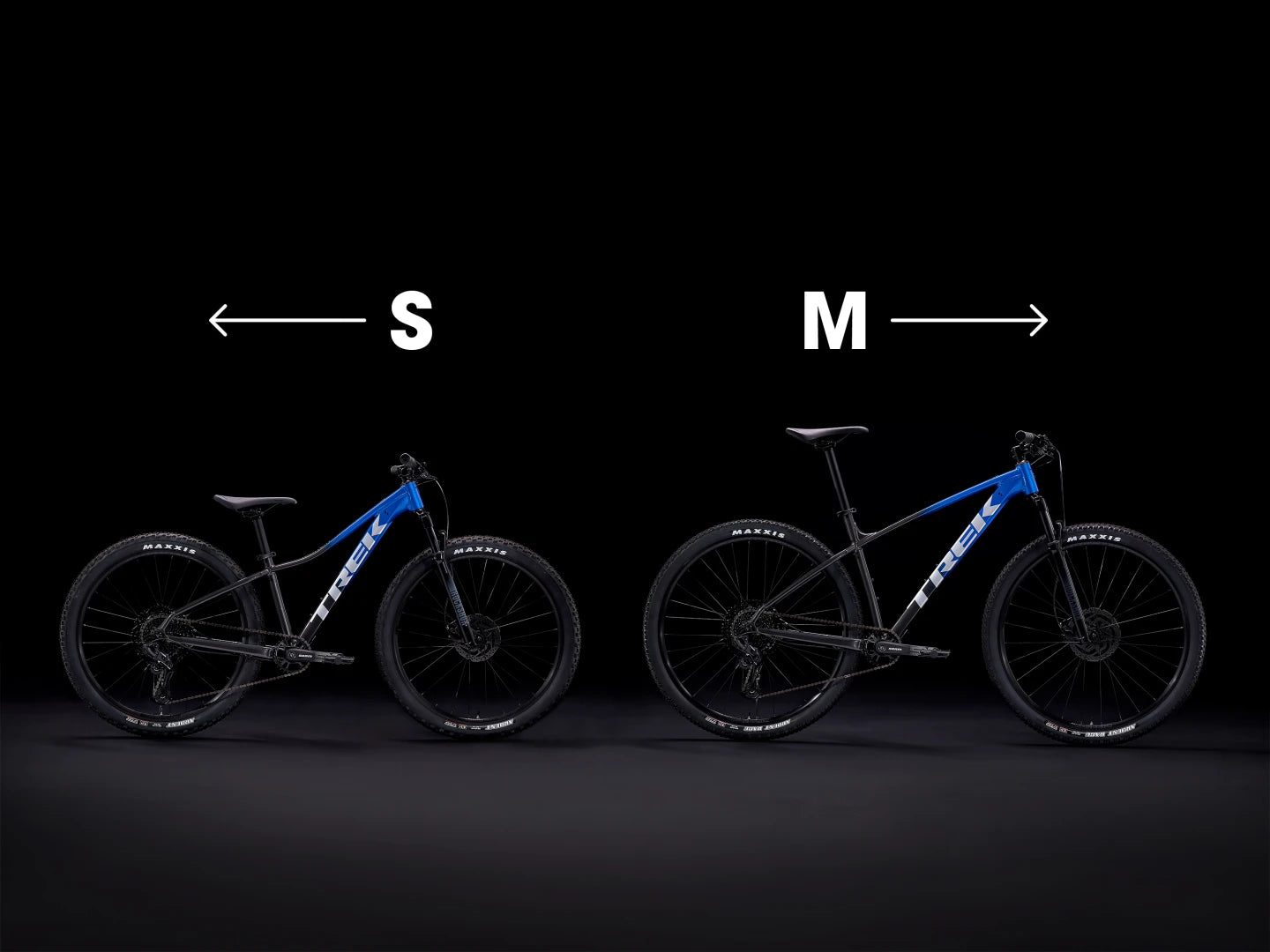

Will my bike have a curved top tube?

Size Small frames have a top tube that dips down as it approaches the seat tube. This makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders typically don't have the same issues.

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

It's right for you if...

You're new to the trail and you’re looking for a real mountain bike that doubles as a commuter – and you want it all at an exceptional value.

The tech you get

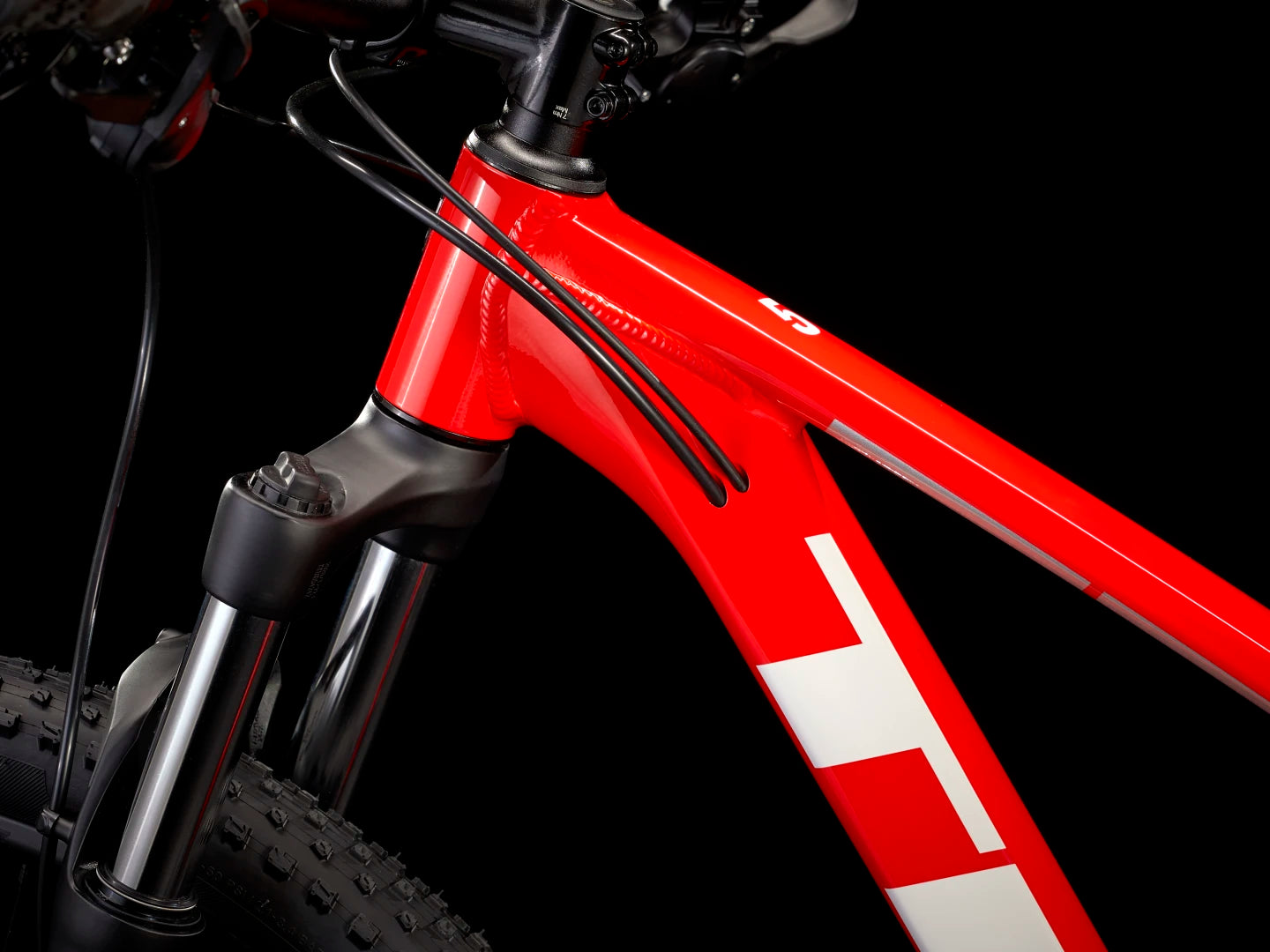

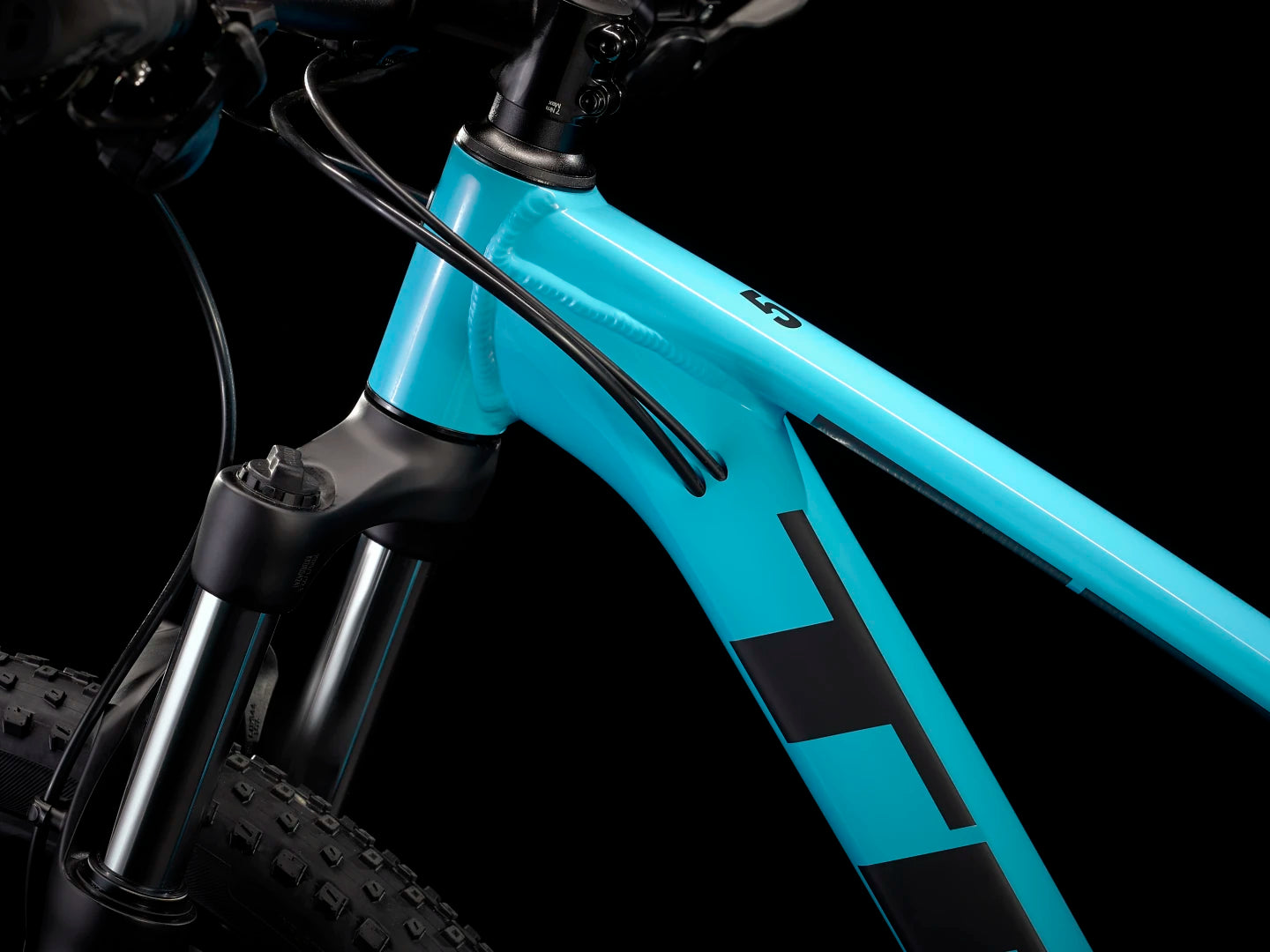

A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, 2x8 drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes and a terrain-smoothing suspension fork with a lockout.

The final word

The Marlin 5 is a great ride for all your adventures. But it's also versatile, and Marlin 5 is a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorise and haul a load.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

ขอสงวนสิทธิ์ในการเปลี่ยนแปลงแก้ไข ข้อมูลรายละเอียดของสินค้า อุปกรณ์ สเปคสินค้า โมเดล สี และวัสดุ บนเว็บไซท์นี้ ซึ่งอ้างอิงจากเว็บไซท์และโรงงานผู้ผลิตต้นทาง และรายละเอียดของราคา ซึ่งอาจมีการเปลี่ยนแปลงได้ตลอดเวลาโดยไม่ต้องแจ้งล่วงหน้า และหากเกิดข้อผิดพลาดจากการลงข้อมูลบนเว็บไซท์นี้ ให้อ้างอิงสเปคสินค้าจริงและเว็บไซท์ของผู้ผลิตต้นทาง รวมถึงข้อมูลราคาอัพเดทของบริษัท โปรไบค์ จำกัด เท่านั้น

น้ำหนักของจักรยานและเฟรมอ้างอิงจากขั้นตอนก่อนทำสีเฟรมในขั้นตอนผลิตจริง ซึ่งน้ำหนักจะเปลี่ยนแปลงไปหลังการผลิตเสร็จสิ้น
