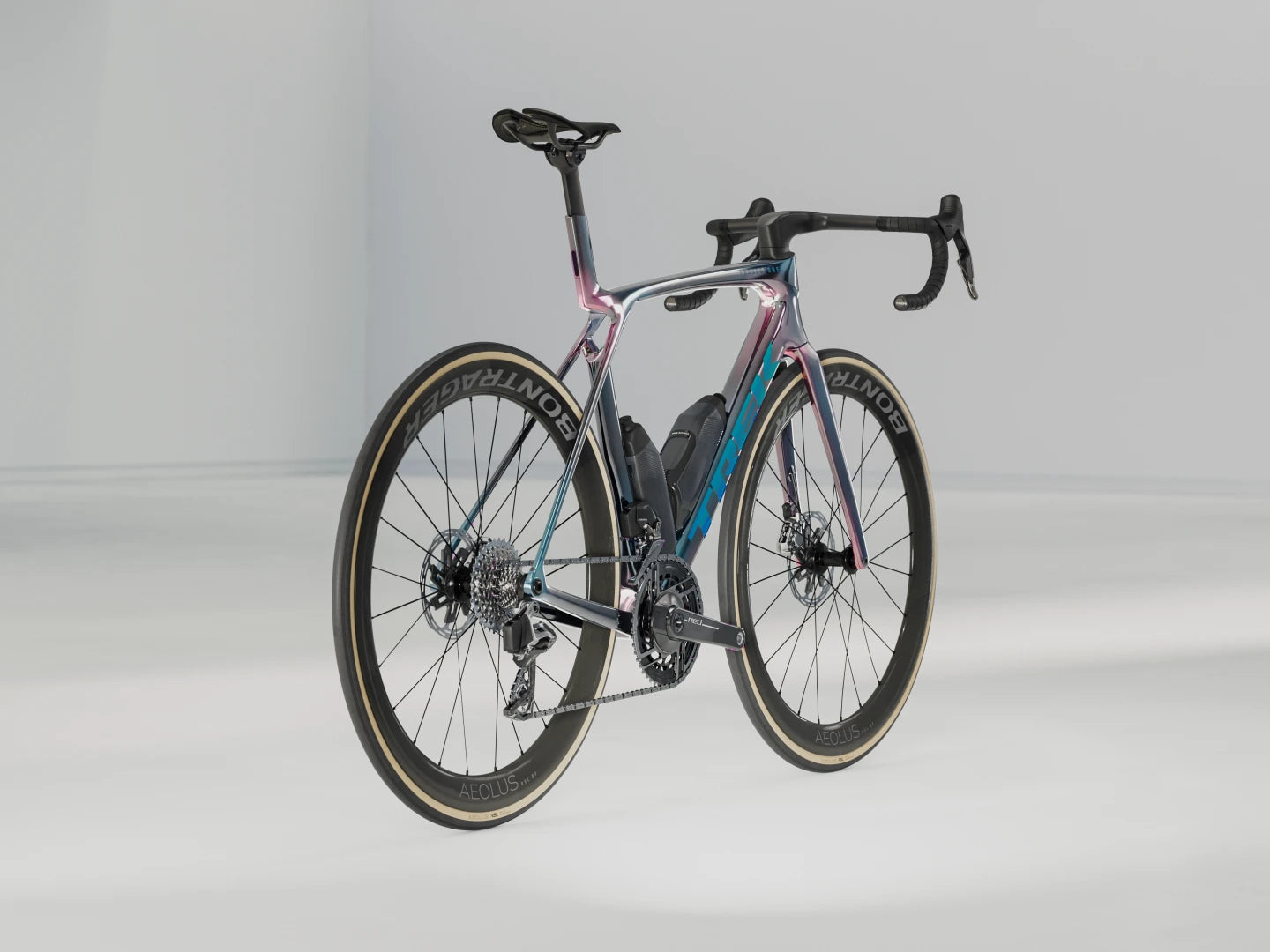

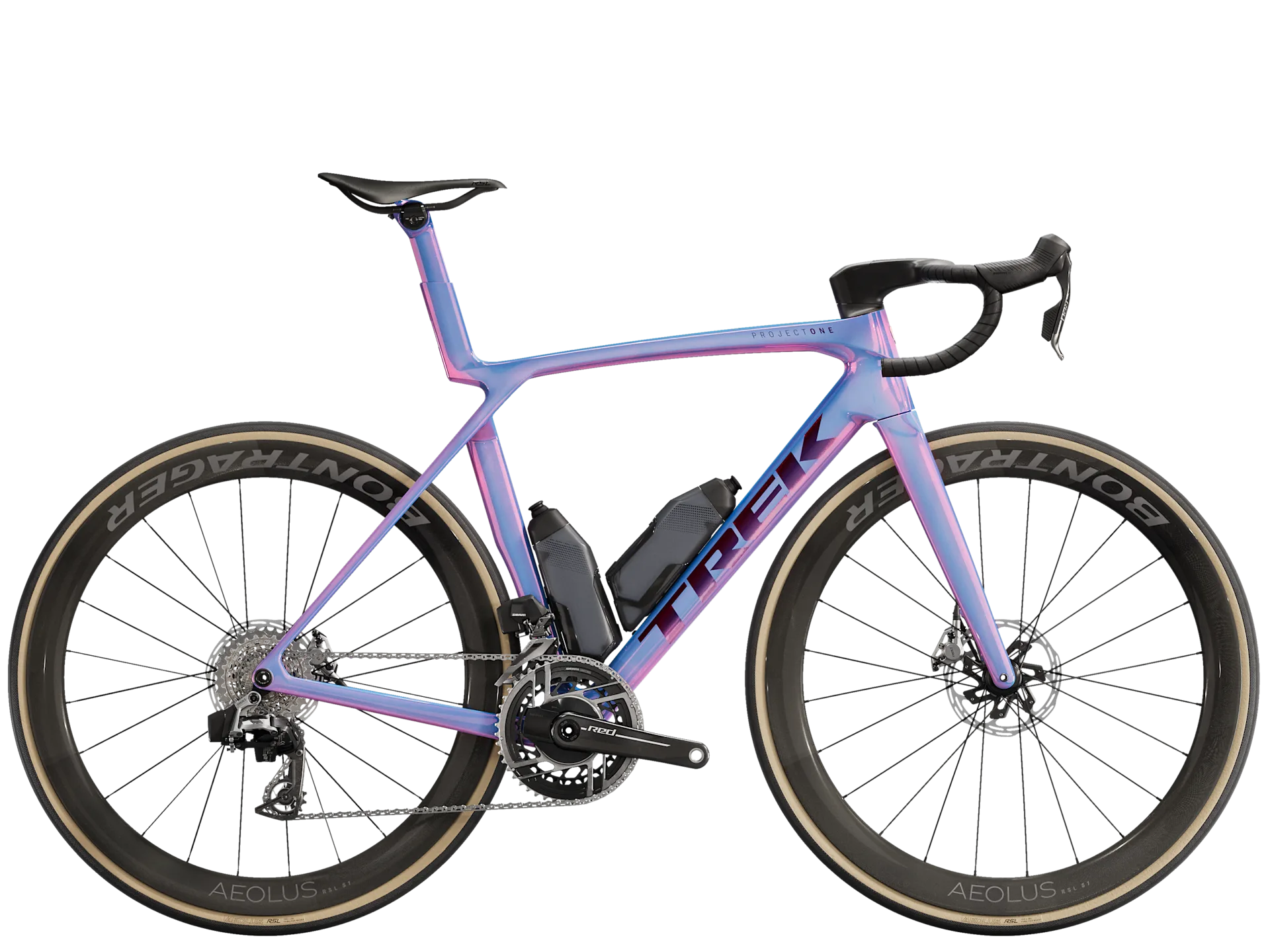

TREK Madone SLR 9 AXS Gen 8

Name: TREK Madone SLR 9 AXS Gen 8
Brand: TREK
SKU: 5322561
Price: 539000.0 THB
Availability: OutOfStock

539,000.00 ฿

0.0

Madone SLR 9 AXS Gen 8 is built for dominating the roads with equal parts light weight and aerodynamic speed. It's crafted from our highest-level 900 Series OCLV Carbon that's not only insanely light, but delivers aerodynamic shapes for crushing descents and straightaways. Lightweight IsoFlow frame technology means Madone doesn't sacrifice comfort for speed. This build comes ready to win with a top-level SRAM RED AXS drivetrain with a power meter, carbon wheels, a Trek Aero RSL one-piece carbon bar/stem, and RSL Aero Bottles and Cages for more drag reduction.

Color:

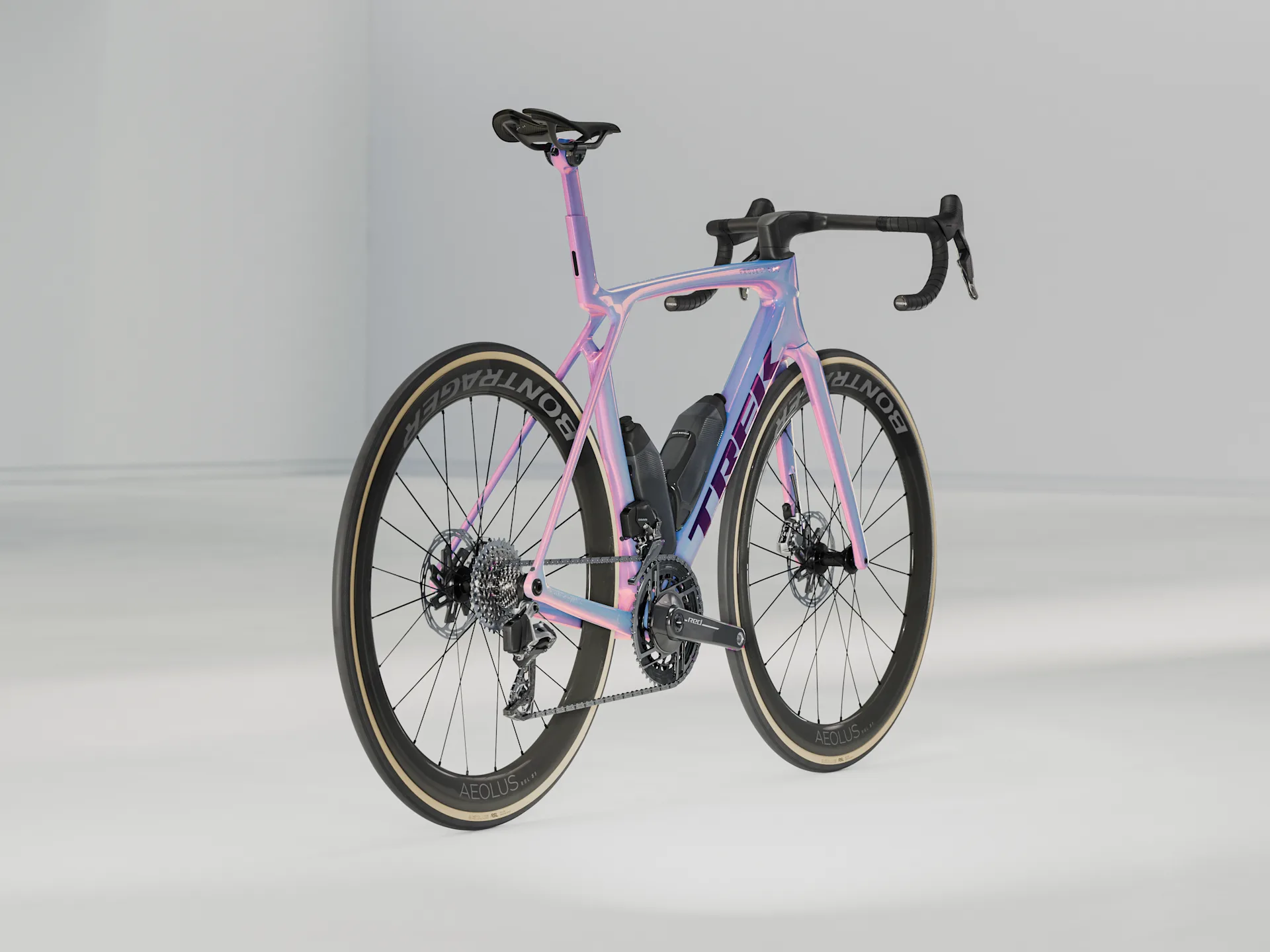

Tête de la Course

SIZE:

XS

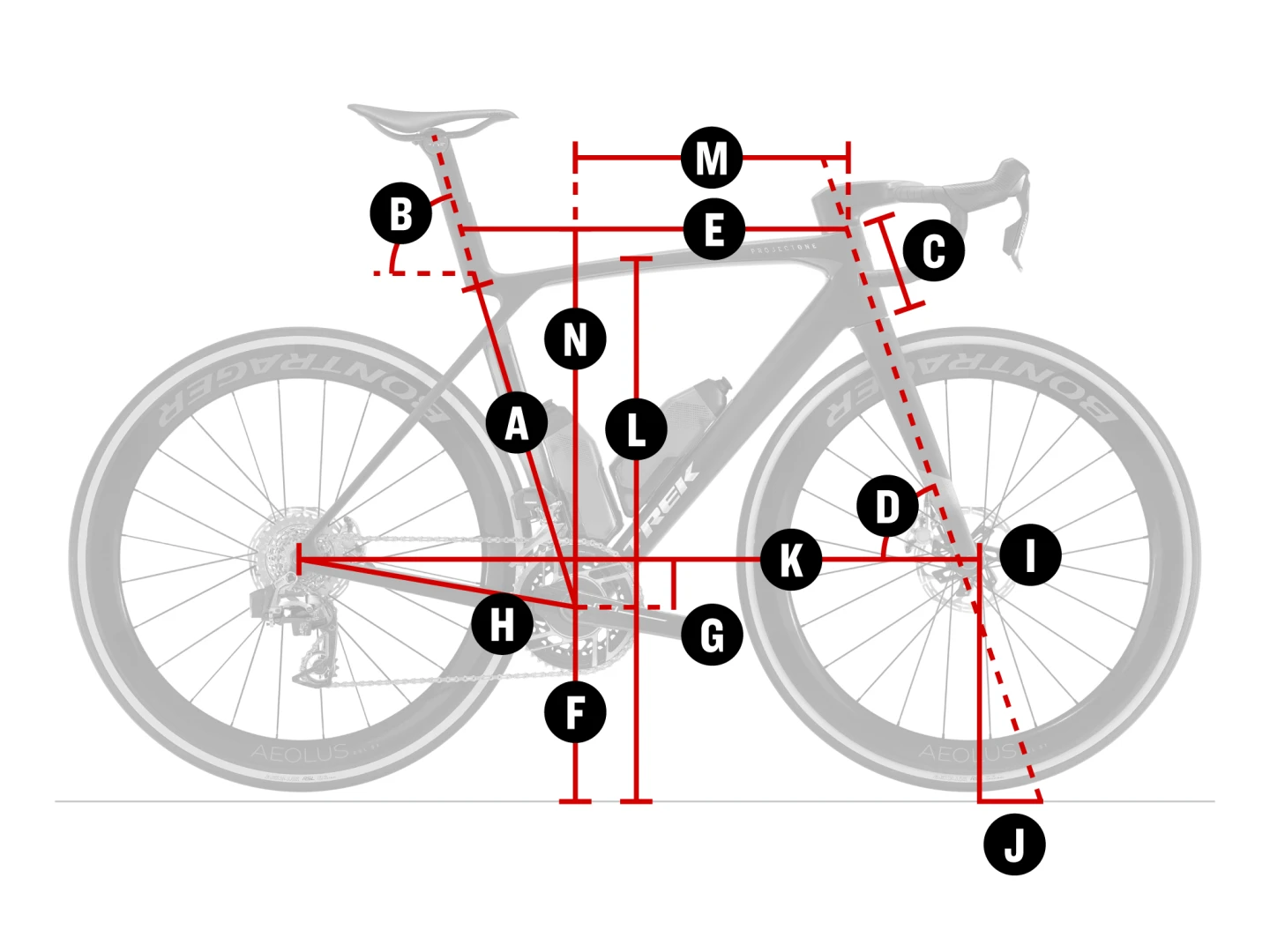

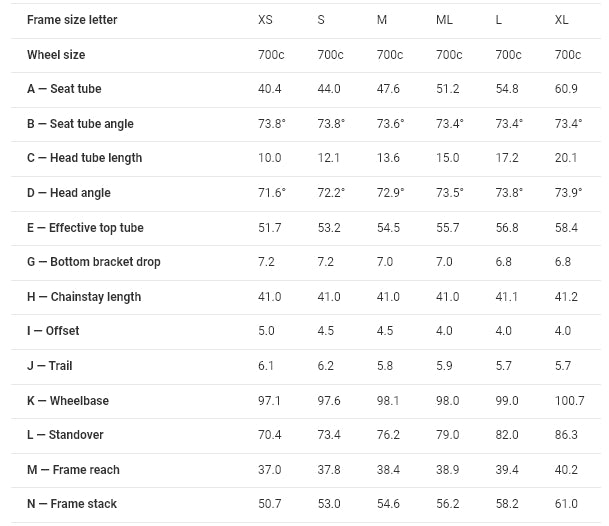

MADONE SL GEN 8

Size

Rider Height

Inseam

XS

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"

S

158 - 162 cm

5'2" - 5'4"

74 - 76 cm

29" - 30"

M

162 - 173 cm

5'4" - 5'8"

76 - 81 cm

30" - 32"

ML

173 - 179 cm

5'8" - 5'10"

81 - 84 cm

32" - 33"

L

179 - 188 cm

5'10" - 6'2"

84 - 88 cm

33" - 35"

XL

188 - 213 cm

6'2" - 7'0"

88 - 100 cm

35" - 39"

Variant

FRAMESET

Frame
: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork
: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle

WHEELS

Wheel front
: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
Wheel rear
: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Skewer front
: Bontrager Switch chamfered thru axle, removable lever
Skewer rear
: Bontrager Switch chamfered thru axle, removable lever
*Tyre
: Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm
Tyre part
: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
: 32 mm (as measured, see manual for details)

E-SYSTEM

Battery
: SRAM eTap battery pack (with charger)

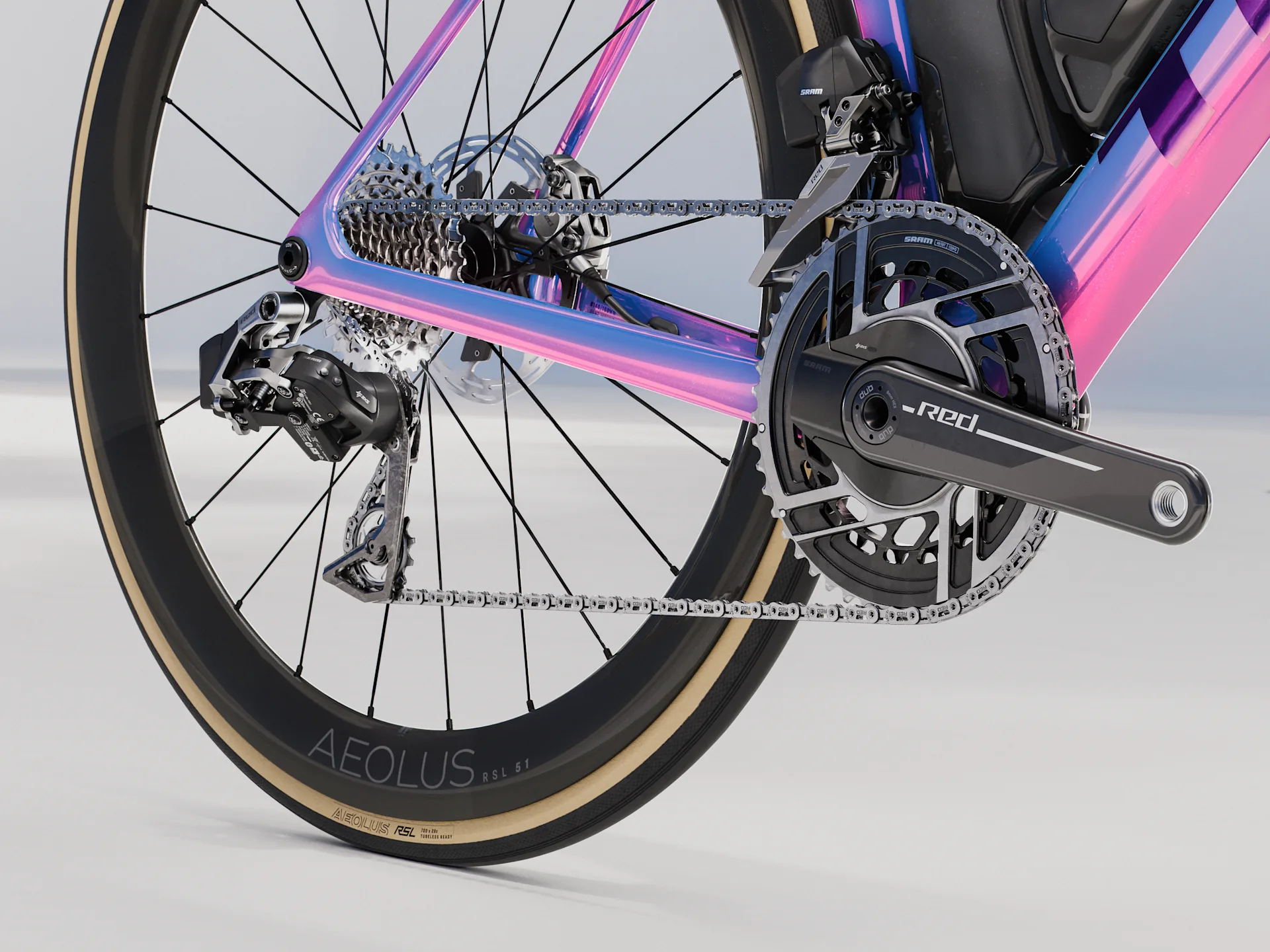

DRIVETRAIN

Shifter
: SRAM RED AXS E1
Front derailleur
: SRAM RED AXS E1, braze-on
Rear derailleur
: SRAM RED AXS E1, 36T max cog

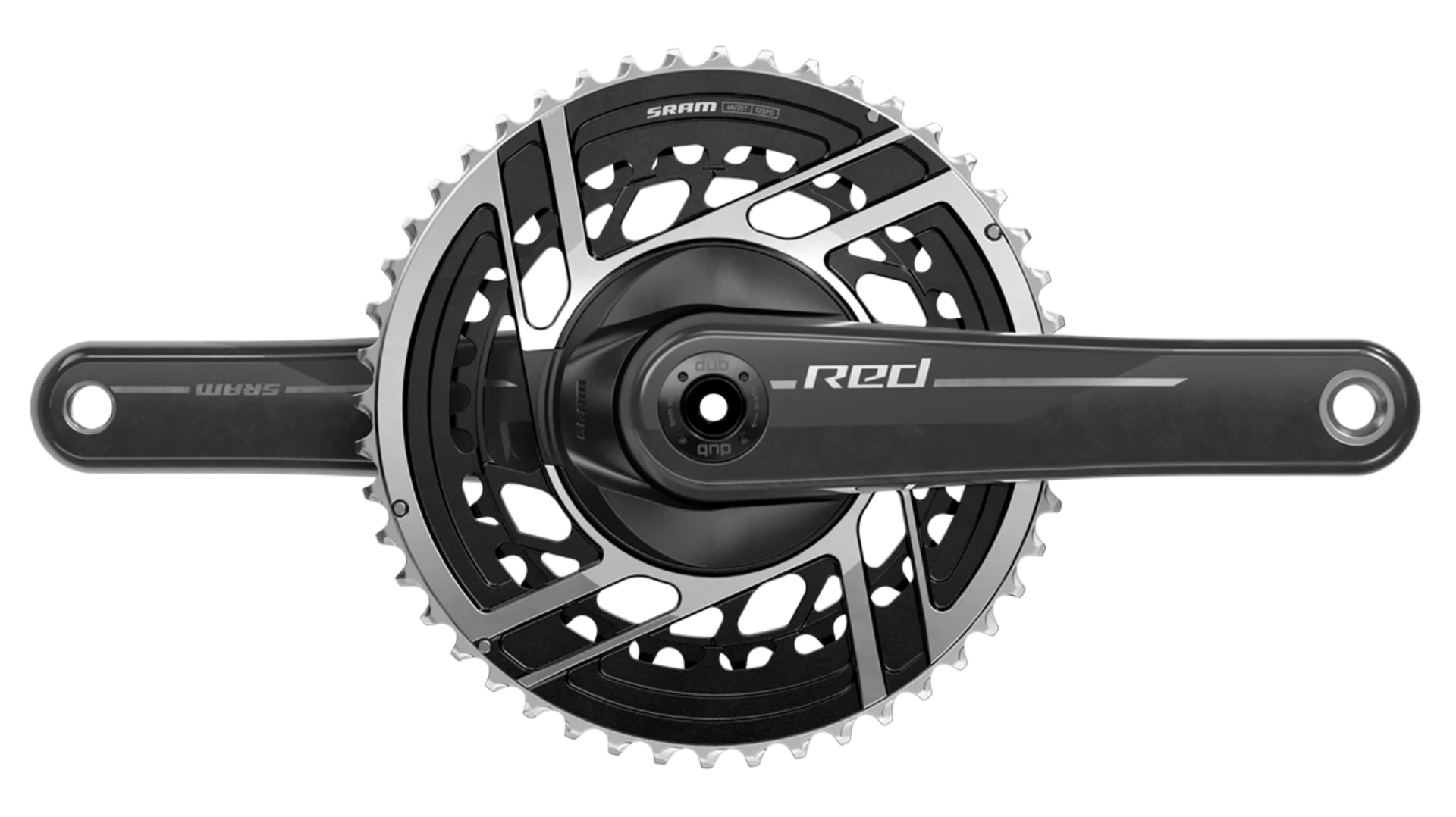

*Crank
: Size: XS, S
SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length
Size: M
SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length
Size: ML, L
SRAM RED AXS E1, power meter, 48/35, DUB, 172.5 mm length
Size: XL
SRAM RED AXS E1, power meter, 48/35, DUB, 175 mm length
Bottom bracket
: SRAM DUB, T47 threaded, internal bearing
Cassette
: SRAM RED XG-1290 E1, 10-33, 12-speed
Chain
: SRAM RED E1, 12-speed
Max. chainring size
: 1x: 54T, 2x: 56/43

COMPENENTS

*Saddle
: Size: XS, S
Aeolus RSL, carbon rails, 155 mm width
Size: M, ML, L, XL
Aeolus RSL, carbon rails, 145 mm width
*Seatpost
: Size: XS, S, M
Madone aero carbon seat post, 0 mm offset, short length
Size: ML, L, XL
Madone aero carbon seat post, 0 mm offset, long length
*Handlebar/stem
: (integrated) Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Rotor size
: Max brake rotor sizes: 180 mm front, 160 mm rear

WEIGHT

Weight
: ML - 7.00 kg / 15.44 lbs (with TLR sealant, no tubes, no bottles/cages)
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Why you'll love it

Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
It's crafted from our highest-level 900 Series OCLV carbon that's mind-bogglingly light, stiff where you need the power, and compliant where you crave comfort
Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
You get precision shifting in SRAM's lightest package ever with RED AXS E1 wireless drivetrain, plus an ultra-precise power meter to get more from training days
RSL Aero Bottles and Cages make the whole rider system faster to give you even more aerodynamic gains
New Blendr system on bar/stem makes it easy to add and remove a daytime running light

Our lightest Madone Disc ever

New light and fast aero tube shaping paired with our best 900 Series OCLV Carbon makes Gen 8 our lightest Madone Disc f/s ever and as light as the Émonda f/s.

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.  

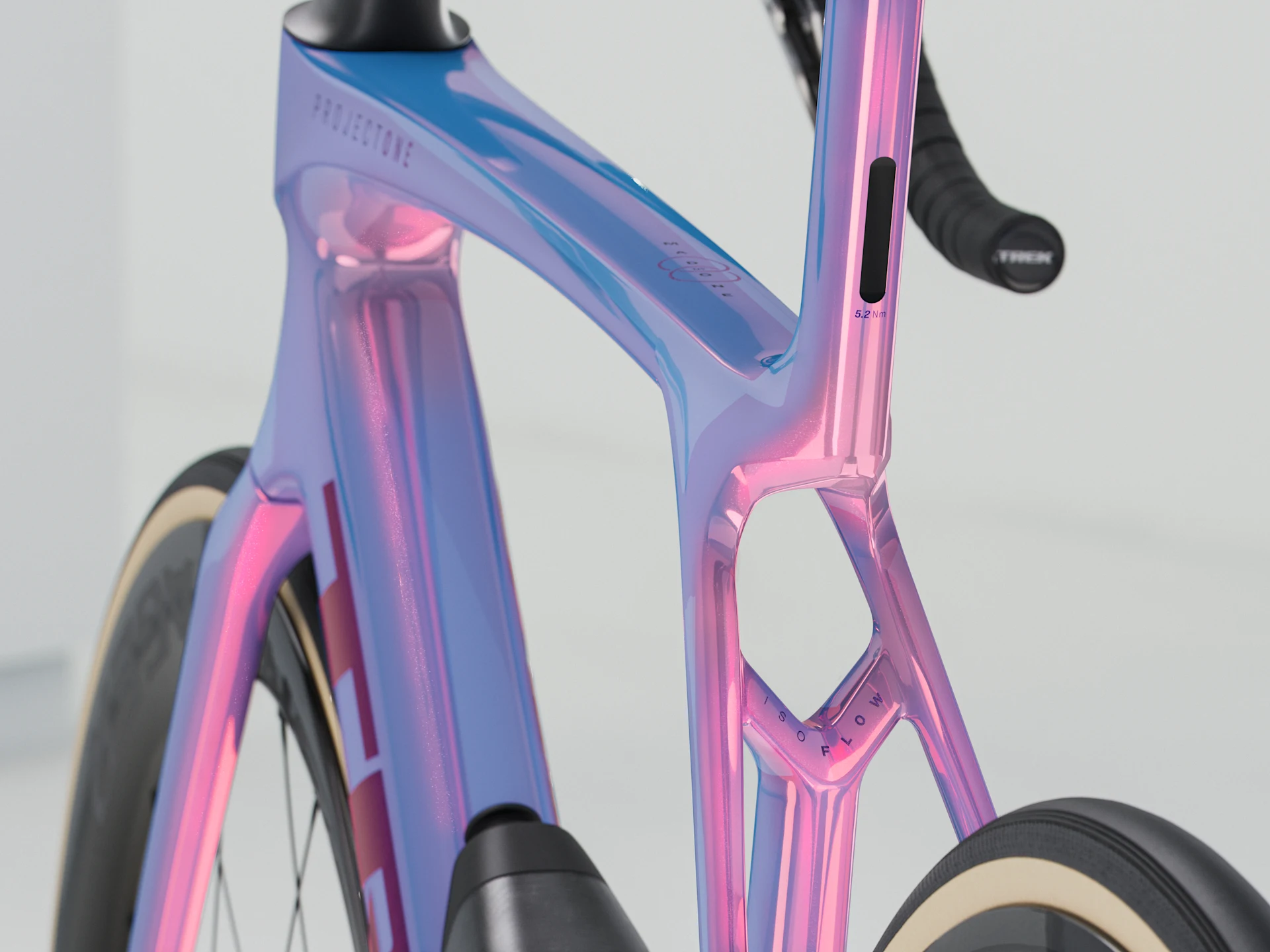

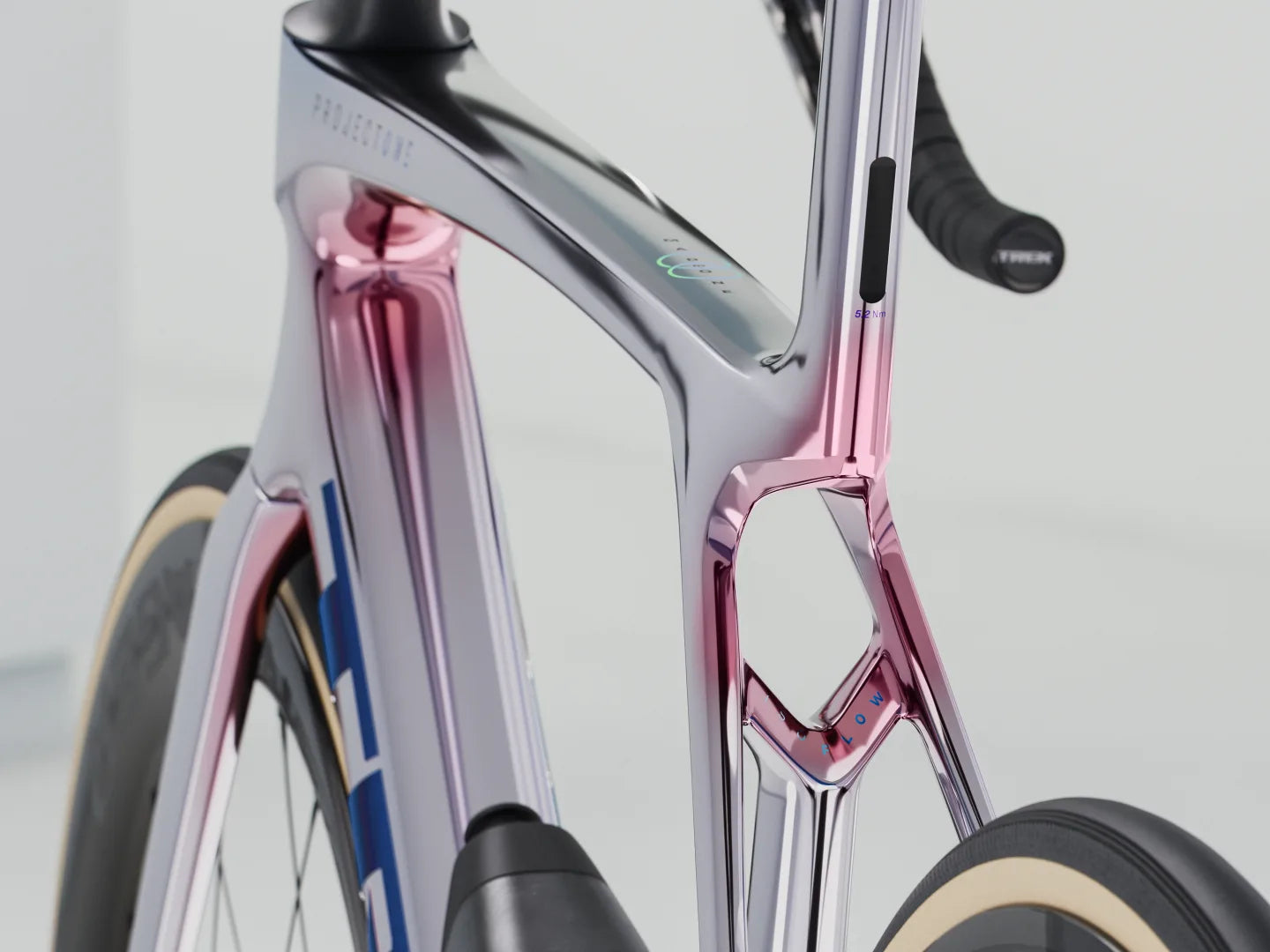

80% more vertically compliant IsoFlow

We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

Designed for the world’s best

Madone SLR Gen 8 is raced and loved by Lidl-Trek's fastest sprinters and climbers and the only bike they need for race day.

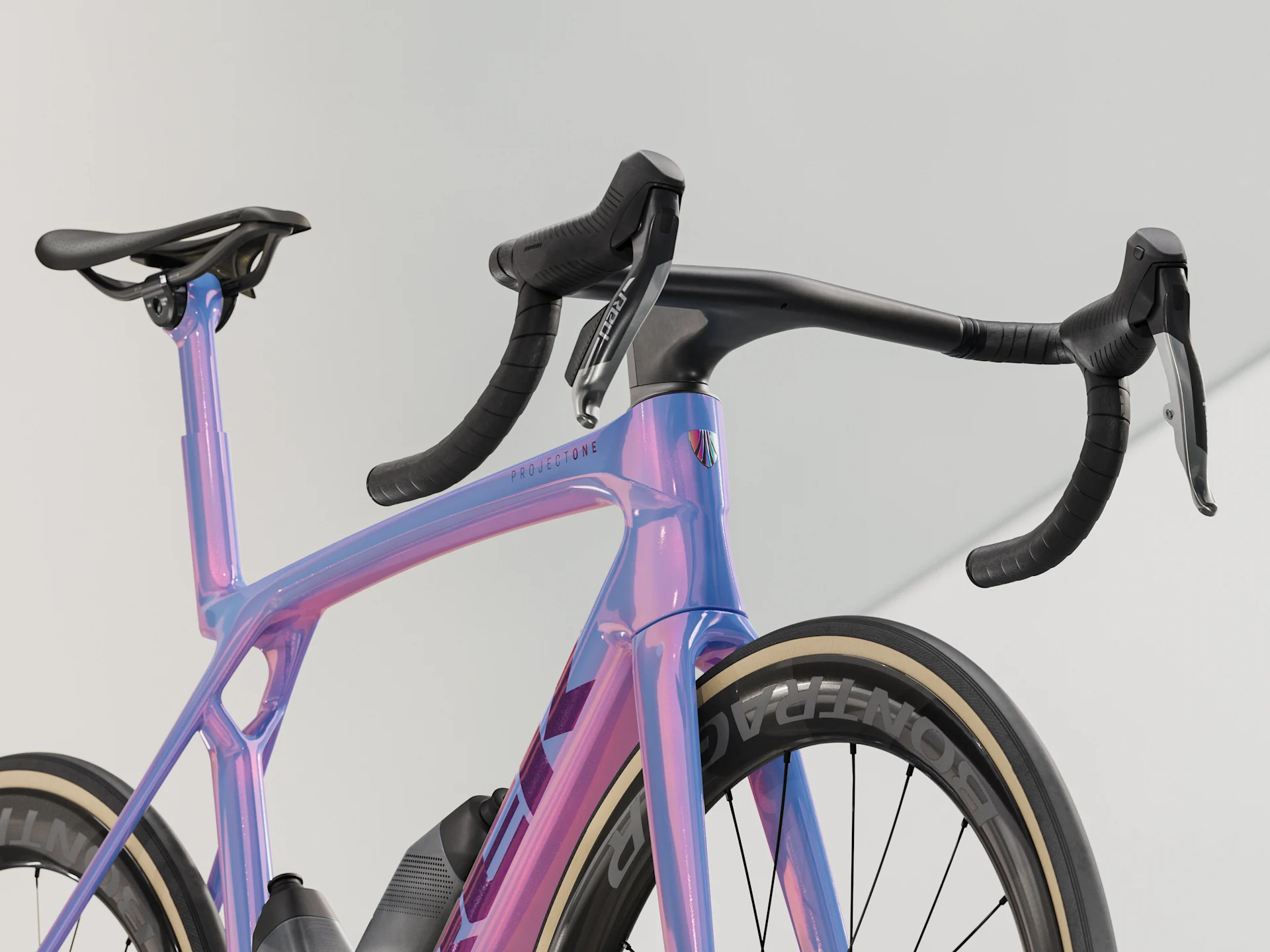

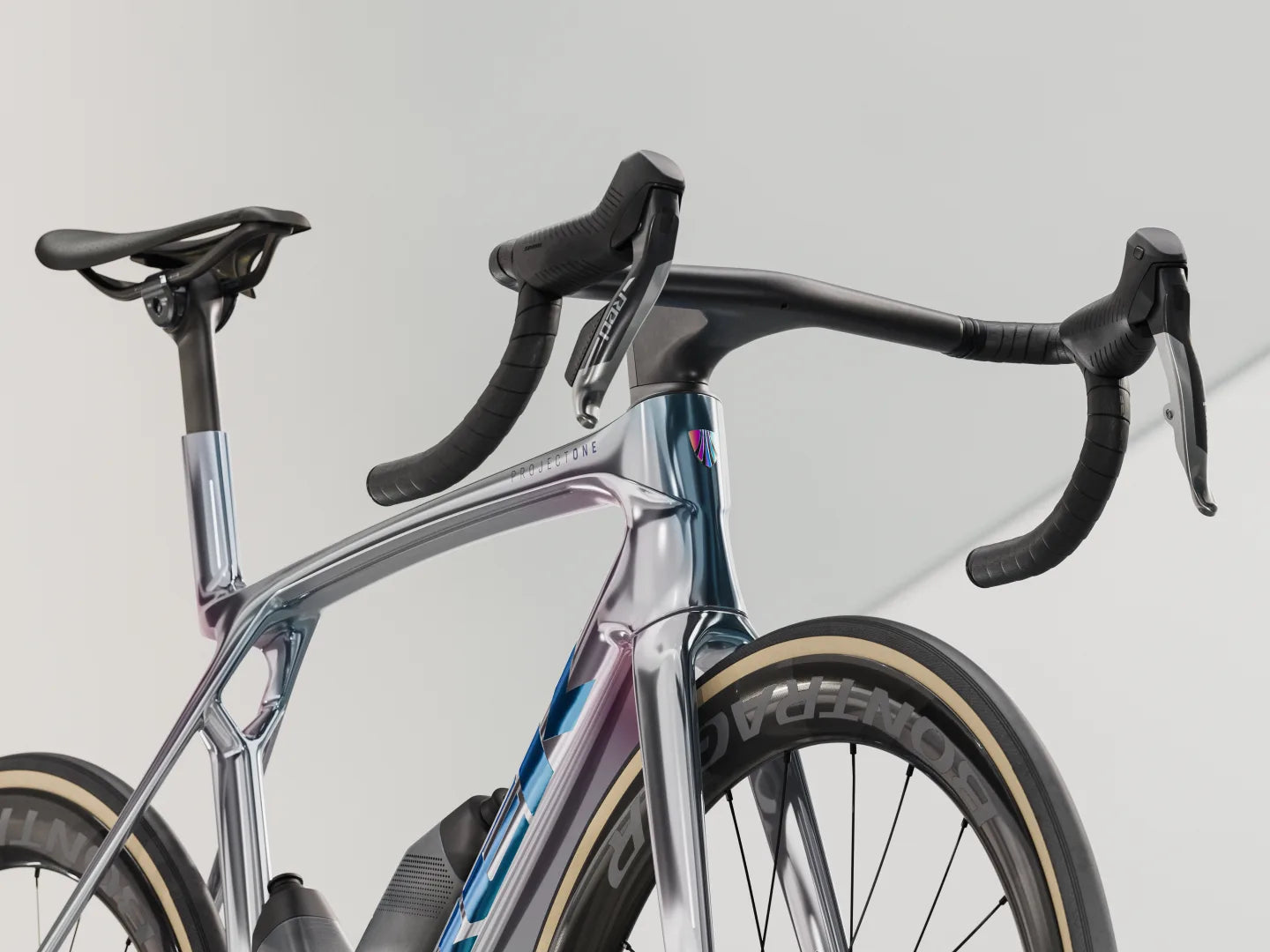

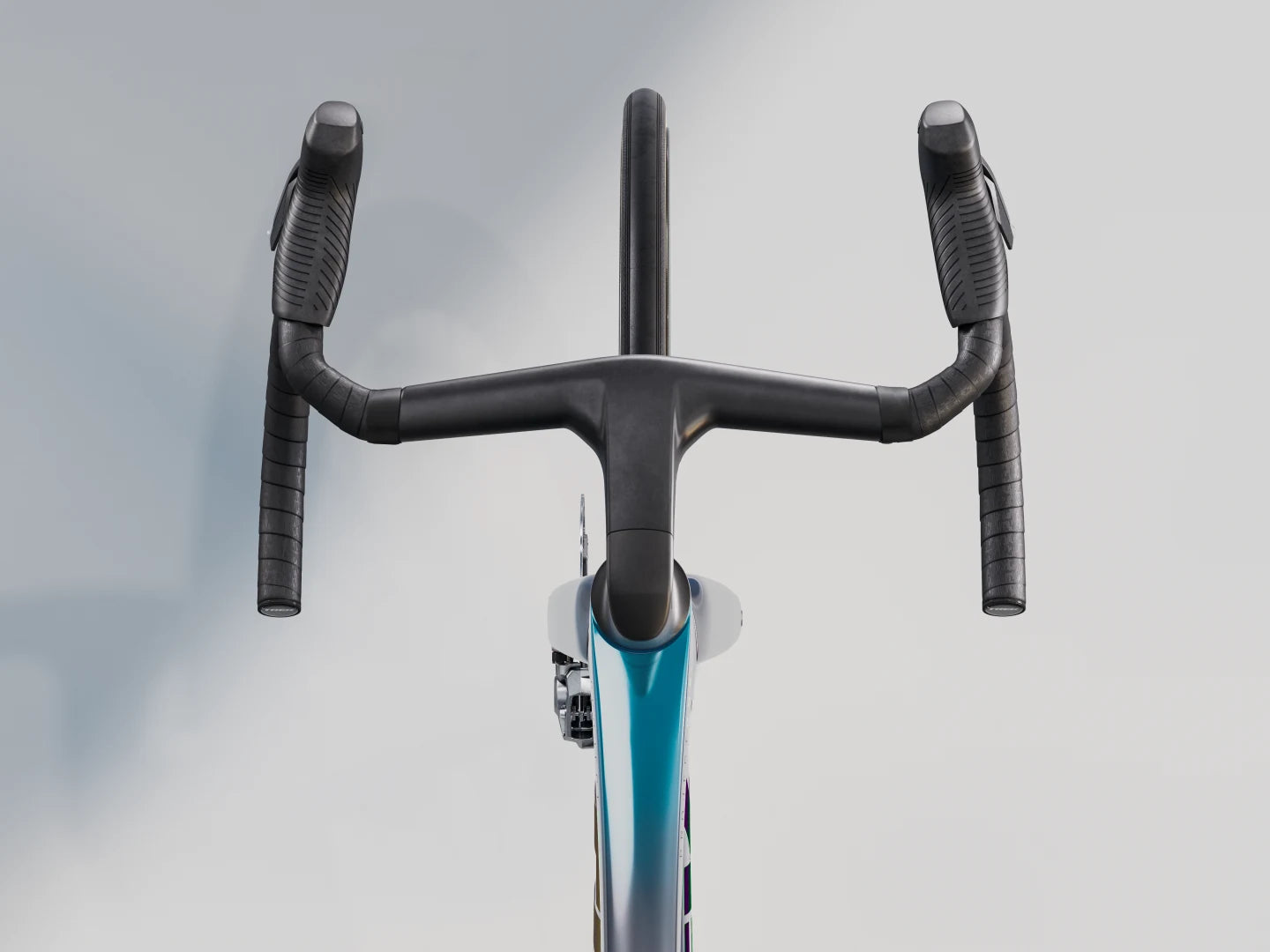

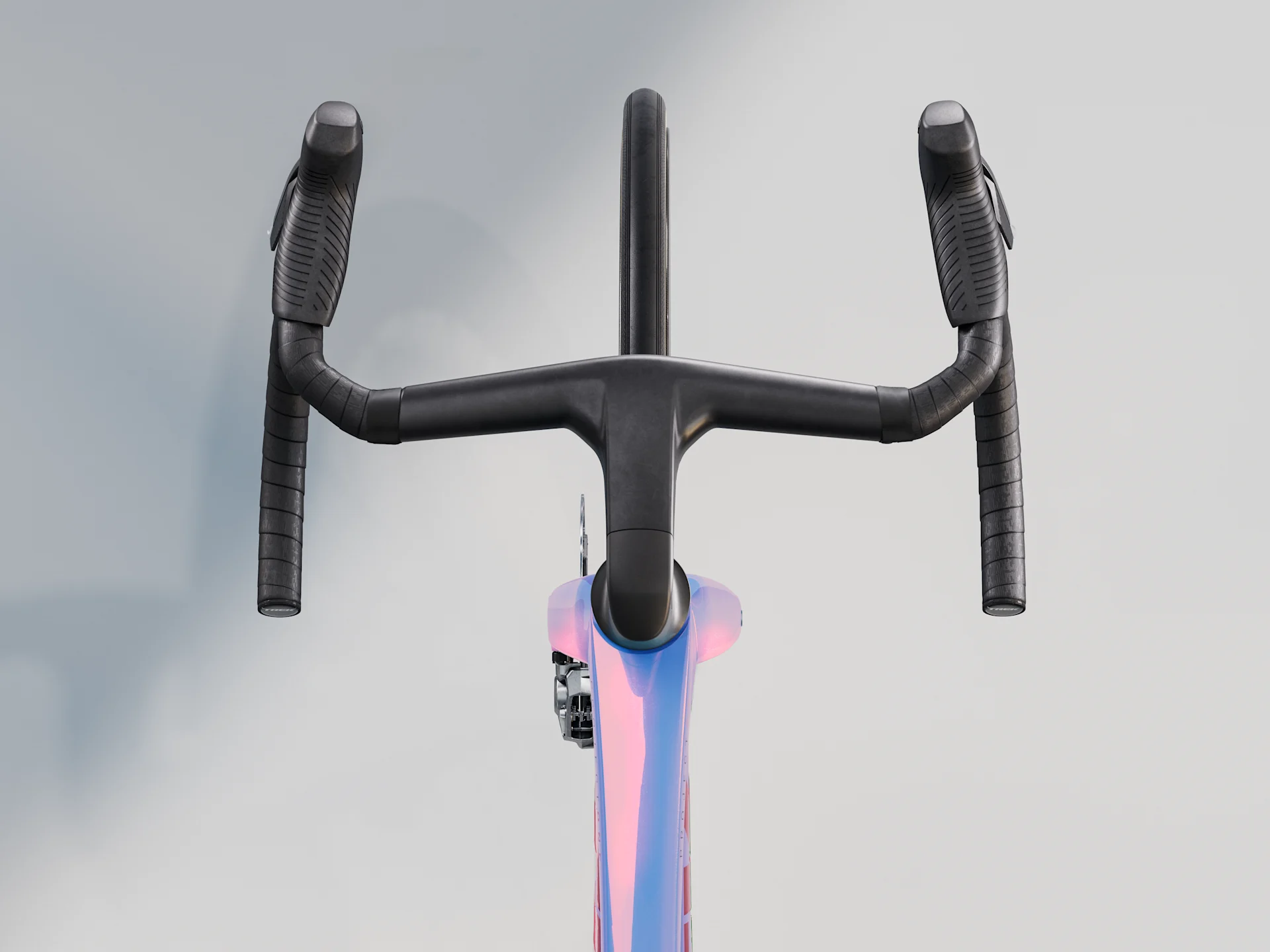

One-piece Aero RSL bar/stem

A new one-piece bar/stem is lighter, more aeryodynamic, and more ergonomic than the previous version. Plus, the hoods are 3cm narrower than the drops so you can adjust your positioning to prioritize aerodynamics (in the hoods) or power (in the drops).

RSL Aero Bottles and Cages

Included RSL Aero Bottles and Cages were specifically designed along with the whole rider system to help make Madone even faster.

Integrated power meter

This bike helps you get the most out of every ride with a SRAM power meter that measures your input and provides accurate data, allowing you to track your progress and tailor your training to crush your goals.

It's right for you if...

You eat, sleep, and breathe racing, and you want the best road race bike we've ever made. You're looking for a trifecta of aerodynamics, comfort, and lightweight in a single bike. You're willing to splurge for things that matter, like the top carbon layup, best component spec, and any detail that will give you the competitive edge for race day.

The tech you get

An insanely light frame made of our highest-level 900 Series OCLV Carbon with aero tubing, IsoFlow comfort technology, and RSL Aero Bottles and Cages that save watts. SRAM's latest RED AXS E1 ultra-light drivetrain and power meter for training with data. A universal derailleur hanger so you can get a replacement anywhere. Plus, it's topped off with Bontrager Aeolus RSL 51 tubeless carbon wheels and a Trek Aero RSL one-piece bar/stem.

The final word

Madone SLR 9 AXS Gen 8 is our lightest, most aero, top-performing Madone that's ready to deliver superbike performance absolutely everywhere. It's crafted with a supremely light 900 Series OCLV Carbon frame for rocketing up climbs, aero tube shaping for slicing through windy descents, and IsoFlow comfort tech to keep you feeling good through it all. It's speced with the top components and doesn't make any compromises.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

ขอสงวนสิทธิ์ในการเปลี่ยนแปลงแก้ไข ข้อมูลรายละเอียดของสินค้า อุปกรณ์ สเปคสินค้า โมเดล สี และวัสดุ บนเว็บไซท์นี้ ซึ่งอ้างอิงจากเว็บไซท์และโรงงานผู้ผลิตต้นทาง และรายละเอียดของราคา ซึ่งอาจมีการเปลี่ยนแปลงได้ตลอดเวลาโดยไม่ต้องแจ้งล่วงหน้า และหากเกิดข้อผิดพลาดจากการลงข้อมูลบนเว็บไซท์นี้ ให้อ้างอิงสเปคสินค้าจริงและเว็บไซท์ของผู้ผลิตต้นทาง รวมถึงข้อมูลราคาอัพเดทของบริษัท โปรไบค์ จำกัด เท่านั้น

น้ำหนักของจักรยานและเฟรมอ้างอิงจากขั้นตอนก่อนทำสีเฟรมในขั้นตอนผลิตจริง ซึ่งน้ำหนักจะเปลี่ยนแปลงไปหลังการผลิตเสร็จสิ้น
