TREK
SKU: 5320359

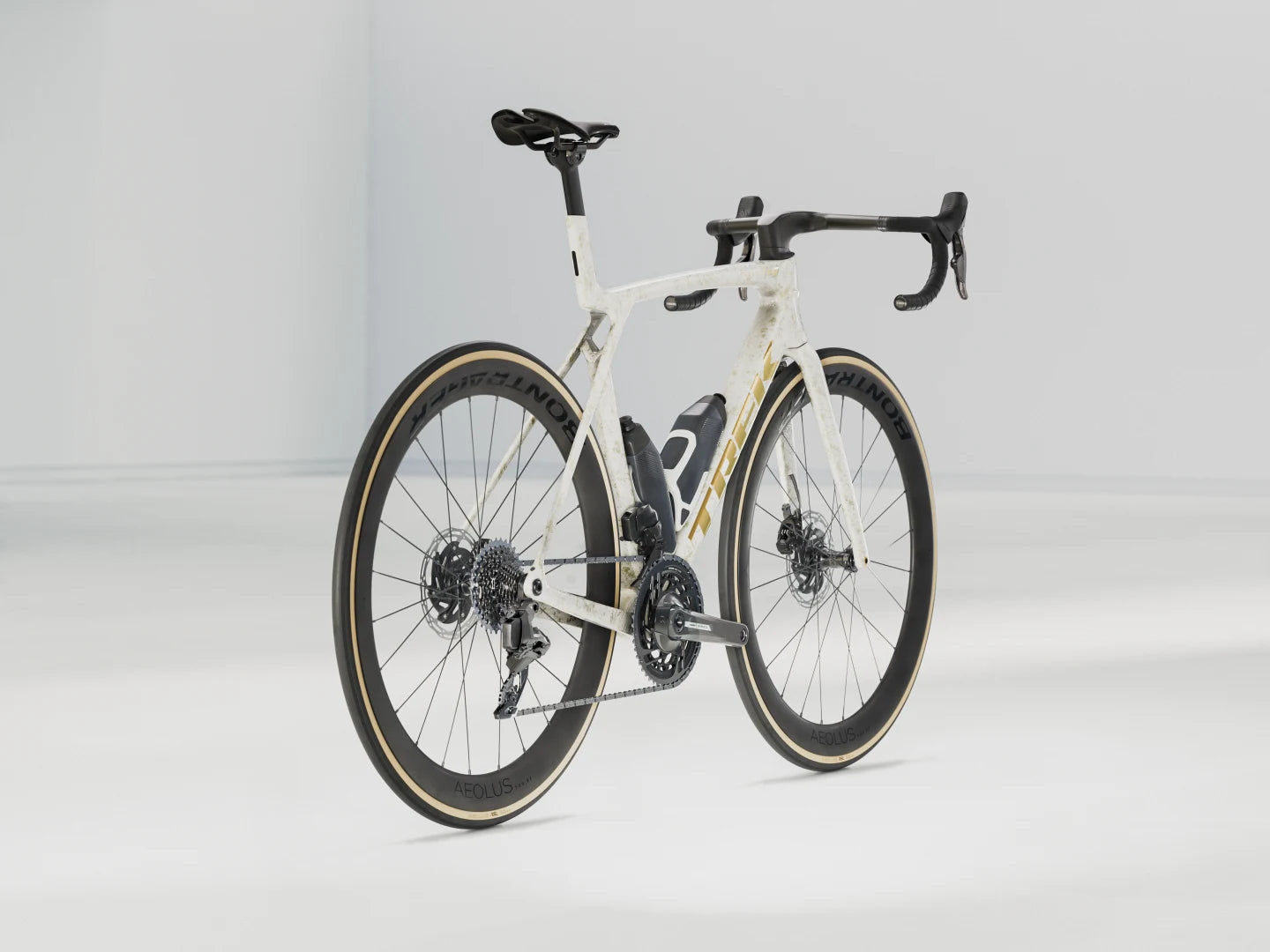

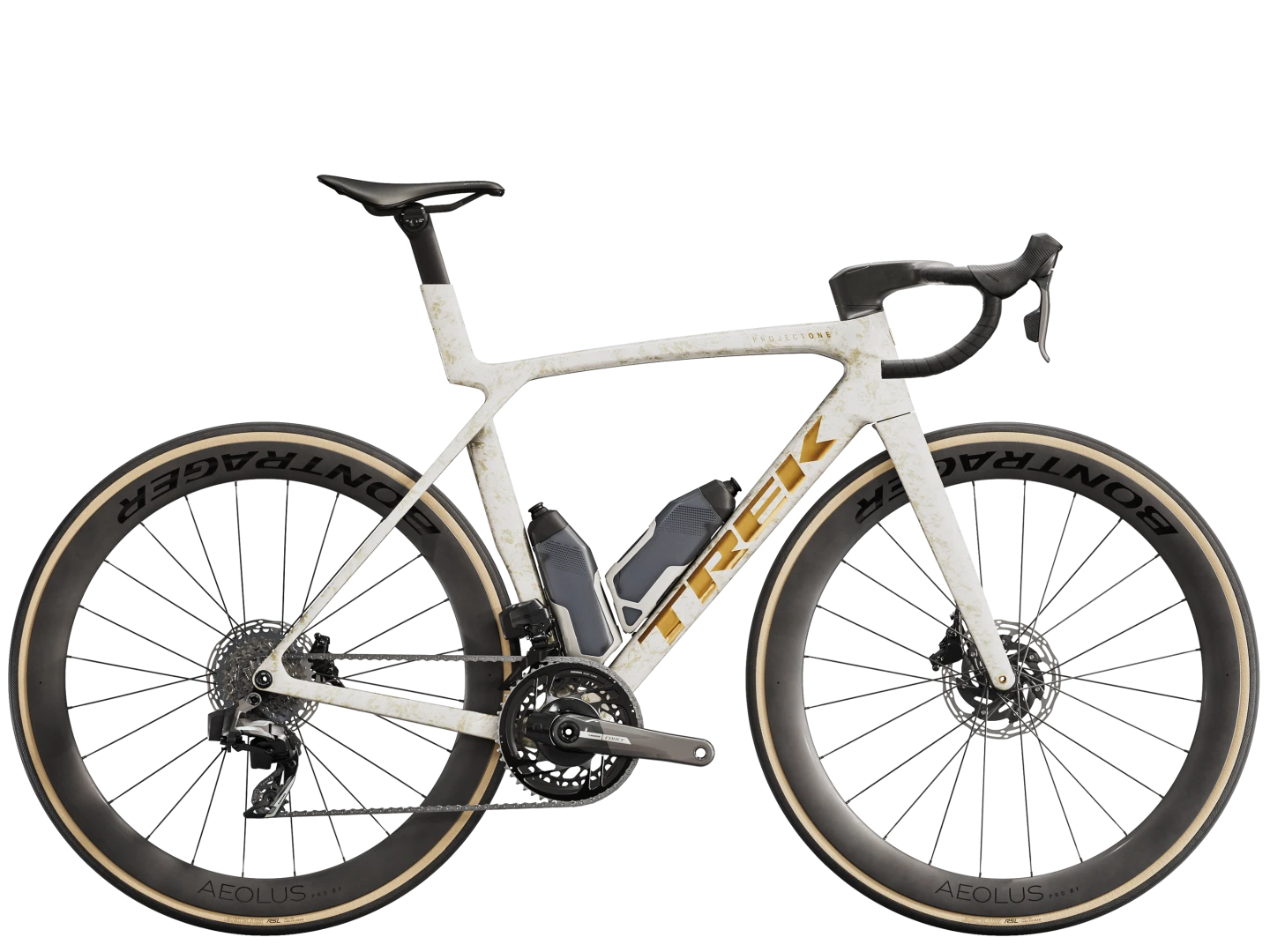

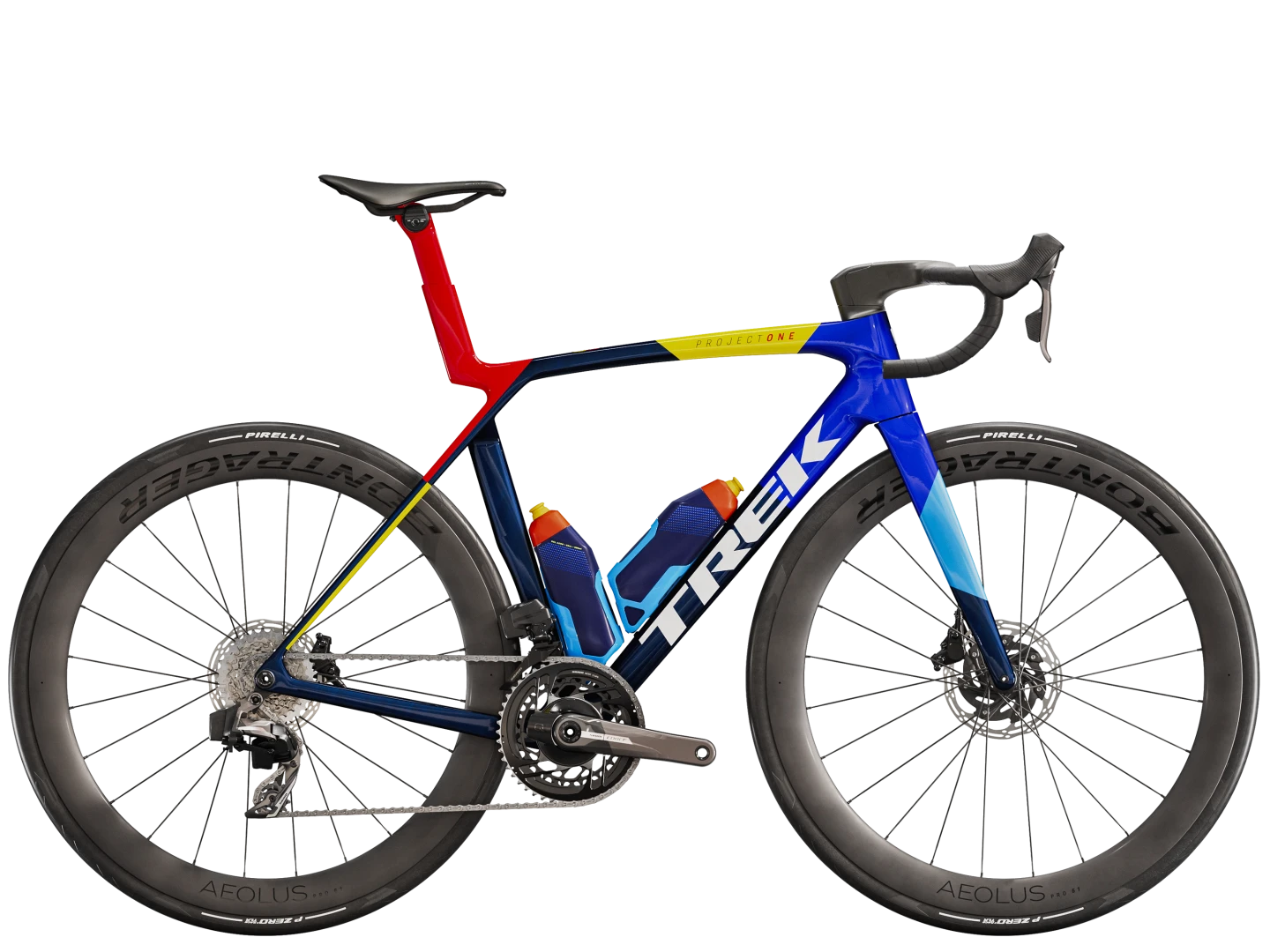

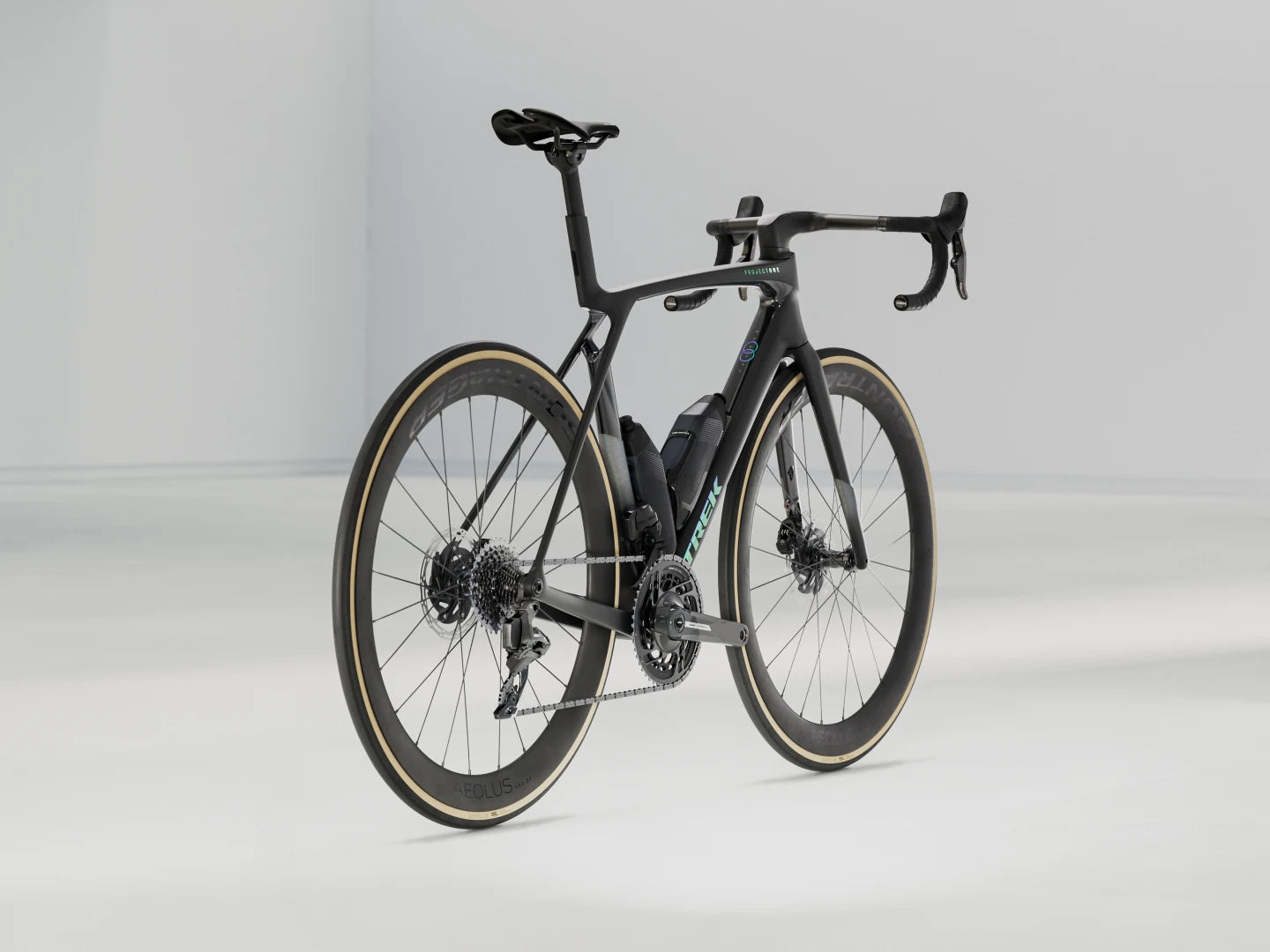

TREK MADONE SLR 7 AXS GEN 8

Sale price349,900 ฿
Color: ERA WHITE
SIZE: XS

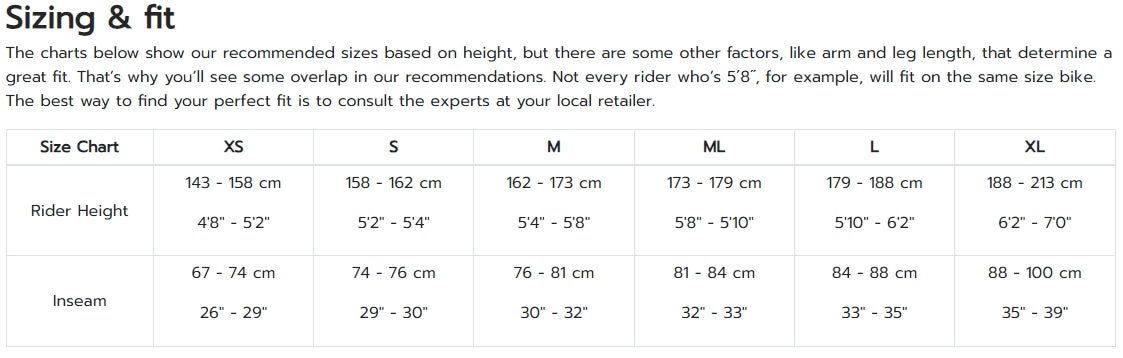

madone gen8 size chart
Size Chart XS S M ML L XL
Rider Height

143 - 158 cm

4'8" - 5'2"

158 - 162 cm

5'2" - 5'4"

162 - 173 cm

5'4" - 5'8"

173 - 179 cm

5'8" - 5'10"

179 - 188 cm

5'10" - 6'2"

188 - 213 cm

6'2" - 7'0"
Inseam

67 - 74 cm

26" - 29"

74 - 76 cm

29" - 30"

76 - 81 cm

30" - 32"

81 - 84 cm

32" - 33"

84 - 88 cm

33" - 35"

88 - 100 cm

35" - 39"
0.0

Model 5320285

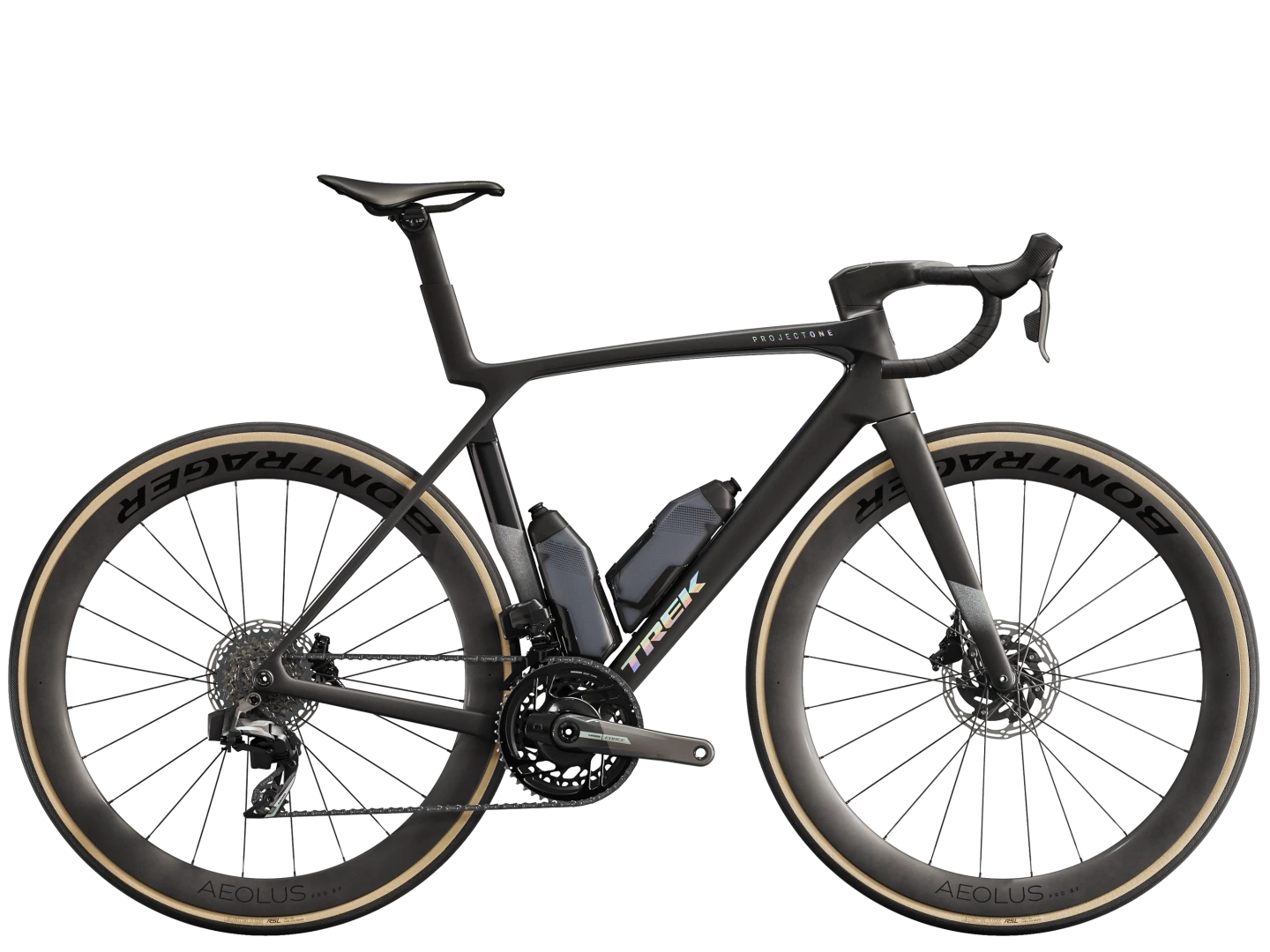

Madone SLR 7 AXS Gen 8 is an ultra-aero and featherlight road bike that's built to race. Its 900 Series OCLV Carbon frame is not only aerodynamic, but also ultra-light for flying up climbs. Lightweight IsoFlow frame technology means that Madone doesn't sacrifice comfort for speed. To give you every aero advantage, Madone SLR comes with RSL Aero Bottles and Cages that further reduce drag. This build comes ready to win with a SRAM Force AXS D2 drivetrain with a power meter, carbon wheels, and a Trek Aero RSL one-piece carbon bar/stem.

Frameset

Frame

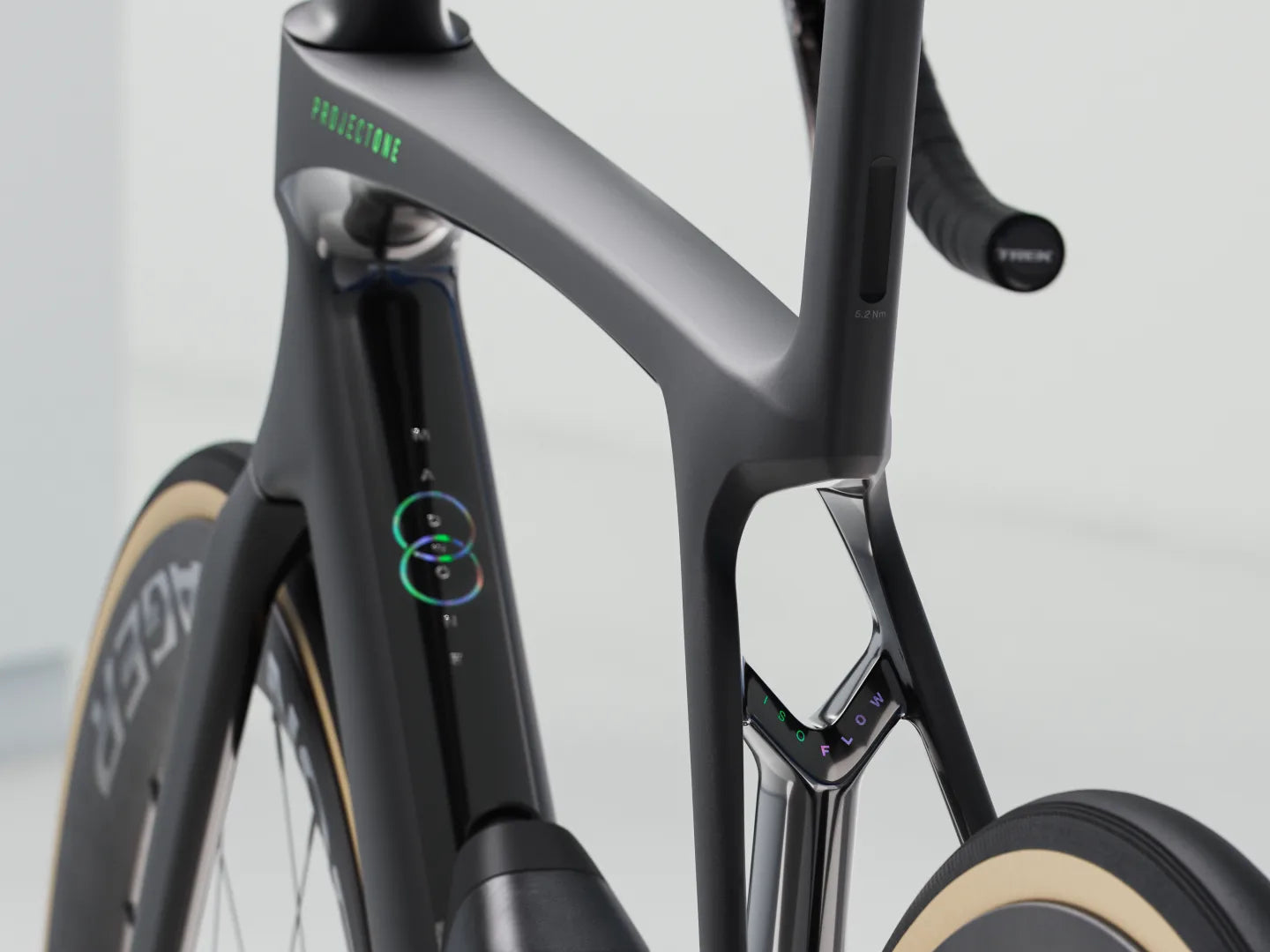

: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork
: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Wheels

Wheel front
: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear
: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front
: Bontrager Switch chamfered thru axle, removable lever
Skewer rear
: Bontrager Switch chamfered thru axle, removable lever
Rim
: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless-Ready
Tyre
: Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm
Tyre part
: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size 32 mm
: (as measured, see manual for details)

E-system

Battery
: SRAM eTap battery pack (with charger)

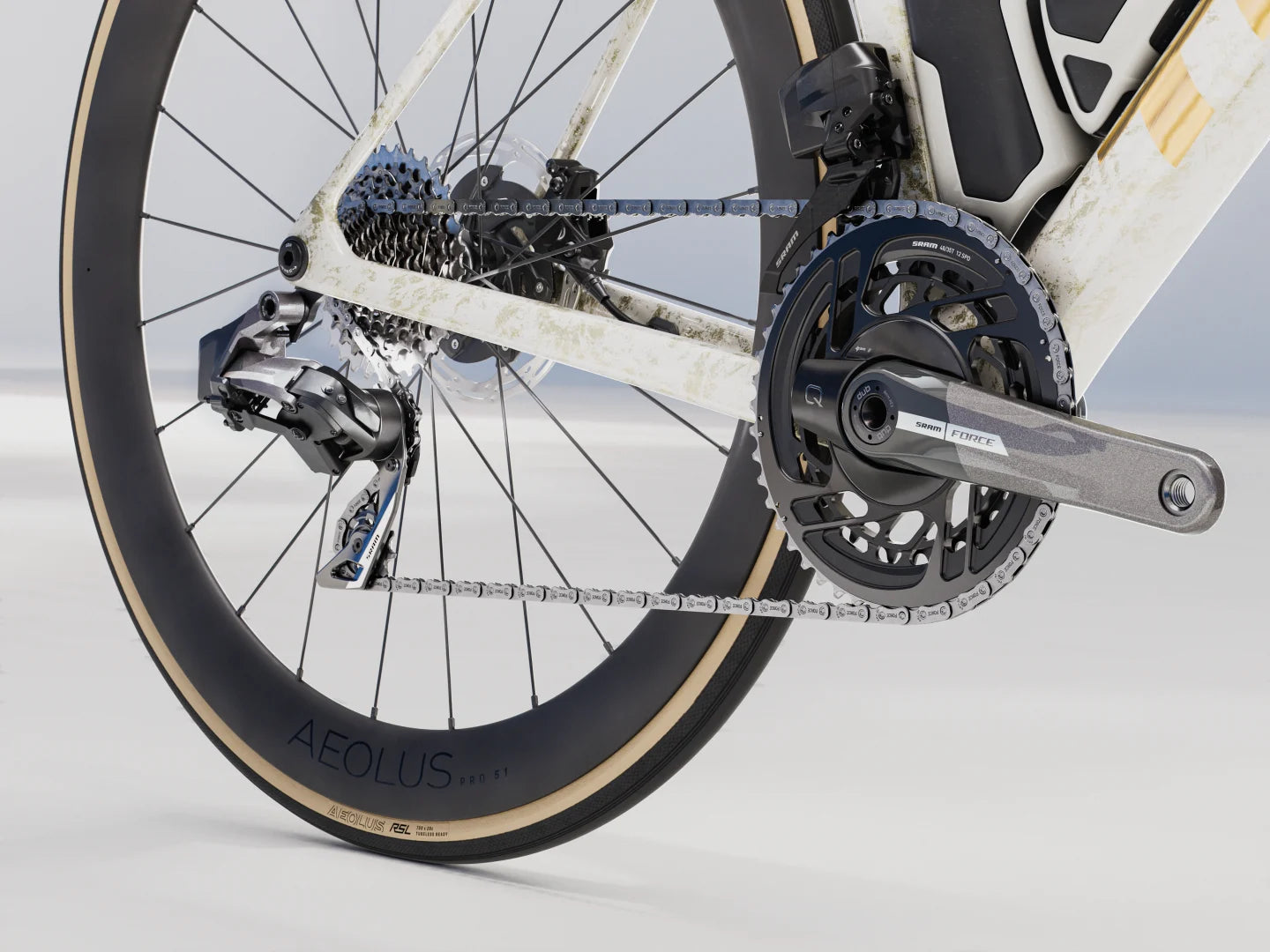

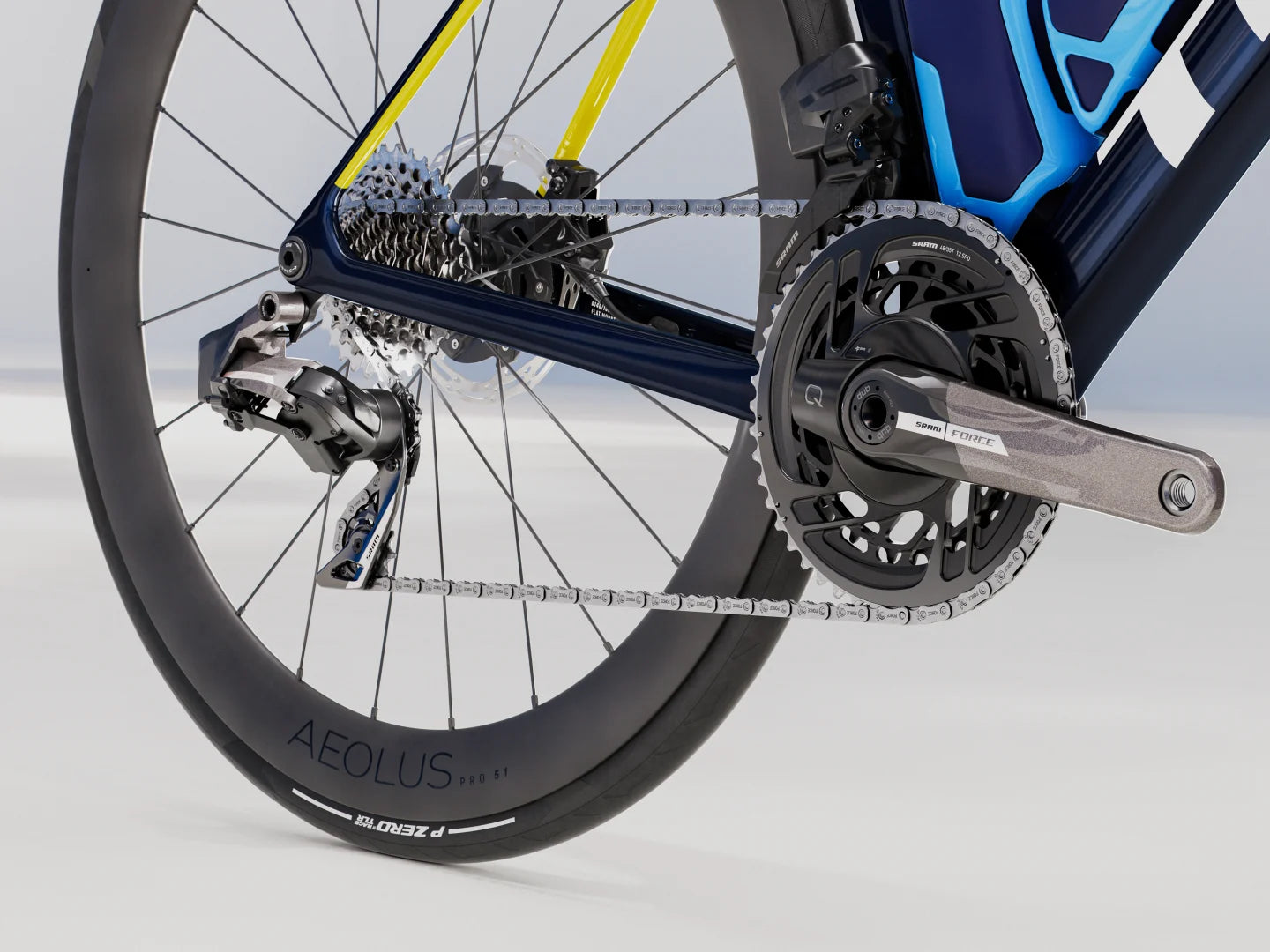

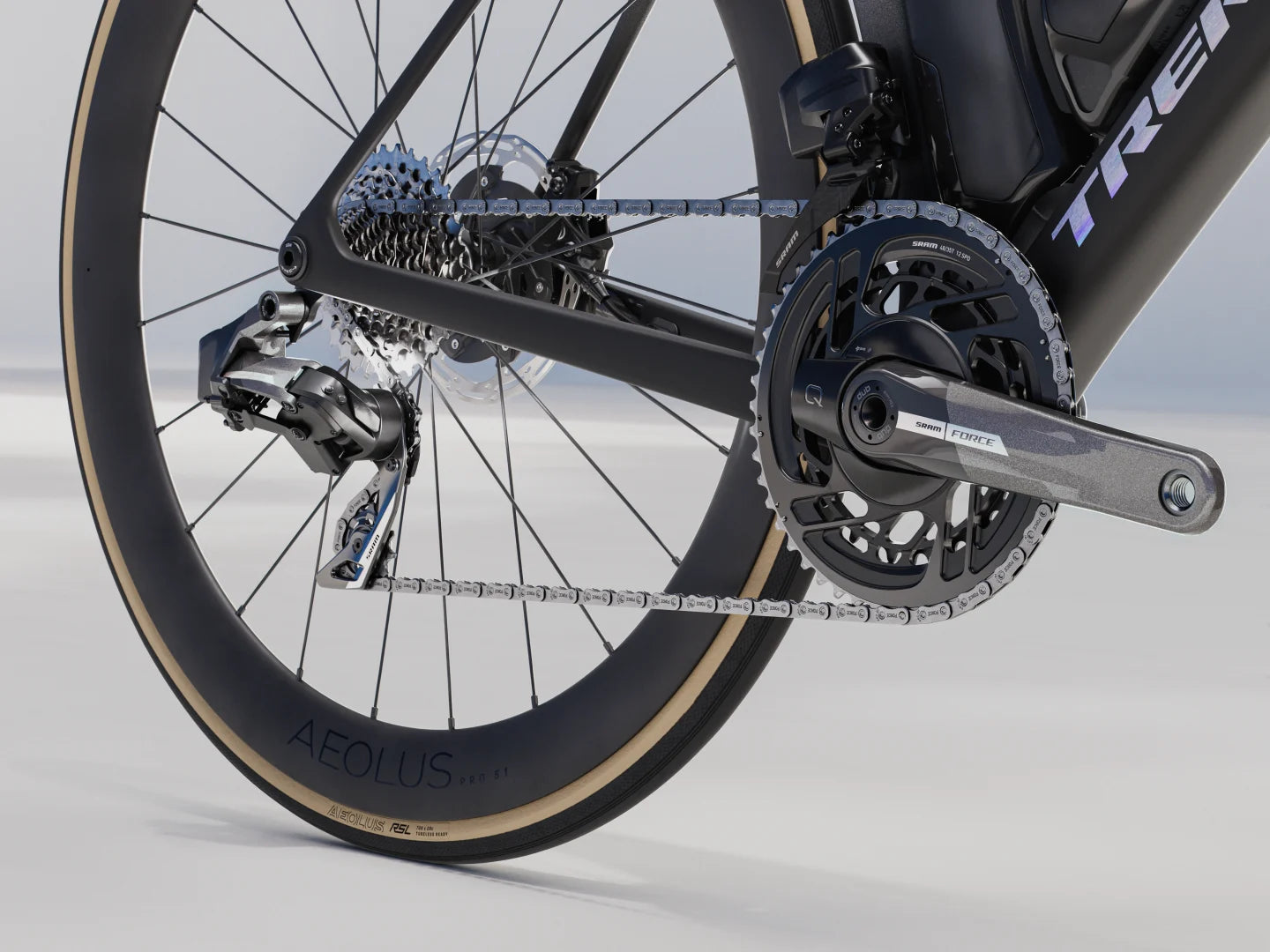

Drivetrain

Shifter
: SRAM Force AXS D2, 12-speed
Front derailleur
: SRAM Force AXS D2, braze-on
Rear derailleur
: SRAM Force AXS D2, 36T max cog
*Crank
: Size: XS, S
SRAM Force AXS D2, power meter, 48/35, DUB, 165 mm length
Size: M
SRAM Force AXS D2, power meter, 48/35, DUB, 170 mm length
Size: ML, L
SRAM Force AXS D2, power meter, 48/35, DUB, 172.5 mm length
Size: XL
SRAM Force AXS D2, power meter, 48/35, DUB, 175 mm length
Bottom bracket
: SRAM DUB, T47 threaded, internal bearing
Cassette
: SRAM Force XG-1270, 10-33, 12 speed
Chain
: SRAM Force, 12-speed
Max. chainring size
: 1x: 54T, 2x: 56/43

Components

*Saddle
: Size: XS, S
Bontrager Aeolus P2 Pro, carbon rails, 155 mm width
Size: M, ML, L, XL
Bontrager Aeolus Pro, carbon rails, 145 mm width
*Seatpost
: Size: XS, S, M
Madone aero carbon seat post, 0 mm offset, short length
Size: ML, L, XL
Madone aero carbon seat post, 0 mm offset, long length
*Handlebar/stem
: (integrated) Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Brake rotor
: SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size
: Max brake rotor sizes: 180 mm front, 160 mm rear

Weight

Weight
: ML - 7.43 kg / 16.39 lbs (with TLR sealant, no tubes, no bottles/cages)
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

 Why you'll love it

  1. The Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimise aerodynamics around the whole bike
  2. It's crafted from our highest-level 900 Series OCLV carbon, which is mind-bogglingly light and stiff where you need the power, and compliant where you crave comfort
  3. Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
  4. You get lightning-fast precision shifts that are fully customisable thanks to Shimano's Ultegra Di2 drivetrain
  5. RSL Aero Bottles and Cages make the whole rider system faster to give you even more aerodynamic gains
  6. A new Blendr system on the bar/stem makes it easy to add and remove a daytime running light

Made for Madone Gen 8, faster everywhere

While the RSL Aero Bottle and Cage was made for Madone, if offers meaningful aero watt savings on every race bike we tested.

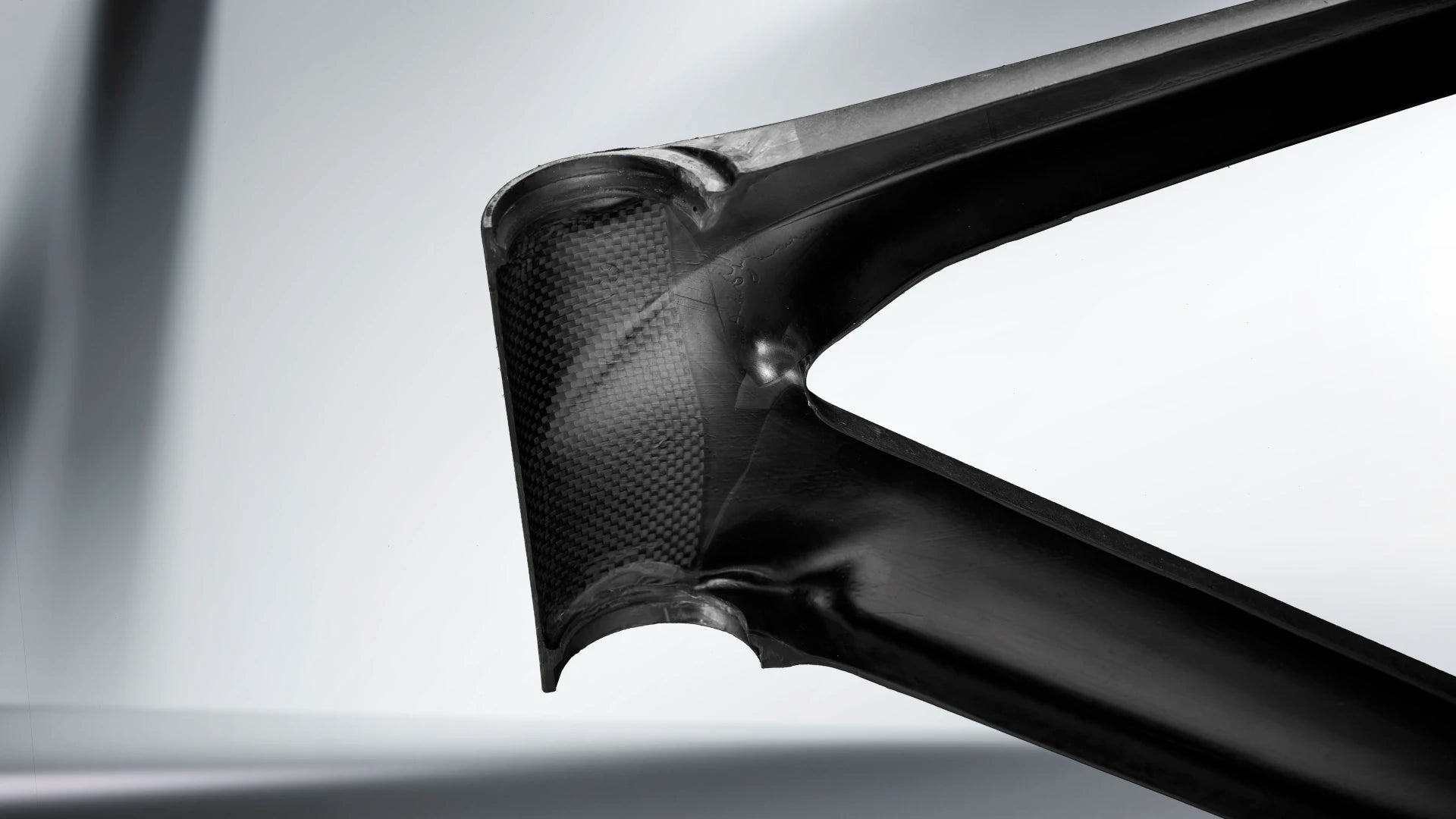

Our lightest Madone Disc ever

New light and fast aero tube shaping paired with our best 900 Series OCLV Carbon makes Gen 8 our lightest Madone Disc f/s ever and as light as the Émonda f/s.

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.



Designed for the world’s best

Madone SLR Gen 8 is raced and loved by Lidl-Trek's fastest sprinters and climbers and the only bike they need for race day.

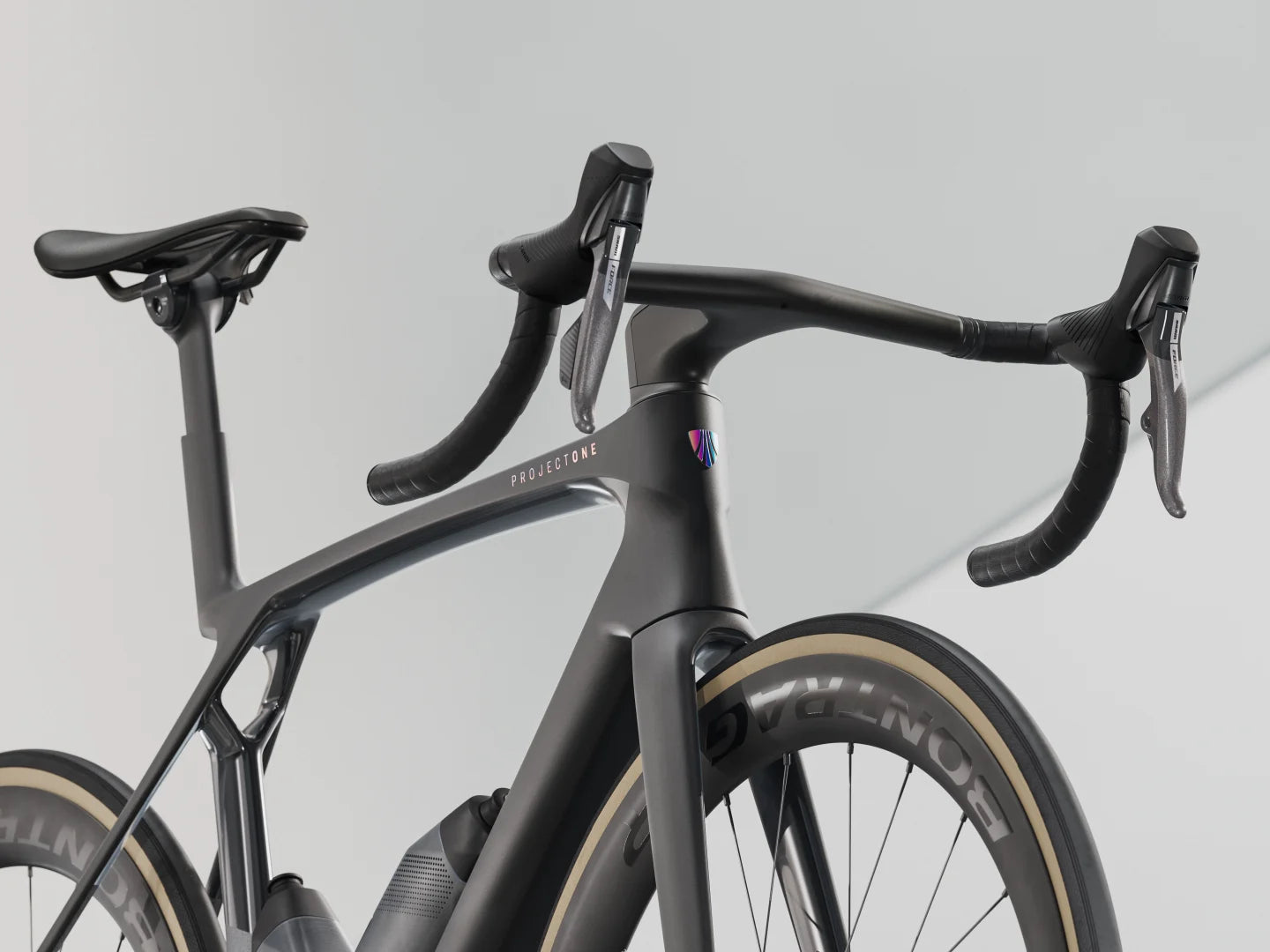

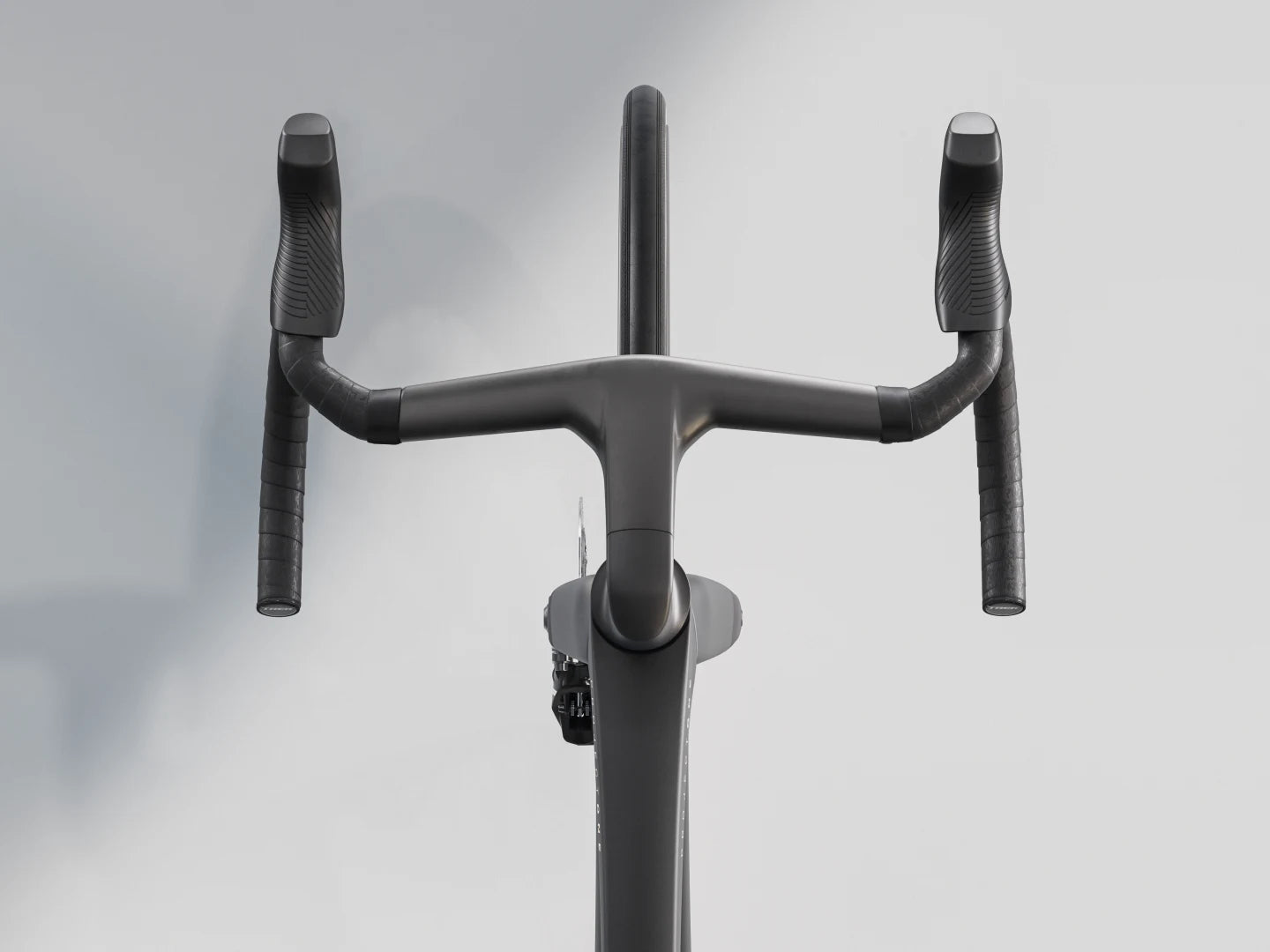

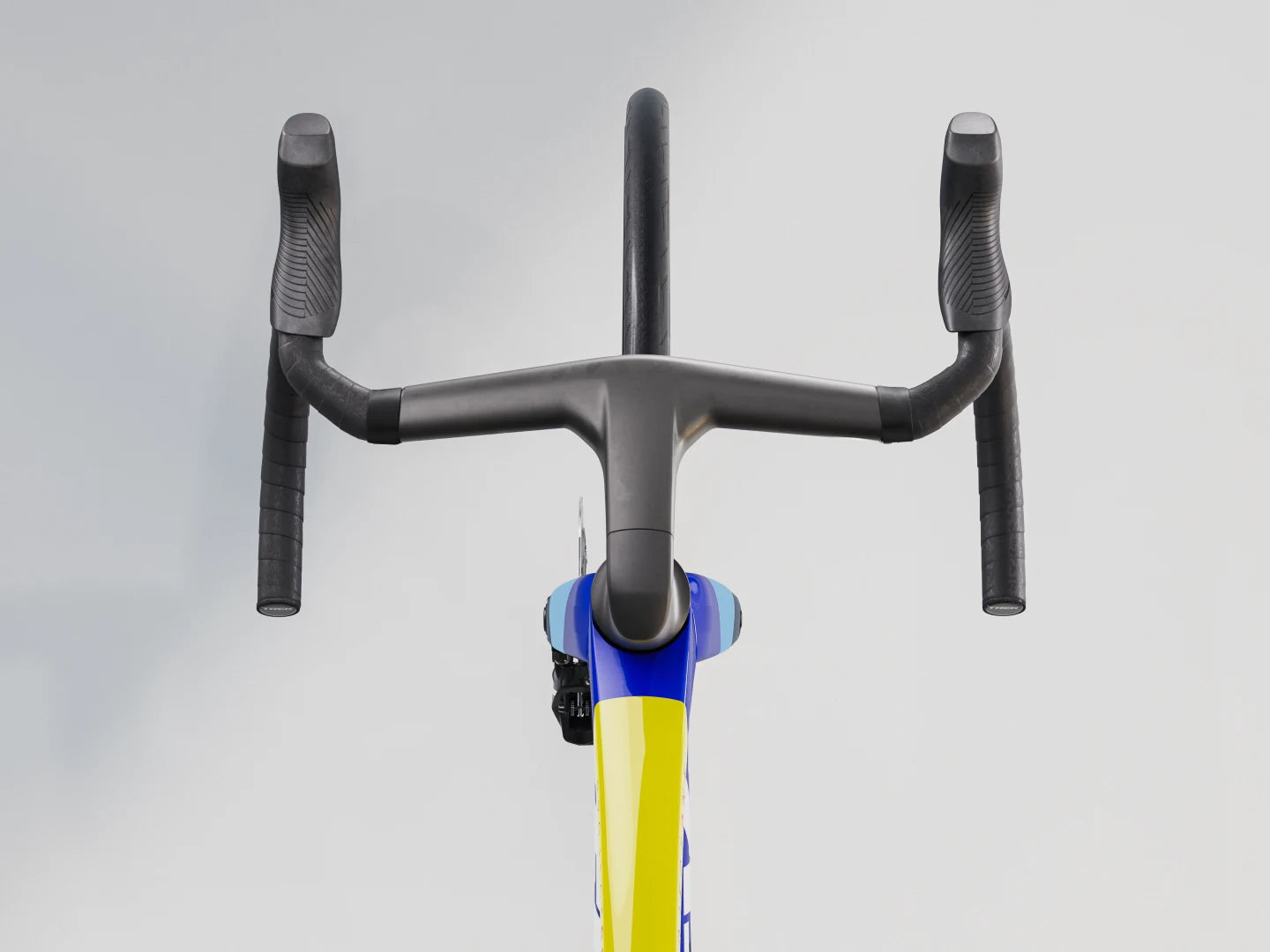

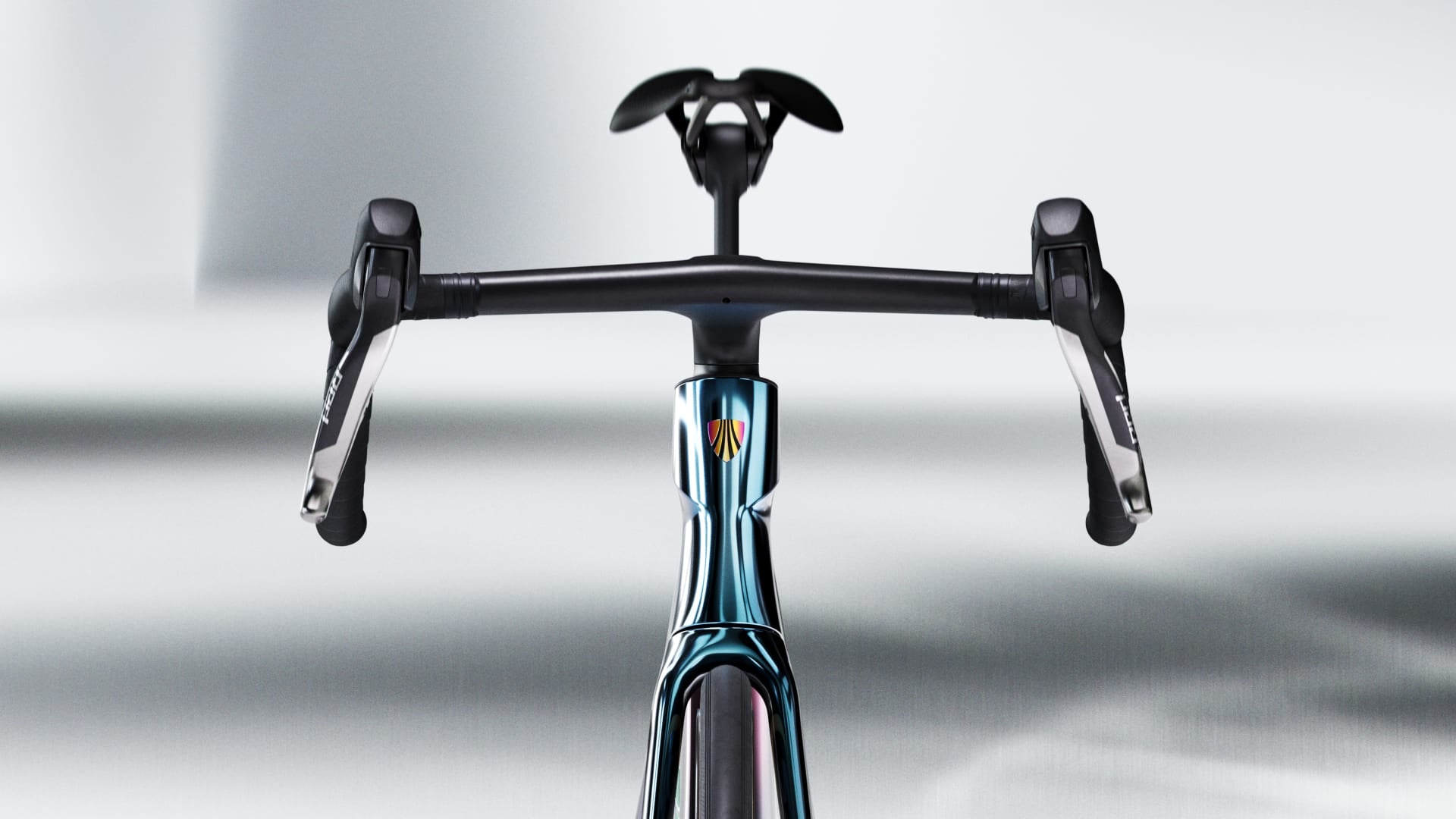

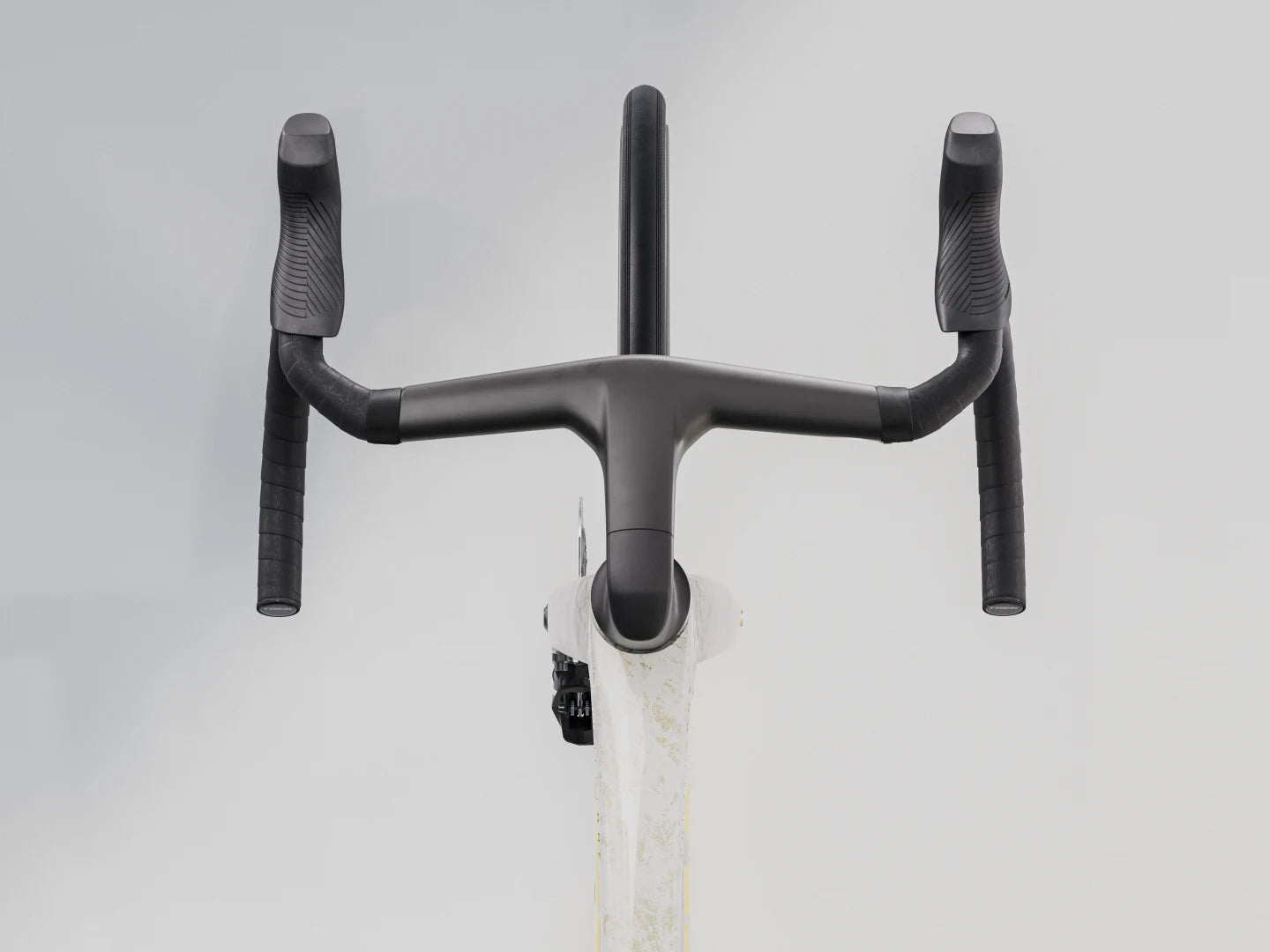

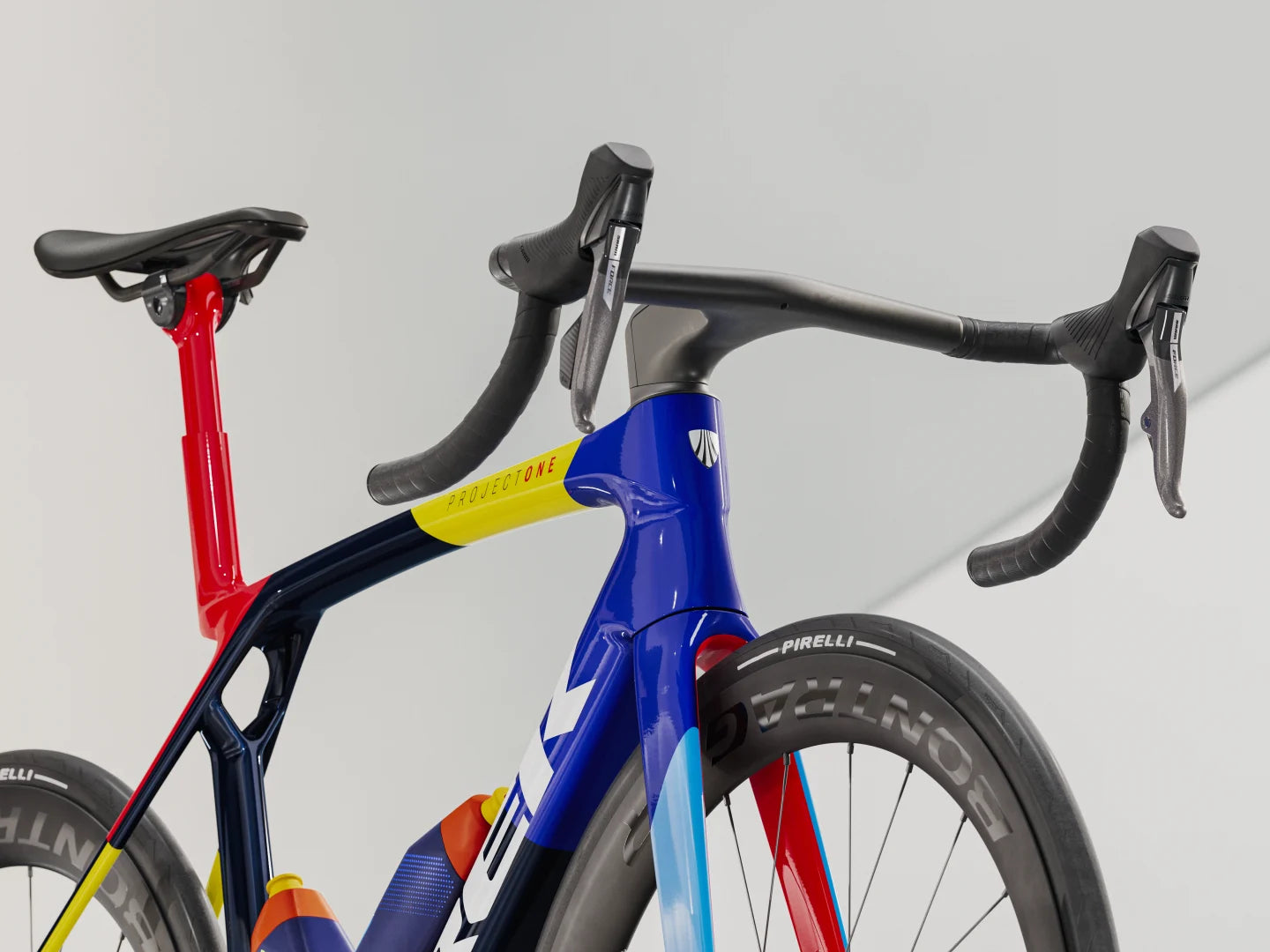

One-piece Aero RSL bar/stem

A new one-piece bar/stem is lighter, more aeryodynamic, and more ergonomic than the previous version. Plus, the hoods are 3cm narrower than the drops so you can adjust your positioning to prioritize aerodynamics (in the hoods) or power (in the drops).

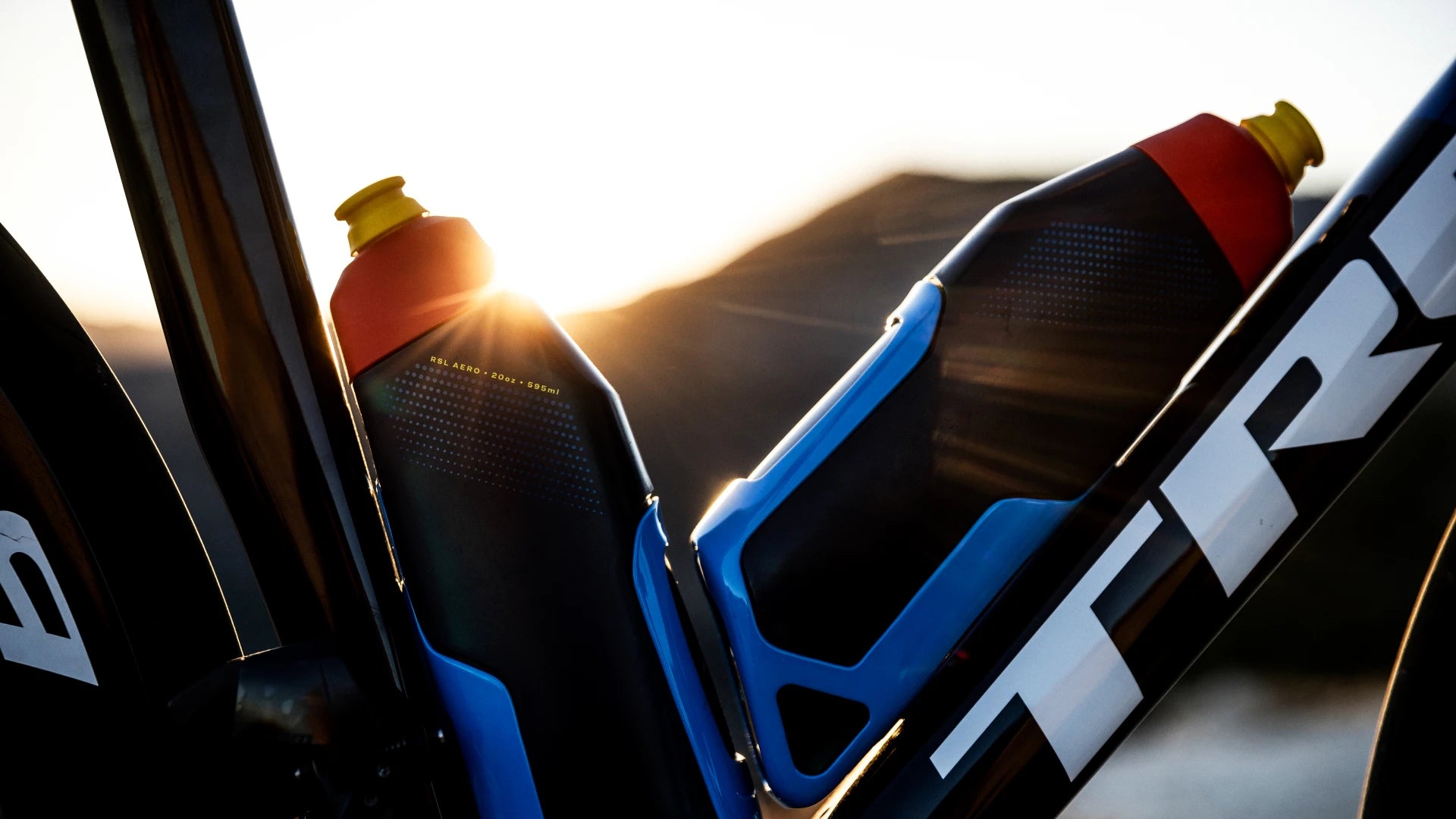

RSL Aero Bottles and Cages

Included RSL Aero Bottles and Cages were specifically designed along with the whole rider system to help make Madone even faster.

Integrated power meter

This bike helps you get the most out of every ride with a SRAM power meter that measures your input and provides accurate data, allowing you to track your progress and tailor your training to crush your goals.

It's right for you if...

Racing is a core part of your life, and you want a bike that's the trifecta of lightweight, aerodynamics and comfort. You want a featherweight frame that makes no compromises, with aerodynamic tube shaping and IsoFlow comfort technology. Performance matters, and you want our highest-level carbon lay-up, tubeless carbon wheels and the customisable shifts of Shimano Ultegra Di2.

The tech you get

An insanely light frame made of our highest-level 900 Series OCLV Carbon with aero tubing and IsoFlow comfort technology, and RSL Aero Bottles and Cages that save watts. A 2x12 Shimano Ultegra Di2 group set for lightning-fast shifting that's completely customisable. A universal derailleur hanger so you can get a replacement from anywhere. Plus, it's topped off with Bontrager Aeolus Pro 51 tubeless carbon wheels and a Trek Aero RSL one-piece bar/stem.

The final word

The Madone SLR 7 Gen 8 is an insanely light and aero road bike that's ready to take you through the paces on race day. It's built from our top 900 Series OCLV Carbon that keeps weight to a minimum without compromising stiff responsiveness and comfort.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

ขอสงวนสิทธิ์ในการเปลี่ยนแปลงแก้ไข ข้อมูลรายละเอียดของสินค้า อุปกรณ์ สเปคสินค้า โมเดล สี และวัสดุ บนเว็บไซท์นี้ ซึ่งอ้างอิงจากเว็บไซท์และโรงงานผู้ผลิตต้นทาง และรายละเอียดของราคา ซึ่งอาจมีการเปลี่ยนแปลงได้ตลอดเวลาโดยไม่ต้องแจ้งล่วงหน้า และหากเกิดข้อผิดพลาดจากการลงข้อมูลบนเว็บไซท์นี้ ให้อ้างอิงสเปคสินค้าจริงและเว็บไซท์ของผู้ผลิตต้นทาง รวมถึงข้อมูลราคาอัพเดทของบริษัท โปรไบค์ จำกัด เท่านั้น

น้ำหนักของจักรยานและเฟรมอ้างอิงจากขั้นตอนก่อนทำสีเฟรมในขั้นตอนผลิตจริง ซึ่งน้ำหนักจะเปลี่ยนแปลงไปหลังการผลิตเสร็จสิ้น
