TREK Madone SL 6 Gen 8

Sale price179,000 ฿
Color: White Prismatic
SIZE: XS
MADONE SL GEN 8
Size Rider Height Inseam
XS

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"
S

158 - 162 cm

5'2" - 5'4"

74 - 76 cm

29" - 30"
M

162 - 173 cm

5'4" - 5'8"

76 - 81 cm

30" - 32"
ML

173 - 179 cm

5'8" - 5'10"

81 - 84 cm

32" - 33"
L

179 - 188 cm

5'10" - 6'2"

84 - 88 cm

33" - 35"
XL

188 - 213 cm

6'2" - 7'0"

88 - 100 cm

35" - 39"
0.0

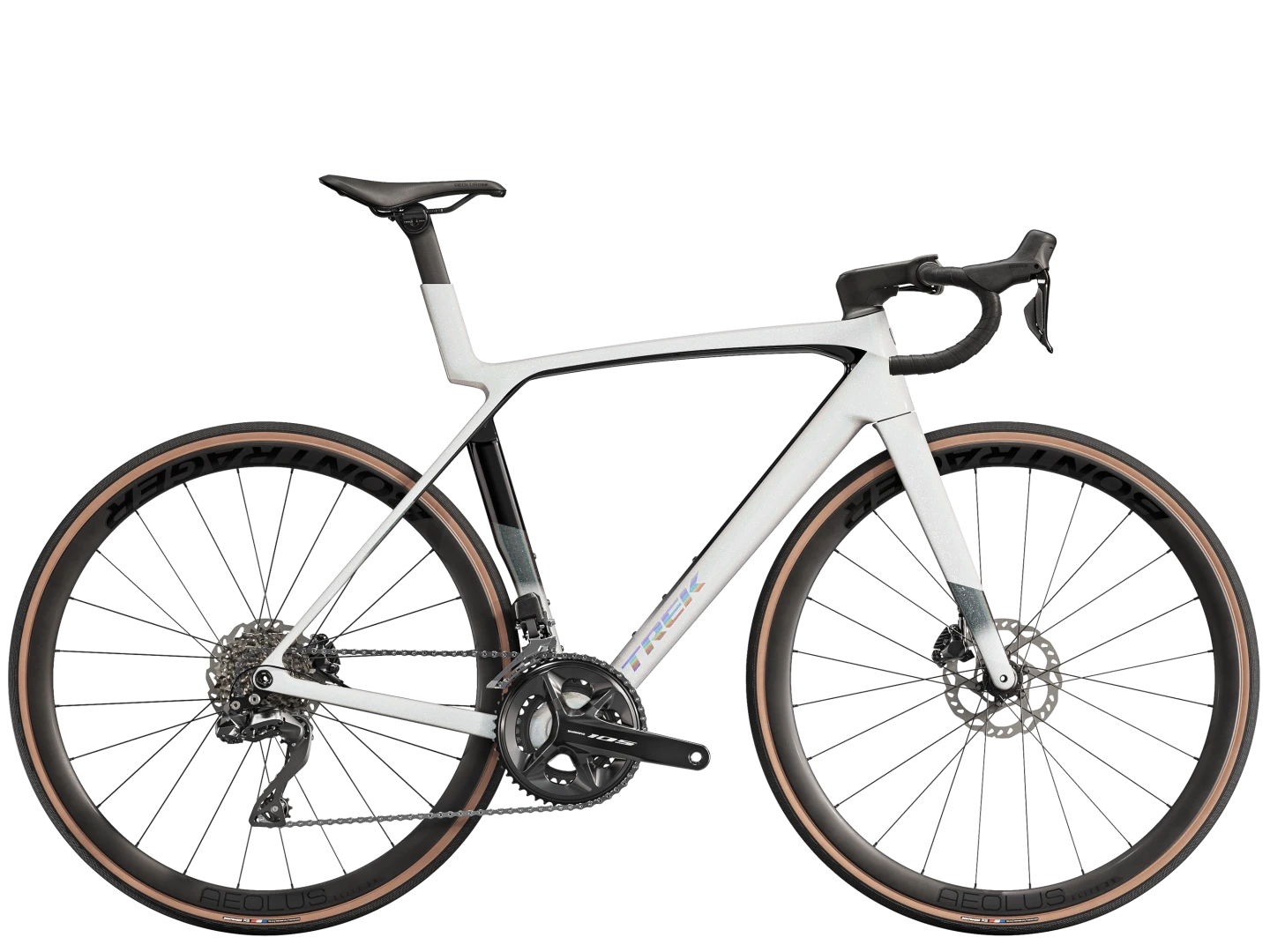

Madone SL 6 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. It's built to race with geometry that keeps you comfortable on the climbs and perched for the attack. A Shimano 105 Di2 electronic groupset keeps the price down without sacrificing lightning-fast electronic shifting. Plus, it's topped off with carbon wheels for extra lightweight performance.



FRAMESET

Frame
: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork
: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

WHEELS

Wheel front
: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Wheel rear
: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru axle
Skewer front
: Bontrager Switch chamfered thru axle, removable lever
Skewer rear
: Bontrager Switch chamfered thru axle, removable lever
Tire
: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28mm
Tire part
: Bontrager TLR sealant, 6oz
Rim strip
: Bontrager TLR
Max tire size
: 32mm (as measured, see manual for details)

E-SYSTEM

Battery
: Shimano BT-DN300
Charger :
Charging cable included

DRIVETRAIN

Shifter
: Shimano 105 R7170 Di2, 12 speed
Front derailleur
: Shimano 105 R7150 Di2, braze-on, down swing
Rear derailleur
: Shimano R7150 Di2, 36T max cog
*Crank
: Size: XS, S
Shimano 105 R7100, 50/34, 165mm length
Size: M
Shimano 105 R7100, 50/34, 170mm length
Size: ML, L
Shimano 105 R7100, 50/34, 172.5mm length
Size: XL
Shimano 105 R7100, 50/34, 175mm length
Bottom bracket
: Praxis, T47 threaded, internal bearing
Cassette
: Shimano 105 7101, 11-34, 12 speed
Chain
: Shimano SLX M7100, 12 speed
Max chainring size
: 1x: 54T, 2x: 56/43

COMPENENTS

*Saddle
: Size: XS, S
Bontrager Aeolus Comp, steel rails, 155mm width
Size: XS, S, M, ML, L, XL
Verse Short, steel rails, 145mm width
Size: M, ML, L, XL
Bontrager Aeolus Comp, steel rails, 145mm width
*Seatpost
: Size: XS, S, M
Madone aero carbon seatpost, 0mm offset, short length
Size: ML, L, XL
Madone aero carbon seatpost, 0mm offset, long length
*Handlebar
: Size: XS
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Size: S, M
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
Size: ML, L
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Size: XL
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape
: Trek EcoTack, black
*Stem Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S, M
Trek RCS Pro, -7 degree, 90mm length
Size: ML, L
Trek RCS Pro, -7 degree, 100mm length
Size: XL
Trek RCS Pro, -7 degree, 110mm length
Brake rotor
: Shimano RT70, centerlock, 160mm
Rotor size
: Max brake rotor sizes: 180mm front, 160mm rear

WEIGHT

Weight
: ML - 8.16 kg / 17.99 lbs (with TLR sealant, no tubes)
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Why you'll love it

  1. Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
  2. A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
  3. Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
  4. You get lightning-fast shifts that stay crisp and clean thanks to Shimano's Di2 tech trickling down to their 105 groupset

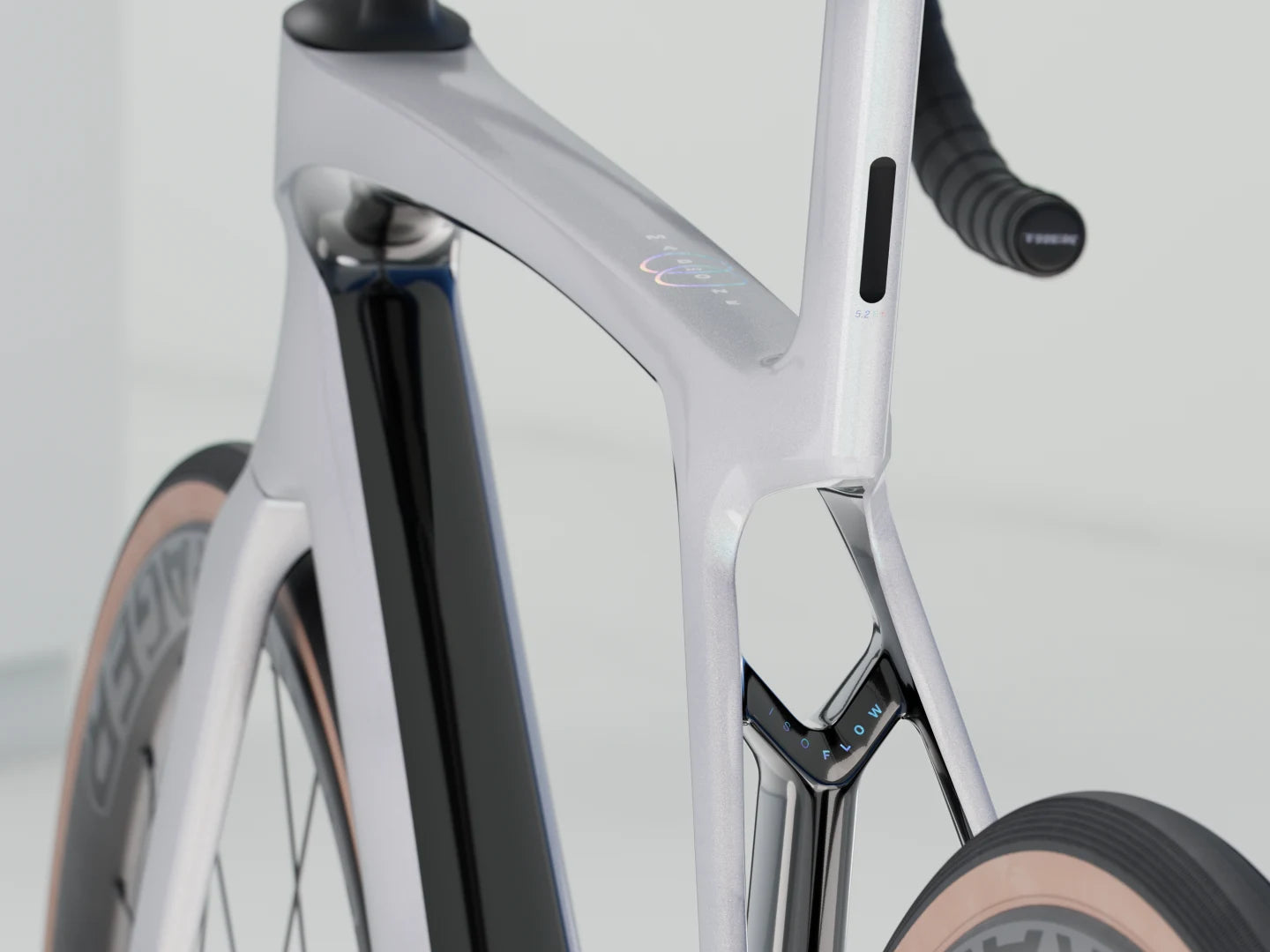

  5. Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics
  6. This bike comes set up tubeless — a first in Trek performance road history

Our lightest Madone SL Disc ever

New light and fast aero tube shaping paired with light-yet-economical 500 Series OCLV Carbon makes Gen 8 our lightest Madone SL Disc f/s ever and the ideal climbing bike.

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.



80% more vertically compliant IsoFlow

We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

Rooted in racing

Madone SL was informed by feedback from Lidl-Trek's fastest sprinters and climbers.

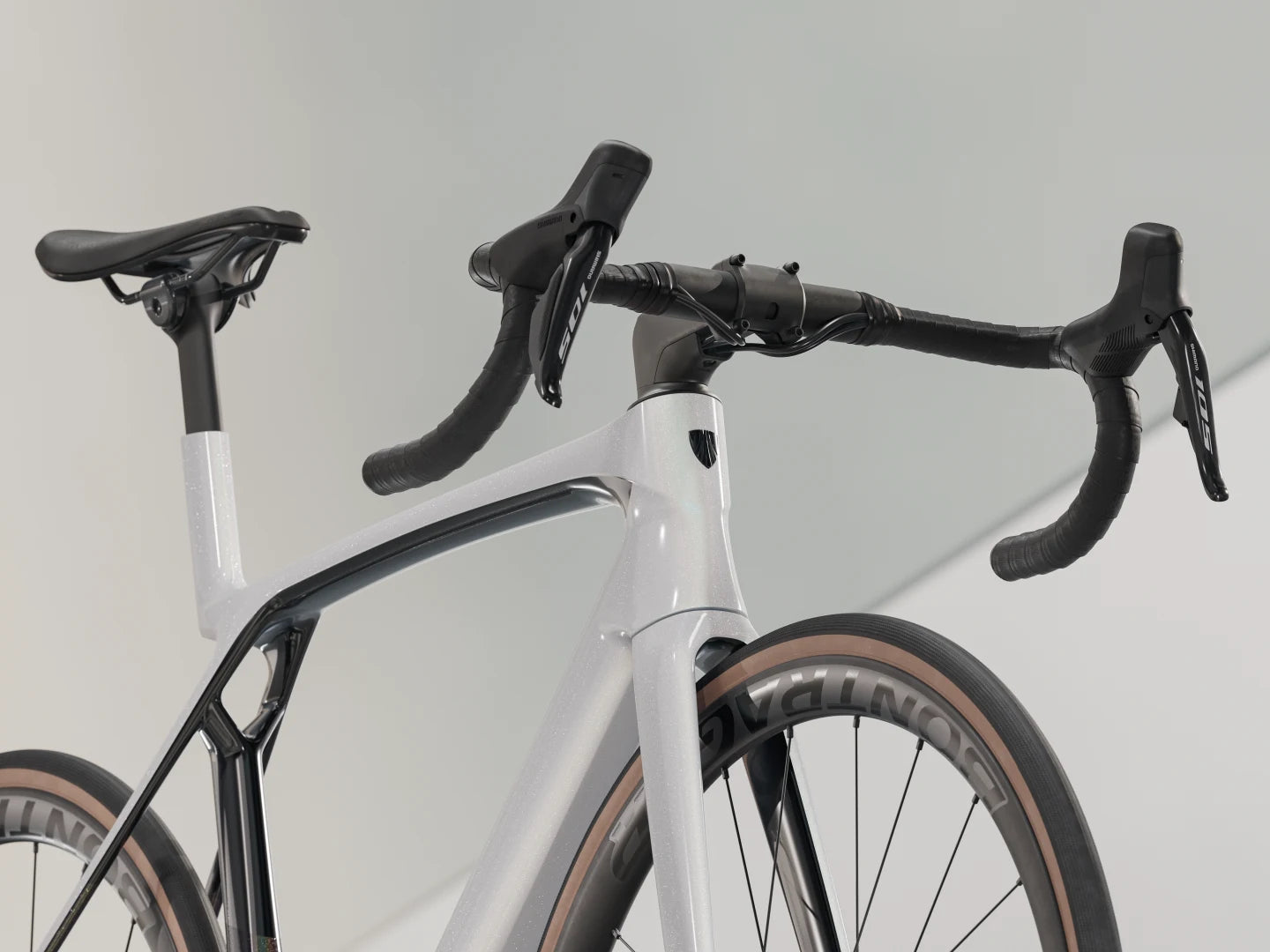

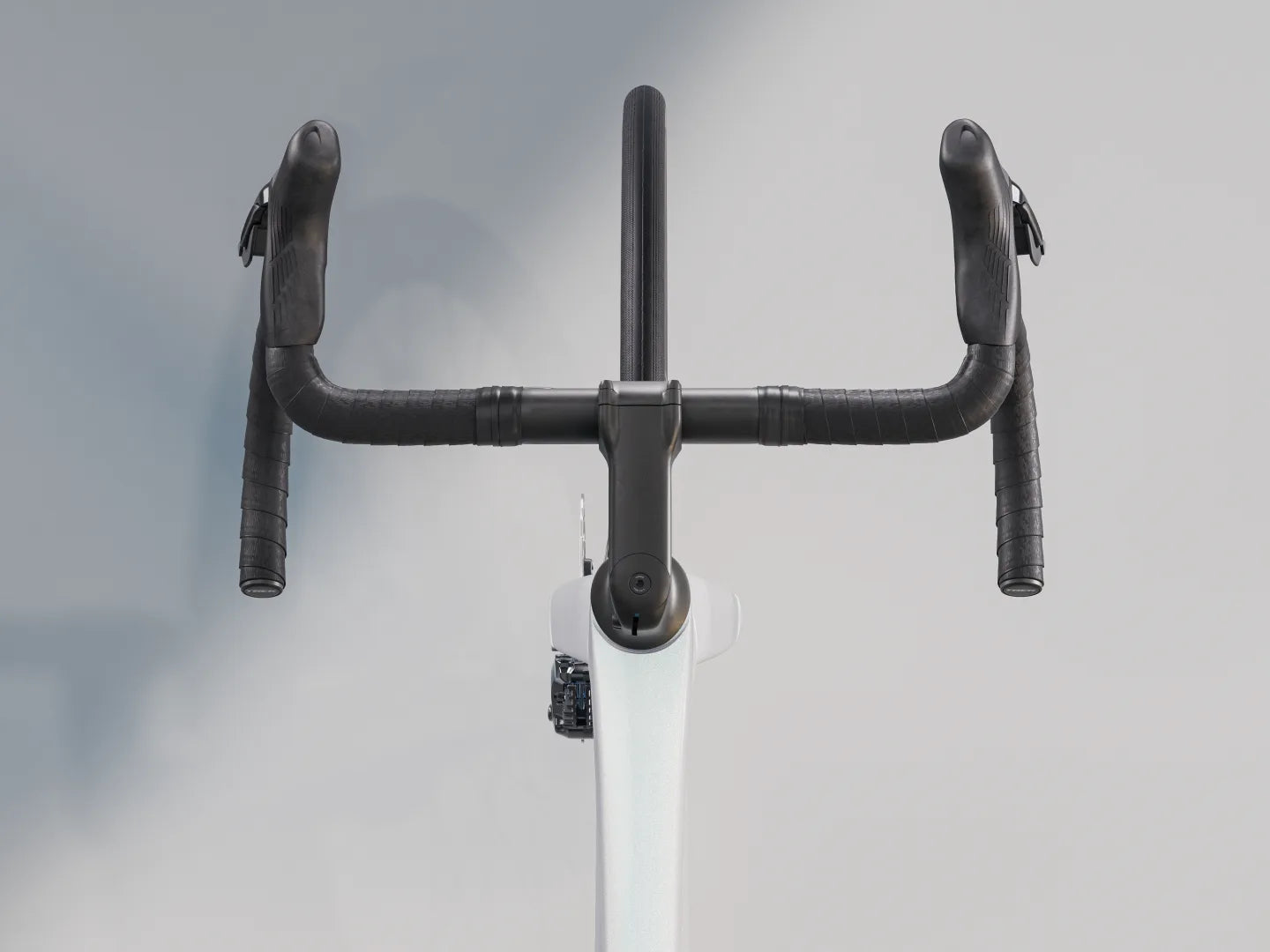

Adjustable aero cockpit

Madone Gen 8 features hoods that are narrower than the drops so you can adjust your positioning to prioritize aerodynamics or power. Plus, the two-piece design lets you quickly and easily dial in your fit.

Add-on aero bottles to make your whole bike faster

Add-on RSL Aero Bottles and Cages were designed with Madone Full System Foil aero shapes to make the whole rider system even faster.

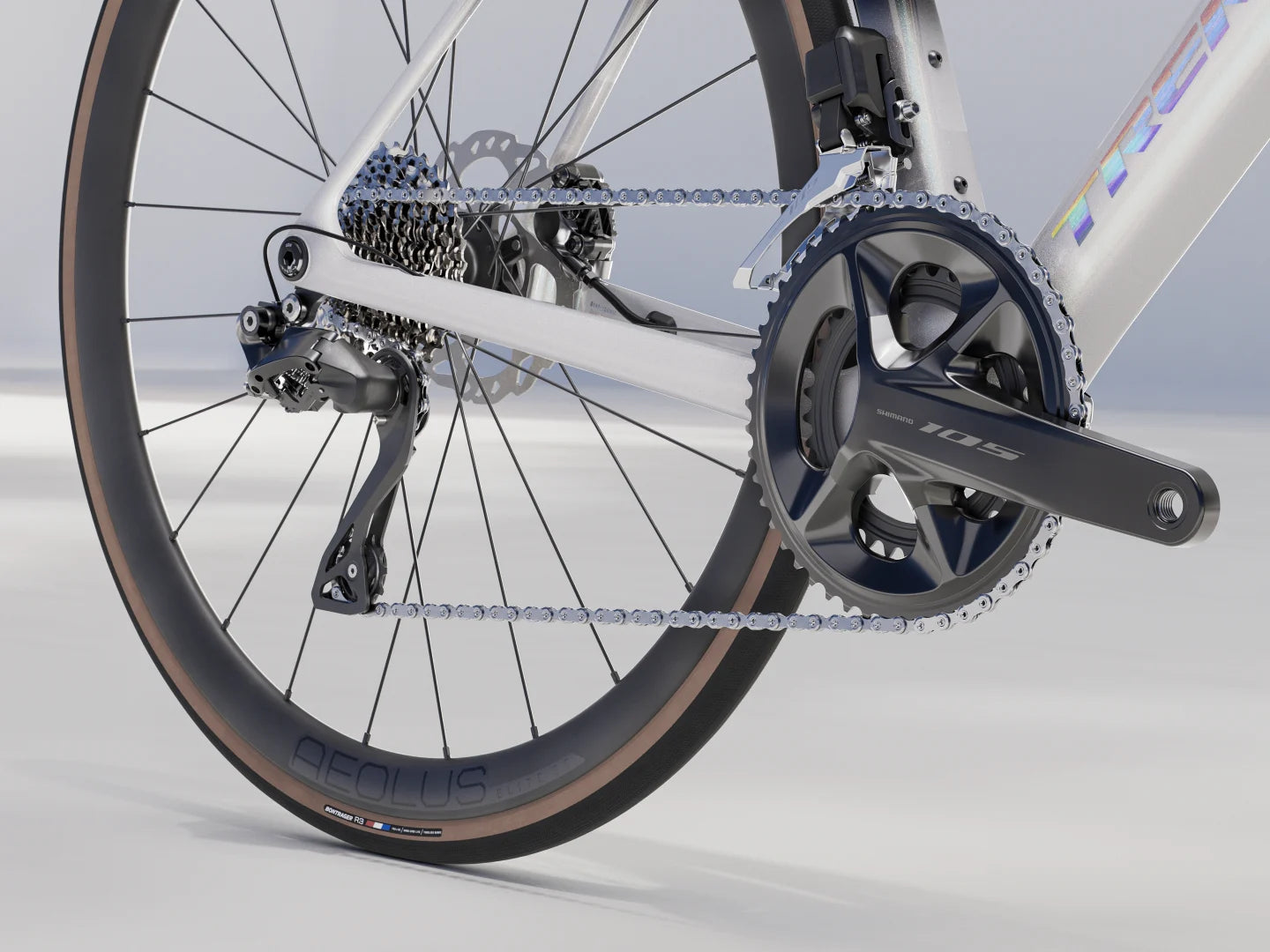

Shimano 105 Di2

With a shared Di2 platform inherited from Dura-Ace and Ultegra, sophisticated ergonomics, Shimano 105-optimized gear combinations, and an exceptional hydraulic disc brake system, Shimano 105 Di2 R7100 marks a new era of affordable, 12 speed electronic performance. You can set up the drivetrain just the way you like it via Shimano’s user-friendly E-Tube app.

It's right for you if...

You want a featherweight road race bike without top-end race pricing. You're up for racing, club rides, or solo spins up winding canyons, and don't want to compromise between climbing efficiency and aerodynamics. You love the workhorse performance of Shimano's 105 groupset, but want the added benefit of Di2 lightning-fast electronic shifting.

The tech you get

An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2x12 Shimano 105 Di2 electronic groupset that delivers clean shifts thanks to trickle-down tech. Plus, it's topped off with Bontrager Aeolus Elite 35 carbon wheels that come set up tubeless.

The final word

Madone SL 6 Gen 8 delivers race-worth aerodynamics and climb crushing weight. It's a bonafide superbike in a more economical package, thanks to its 500-Series OCLV Carbon layup and workhorse Di2 groupset. It offers the same frame tech as its SLR sibling, like aero tube shaping and lightweight IsoFlow comfort tech, so you can stay at the front of the pack.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
