TREK Madone SL 5 Gen 8

Name: TREK Madone SL 5 Gen 8
Brand: TREK
SKU: 5319896
Price: 119900.0 THB
Availability: OutOfStock
Rating: 5.0 (1 reviews)

119,900.00 ฿

5.0

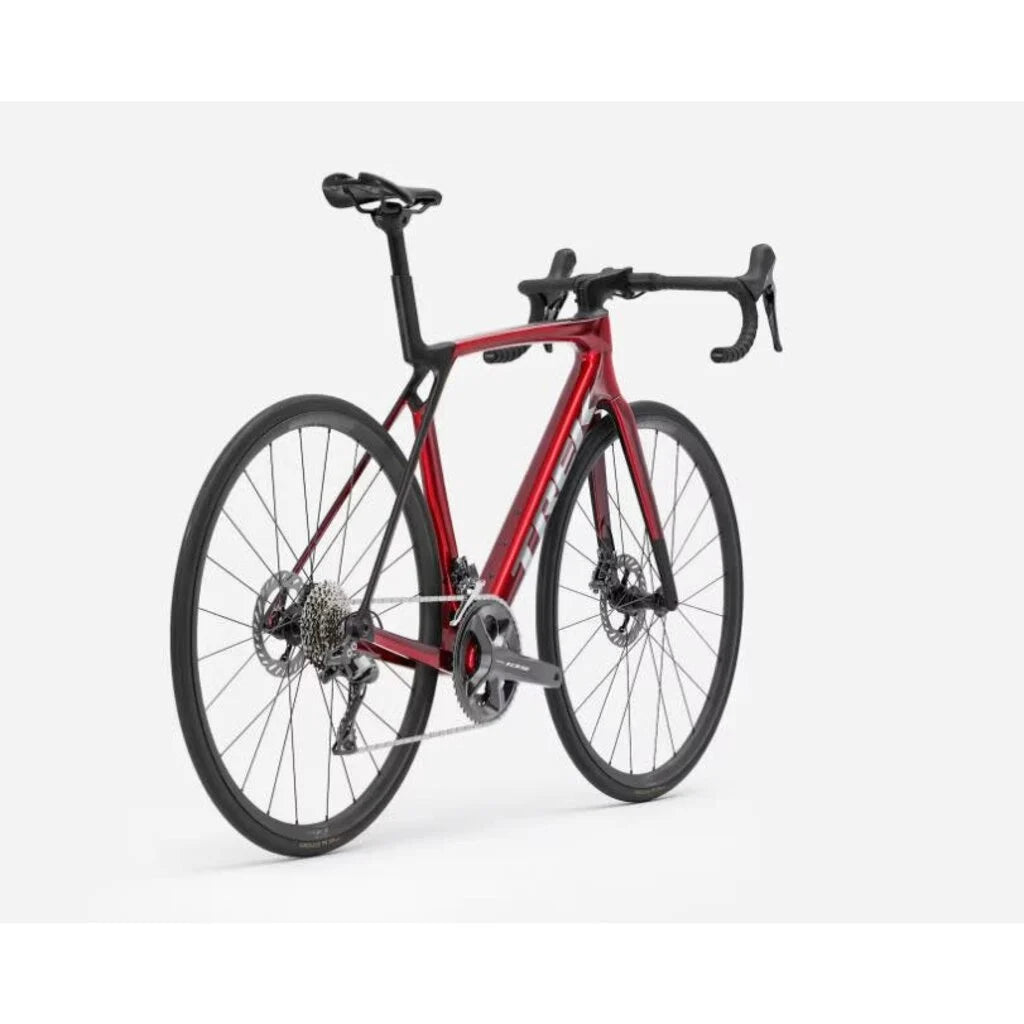

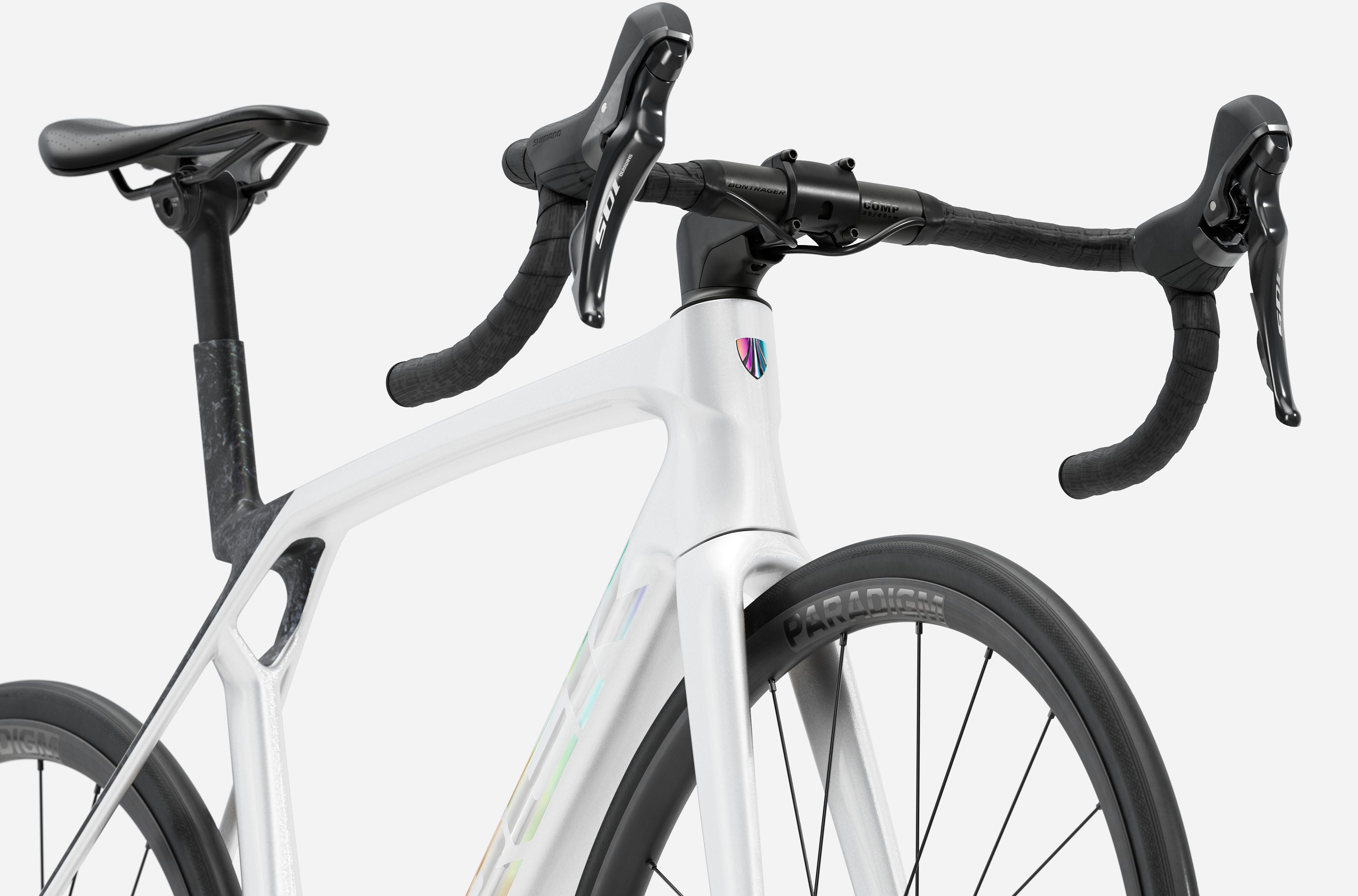

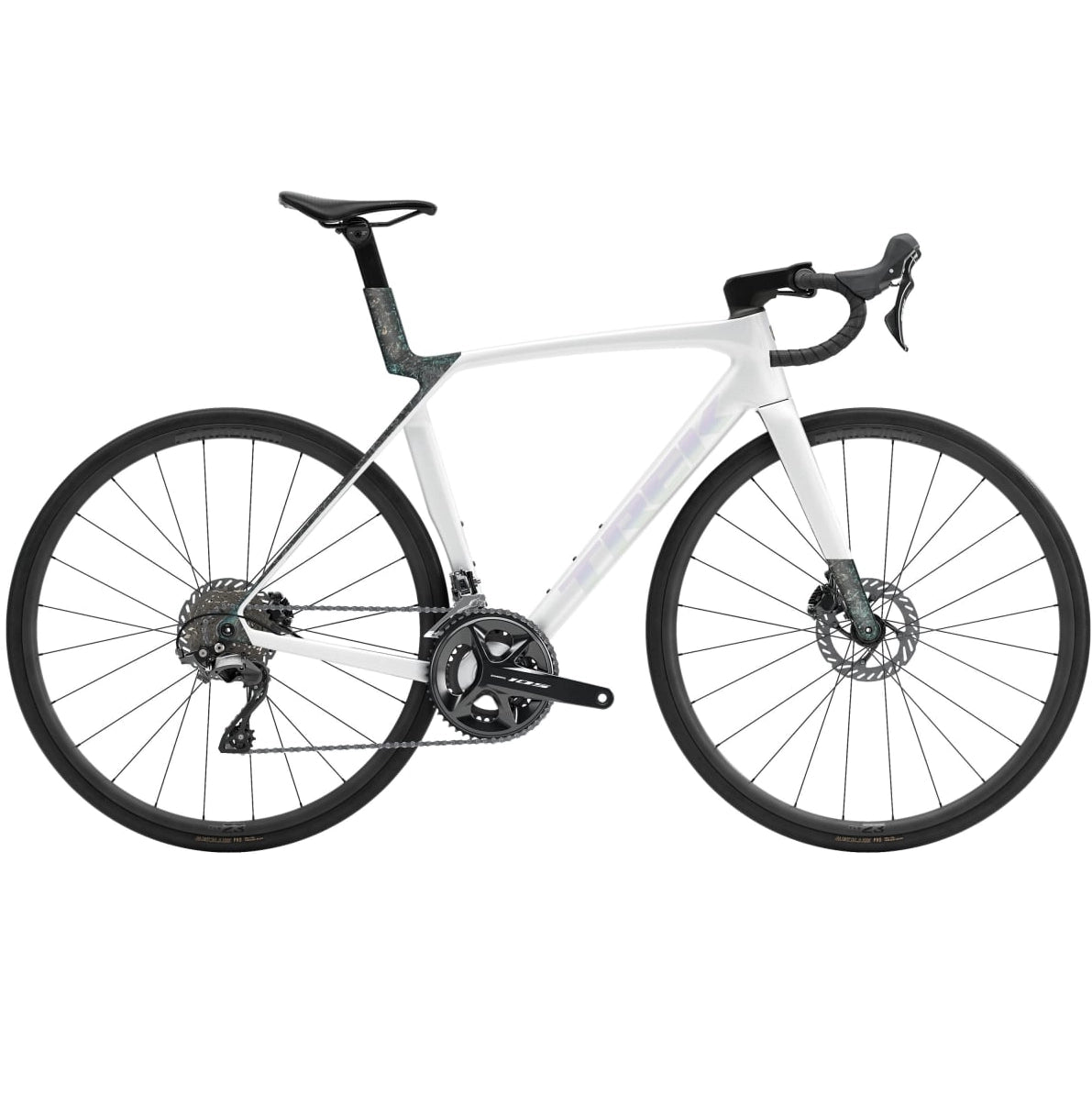

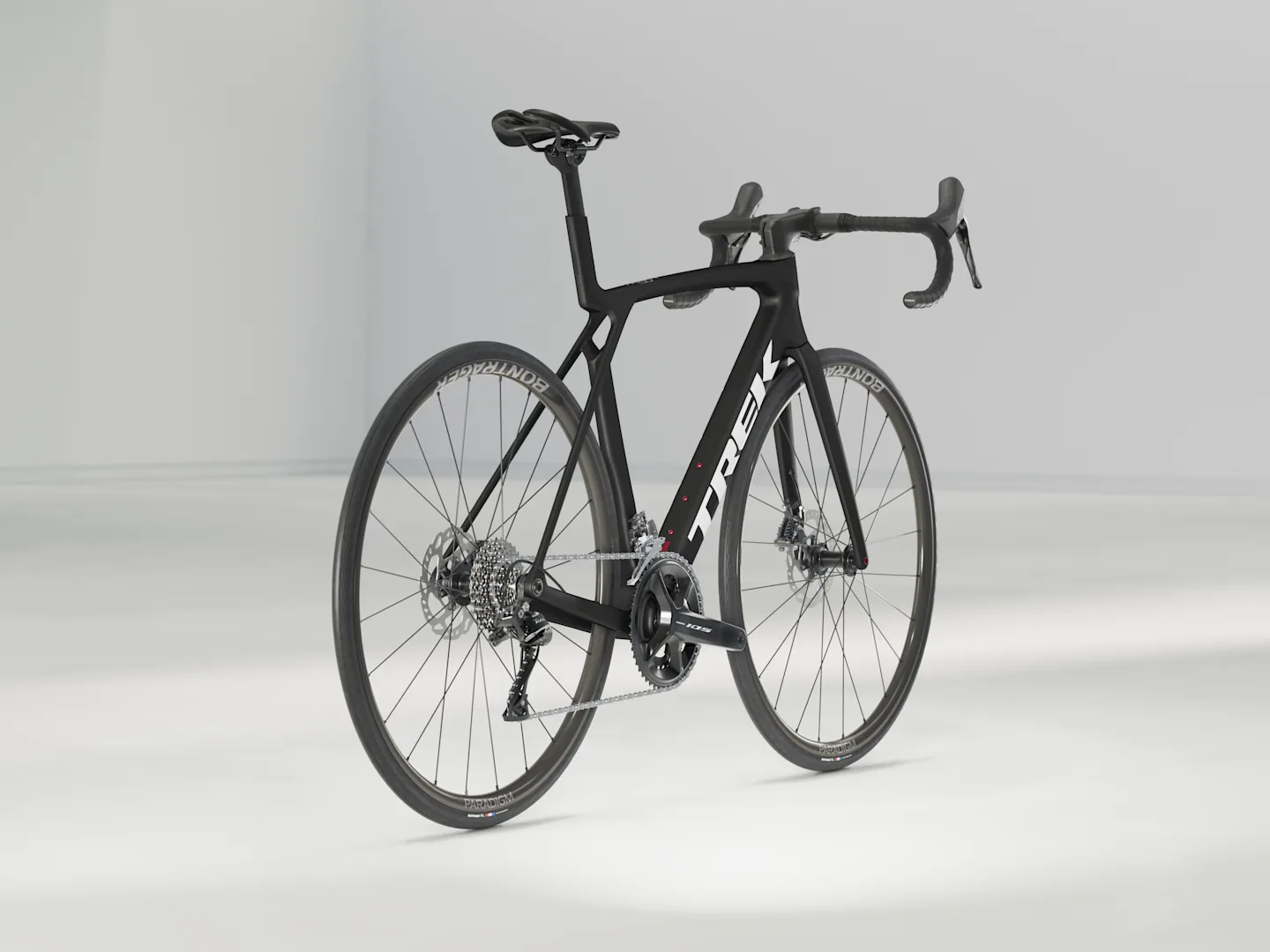

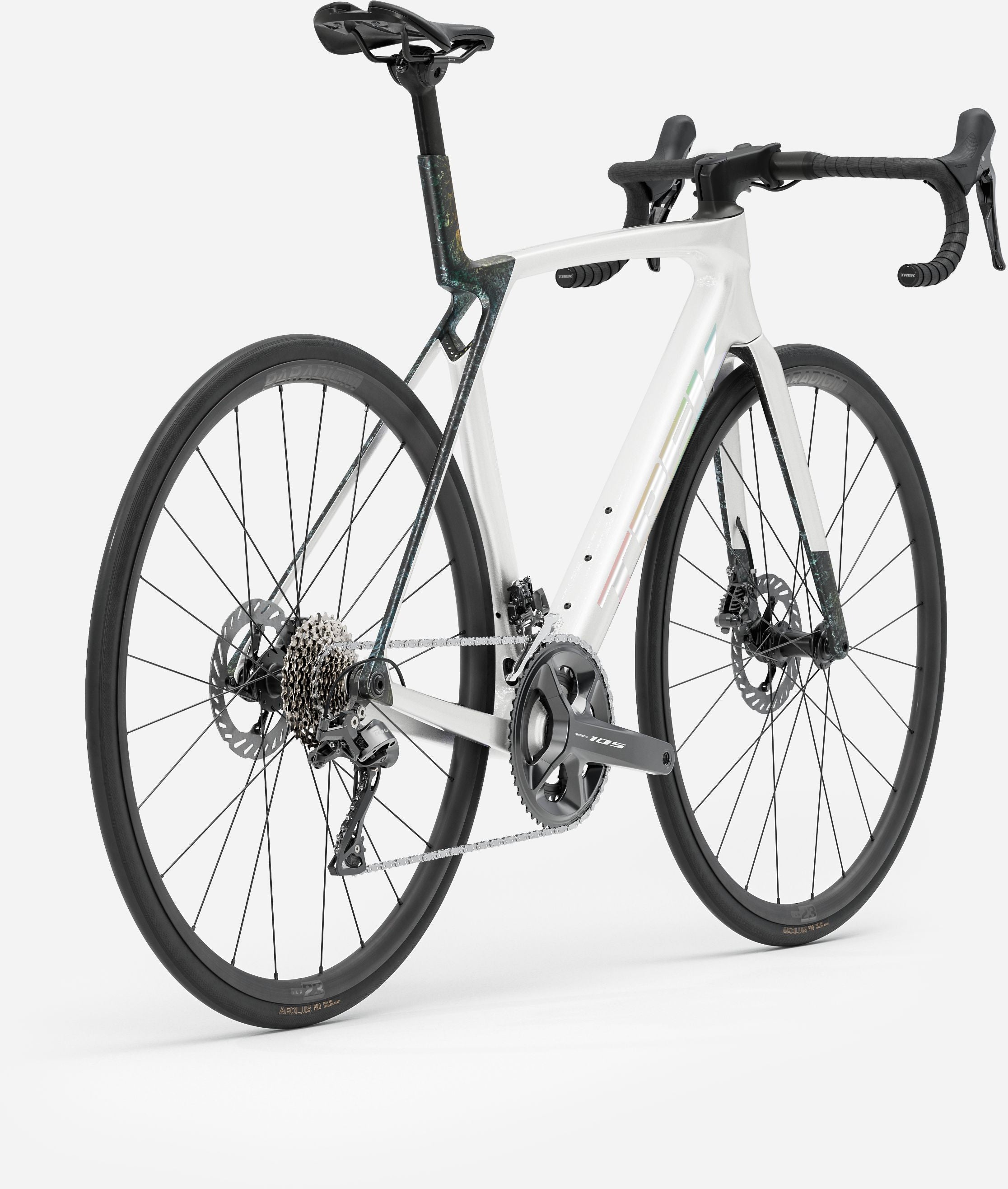

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents. A Shimano 105 groupset keeps the price down while still delivering clean mechanical shifting you can trust.

Color:

Matte Deep Smoke

SIZE:

XS

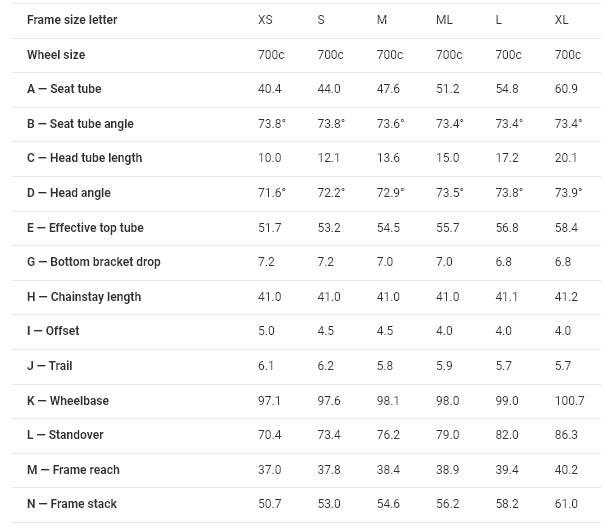

MADONE SL GEN 8

Size

Rider Height

Inseam

XS

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"

S

158 - 162 cm

5'2" - 5'4"

74 - 76 cm

29" - 30"

M

162 - 173 cm

5'4" - 5'8"

76 - 81 cm

30" - 32"

ML

173 - 179 cm

5'8" - 5'10"

81 - 84 cm

32" - 33"

L

179 - 188 cm

5'10" - 6'2"

84 - 88 cm

33" - 35"

XL

188 - 213 cm

6'2" - 7'0"

88 - 100 cm

35" - 39"

Variant

FRAMESET

Frame
: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork
: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

WHEELS

Hub front
: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front
: Bontrager Switch chamfered thru axle, removable lever
Hub rear
: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
*Skewer rear
: Size: XS, S, M, ML, L, XL
Bontrager Switch chamfered thru axle, removeable lever
Size: XS, S, M, ML, L, XL
Bontrager Switch chamfered thru axle, removable lever
Rim
: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes
: 14g stainless steel, black
Tire
: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Max tire size
: 32mm (as measured, see manual for details)

DRIVETRAIN

Shifter
: Shimano 105 R7120, 12 speed
Front derailleur
: Shimano 105 R7100, braze-on, down swing
Rear derailleur
: Shimano 105 R7100, 36T max cog
*Crank
: Size: XS, S
Shimano 105 R7100, 50/34, 165mm length
Size: M
Shimano 105 R7100, 50/34, 170mm length
Size: ML, L
Shimano 105 R7100, 50/34, 172.5mm length
Size: XL
Shimano 105 R7100, 50/34, 175mm length
Bottom bracket
: Praxis, T47 threaded, internal bearing
Cassette
: Shimano 105 7101, 11-34, 12 speed
Chain
: Shimano SLX M7100, 12 speed
Max chainring size
: 1x: 54T, 2x: 56/43

COMPONENTS

*Saddle
: Size: XS, S
Bontrager Aeolus Comp, steel rails, 155mm width
Size: XS, S, M, ML, L, XL
Verse Short, steel rails, 145mm width
Size: M, ML, L, XL
Bontrager Aeolus Comp, steel rails, 145mm width
*Seatpost
: Size: XS, S, M
Madone aero carbon seatpost, 0mm offset, short length
Size: ML, L, XL
Madone aero carbon seatpost, 0mm offset, long length
*Handlebar
: Size: XS
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Size: S, M
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
Size: ML, L
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Size: XL
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape
: Trek EcoTack, black
*Stem
: Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S, M
Trek RCS Pro, -7 degree, 90mm length
Size: ML, L
Trek RCS Pro, -7 degree, 100mm length
Size: XL
Trek RCS Pro, -7 degree, 110mm length
Brake rotor
: Shimano RT70, centerlock, 160mm
Rotor size
: Max brake rotor sizes: 180mm front, 160mm rear

WEIGHT

Weight
: ML - 8.70 kg / 19.19 lbs (with tubes)
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Why you'll love it

Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
You get clean and reliable shifting without breaking the bank with Shimano's workhorse groupset – 105
Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics

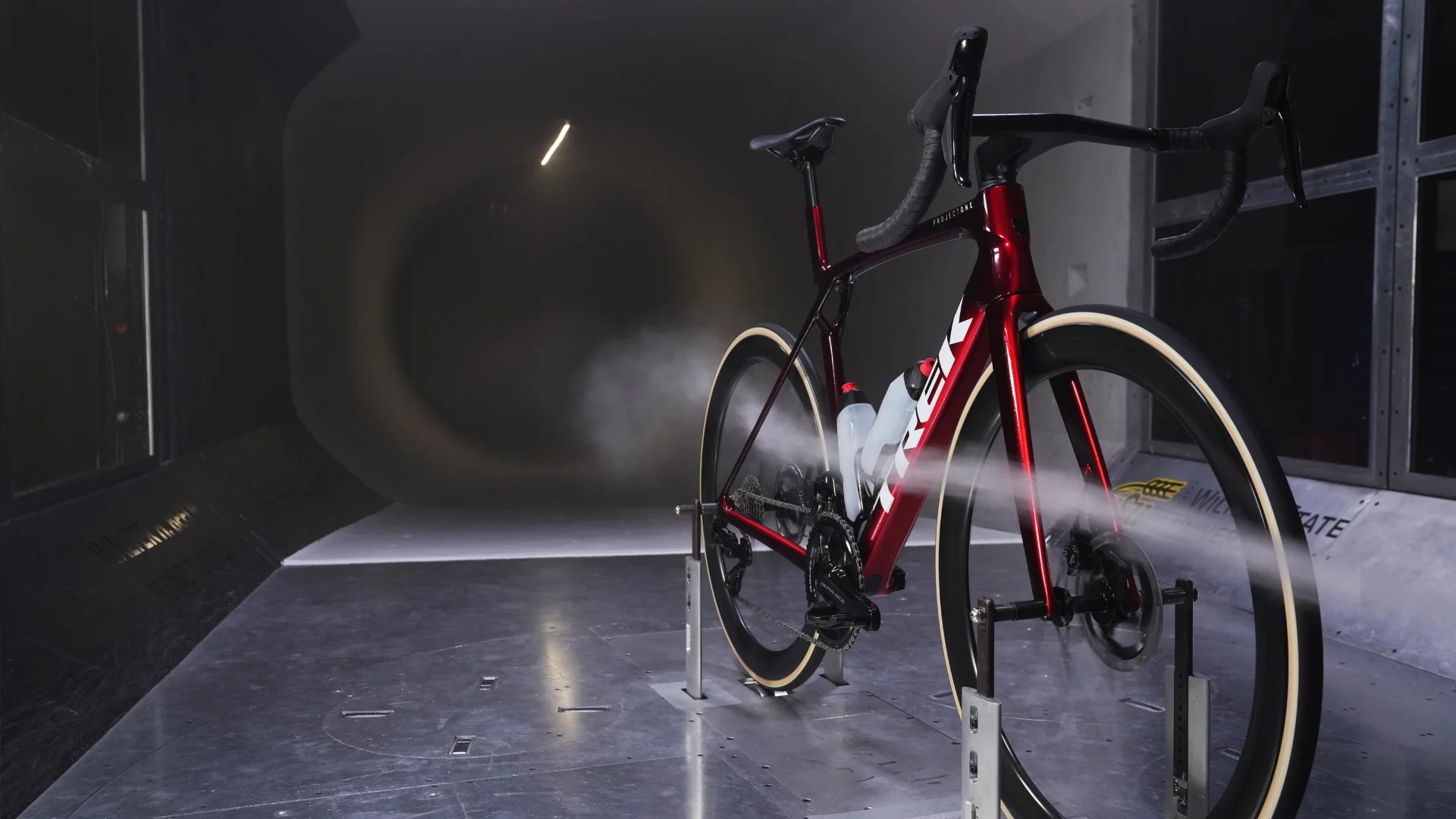

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.  

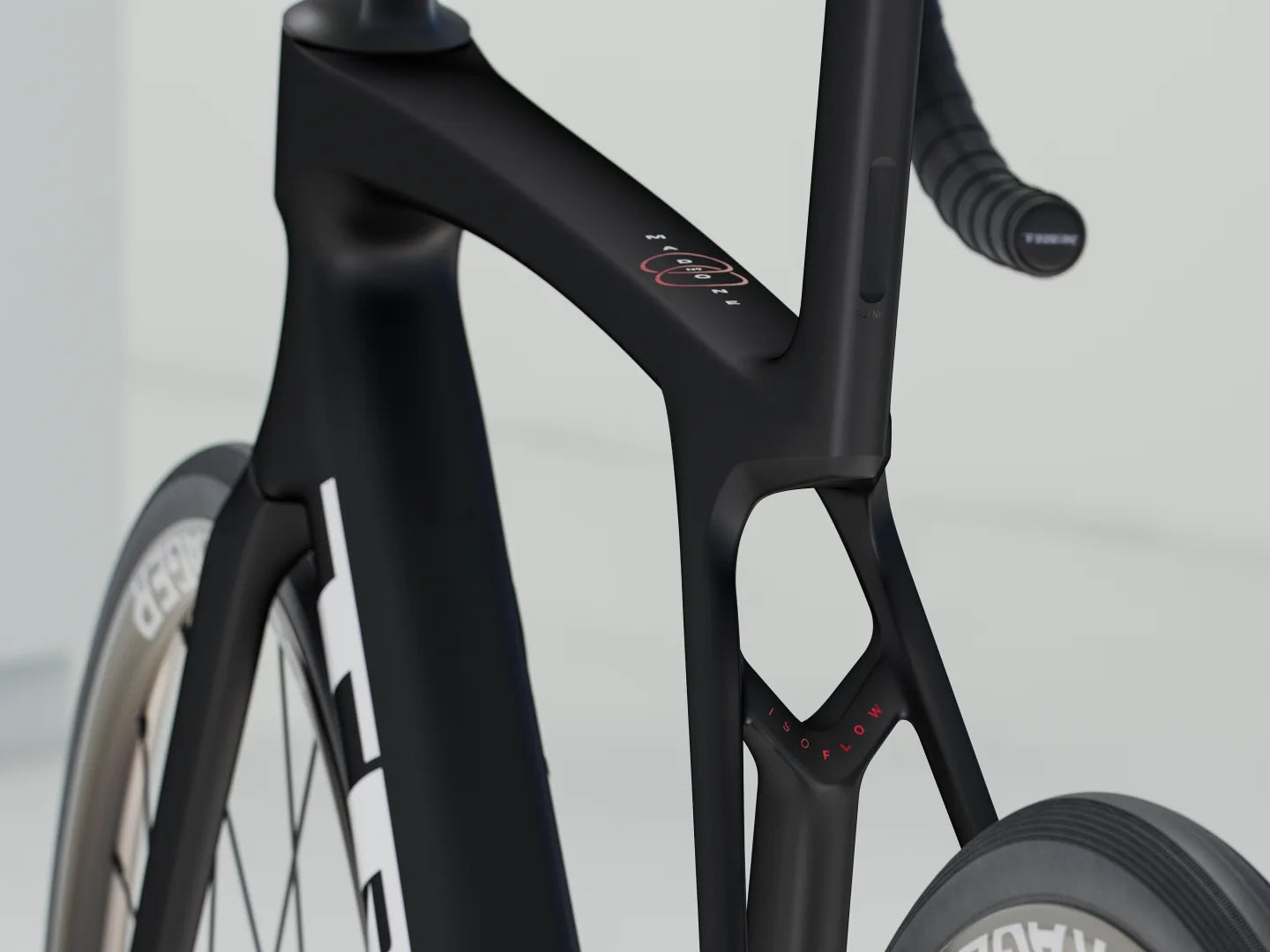

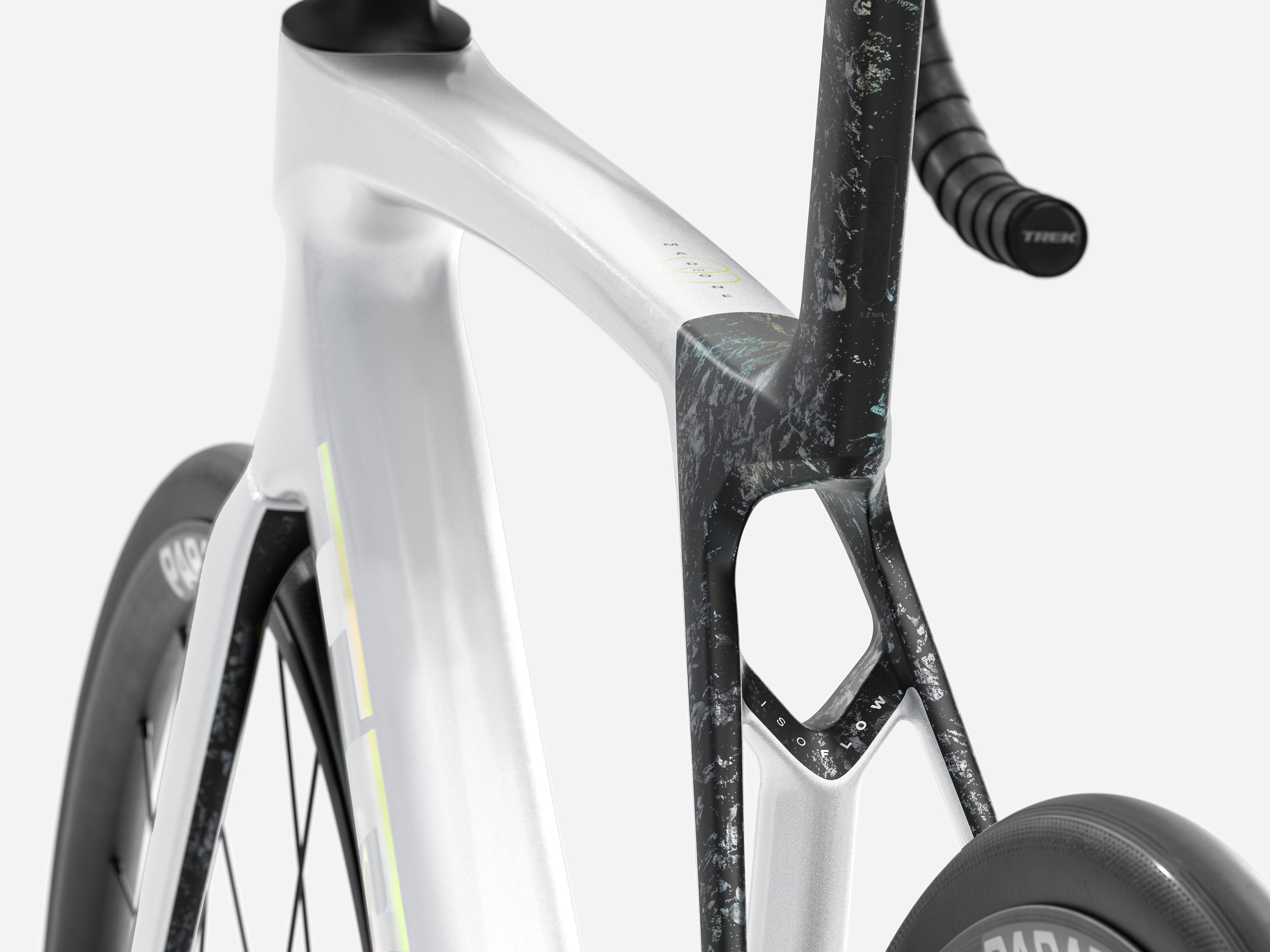

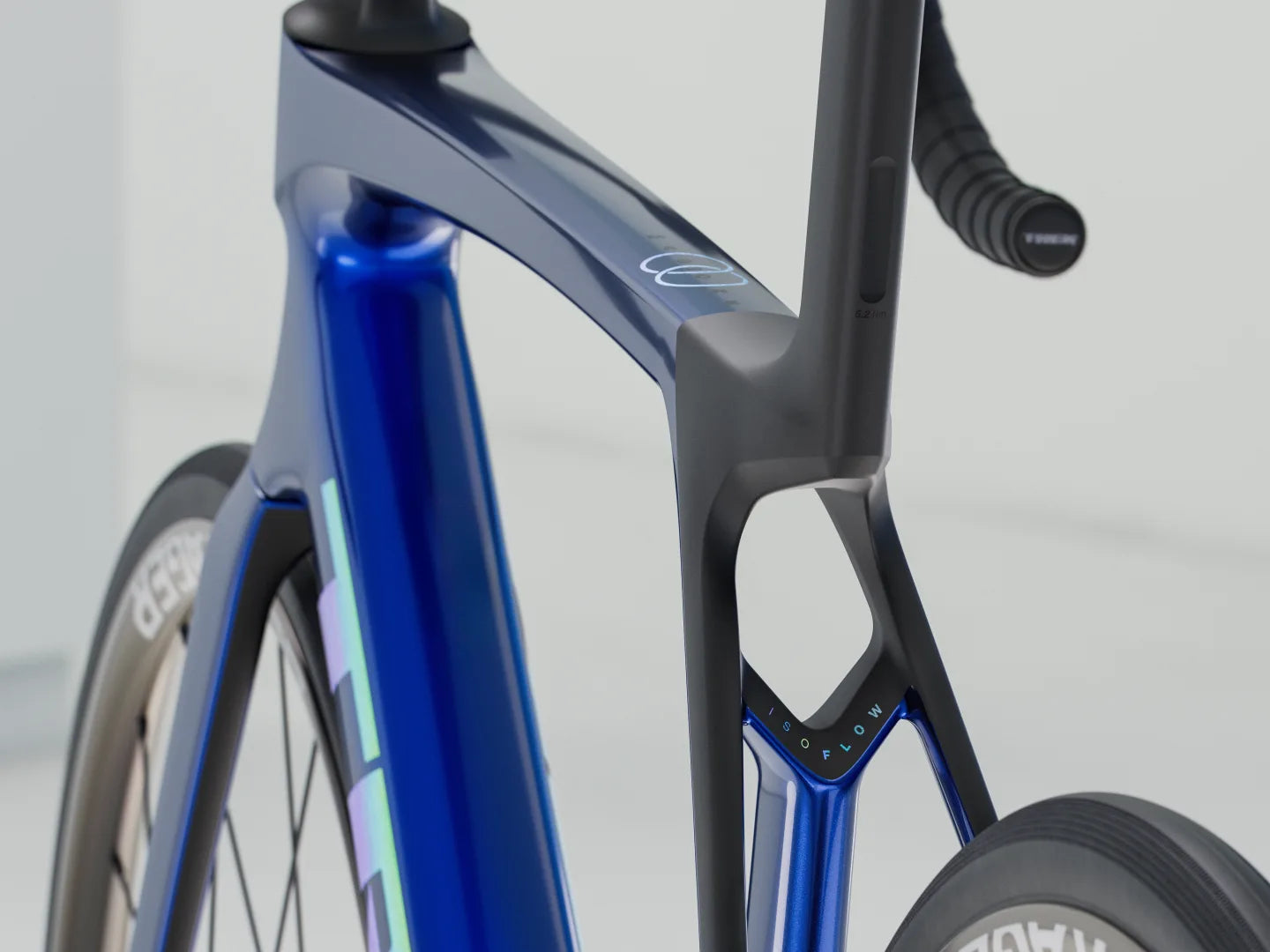

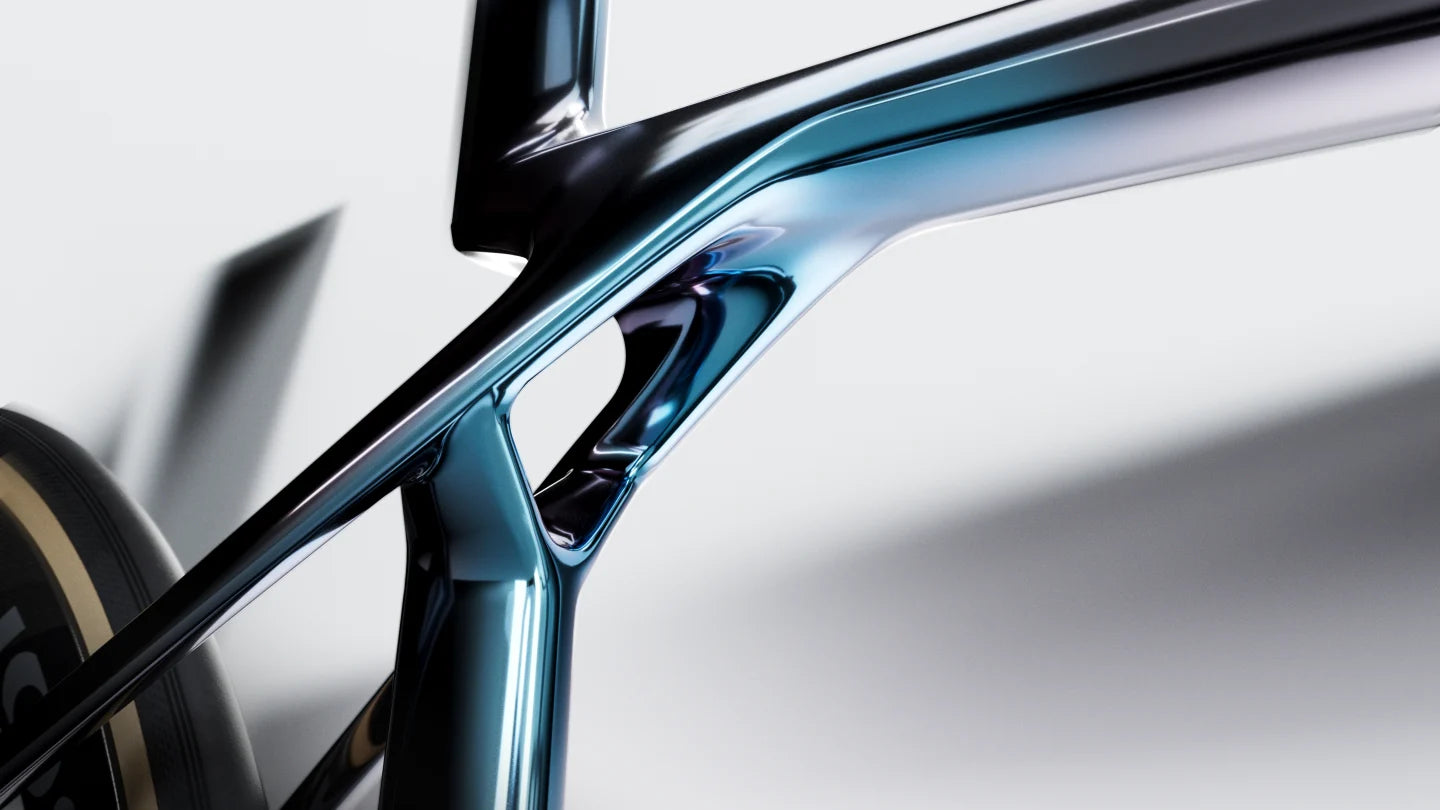

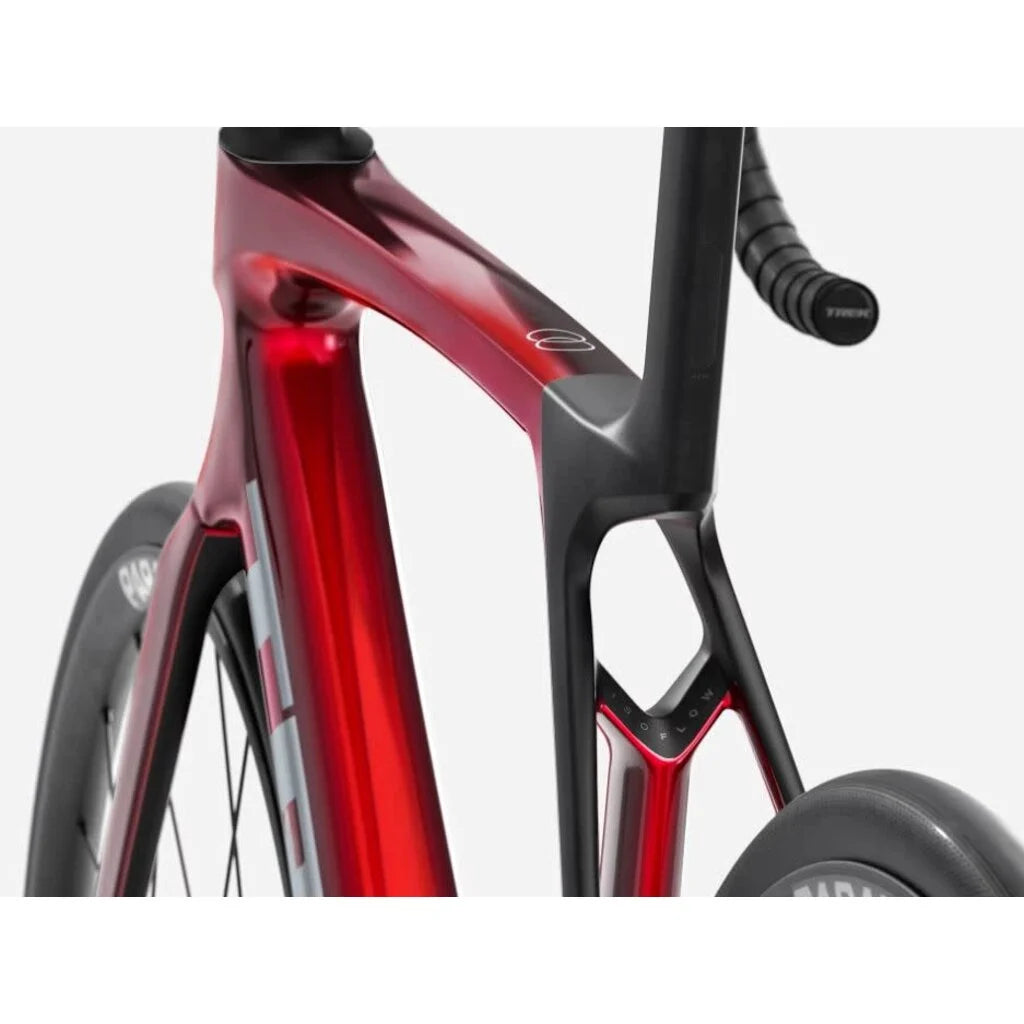

80% more vertically compliant IsoFlow

We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

Rooted in racing

Madone SL was informed by feedback from Lidl-Trek's fastest sprinters and climbers.

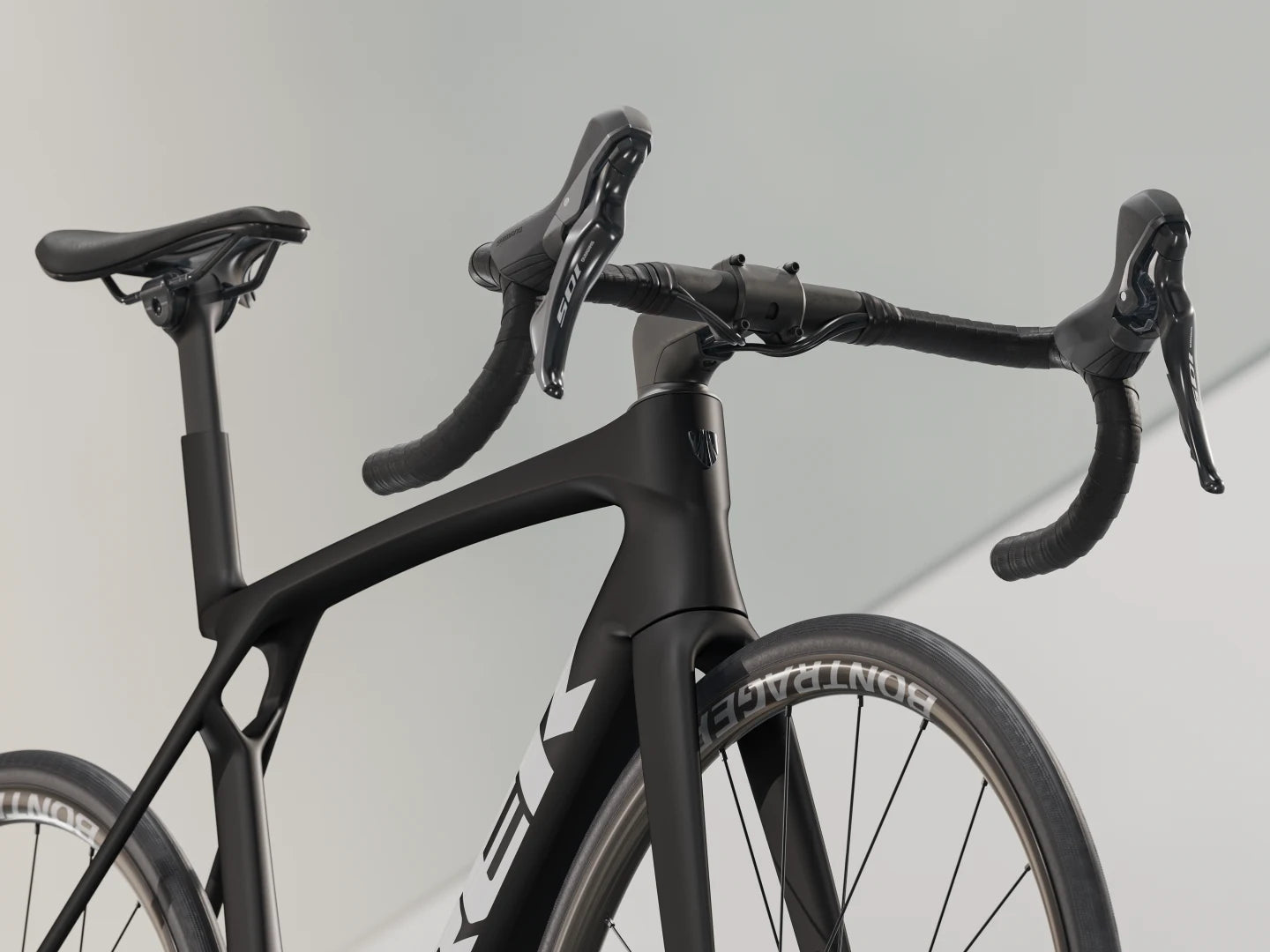

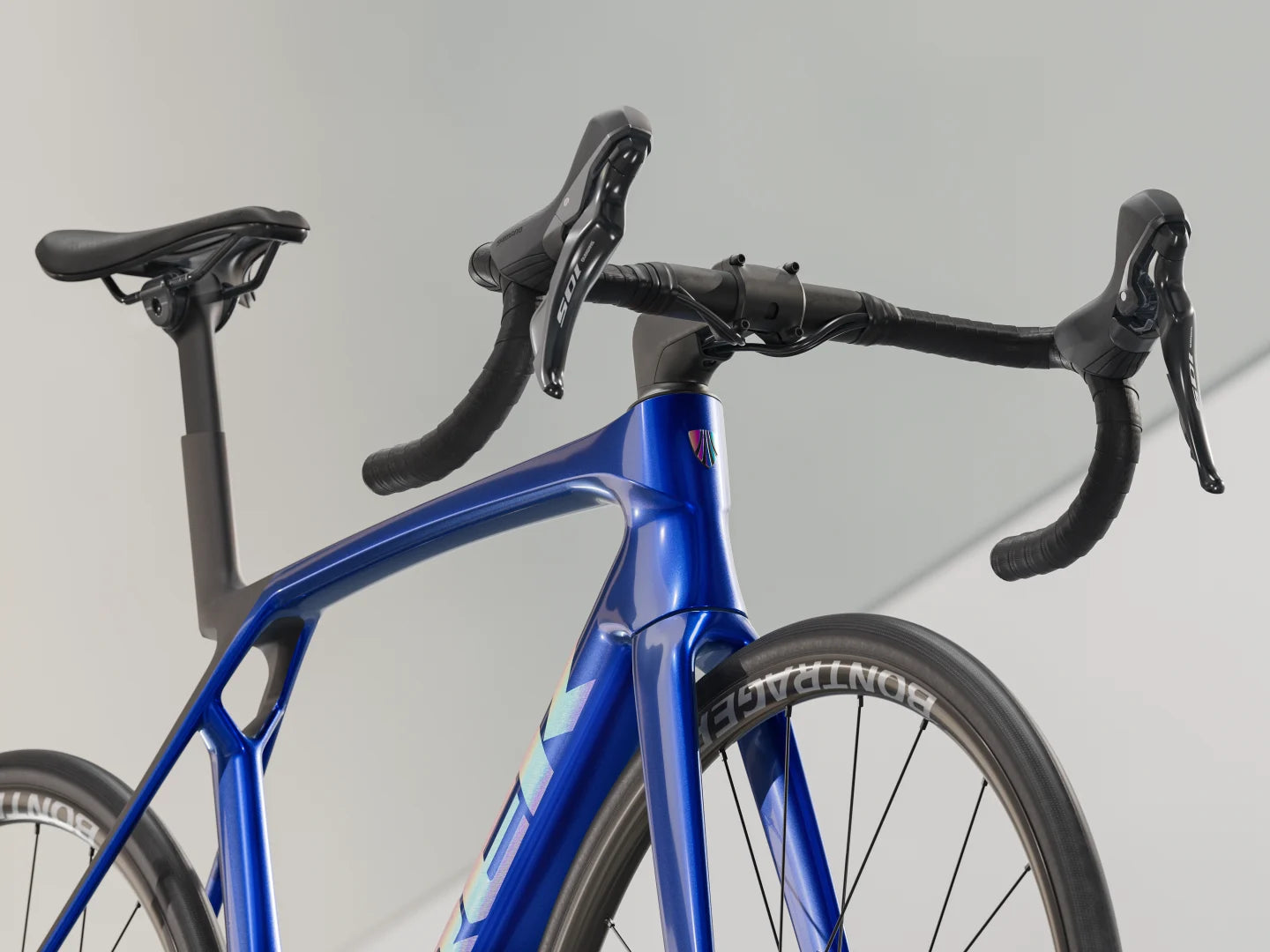

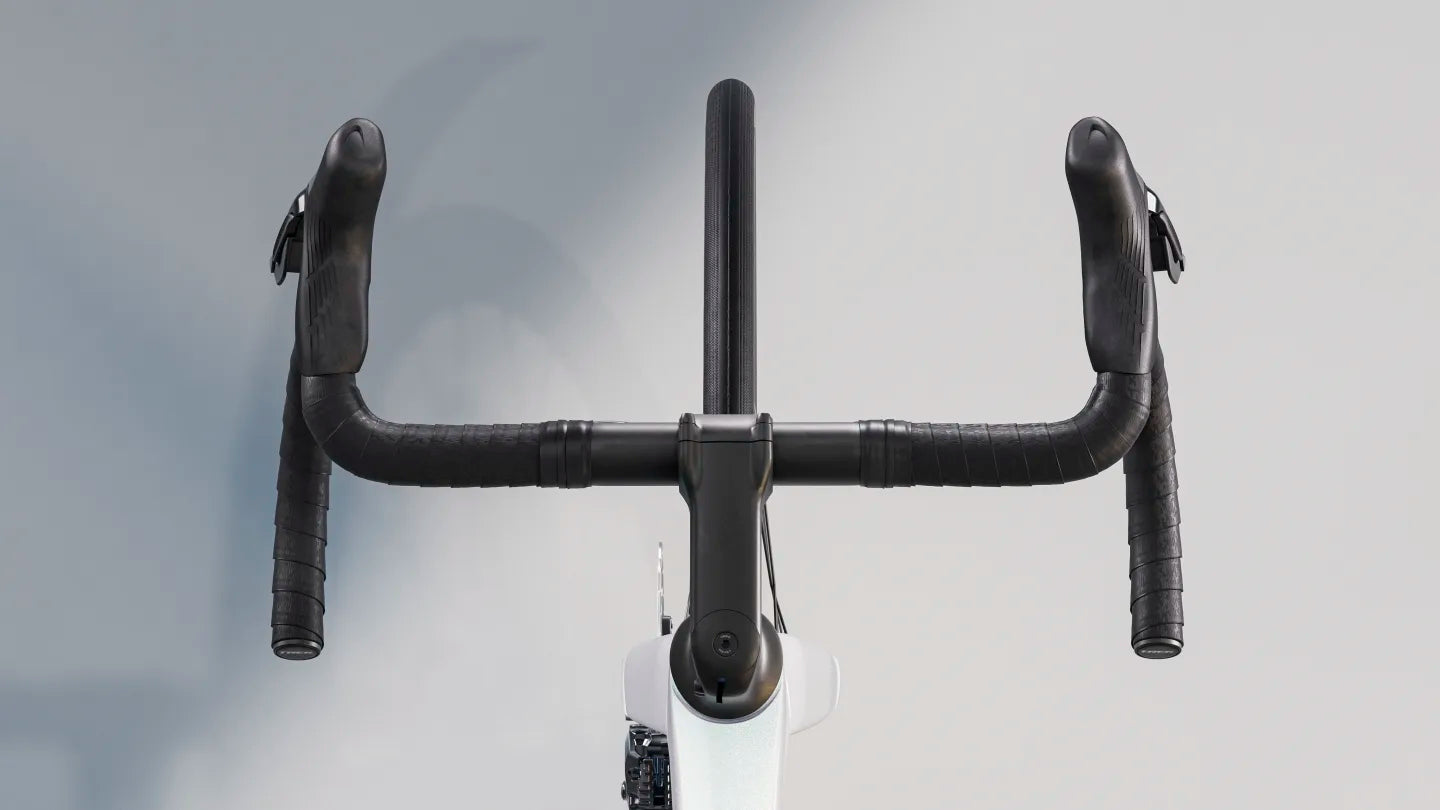

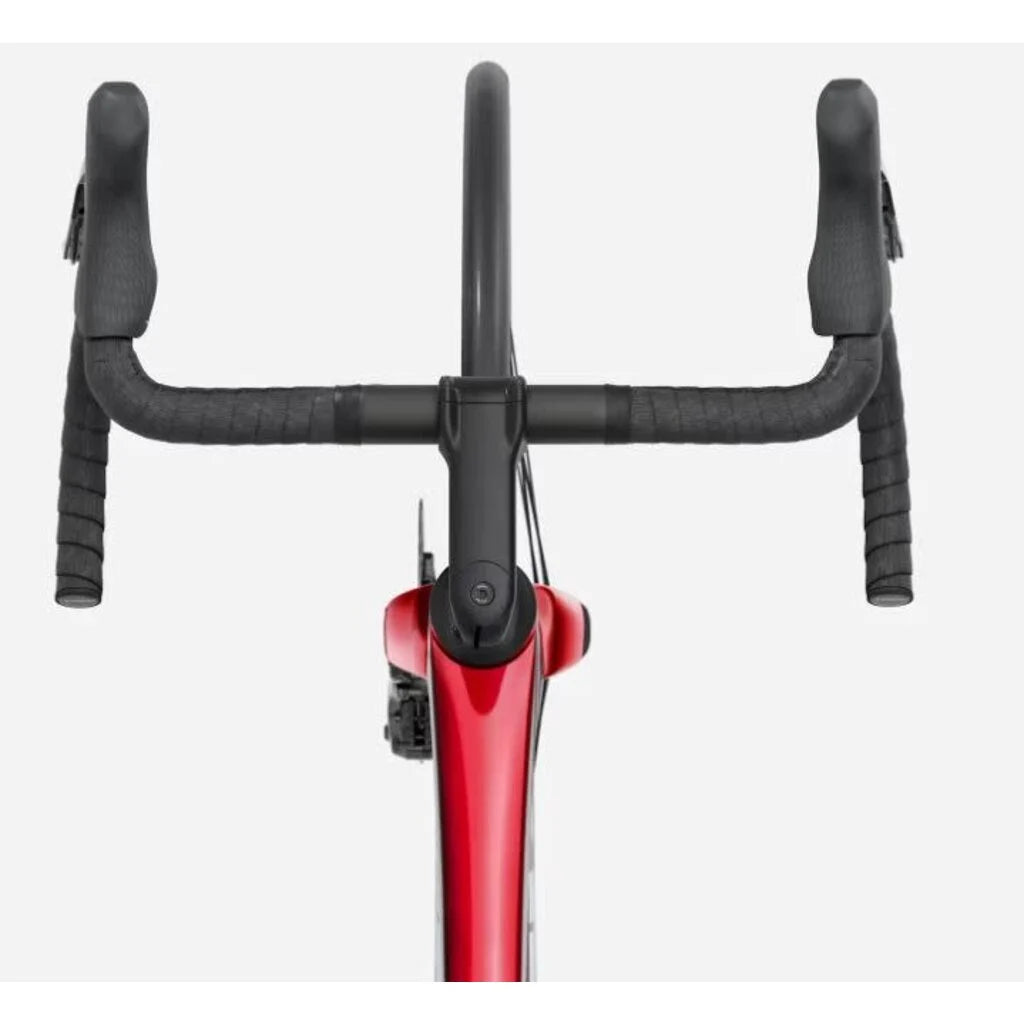

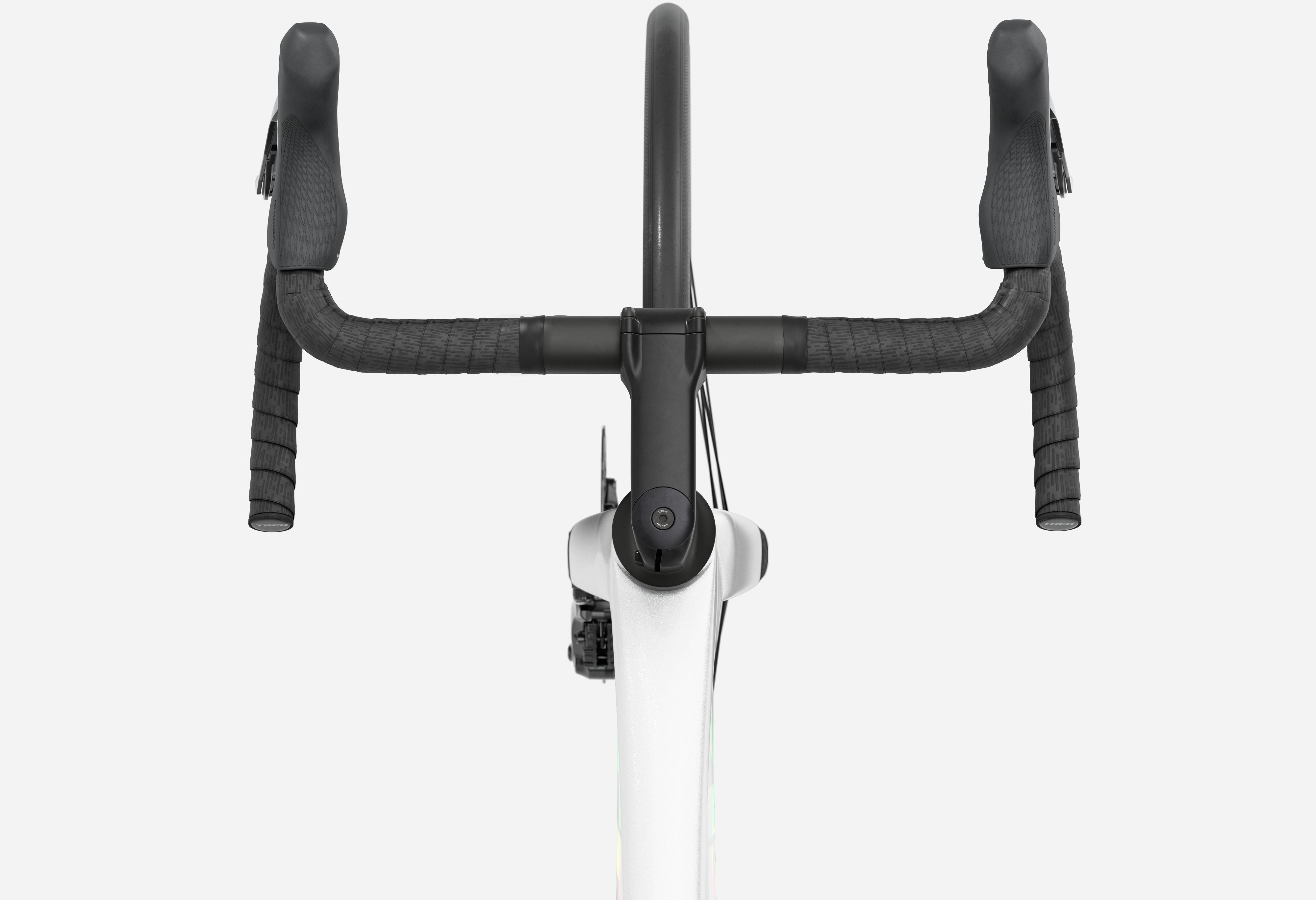

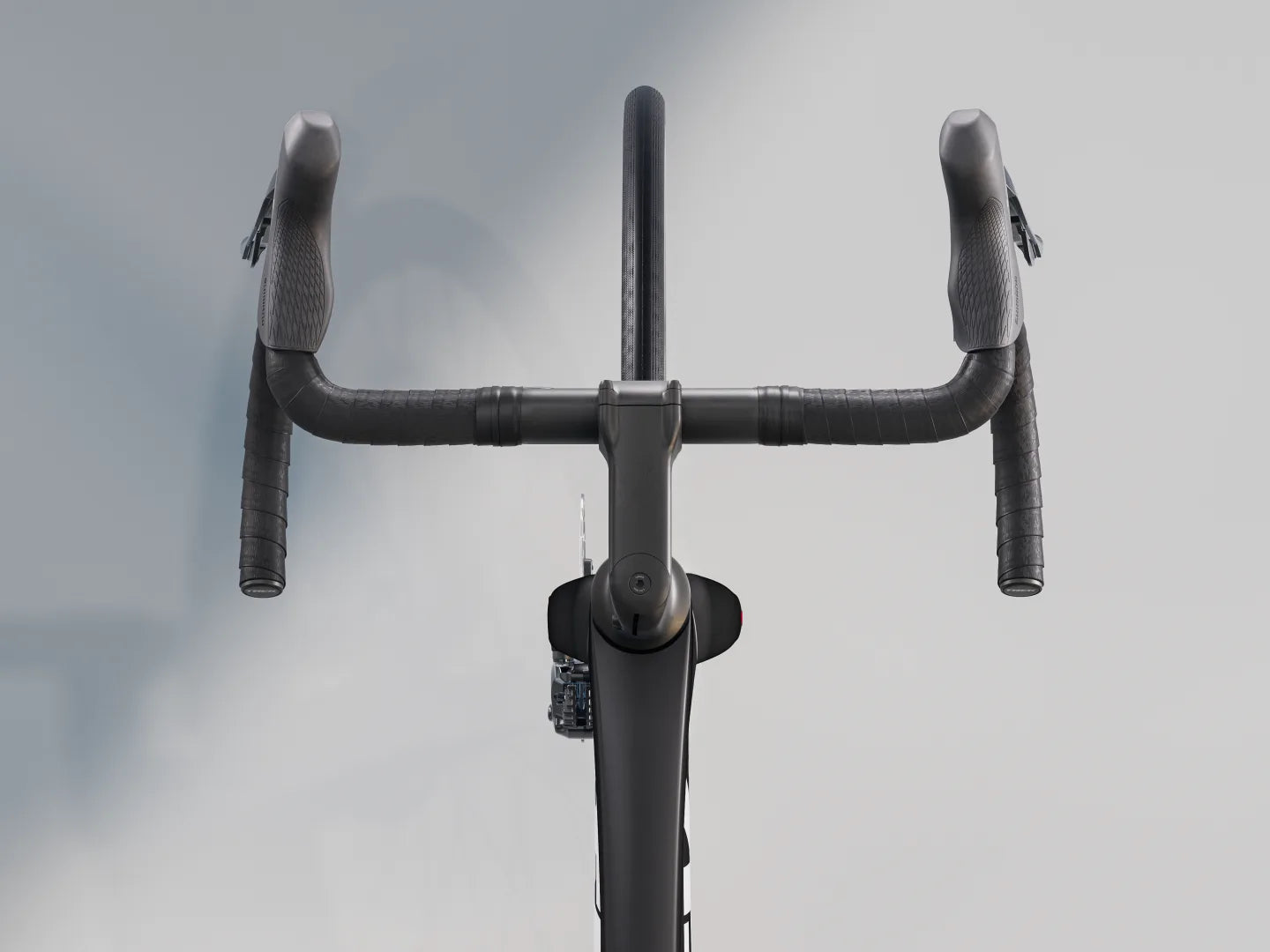

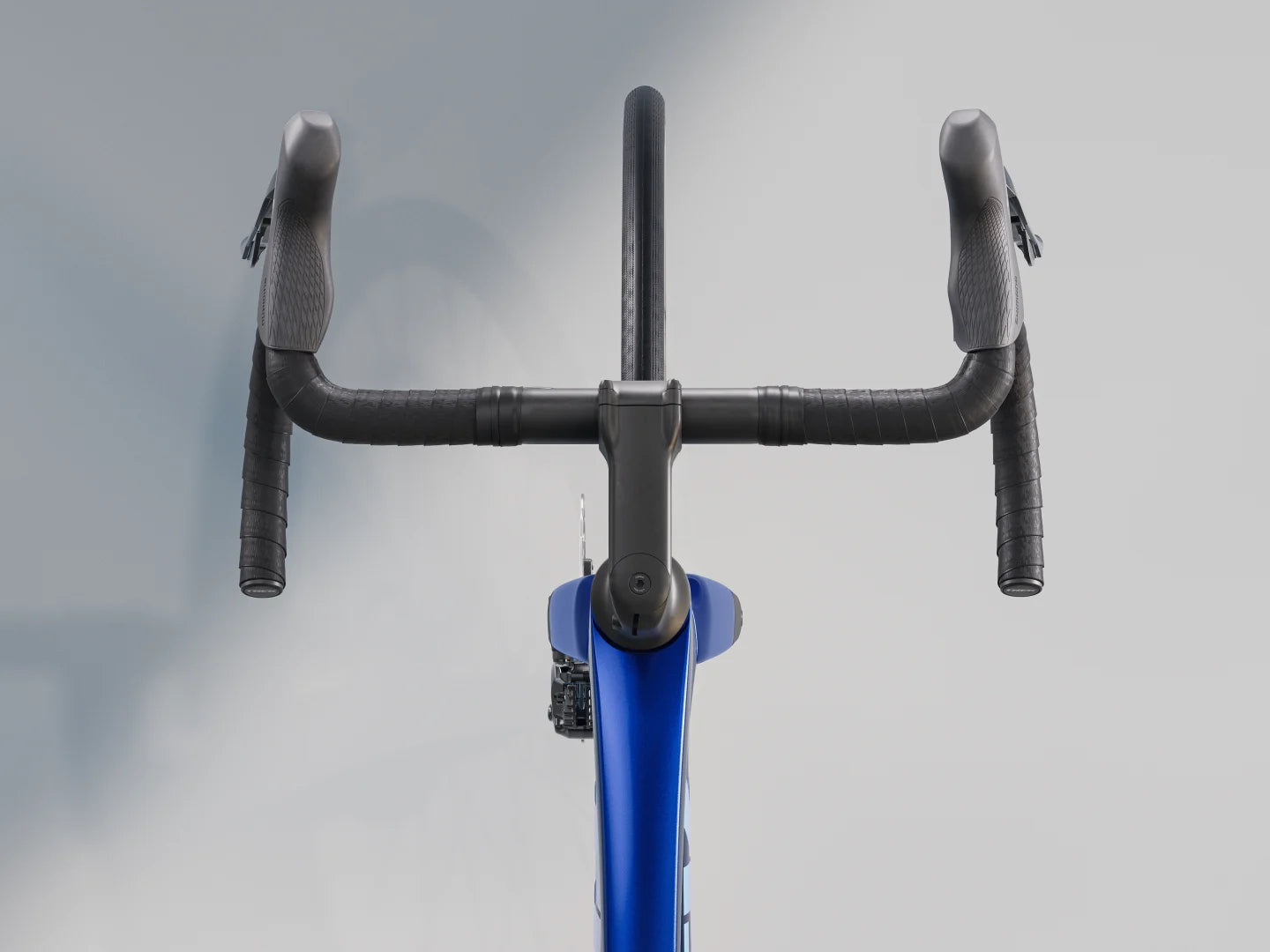

Adjustable aero cockpit

Madone Gen 8 features hoods that are narrower than the drops so you can adjust your positioning to prioritize aerodynamics or power. Plus, the two-piece design lets you quickly and easily dial in your fit.

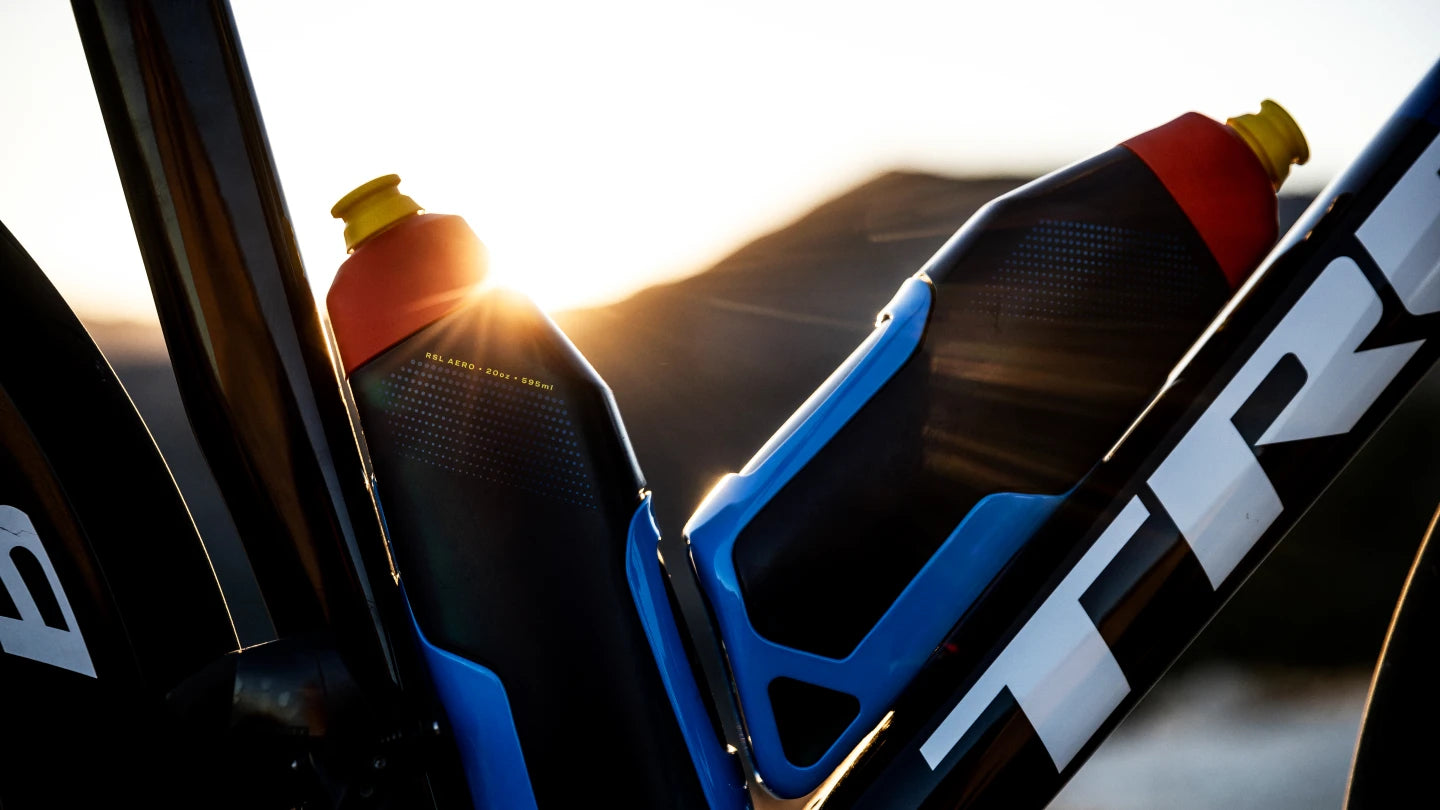

Add-on aero bottles to make your whole bike faster

Add-on RSL Aero Bottles and Cages were designed with Madone Full System Foil aero shapes to make the whole rider system even faster.

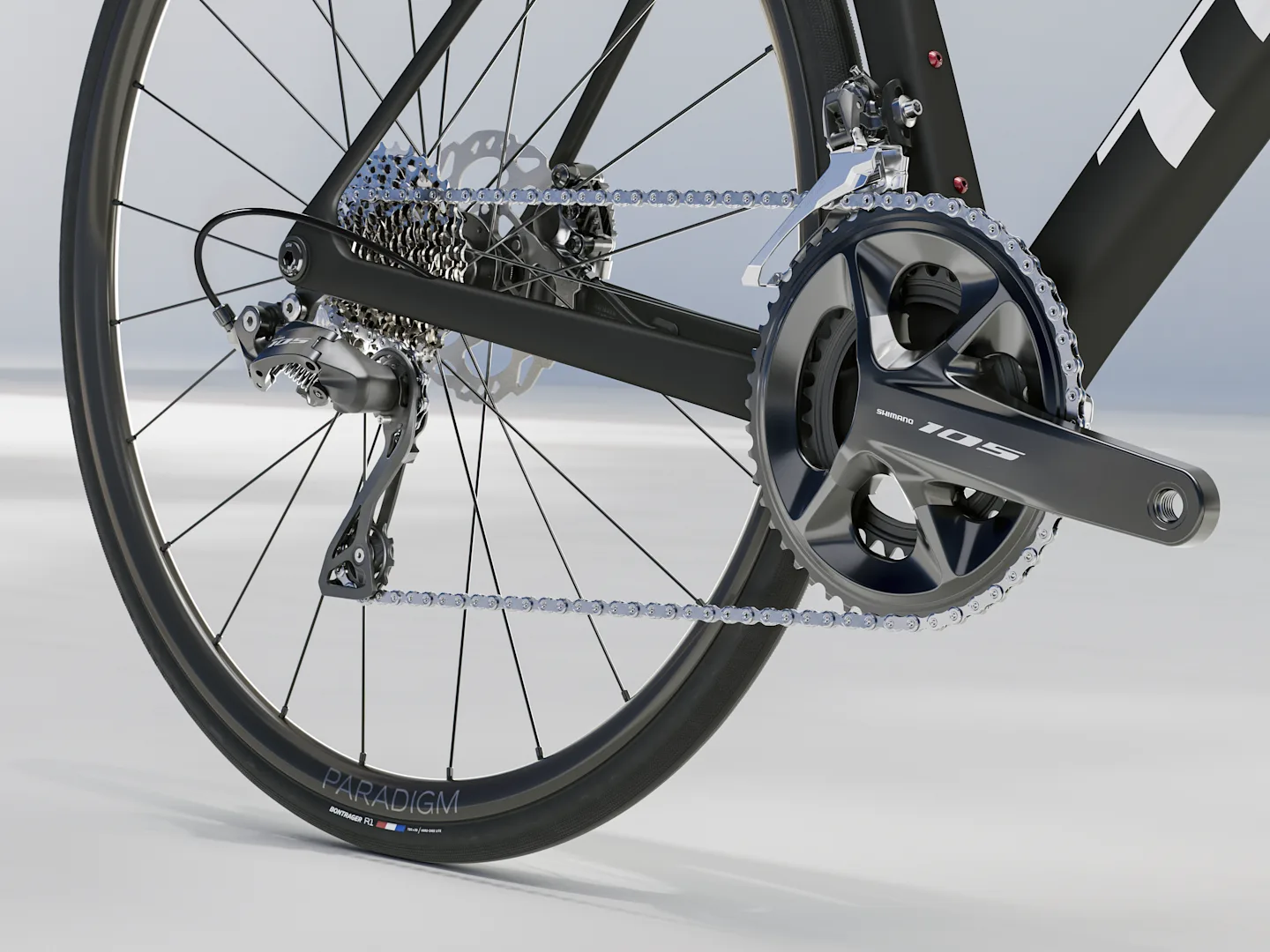

Shimano 105

With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget friendly price. Whether you're commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that won't hold you back as you grow in the sport.

It's right for you if...

You want a featherweight road race bike without top-end race pricing. You're up for racing, club rides, or solo spins up winding canyons, and don't want to compromise between climbing efficiency and aerodynamics. You're happy with more economical components that help you get on your dream bike faster.

The tech you get

An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2x12 Shimano 105 groupset that delivers clean mechanical shifts without the faff of electronic groupsets. Tubeless wheels that help fight punctures while reducing rolling resistance, and hydraulic disc brakes.

The final word

Madone SL 5 Gen 8 is the perfect bike for someone looking for superbike performance at a lower price point. It offers the same frame tech as its SLR sibling, like aero tube shaping and lightweight IsoFlow comfort tech, but with a more economical build that leaves budget to spare for race entry fees and bike trips.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
