SKU: 5339885

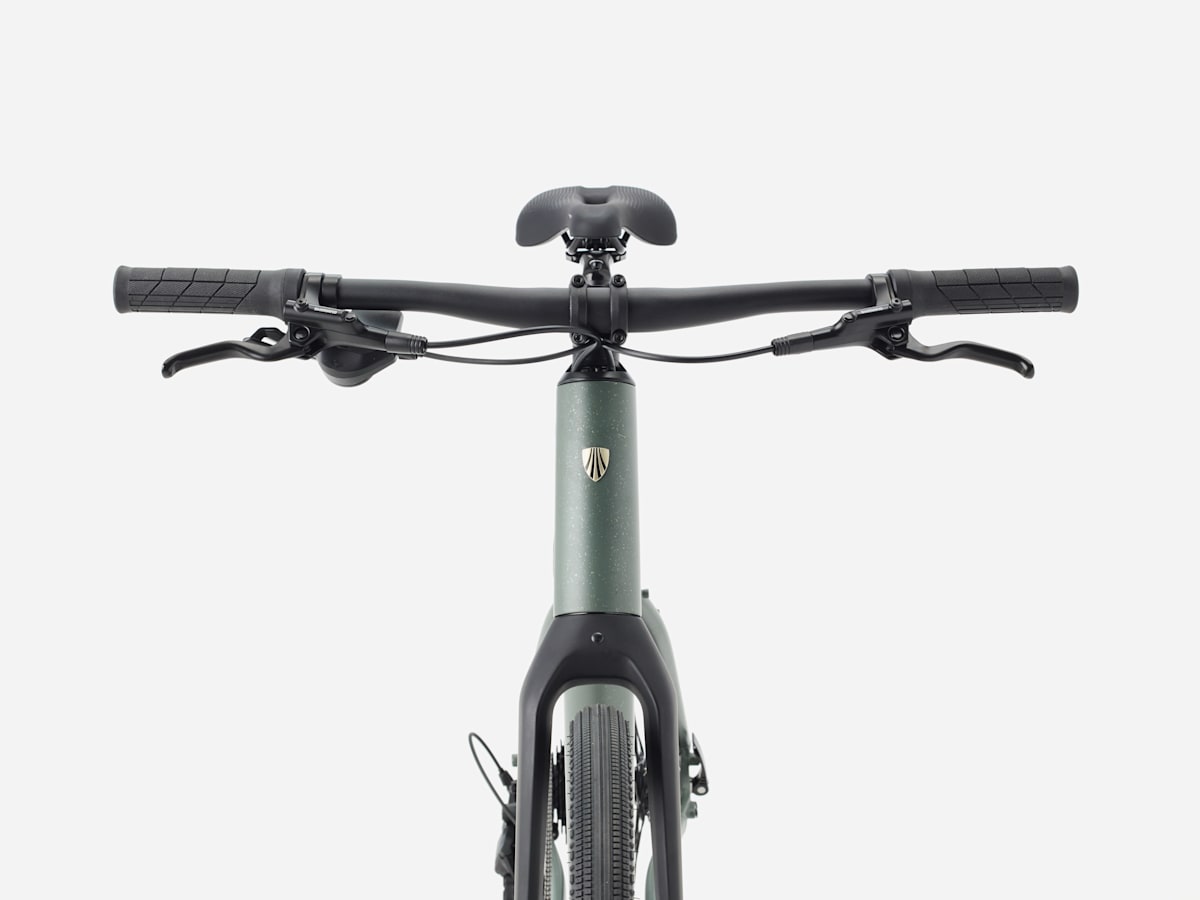

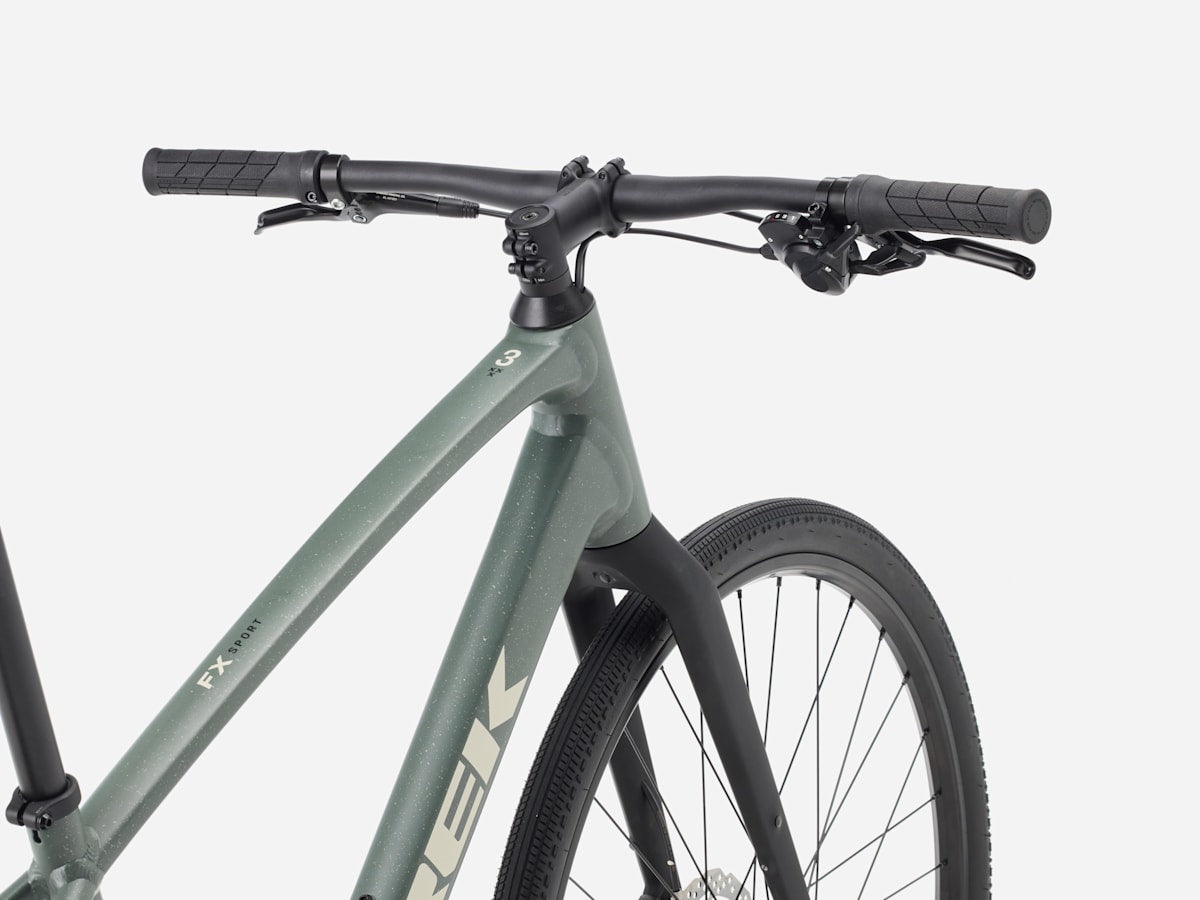

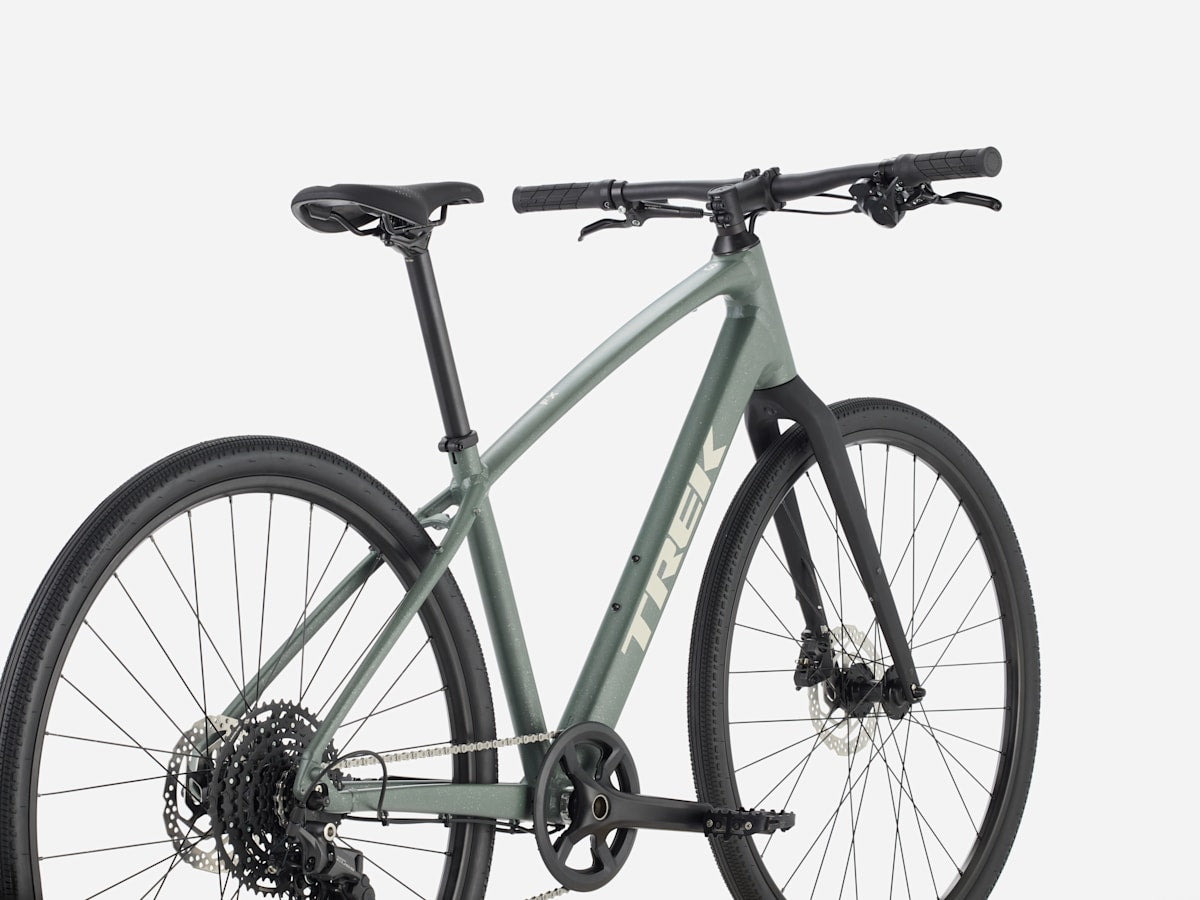

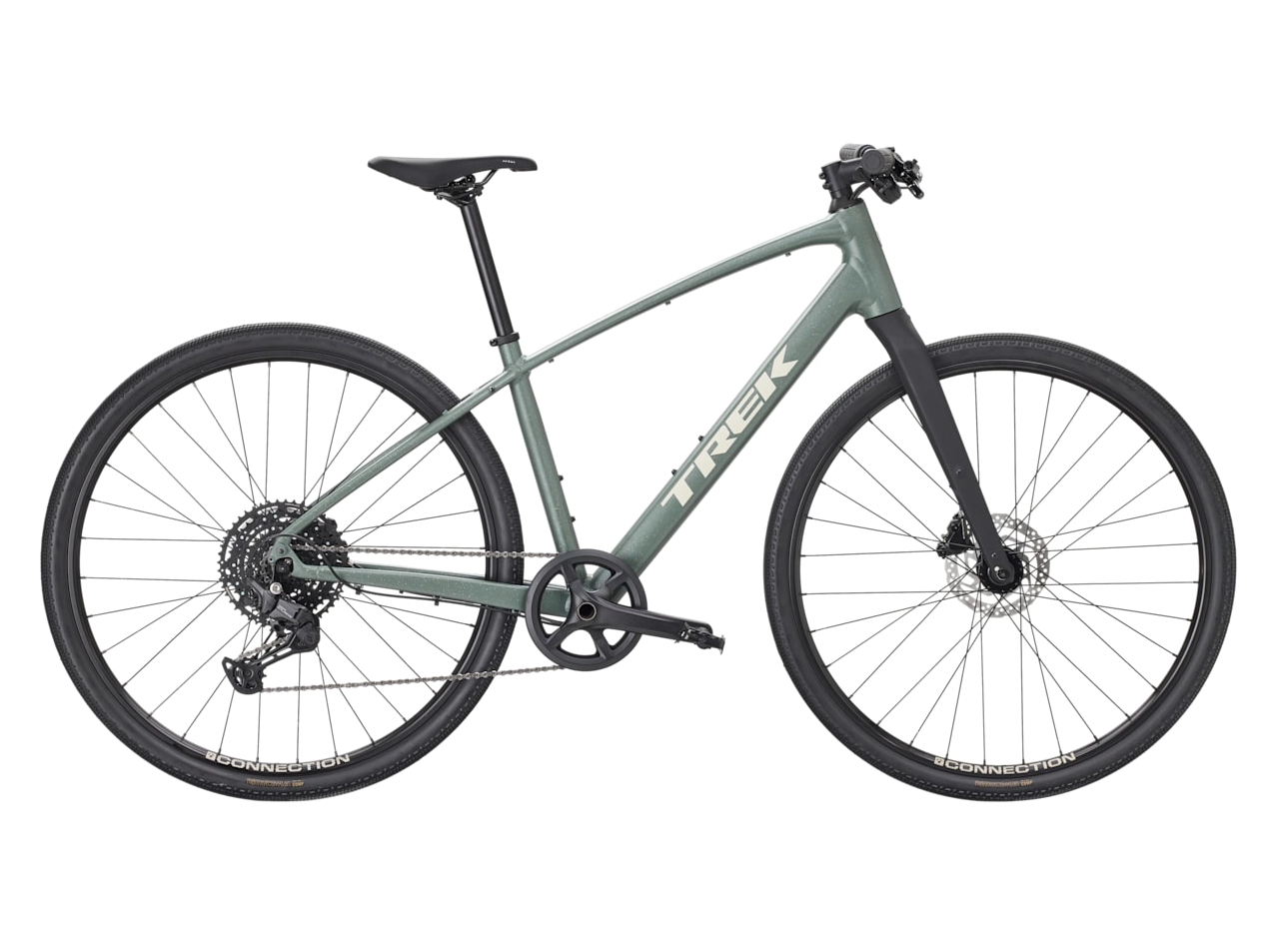

TREK FX Sport AL 3

New Arrivals
Sale price29,900 ฿
Color: Keswick
Size: S
Fx sport 2025
Size Rider Height Inseam
XS

147 - 155 cm

4'10" - 5'1"

69 - 73 cm

27" - 29"

S

155 - 165 cm

5'1" - 5'5"

72 - 78 cm

28" - 31"

M

165 - 175 cm

5'5" - 5'9"

77 - 83 cm

30" - 33"

L

175 - 186 cm

5'9" - 6'1"

82 - 88 cm

32" - 35"

XL

186 - 197 cm

6'1" - 6'6"

87 - 93 cm

34" - 37"

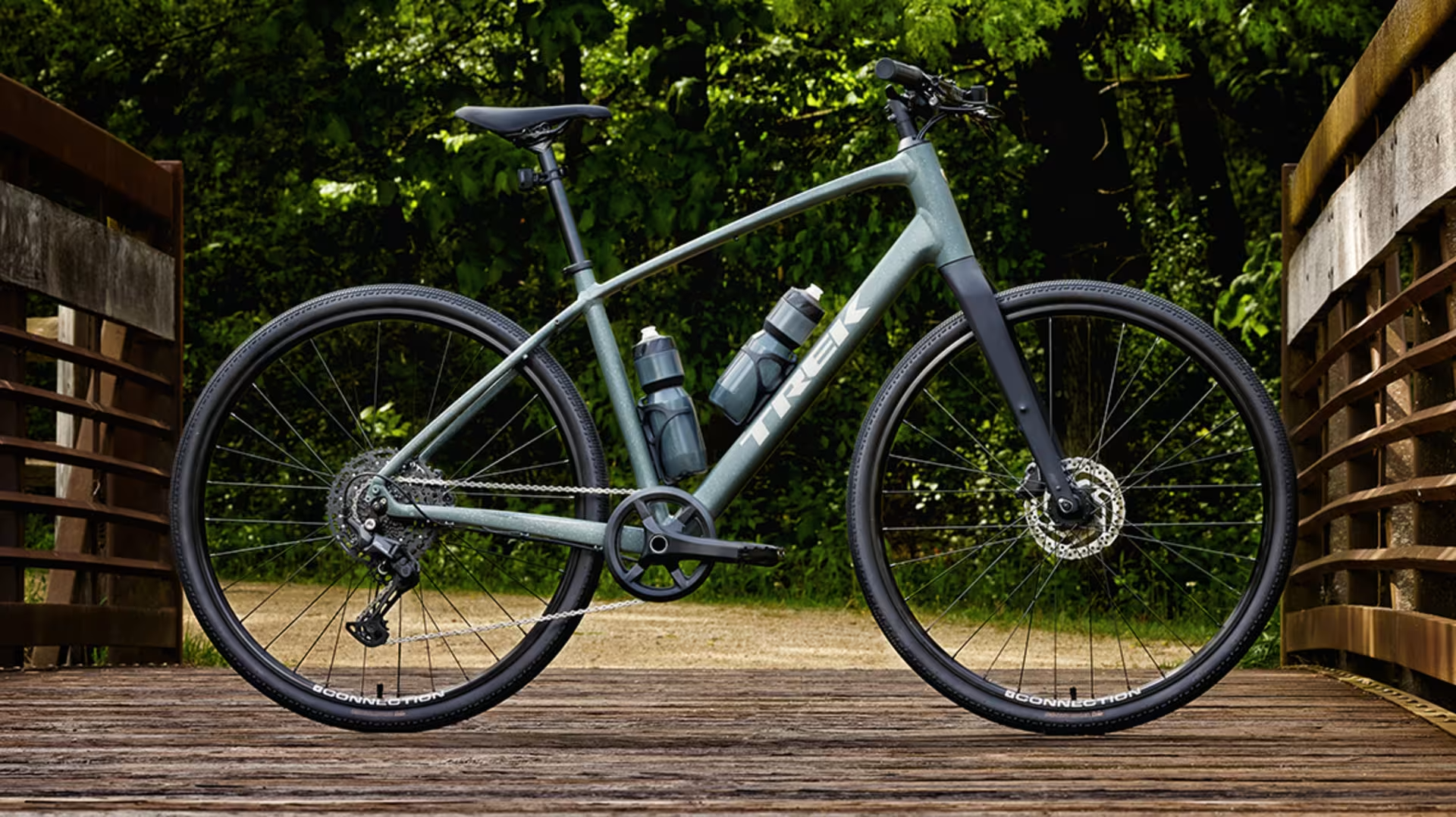

The all-road-ready fitness bike

FX Sport is the ultimate, all-road-ready lightweight fitness bike. If you’re looking to take your rides beyond city streets, look no further. Performance-packed into a super sleek, super versatile design, FX Sport gives you a fast frame, all-terrain tires, and flat bar confidence and control to adventure wherever the day takes you.

FX Sport AL 3 is a lightweight, versatile aluminum bike, perfect for exploring the path less traveled. It comes ready for anything, with a reliable and light Alpha Gold Aluminum frame, 10-speed Shimano CUES shifting, go-anywhere Bontrager Girona gravel tires, and hydraulic disc brakes.

Frameset

Frame : Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork : Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR

Weight

Weight : M - 11.10 kg / 24.48 lbs
Weight limit : This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

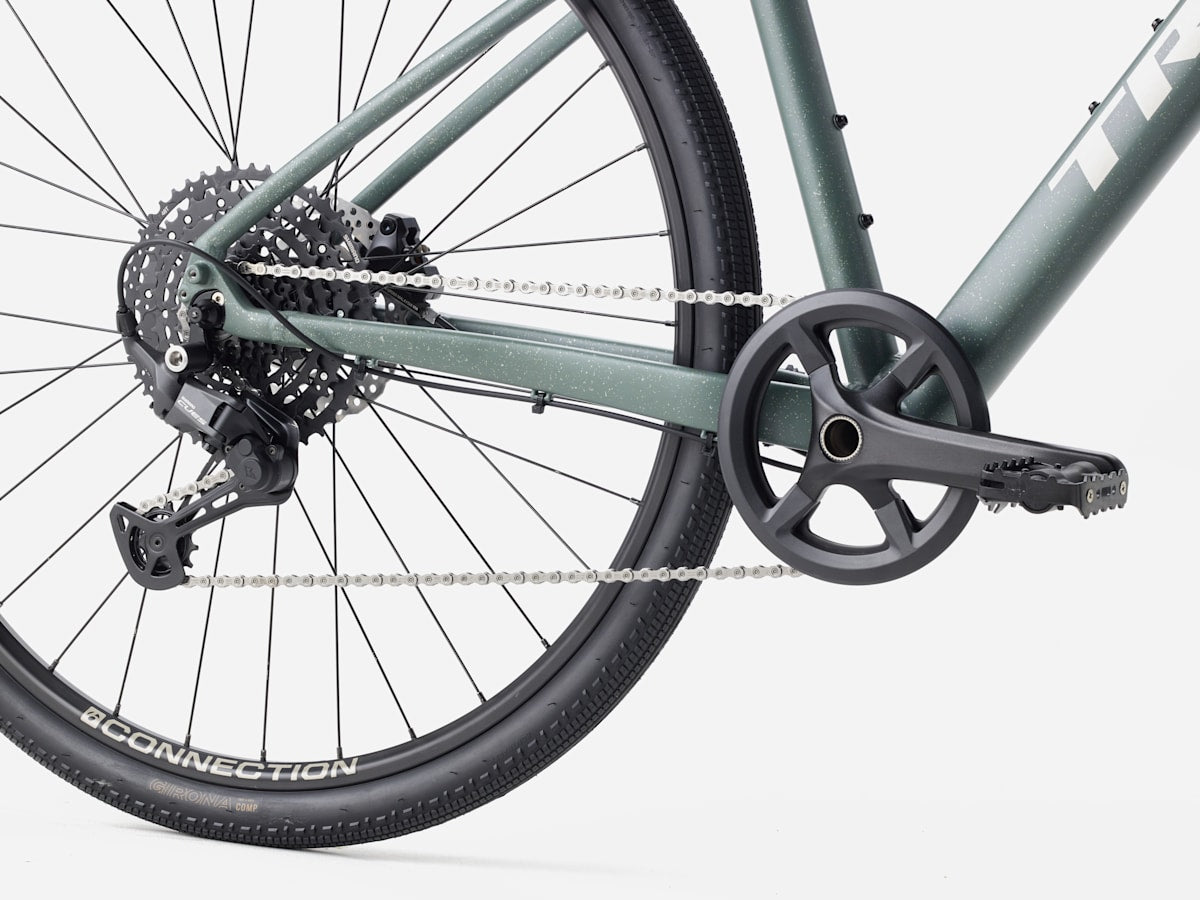

Drivetrain

Shifter :
Shimano CUES U6000 w/optical gear display, 10 speed
Rear derailleur :
Shimano CUES U6000 GS
*Crank :
Size: XS, S, M
Prowheel alloy, 40T narrow-wide ring, 170mm length
Size: L, XL
Prowheel alloy, 40T narrow-wide ring, 175mm length
Cassette :
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain :
Shimano LG500, 9/10/11 speed
Pedal :
Wellgo nylon body, alloy cage

Wheels

Hub front :
Formula DC-20, alloy, 6-bolt, 100x5mm
Skewer front :
139x5mm bolt-on
Hub rear :
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear :
152x5mm QR
Rim :
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Tire :
Bontrager Girona Comp, wire bead, 60 tpi, 700x42mm

compenents

Saddle :
Verse Short, chromoly rails, 145mm width
*Seatpost :
Size: XS, S, M
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Size: L, XL
Bontrager alloy, 27.2mm, 12mm offset, 400mm length
*Handlebar :
Size: XS, S
Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width
Size: M, L
Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width
Size: XL
Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 690mm width
Grips :
Trek Line Comp, nylon lock-on
*Stem :
Size: XS, S
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: M, L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Brake :
Shimano hydraulic disc, MT201 lever, UR300 caliper
Brake rotor :
Shimano RT26, 6-bolt, 160mm

Fast and comfortable

Our Active geometry puts you in a slightly more forward position to give you more pedalling efficiency while staying comfortable on long rides.

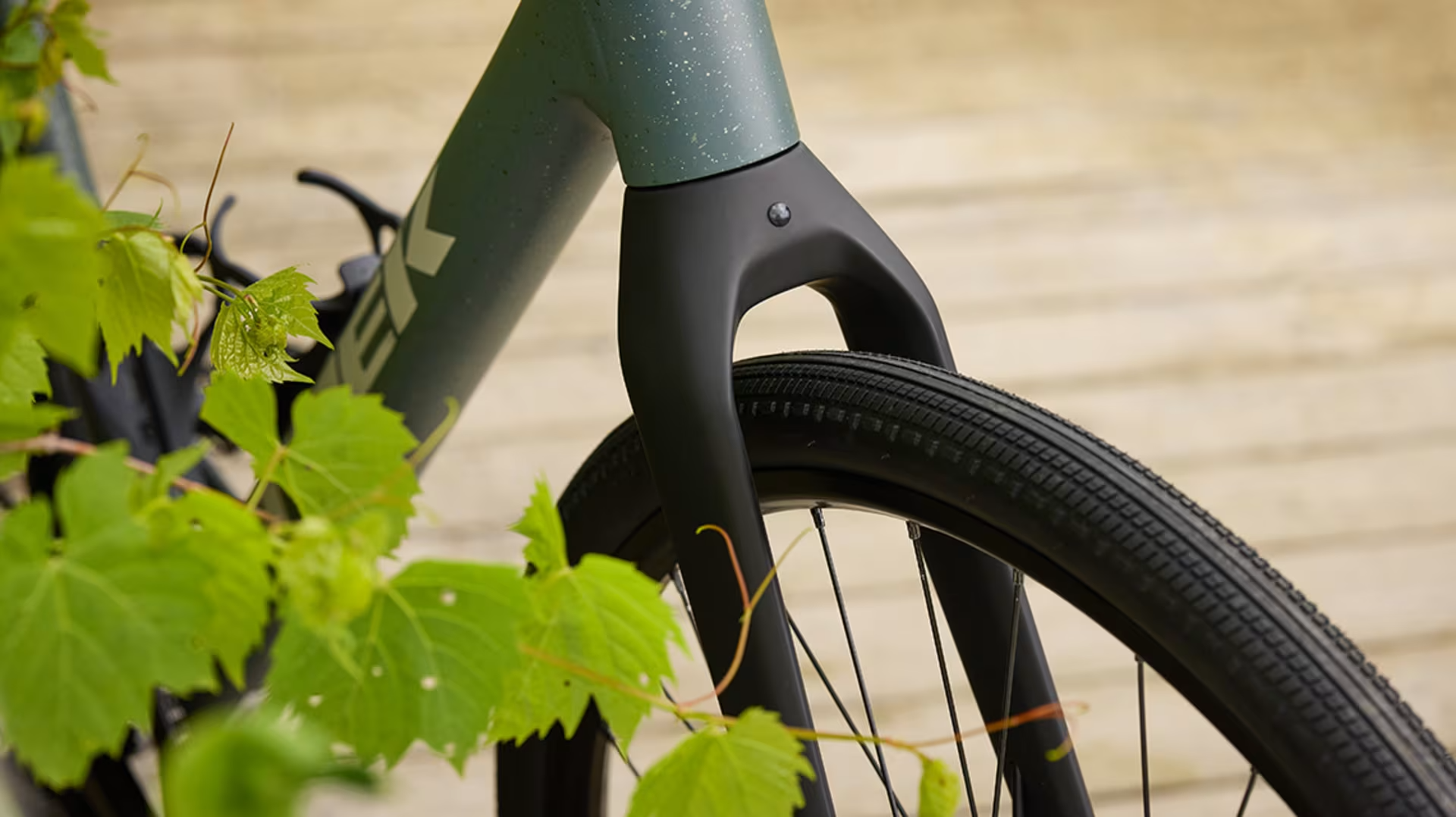

All-Road capable

Wide 42c Girona tires offer traction and control on paved or unpaved paths.

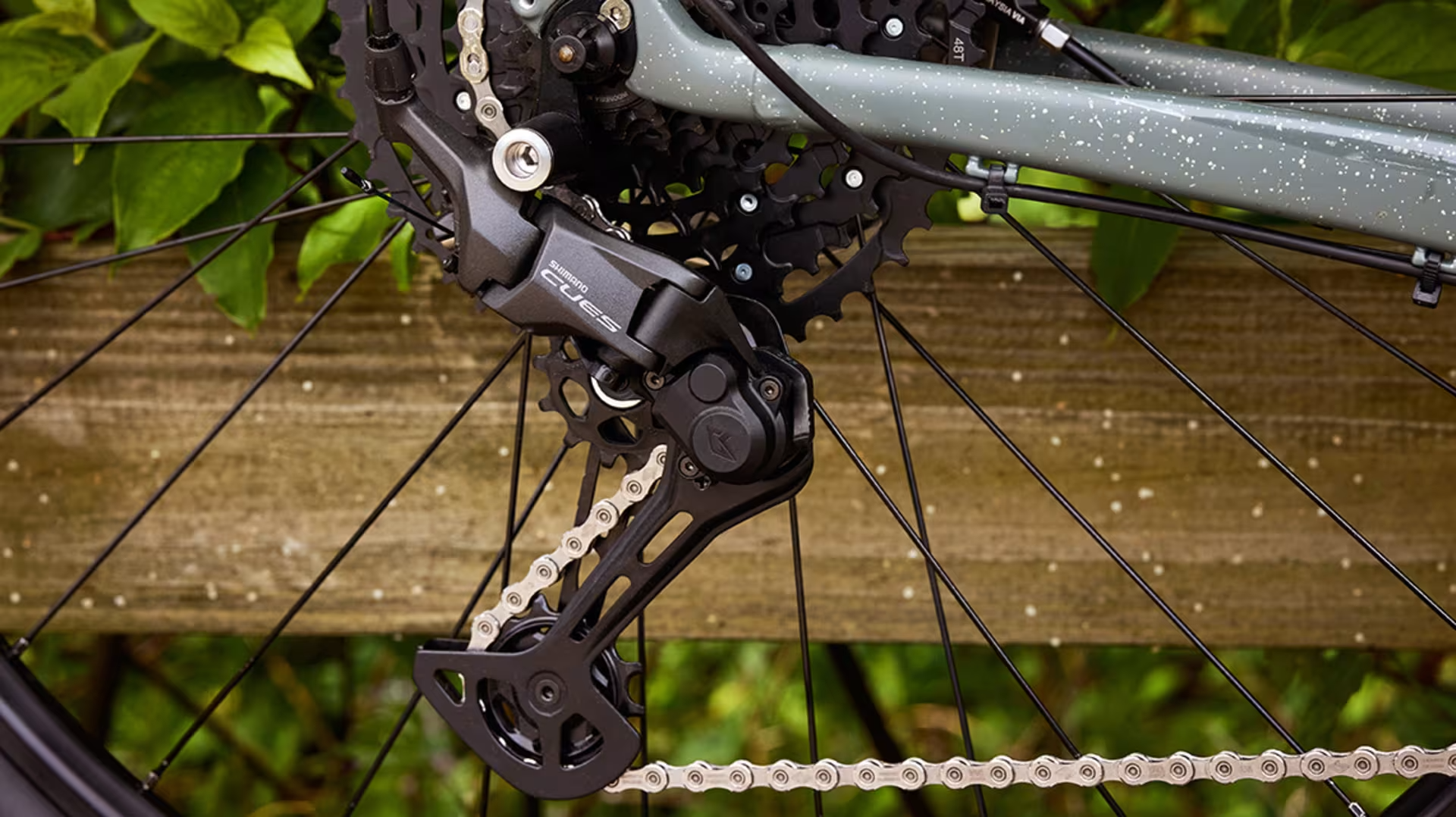

Reliable and durable

The Shimano CUES drivetrain offers a hassle-free, low-maintenance performance riders can rely on for the long haul. CUES features Shimano’s new LINKGLIDE drivetrain technology for less wear and tear on chains, cassettes, and chainrings.

A better way to produce aluminum

Starting in 2024, we began removing high-emission aluminum from our manufacturing and replacing it with low-emission aluminum made with renewable energy. By October 2025, nearly every alloy bike we make - this one included - had made the switch, driving a major drop in our footprint.

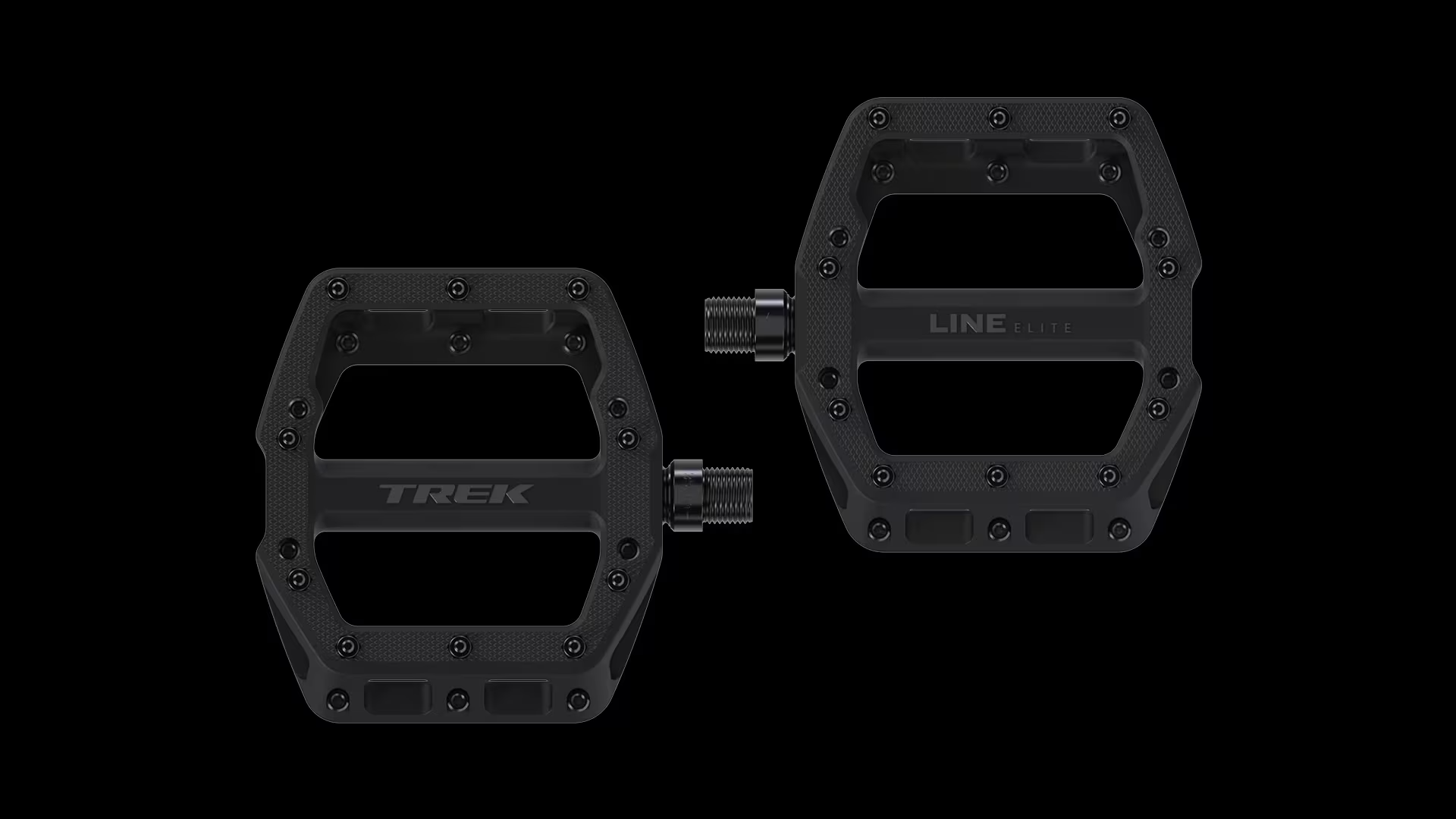

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
