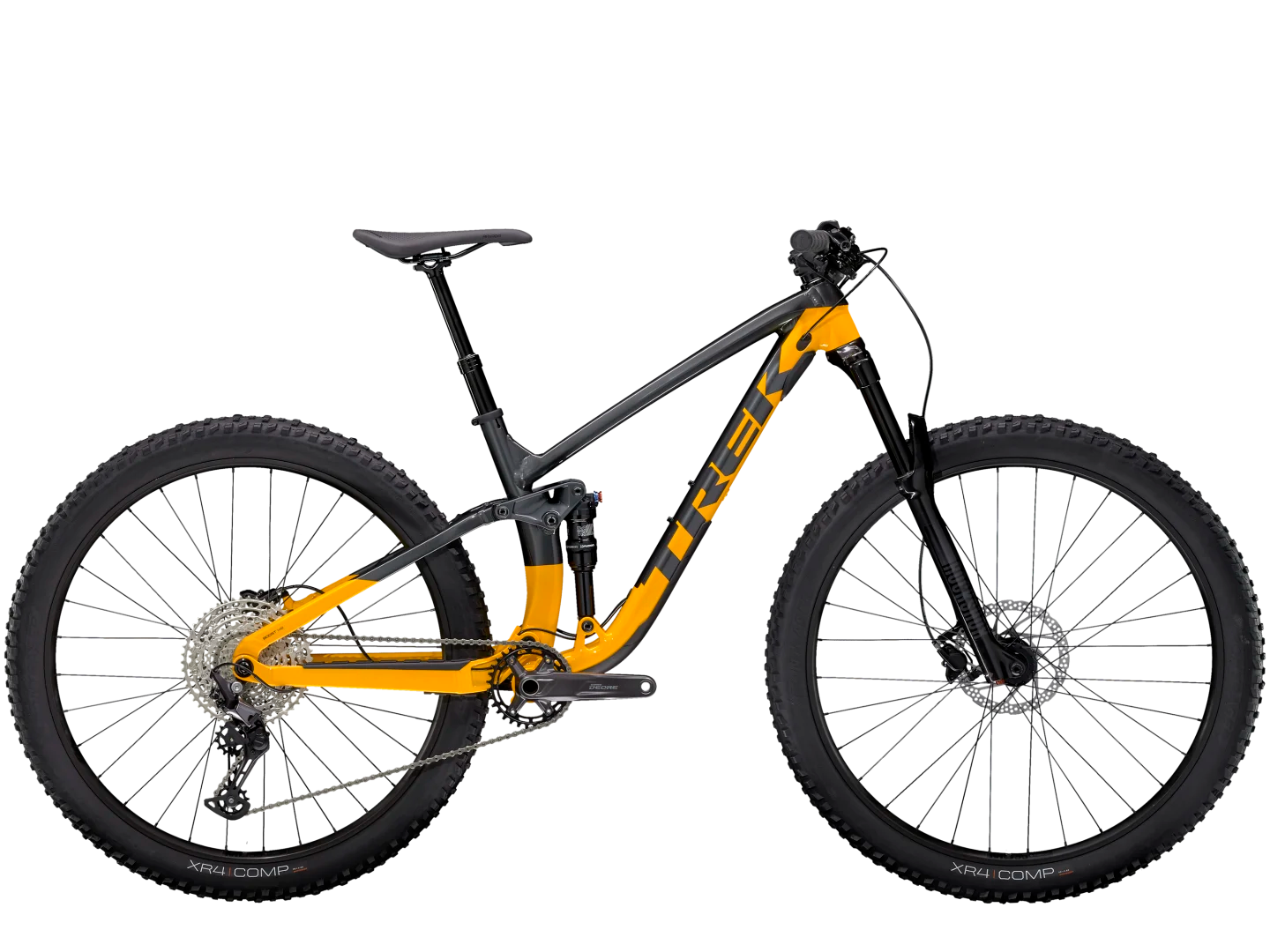

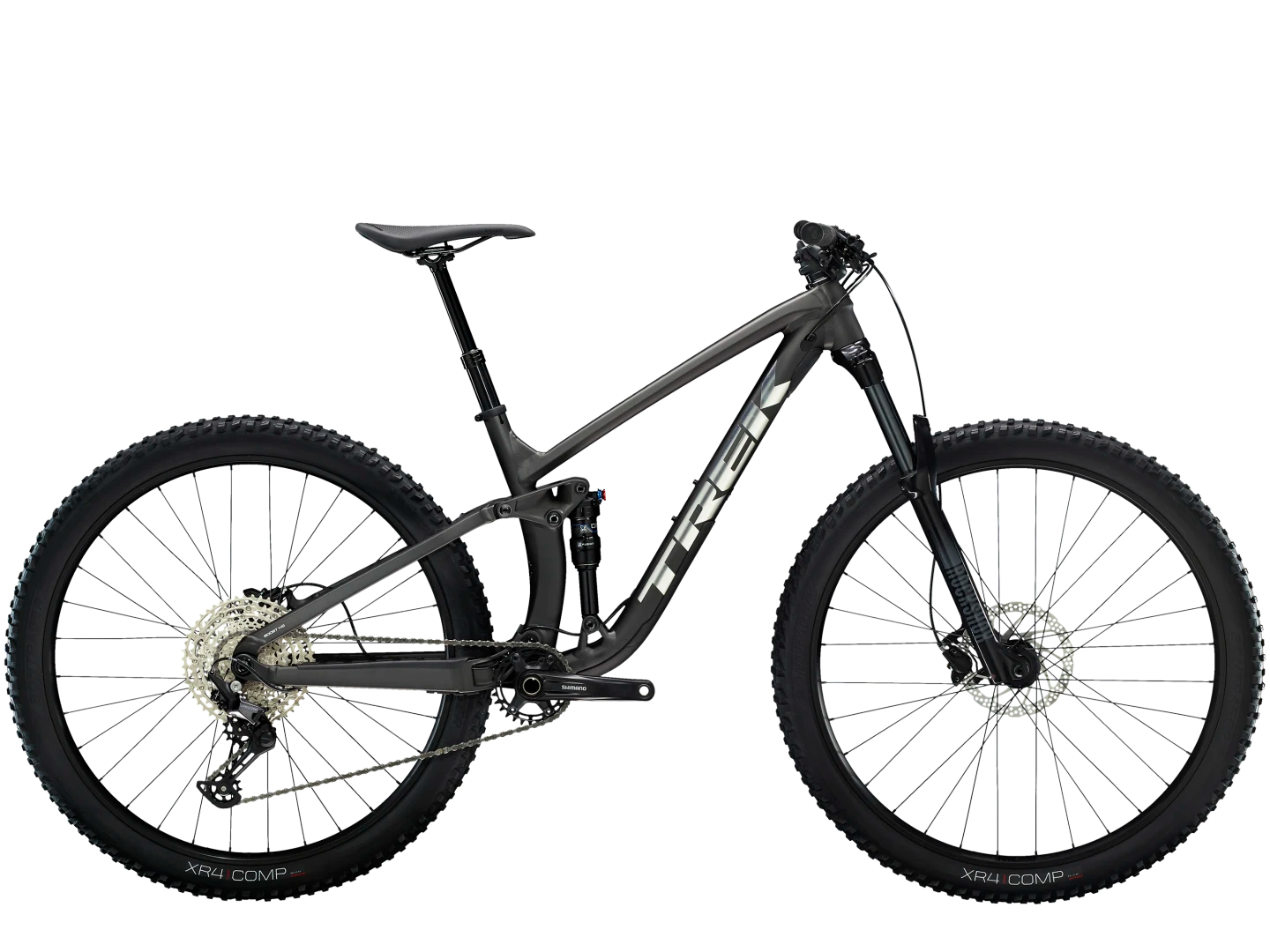

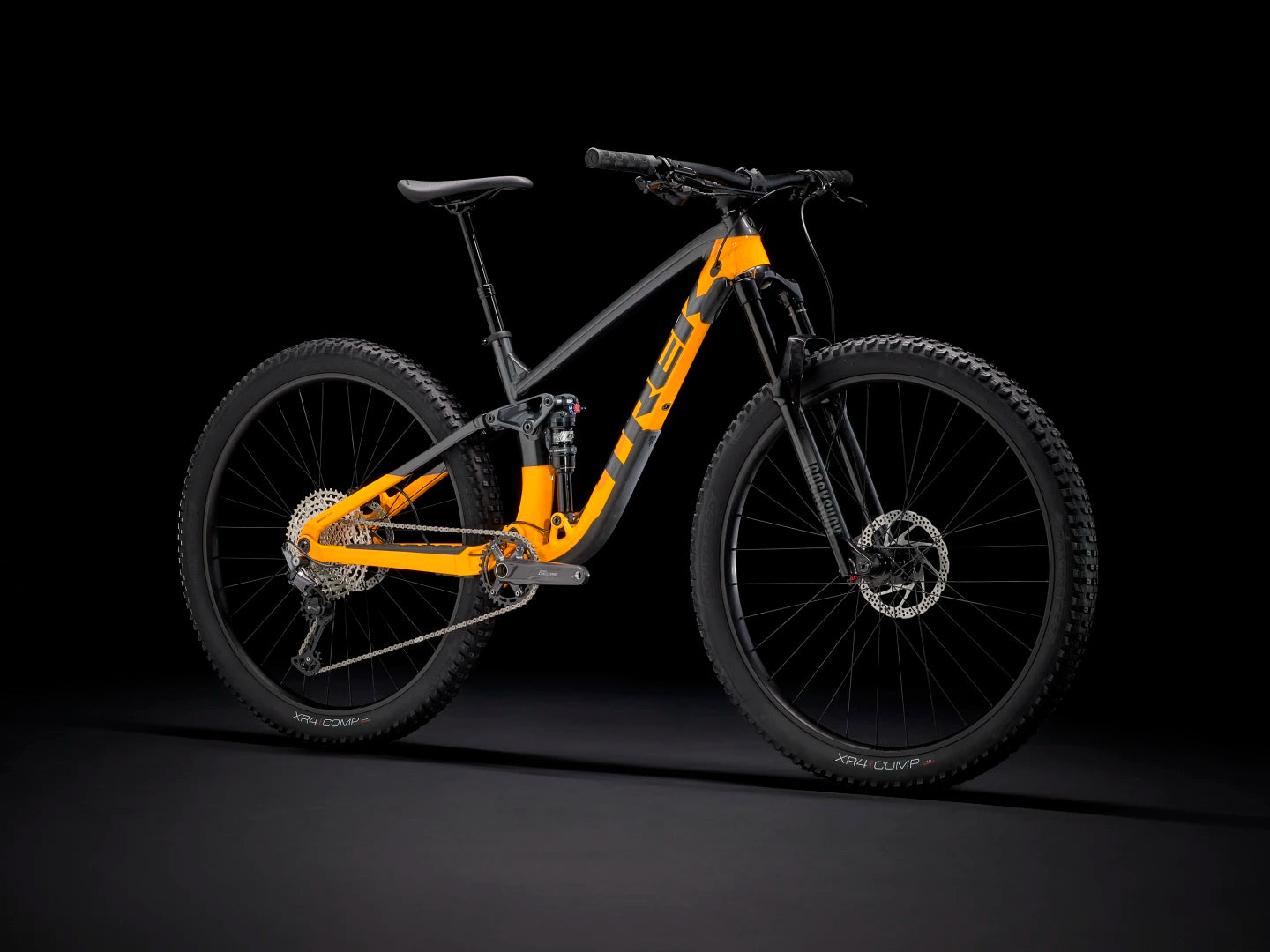

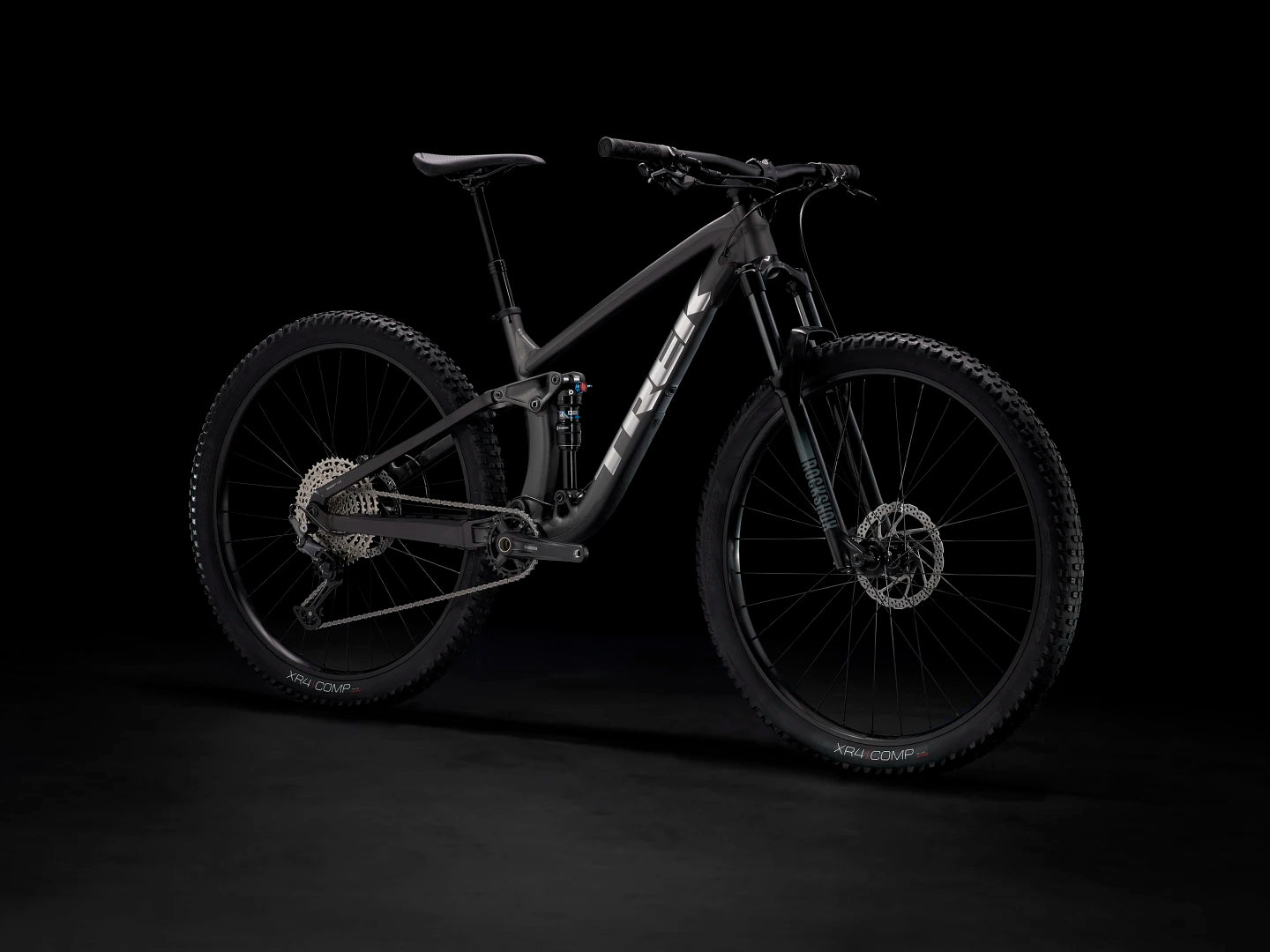

TREK Fuel EX 5 Gen 5

Name: TREK Fuel EX 5 Gen 5
Brand: TREK
SKU: 1045225
Price: 99000.0 THB
Availability: InStock

99,000.00 ฿

Color:

Matte Dnister Black

SIZE:

S (27.5" WHEEL)

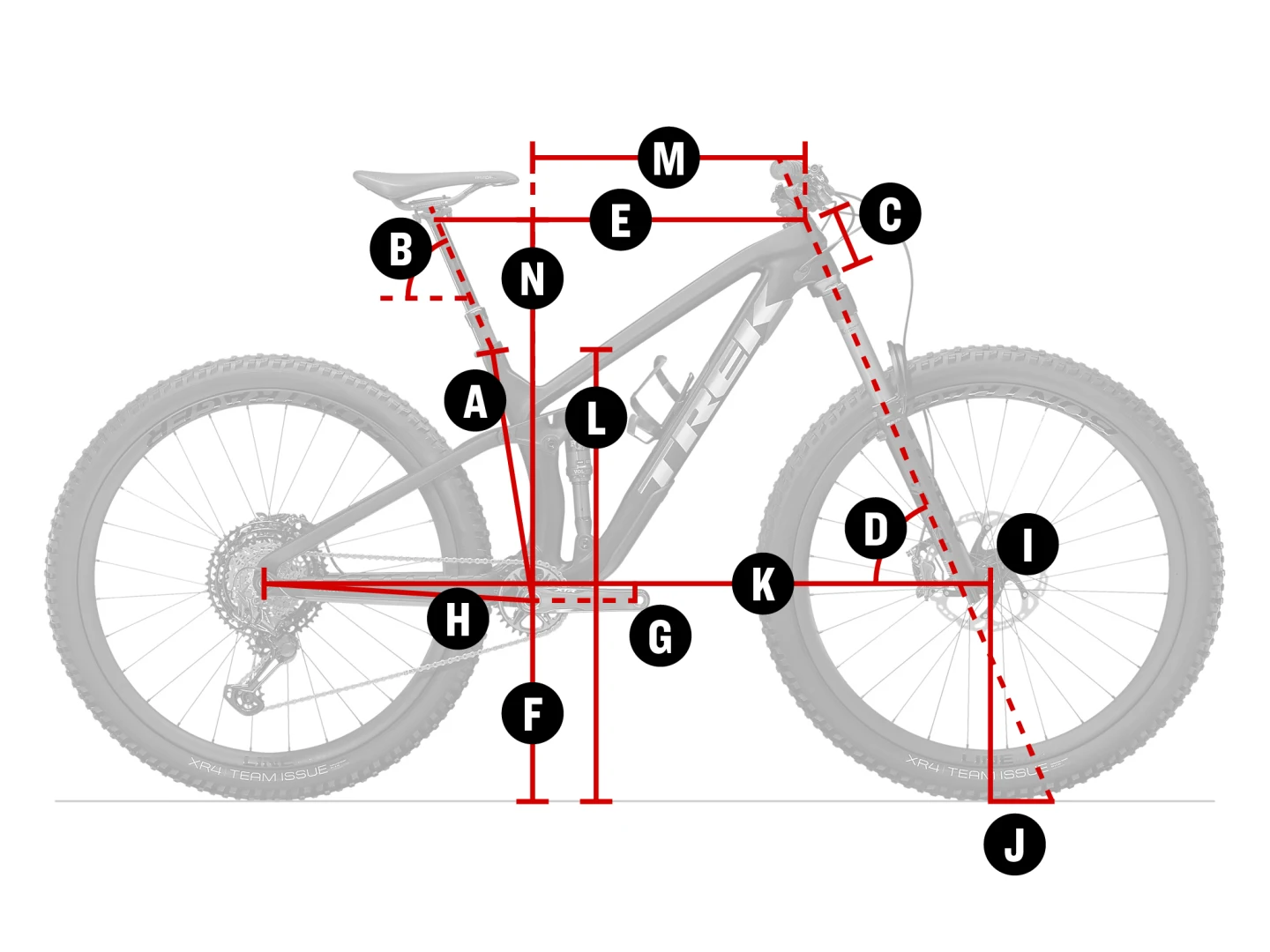

Fuel EX 5 Gen 5

Size

Rider Height

Inseam

XS

145 - 155 cm

4'9" - 5'1"

69 - 73 cm

27" - 29"

S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"

M

165 - 176 cm

5'5" - 5'9"

79 - 83 cm

31" - 33"

ML

173 - 180 cm

5'8" - 5'11"

81 - 86 cm

32" - 34"

L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"

XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

Variant

0.0

Quantity:

Fuel EXe 5 is an aluminum electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.

TREK TREK Fuel EX 5 Gen 5

99,000.00 ฿

FRAMESET

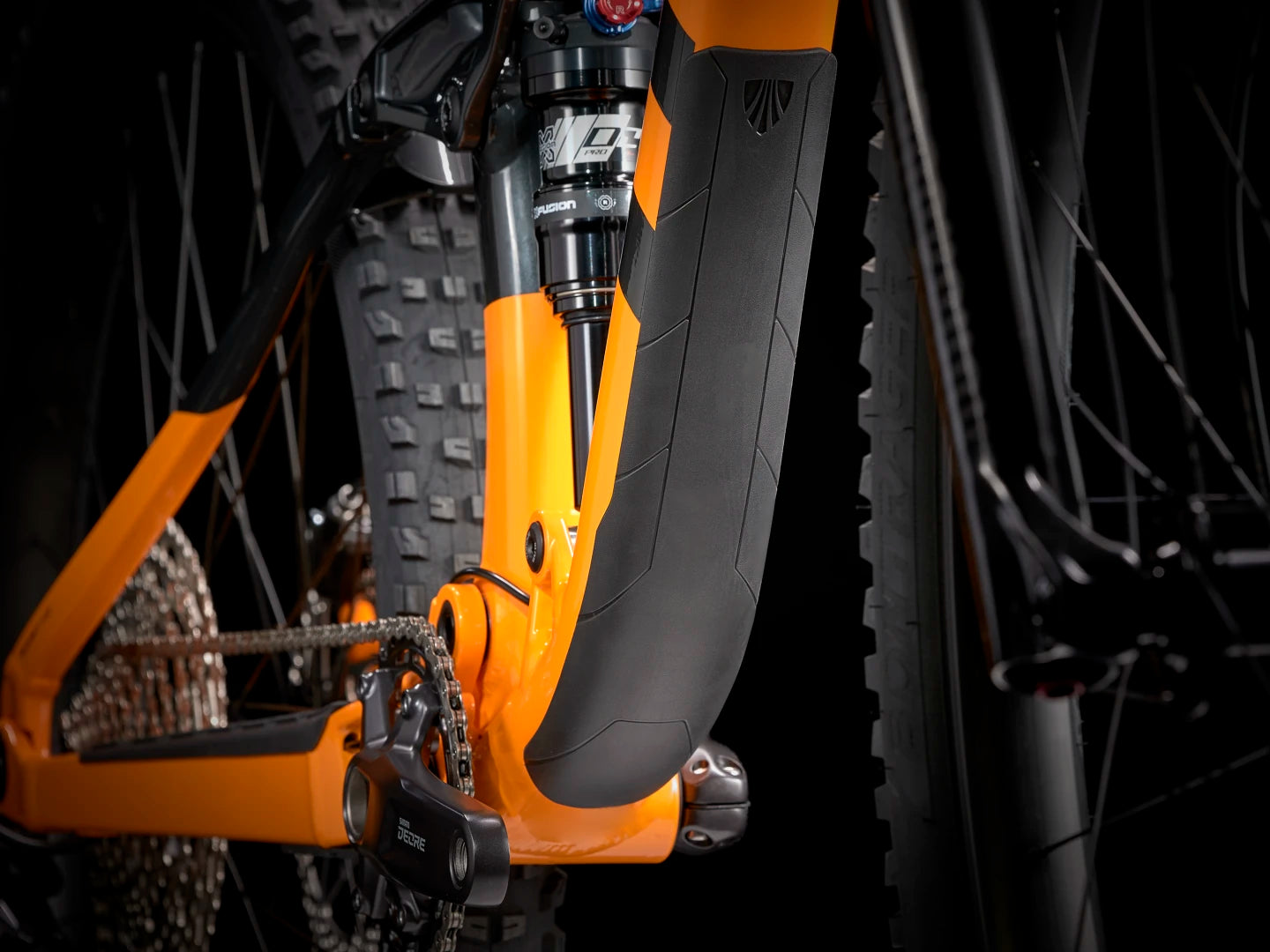

Frame : Alpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Fork : RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel

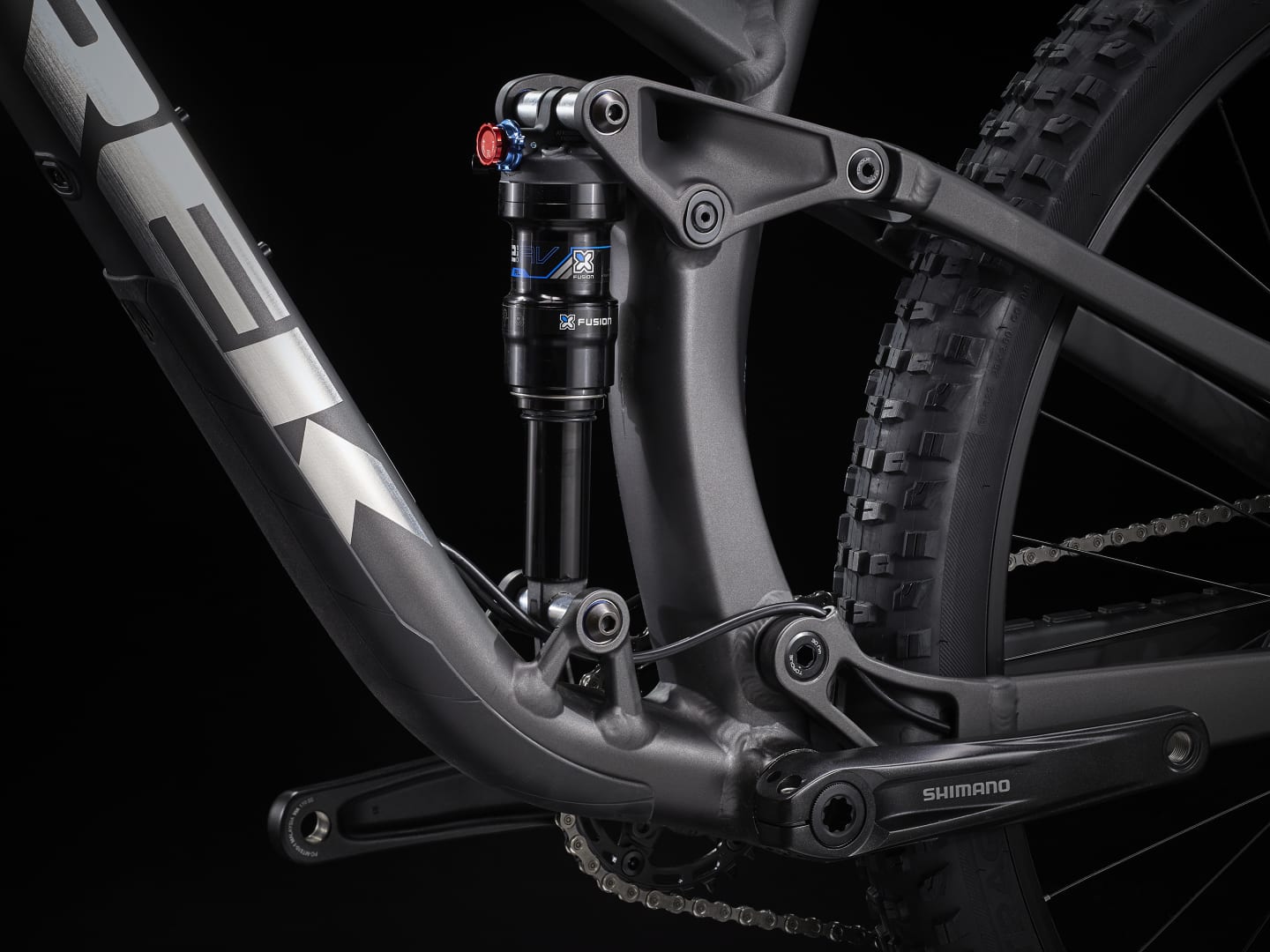

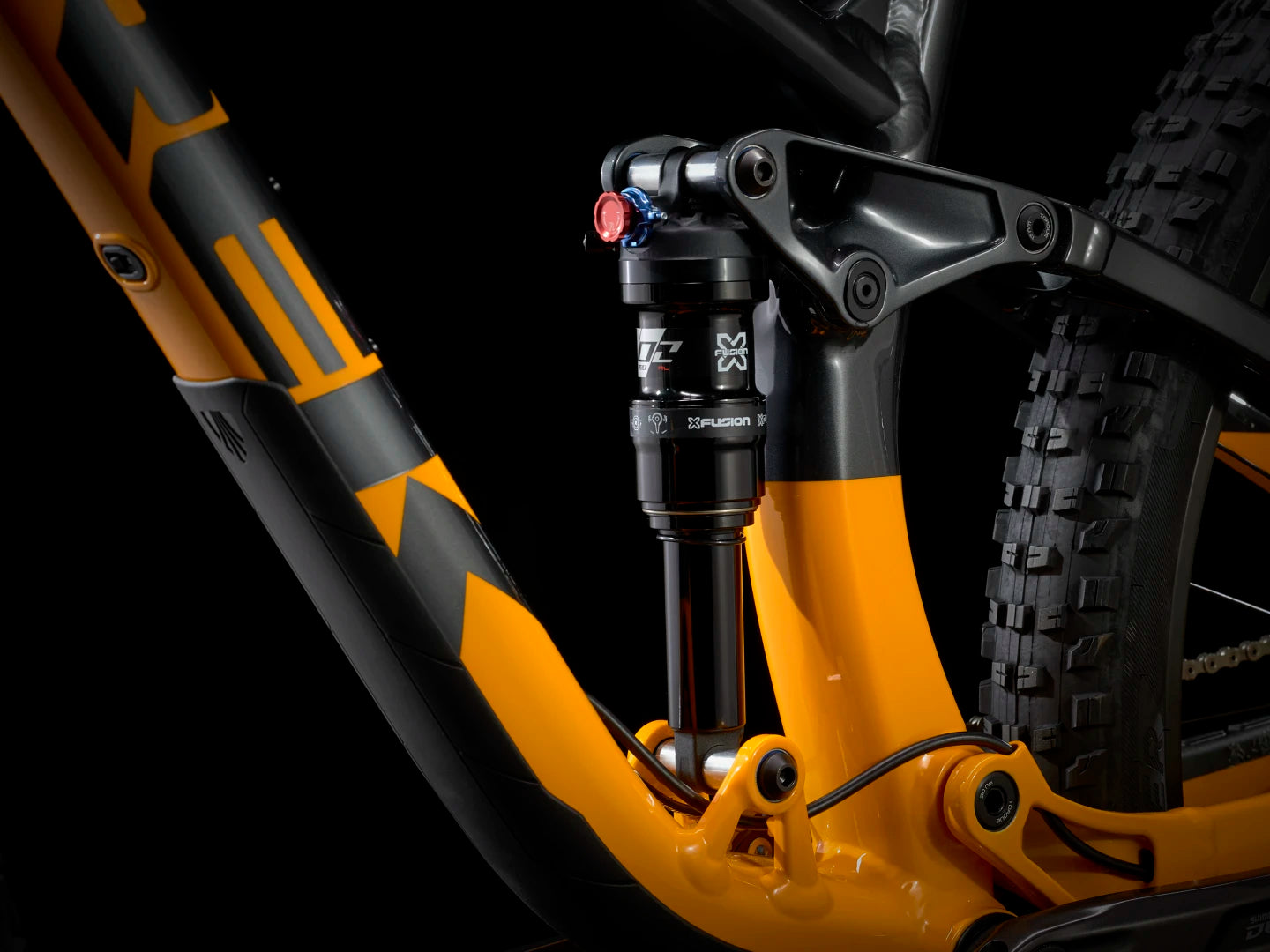

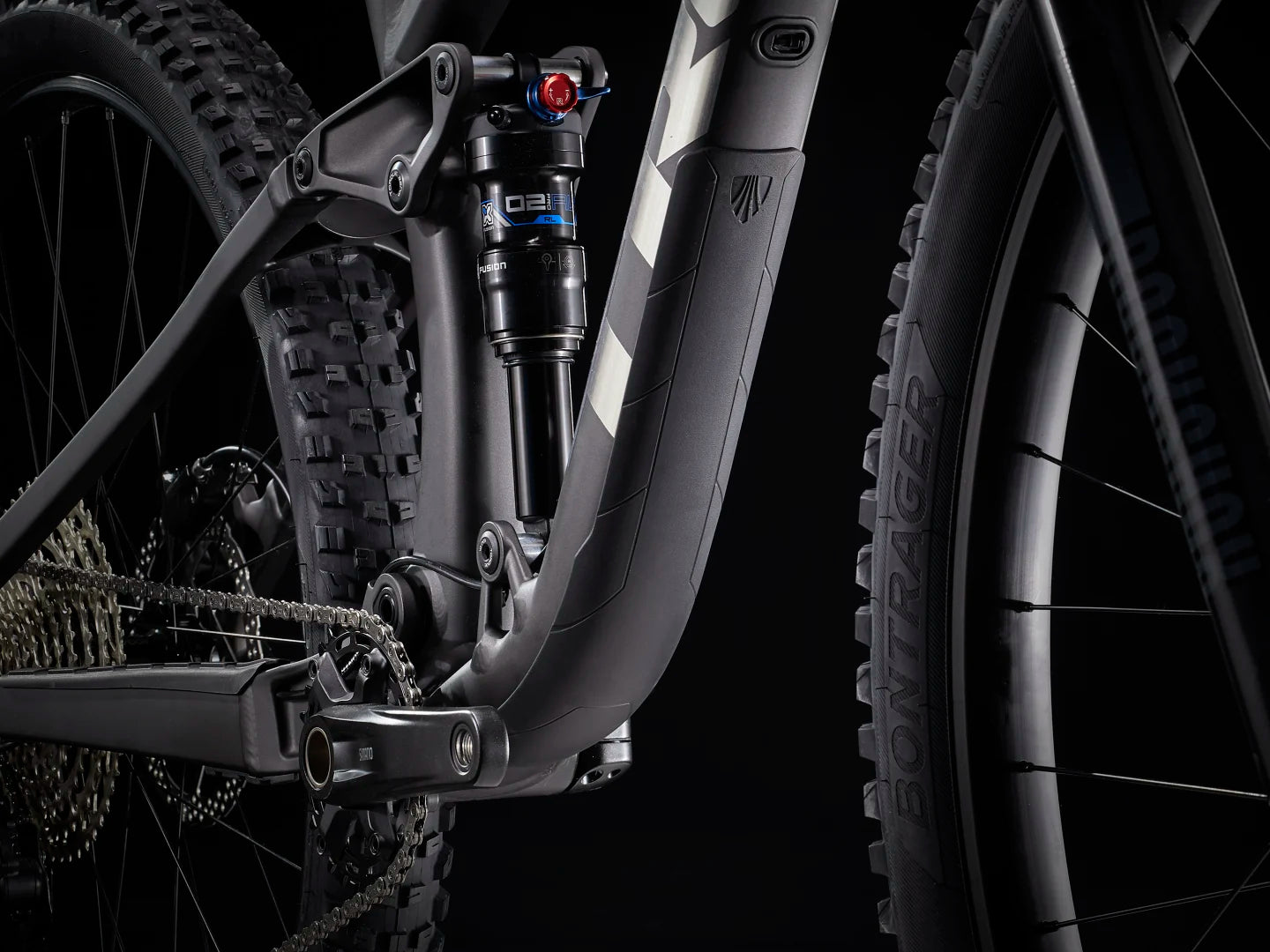

*Shock : Size: XS , S
X-Fusion Pro 2, 2-position damper, 210mm x 52.5mm
Size: S , M , ML , L , XL , XXL
X-Fusion Pro 2, 2-position damper, 210mm x 55mm
Max compatible fork travel : 150mm (561mm axle-to-crown)

WHEELS

Hub front : Bontrager alloy, 6-bolt, Boost110, 15mm thru axle
Hub rear : Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear : Bontrager Switch thru axle, removable lever
Rim : Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve
Spokes : 14g stainless steel, black

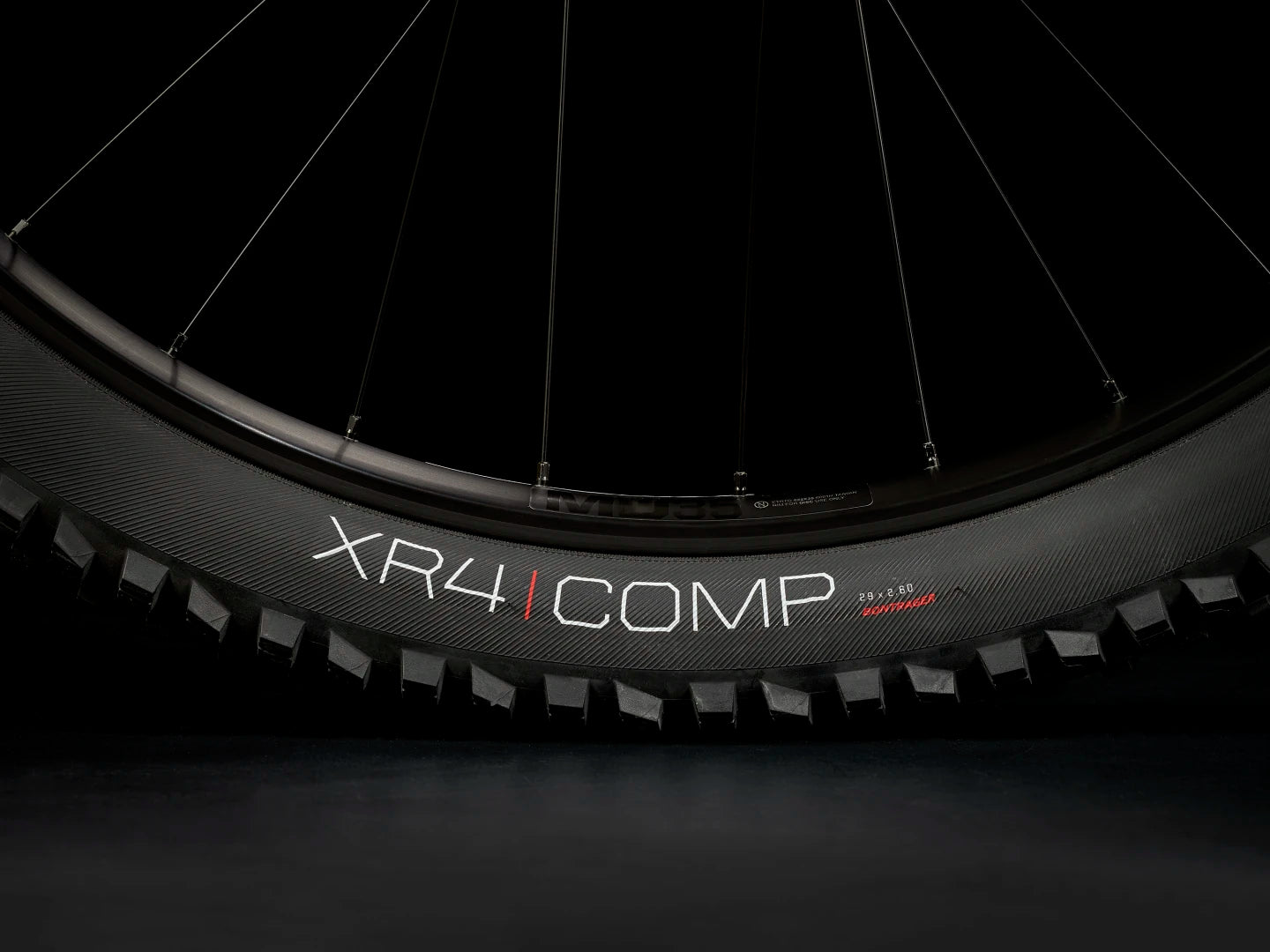

*Tire : Size: XS , S
Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60''
Size: S , M , ML , L , XL , XXL
Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60''
Size: S , M , ML , L , XL , XXL
Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60''
Rim strip Bontrager TLR
Max tire size Frame: 29x2.60", Fork: See manufacturer

DRIVETRAIN

Shifter : Shimano Deore M6100, 12 speed

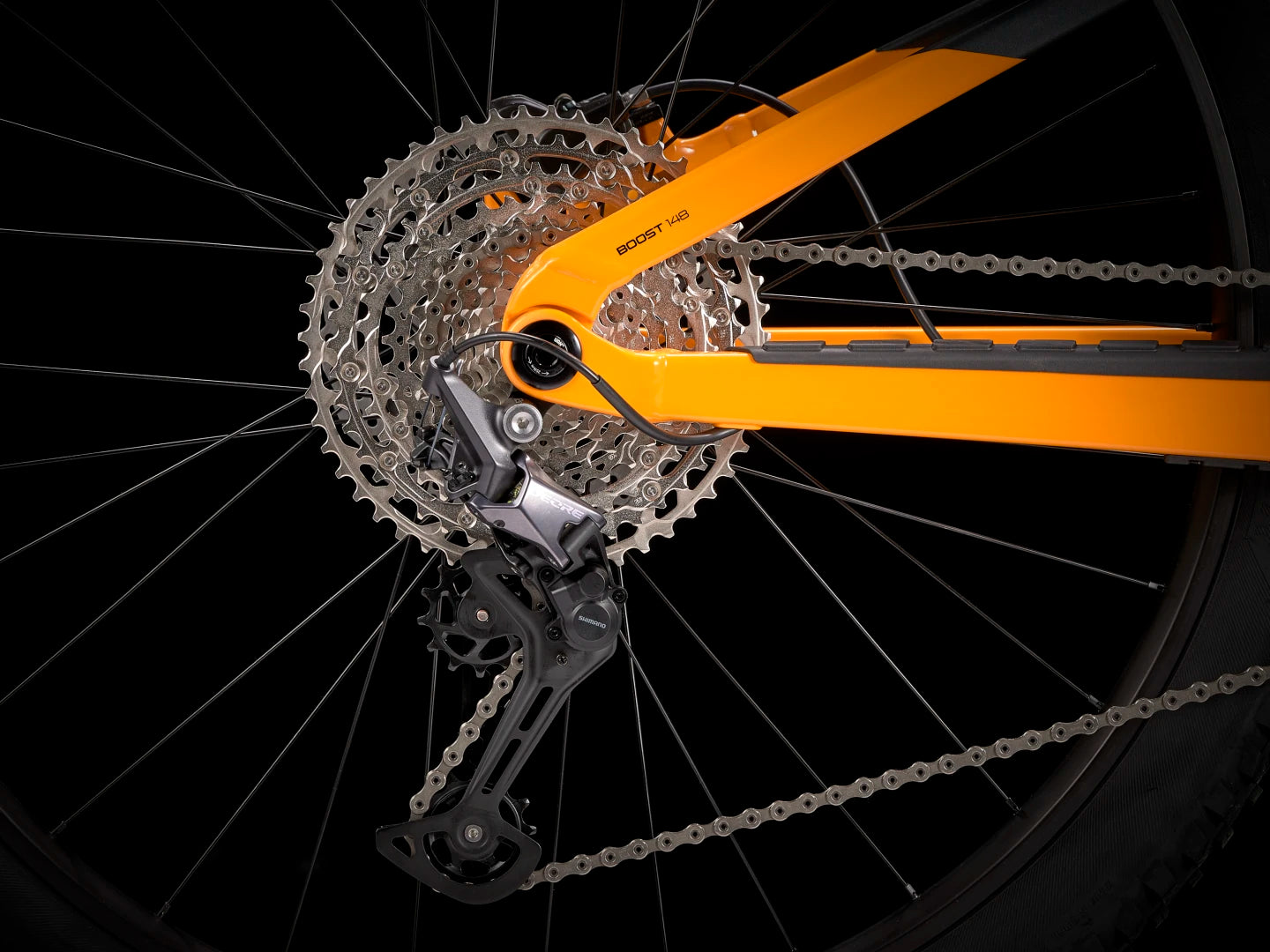

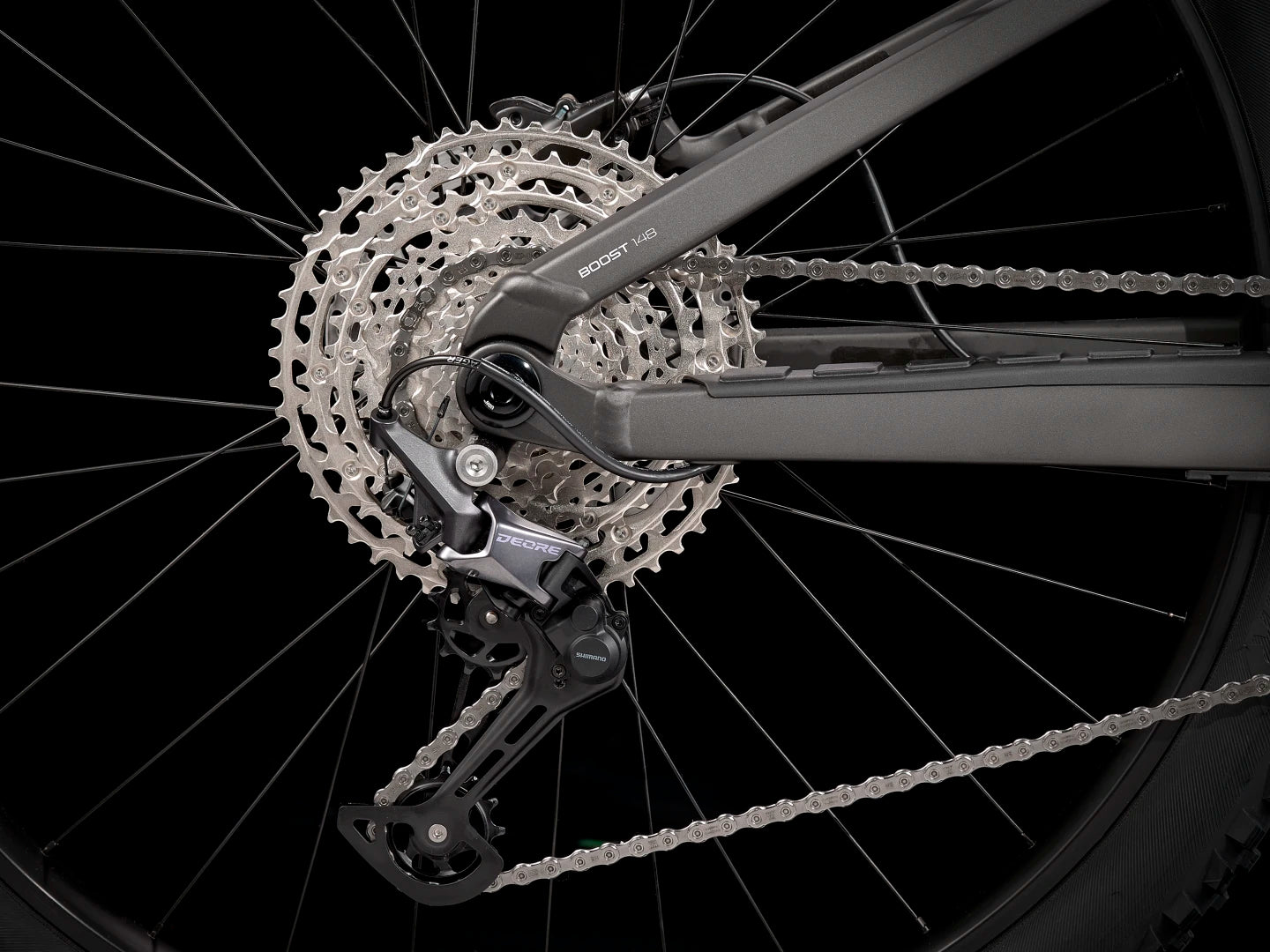

Rear derailleur : Shimano Deore M6100, long cage

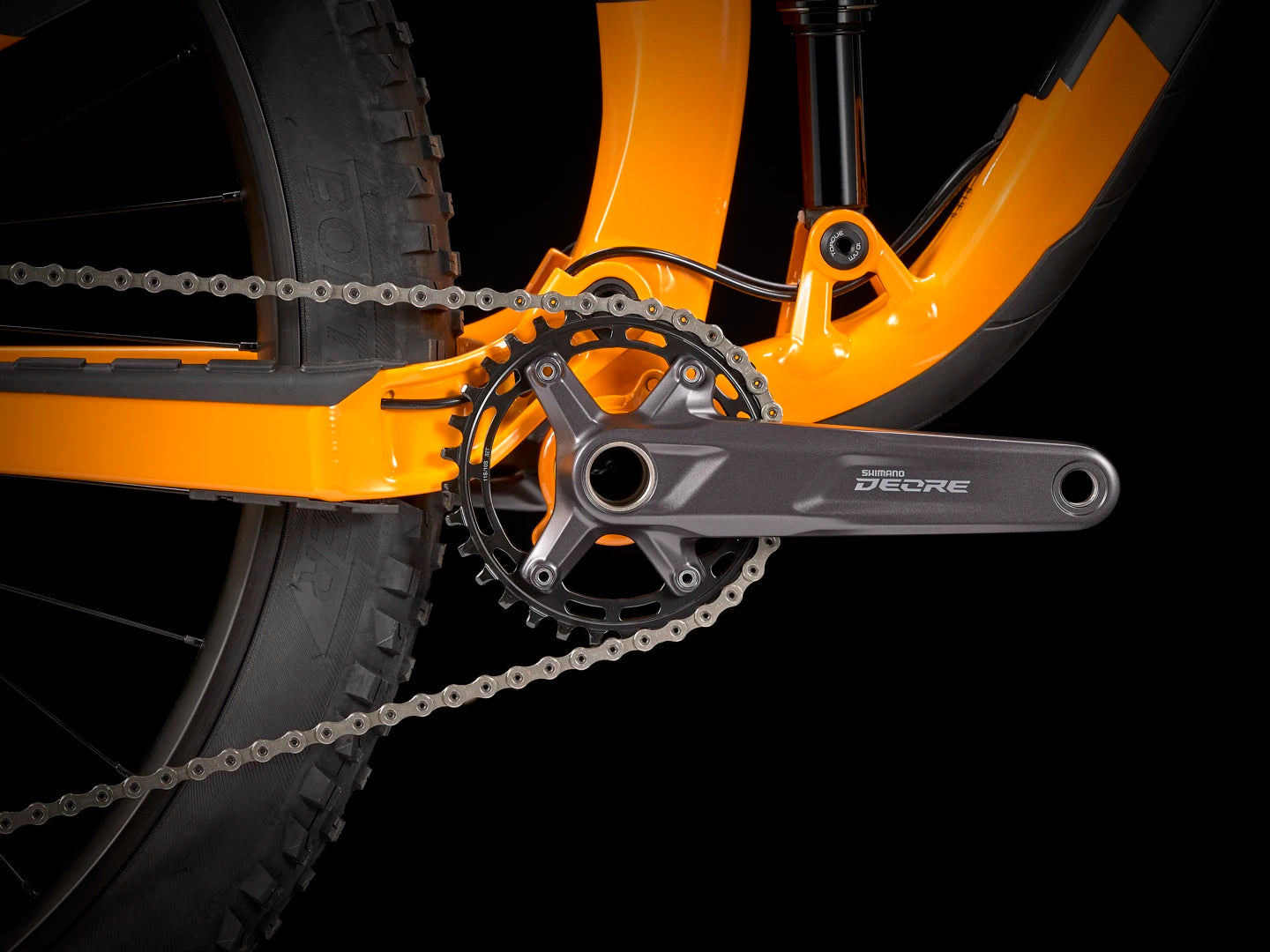

*Crank : Size: XS , S , M , ML , L

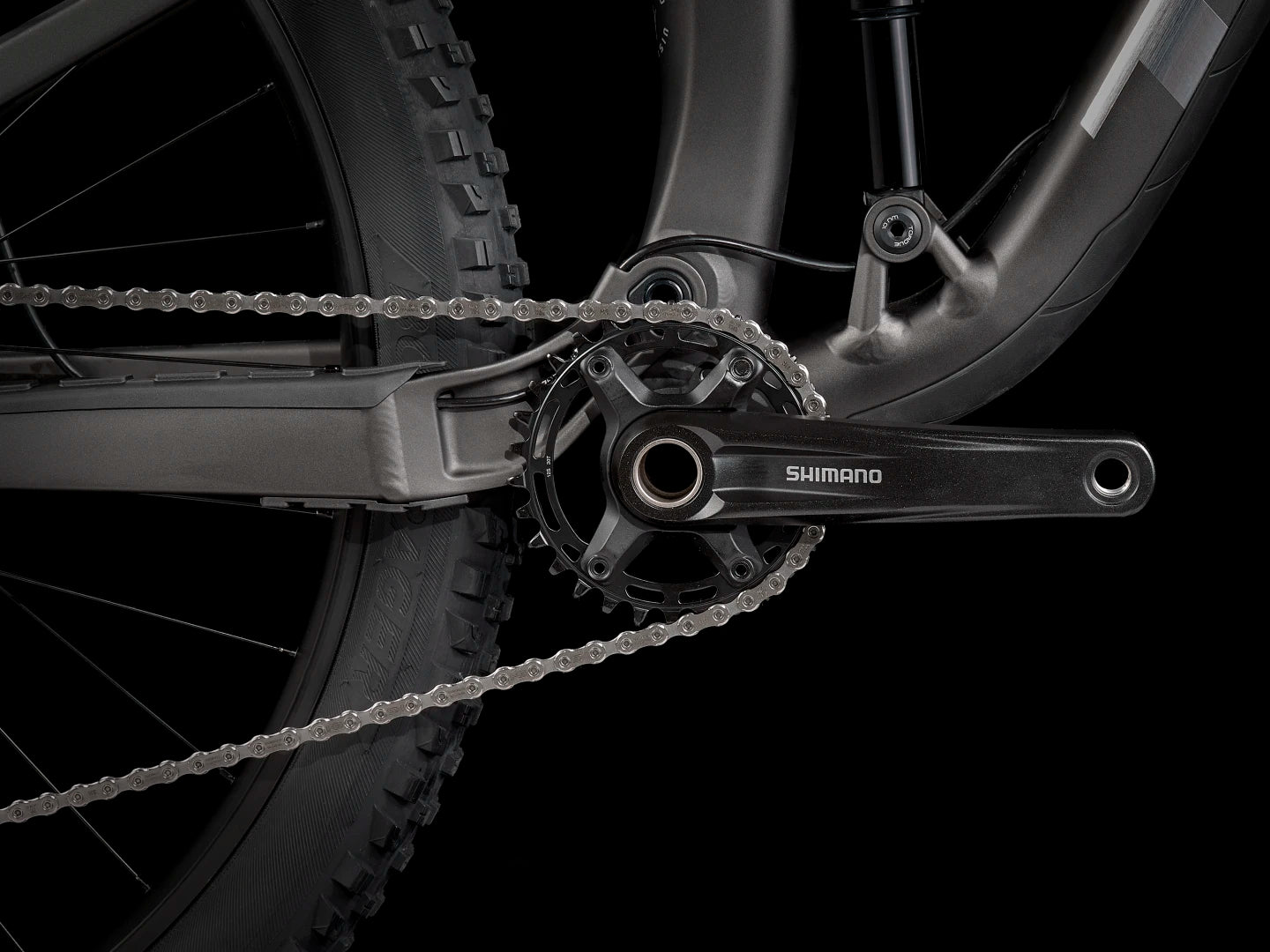

Shimano MT511, 30T steel ring, 52mm chainline, 170mm length
Size: M , ML , L , XL , XXL
Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
Bottom bracket : Shimano MT500, 92mm, PressFit
Cassette : Shimano Deore M6100, 10-51, 12 speed
Chain : Shimano Deore M6100, 12 speed
Max chainring size : 1x: 34T

COMPONENTS

Saddle : Bontrager Arvada, steel rails, 138mm width

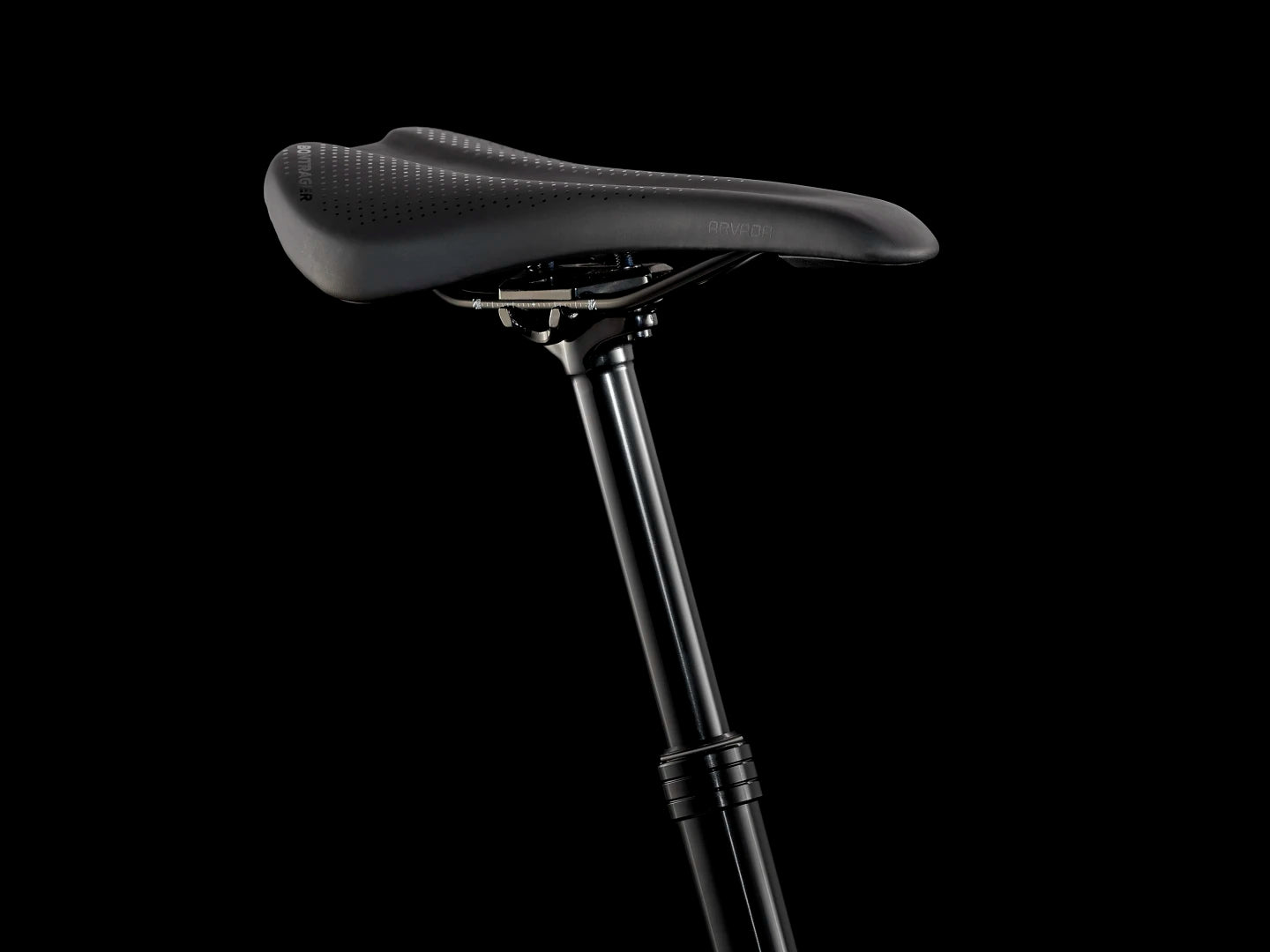

*Seatpost : Size: XS , S
TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length
Size: M , ML , L , XL , XXL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
Handlebar : Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips : Bontrager XR Trail Comp, nylon lock-on
Stem : Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length

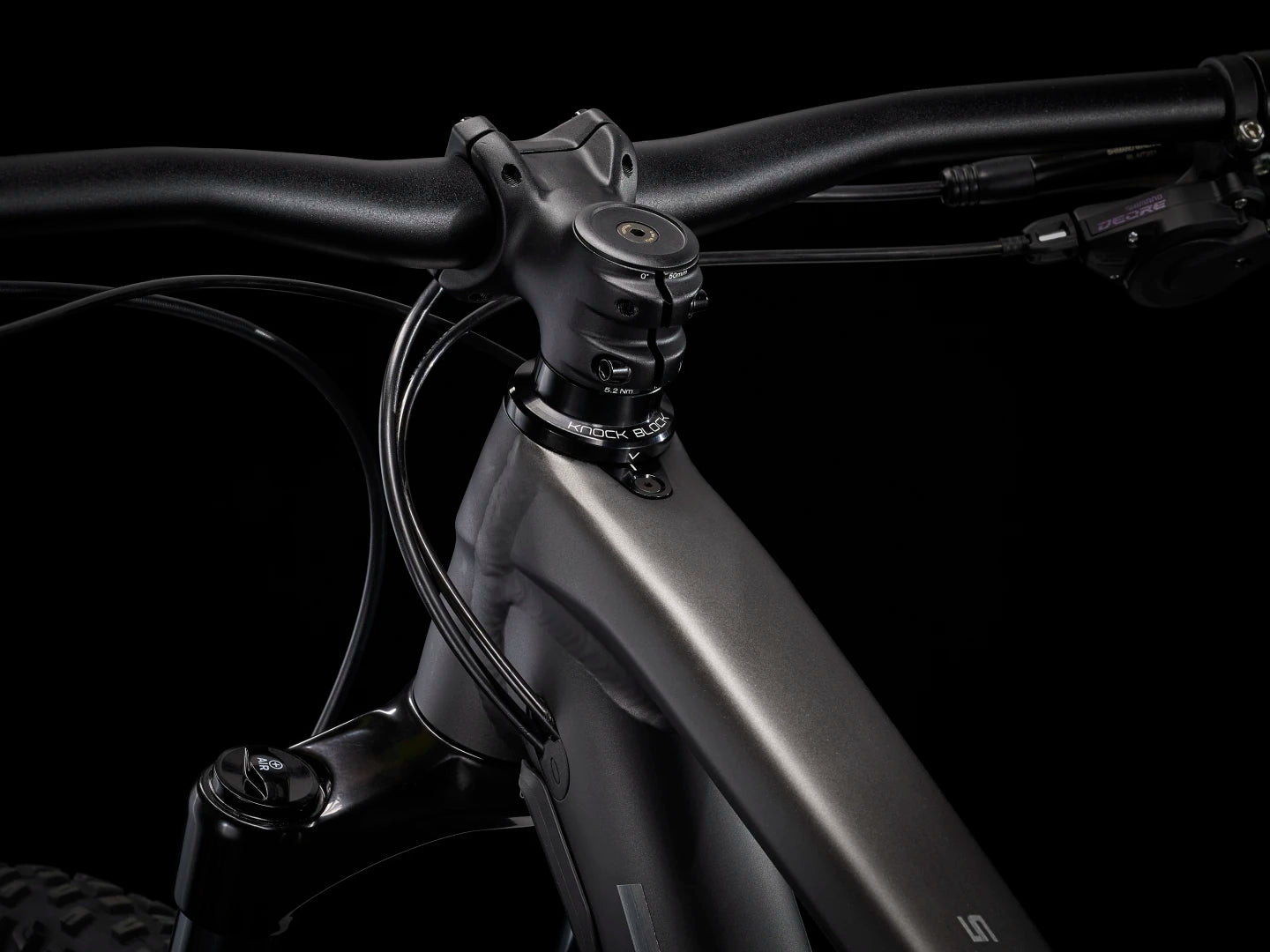

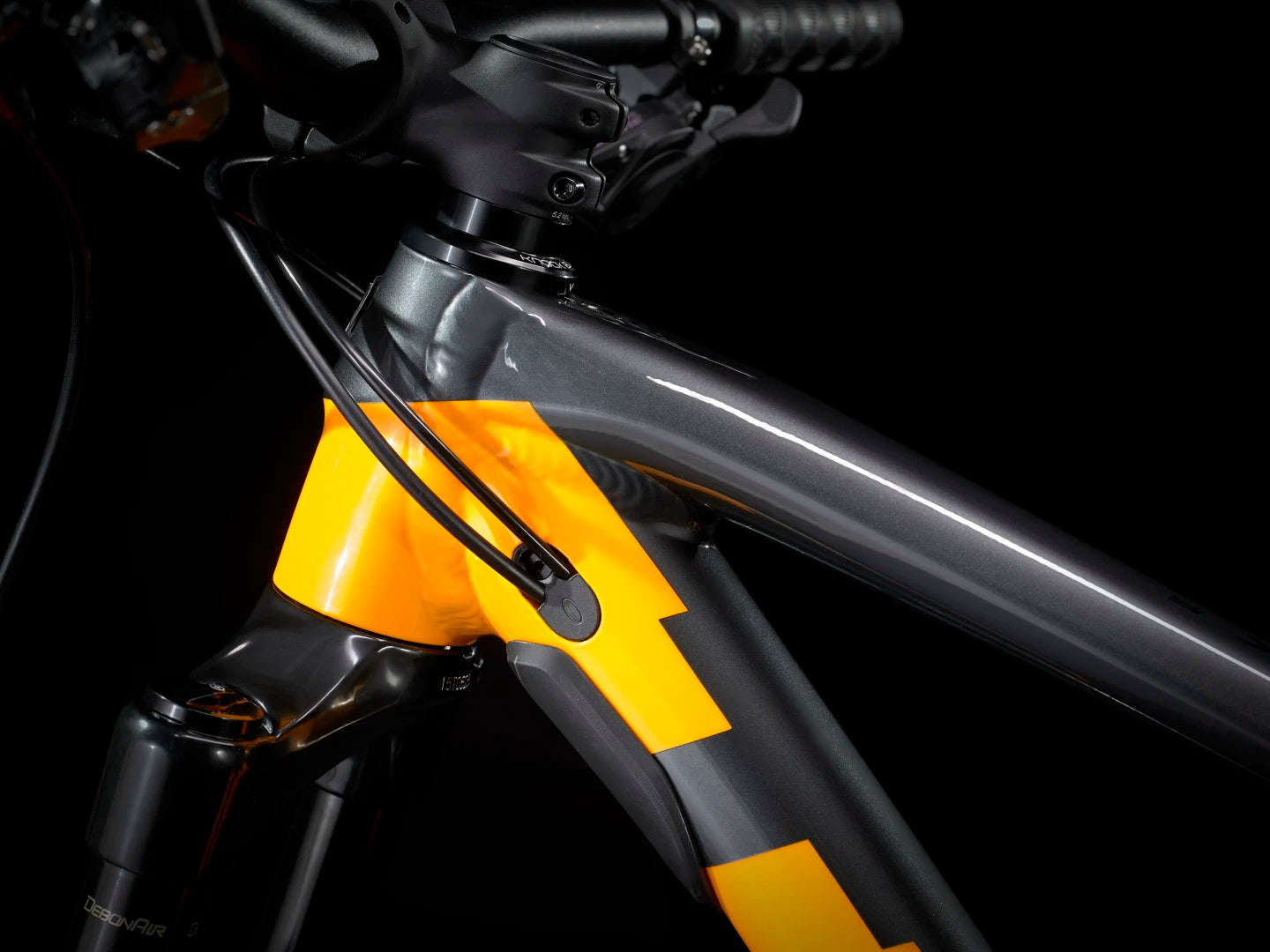

Headset : Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake : Shimano hydraulic disc, MT201 lever, MT200 caliper
Brake rotor : Shimano RT56, 6-bolt, 180mm

WEIGHT

Weight : M - 15.70 kg / 34.62 lbs
Weight limit : This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

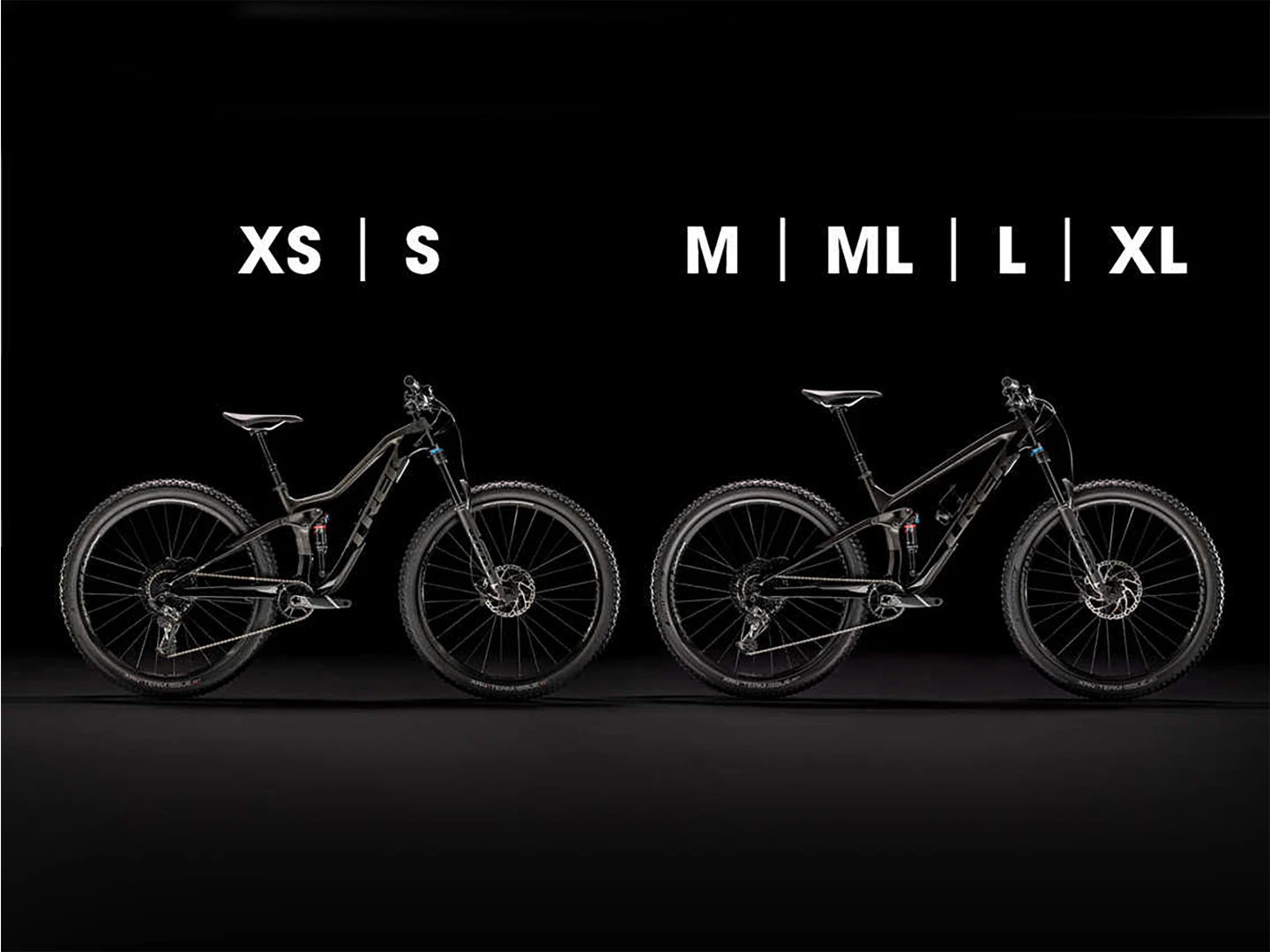

Will my bike have a curved top tube?

Smaller frames (XS and S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

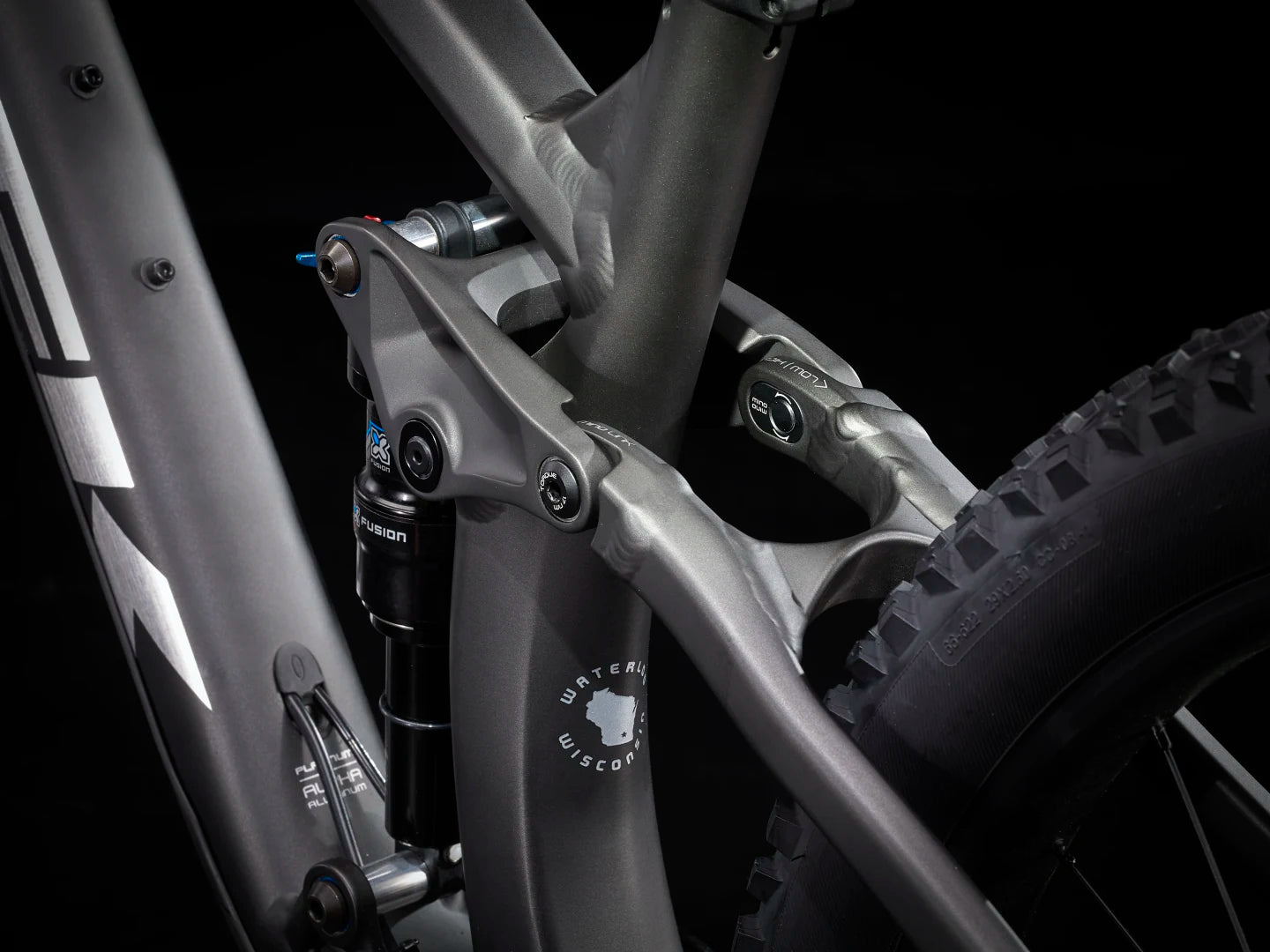

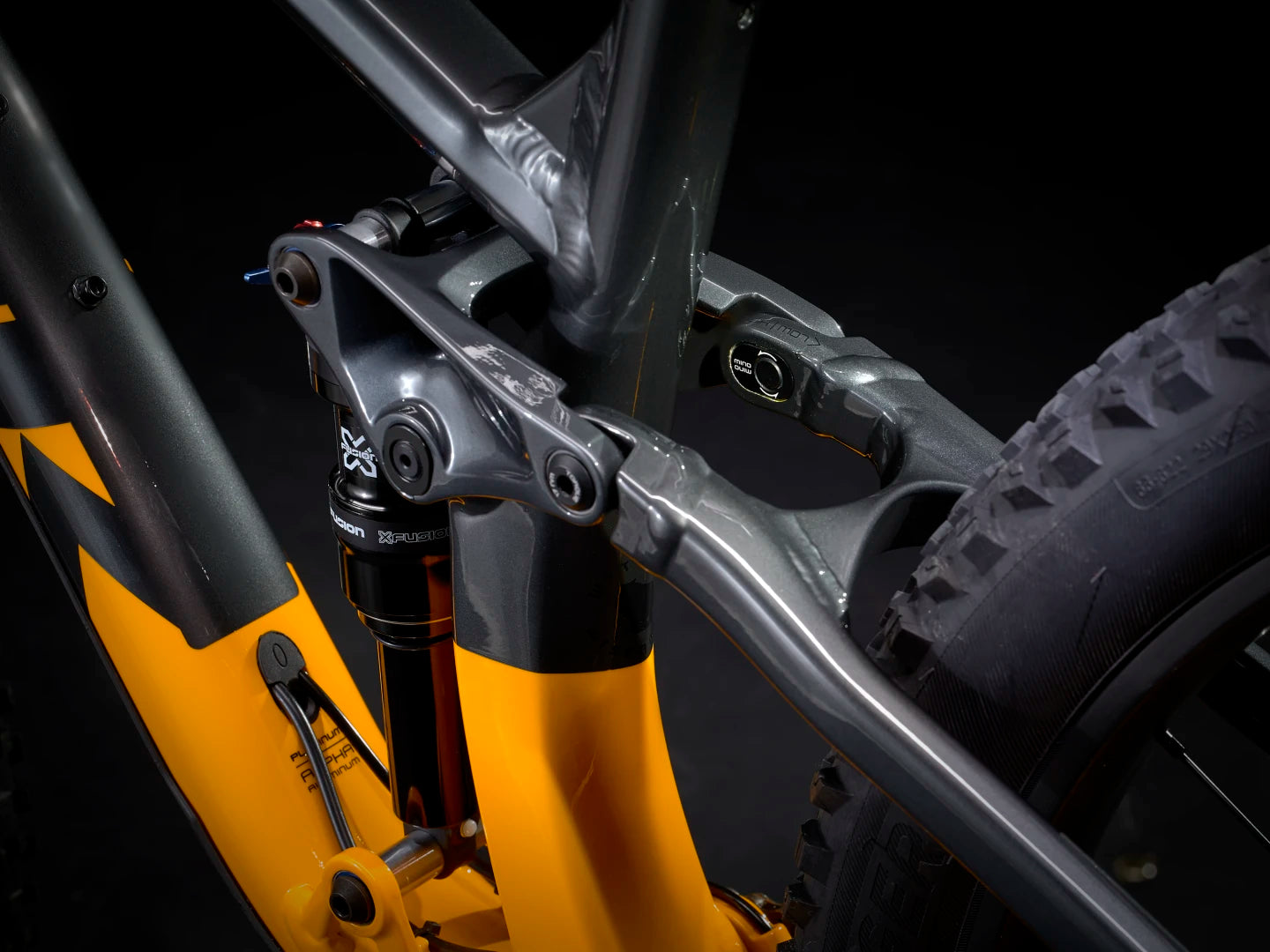

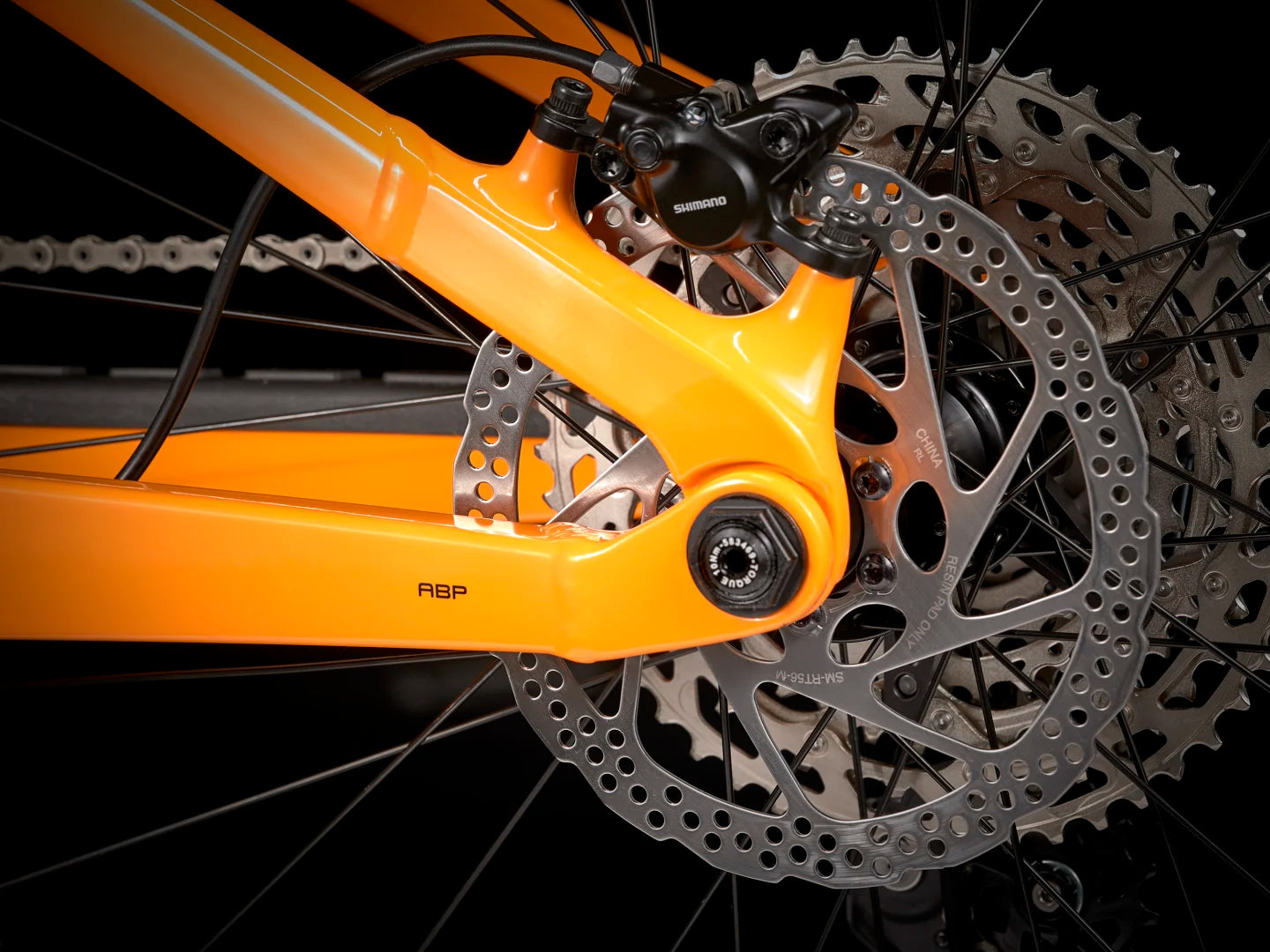

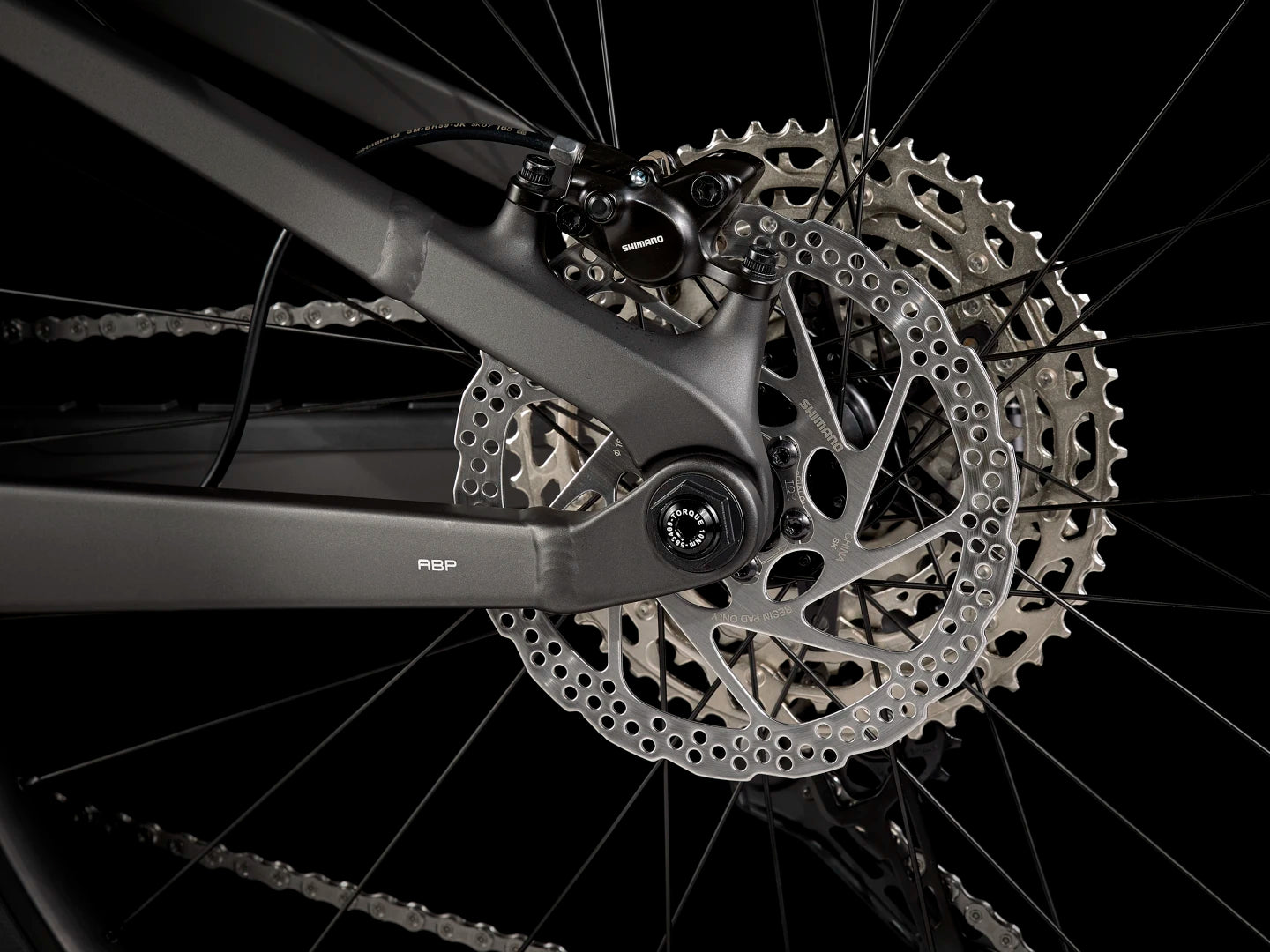

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

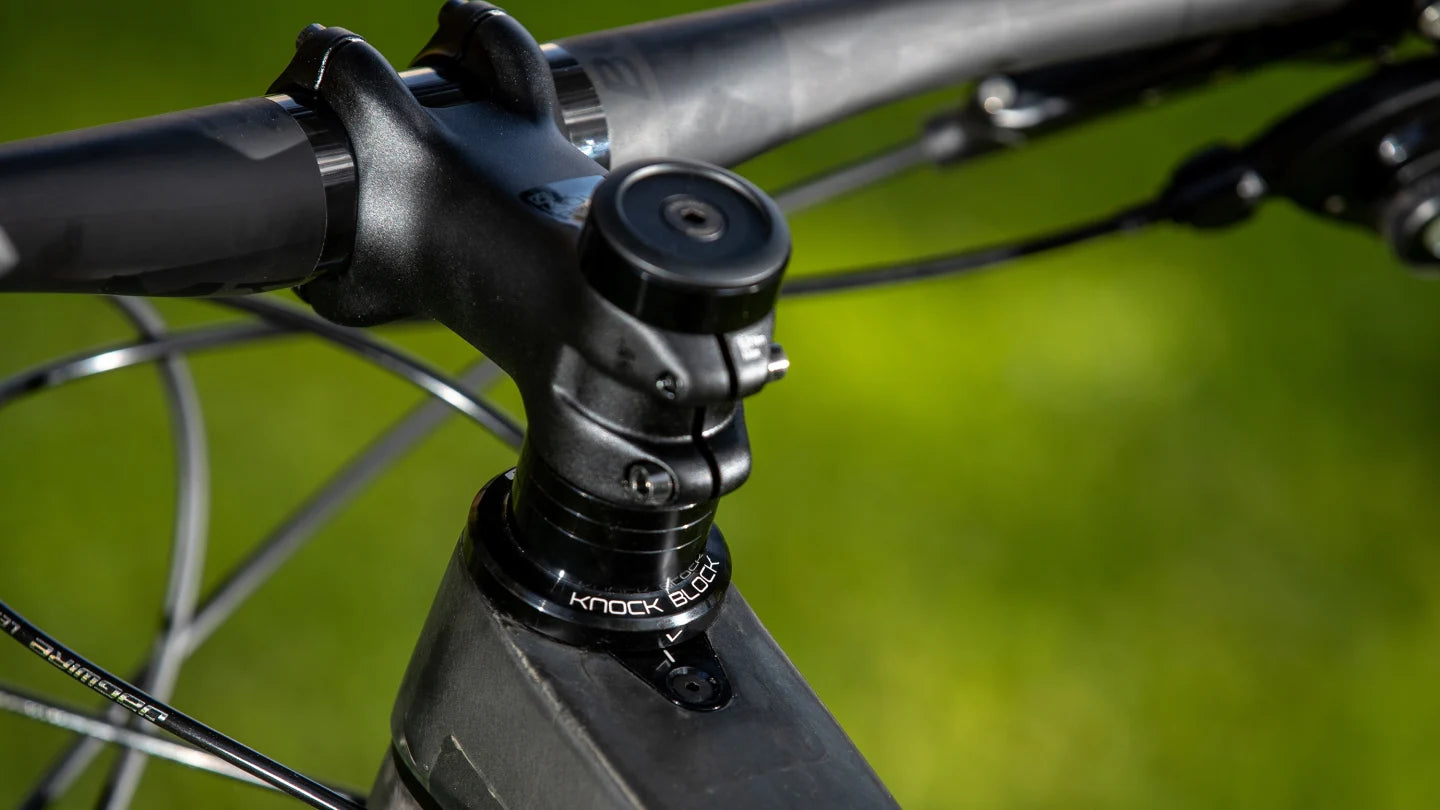

Straight Shot w/Knock Block

Trek's Straight Shot frame design optimizes the stiffness-to-weight ratio for a more responsive ride. You'll be able to push harder and stay more planted on your line when the going gets rough.

Shimano Deore

Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

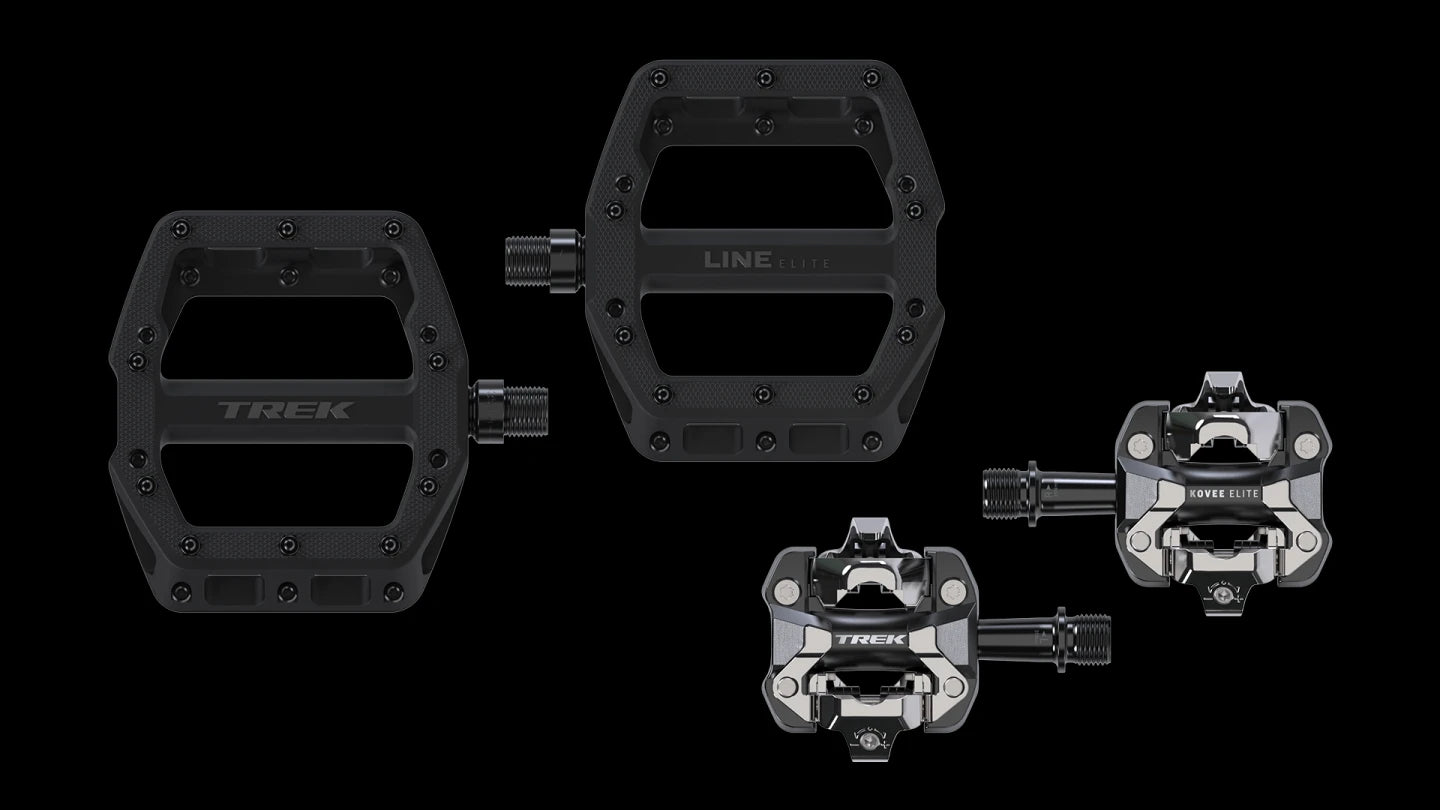

You almost forgot your pedals

This bike doesn’t come with pedals because you'll have a better ride if you choose your own. Explore the pedal guide to find the best pedals for your riding style. Reach for flat pedals for simple versatility or go for clipless MTB pedals if you want control & efficiency.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
