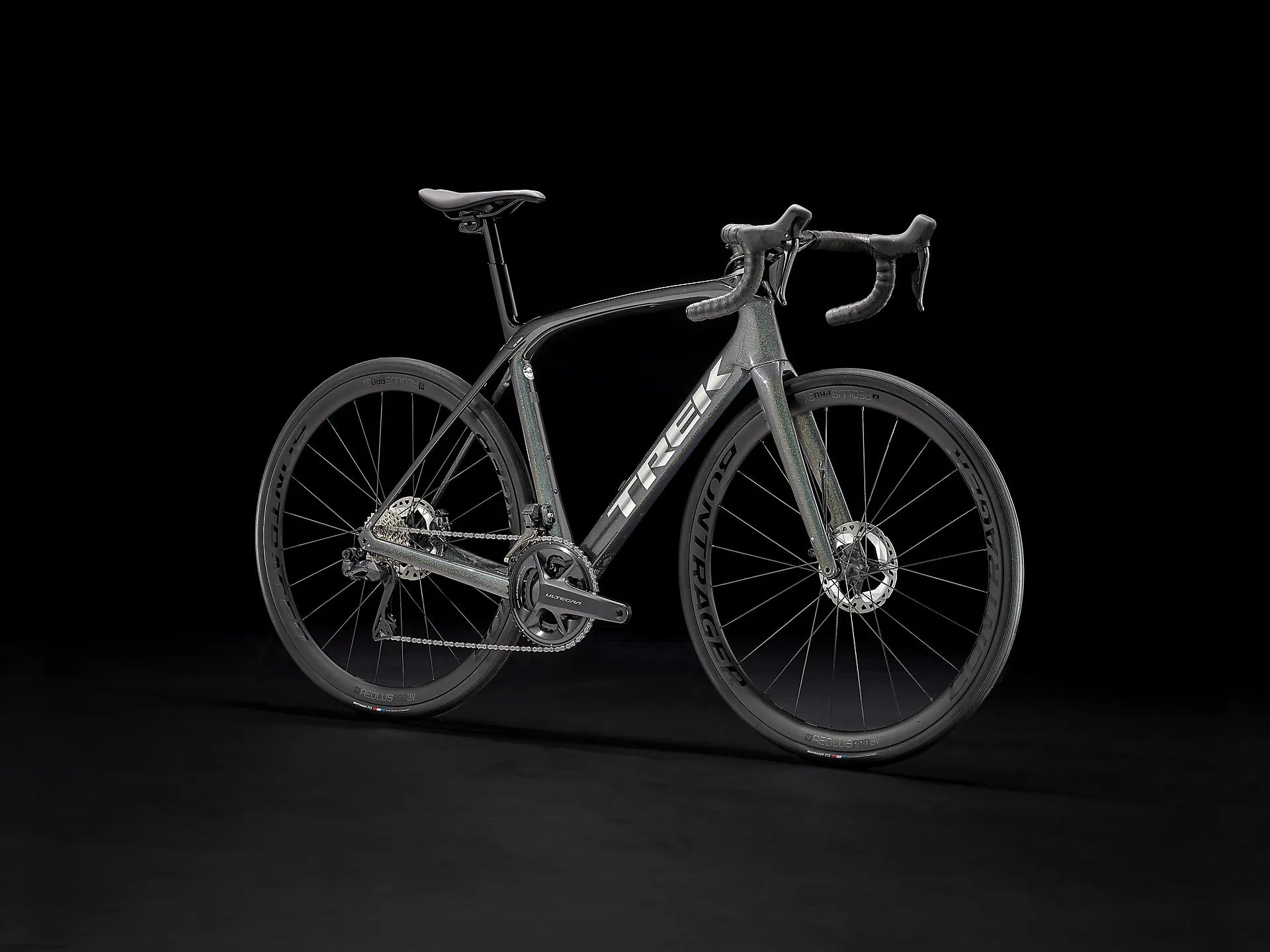

TREK Domane SLR 7 Gen 3 2022

Frameset

Frame

700 Series OCLV Carbon

•
  Front IsoSpeed

•

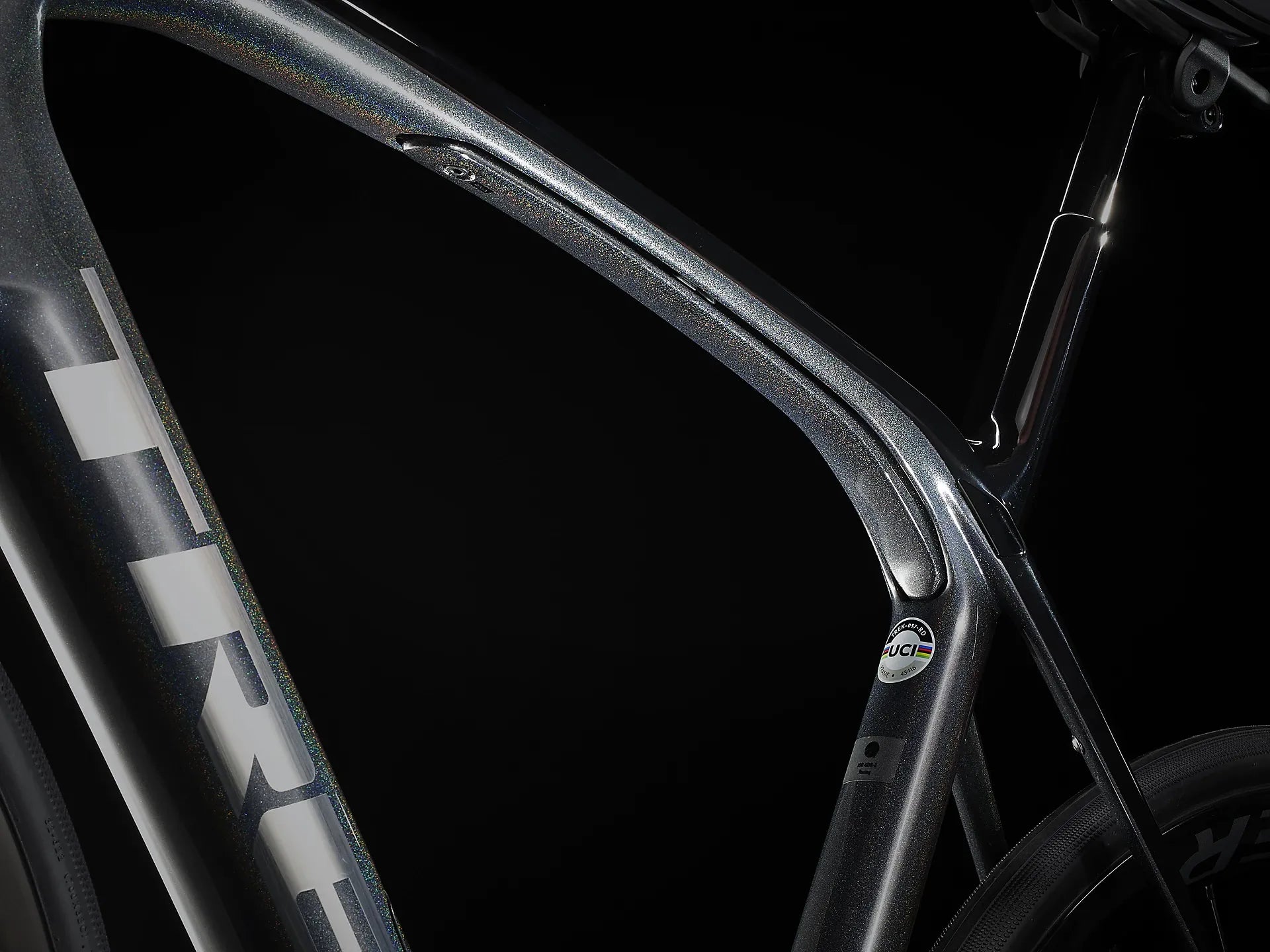

  Adjustable rear IsoSpeed

•

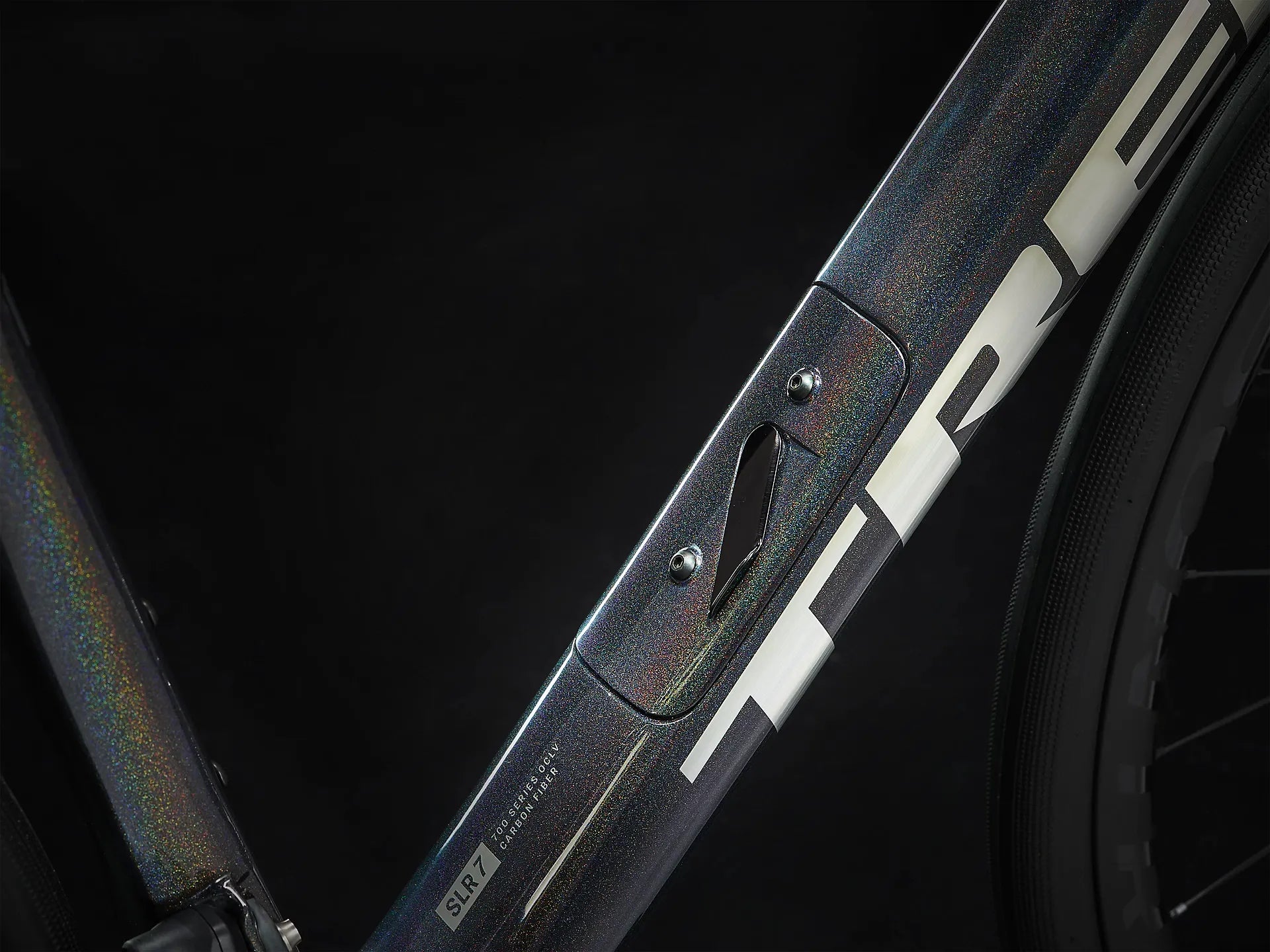

  Internal storage

•

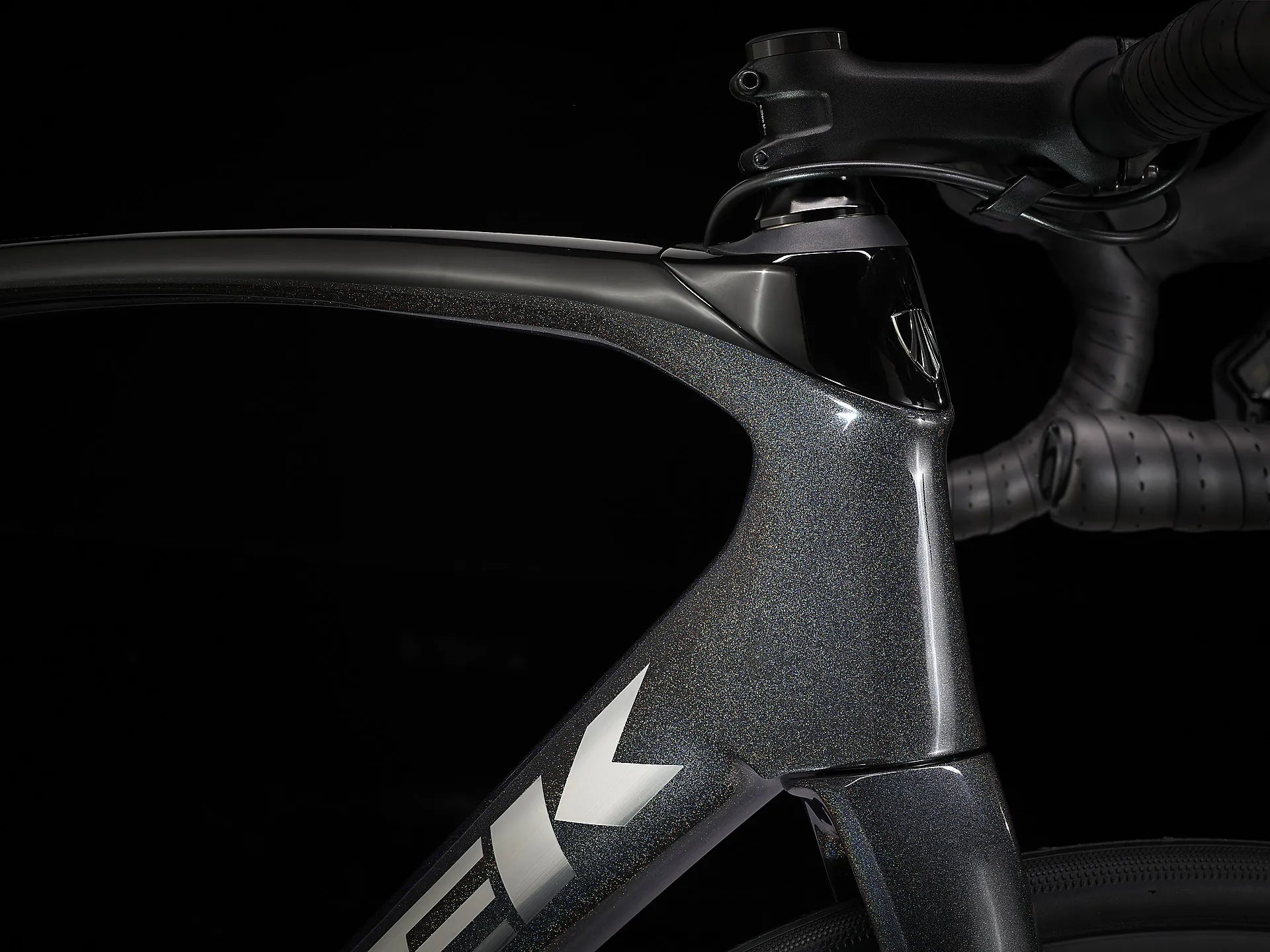

  Tapered head tube

•
  Internal cable routing

•
  3S chain keeper

•
  DuoTrap S-compatible

•
  Mudguard mounts

•
  Flat-mount disc

•
  142x12 mm thru axle


Fork

Domane SLR carbon

•
  Tapered carbon steerer

•
  Internal brake routing

•
  Mudguard mounts

•
  Flat-mount disc

•
  Carbon dropouts

•
  12x100 mm thru axle


Wheels

Front wheel

Bontrager Aeolus Pro 3V

•
  OCLV Carbon

•
  Tubeless Ready

•
  25 mm rim width

•
  100x12 mm thru axle


Rear wheel

Bontrager Aeolus Pro 3V

•
  OCLV Carbon

•
  Tubeless Ready

•
  25 mm rim width

•
  Shimano 11-speed freehub

•
  142x12 mm thru axle


Axle

•
  Front: Bontrager Switch thru axle, removable lever

•
  Rear: Bontrager Switch thru axle, removable lever


Tyres

Bontrager R3 Hard-Case Lite

•
  Tubeless Ready

•
  Aramid bead

•
  120 TPI

•
  Size: 700x32 c


Tyre parts (size 47, 50, 52, 54, 56, 58, 60, 62)

•
  Bontrager TLR sealant, 180 ml / 6 oz

•
  Bontrager XXX TLR valve, 55 mm

•
  Rim strip: Bontrager TLR

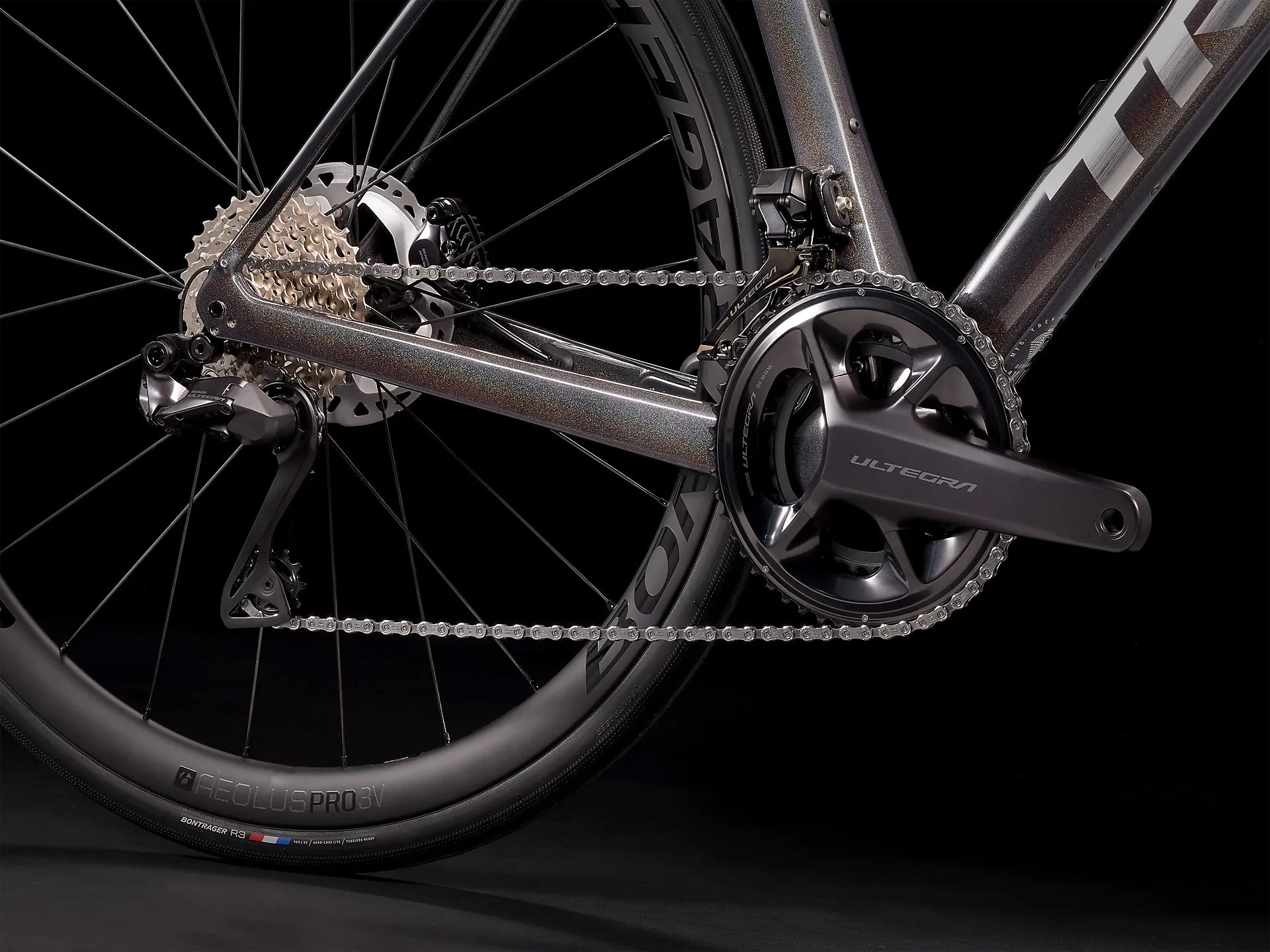

Drivetrain

Shifter

Shimano Ultegra R8170, 12-speed

Front derailleur

Shimano Ultegra R8150, braze-on, down swing

Rear derailleur

Shimano Ultegra R8150

Crankset

•
  Size 47: Shimano Ultegra R8100, 50/34, 165 mm

•
  Size 50, 52: Shimano Ultegra R8100, 50/34, 170 mm

•
  Size 54, 56: Shimano Ultegra R8100, 50/34, 172.5 mm

•
  Size 58, 60, 62: Shimano Ultegra R8100, 50/34, 175 mm


Bottom bracket

Praxis, T47 threaded, internal bearing

Cassette

Shimano Ultegra R8100, 11-34, 12-speed

Chain

Shimano XT M8100, 12-speed

Components

Saddle

•
  Size 47, 50, 52: Bontrager P3 Verse Elite, stainless rails, 155 mm

•
  Size 54, 56, 58, 60, 62: Bontrager P3 Verse Elite, stainless rails, 145 mm


Seatpost

•
  Size 47, 50, 52, 54, 56:

  Bontrager carbon internal seat mast cap, short length, 20 mm offset, integrated light mount

•
  Size 58, 60, 62:

  Bontrager carbon internal seat mast cap, tall length, 20 mm offset, integrated light mount

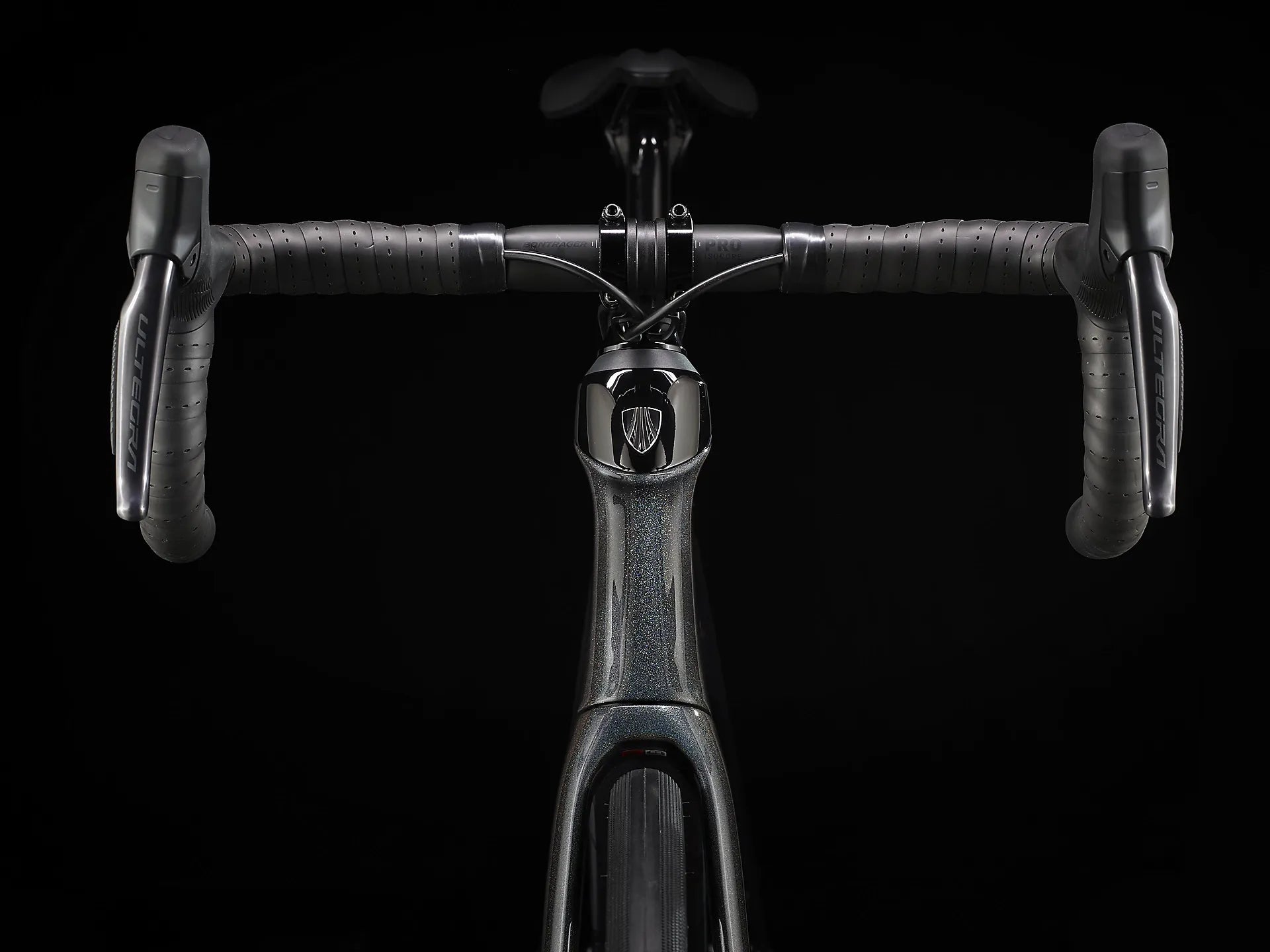

Handlebar

•
  Size 47: Bontrager Pro IsoCore VR-SF, 38 cm

•
  Size 50, 52: Bontrager Pro IsoCore VR-SF, 40 cm

•
  Size 54, 56: Bontrager Pro IsoCore VR-SF, 42 cm

•
  Size 58, 60, 62: Bontrager Pro IsoCore VR-SF, 44 cm


Handlebar tape

Bontrager Supertack Perf tape

Stem

•
  Size 47: 70 mm

•
  Size 50: 80 mm

•
  Size 52, 54: 90 mm

•
  Size 56, 58: 100 mm

•
  Size 60, 62: 110 mm

  (7-degree, 31.8 mm clamp, Blendr-compatible)

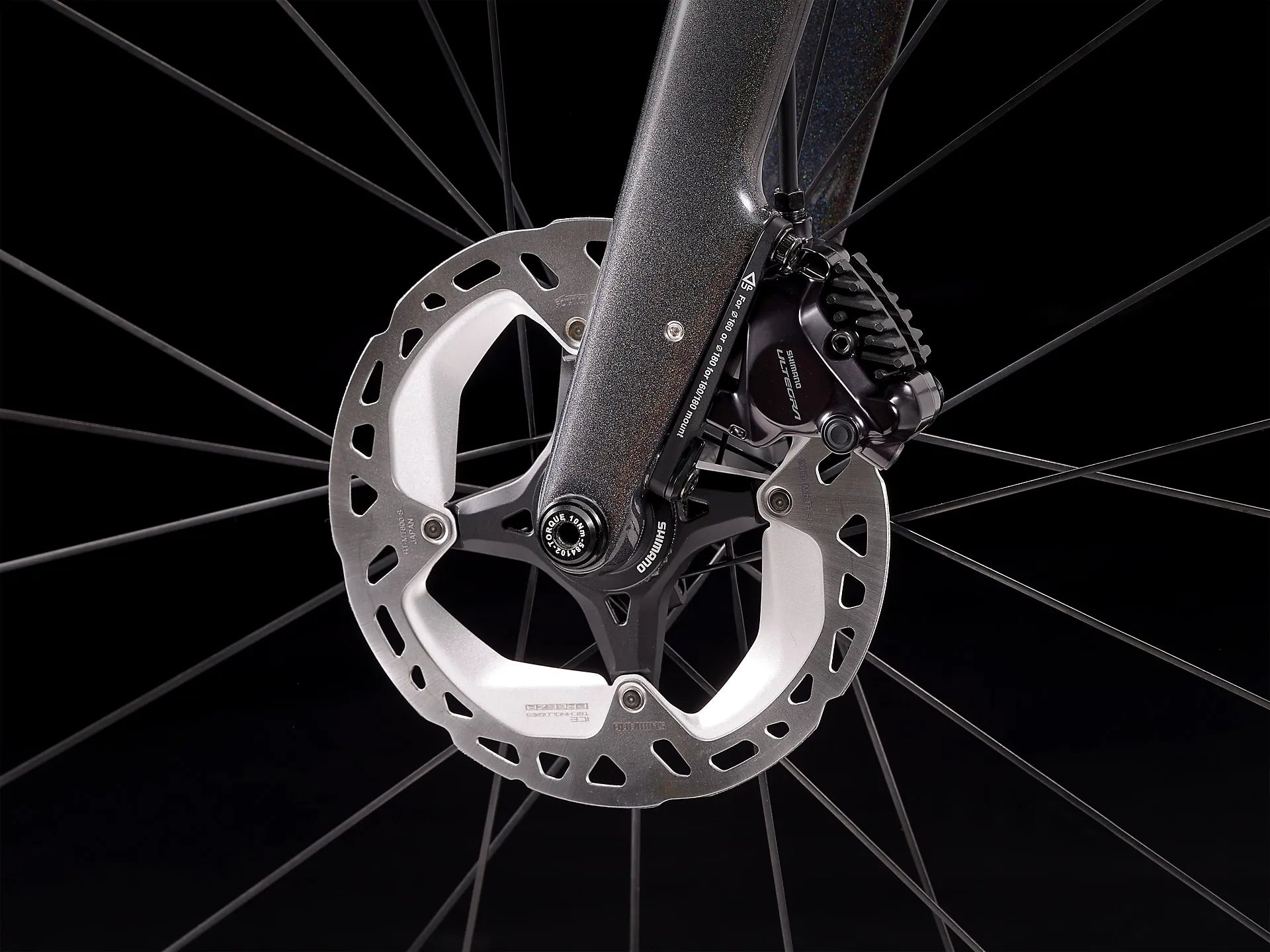

Brake rotor

Shimano MT800, CenterLock, 160 mm

Accessories

Internal storage bag

Bontrager BITS Internal Frame Storage Bag

Weight Limit

Maximum total weight (bike + rider + cargo): 125 kg (275 lb)
