TREK Domane SL 6 Gen 4

Name: TREK Domane SL 6 Gen 4
Brand: TREK
SKU: 5274919
Price: 147900.0 THB
Availability: OutOfStock

147,900.00 ฿

Color:

HEX BLUE

SIZE:

52

Domane SL 6 Gen 4

e from the marked spot to the floor is your height.

What is your inseam?

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inseam measurement. Your inseam is very important to your final bike size so please measure carefully.

size-table
Size	Rider Height	Inseam
44	150 - 153 cm 4'11" - 5'0"	71 - 73 cm 28" - 29"
47	152 - 158 cm 5'0" - 5'2"	71 - 75 cm 28" - 30"
50	158 - 163 cm 5'2" - 5'4"	74 - 77 cm 29" - 30"
52	163 - 168 cm 5'4" - 5'6"	76 - 79 cm 30" - 31"
54	168 - 174 cm 5'6" - 5'9"	78 - 82 cm 31" - 32"
56	174 - 180 cm 5'9" - 5'11"	81 - 85 cm 32" - 33"
58	180 - 185 cm 5'11" - 6'1"	84 - 87 cm 33" - 34"

Variant

0.0

Model 5274913

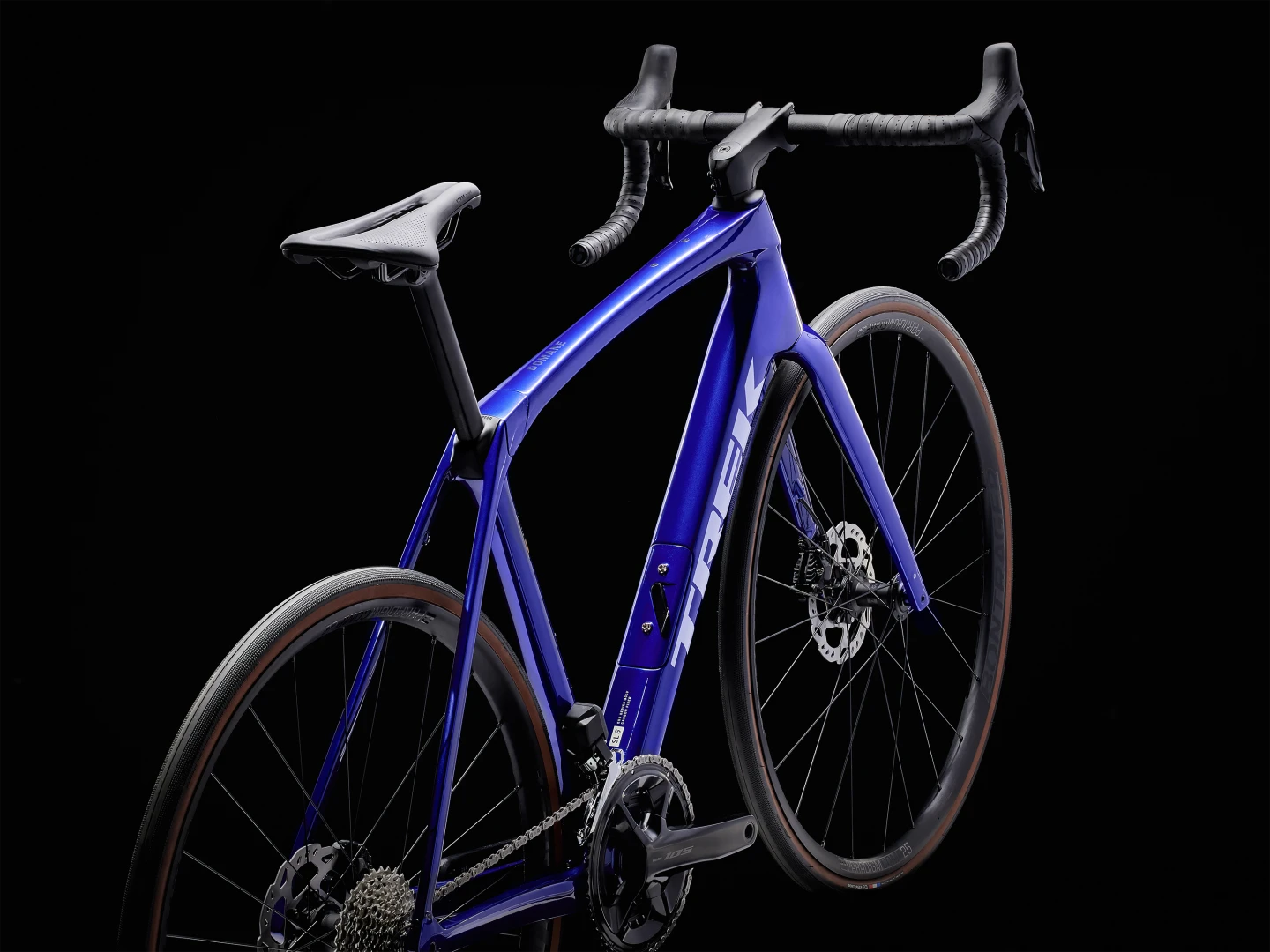

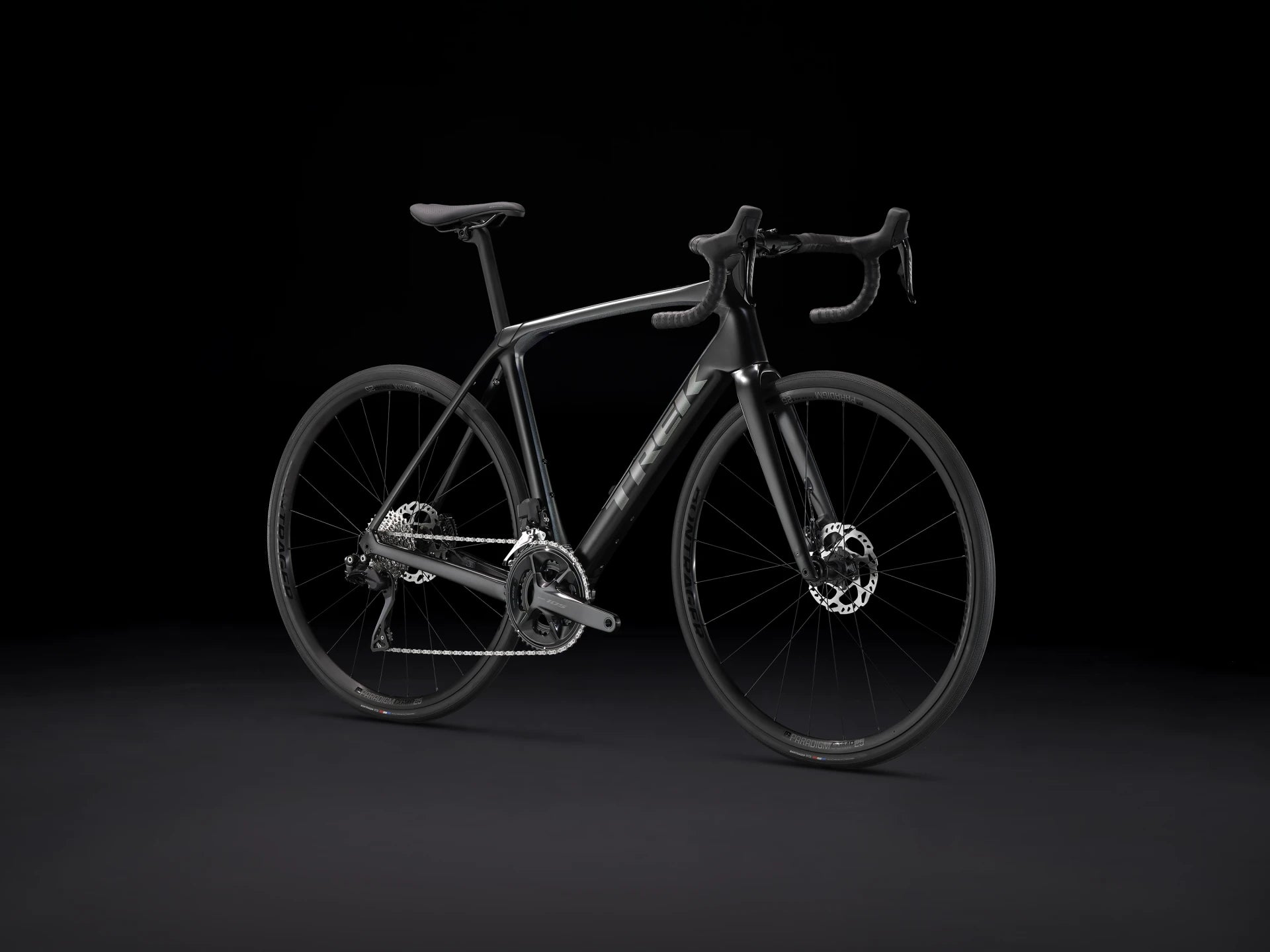

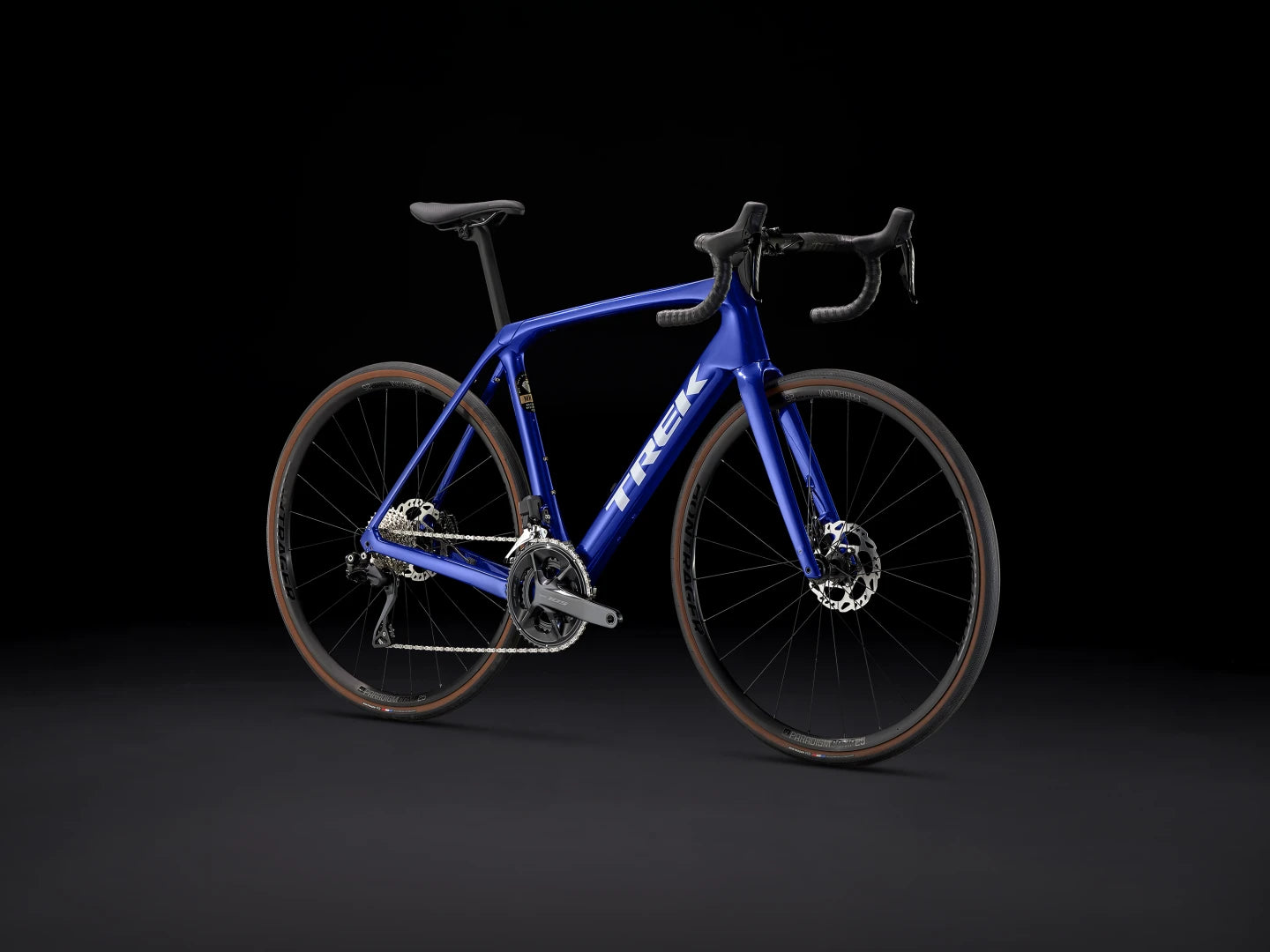

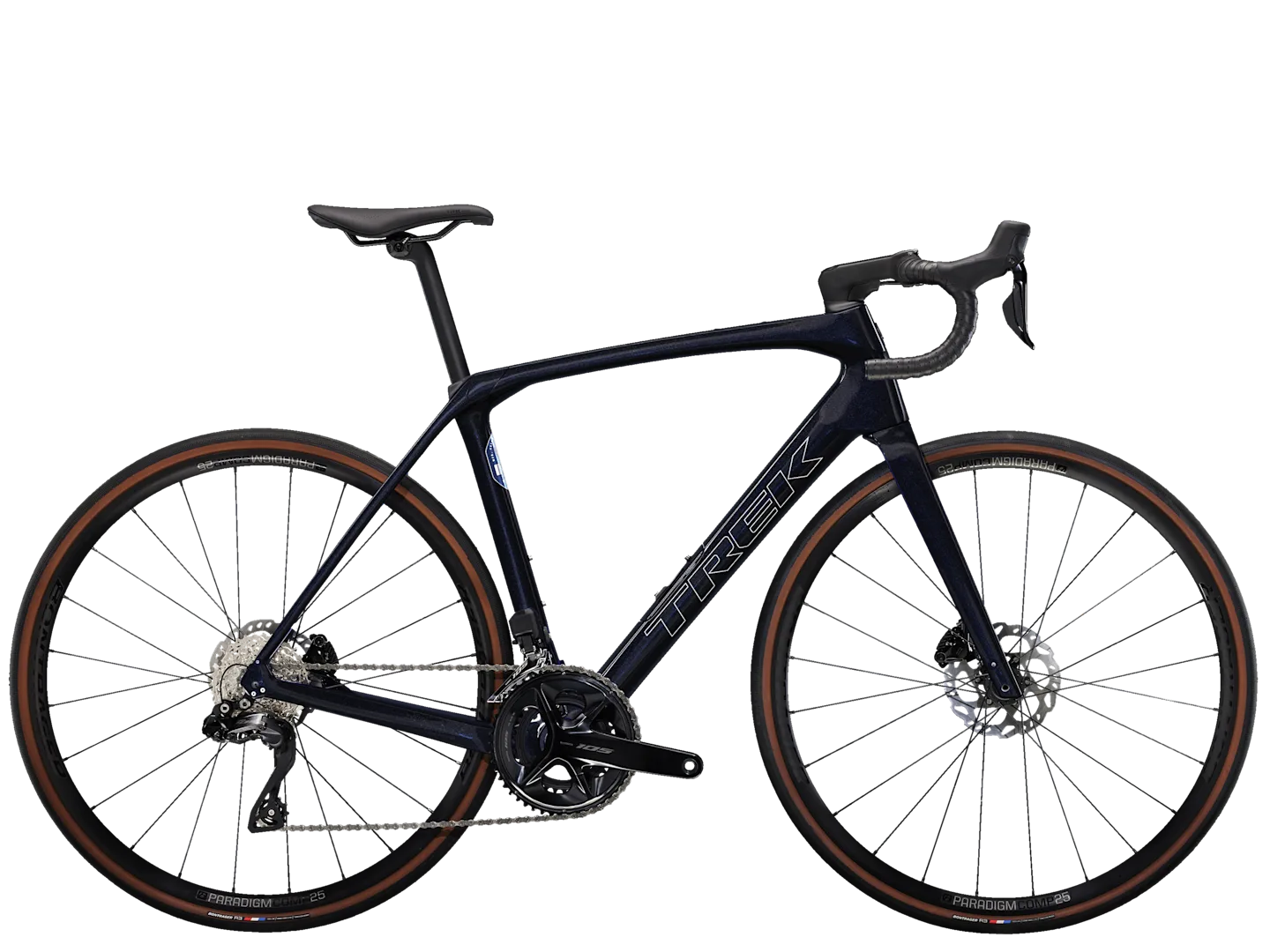

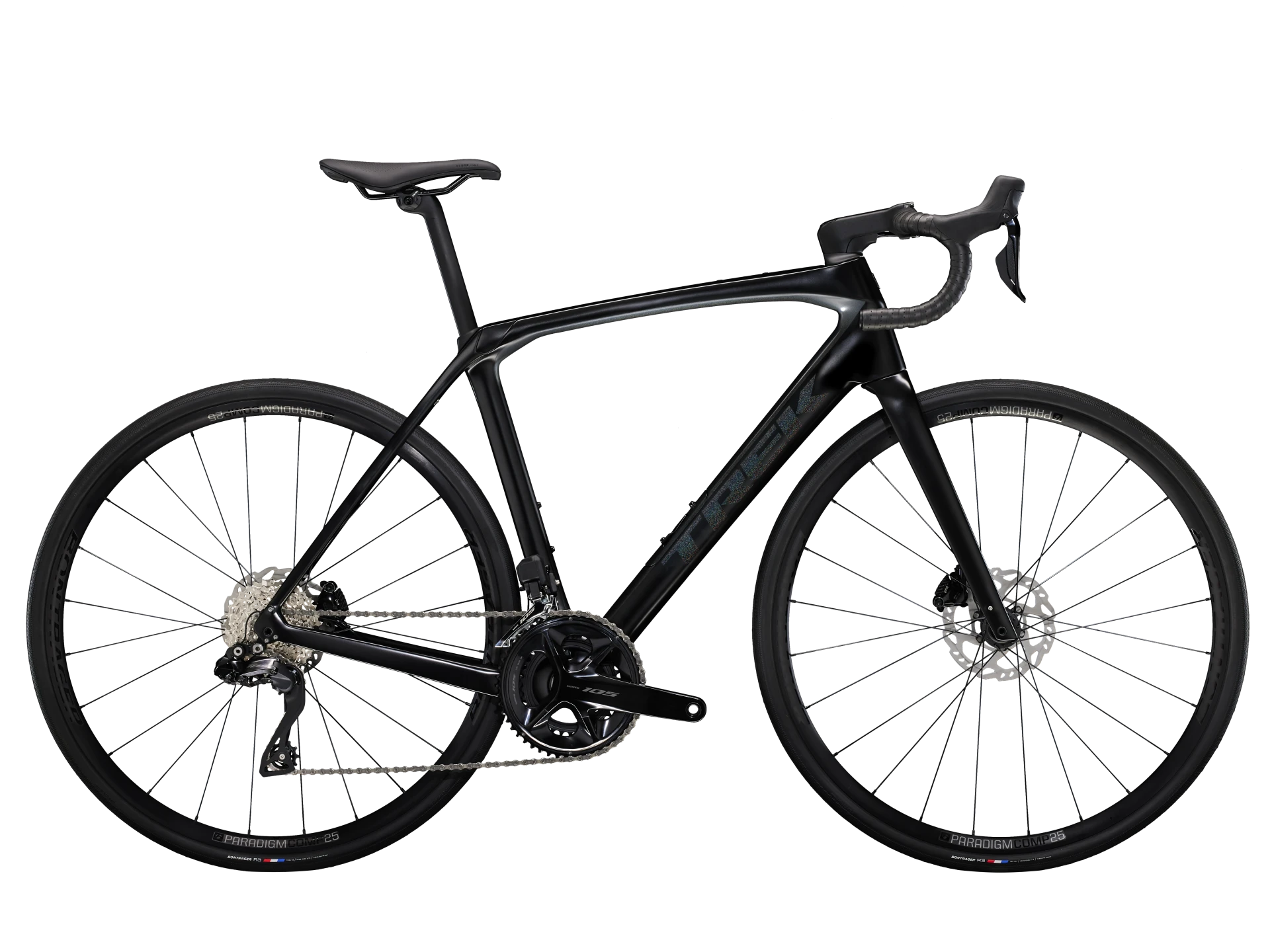

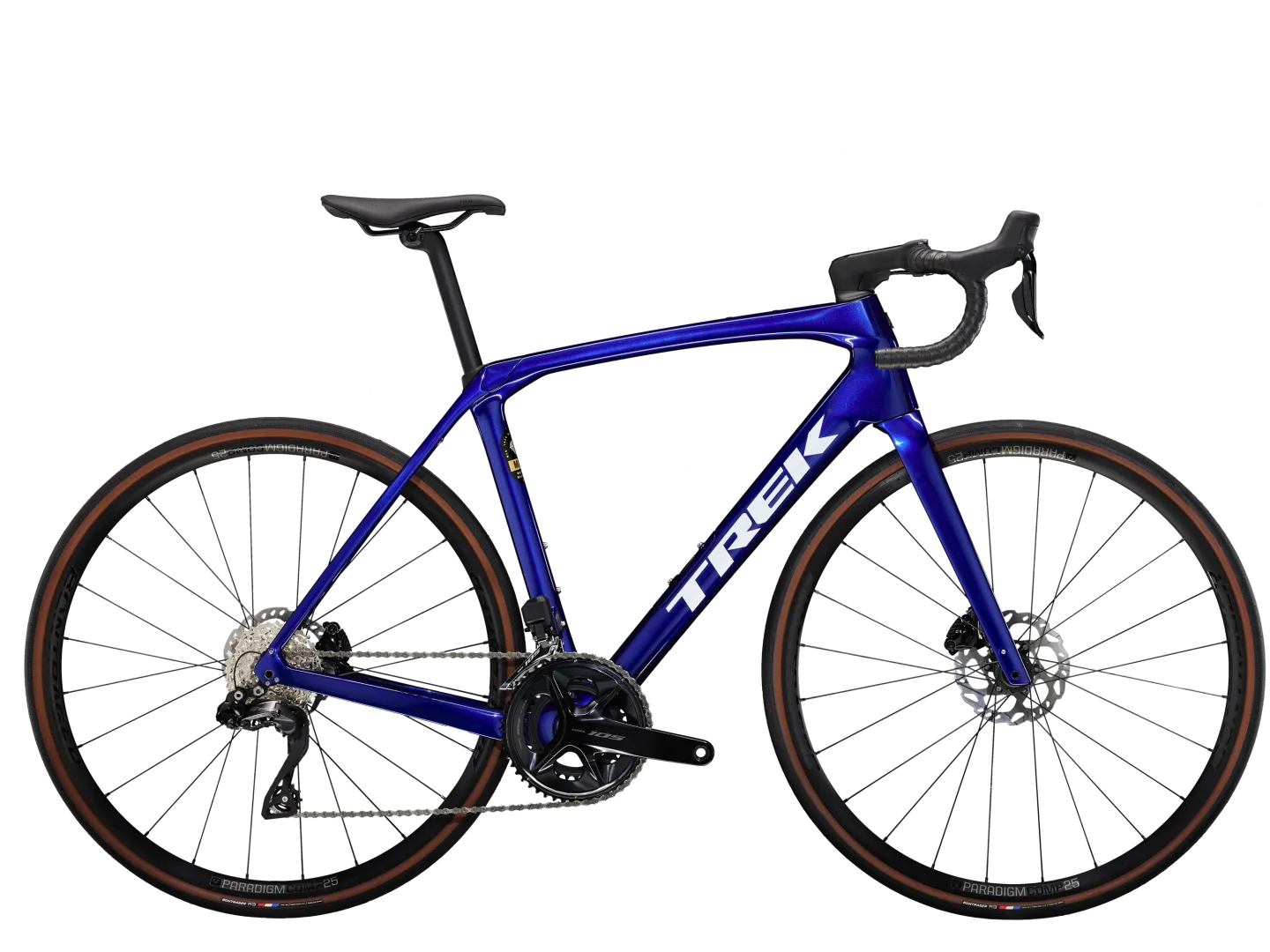

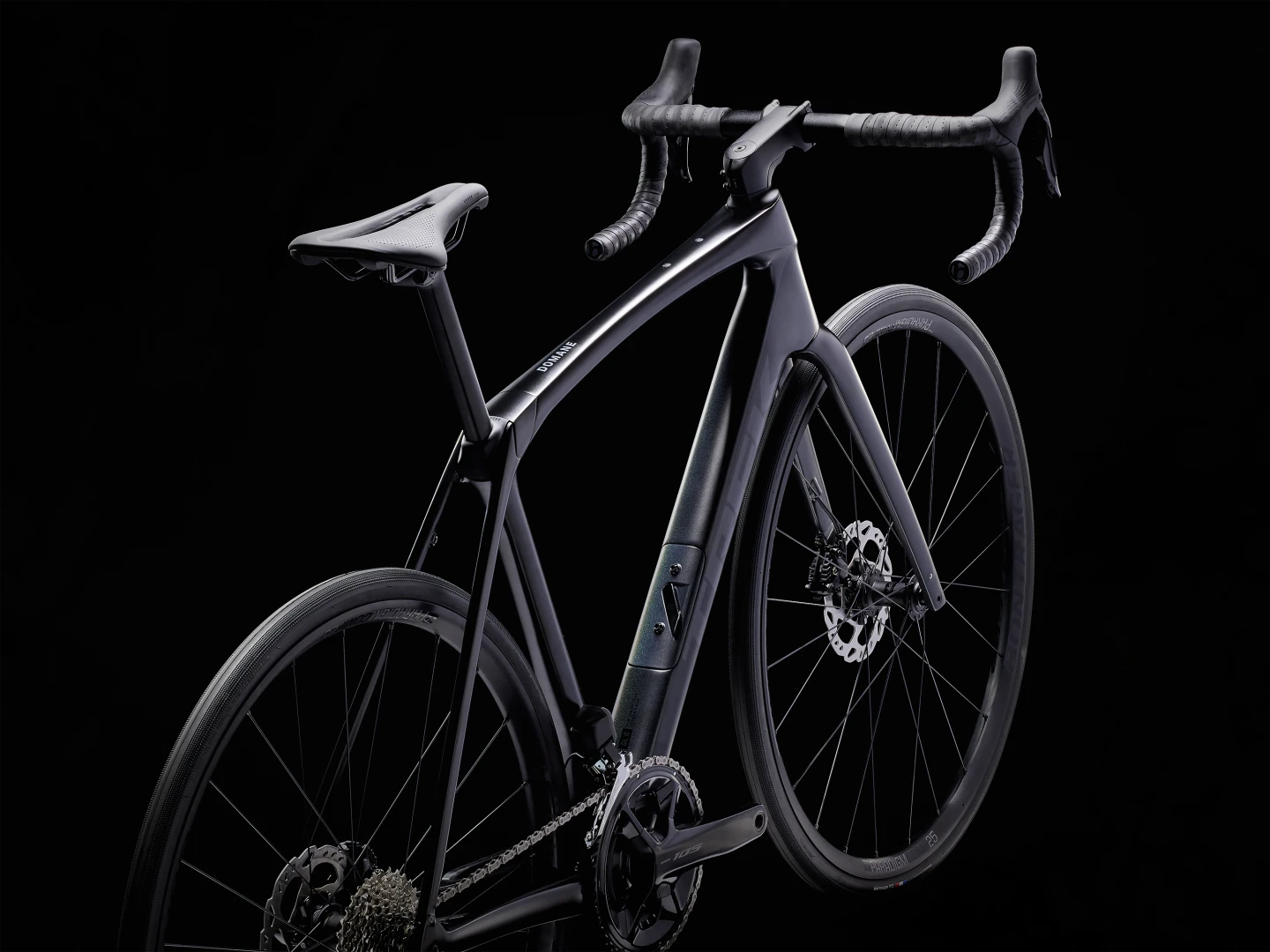

Domane SL 6 is an endurance road bike that's light, aerodynamic, and built to take on rough roads and long miles in comfort. It has all the road-smoothing advantages of a lightweight 500 Series OCLV Carbon frame with rear IsoSpeed, a wireless electronic Shimano 105 Di2 drivetrain, and high-quality wheels. A fully integrated cockpit keeps your setup looking as sleek as it feels, and an easy-access storage compartment for stowing ride essentials. Plus, lofty 38mm tire clearance lets you take on any road from tarmac to light gravel.

Quantity:

TREK TREK Domane SL 6 Gen 4

147,900.00 ฿

FRAME SET

Frame
: 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork
: Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit
: Endurance

WHEELS

Wheel front
: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Wheel rear
: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
Skewer front
: Bontrager Switch thru axle, removable lever
Skewer rear
: Bontrager Switch thru axle, removable lever
Rim
: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width
Tire
: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Tire part
: Bontrager TLR sealant, 6oz
Rim strip
: Bontrager TLR
Max tire size
: 38mm without fenders, 35mm with fenders

E-SYSTEM

Battery
: Shimano BT-DN300
Charger
: Charging cable included

DRIVETRAIN

Shifter
: Shimano 105 R7170 Di2, 12 speed
Front derailleur
: Shimano 105 R7150 Di2, braze-on, down swing
Rear derailleur
: Shimano R7150 Di2, 36T max cog
*Crank
: Size: 47
Shimano 105 R7100, 50/34, 165mm length
Size: 50, 52
Shimano 105 R7100, 50/34, 170mm length
Size: 54, 56
Shimano 105 R7100, 50/34, 172.5mm length
Size: 58, 60, 62
Shimano 105 R7100, 50/34, 175mm length
Bottom bracket
: Praxis, T47 threaded, internal bearing
Cassette
: Shimano 105 7101, 11-34, 12 speed
Chain
: Shimano SLX M7100, 12 speed
Max chainring size
: 1x: 48T, 2x: 52/36

COMPENENTS

*Saddle
: Size: 47, 50, 52
Bontrager Verse Short Comp, steel rails, 155mm width
Size: 54, 56, 58, 60, 62
Bontrager Verse Short Comp, steel rails, 145mm width
*Seatpost
: Size: 47, 50, 52, 54, 56
KVF aero carbon seatpost, 20mm offset, 280mm length
Size: 58, 60, 62
KVF aero carbon seatpost, 20mm offset, 320mm length
*Handlebar
: Size: 47
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width
Size: 50
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width
Size: 52
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width
Size: 54, 56
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width
Size: 58, 60, 62
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
Handlebar tape
: Bontrager Supertack Perf tape
*Stem
: Size: 47
Trek RCS Pro, -7 degree, 70mm length
Size: 50
Trek RCS Pro, -7 degree, 80mm length
Size: 52, 54
Trek RCS Pro, -7 degree, 90mm length
Size: 56, 58
Trek RCS Pro, -7 degree, 100mm length
Size: 60, 62
Trek RCS Pro, -7 degree, 110mm length

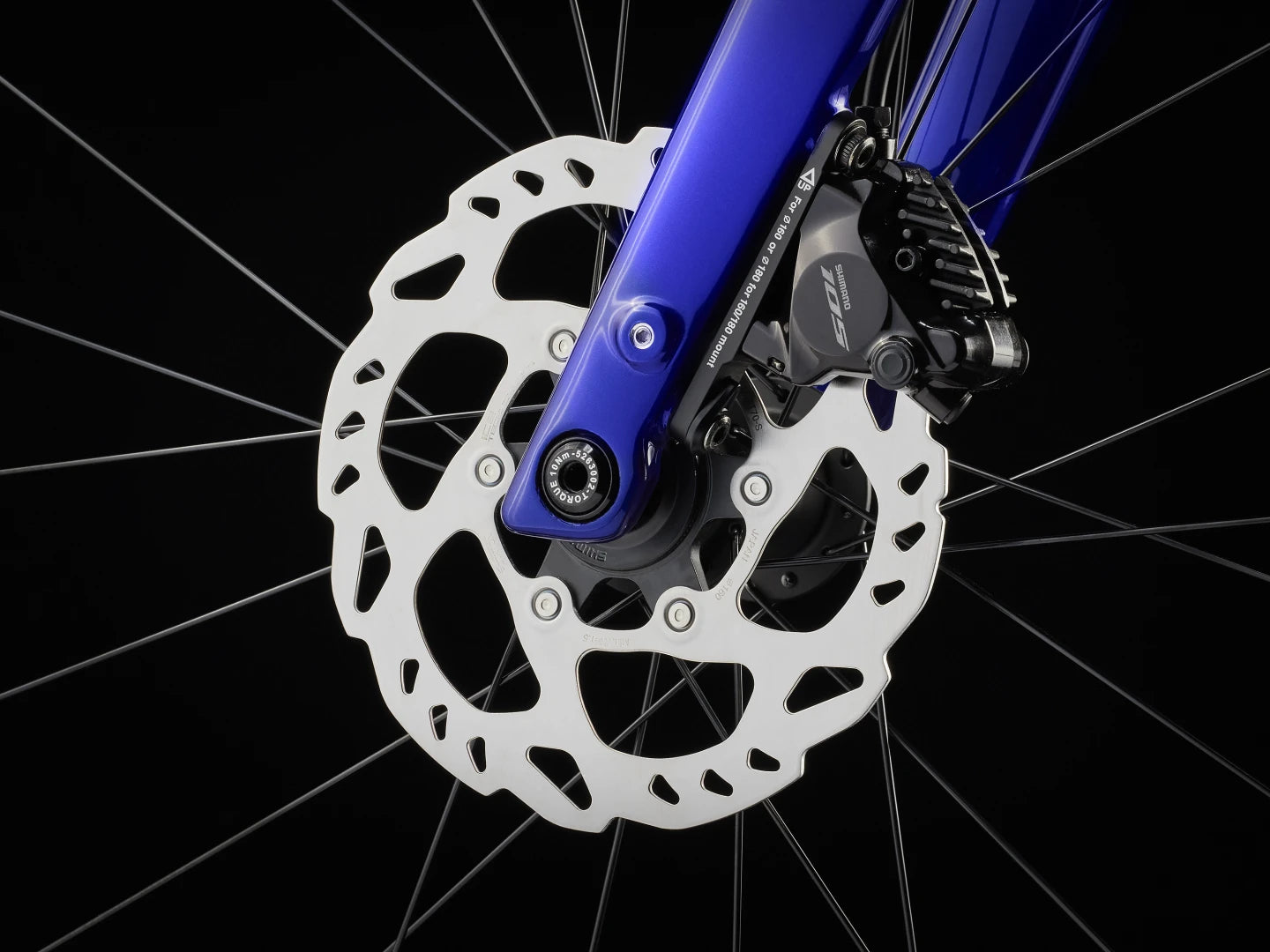

Brake
: Shimano 105 hydraulic disc, flat mount

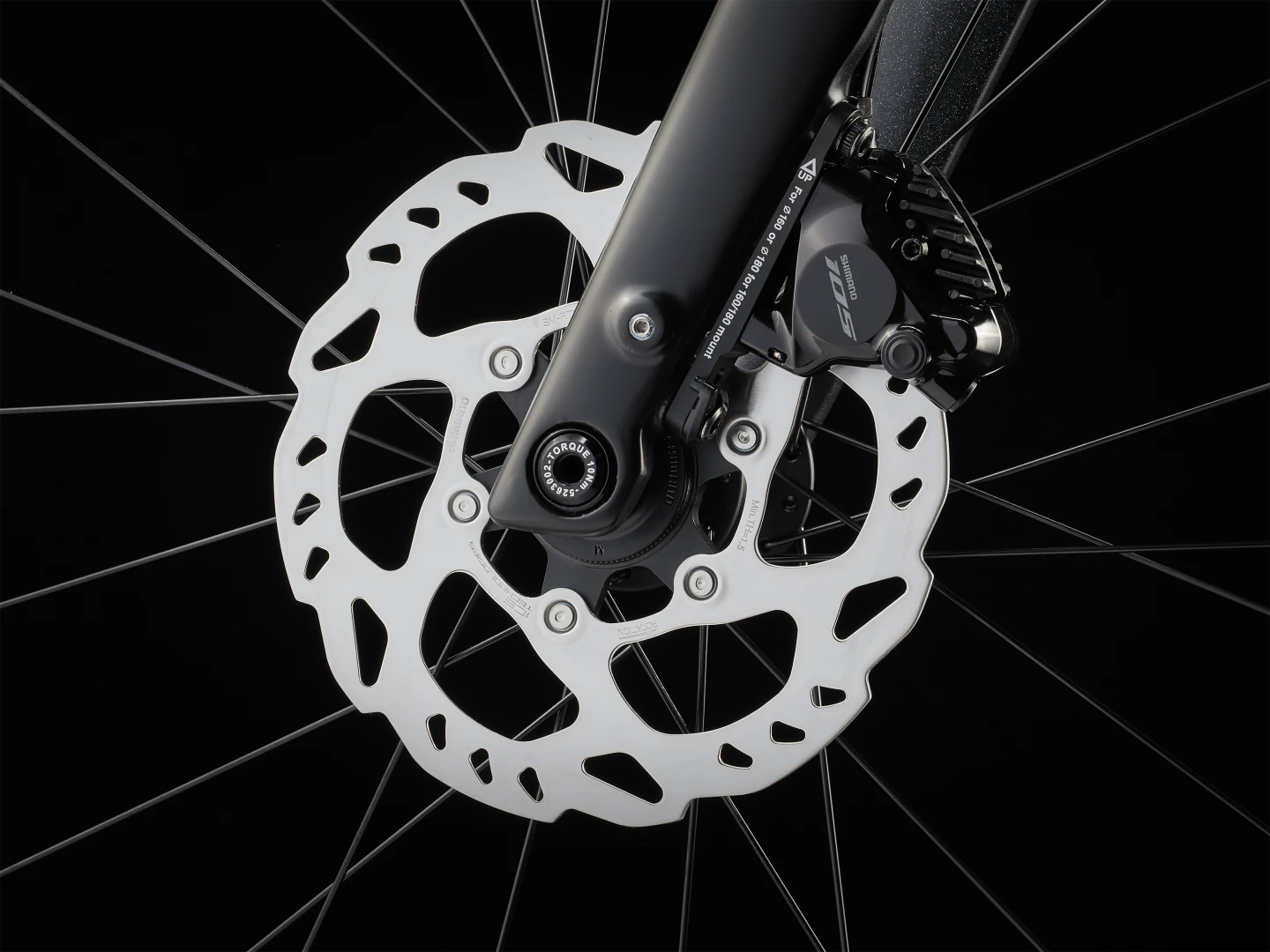

Brake rotor
: Shimano RT70, centerlock, 160mm
Rotor size
: Max brake rotor sizes: 160mm front & rear

ACCESSORIES

Bag
: Bontrager BITS Internal Frame Storage Bag

WEIGHT

Weight
: 56 - 8.90 kg / 19.63 lbs
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

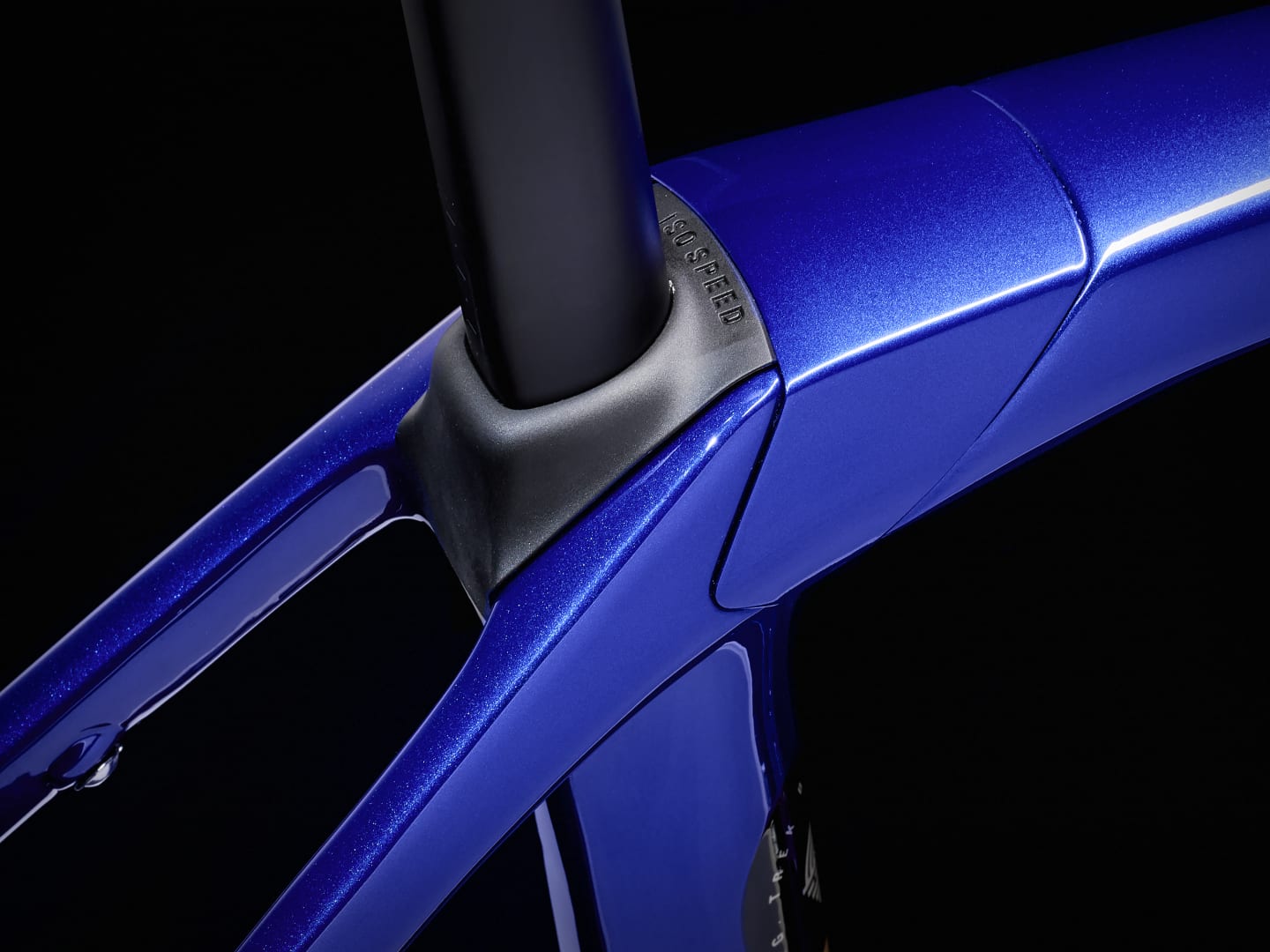

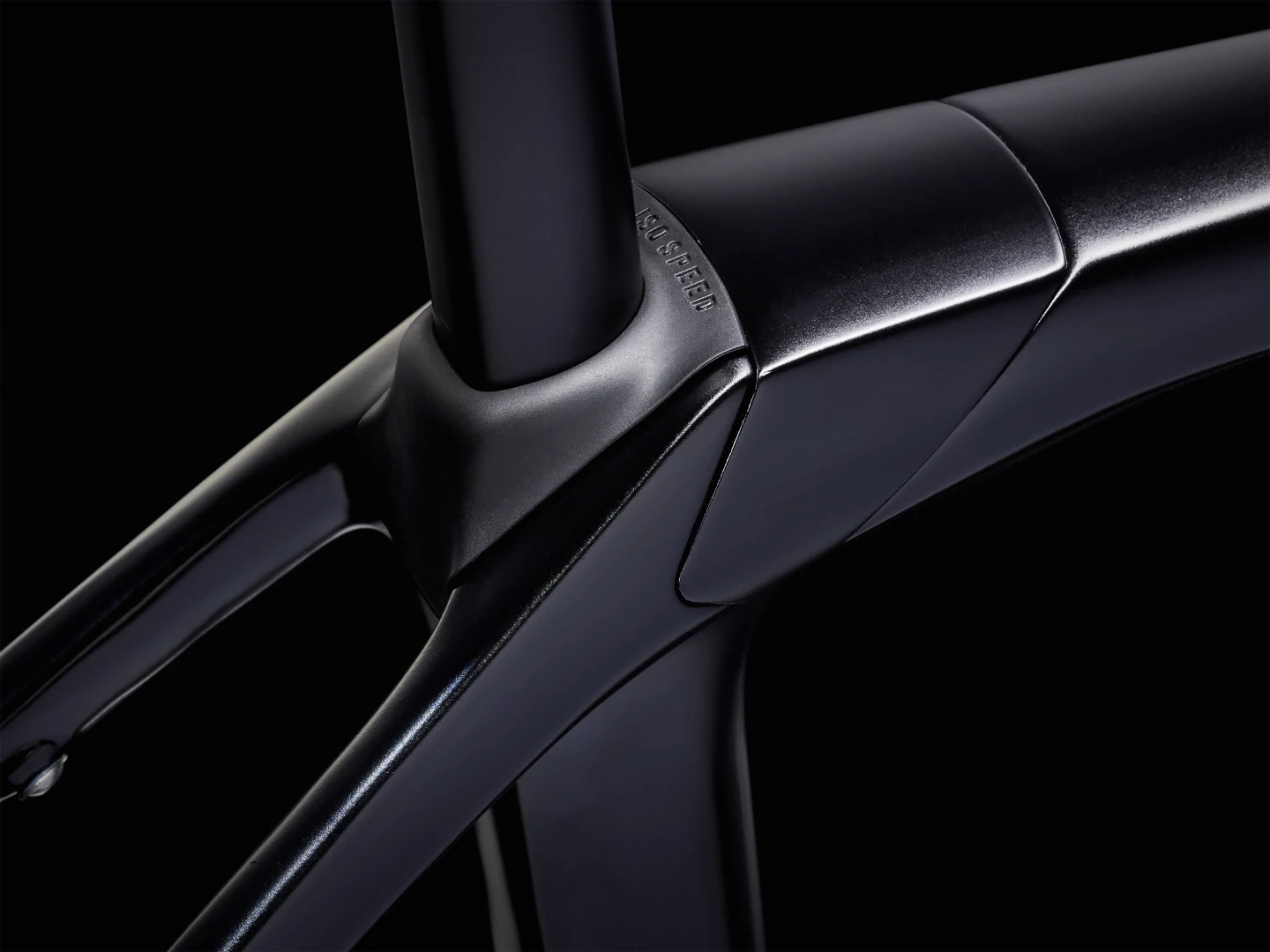

The smooth advantage

Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.

Podium-topping speed

Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.

Lighter than ever

Light and strong 500 Series OCLV Carbon and a new gram-saving design make this the lightest Domane SL disc ever.

Versatile tire clearance

Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.

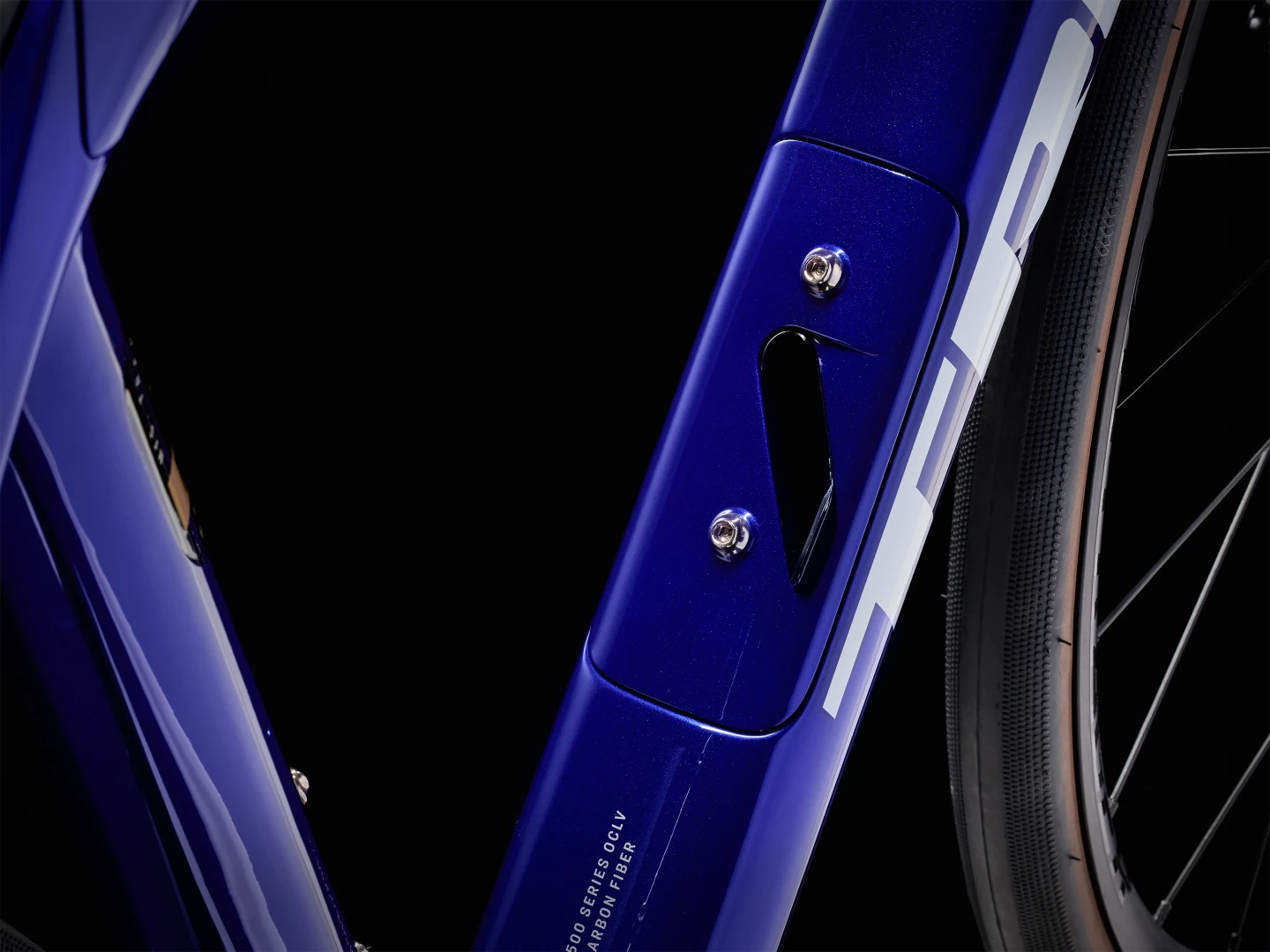

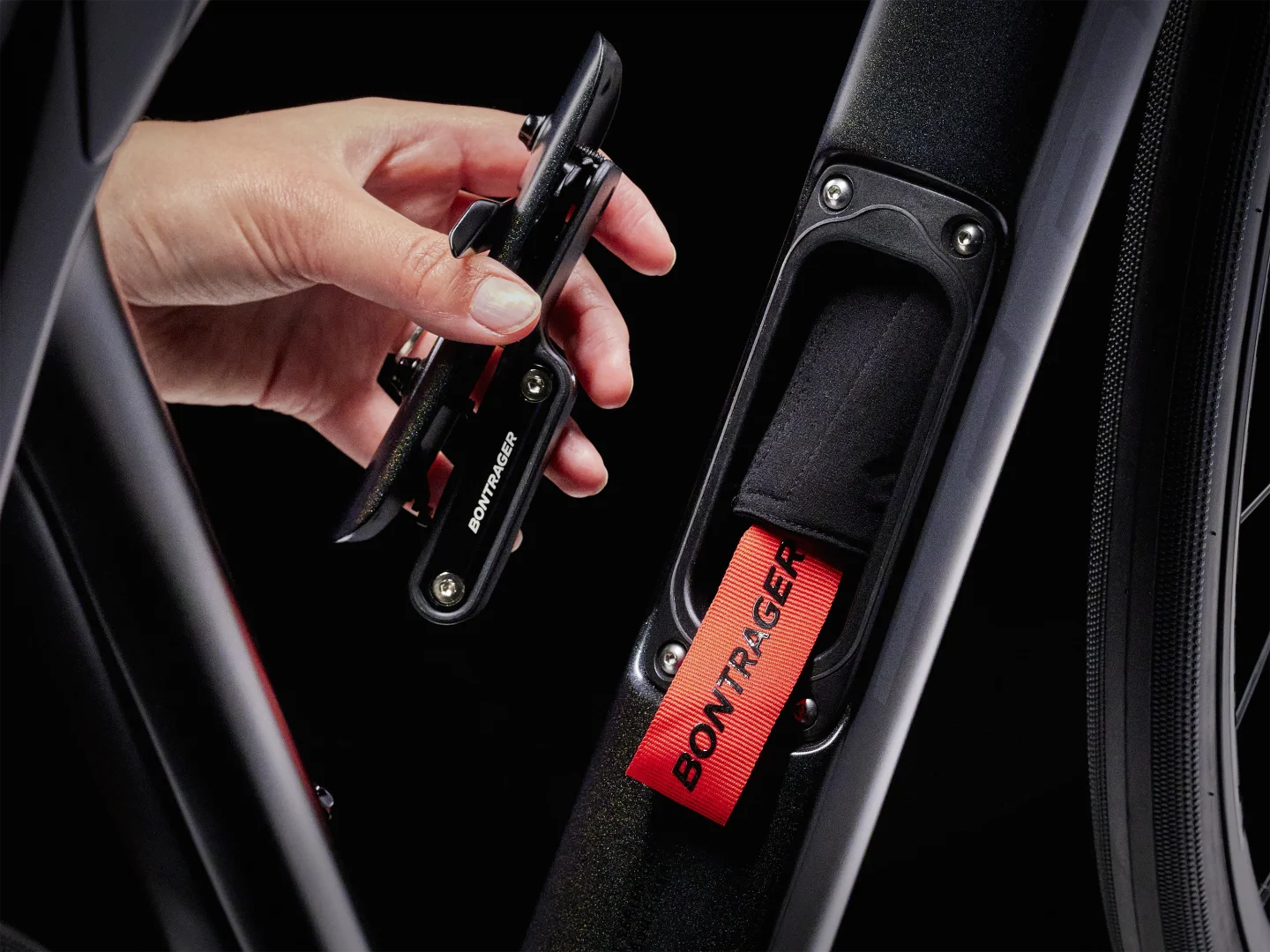

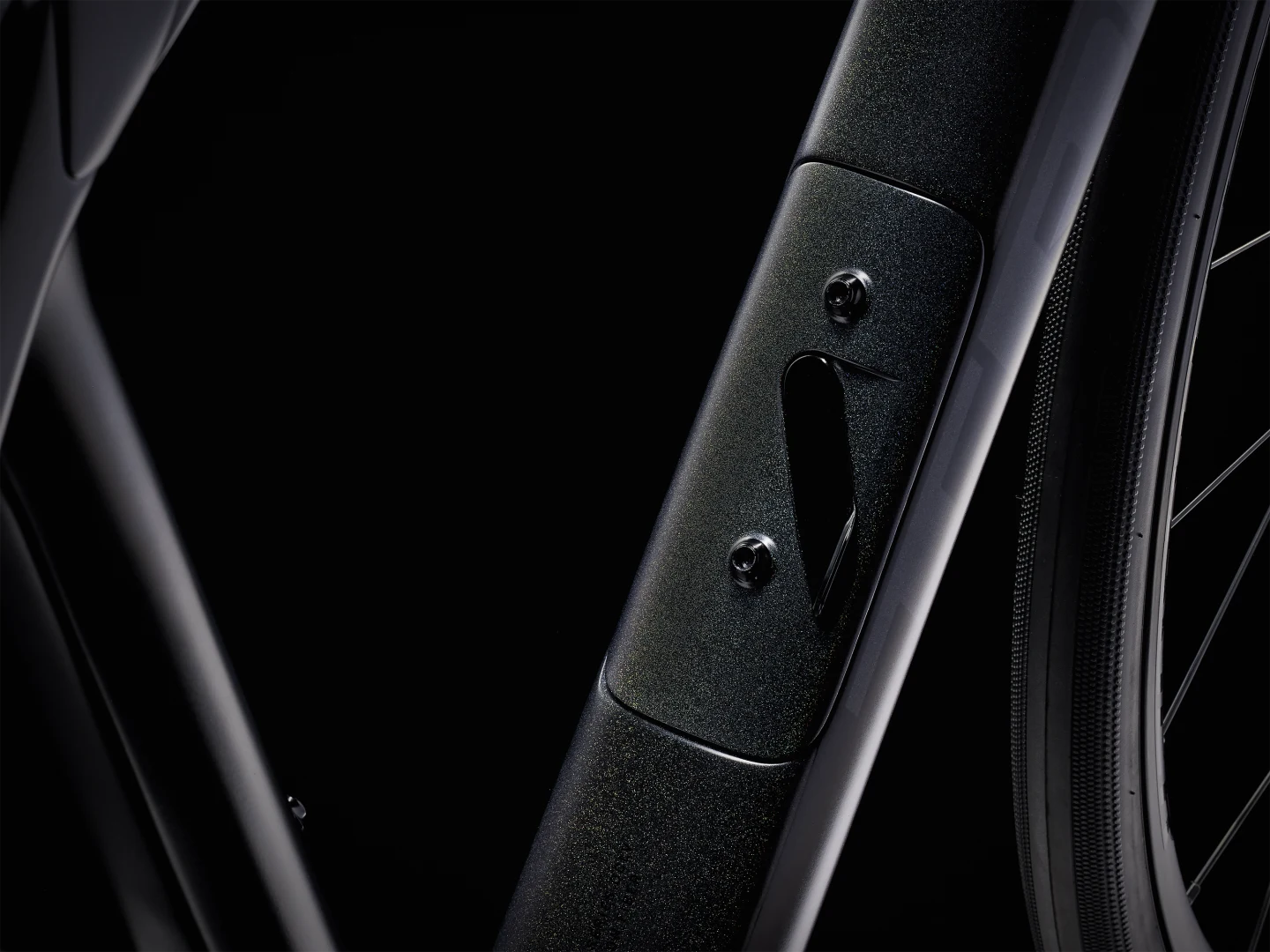

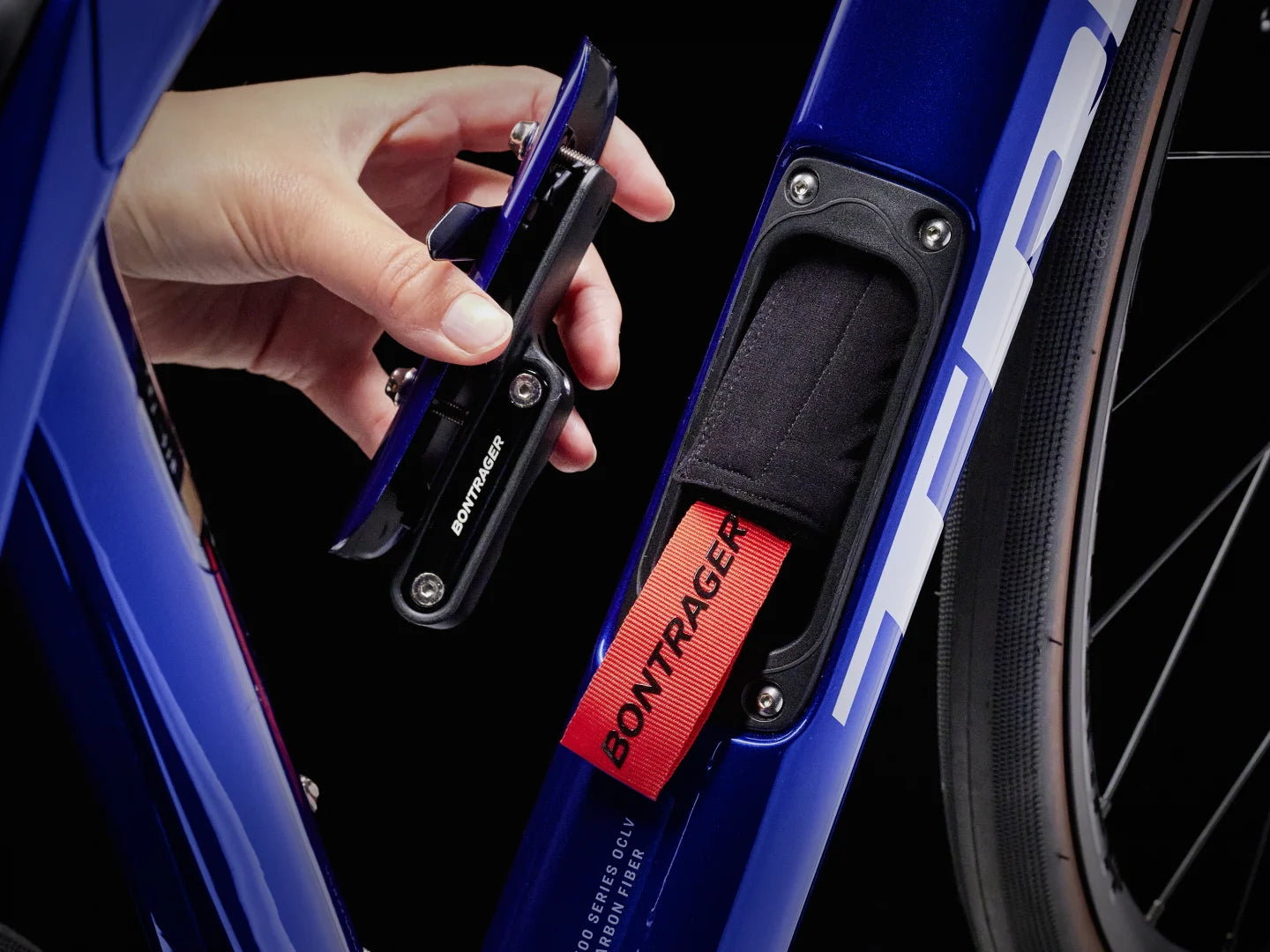

Internal storage

Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.

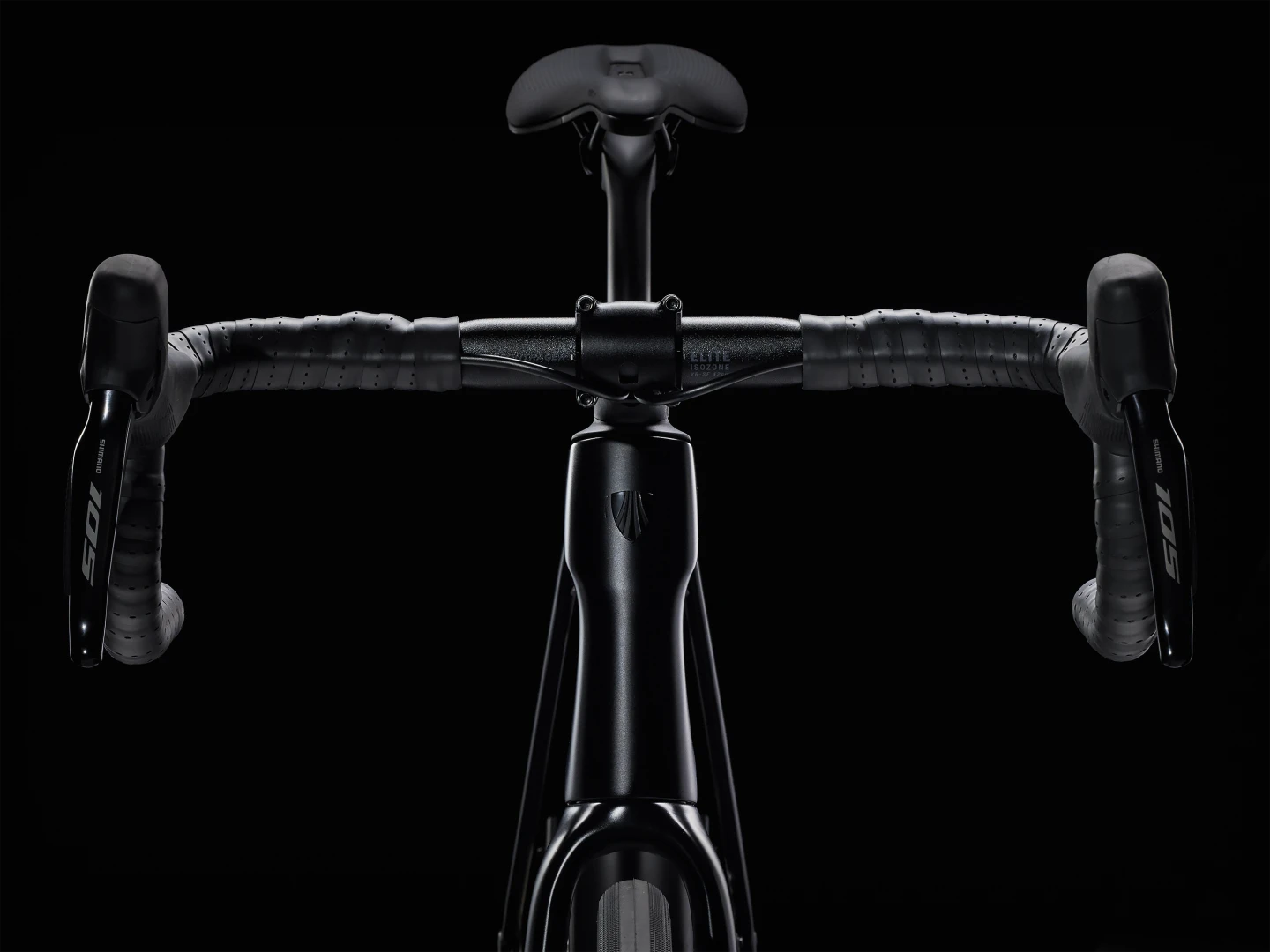

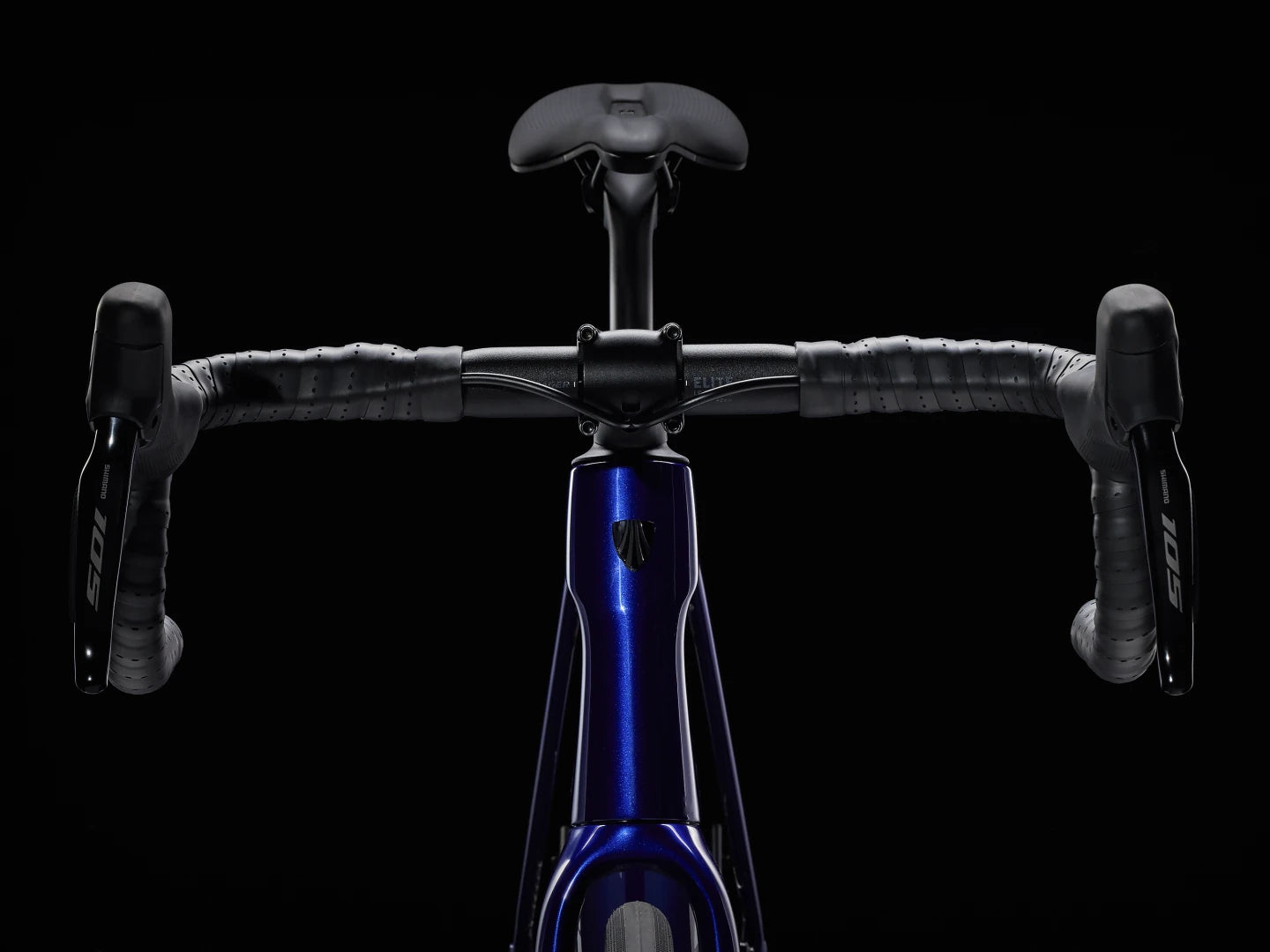

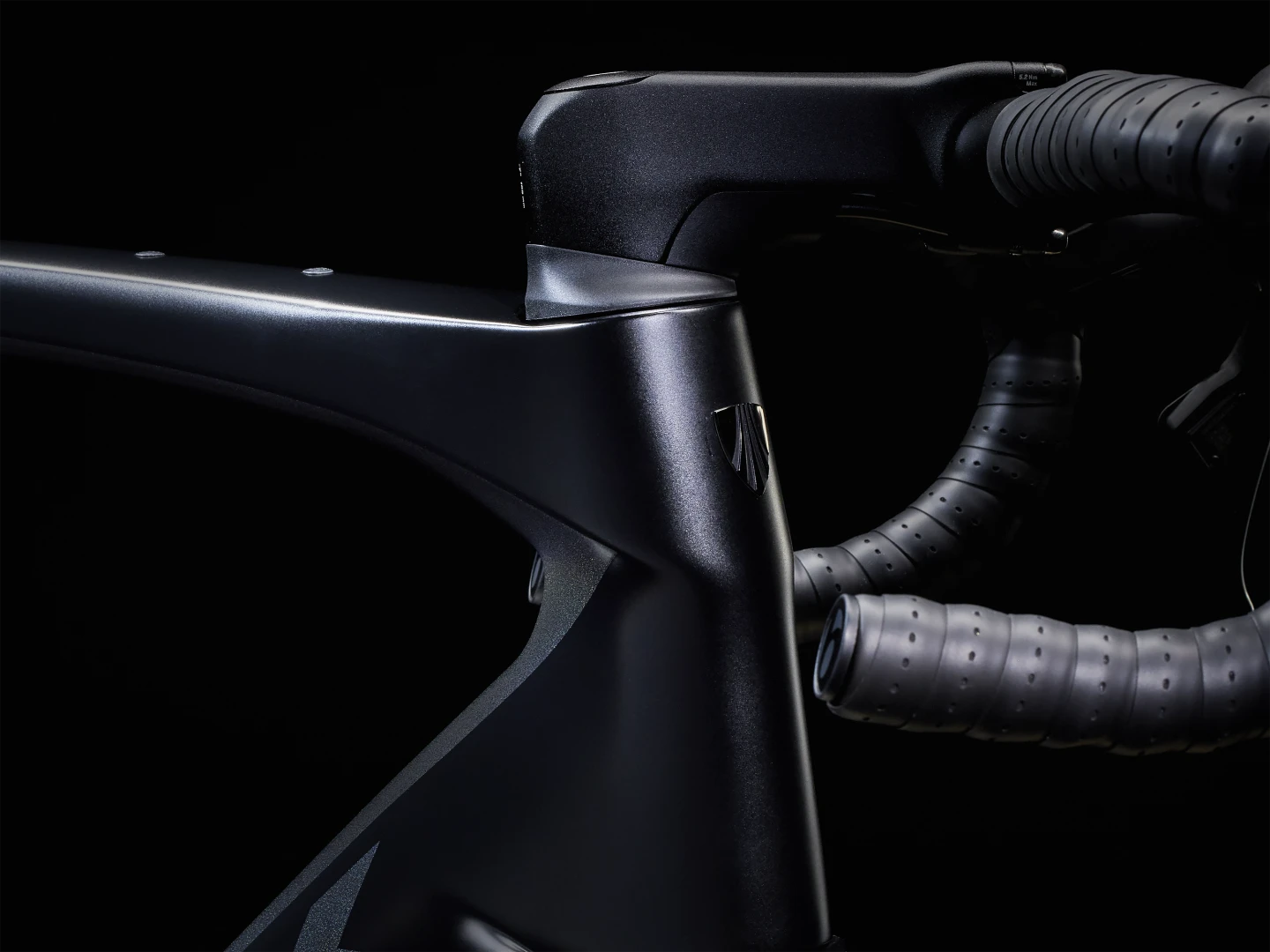

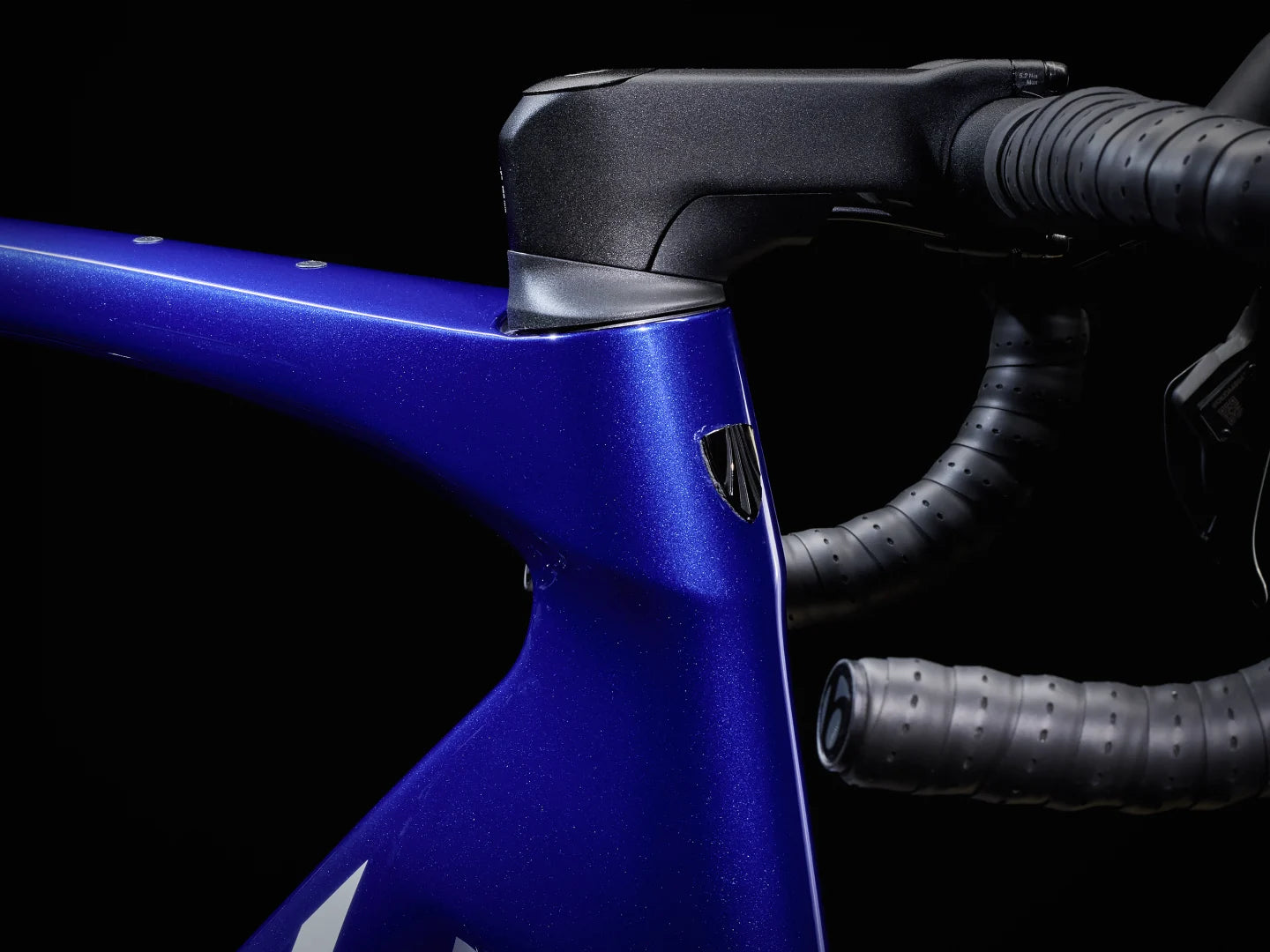

Refined integration

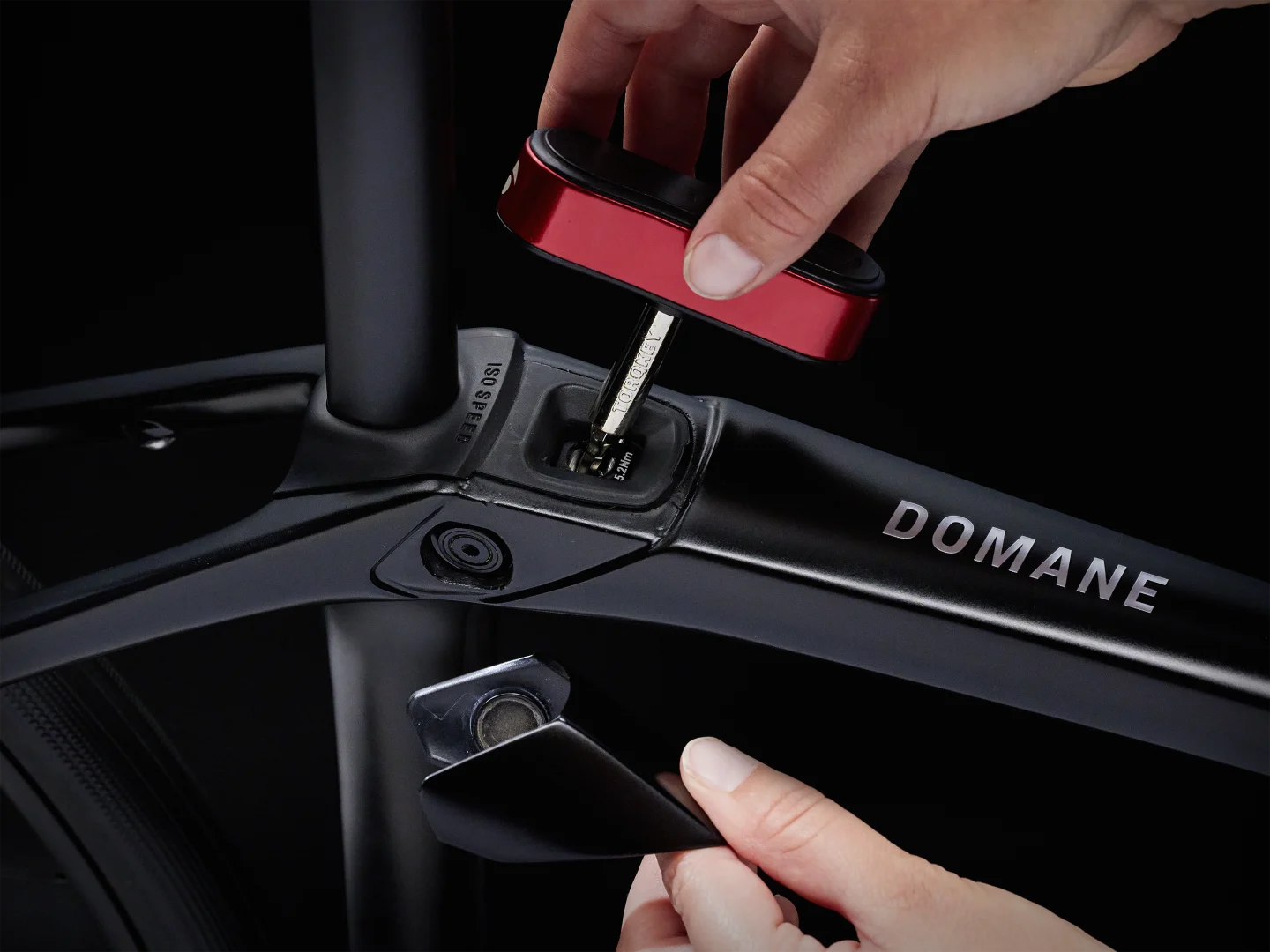

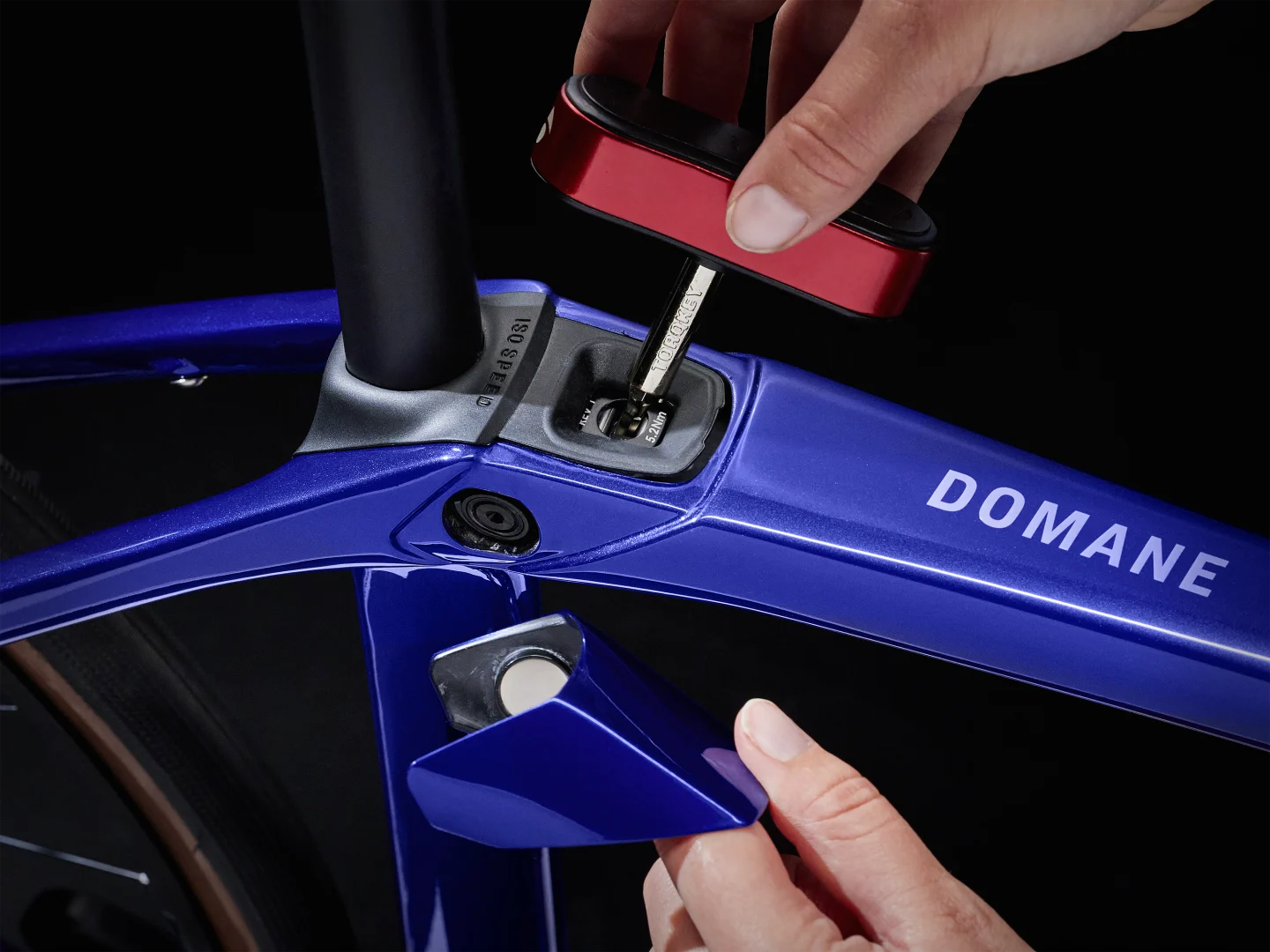

Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.

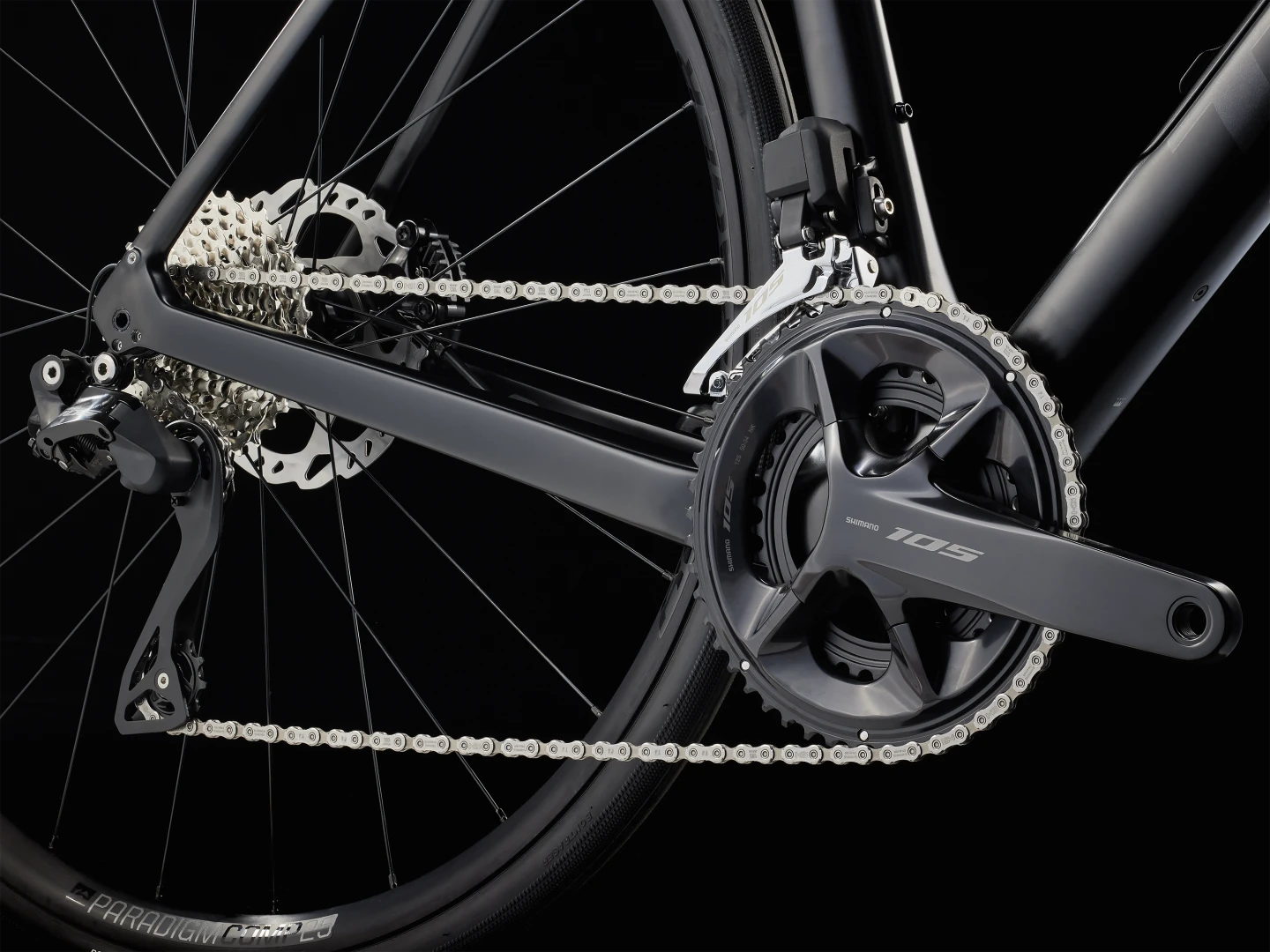

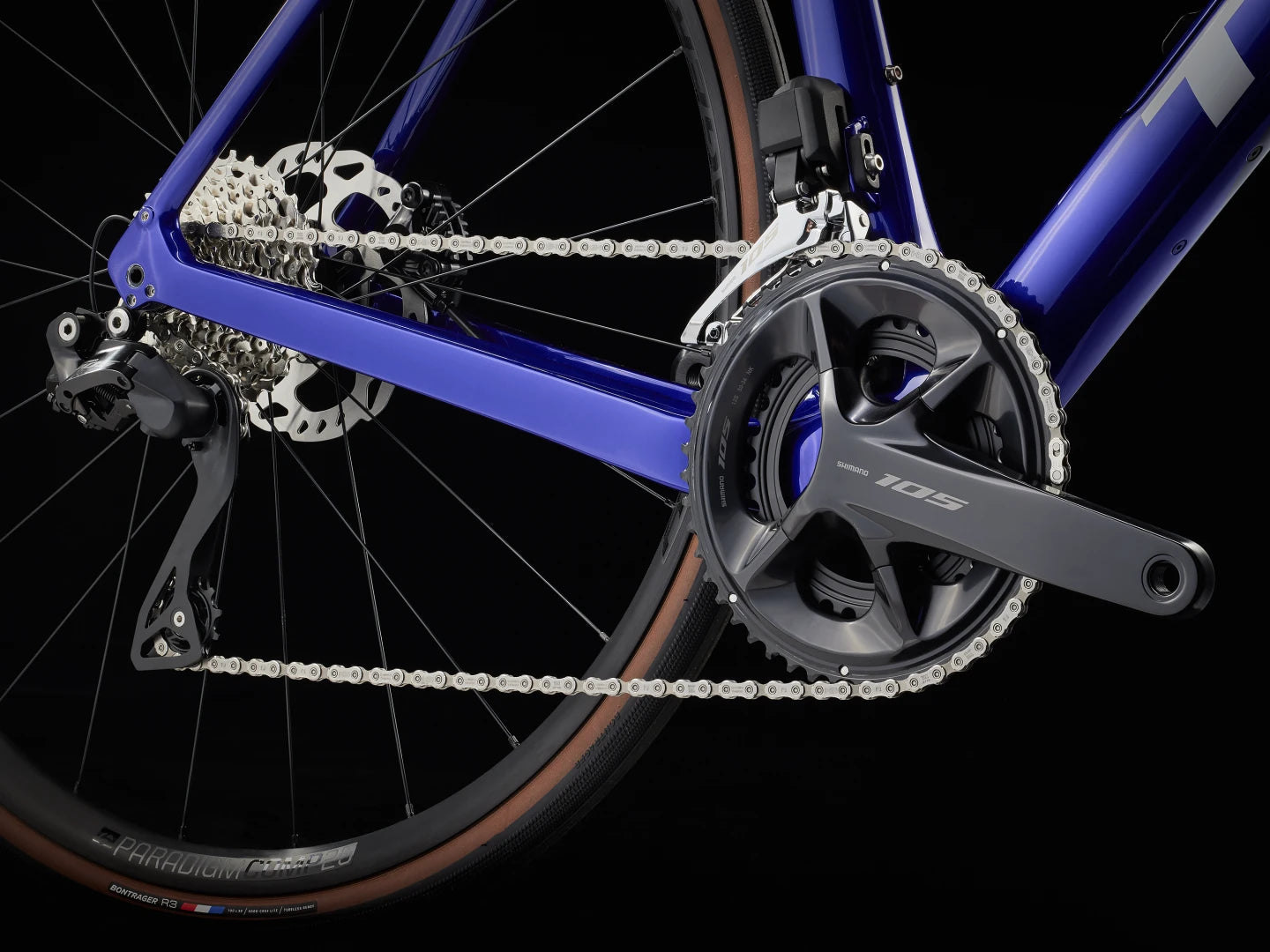

Shimano 105 Di2

With a shared Di2 platform inherited from Dura-Ace and Ultegra, sophisticated ergonomics, Shimano 105-optimized gear combinations, and an exceptional hydraulic disc brake system, Shimano 105 Di2 R7100 marks a new era of affordable, 12 speed electronic performance. You can set up the drivetrain just the way you like it via Shimano’s user-friendly E-Tube app.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

ขอสงวนสิทธิ์ในการเปลี่ยนแปลงแก้ไข ข้อมูลรายละเอียดของสินค้า อุปกรณ์ สเปคสินค้า โมเดล สี และวัสดุ บนเว็บไซท์นี้ ซึ่งอ้างอิงจากเว็บไซท์และโรงงานผู้ผลิตต้นทาง และรายละเอียดของราคา ซึ่งอาจมีการเปลี่ยนแปลงได้ตลอดเวลาโดยไม่ต้องแจ้งล่วงหน้า และหากเกิดข้อผิดพลาดจากการลงข้อมูลบนเว็บไซท์นี้ ให้อ้างอิงสเปคสินค้าจริงและเว็บไซท์ของผู้ผลิตต้นทาง รวมถึงข้อมูลราคาอัพเดทของบริษัท โปรไบค์ จำกัด เท่านั้น

น้ำหนักของจักรยานและเฟรมอ้างอิงจากขั้นตอนก่อนทำสีเฟรมในขั้นตอนผลิตจริง ซึ่งน้ำหนักจะเปลี่ยนแปลงไปหลังการผลิตเสร็จสิ้น
