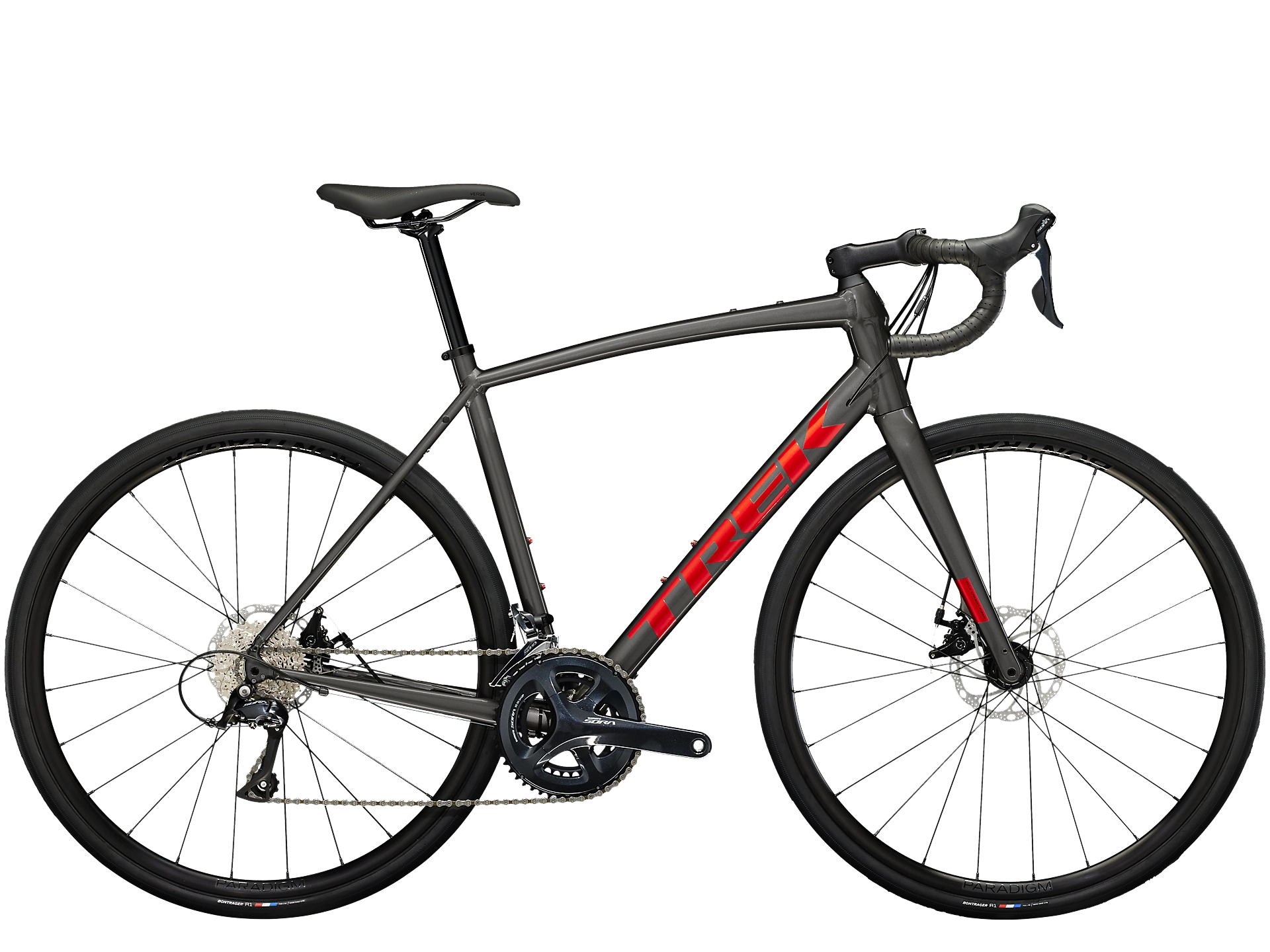

TREK Domane AL 3 Disc Gen 3

Name: TREK Domane AL 3 Disc Gen 3
Brand: TREK
SKU: 5274837
Price: 38500.0 THB
Availability: OutOfStock

38,500 ฿

Color:

MERCURY

SIZE:

44

44 52 54

Variant

0.0

Domane AL 3 Disc is a smooth, stable, and super fun road bike. It's a blast on everything from longer loops to group rides and even light gravel trails. The lightweight and comfortable frame features a road-smoothing carbon fork, quality parts, and a wide range of gears ready for bigger adventures.

FRAMESET

Frame

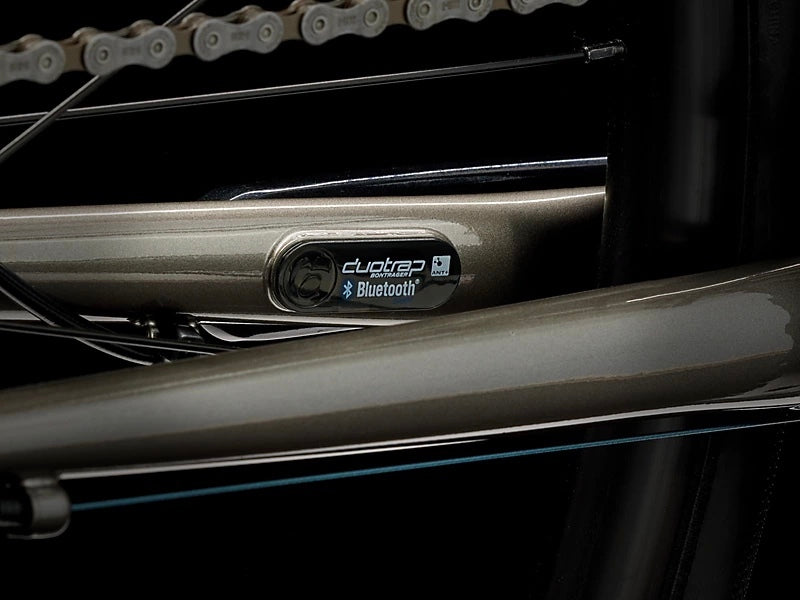

: 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork
: Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit
: Endurance

WHEELS

Hub front
: Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Skewer front
: Bontrager Switch thru axle, removable lever
Hub rear
: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear
: Bontrager Switch thru axle, removable lever
*Rim
: Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, Presta valve
Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes
: 14g stainless steel, black
Tire
: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Max tire size
: 35mm without fenders, 32mm with fenders

DRIVETRAIN

Shifter
: Shimano Sora R3000, 9 speed
Front derailleur
: Shimano Sora R3000, 31.8mm clamp
Rear derailleur
: Shimano Sora R3000, mid cage, 34T max cog

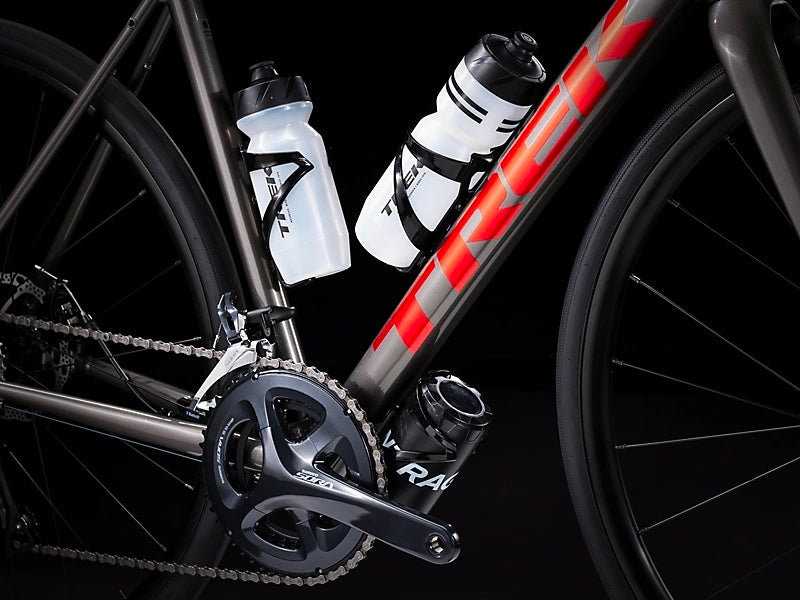

*Crank
: Size: 44
Shimano Sora R3000, 50/34 (compact), 165mm length
Size: 49, 52, 54
Shimano Sora R3000, 50/34 (compact), 170mm length
Size: 56, 58, 61
Shimano Sora R3000, 50/34 (compact), 175mm length
Bottom bracket
: Shimano RS500, 68mm, threaded external
Cassette
: Shimano Sora HG400, 11-32, 9 speed
Chain
: Shimano Sora HG53, 9 speed
Max chainring size
: 1x: 42T, 2x: 50/34

COMPENENTS

*Saddle
: Size: 44, 49, 52
Bontrager Verse Comp, steel rails, 155mm width
Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145mm width
*Seatpost
: Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length

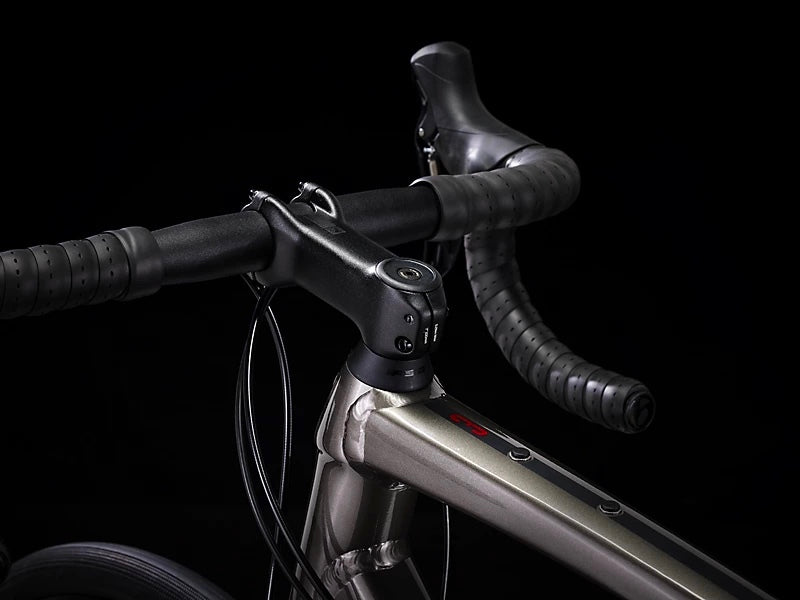

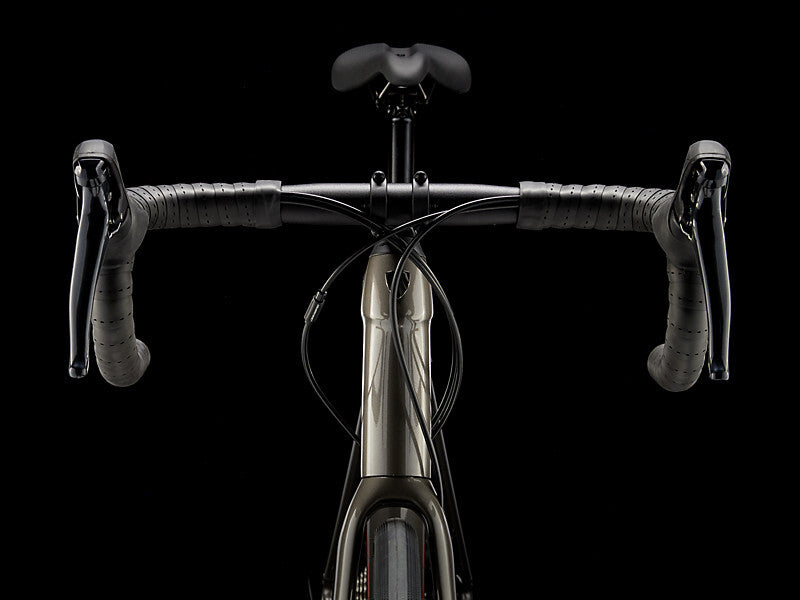

*Handlebar
: Size: 44, 49
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
Size: 52
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
Size: 58, 61
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Handlebar tape Bontrager Supertack Perf tape
*Stem
: Size: 44

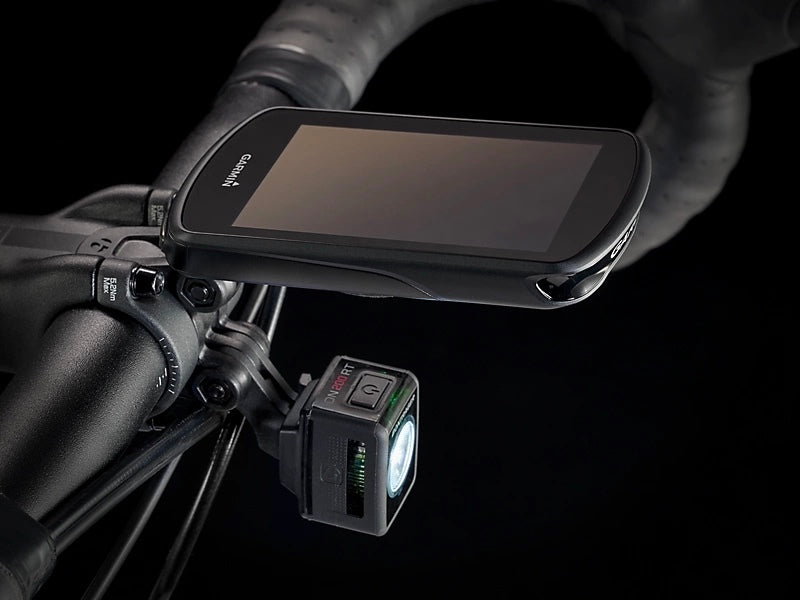

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Headset FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake
: Tektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor
Rotor size
: Max brake rotor sizes: 160mm front & rear

WEIGHT

Weight
: 56 - 10.30 kg / 22.71 lbs
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Why you'll love it

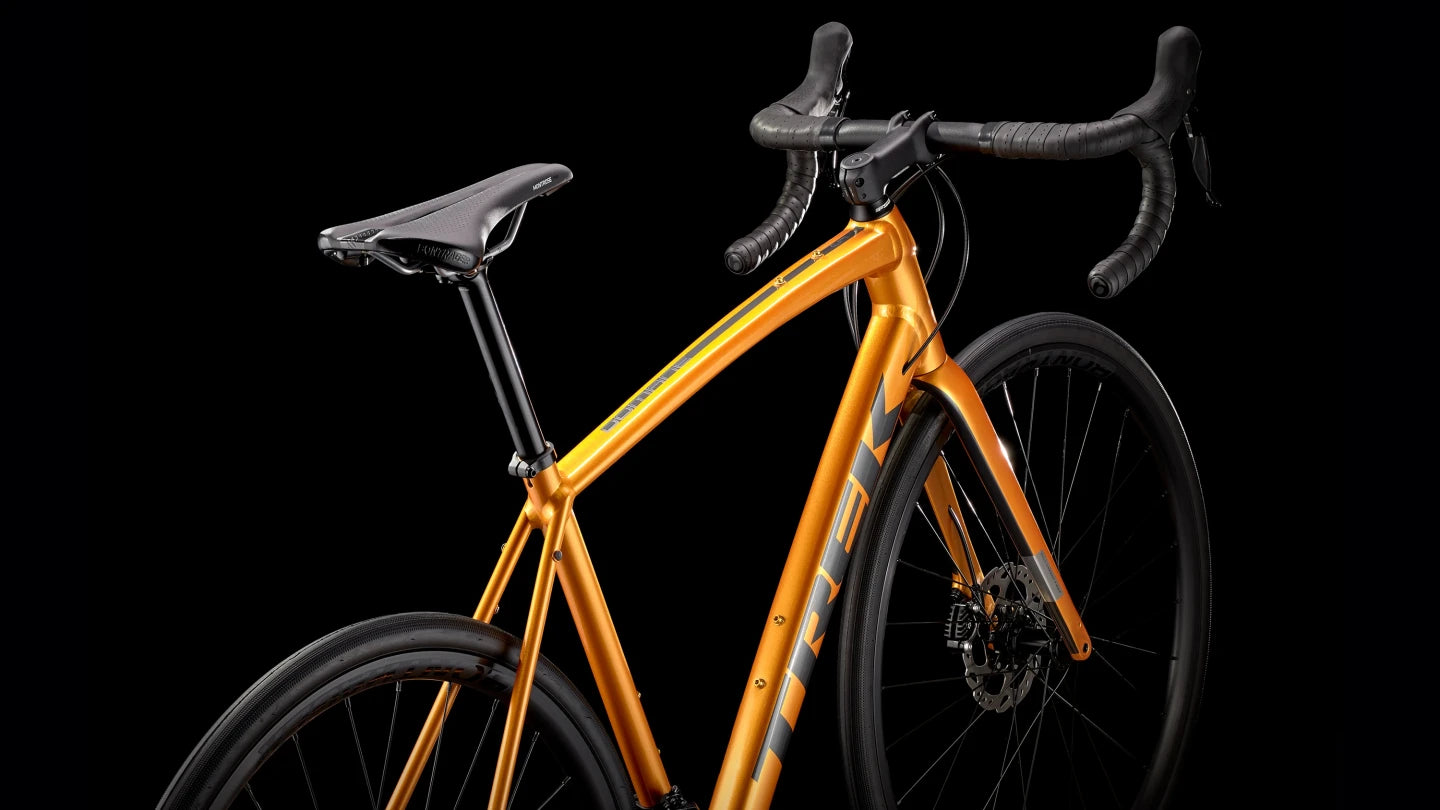

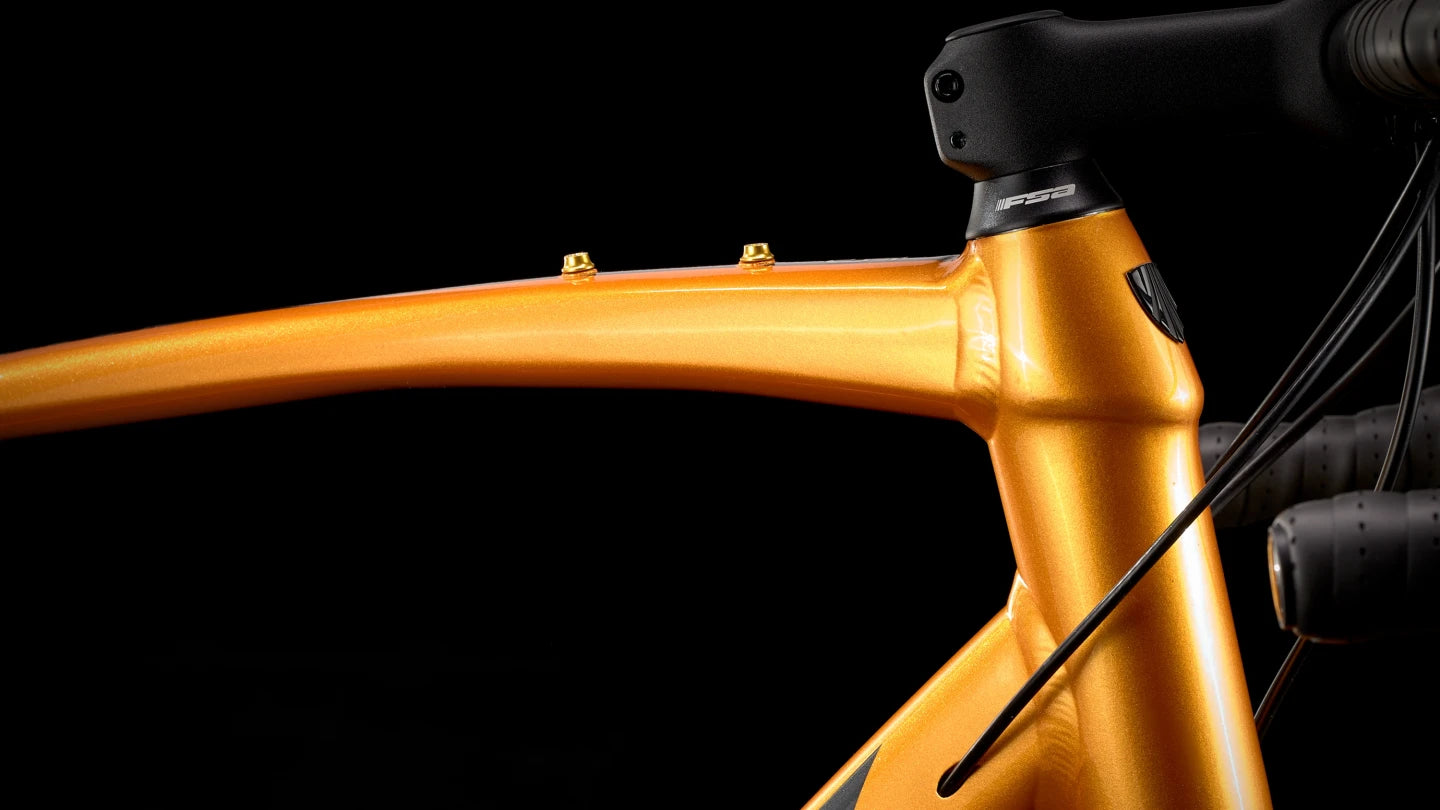

Premium alloy frame

Every Domane AL Disc has a lightweight aluminum frame with internal cable routing and smooth welds for race-ready looks and performance.

Long-haul comfort

The endurance geometry, wide tires, and carbon fork keep you comfortable when you’re setting distance records.

High-value performance

Domane AL Disc is built in Trek's road race heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.

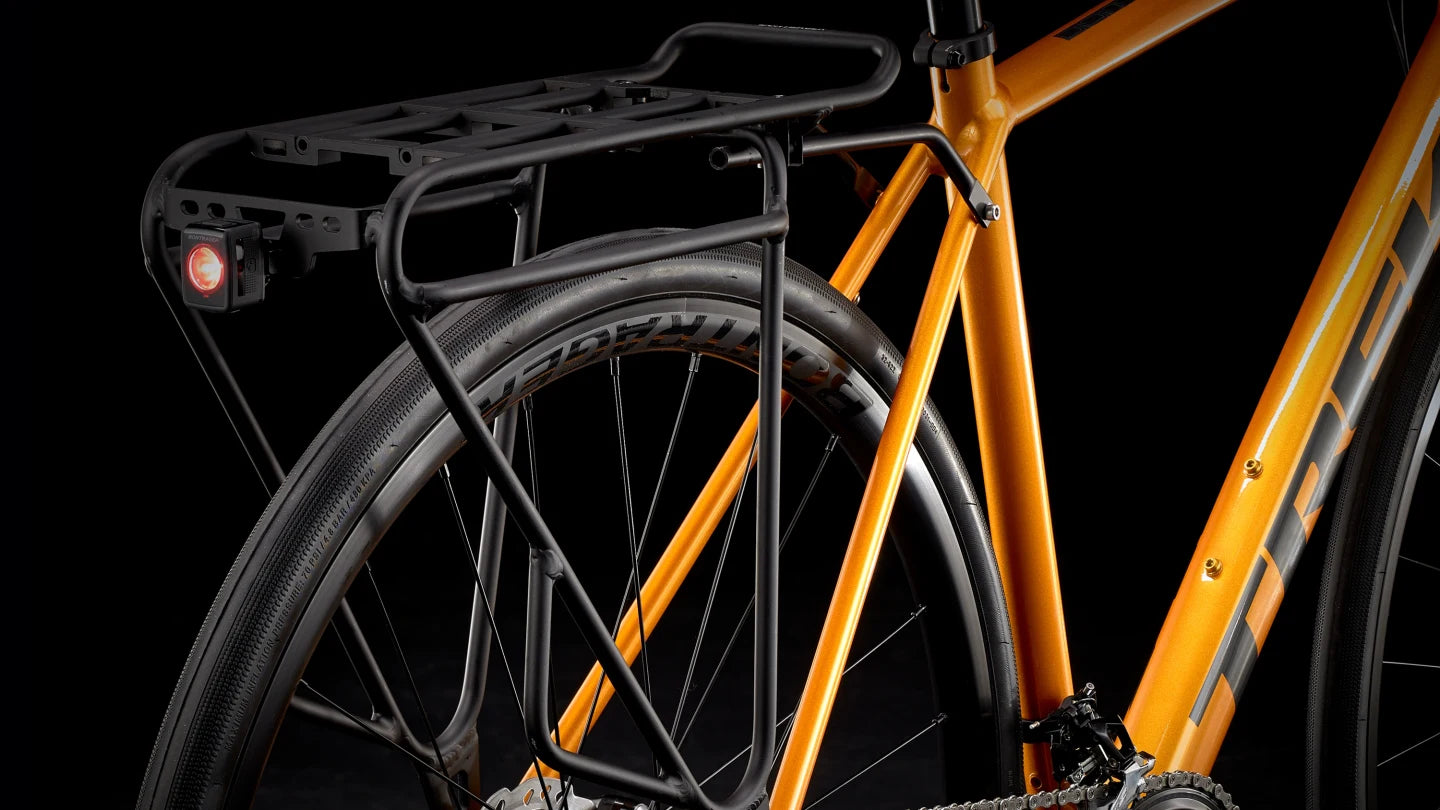

Any road, any adventure

Disc brakes, extra tire clearance, and mounts for a rack and fenders give it the versatility for any all-road adventure.

Don’t forget your pedals

This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style.

It's right for you if...

You're just getting into road cycling, or are looking to upgrade from an older road bike, and want a fantastic ride without an eye-popping price. You want a bike with quality parts and powerful disc brakes that will keep up with you for miles to come.

The tech you get

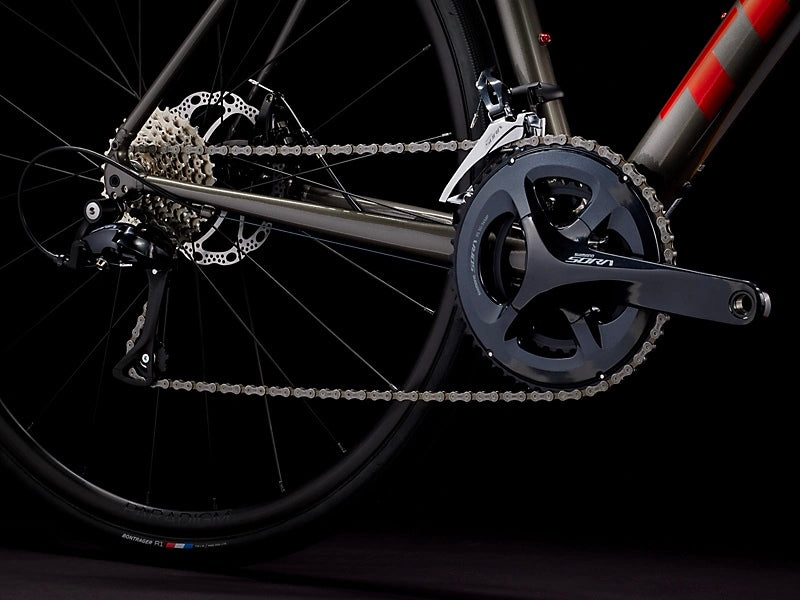

The Shimano Sora drivetrain has 18 speeds, with integrated brake/shift levers. It's a lighter parts group than Shimano's introductory groupset, and provides a wide range of gears that's great for climbing. The lightweight aluminum frame has a stable Endurance Geometry for a confident ride, disc brakes, a Domane carbon fork, mounts for fenders, and tubeless ready rims.

The final word

This bike has lighter parts, an advanced aluminum frame, powerful disc brakes, and a comfort-first geometry designed to help you fall in love with road cycling.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

ขอสงวนสิทธิ์ในการเปลี่ยนแปลงแก้ไข ข้อมูลรายละเอียดของสินค้า อุปกรณ์ สเปคสินค้า โมเดล สี และวัสดุ บนเว็บไซท์นี้ ซึ่งอ้างอิงจากเว็บไซท์และโรงงานผู้ผลิตต้นทาง และรายละเอียดของราคา ซึ่งอาจมีการเปลี่ยนแปลงได้ตลอดเวลาโดยไม่ต้องแจ้งล่วงหน้า และหากเกิดข้อผิดพลาดจากการลงข้อมูลบนเว็บไซท์นี้ ให้อ้างอิงสเปคสินค้าจริงและเว็บไซท์ของผู้ผลิตต้นทาง รวมถึงข้อมูลราคาอัพเดทของบริษัท โปรไบค์ จำกัด เท่านั้น

น้ำหนักของจักรยานและเฟรมอ้างอิงจากขั้นตอนก่อนทำสีเฟรมในขั้นตอนผลิตจริง ซึ่งน้ำหนักจะเปลี่ยนแปลงไปหลังการผลิตเสร็จสิ้น
