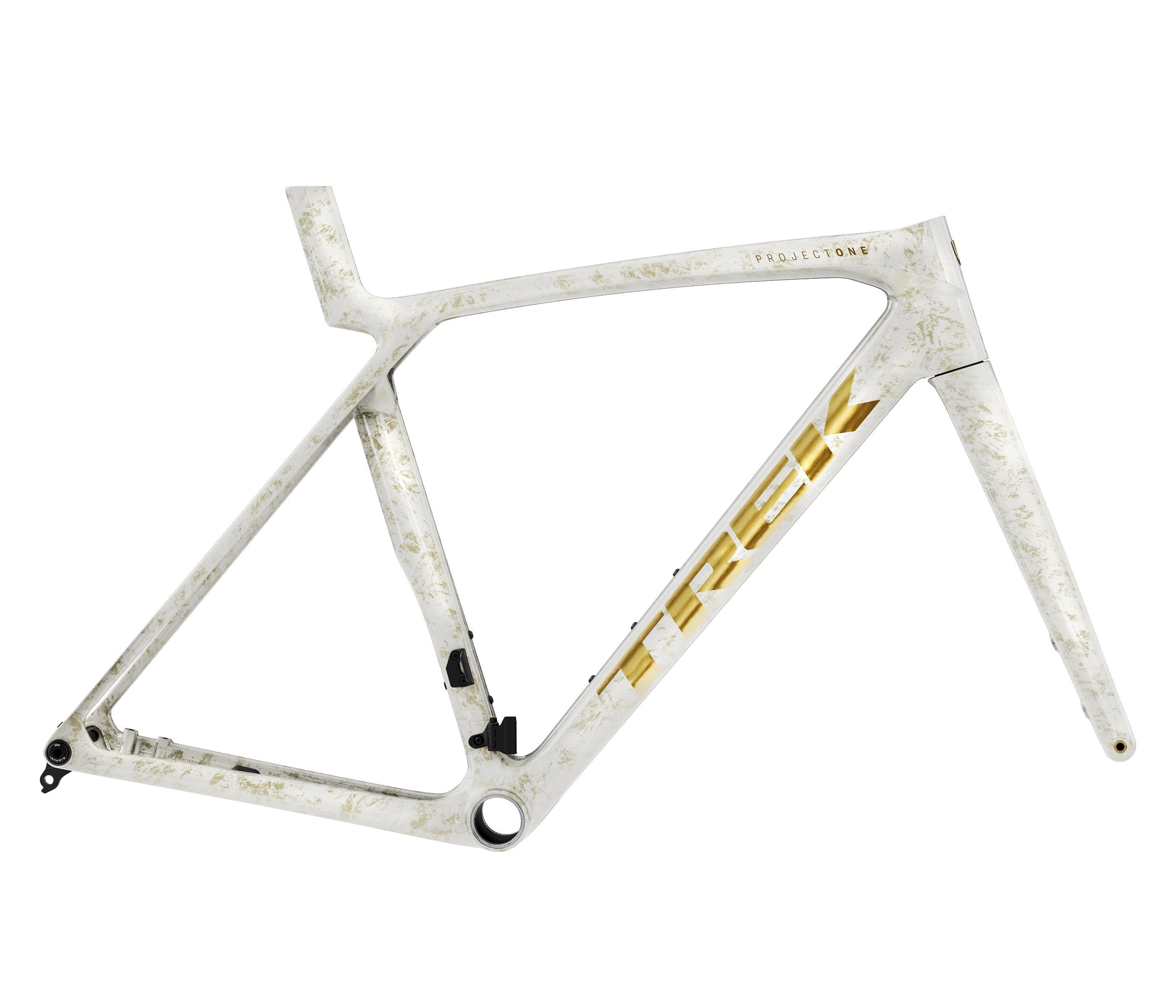

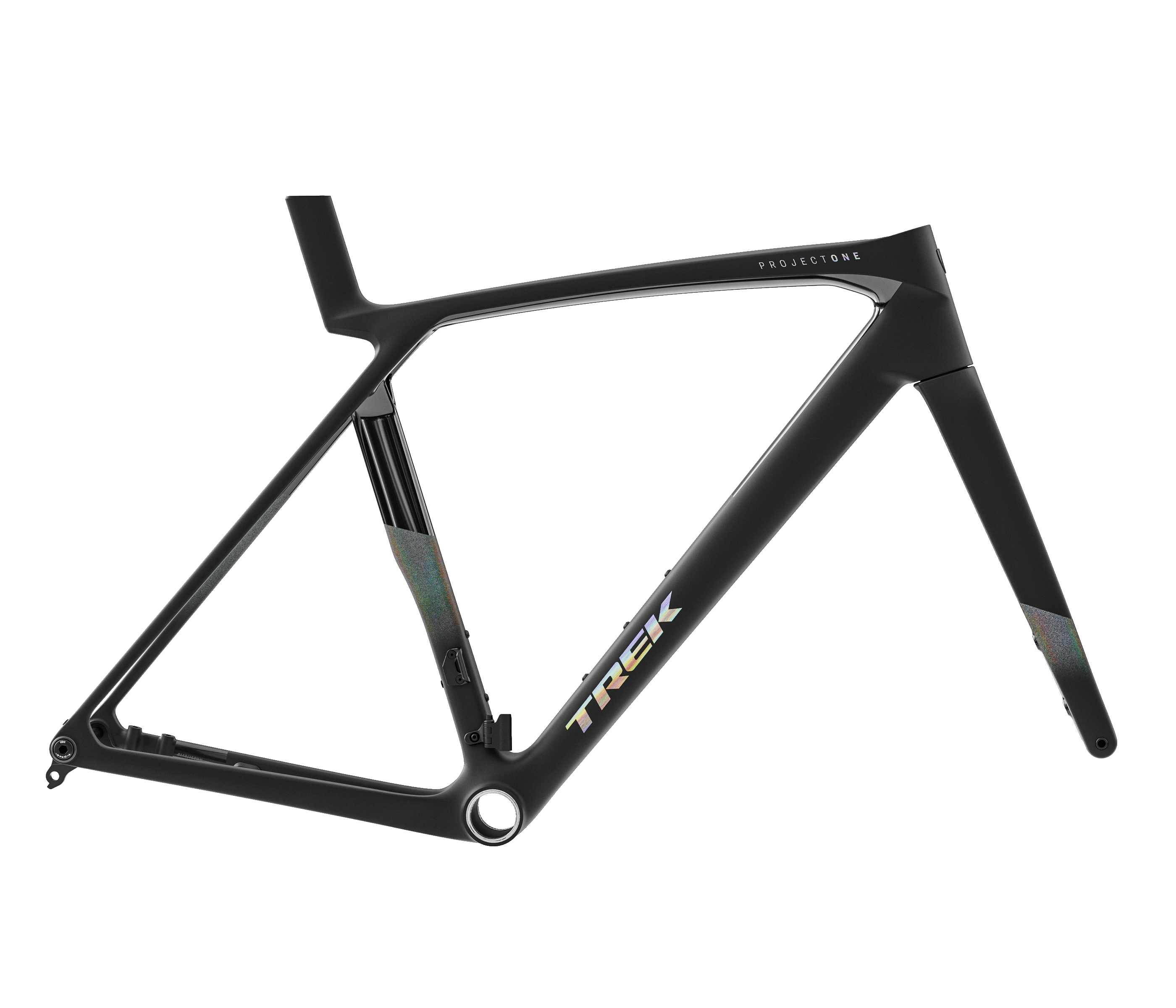

TREK Madone SLR Gen 8 Frame Set
TREK Madone SLR Gen 8 Frame Set
TREK Madone SLR Gen 8 Frame Set
TREK Madone SLR Gen 8 Frame Set
TREK Madone SLR Gen 8 Frame Set
TREK
SKU: 5321429

TREK Madone SLR Gen 8 Frame Set

Sale price199,000.00 ฿
Color: Team Replica
SIZE: S

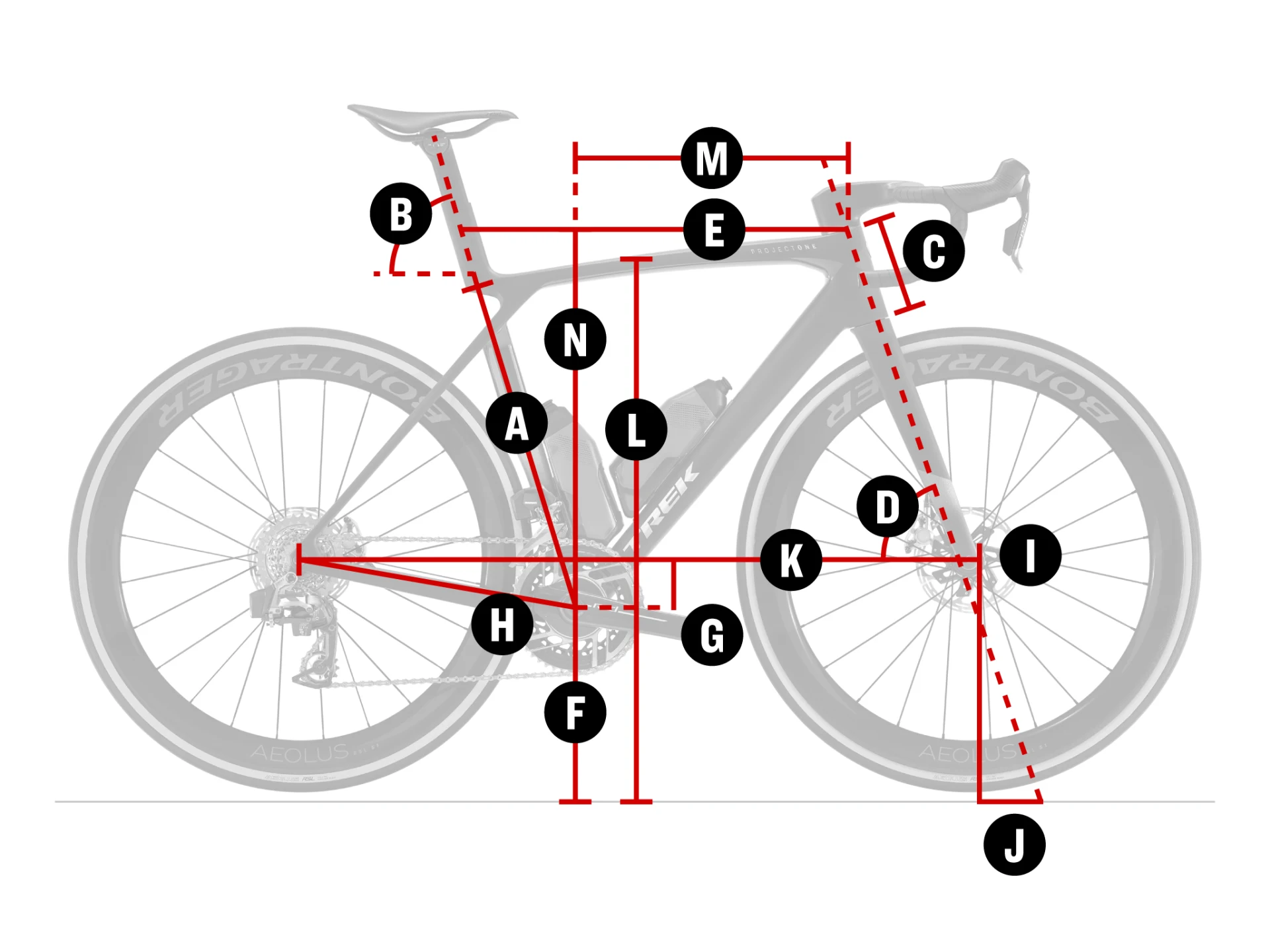

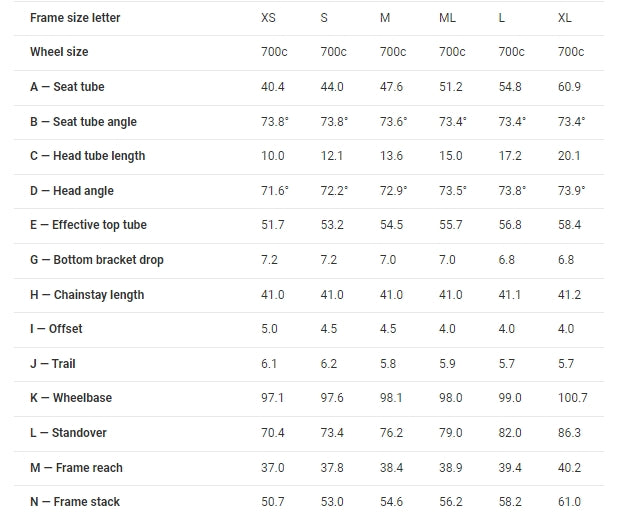

MADONE SL GEN 8
Size Rider Height Inseam
XS

143 - 158 cm

4'8" - 5'2"

67 - 74 cm

26" - 29"
S

158 - 162 cm

5'2" - 5'4"

74 - 76 cm

29" - 30"
M

162 - 173 cm

5'4" - 5'8"

76 - 81 cm

30" - 32"
ML

173 - 179 cm

5'8" - 5'10"

81 - 84 cm

32" - 33"
L

179 - 188 cm

5'10" - 6'2"

84 - 88 cm

33" - 35"
XL

188 - 213 cm

6'2" - 7'0"

88 - 100 cm

35" - 39"
0.0

The Madone SLR Gen 8 Frame Set is ready for your dream build and the top step of the podium. It's crafted with our highest-level 900 Series OCLV Carbon that's not only insanely light, but also delivers free speed with aerodynamic shapes for cutting through wind. Plus, IsoFlow frame technology adds comfort on long rides without sacrificing speed or aerodynamics.



FRAMESET

Frame
: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork
: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle

WHEELS

Skewer front
: Bontrager Switch chamfered thru axle, removable lever
Skewer rear
: Bontrager Switch chamfered thru axle, removable lever
Max tyre size
: 32 mm (as measured, see manual for details)

DRIVETRAIN

Max. chainring size : 1x: 54T, 2x: 56/43

COMPONENTS

Rotor size : Max brake rotor sizes: 180 mm front, 160 mm rear

WEIGHT

Weight : 796g - ML (frame-only, painted)
350g (fork-only, painted)
Weight limit : This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Why you'll love it

  1. The Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimise aerodynamics around the whole bike
  2. It's crafted from our highest-level 900 Series OCLV carbon, which is mind-bogglingly light and stiff where you need the power, and compliant where you crave comfort
  3. Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
  4. The previous-generation SRAM RED AXS shifting is smooth, lighting-quick and fully programmable, so you can tune your drivetrain to work exactly how you want it
  5. RSL Aero Bottles and Cages make the whole rider system faster to give you even more aerodynamic gains

Our lightest Madone Disc ever

New light and fast aero tube shaping paired with our best 900 Series OCLV Carbon makes Gen 8 our lightest Madone Disc f/s ever and as light as the Émonda f/s.

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.



80% more vertically compliant IsoFlow

We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

Designed for the world’s best

Madone SLR Gen 8 is raced and loved by Lidl-Trek's fastest sprinters and climbers and the only bike they need for race day.

It's right for you if...

Racing is a core part of your life, and you want a bike that's the trifecta of lightweight, aerodynamics and comfort. You want a featherweight frame that makes no compromises, with aerodynamic tube shaping and IsoFlow comfort technology. Performance matters, and you want our highest-level carbon lay-up, tubeless carbon wheels and the wireless electronic shifting of the previous generation SRAM RED AXS.

The tech you get

An insanely light frame made of our highest-level 900 Series OCLV Carbon with aero tubing and IsoFlow comfort technology, and RSL Aero Bottles and Cages that save watts. A 2x12 previous generation SRAM RED AXS wireless electronic drivetrain with a power meter for getting more out of training. A universal derailleur hanger so you can get a replacement from anywhere. Plus, it's topped off with Bontrager Aeolus Pro 51 tubeless carbon wheels and a Trek Aero RSL one-piece bar/stem.

The final word

The Madone SLR 8 AXS Gen 8 is an insanely light and aero road bike that's born from a racing pedigree to deliver pure speed. It's built from our top 900 Series OCLV Carbon that keeps weight to a minimum without compromising stiff responsiveness and comfort.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

ขอสงวนสิทธิ์ในการเปลี่ยนแปลงแก้ไข ข้อมูลรายละเอียดของสินค้า อุปกรณ์ สเปคสินค้า โมเดล สี และวัสดุ บนเว็บไซท์นี้ ซึ่งอ้างอิงจากเว็บไซท์และโรงงานผู้ผลิตต้นทาง และรายละเอียดของราคา ซึ่งอาจมีการเปลี่ยนแปลงได้ตลอดเวลาโดยไม่ต้องแจ้งล่วงหน้า และหากเกิดข้อผิดพลาดจากการลงข้อมูลบนเว็บไซท์นี้ ให้อ้างอิงสเปคสินค้าจริงและเว็บไซท์ของผู้ผลิตต้นทาง รวมถึงข้อมูลราคาอัพเดทของบริษัท โปรไบค์ จำกัด เท่านั้น

น้ำหนักของจักรยานและเฟรมอ้างอิงจากขั้นตอนก่อนทำสีเฟรมในขั้นตอนผลิตจริง ซึ่งน้ำหนักจะเปลี่ยนแปลงไปหลังการผลิตเสร็จสิ้น
