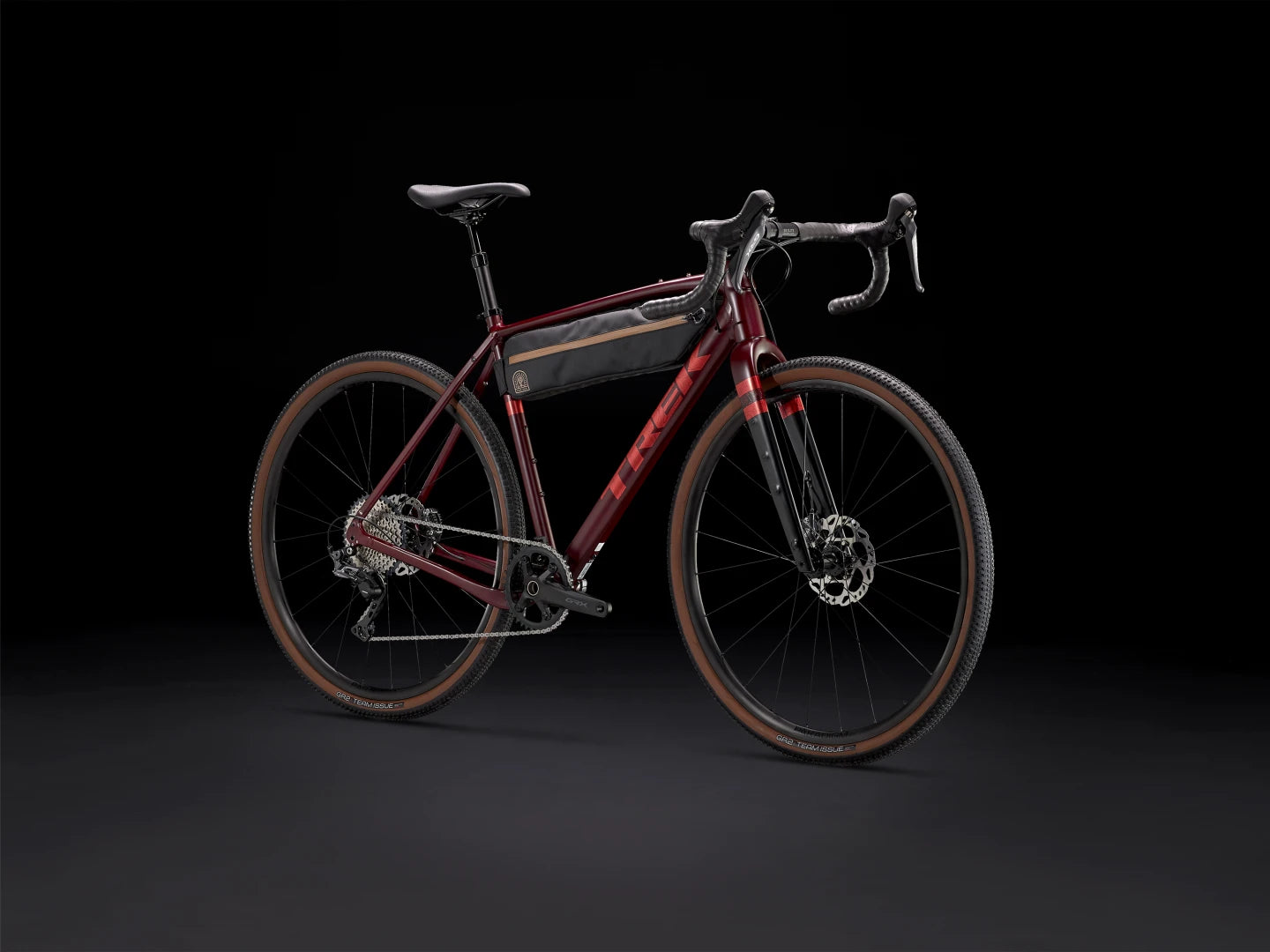

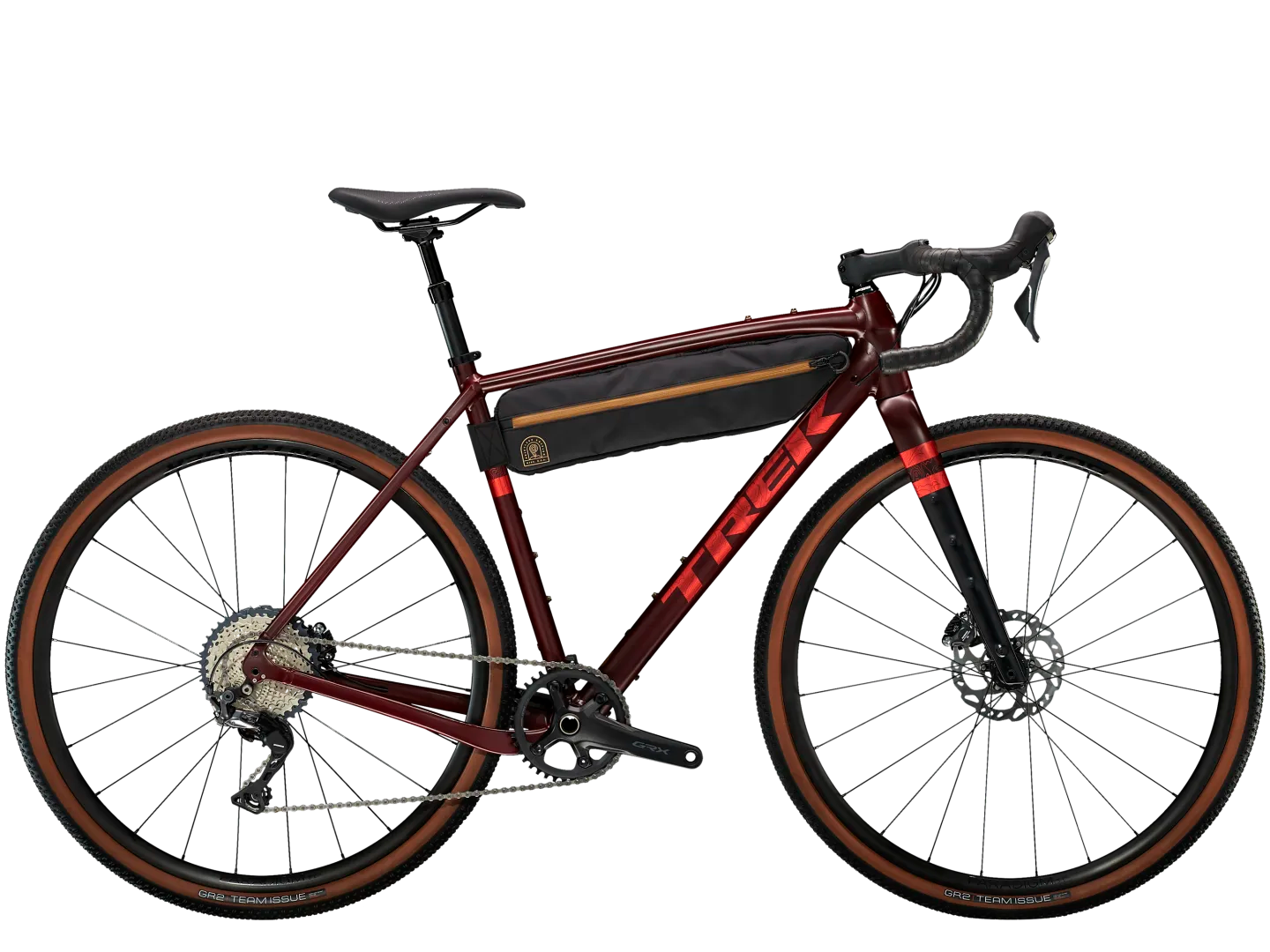

TREK Checkpoint ALR 5 Driftless

Name: TREK Checkpoint ALR 5 Driftless
Brand: TREK
SKU: 5268084
Price: 99000.0 THB
Availability: InStock

99,000.00 ฿

Color:

Satin Cobra Blood

SIZE:

54

CECKPOINT AL5

Size

Rider Height

Inseam

49

156 - 163 cm

5'1" - 5'4"

74 - 77 cm

29" - 30"

52

163 - 168 cm

5'4" - 5'6"

76 - 79 cm

30" - 31"

54

168 - 174 cm

5'6" - 5'9"

78 - 82 cm

31" - 32"

56

174 - 180 cm

5'9" - 5'11"

81 - 85 cm

32" - 33"

58

180 - 185 cm

5'11" - 6'1"

84 - 87 cm

33" - 34"

54

Variant

0.0

Checkpoint ALR 5 Driftless is a custom-painted, high-quality gravel bike that will hold up for long, rugged miles on pavement, dirt, and even the most treacherous gravel roads. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customize for your kind of adventure.

Quantity:

TREK TREK Checkpoint ALR 5 Driftless

99,000.00 ฿

FRAMESET

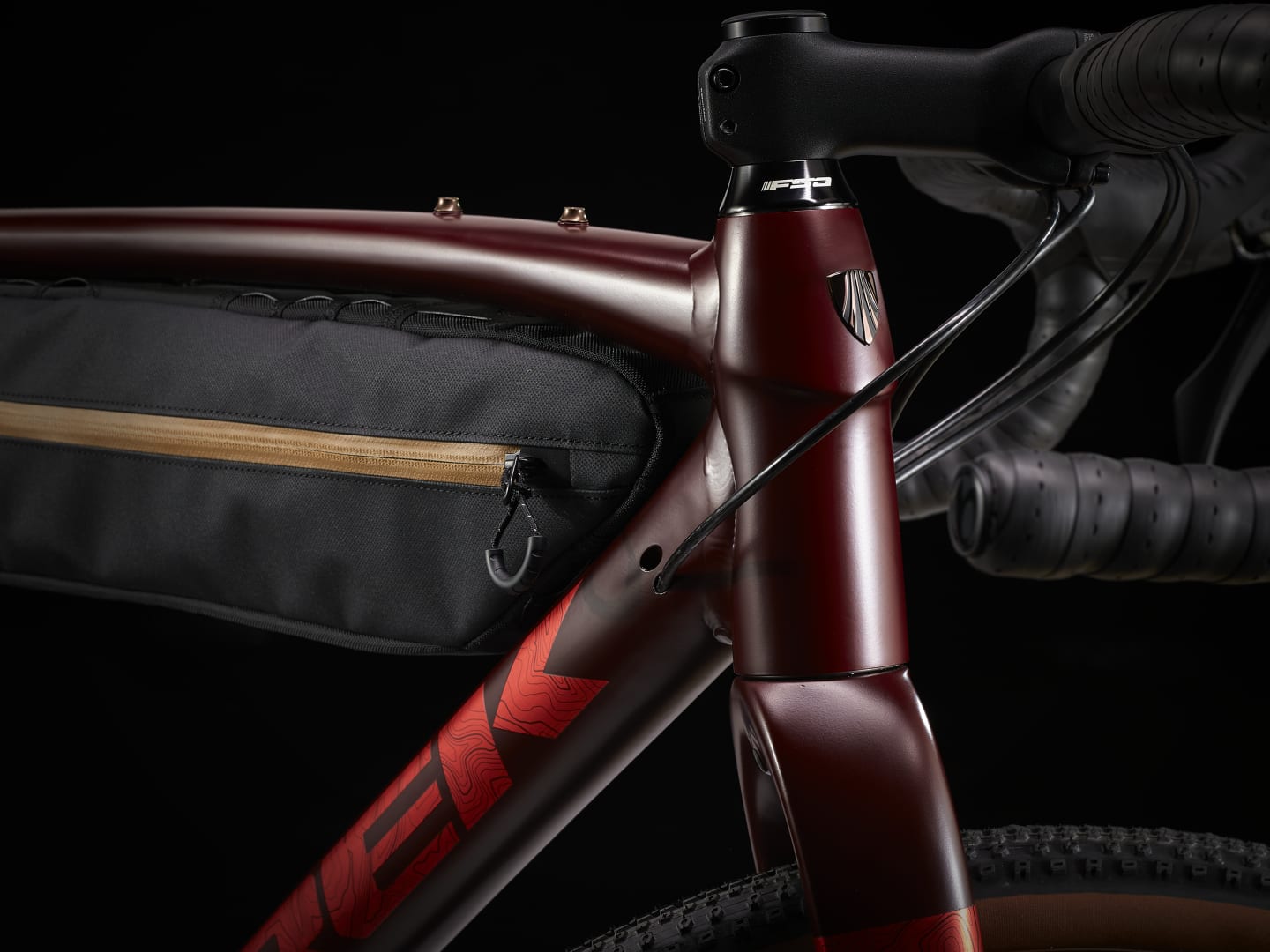

Frame : 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Frame with Fork : 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle

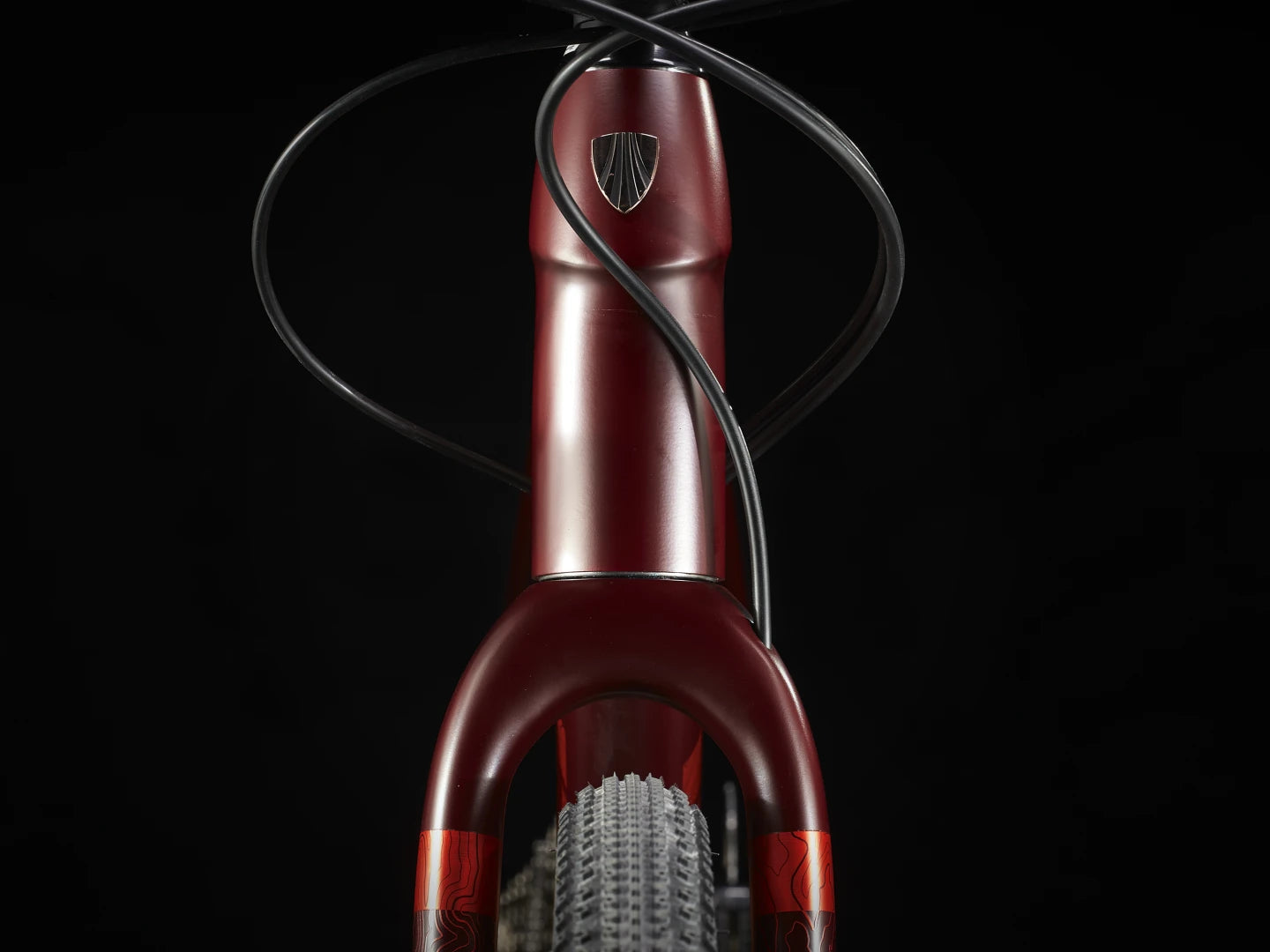

Fork : Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Frame fit : Gravel

WHEELS

Wheel front : Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Wheel rear : Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Hub front : Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear : Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear : Bontrager Switch thru axle, removable lever
*Rim : Size: 49, 52, 54, 56, 58, 61
Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Size: 49, 52, 54, 56, 58, 61
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes : 14g stainless steel, black
Tire : Bontrager GR2 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
Tire part : Bontrager TLR sealant, 6oz
Rim strip : Bontrager TLR
Max tire size : See service manual

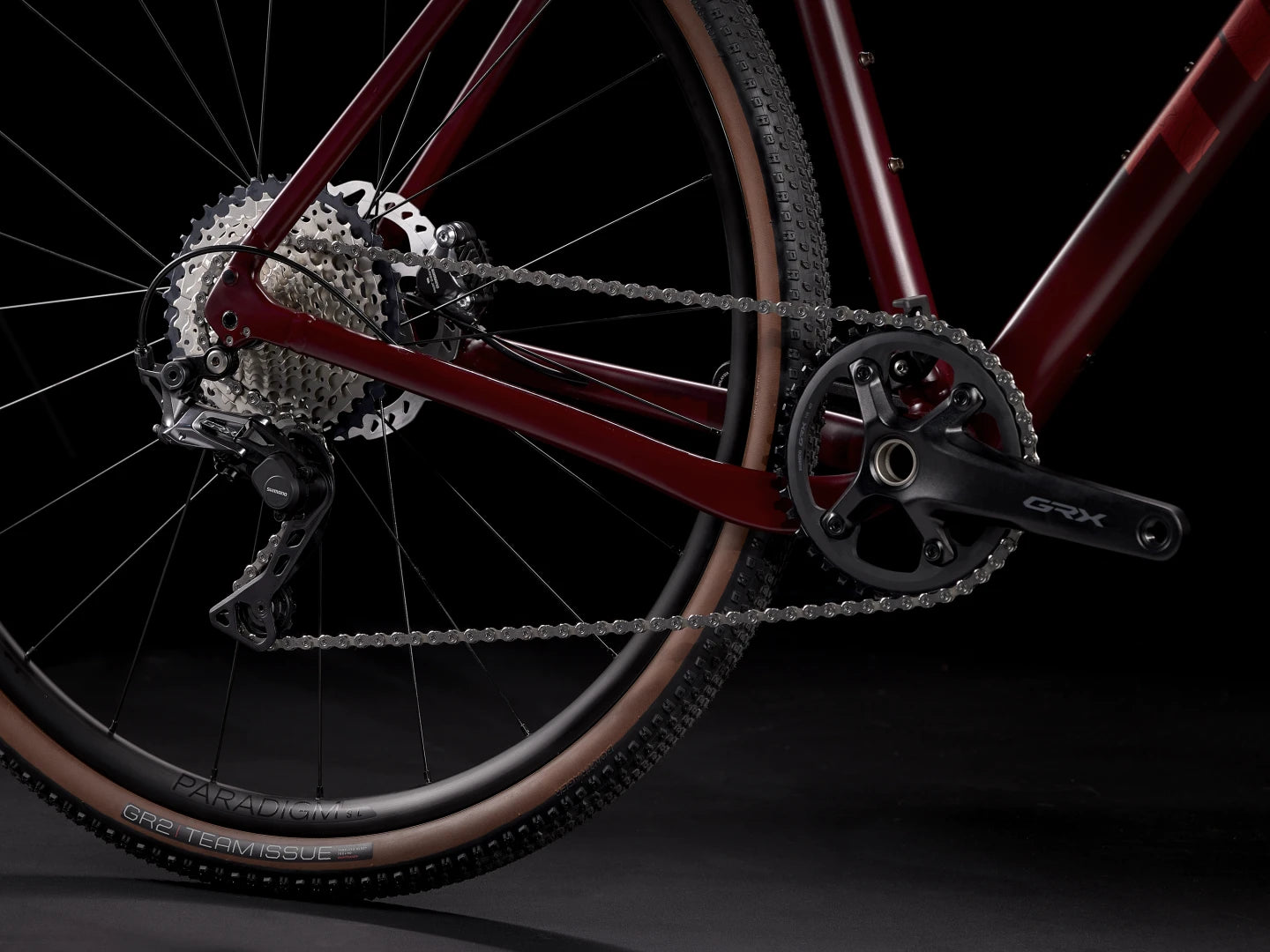

DRIVETRAIN

*Shifter : Size: 49, 52, 54, 56, 58, 61
Shimano GRX RX810, 11 speed
Size: 49, 52, 54, 56, 58, 61
Shimano GRX RX810 hydraulic disc
Rear derailleur Shimano GRX RX812, long cage, 42T max cog
*Crank : Size: 49
Shimano GRX RX600, 40T, 165mm length
Size: 52
Shimano GRX RX600, 40T ring, 170mm length
Size: 54, 56
Shimano GRX RX600, 40T, 172.5mm length
Size: 58, 61
Shimano GRX RX600, 40T ring, 175mm length
Bottom bracket : Praxis, T47 threaded, internal bearing
Cassette : Shimano SLX M7000, 11-42, 11 speed
Chain : Shimano HG601, 11 speed
Max chainring size : 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34

COMPENENTS

*Saddle : Size: 49, 52
Bontrager Verse Comp, steel rails, 155mm width
Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145mm width
Seatpost : Easton EA70 AX, 27.2mm, 0mm offset, 50mm travel

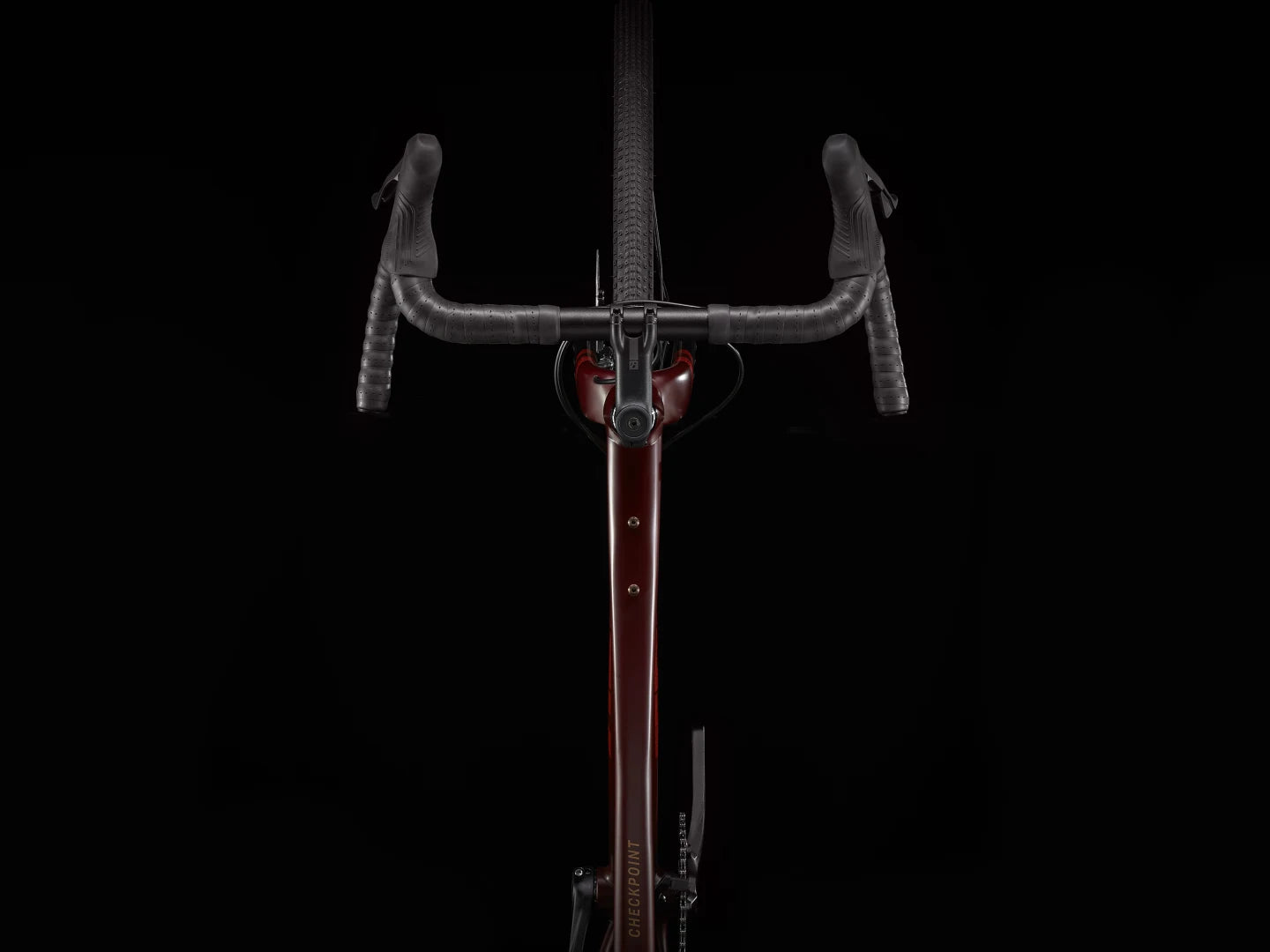

*Handlebar : Size: 49
Bontrager Elite Gravel, 38cm width
Size: 52
Bontrager Elite Gravel, 40cm width
Size: 54, 56
Bontrager Elite Gravel, 42cm width
Size: 58, 61
Bontrager Elite Gravel, 44cm width
Handlebar tape : Bontrager Supertack Perf tape

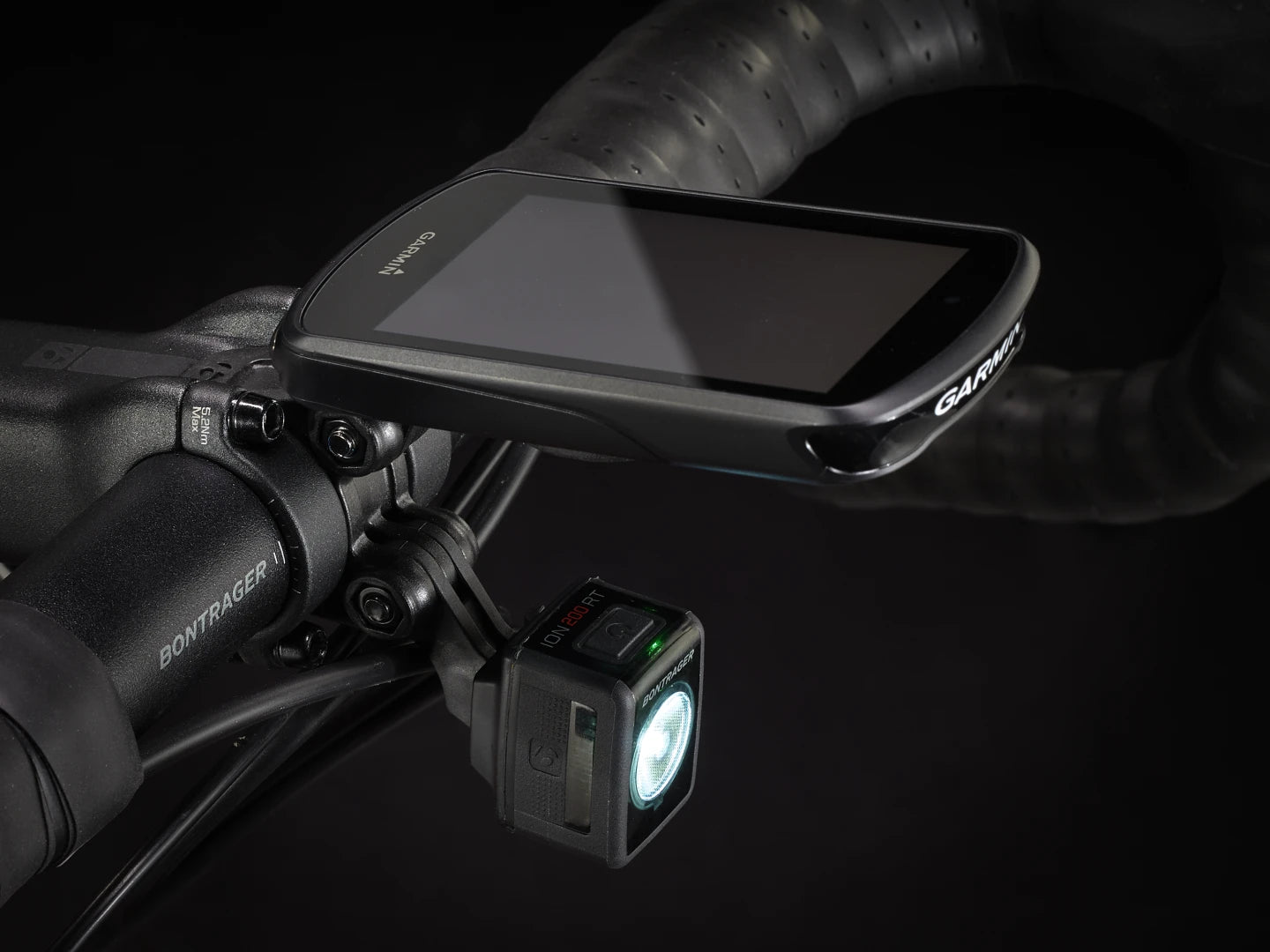

*Stem : Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length

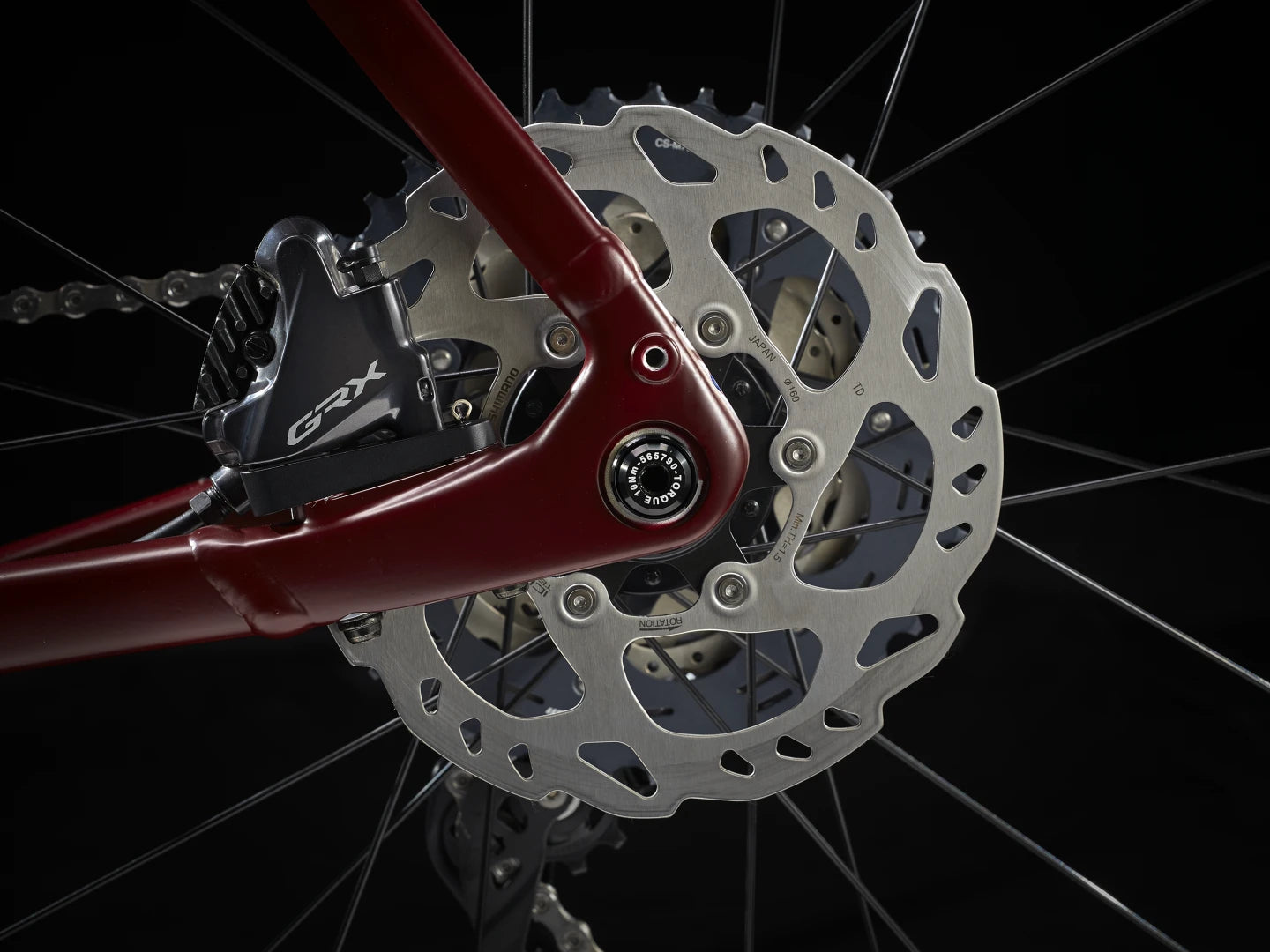

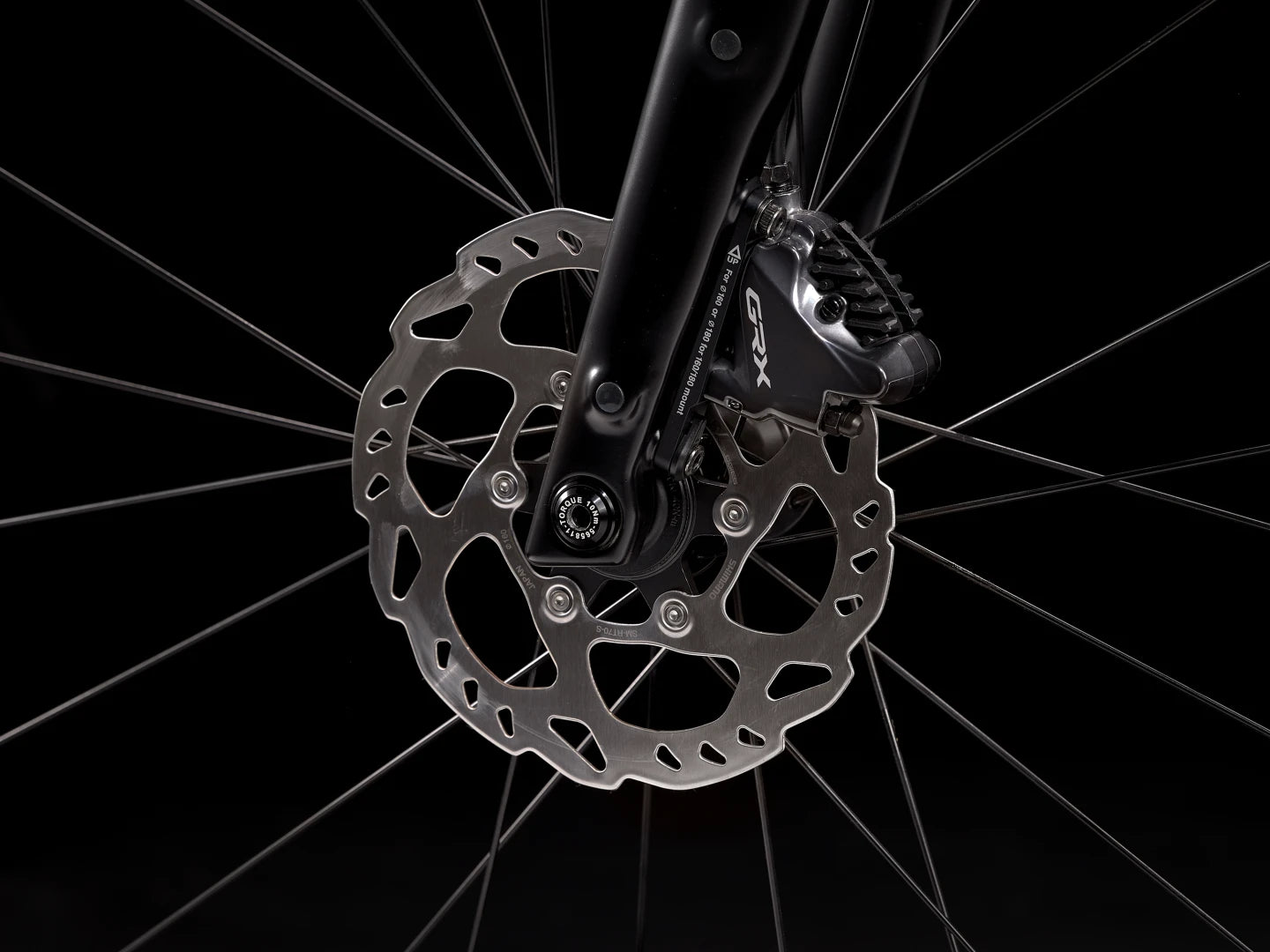

Brake : Shimano RX810 hydraulic disc, flat mount
Brake rotor : Shimano RT70, centerlock, 160mm
Rotor size : Max brake rotor sizes: 160mm front & rear

ACCESSORIES

*Bag : Size: 49
Adventure Boss frame bag, 80 cu in (1.31L)
Size: 52
Adventure Boss frame bag, 104 cu in (1.7L)
Size: 54
Adventure Boss frame bag, 153 cu in (2.5L)
Size: 56
Adventure Boss frame bag, 183 cu in (3L)
Size: 58
Adventure Boss frame bag, 305 cu in (5L)
Size: 61
Adventure Boss frame bag, 360 cu in (5.9L)

WEIGHT

Weight : 56 - 9.60 kg / 21.17 lbs (excluding bag)
Weight limit :This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

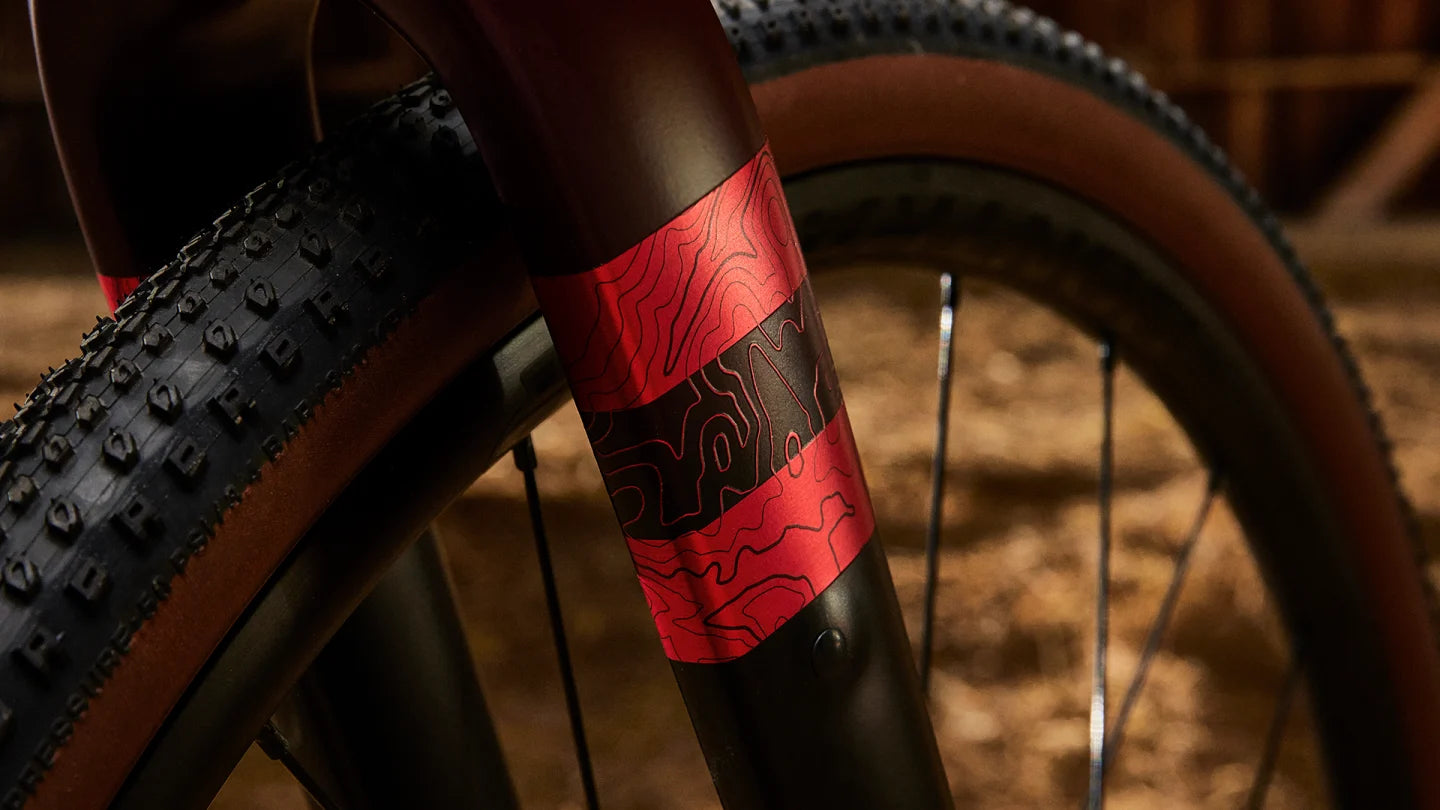

More than a region. A state of mind.

The limited-edition Driftless design features topographic maps giving a nod to its namesake region, but more than that, it's a tribute to endless miles of adventures that wait for you beyond the next climb.

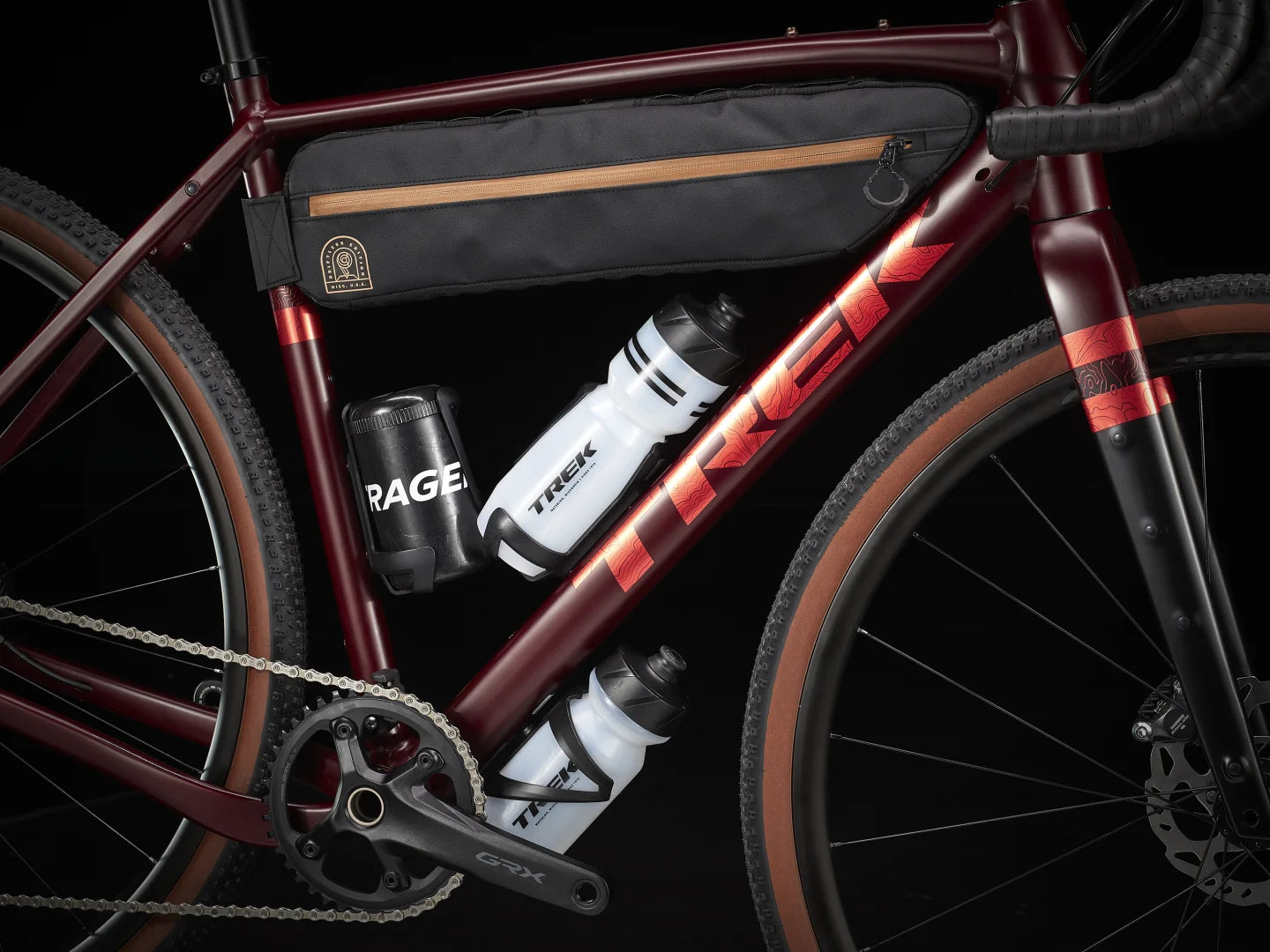

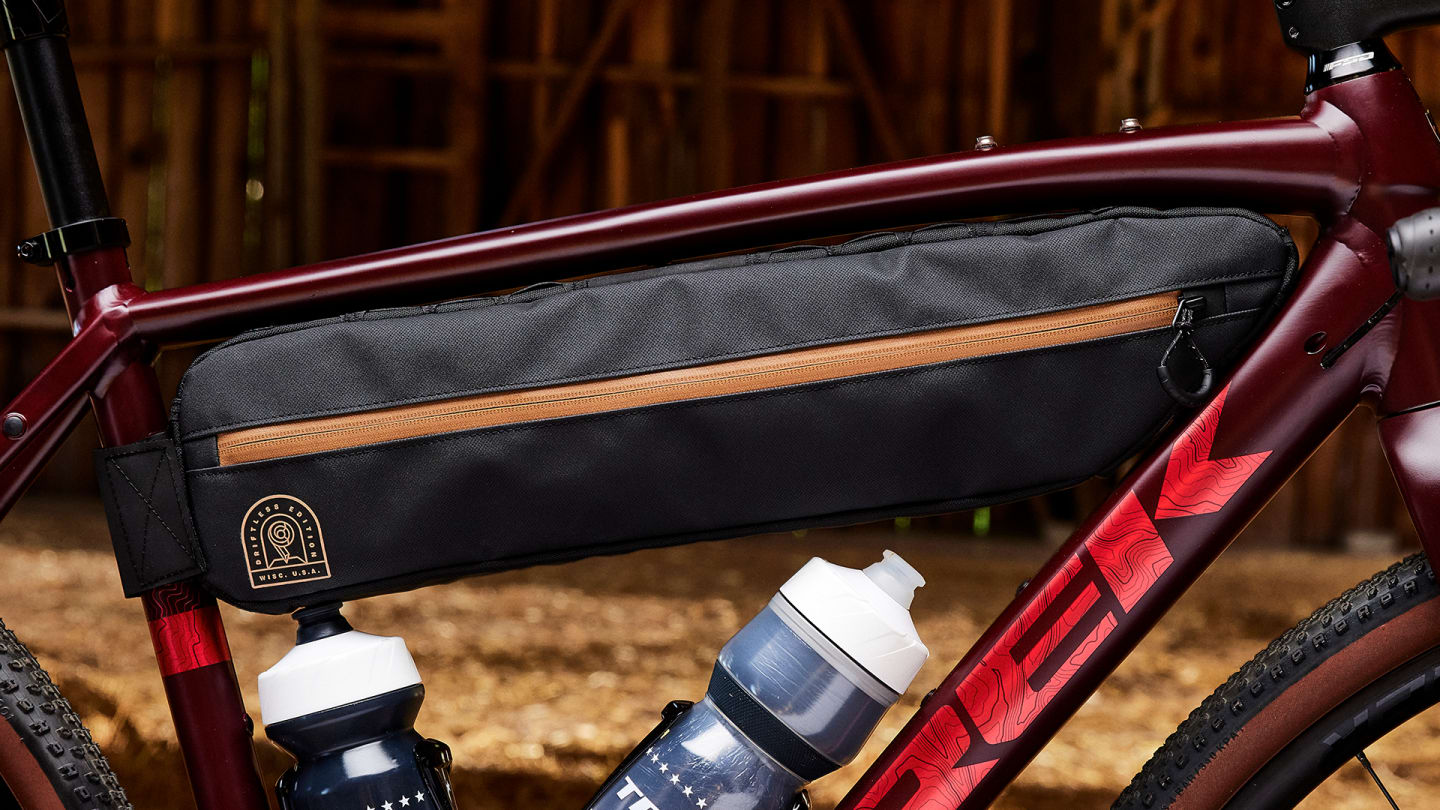

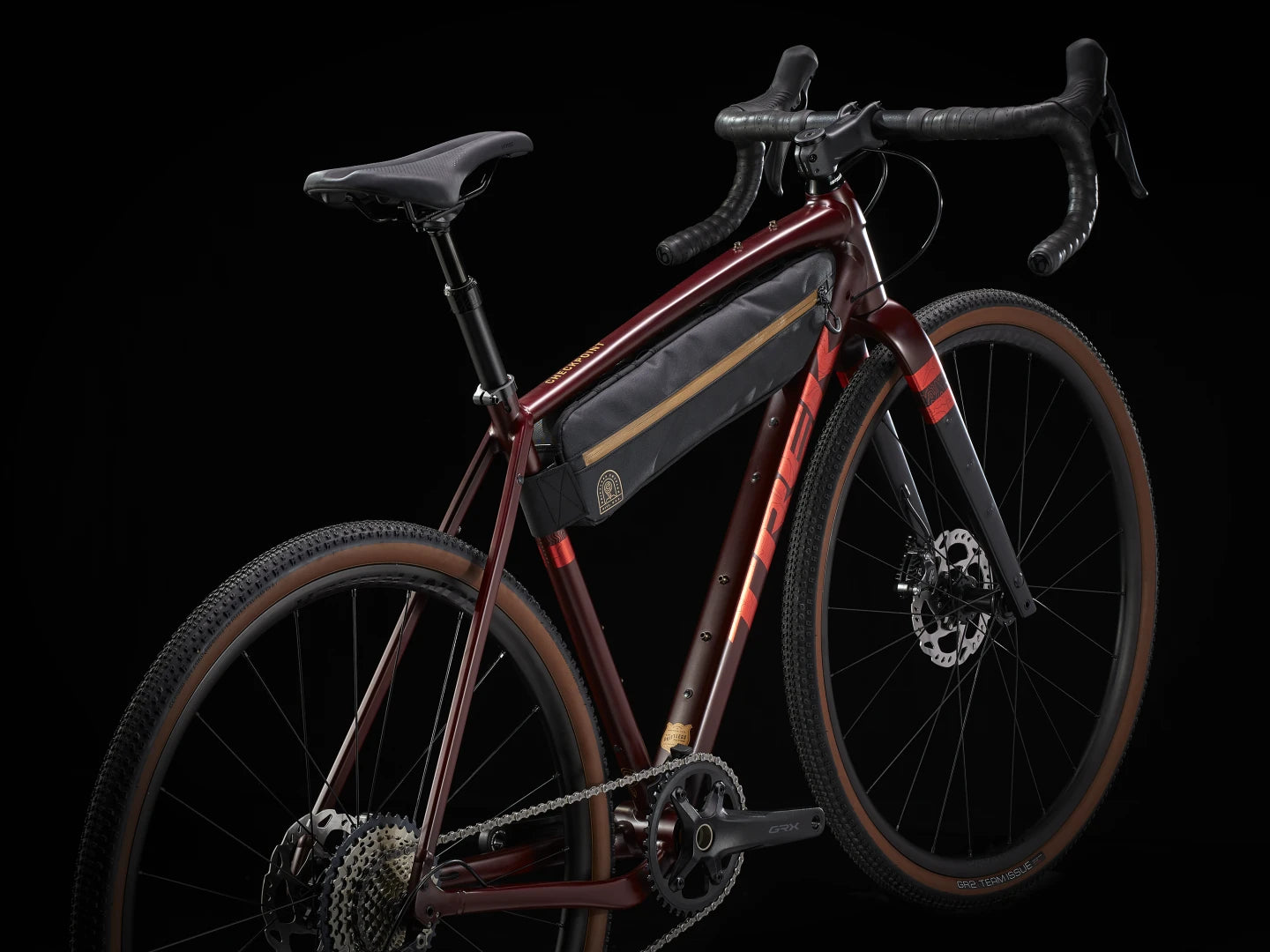

Carry it all

Load up for the long and dusty road with an included bolt-on frame bag with plenty of room for gear and snacks. Leaving no stone unturned, even the interior features unique topographic maps to inspire you to explore.

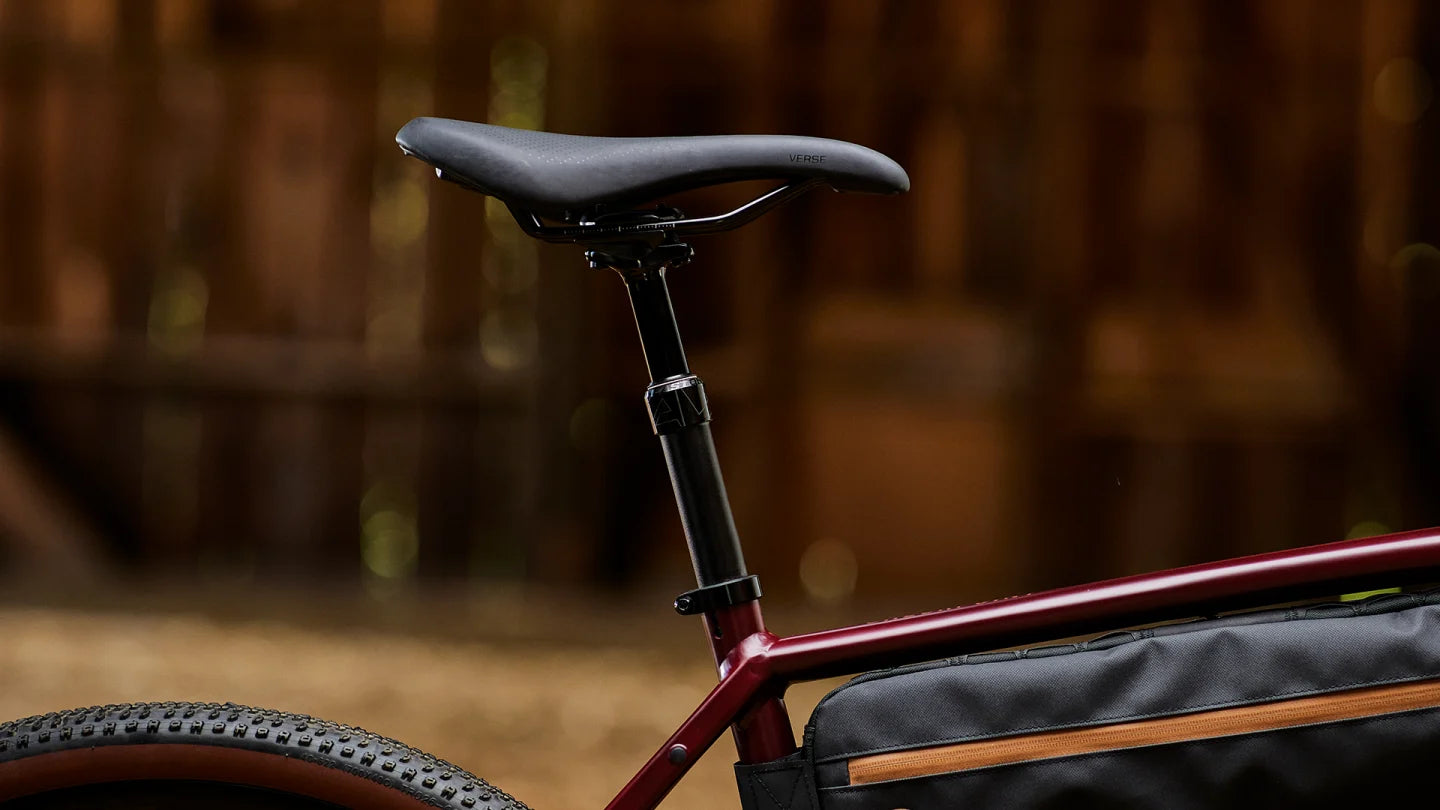

Drop it like it's hot

Dropper equipped for total versatility. Checkpoint Driftless is ready for you to get low on steep descents, drop a foot in dusty corners, and stay comfortable through long miles.

Shimano GRX

Shimano GRX was designed from the ground up for gravel adventure. With its gravel-specific ergonomics, optimized gearing options, rugged reliability, and quiet, stable drivetrain, GRX sets itself apart from the rest of the component world.

You almost forgot your pedals

This bike doesn’t come with pedals because you'll have a better ride if you choose your own. Explore the pedal guide to find the best pedals for your riding style. Reach for flat pedals for simple versatility or go for clipless MTB pedals if you want control & efficiency.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
