TREK
SKU: 5282605

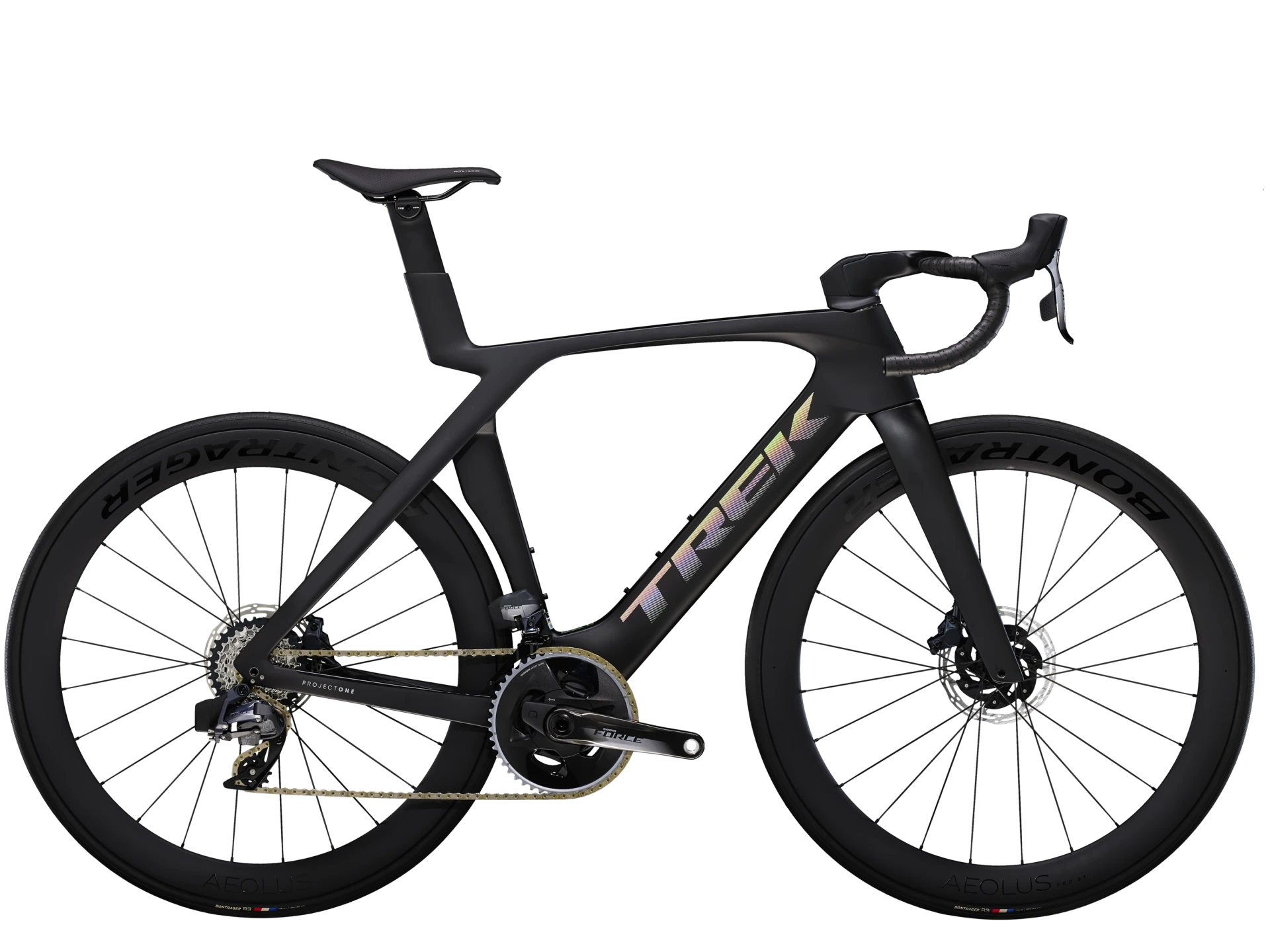

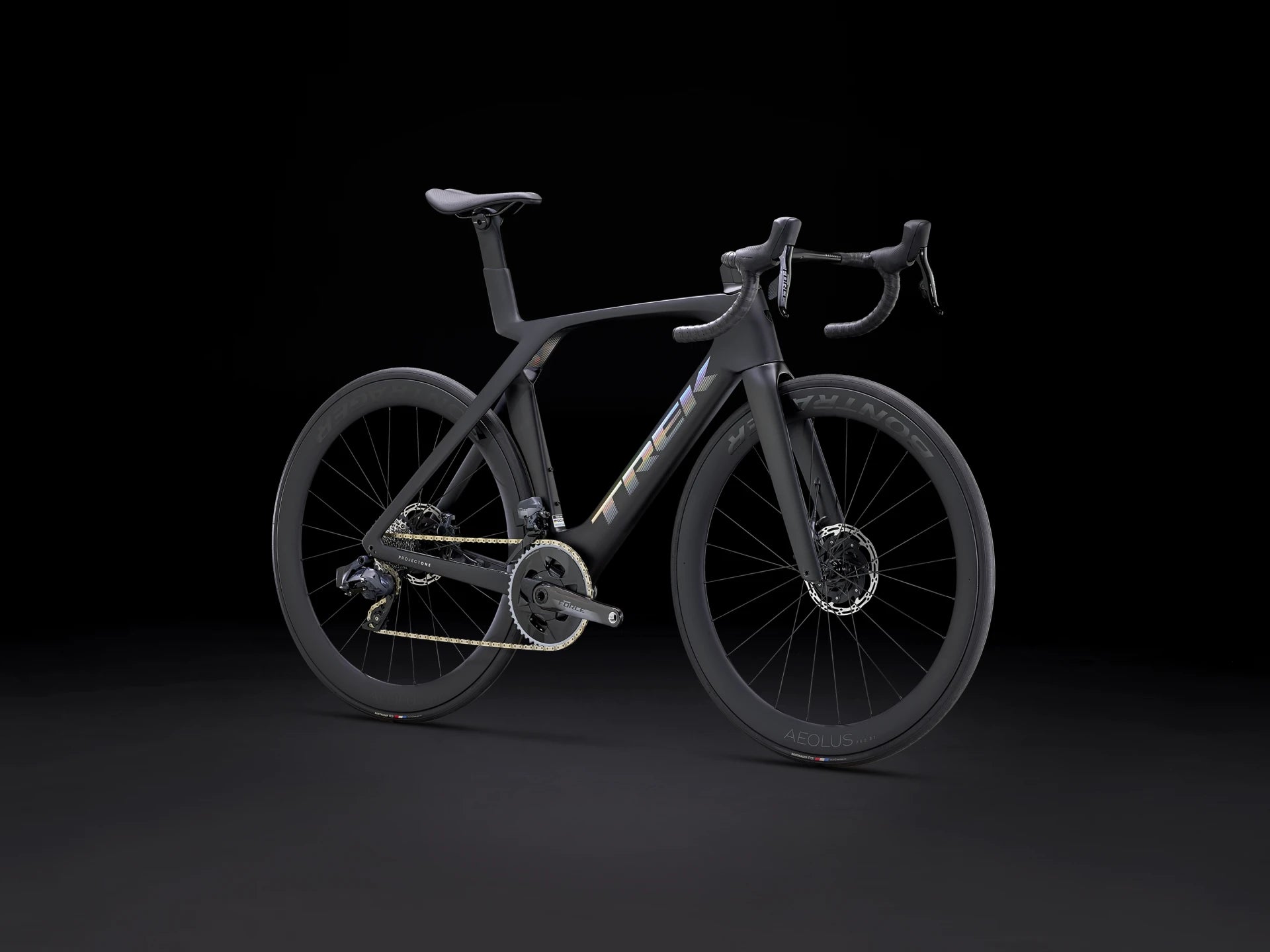

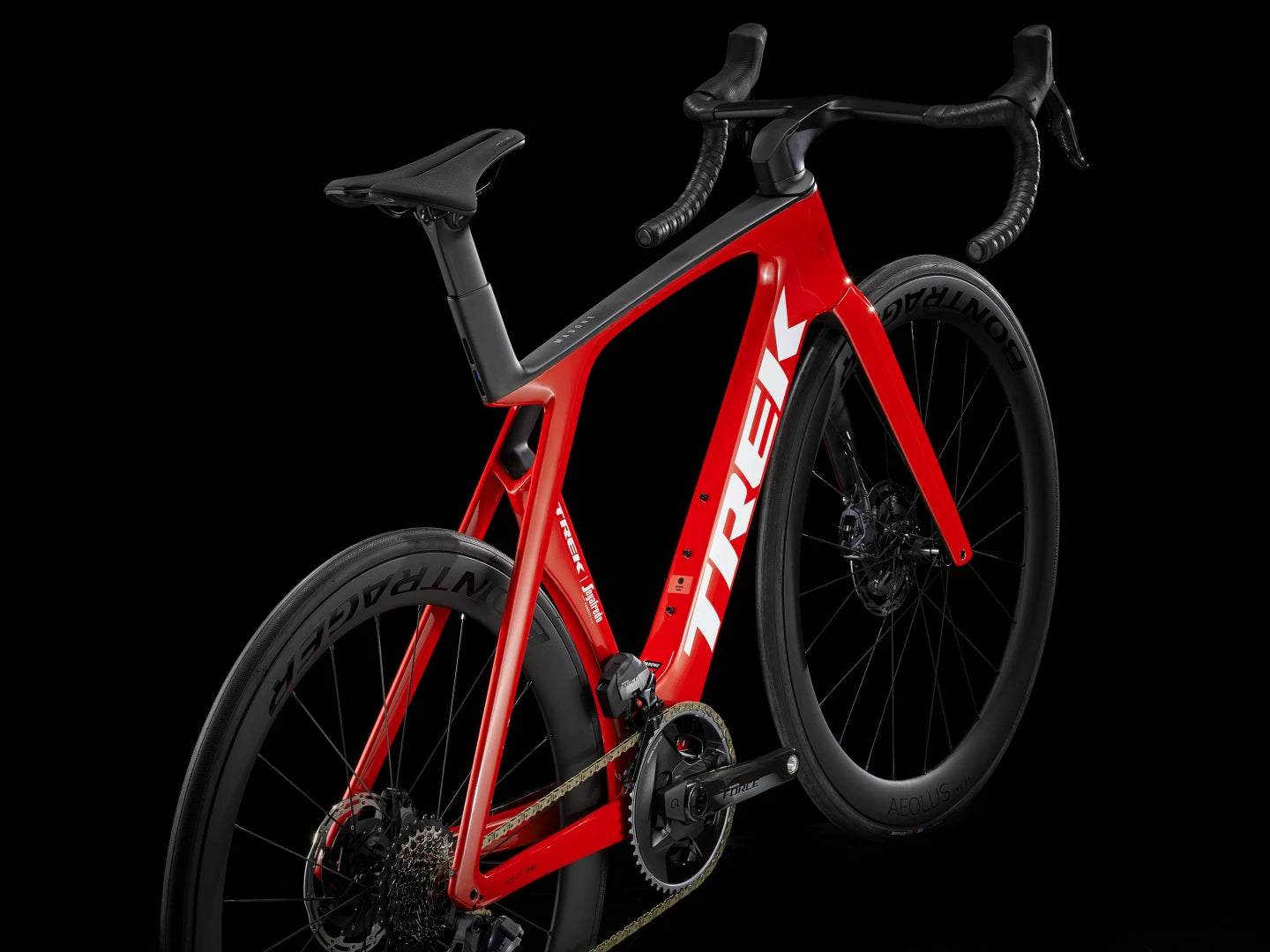

TREK Madone SLR 7 AXS Gen 7

Sale price349,000.00 ฿
Color: VIPER RED
Size: 52
madone gen 7
Size Rider Height Inseam
47

152 - 158 cm

5'0" - 5'2"

71 - 75 cm

28" - 30"
50

158 - 163 cm

5'2" - 5'4"

74 - 77 cm

29" - 30"
52

163 - 168 cm

5'4" - 5'6"

76 - 79 cm

30" - 31"
54

168 - 174 cm

5'6" - 5'9"

78 - 82 cm

31" - 32"
56

174 - 180 cm

5'9" - 5'11"

81 - 85 cm

32" - 33"
58

180 - 185 cm

5'11" - 6'1"

84 - 87 cm

33" - 34"
0.0

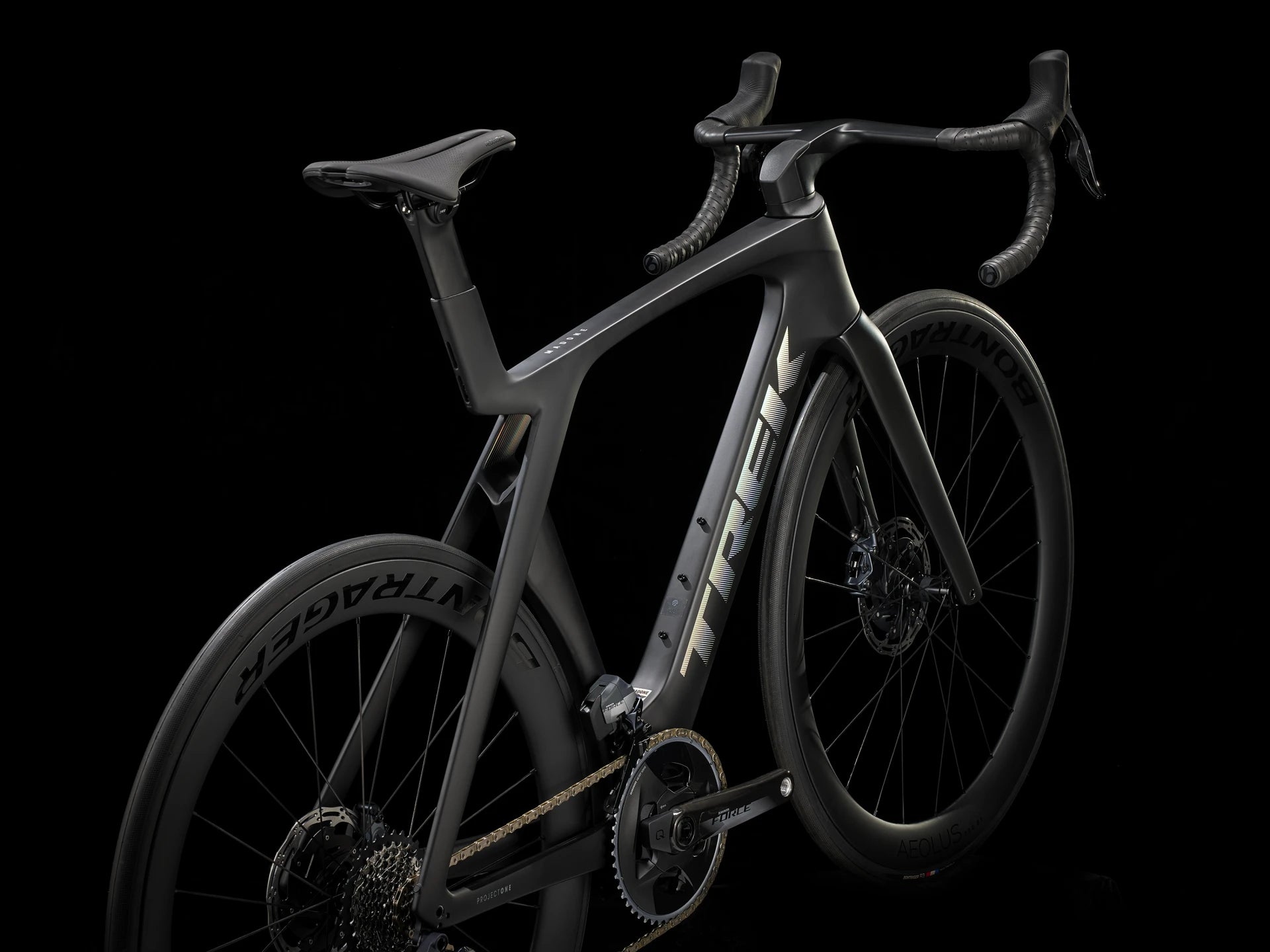

The Madone SLR 7 is the ultimate race machine. An 800 Series OCLV Carbon frame with exclusive IsoFlow technology adds an aerodynamic advantage, cuts weight and smooths the road ahead. It's built from the ground up with cherry-picked components for a smooth and light ride, like SRAM's Force AXS wireless electronic 12-speed drivetrain with power meter and carbon wheels with a deep rim for aerodynamic gains.

FRAMESET

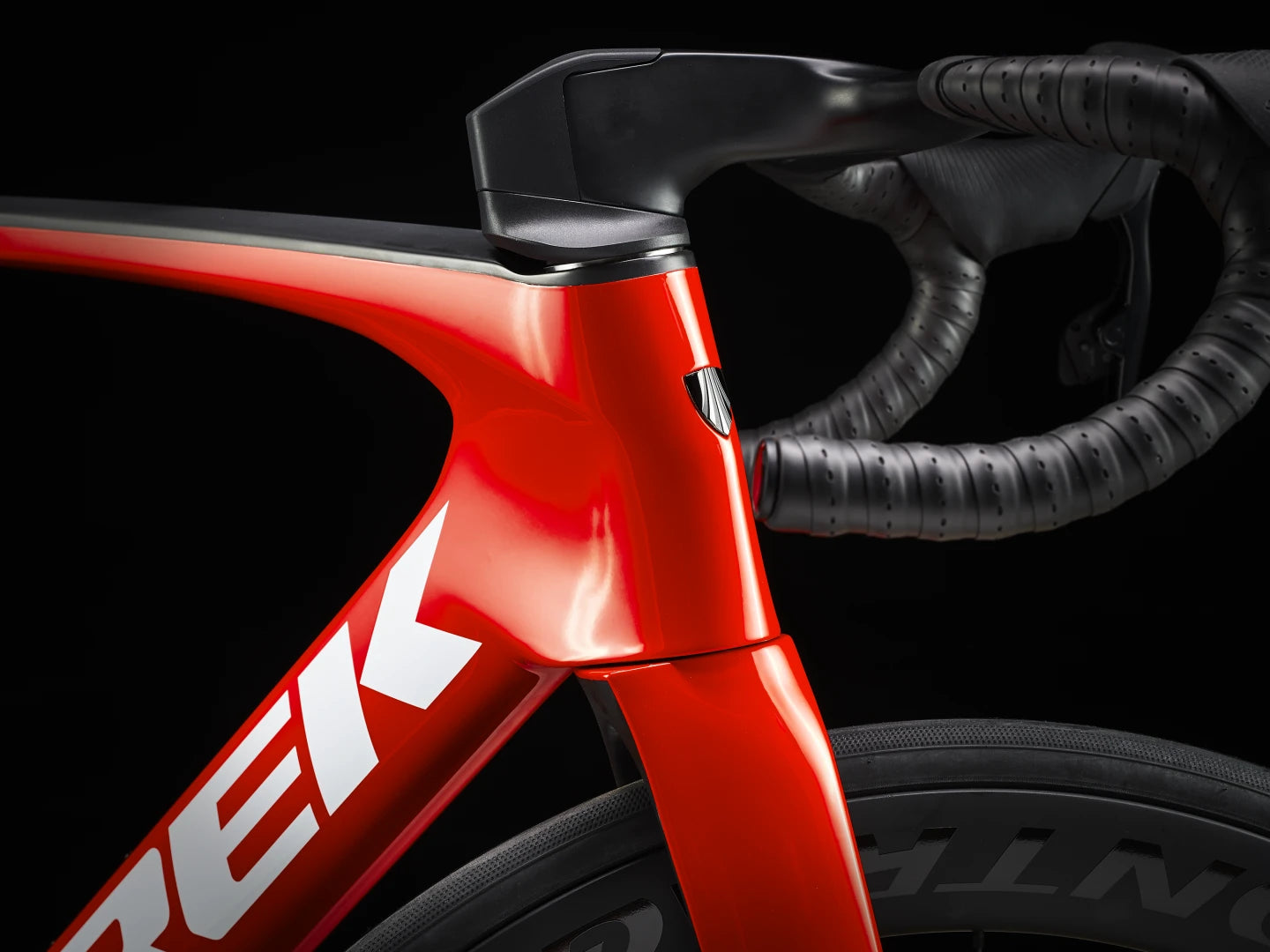

Frame
: 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12 mm thru axle
Fork
: Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit
: H1.5 Race

WHEELS

Wheel front : Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
*Wheel rear
: Size: 47, 50, 52, 54, 56, 58, 60, 62
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru-axle
Size: 47, 50, 52, 54, 56, 58, 60, 62
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle
Skewer front : Bontrager Switch thru-axle, removable lever
Skewer rear : Bontrager Switch thru-axle, removable lever
Tyre : Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
Max tyre size : 32mm (as measured, see manual for details)

E-SYSTEM

Battery : SRAM eTap battery pack (with charger)

DRIVETRAIN

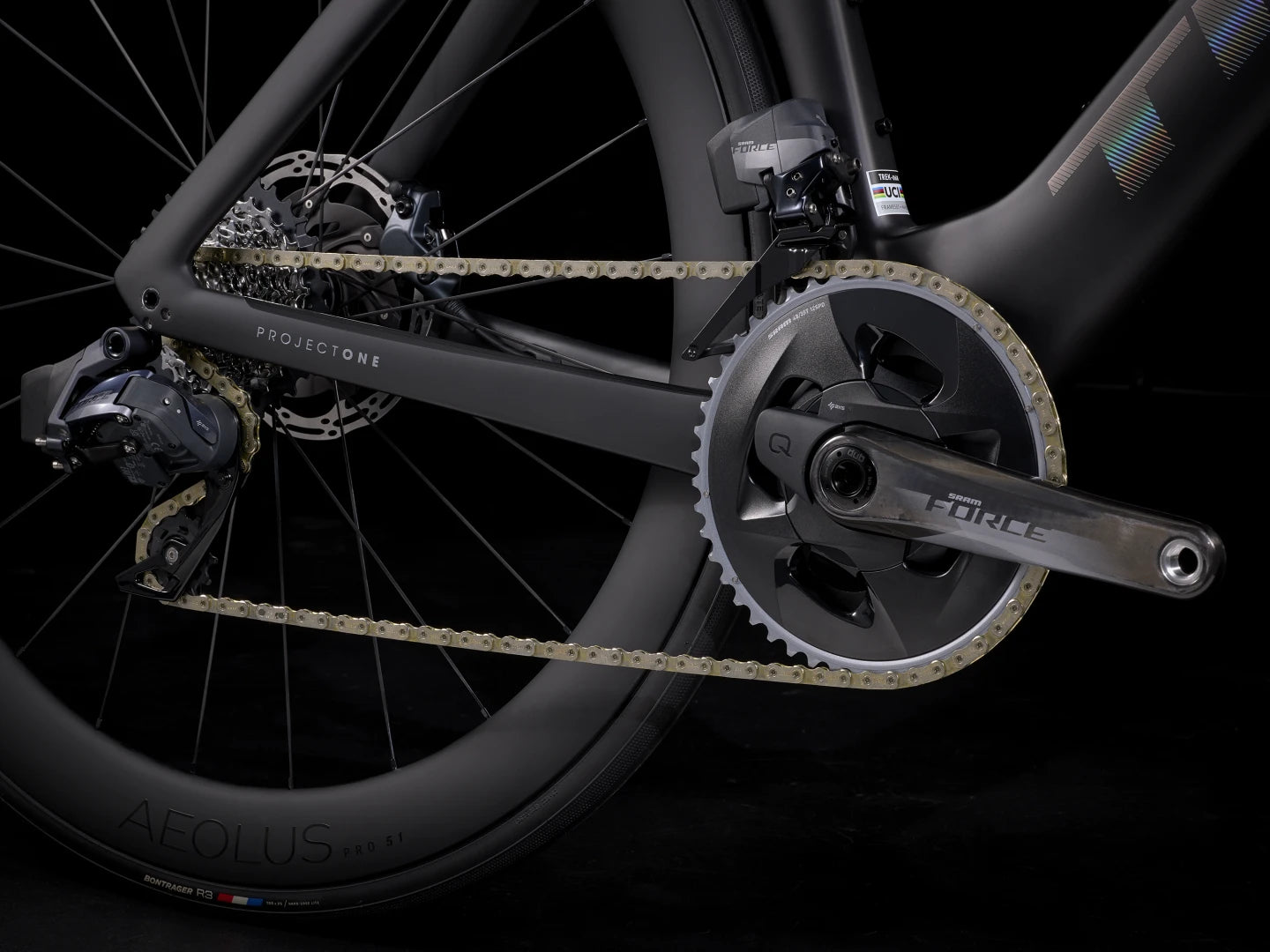

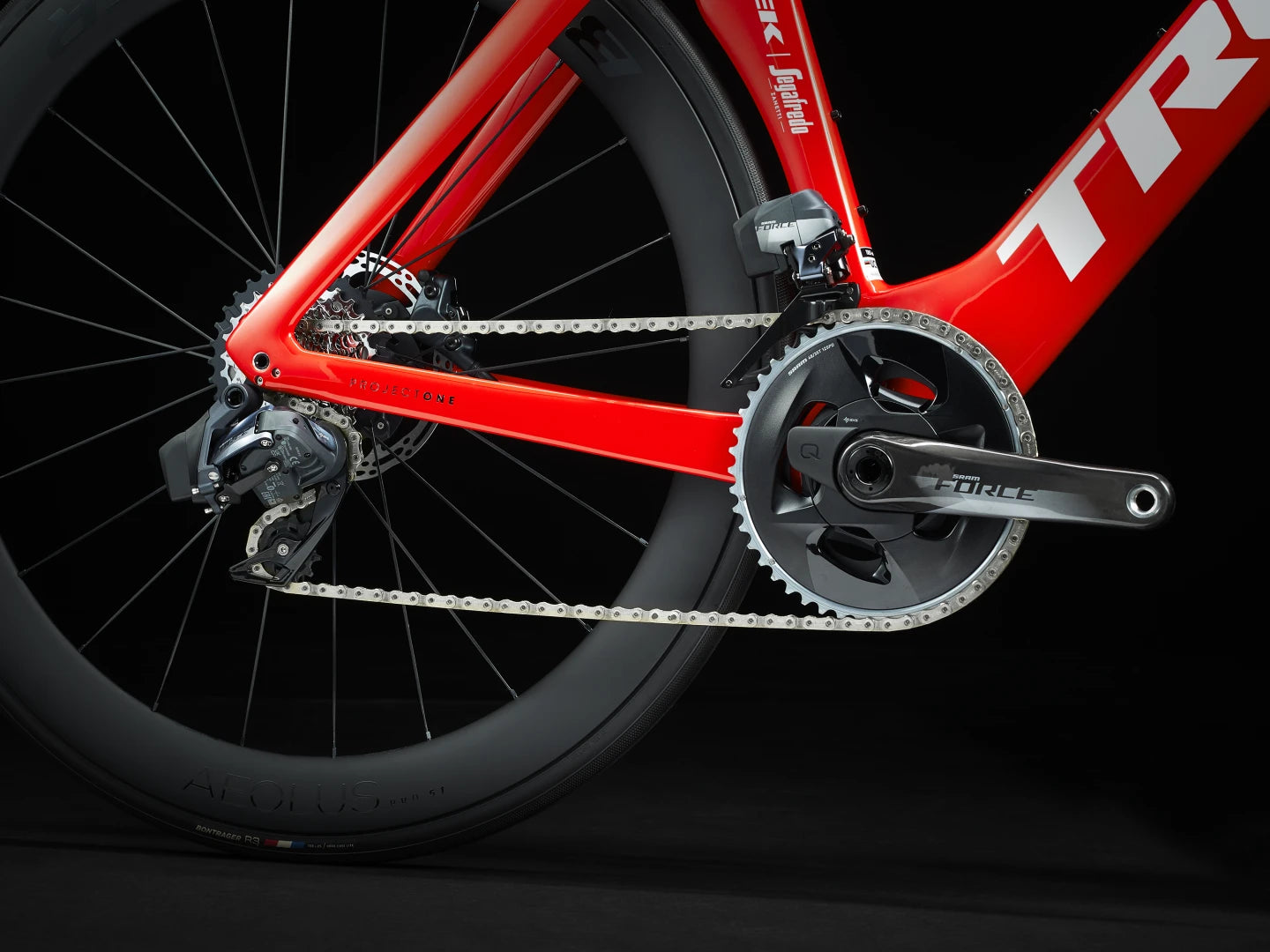

Shifter : SRAM Force eTap AXS, 12-speed
Front derailleur : SRAM Force eTap AXS, braze-on
Rear derailleur : SRAM Force eTap AXS, 36T max cog
*Crank
: Size: 47
SRAM Force AXS Power Meter, 48/35, DUB, 165 mm length
Size: 50, 52
SRAM Force AXS Power Meter, 48/35, DUB, 170 mm length
Size: 54, 56, 58
SRAM Force AXS Power Meter, 48/35, DUB, 172.5 mm length
Size: 60, 62
SRAM Force AXS Power Meter, 48/35, DUB, 175 mm length
Bottom bracket : SRAM DUB, T47 threaded, internal bearing
Cassette : SRAM Force XG-1270, 10-33, 12 speed
Chain : SRAM Force, 12-speed
Max. chainring size : 1x: 50T, 2x: 54/40

COMPONENTS

*Saddle
: Size: 47, 50, 52
Bontrager Aeolus Elite, austenite rails, 155 mm width
Size: 54, 56, 58, 60, 62
Bontrager Aeolus Elite, austenite rails, 145 mm width
*Seatpost
: Size: 47, 50, 52, 54
Madone aero carbon seat post, 0 mm offset, short length
Size: 56, 58, 60, 62
Madone aero carbon seat post, 0 mm offset, long length

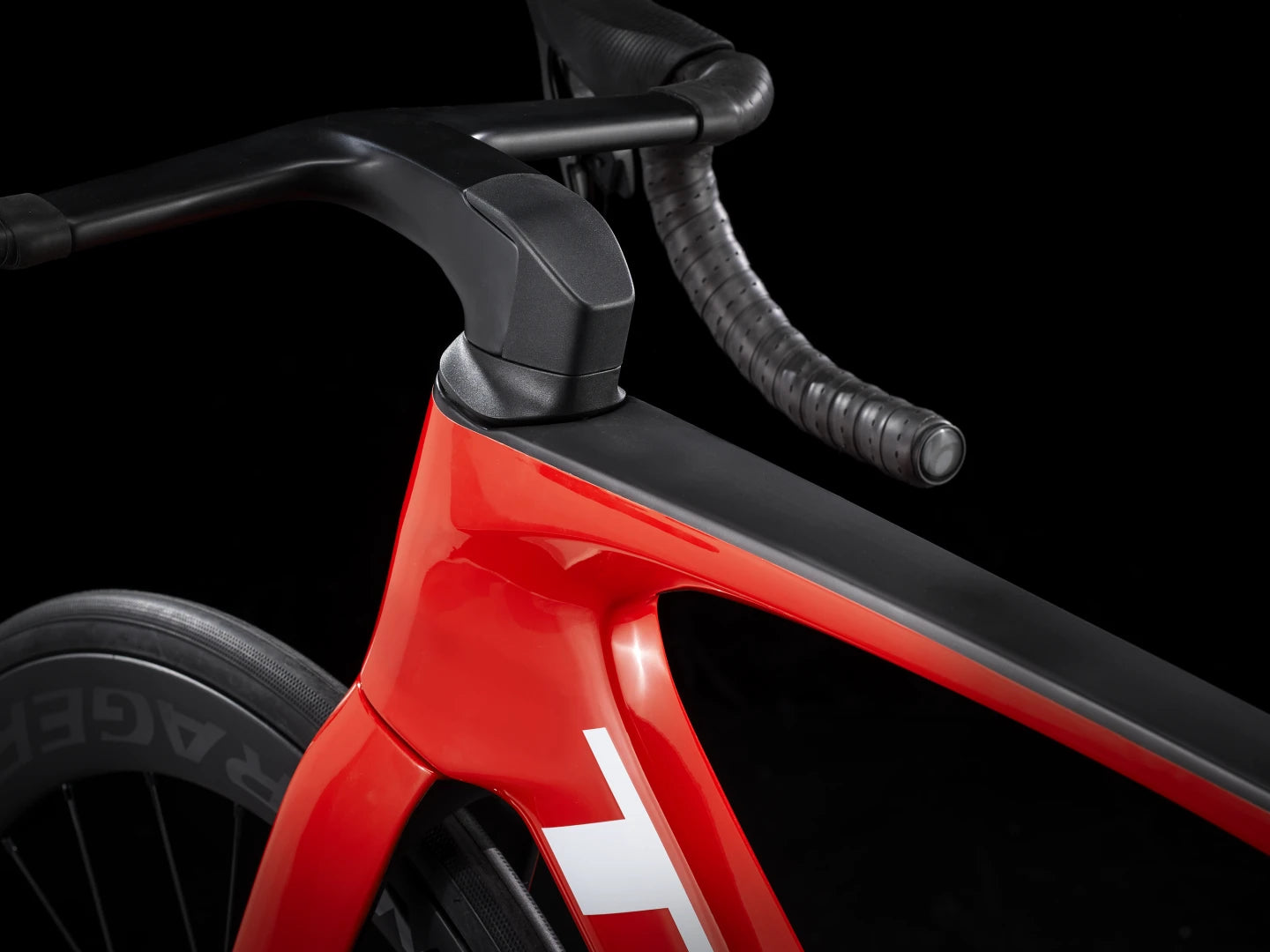

*Handlebar/stem
: (integrated) Size: 47
Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: 50, 52
Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: 54
Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: 56, 58
Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: 60, 62
Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Handlebar tape : Bontrager Supertack Perf tape

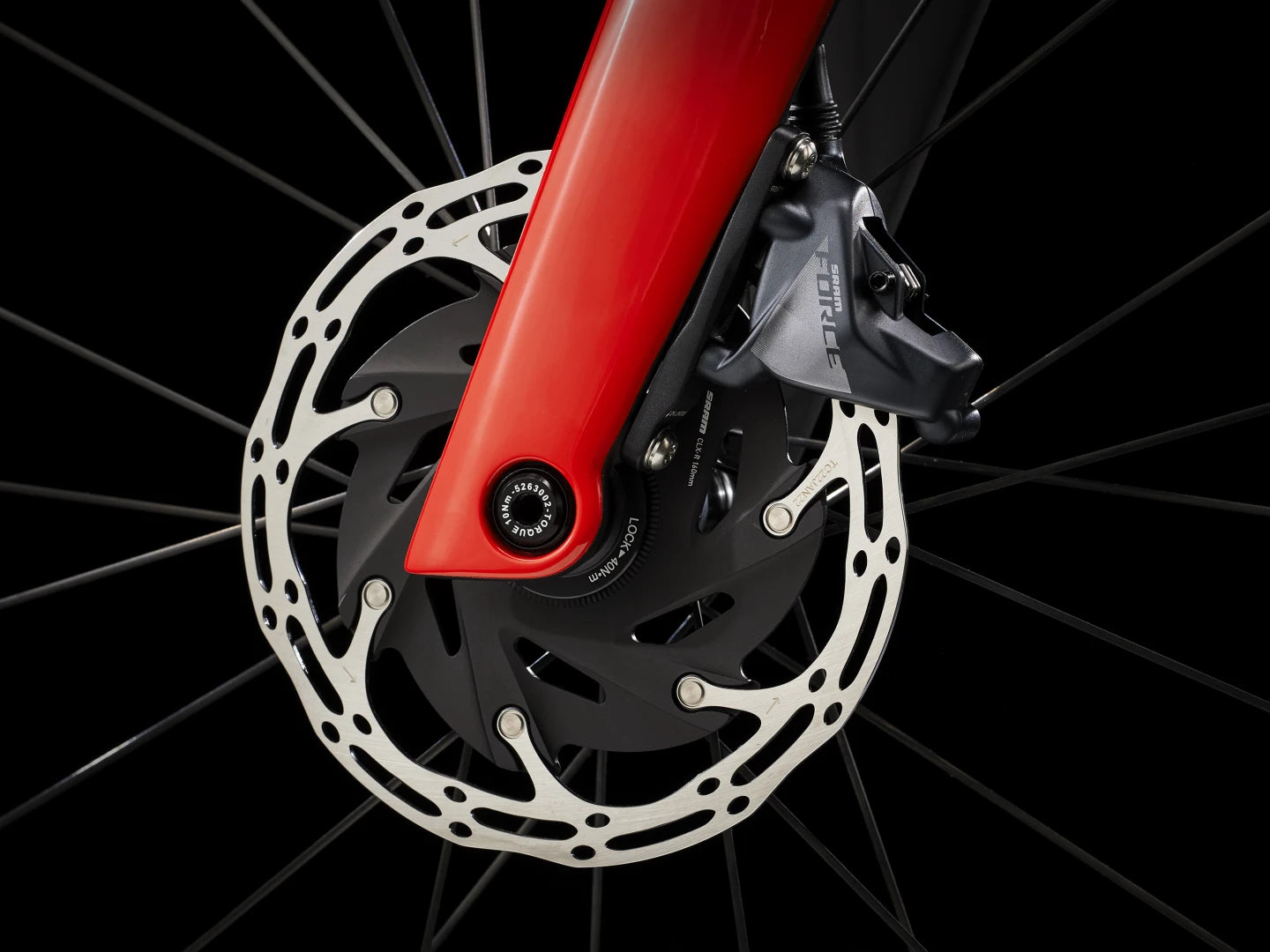

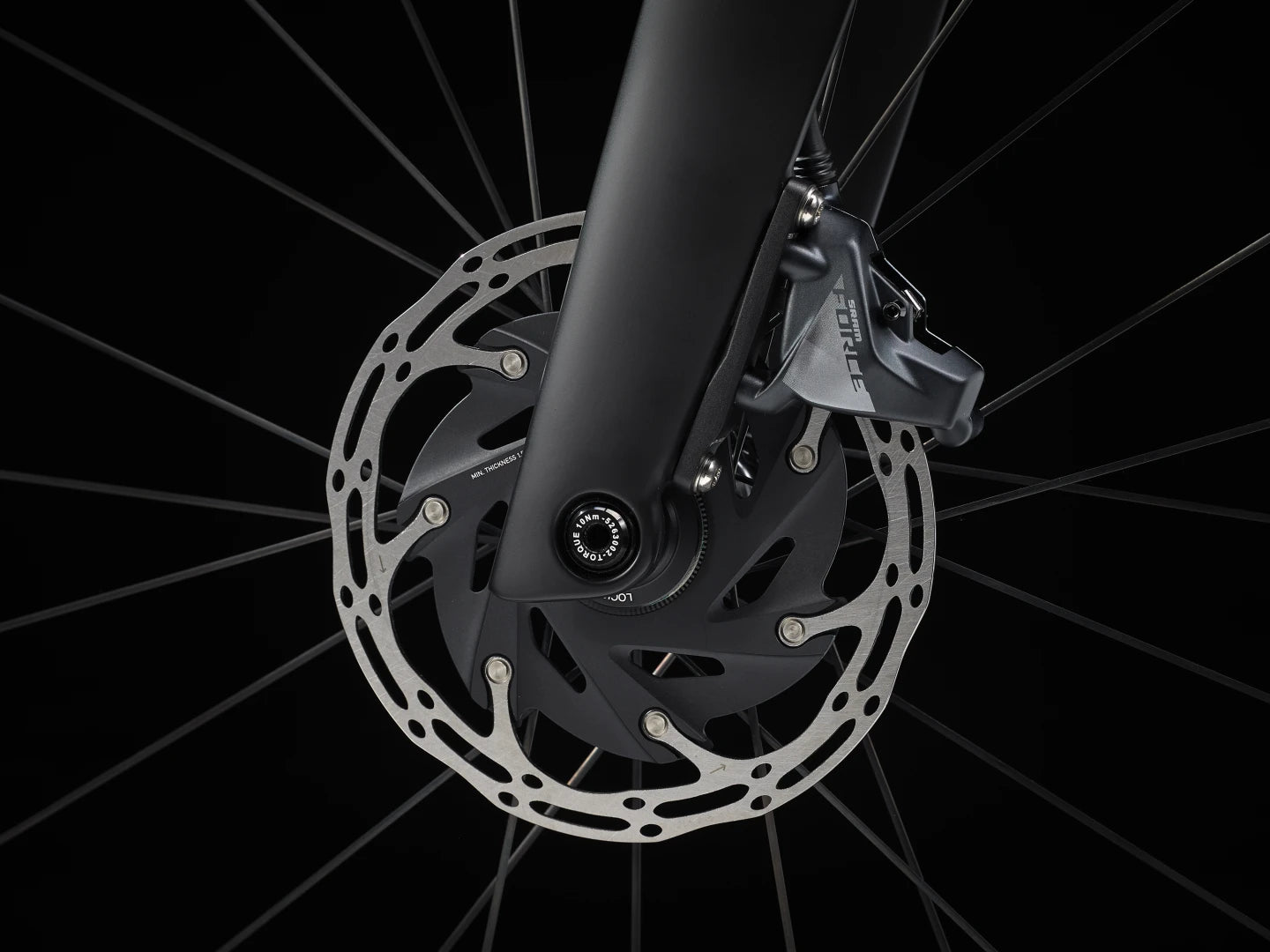

Brake : SRAM Force AXS hydraulic disc
Brake rotor : SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size : Max brake rotor sizes: 160mm front & rear

WEIGHT

Weight : 56 – 7.76 kg/17.11 lbs
Weight limit : This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 275 pounds (125 kg).

 Why you'll love it

  1. IsoFlow technology helps the seat mast flex for a more comfortable ride while also improving frame aerodynamics and shaving weight
  2. A wireless SRAM Force eTap AXS drivetrain keeps your cockpit clean and tidy while allowing custom tuning – plus, it comes equipped with power meter cranks to track performance metrics
  3. 800 Series OCLV Carbon is the lightest laminate we’ve ever made, and it makes the Madone faster on any terrain, in any condition
  4. Deep carbon rims help reduce aerodynamic drag so you can ride faster and race to the top of the podium
  5. Madone Project One ICON paint schemes make the ultimate race bike a true work of art

Unprecedented aerodynamics

All-new aerodynamic Kammtail frame shapes, bar/stem design and rider position make the Madone SLR our fastest road race bike yet.

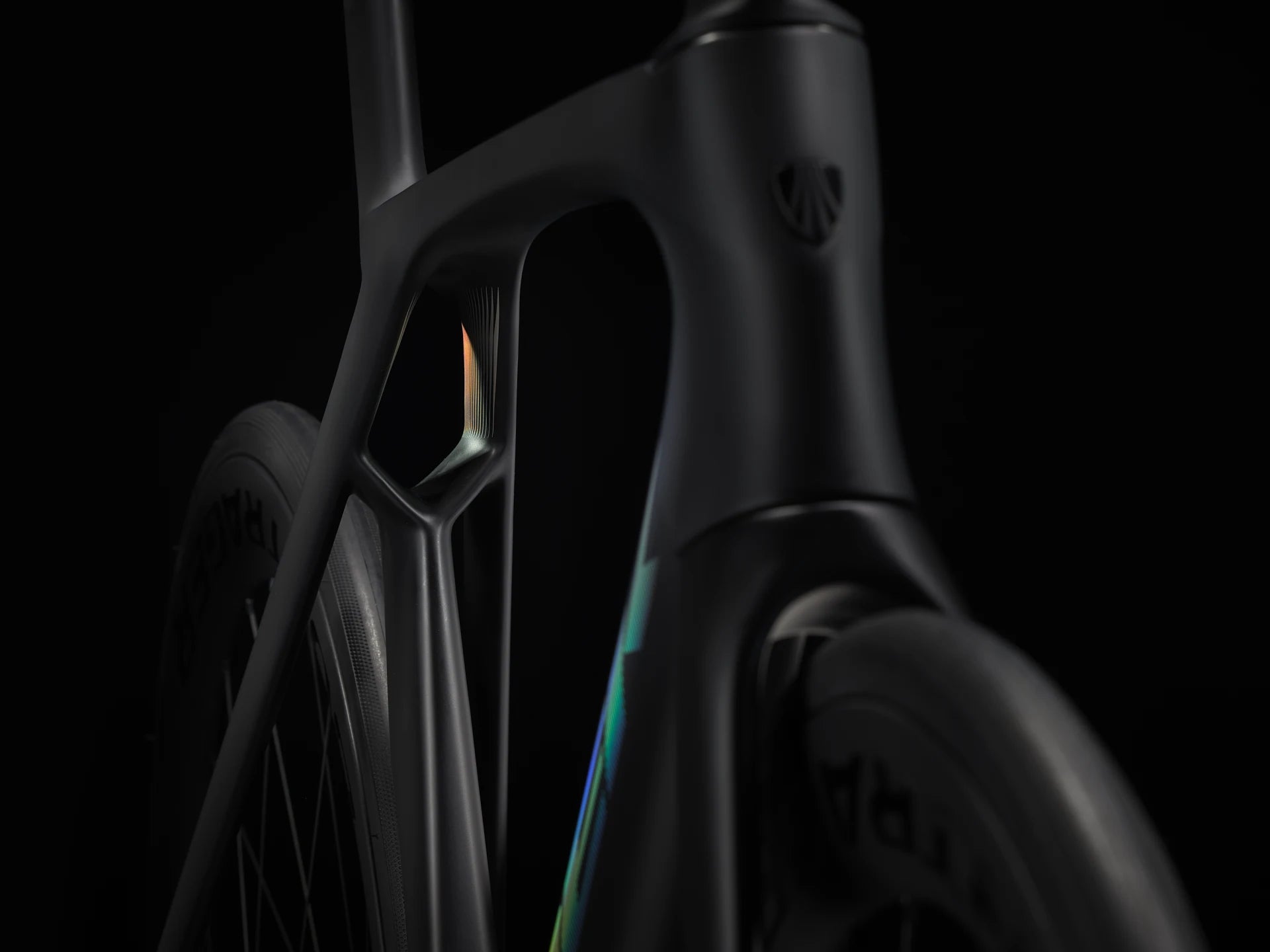

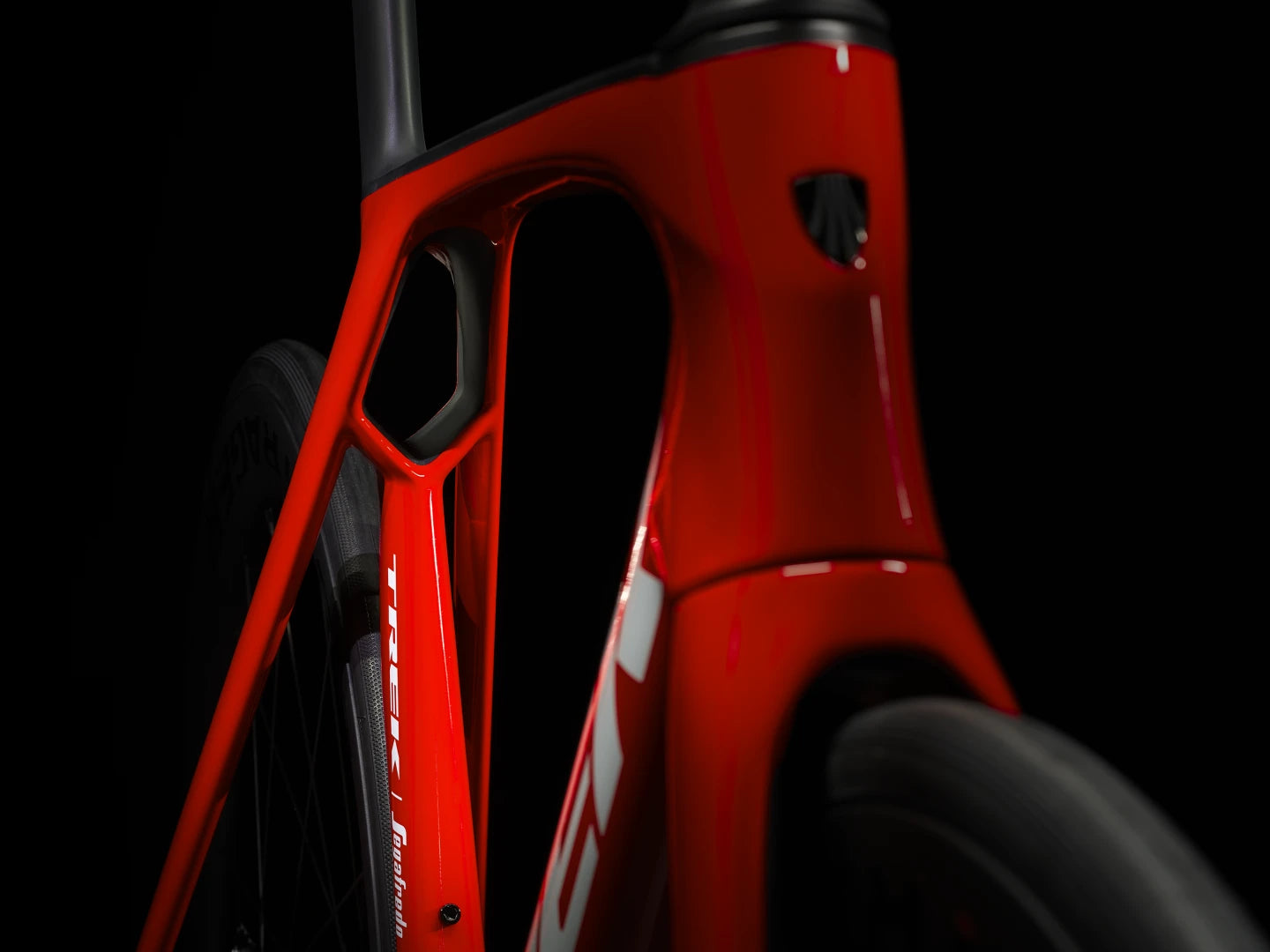

Exclusive IsoFlow technology

Never-before-seen IsoFlow technology specifically designed for the seventh-generation Madone SLR shaves weight, improves aerodynamics and smooths your ride.

Our lightest Madone disc ever

Super lightweight 800 Series OCLV Carbon and a new lightweight design make this our lightest Madone disc ever.

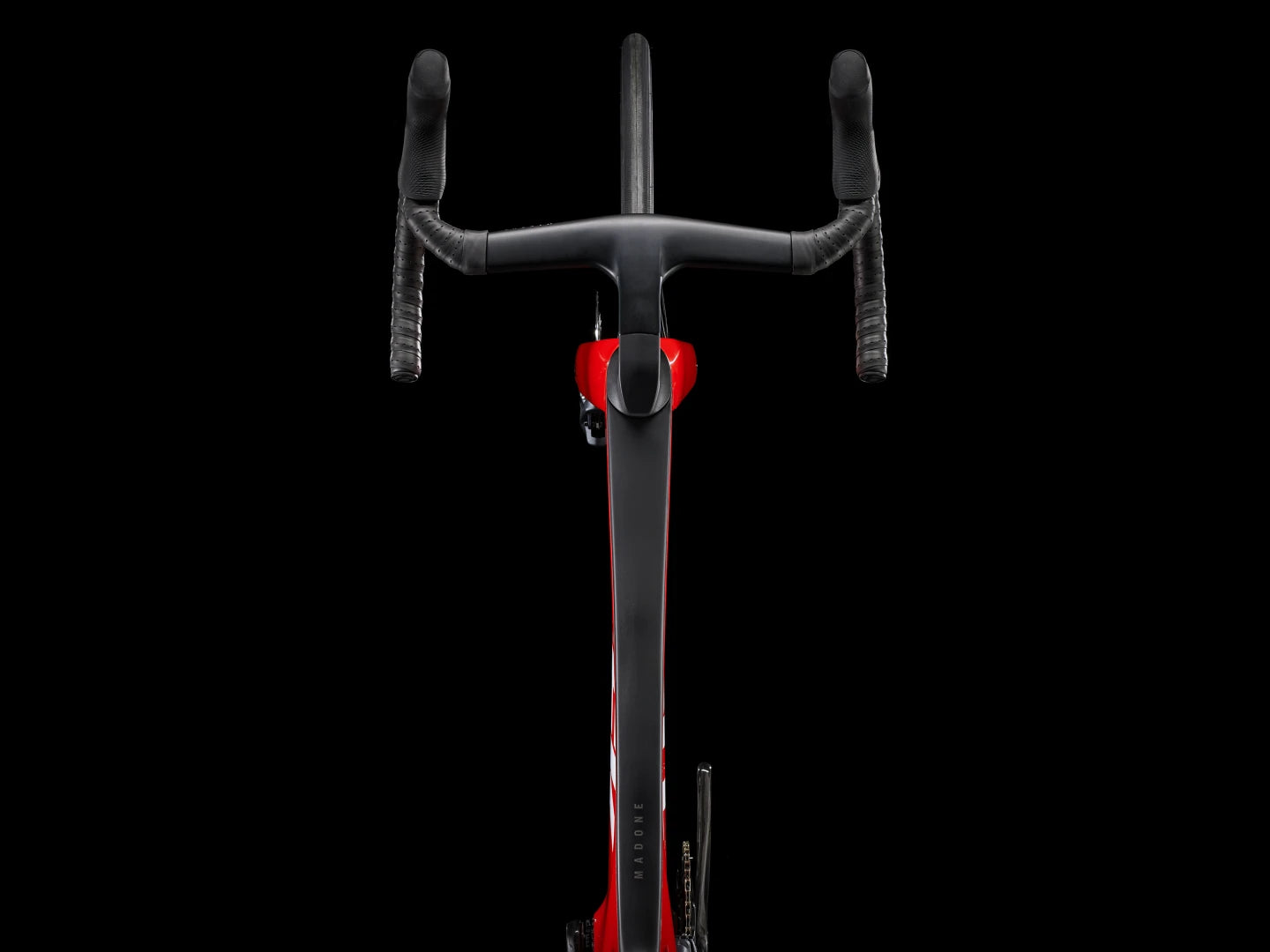

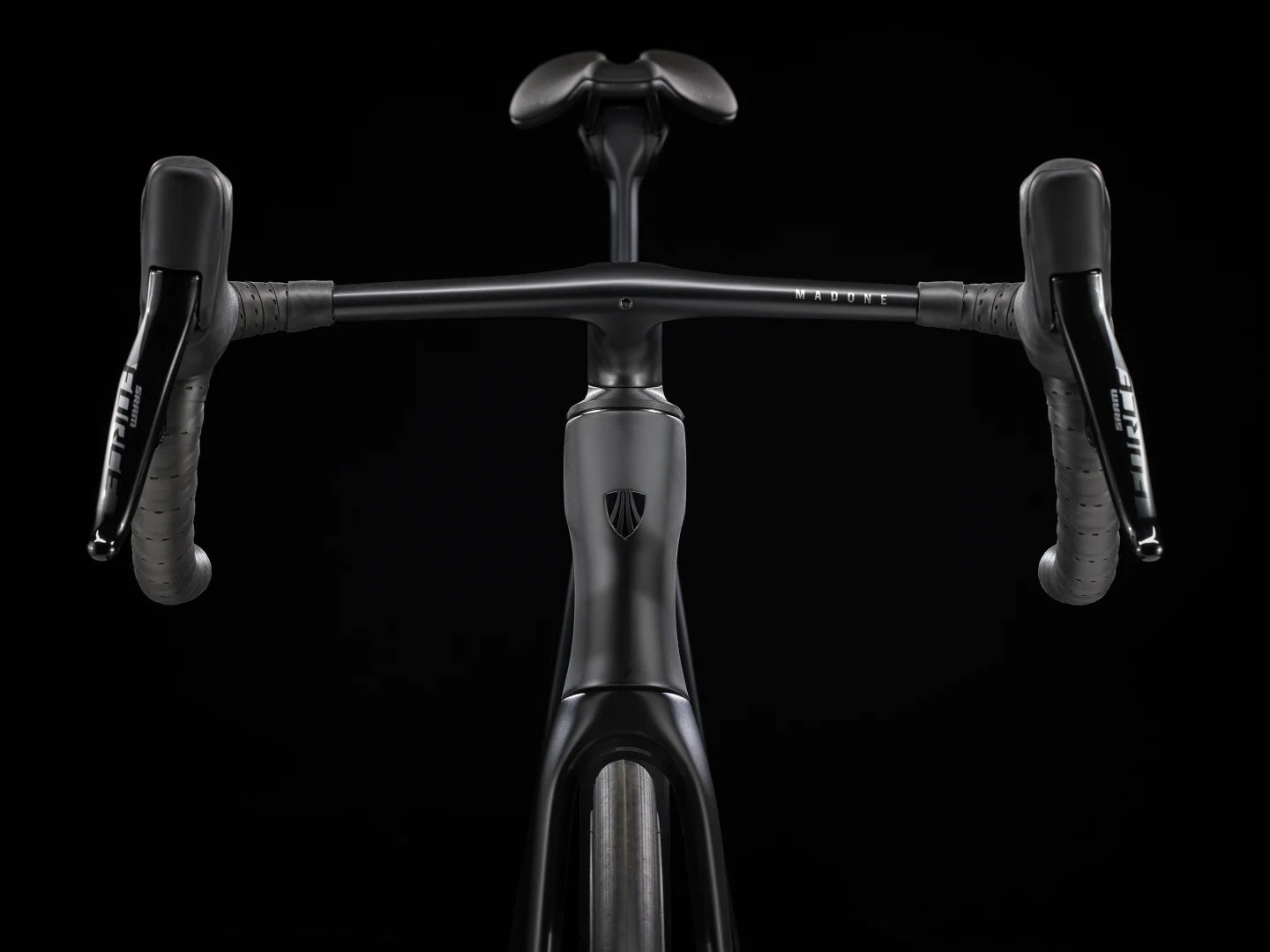

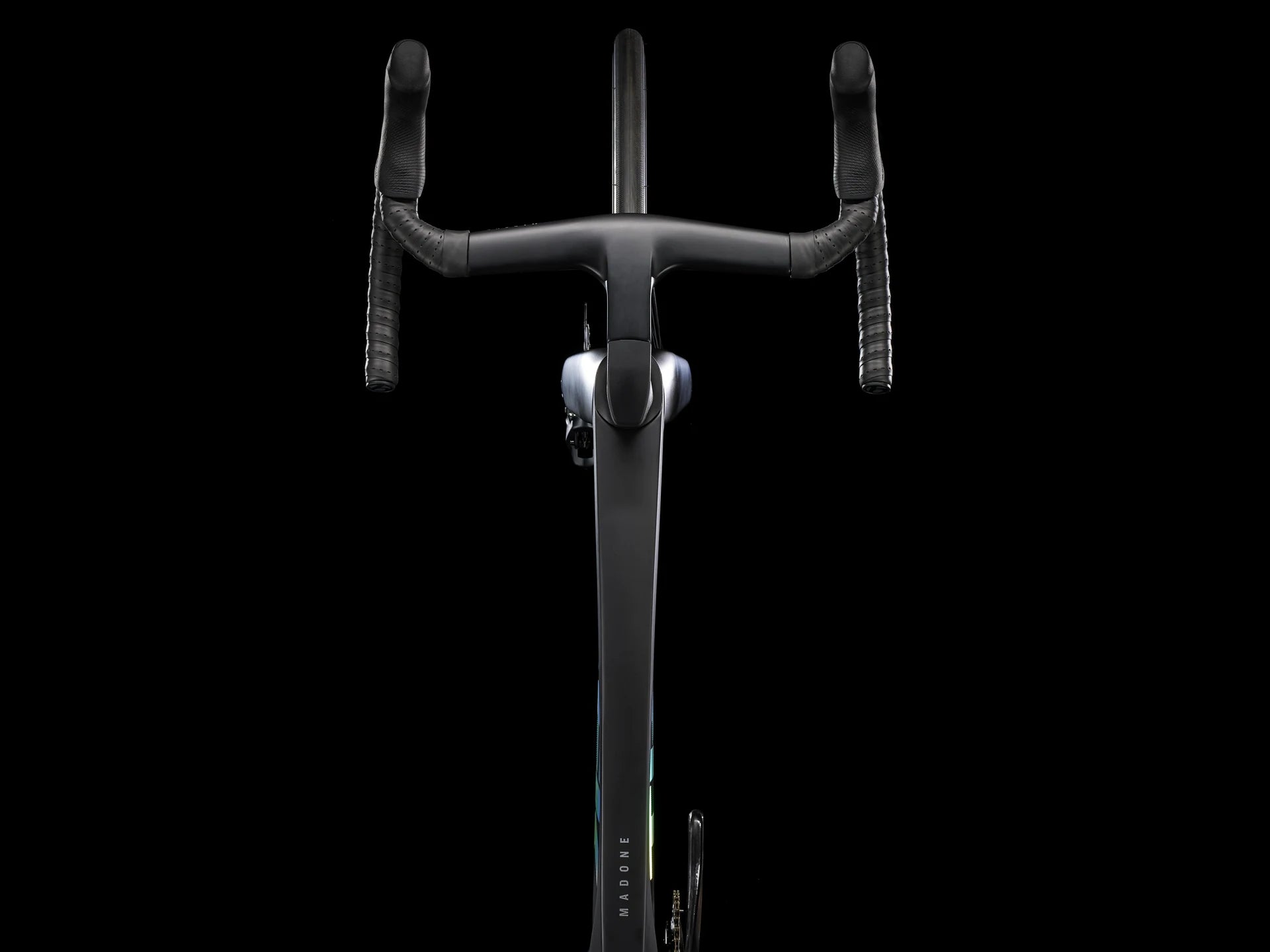

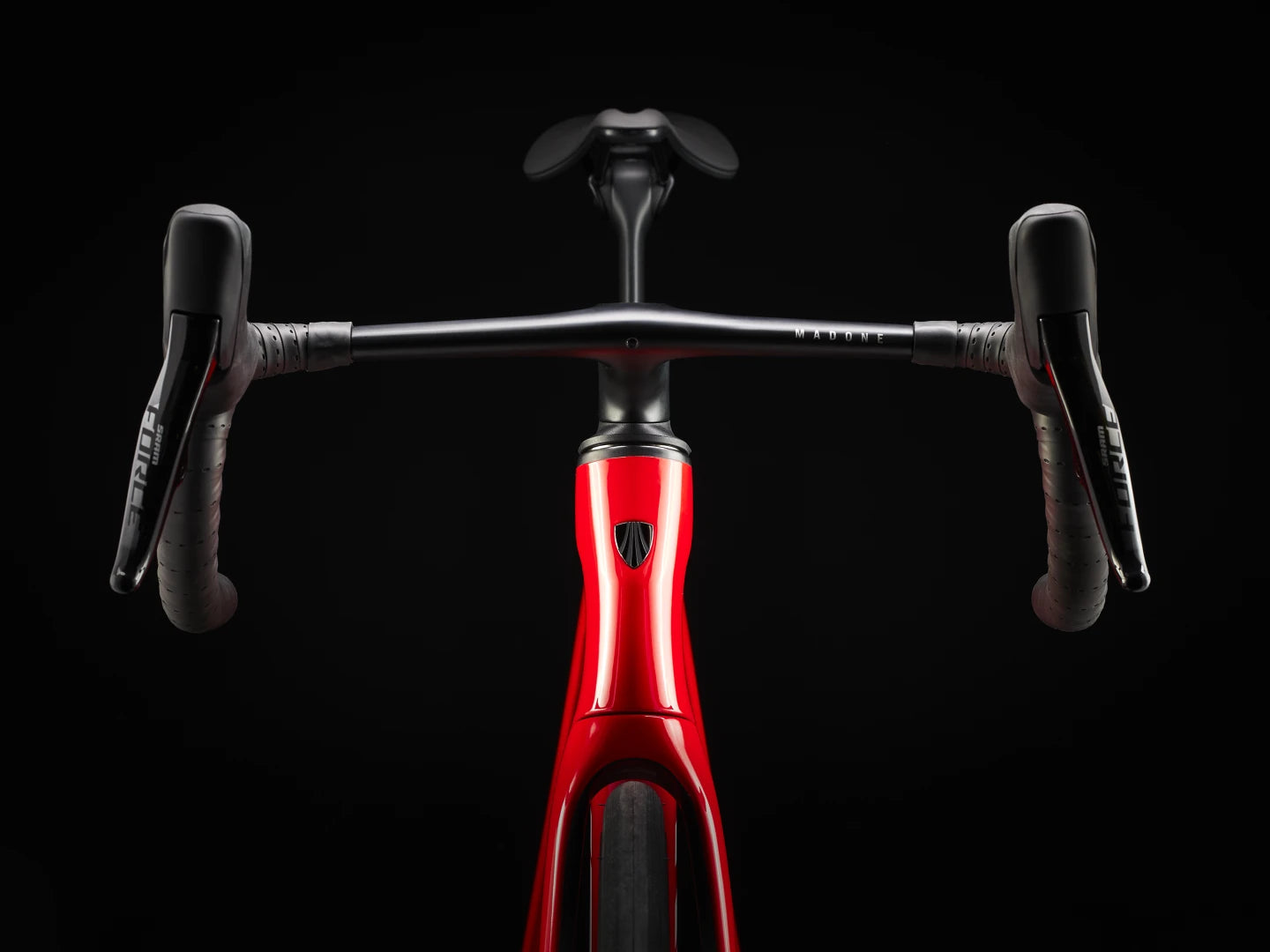

New ergonomic bar/stem

A newly optimised bar/stem that’s 3 cm narrower in the hoods than the drops offers a more comfortable and ergonomic riding position for faster racing, improved aerodynamics and ultimate control. Use the same bar/stem size you’re used to – if you normally ride with a 42 cm bar/stem, opt for 42 cm in the drops and 39 cm in the hoods.

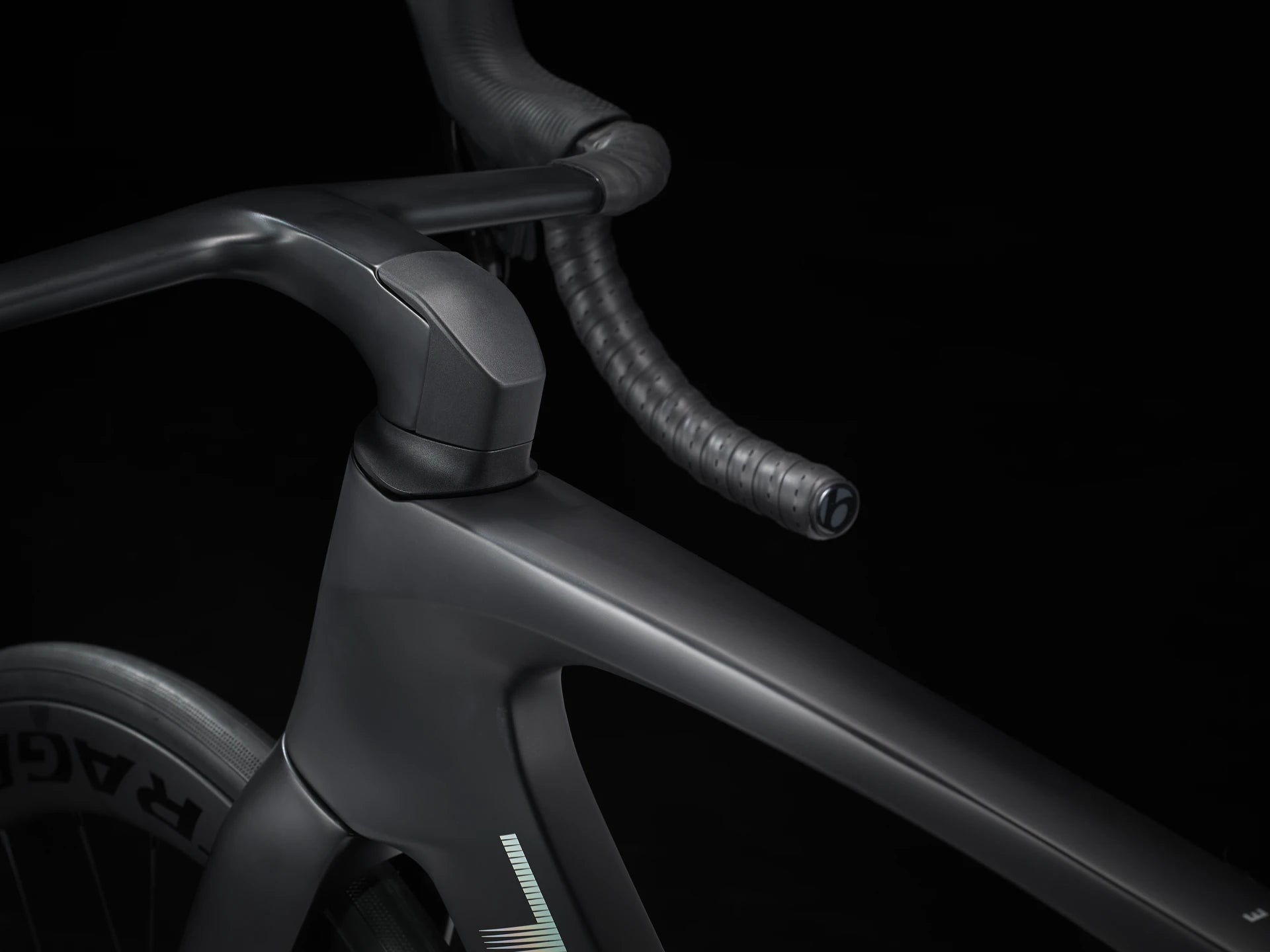

Refined integration

Every element of this bike is part of a greater whole. It has invisible cable routing, aero cockpit, hidden seat mast and more.

It's right for you if...

Speed is your top priority, and you want our best aero road racing frame with all-new aero IsoFlow comfort tech to shed grams and watts. You care about the finer things, like a clean wireless cockpit and the custom tunability of SRAM's Force eTap AXS.

The tech you get

A lightweight frame with our highest-level 800 Series OCLV Carbon, new Kammtail Virtual Foil aerodynamic tube shaping, aerodynamic and road-smoothing IsoFlow technology and invisible cable routing. A wireless electronic 2x12 SRAM Force eTap AXS drivetrain and flat-mount hydraulic disc brakes, power meter cranks for monitoring performance metrics, tubeless-ready Bontrager Aeolus Pro 51 carbon wheels and an integrated OCLV Carbon bar/stem combo.

The final word

The Madone SLR is our best and lightest aero road frame, but it's the all-new IsoFlow technology that really sets this bike apart. It adds compliance for a more comfortable ride with impressive aerodynamics.

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

Weights are based off pre-production products at time of publication. Weights may vary in final production.
