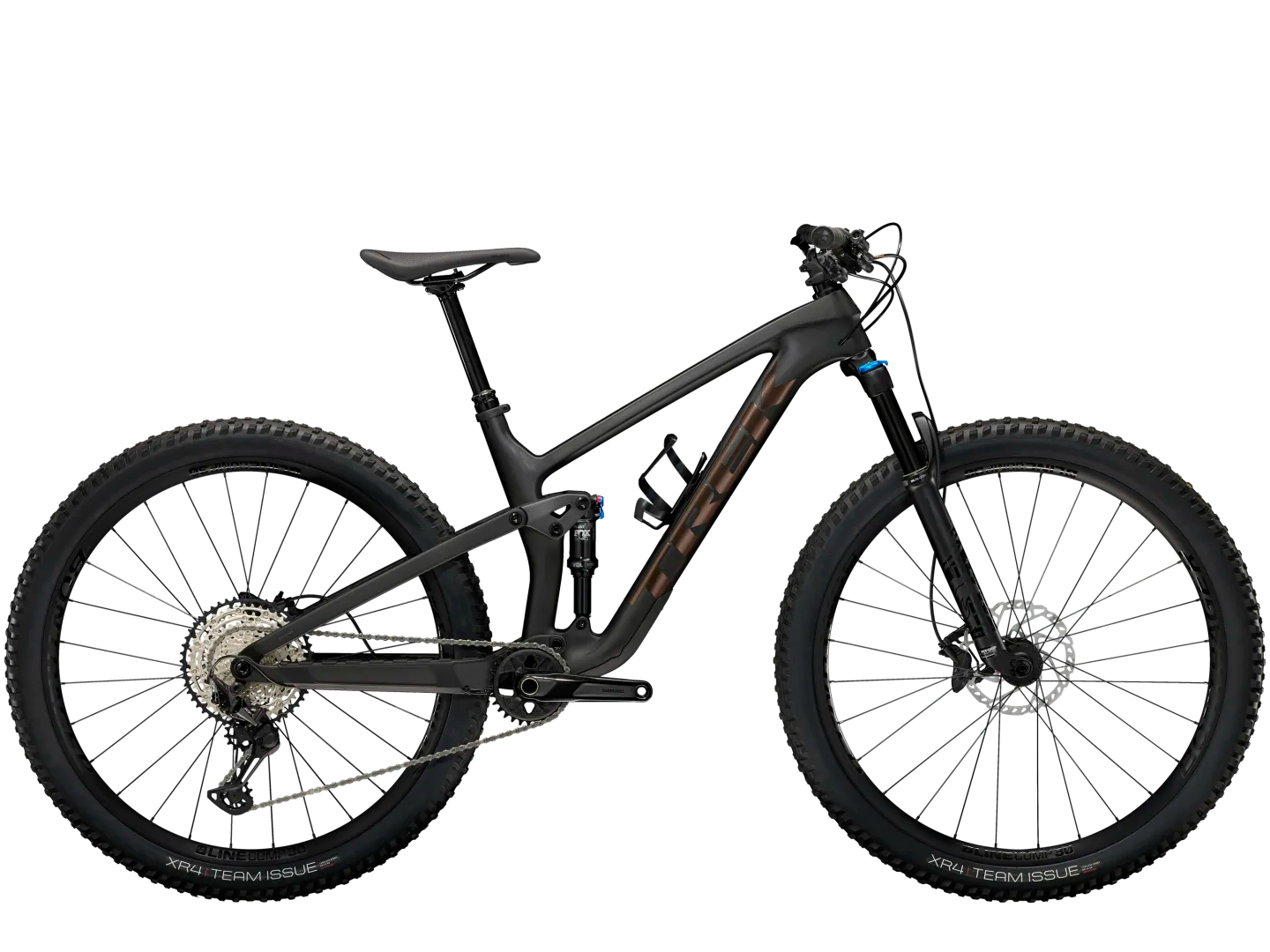

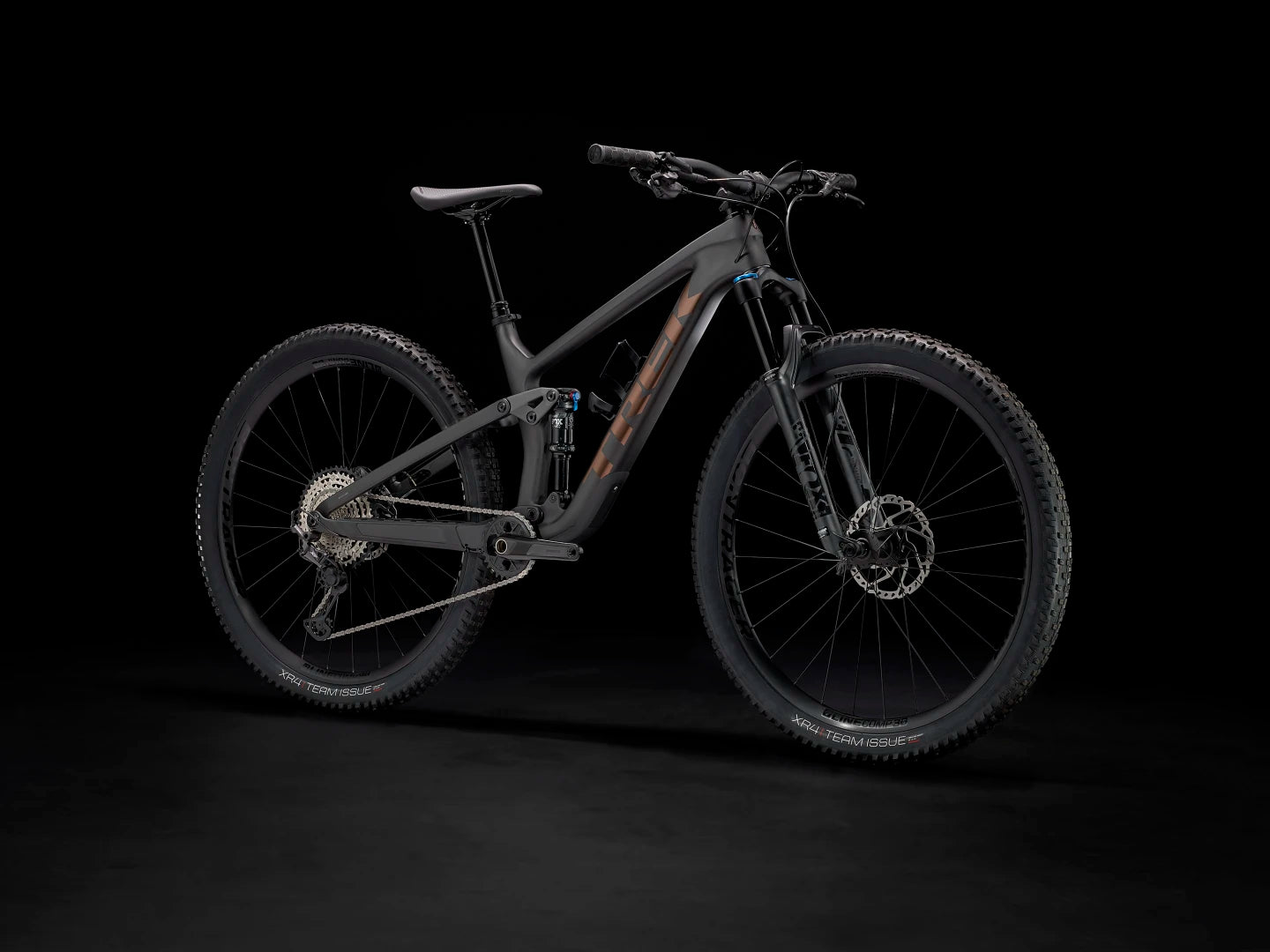

TREK Top Fuel 9.7 Gen 3

Frame
: OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
Fork
: Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 120mm travel

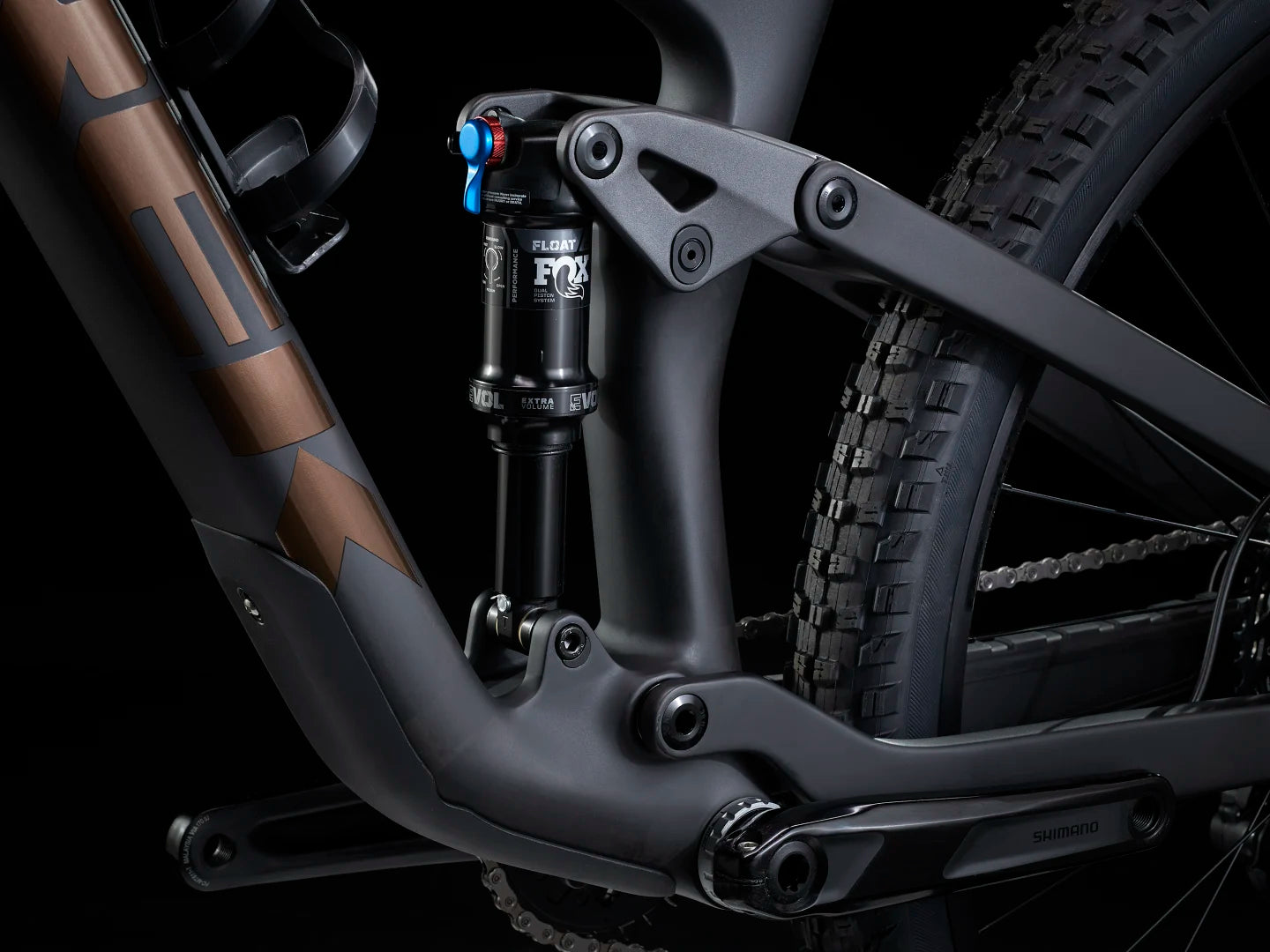

Shock
: Fox Performance Float DPS, 3-position damper, 185mm x 50mm
Max compatible fork travel
: 130mm (541mm axle-to-crown)

*Wheel front
: Size: XS
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''
Size: S, M, ML, L, XL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
*Wheel rear
: Size: XS
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle, 27.5''
Size: S, M, ML, L, XL
Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29''
Skewer rear
: Bontrager Switch thru axle, removable lever

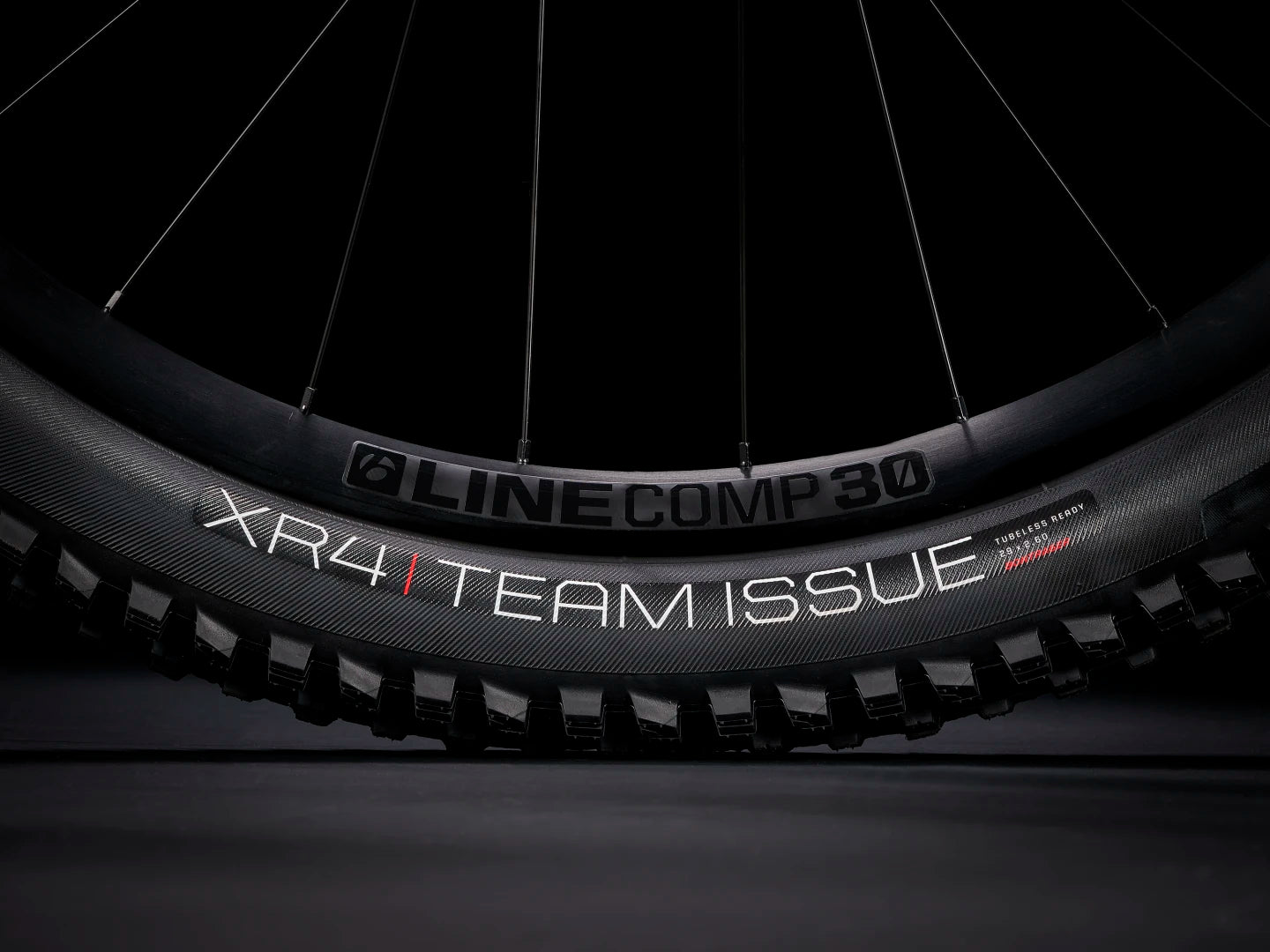

*Tire
: Size: XS
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 27.5x2.40''
Size: S, M, ML, L, XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40''
Tire part
: Bontrager TLR sealant, 6oz
Rim strip
: Bontrager TLR
Max tire size
: Frame: 29x2.50" (XS: 27.5x2.50"), Fork: see manufacturer

Shifter
: Shimano XT M8100, 12 speed

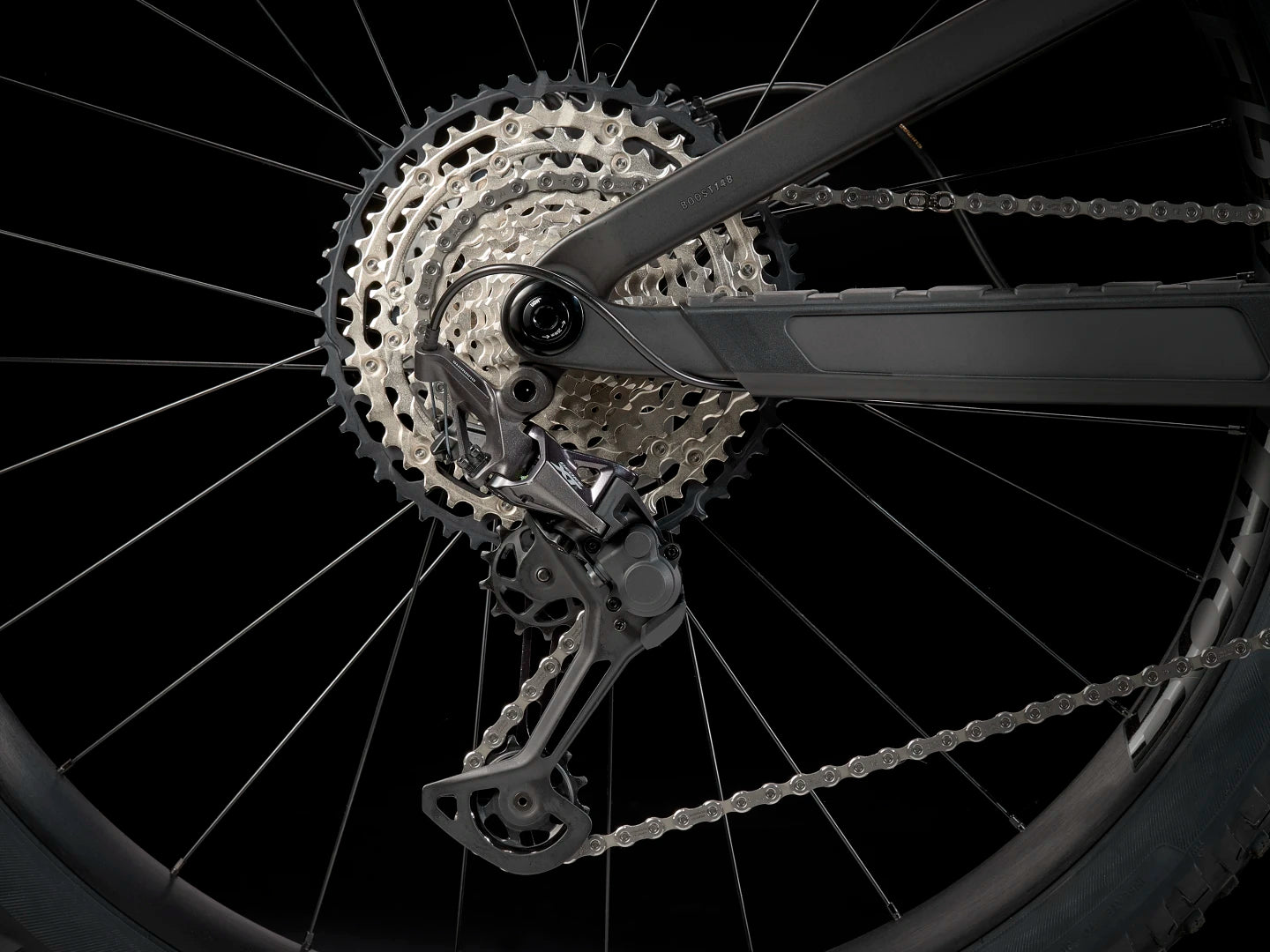

Rear derailleur
: Shimano XT M8100, long cage

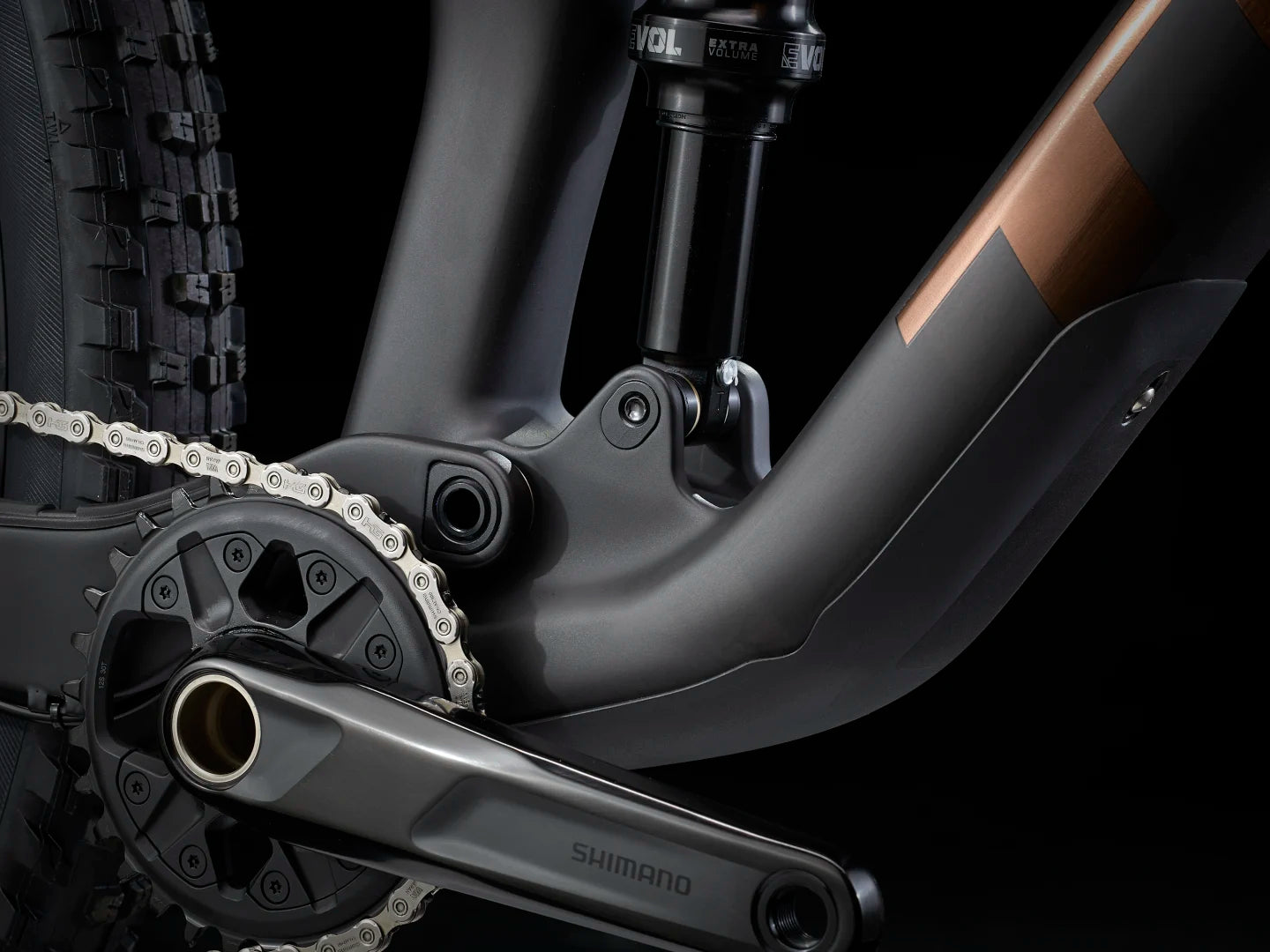

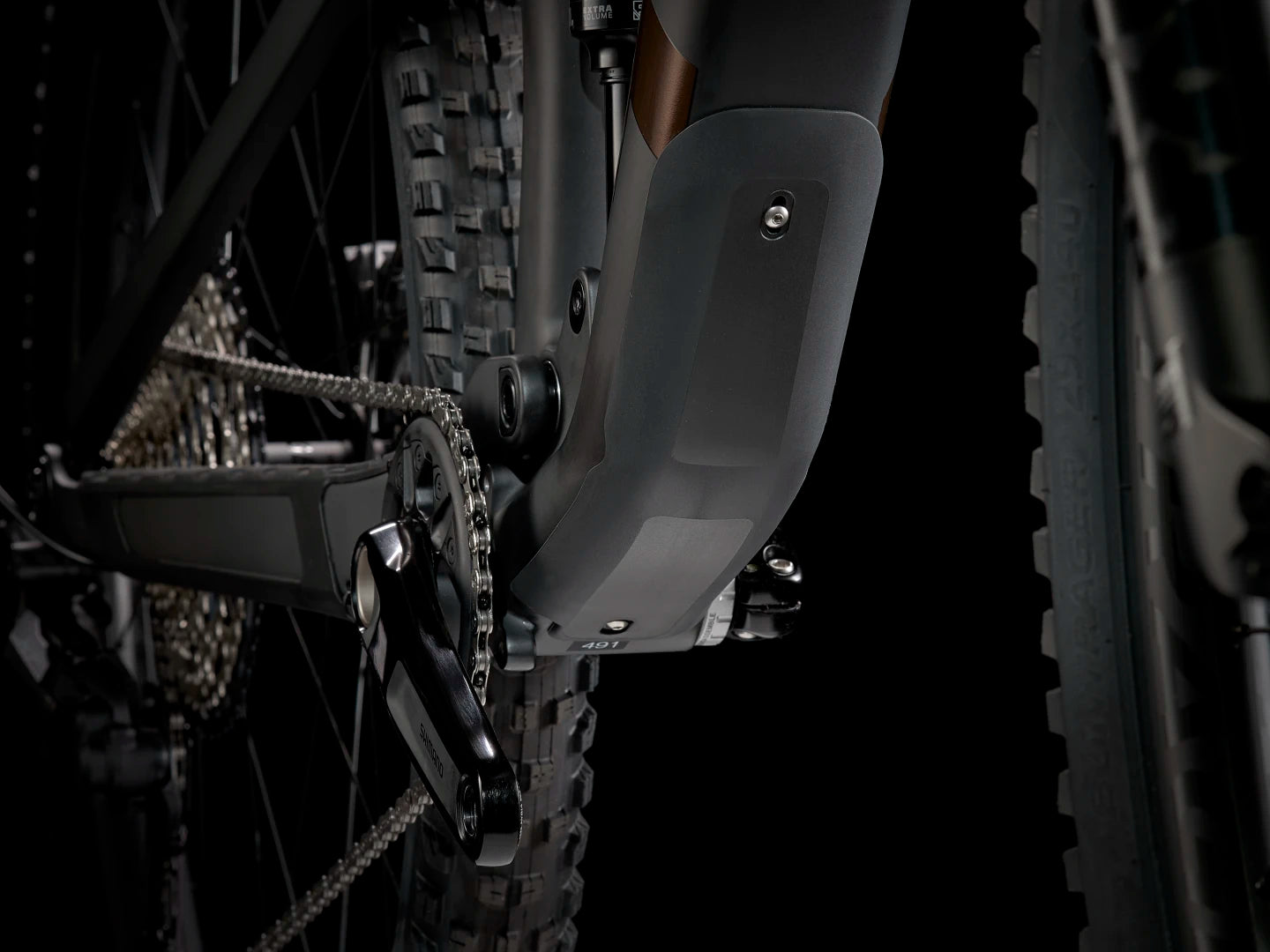

*Crank
: Size: XS, S, M, ML, L
Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
Size: XL
Shimano Deore M6120, 30T ring, 55mm chainline, 175mm length

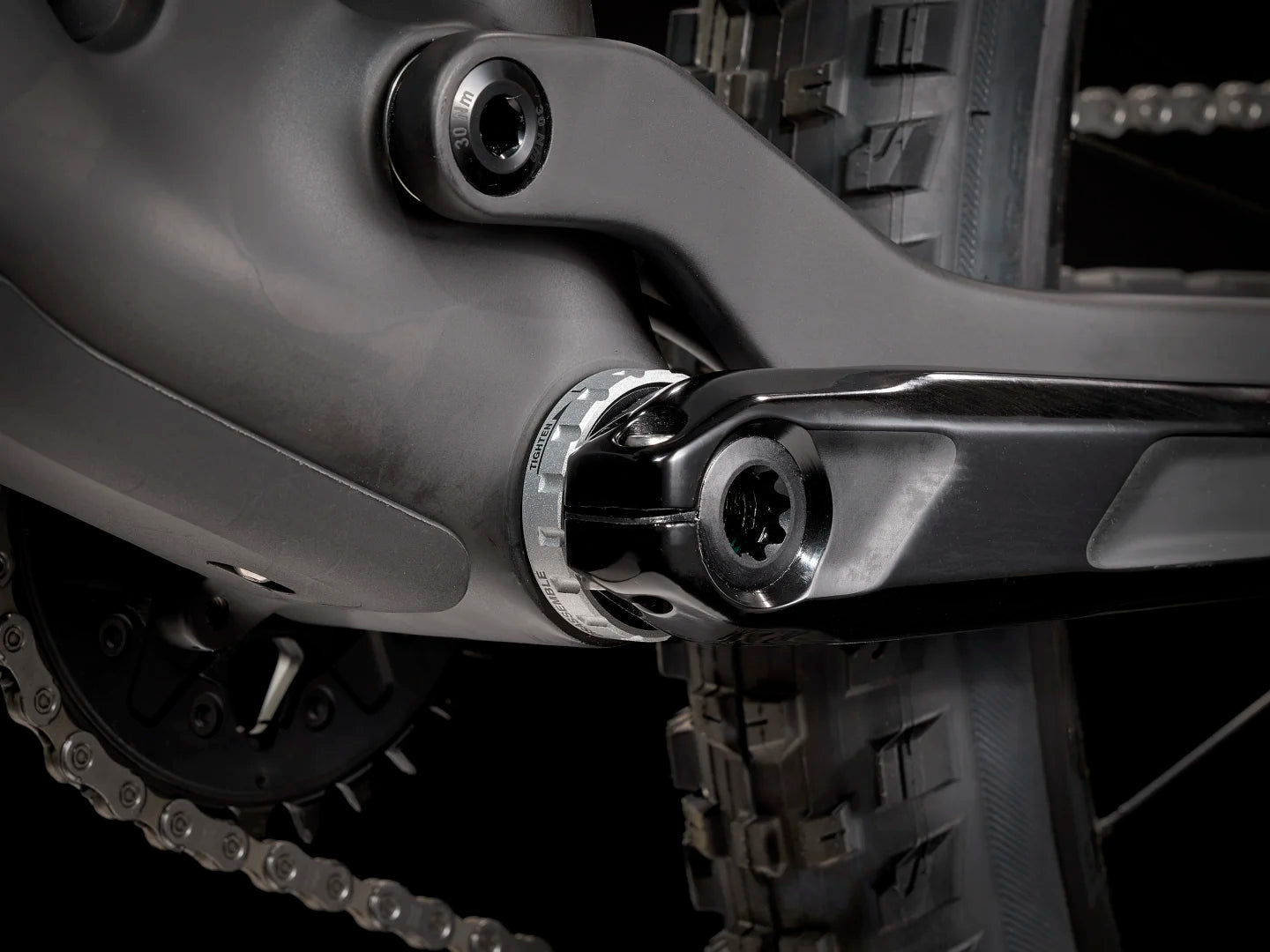

*Bottom bracket
: Size: XS, S, M, ML, L, XL
Shimano BB-MT501 BSA
Size: XS, S, M, ML, L, XL
Shimano SM-BB52, 73mm, threaded external bearing
Cassette
: Shimano SLX M7100, 10-51T, 12 speed
Chain
: Shimano SLX M7100, 12 speed
Max chainring size
: 1x: 36T round, 34T oval, min 28T

Saddle
: Bontrager Arvada, steel rails, 138mm width
*Seatpost
: Size: XS, S
TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm
Size: M, ML
TranzX JD-YSP39, 150mm travel, internal routing, 34.9mm
Size: L, XL
TranzX JD-YSP39, 170mm travel, internal routing, 34.9mm
*Handlebar
: Size: XS, S
Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width
Size: M, ML, L, XL
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Grips
: Bontrager XR Trail Comp, nylon lock-on

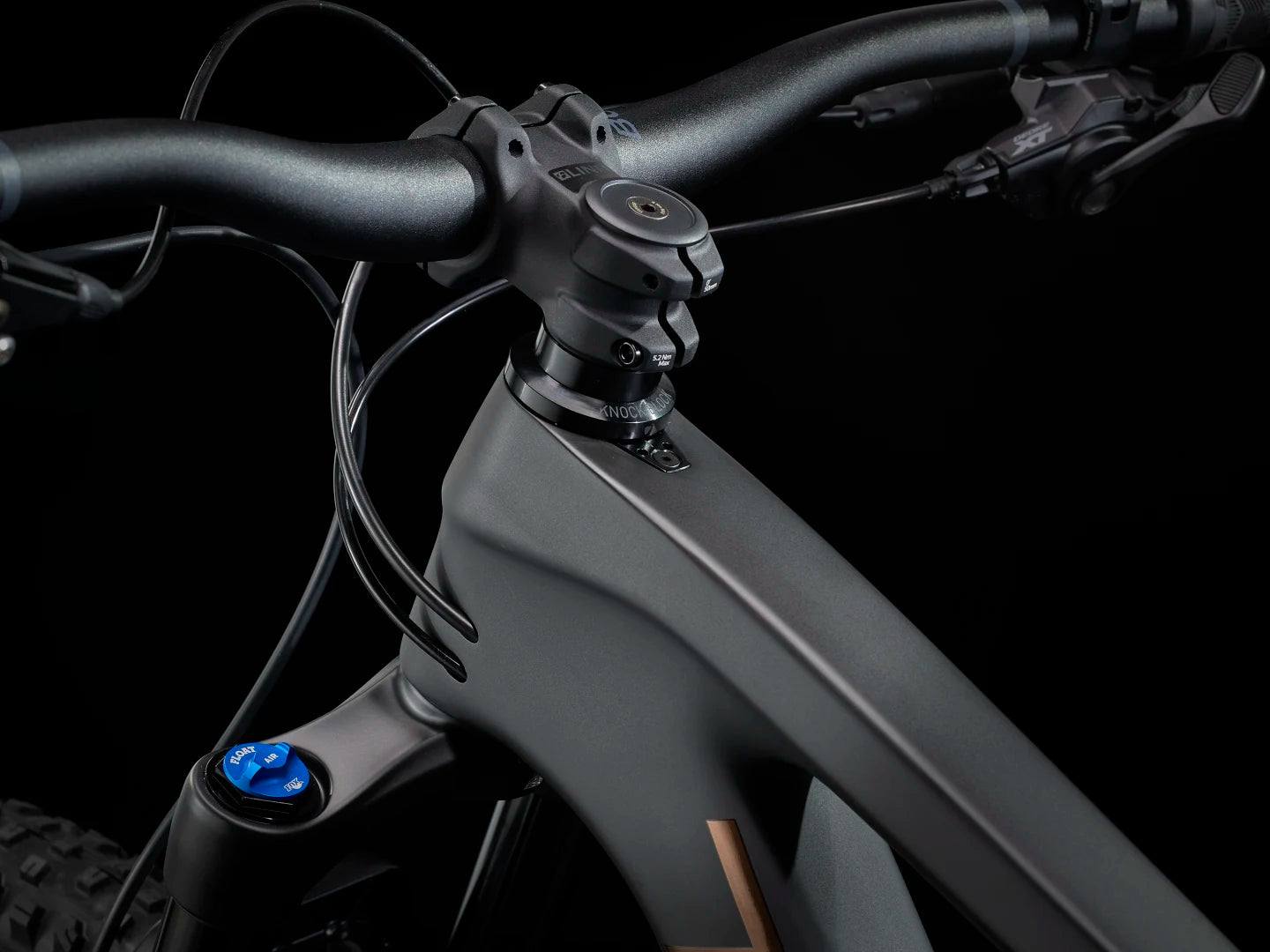

Stem
: Bontrager Elite, 35mm, 0 degree, 45mm length
Headset
: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

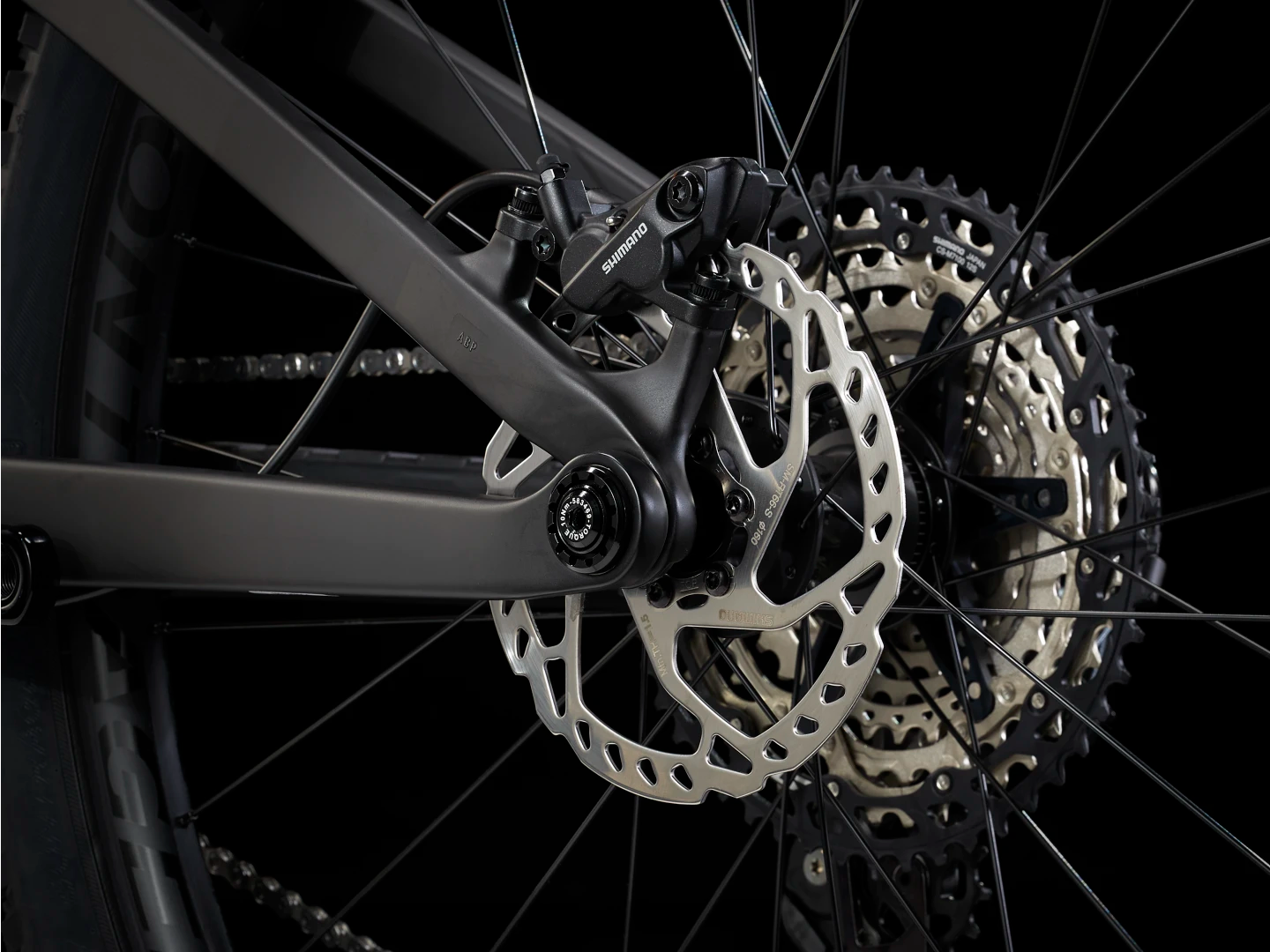

Brake
: Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
*Brake rotor
: Size: XS, S, M, ML, L, XL
Shimano RT66, 6-bolt, 160mm

Size: XS, S, M, ML, L, XL
Shimano RT66, 6-bolt, 180mm

Bag
: Bontrager BITS Internal Frame Storage Bag

Weight
: M - 13.38 kg / 29.51 lbs (with TLR sealant, no tubes)
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
