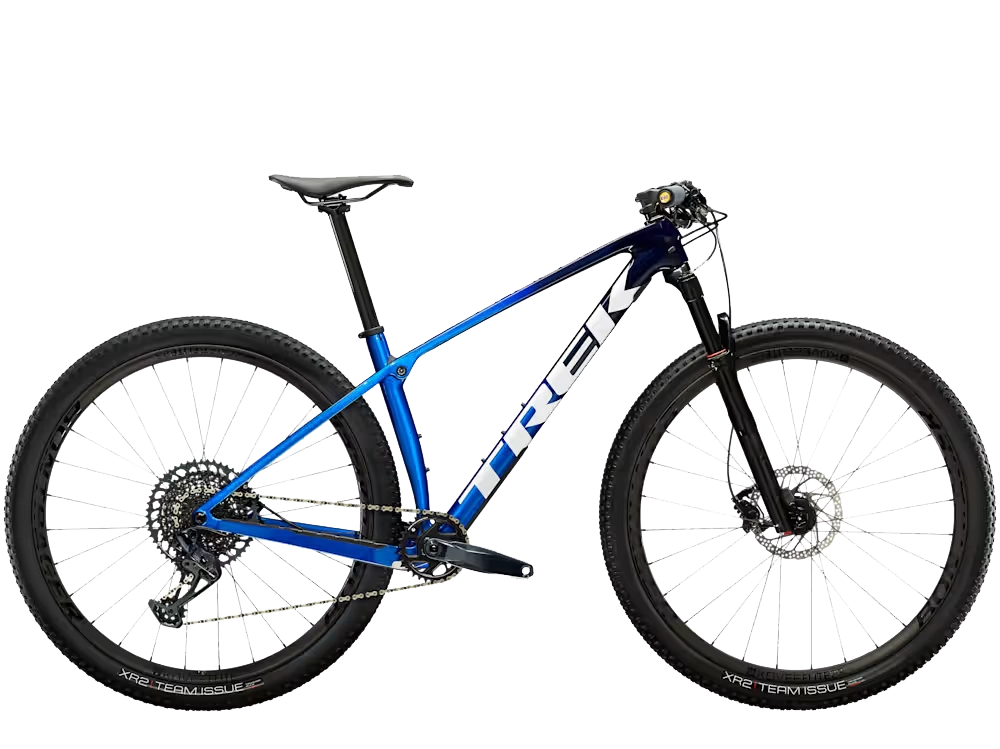

Trek Procaliber 9.7 2022

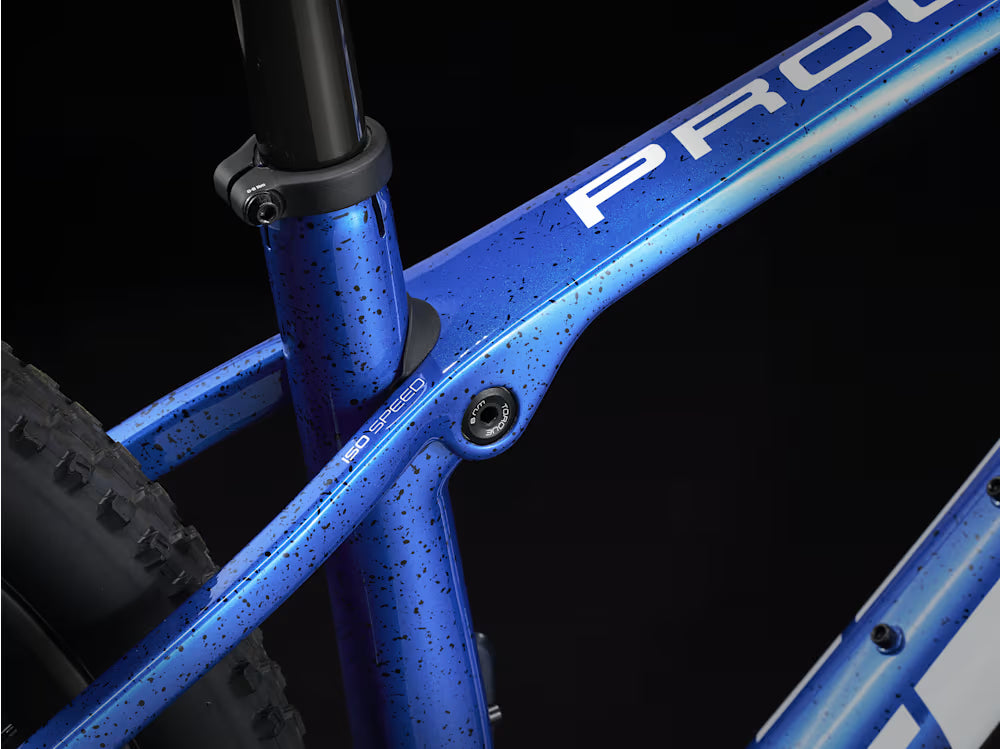

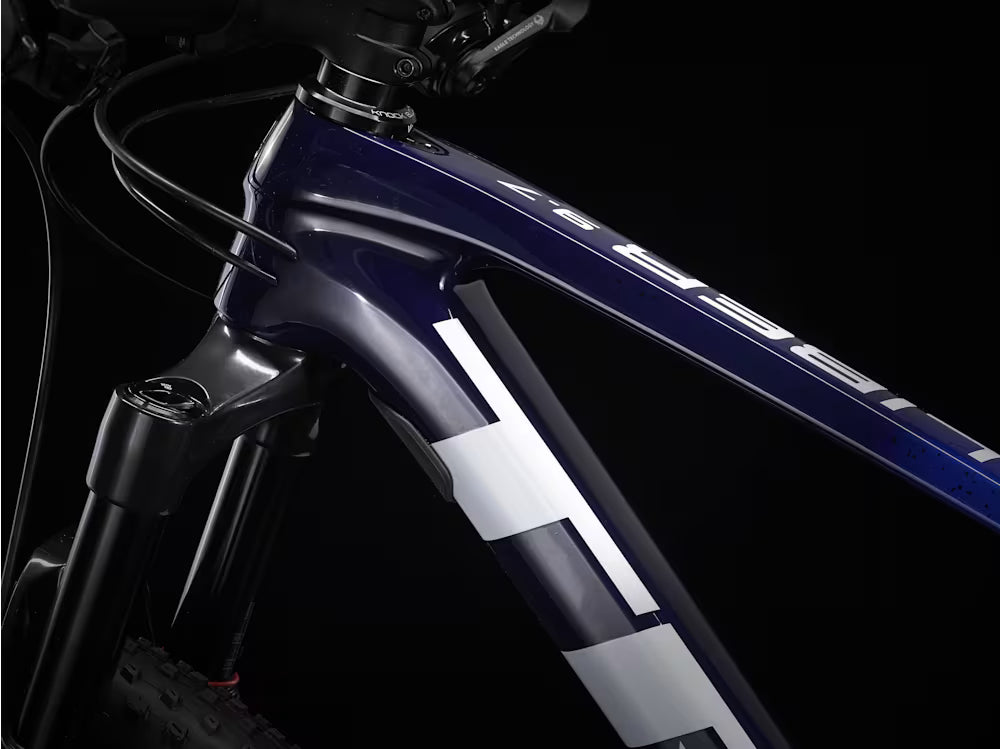

Frame
OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148
Fork
RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 110mm travel
Suspension lever
RockShox OneLoc Sprint

Wheel front
Bontrager Kovee Elite 23 carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
Wheel rear
Bontrager Kovee Elite 23 carbon, Tubeless Ready, Rapid Drive 108, SRAM XD11 driver, Boost148, 29''
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Bontrager Kovee Elite 23 carbon, Tubeless Ready
Tire
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Tire part
Bontrager TLR sealant, 6oz
Rim strip
Bontrager TLR
Max tire size
Frame: 29x2.40", Fork: See manufacturer

Shifter
SRAM GX Eagle, 12 speed

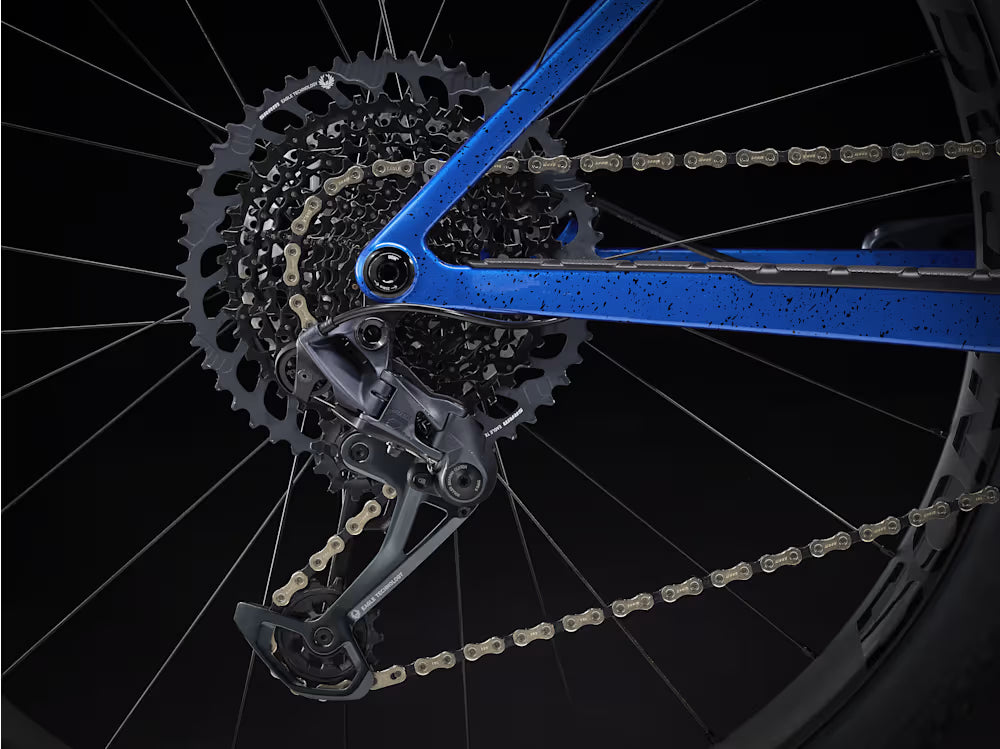

Rear derailleur
SRAM GX Eagle

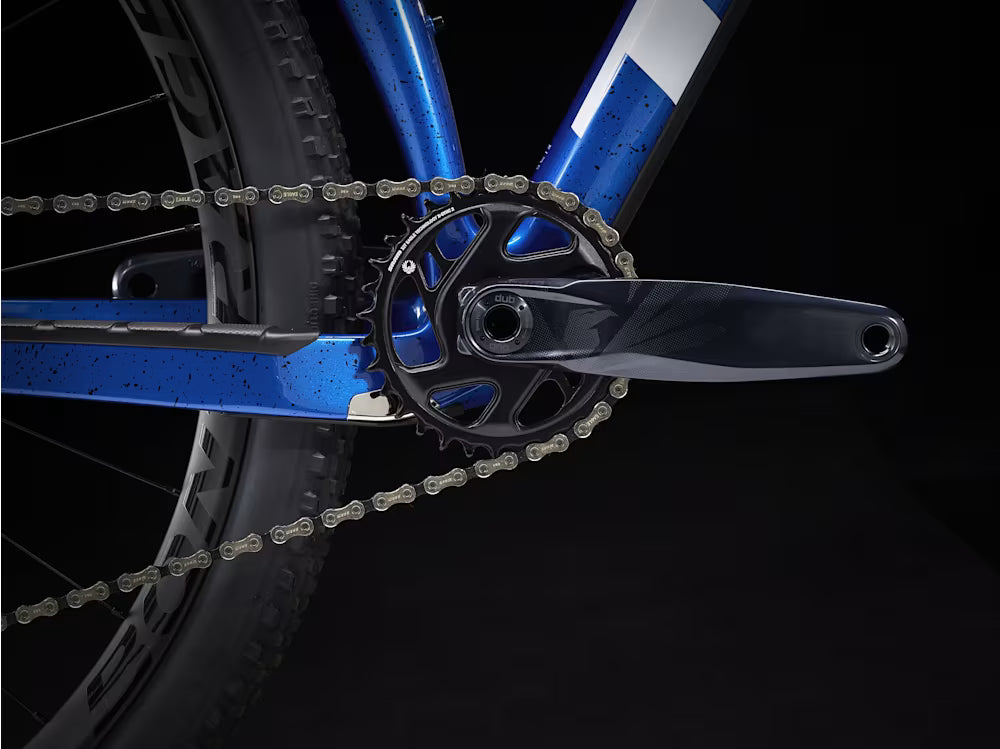

*Crank
Size: S
SRAM X1 Eagle, DUB, 32T alloy ring, 52mm chainline, 170mm length
Size: M , ML , L , XL
SRAM X1 Eagle, DUB, 32T alloy ring, 52mm chainline, 175mm length
Bottom bracket
SRAM DUB, 92mm, PressFit
Cassette
SRAM Eagle XG-1275, 10-52, 12 speed
Chain
SRAM GX Eagle, 12 speed
Max chainring size
1x: 36T, min 30T

Saddle
Bontrager Verse Elite, austenite rails, 145mm width
*Seatpost
Size: S
Bontrager Pro, OCLV Carbon, 31.6mm, 0mm offset, 330mm length
Size: M , ML , L , XL
Bontrager Pro, OCLV Carbon, 31.6mm, 0mm offset, 400mm length

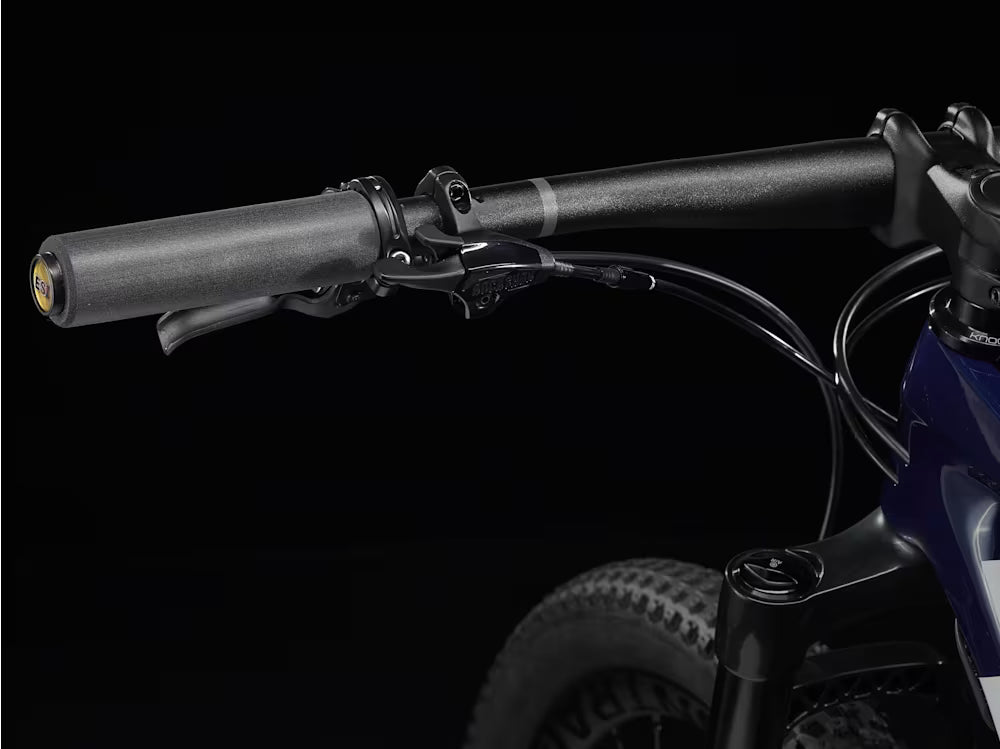

*Handlebar
Size: S , M , ML
Bontrager Kovee Elite, alloy, 35mm, 5mm rise, 720mm width
Size: L , XL
Bontrager Line, alloy, 35mm, 15mm rise, 750mm width
Grips
ESI Chunky
*Stem
Size: S
Bontrager Elite, 35mm clamp, 13 degree, 60mm length
Size: M , ML
Bontrager Elite, 35mm clamp, 13 degree, 70mm length
Size: L , XL
Bontrager Elite, 35mm clamp, 13 degree, 80mm length

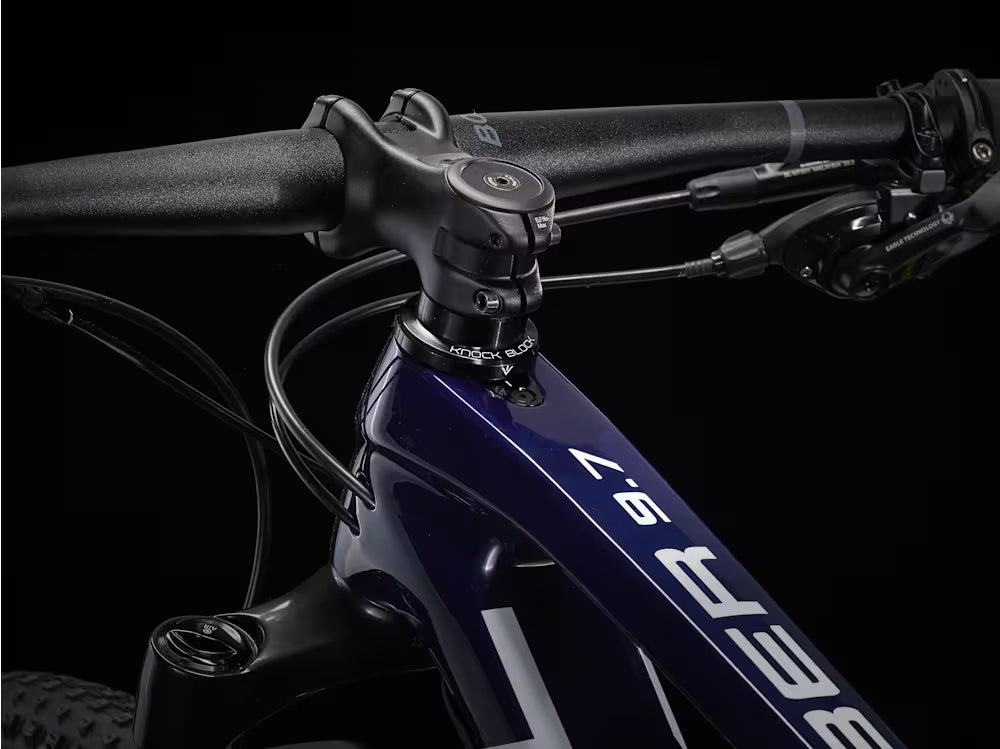

Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake
Shimano hydraulic disc, MT501 lever, MT500 caliper

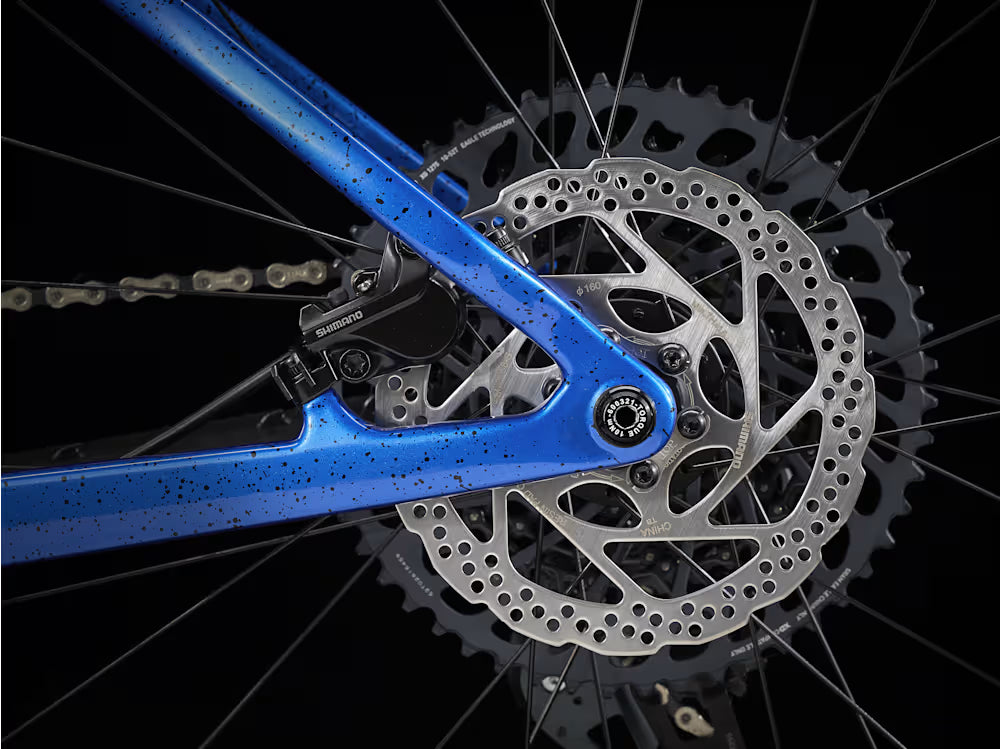

*Brake rotor
Size: S , M , ML , L , XL
Shimano RT56, 6-bolt, 160mm
Size: S , M , ML , L , XL
Shimano RT56, 6-bolt, 180mm
Rotor size
Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer

Weight
M - 10.44 kg / 23.02 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
