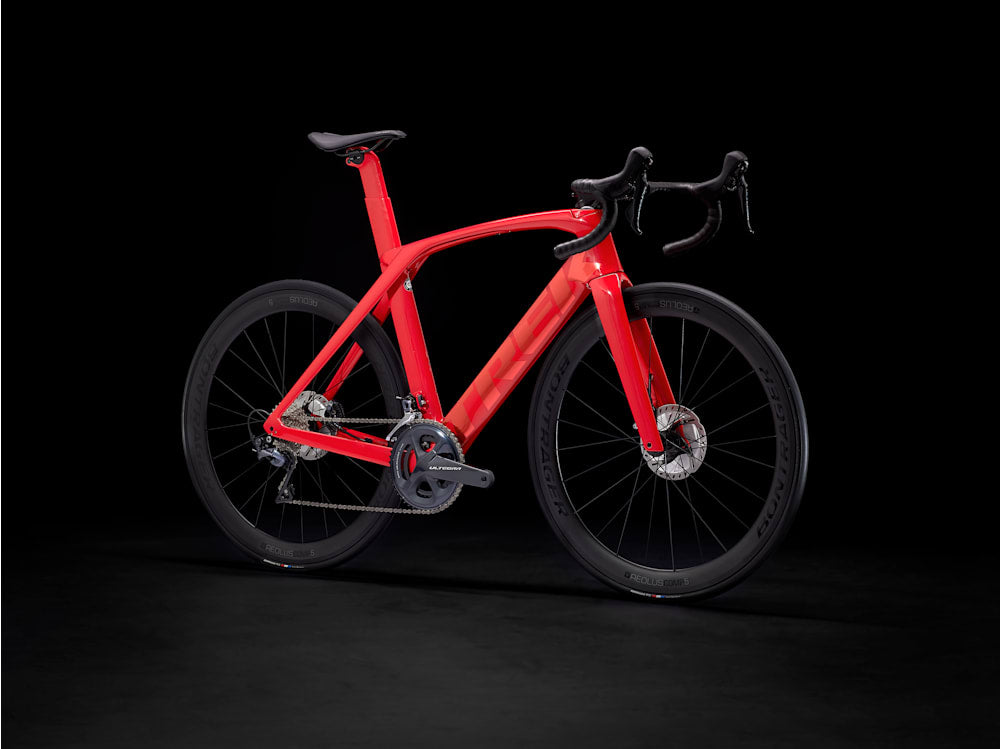

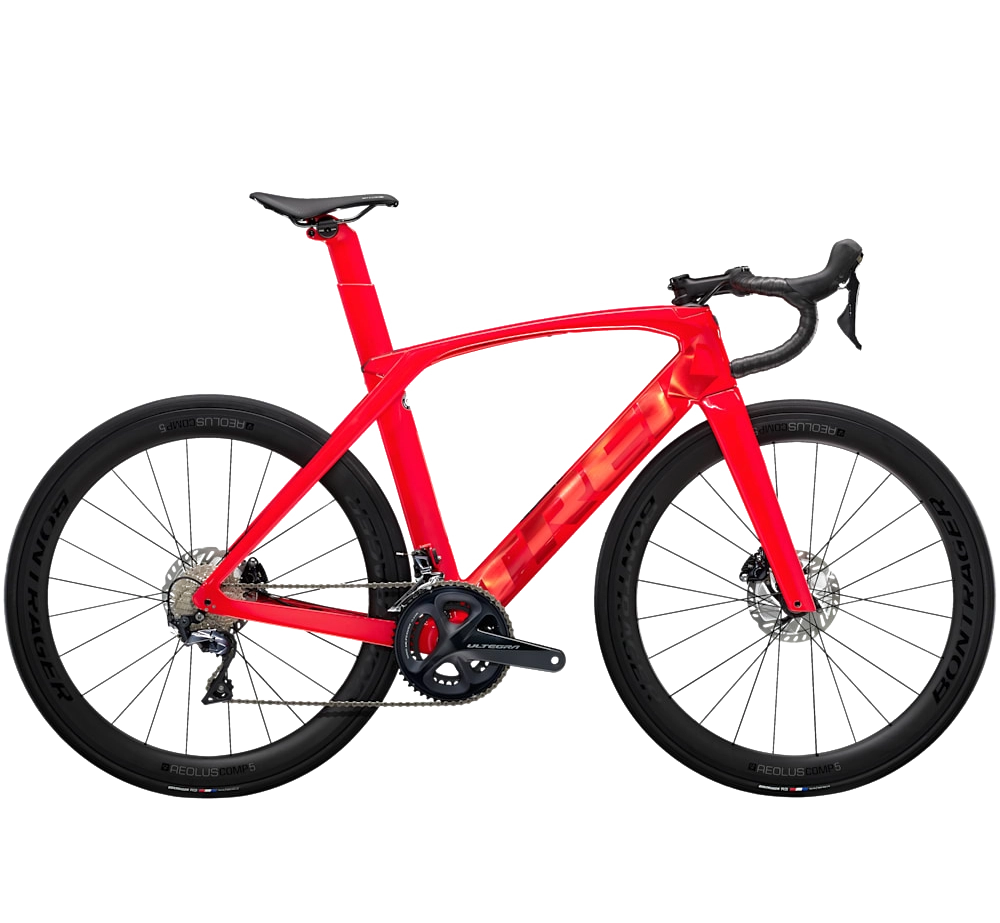

TREK Madone SL 6 เจเนอเรชั่น 6

Frame

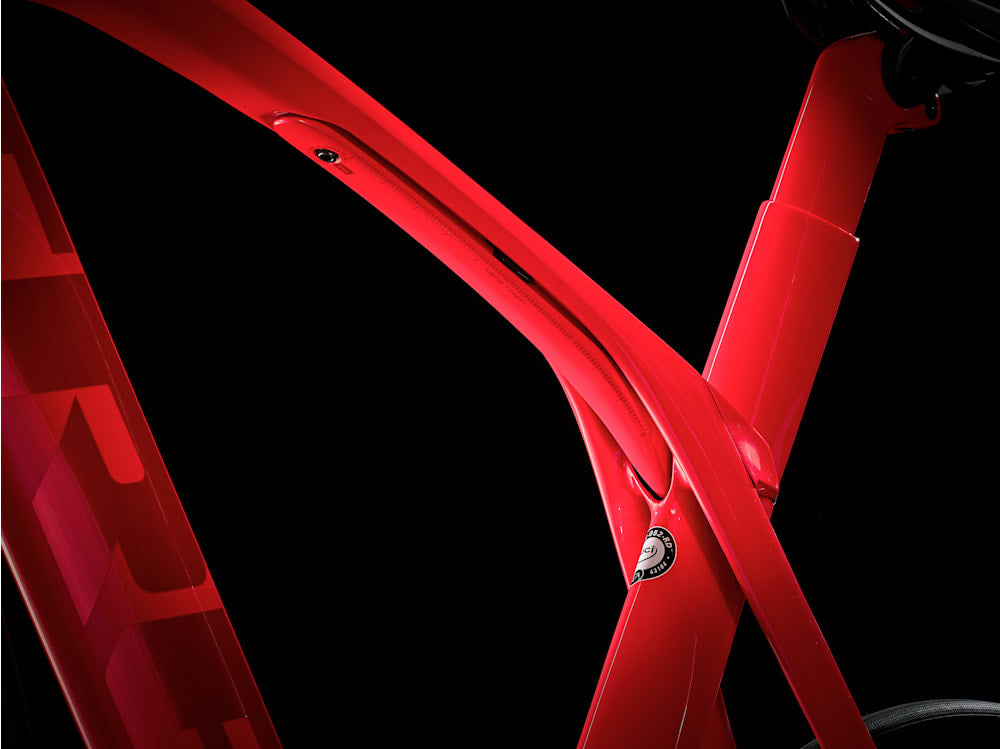

: 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, flat-mount disc, DuoTrap S-compatible, 142x12 mm thru axle
Fork
: Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit
: H1.5 Race

Wheel front
: Bontrager Aeolus Comp, Tubeless Ready, 18 mm rim width, 100x12 mm thru axle
Wheel rear
: Bontrager Aeolus Comp Disc, Tubeless Ready, 18 mm rim width, 142x12 mm thru axle
Skewer front
: Bontrager Switch thru axle, removable lever
Skewer rear
: Bontrager Switch thru-axle, removable lever
Tyre
: Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
Max tyre size
: 28mm

Shifter
: Shimano Ultegra R8020, 11 speed
Front derailleur
: Shimano Ultegra R8000, braze-on
Rear derailleur
: Shimano Ultegra R8000, short cage, 30T max cog
*Crank
: Size: 50, 52

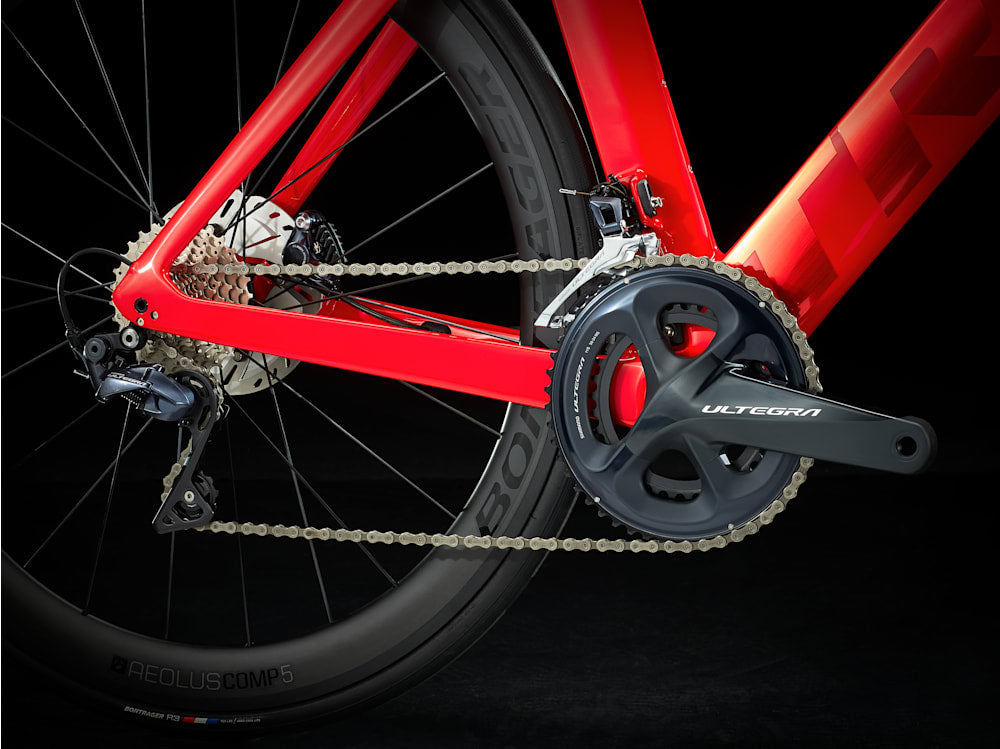

Shimano Ultegra R8000, 50/34 (compact), 170 mm length
Size: 54, 56
Shimano Ultegra R8000, 50/34 (compact), 172.5 mm length
Size: 58, 60, 62
Shimano Ultegra R8000, 50/34 (compact), 175 mm length
Bottom bracket
: Trek BB90
Cassette
: Shimano Ultegra R8000, 11-30, 11 speed
Chain
: Shimano Ultegra HG701, 11-speed

Saddle
: Bontrager Aeolus Comp, steel rails, 145 mm width
*Seatpost
: Size: 50, 52, 54, 56
Madone aero carbon internal seat mast cap, integrated light mount, 25 mm offset, short length
Size: 58, 60, 62
Madone aero carbon internal seat mast cap, integrated light mount, 25 mm offset, tall length
*Handlebar
: Size: 50, 52

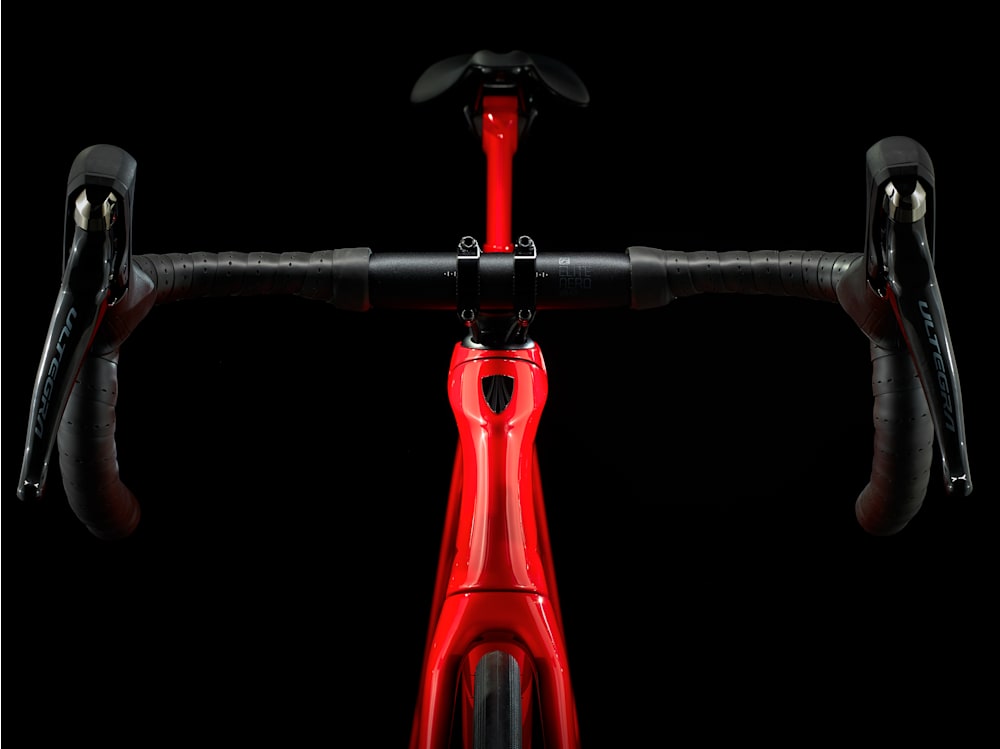

Bontrager Elite Aero VR-CF, alloy, 31.8 mm, invisible cable routing, 93 mm reach, 123 mm drop, 40 cm width
Size: 54, 56
Bontrager Elite Aero VR-CF, alloy, 31.8 mm, invisible cable routing, 93 mm reach, 123 mm drop, 42 cm width
Size: 58, 60, 62
Bontrager Elite Aero VR-CF, alloy, 31.8 mm, invisible cable routing, 93 mm reach, 123 mm drop, 44 cm width
Handlebar tape
: Bontrager Supertack Perf tape
*Stem
: Size: 50

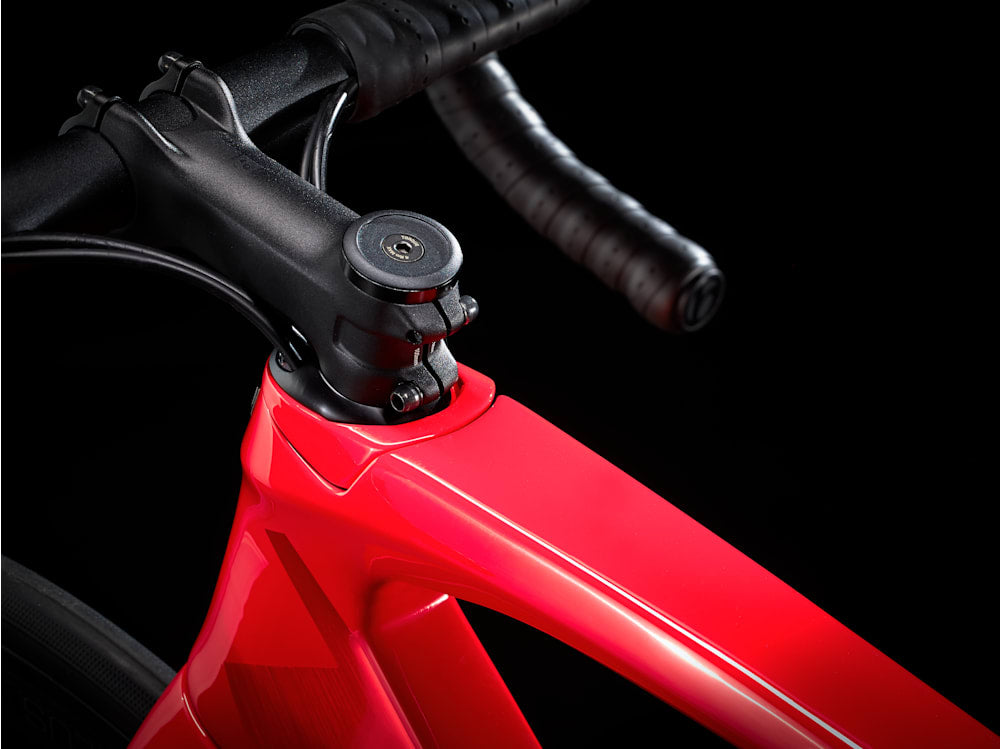

Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 60, 62
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake

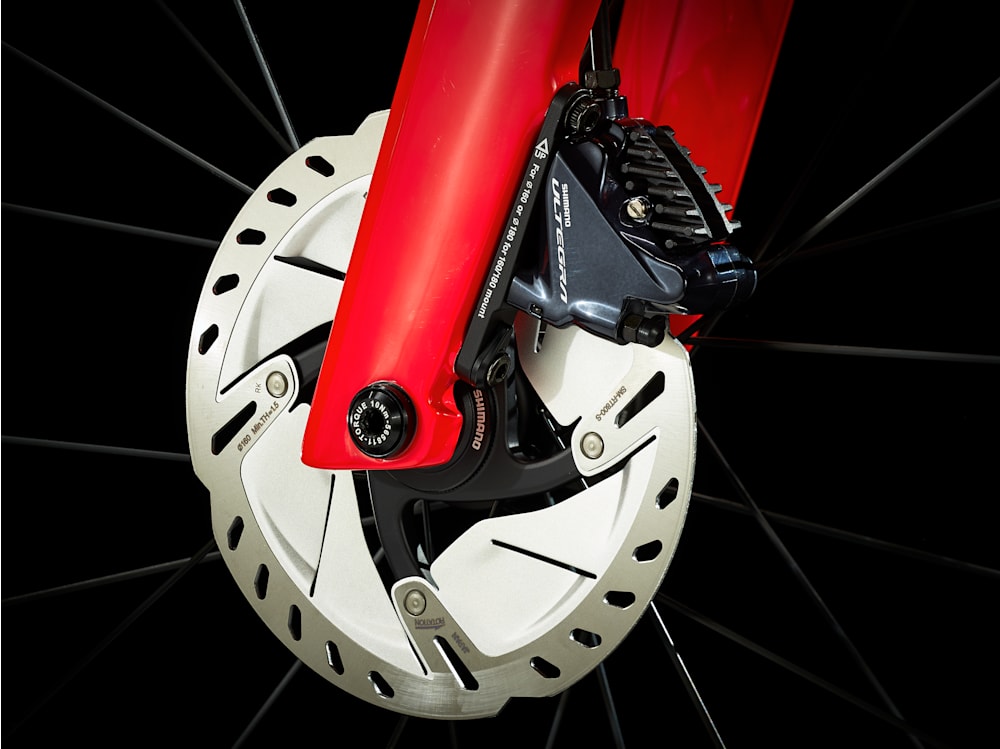

: Shimano Ultegra hydraulic disc
*Brake rotor
: Size: 50, 52, 54, 56, 58, 60, 62
Shimano RT800, CenterLock, 160 mm
Size: 50, 52, 54, 56, 58, 60, 62
Shimano MT800, CentreLock, 160 mm

Weight
: 56 - 8.62 kg / 19.00 lbs
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
