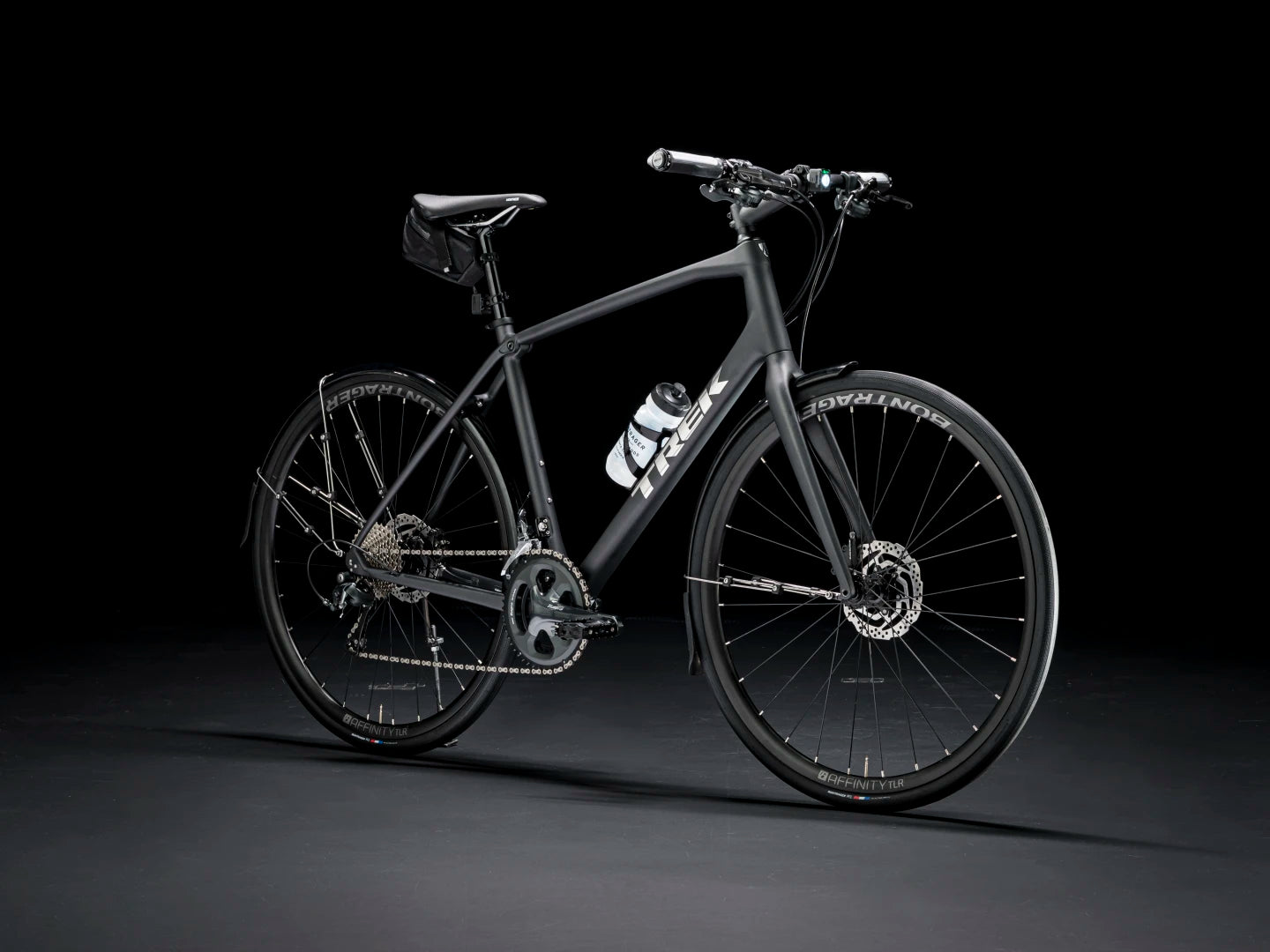

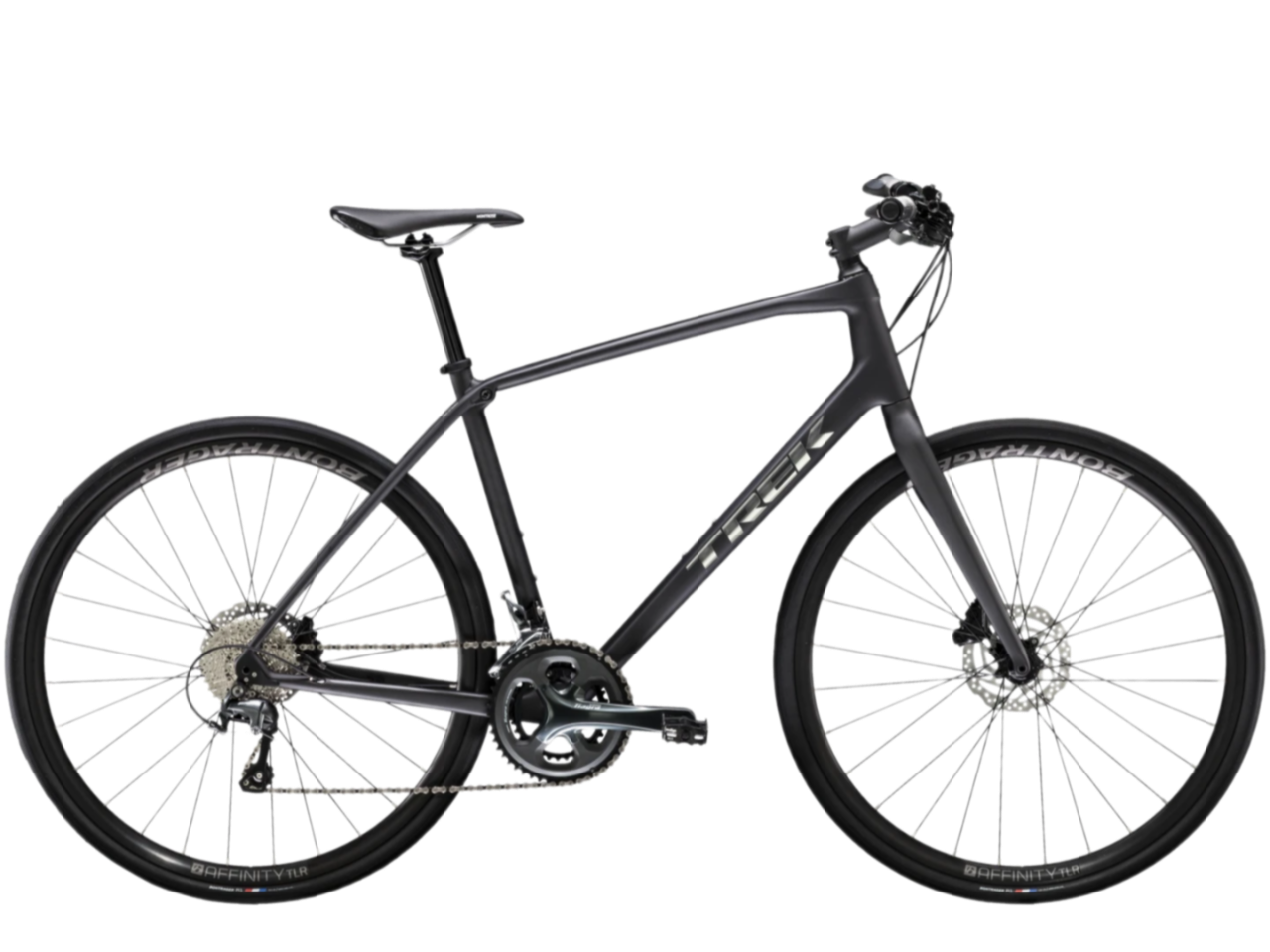

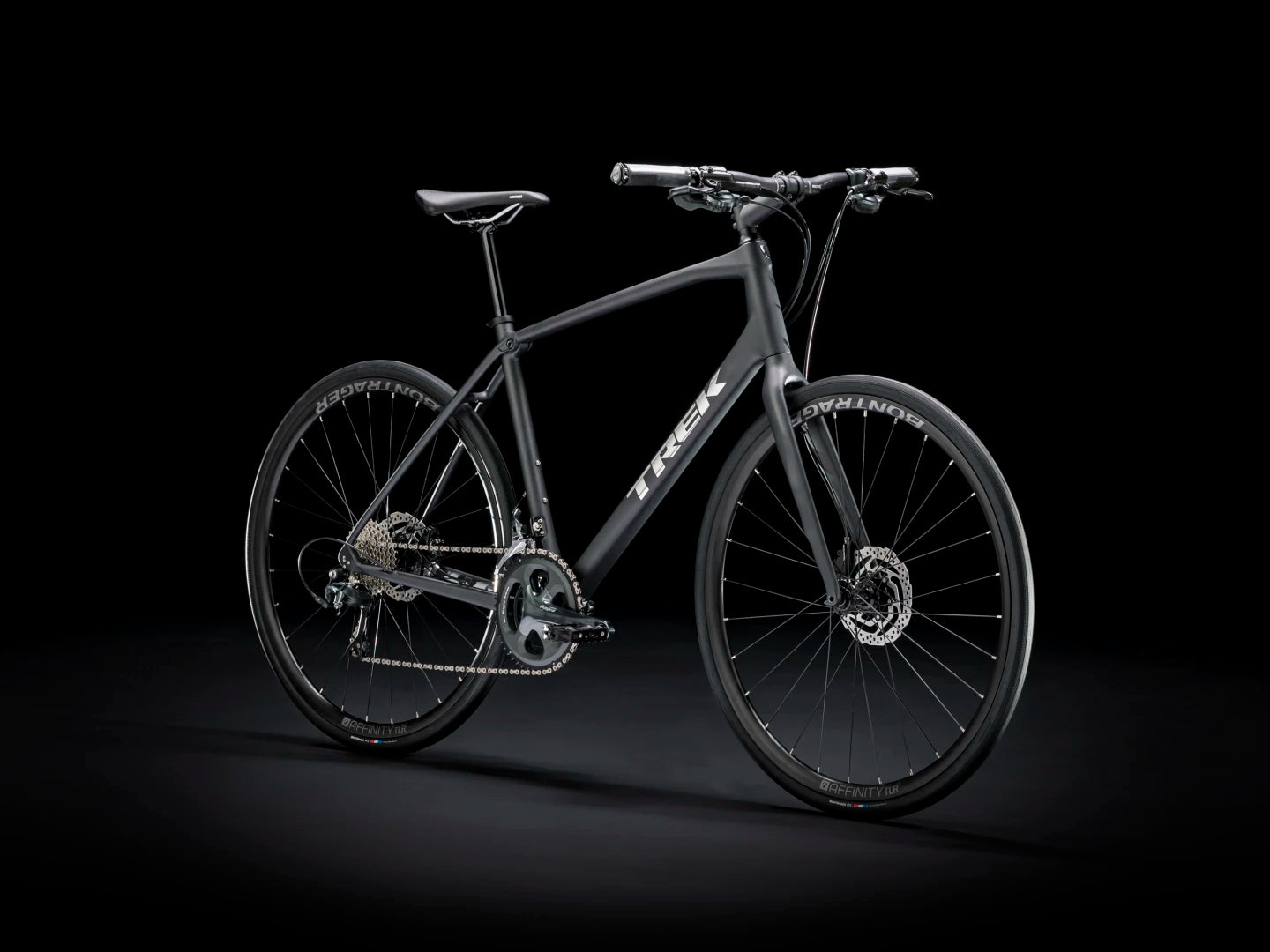

Trek FX Sport 5

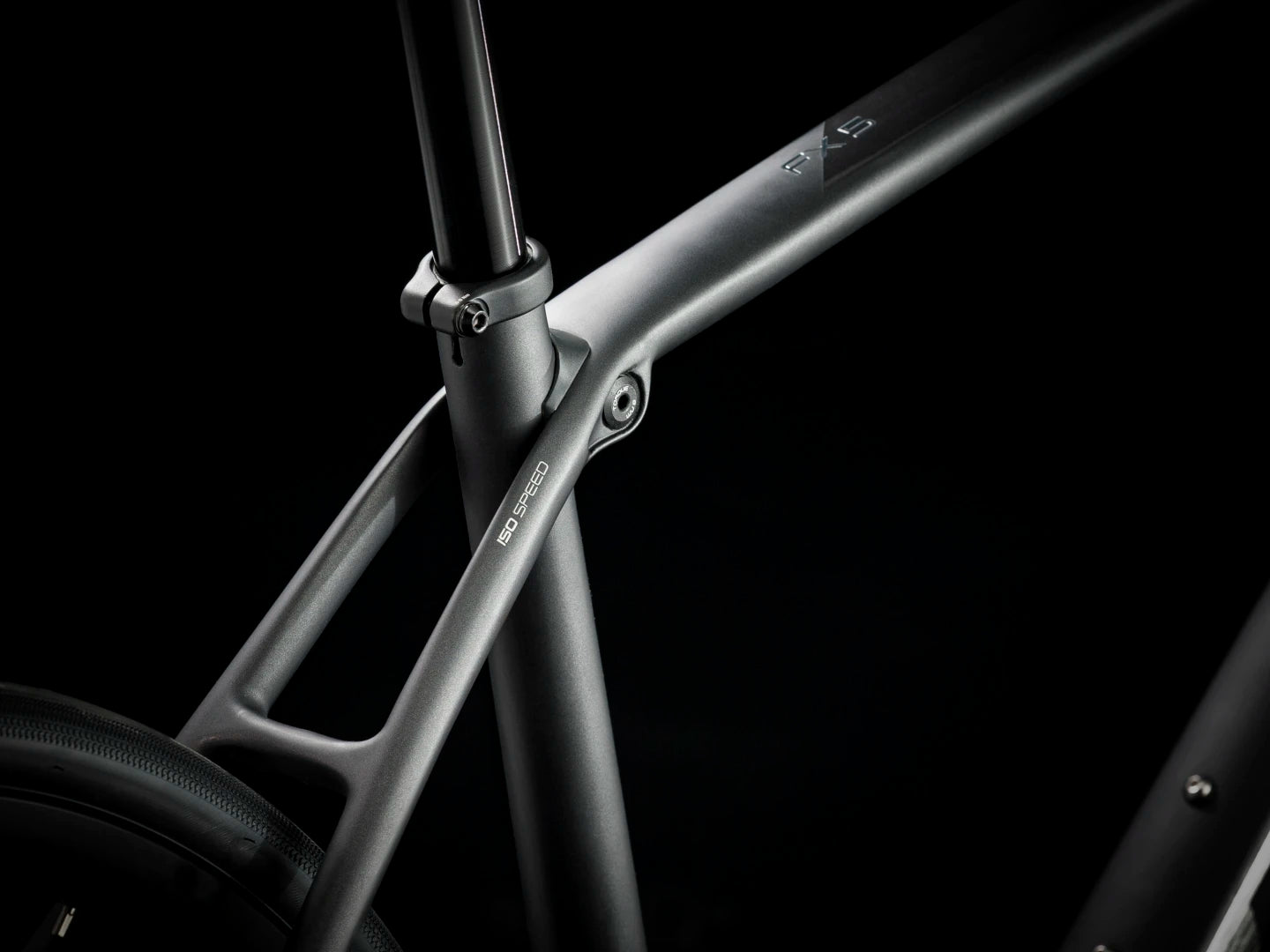

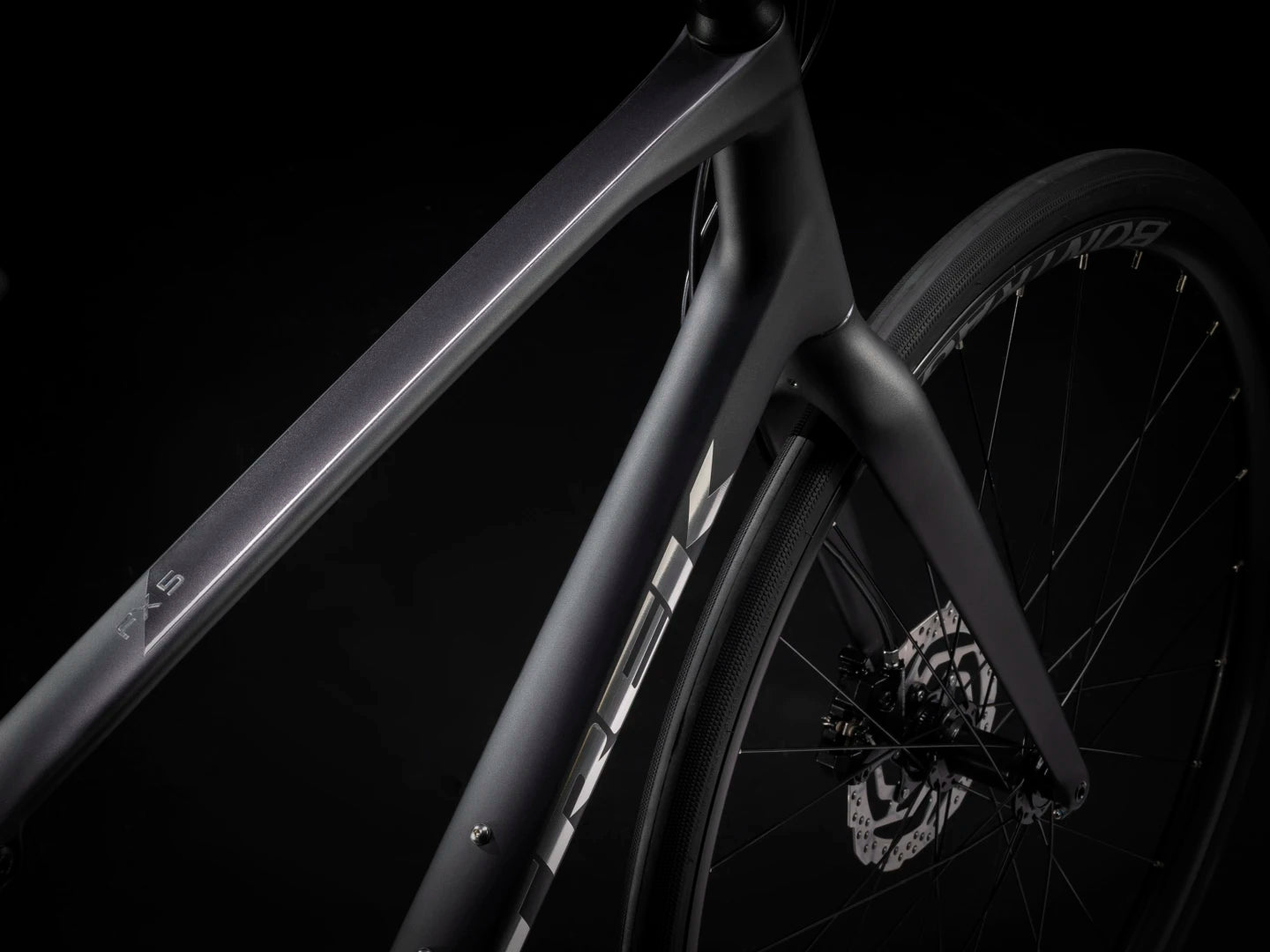

Frame

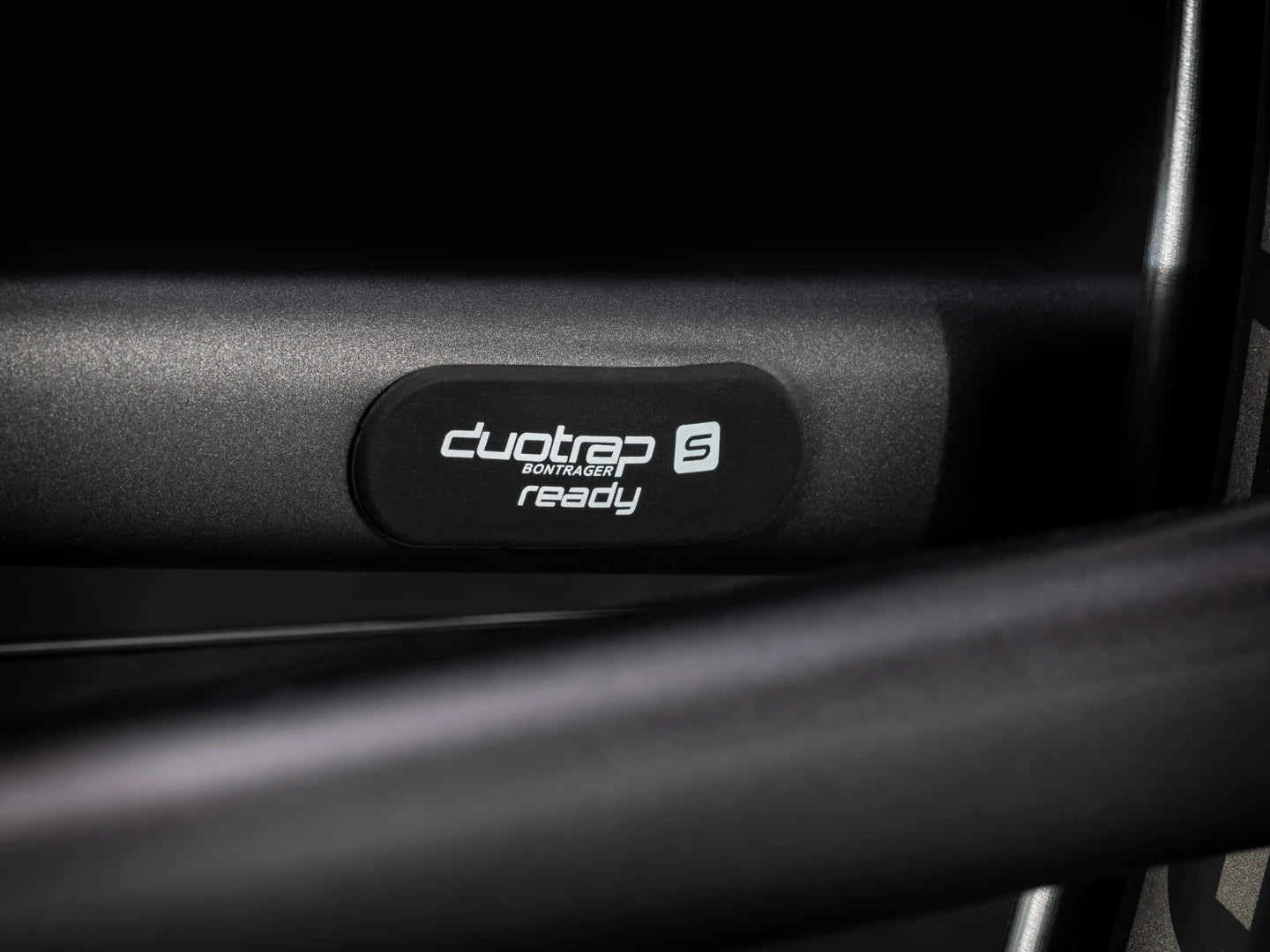

: 400 series OCLV carbon, IsoSpeed, internal routing, 3s chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axle
*Fork
: Size: XS, S, M, L, XL
FX Carbon, threadless alloy steerer, hidden mudguard mounts, flat-mount disc, 405 mm axle-to-crown, 100x12 mm thru axle
Size: XS, S, M, L, XL
FX Carbon, flat mount disc, hidden fender mounts, 405mm axle-to-crown, 100x12mm thru axle

Hub front
: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front
: Bontrager Switch thru axle, removable lever
Hub rear
: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
: Bontrager Switch thru-axle, removable lever

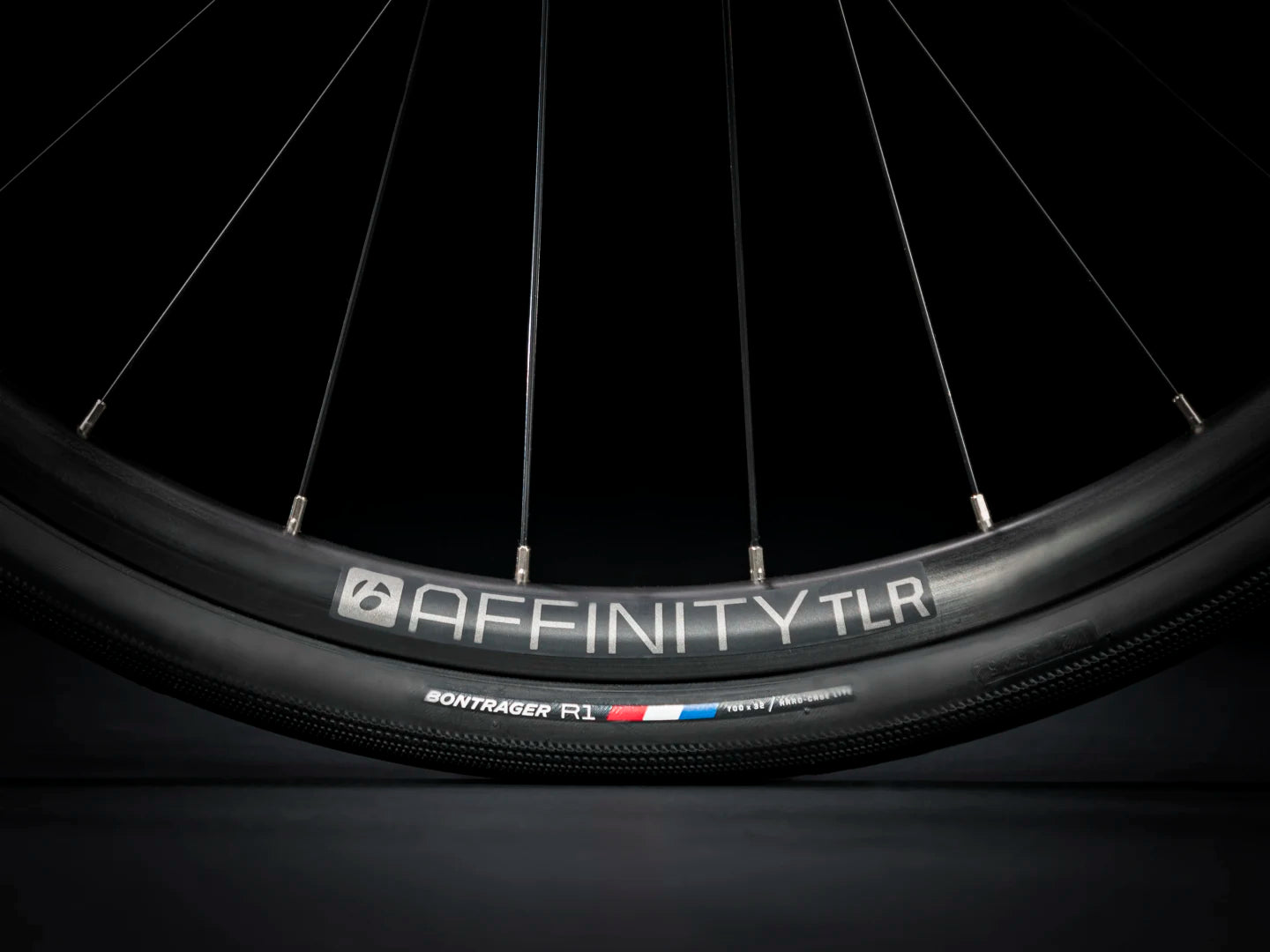

Rim
: Bontrager Affinity Disc, Tubeless Ready, 28-hole, Presta valve
Spokes
: 14 g stainless steel, black
Tyre
: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Max tyre size
: 700x35mm without mudguards, 700x32mm with mudguards

Shifter
: Shimano Tiagra 4700, 10-speed
Front derailleur
: Shimano Tiagra 4700, braze-on
Rear derailleur
: Shimano Tiagra 4700, long cage, 34T max cog

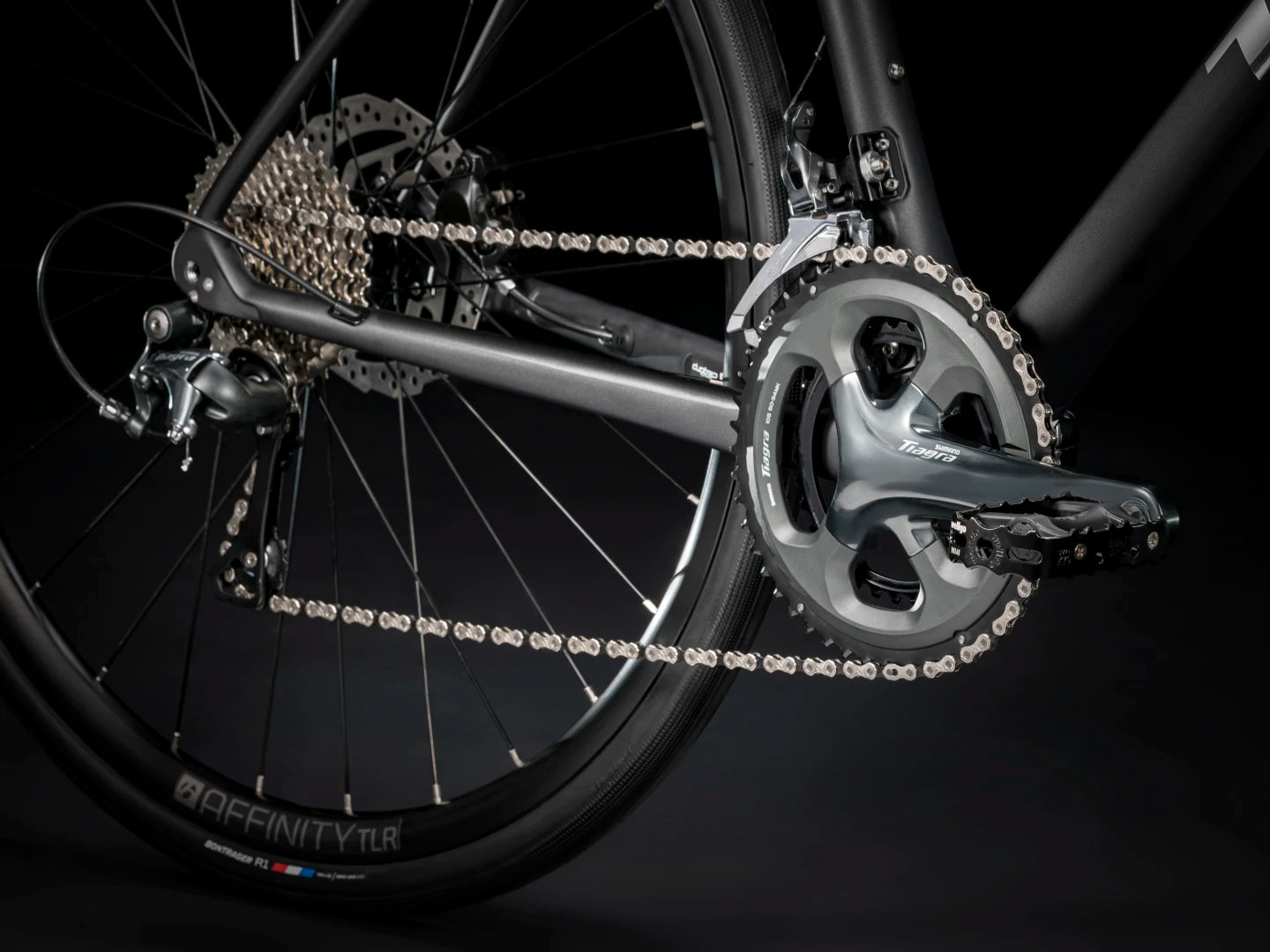

*Crank
: Size: XS, S
Shimano Tiagra 4700, 50/34, 170 mm length
Size: M, L
Shimano Tiagra 4700, 50/34, 172.5 mm length
Size: XL
Shimano Tiagra 4700, 50/34, 175 mm length
Bottom bracket
: Shimano BB71, 86.5 mm, PressFit
Cassette
: Shimano Tiagra HG500, 11-34, 10 speed
Chain
: KMC X10
Pedal
: VP-990AT, resin body, alloy cage, toe clip

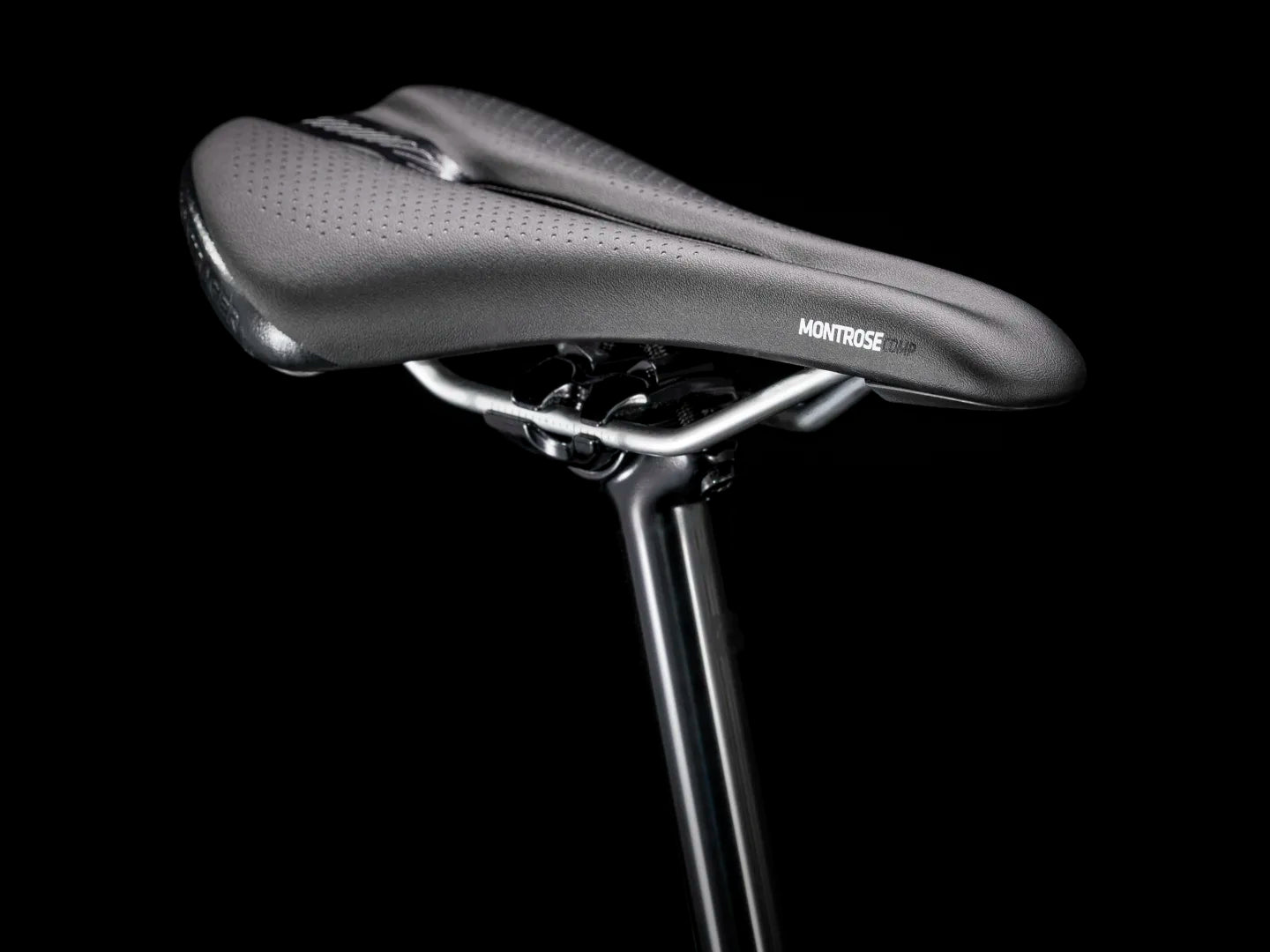

Saddle
: Bontrager Montrose Comp, steel rails, 138 mm width
Seatpost
: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

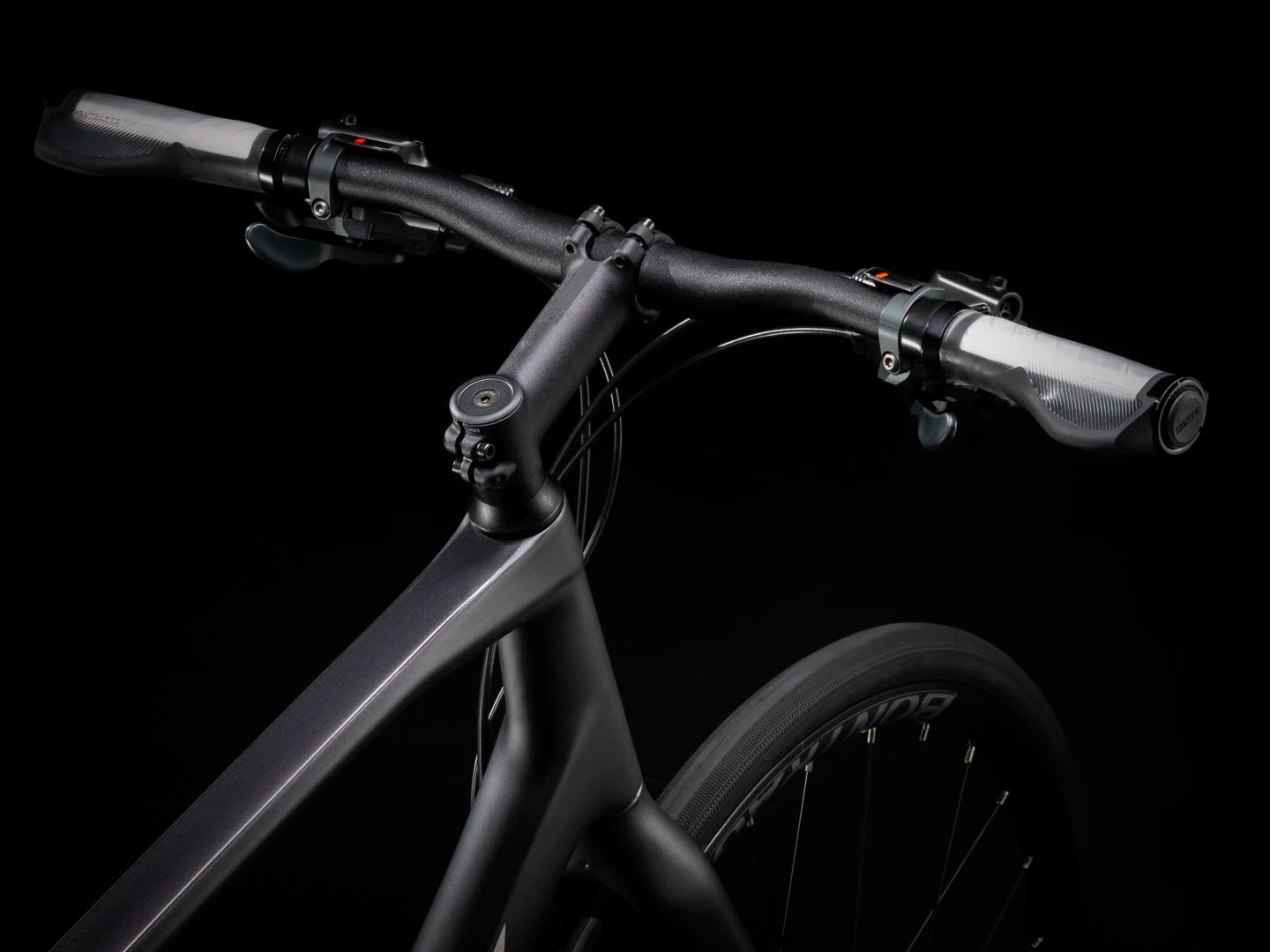

*Handlebar
: Size: XS, S
Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: M, L, XL
Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width

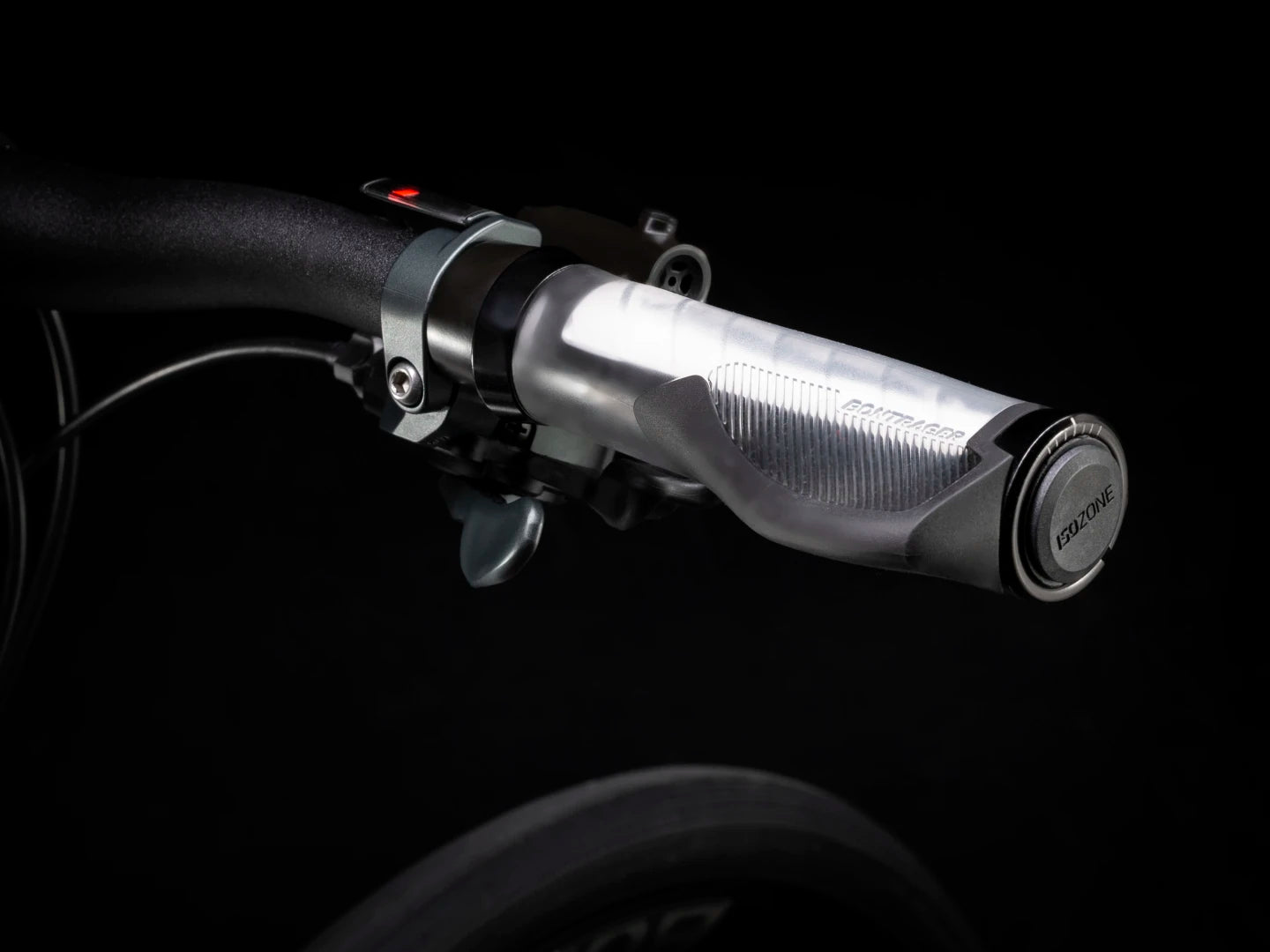

Grips
: Bontrager Satellite IsoZone Plus, lock-on, ergonomic
*Stem
: Size: XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: S, M
Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
Size: L, XL
Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Head set
: 1-1/8" threadless, sealed cartridge bearings

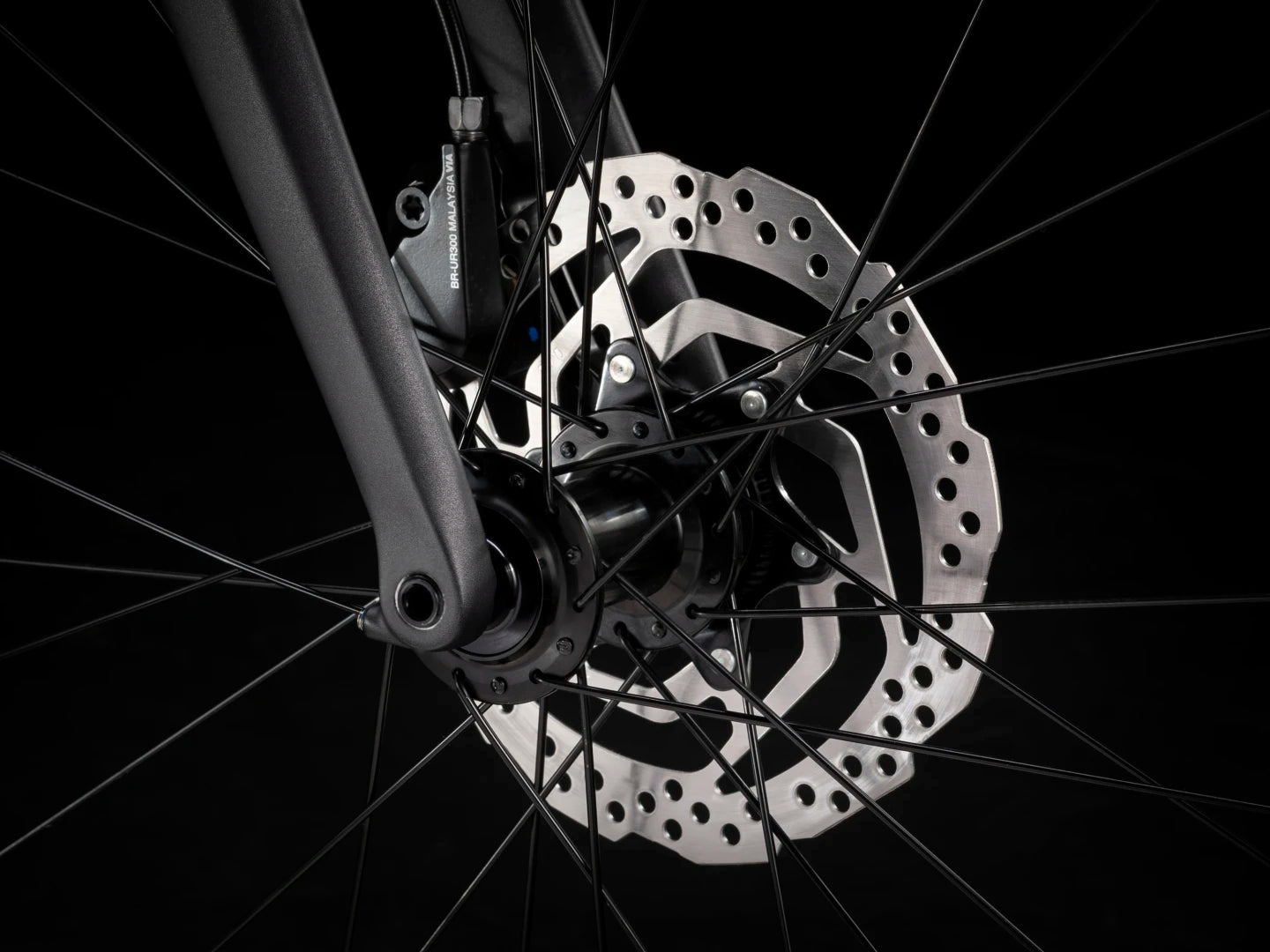

Brake
: Shimano hydraulic disc, MT201 lever, UR300 calliper
Brake rotor
: Shimano RT10, CenterLock, 160 mm
Brake pad
: Brake Pad Shimano Resin Disc Pad B01S

Weight
: 10.35 kg / 22.82 lb
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
