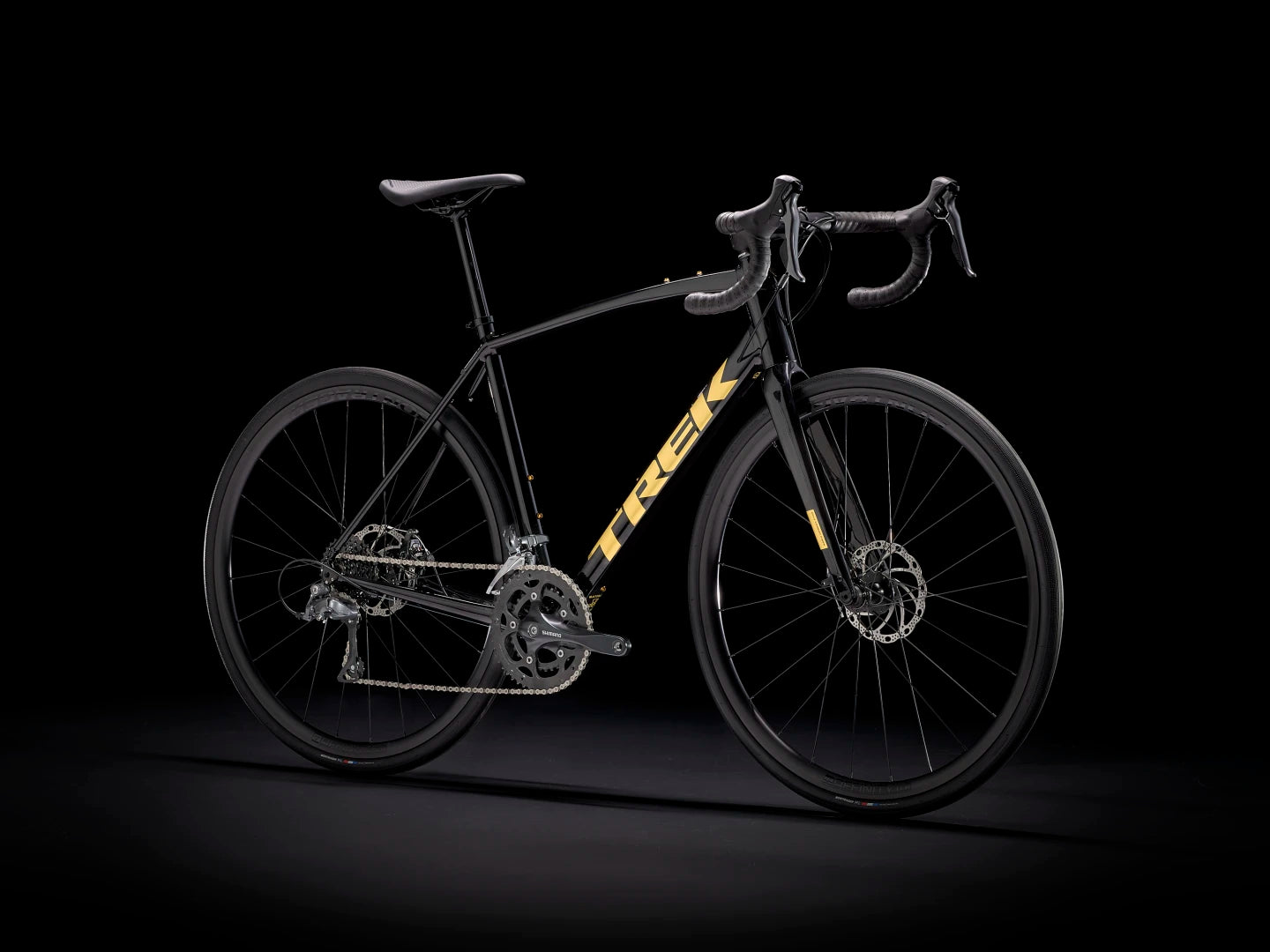

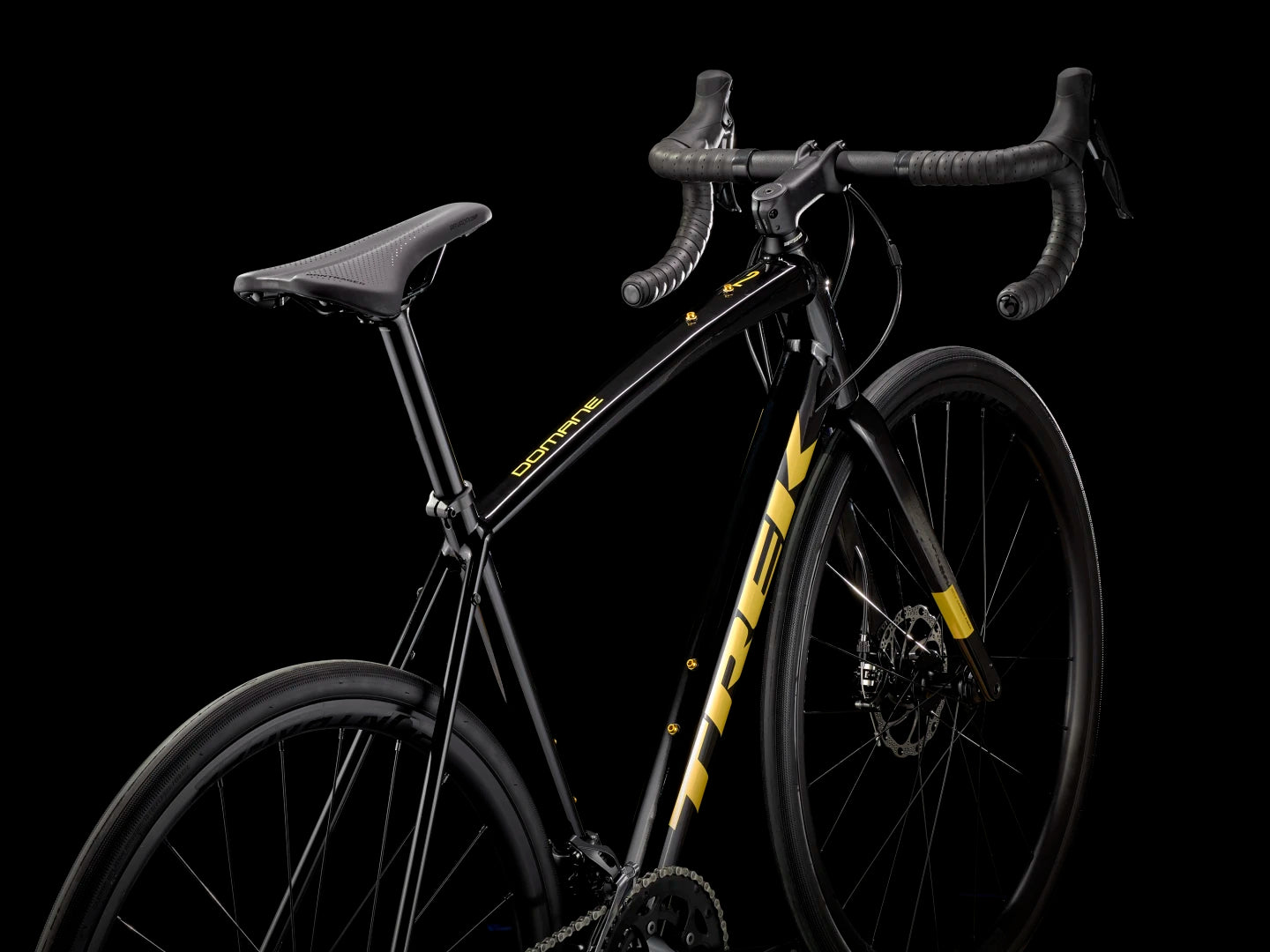

Trek Domane AL 2 Gen 3

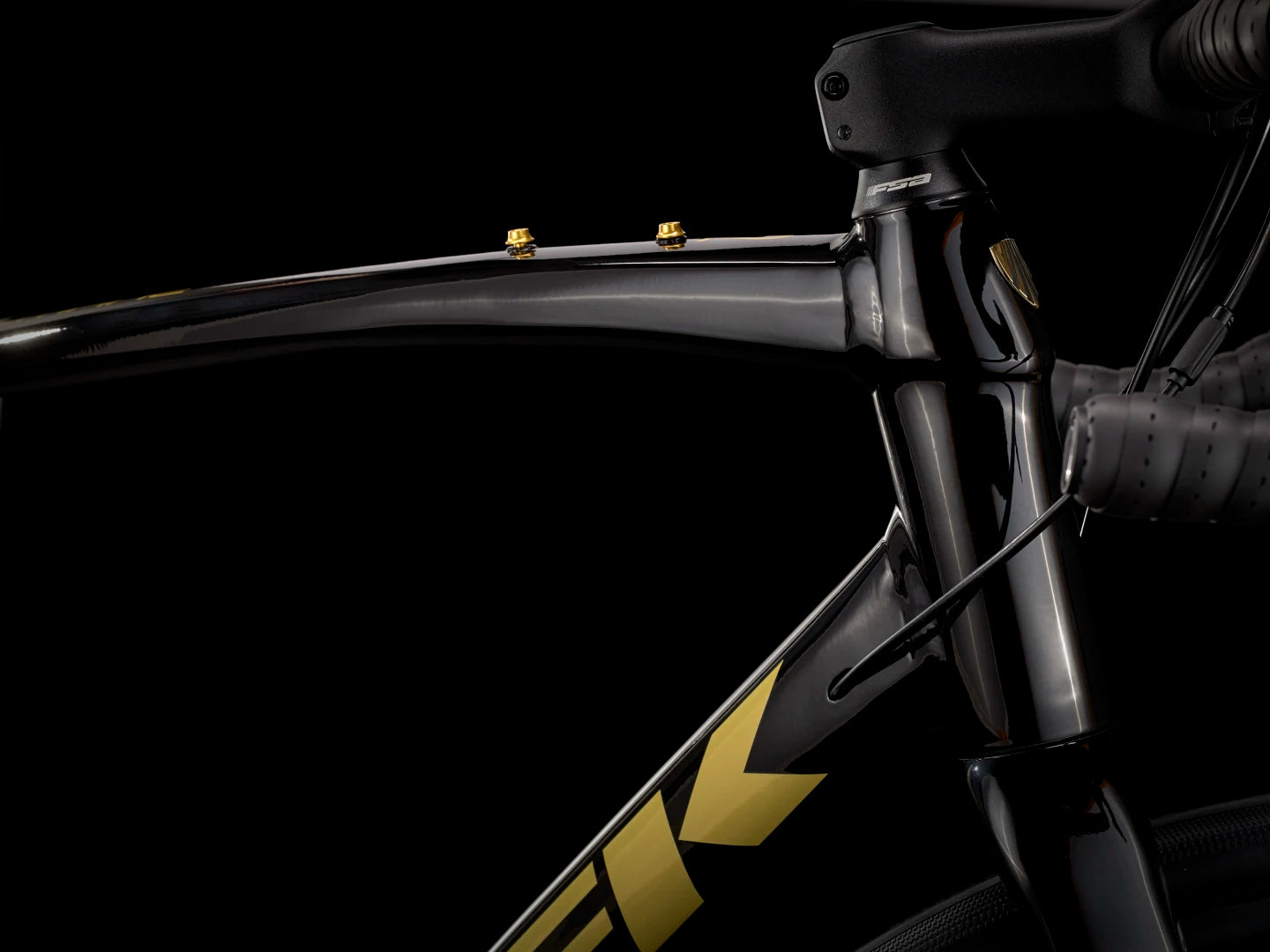

Frame
: 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
*Fork
: Size: 44, 49, 52, 54, 56, 58, 61
Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Size: 44, 49, 52, 54, 56, 58, 61
Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit
: Endurance

Hub front
: Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer front
: Bontrager Switch thru axle, removable lever
Hub rear
: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
: Bontrager Switch thru-axle, removable lever
*Rim
: Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes
: 14 g stainless steel, black
Tyre
: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Max tyre size
: 35mm without mudguards, 32mm with mudguards

*Shifter
: Size: 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-R, 8 speed, right
Size: 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-L, 8 speed, left
Front derailleur
: Shimano Claris R2000, 31.8 mm clamp
Rear derailleur
: Shimano Claris R2000, medium cage, 34T max cog

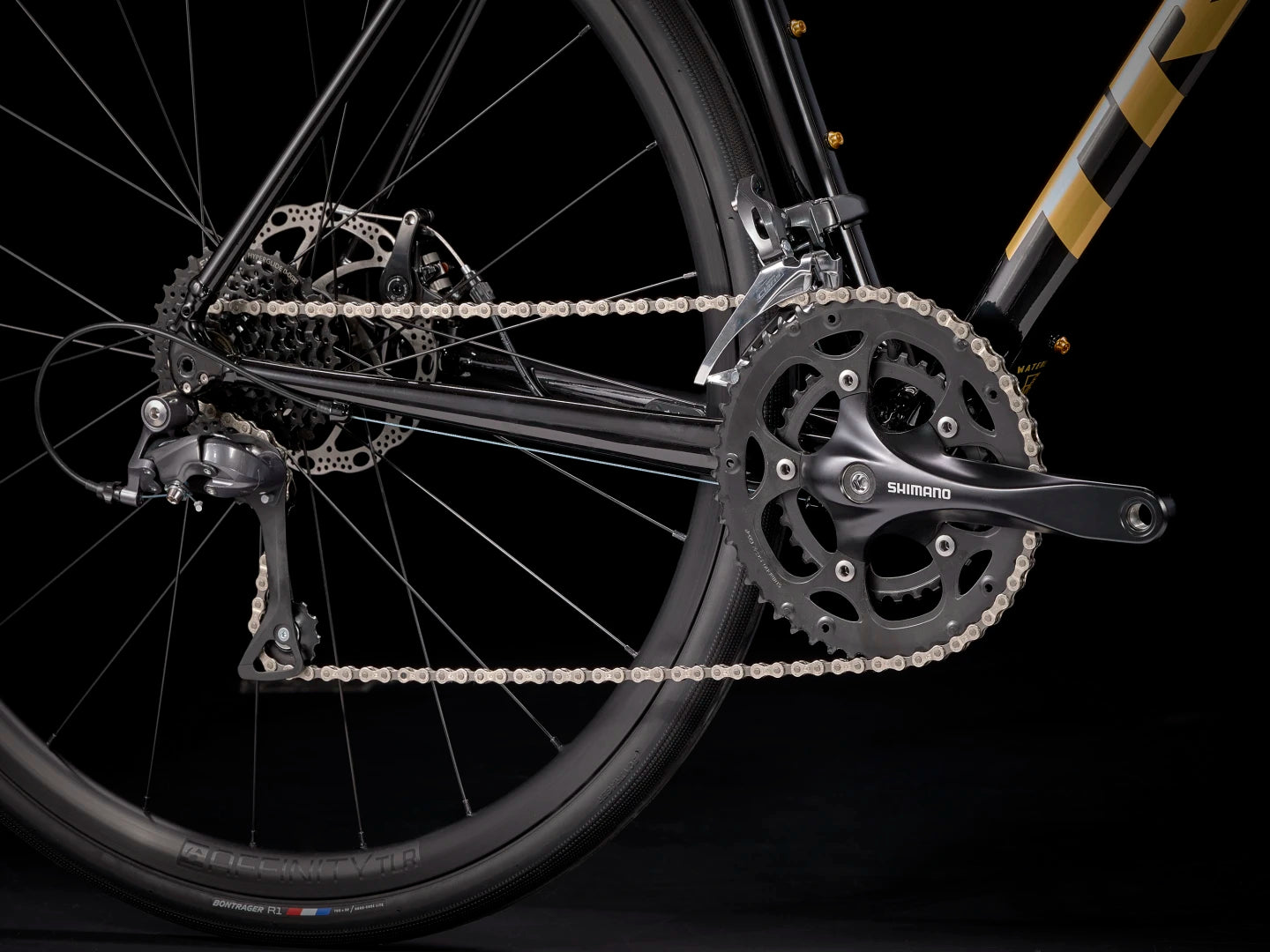

*Crank
: Size: 44
Shimano RS200, 50/34 (compact), 165 mm length
Size: 49, 52, 54
Shimano RS200, 50/34 (compact), 170 mm length
Size: 56, 58, 61
Shimano RS200, 50/34 (compact), 175 mm length
Bottom bracket
: Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle
Cassette
: Shimano HG31, 11-32, 8-speed
Chain
: Shimano Sora HG71, 8 speed
Max. chainring size
: 1x: 42T, 2x: 50/34

*Saddle
: Size: 44, 49, 52
Bontrager Verse Comp, steel rails, 155 mm width
Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145 mm width
*Seatpost
: Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

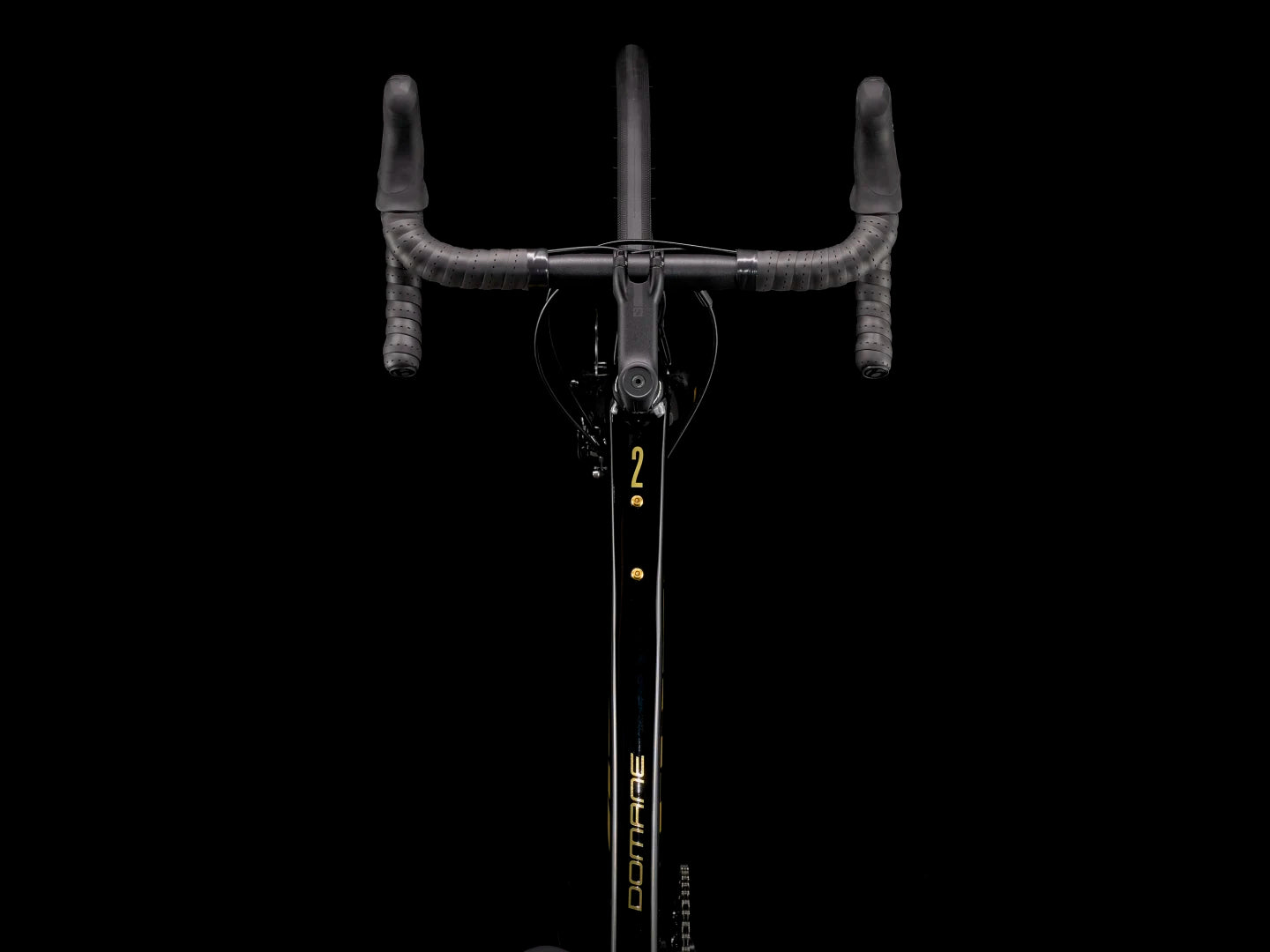

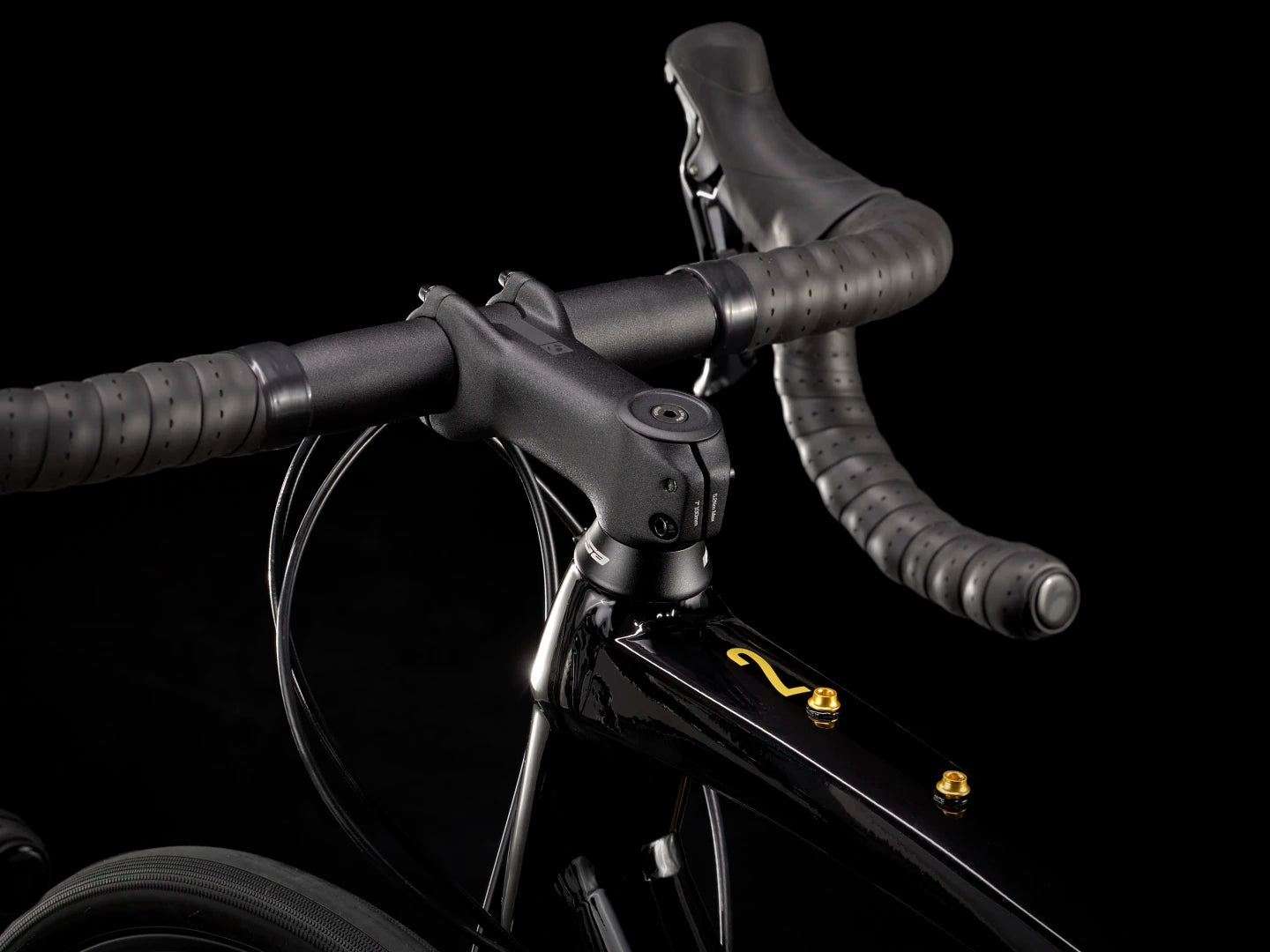

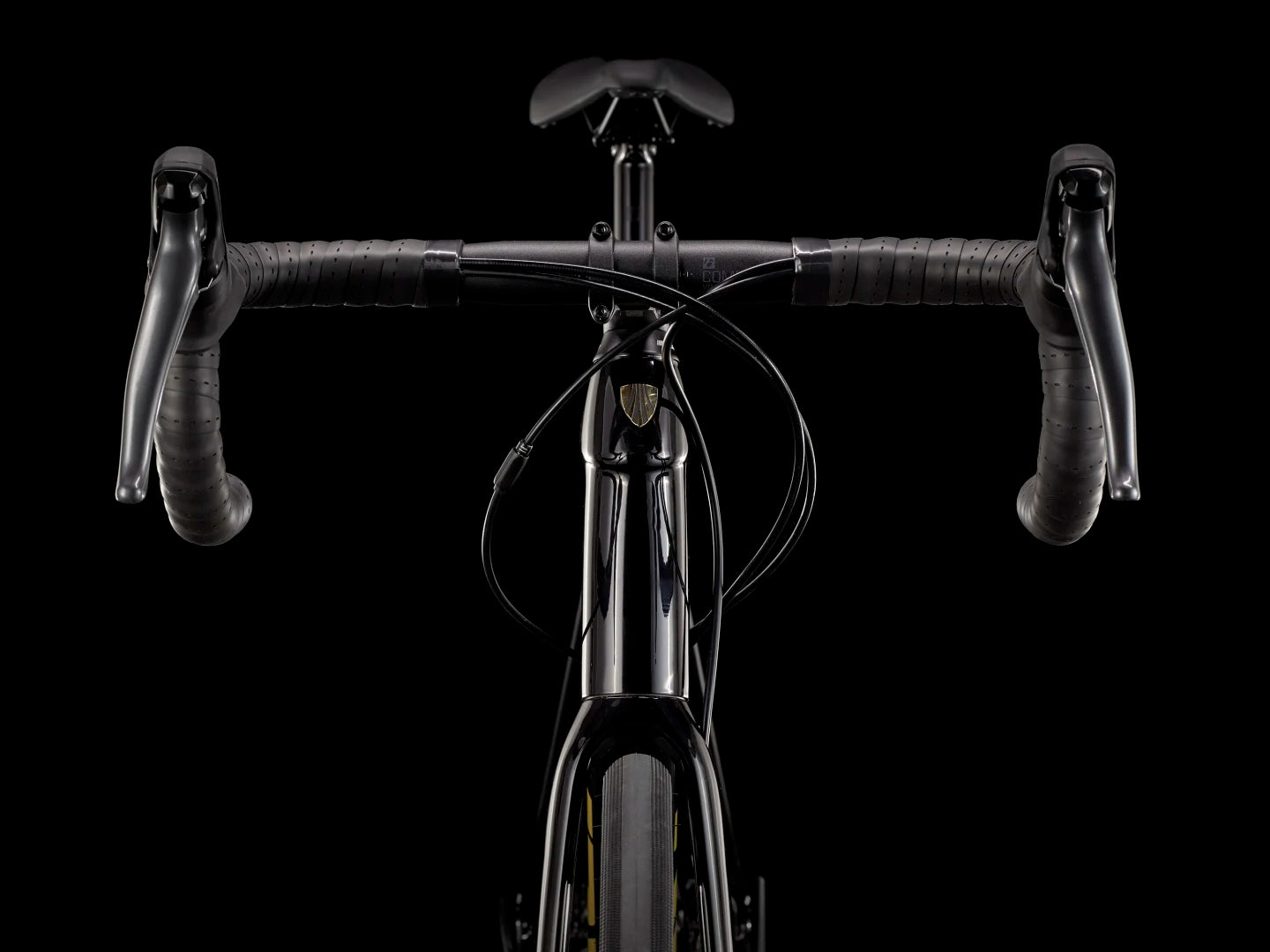

*Handlebar
: Size: 44, 49
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
Size: 52
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Size: 58, 61
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape Bontrager Supertack Perf tape
*Stem
: Size: 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Head set
: FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brake
: Tektro C550 mechanical disc brake, dual piston, flat-mount, 160 mm rotor
Rotor size
: Max brake rotor sizes: 160mm front & rear

Weight
: 56 - 10.76 kg / 23.73 lbs
Weight limit
: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
